1 Introduction
Electrocardiography (ECG)-gated myocardial perfusion imaging (MPI) by single photon emission computed tomography (SPECT) is the main clinical force in the identification of ischemic myocardium. It provides not only perfusion data, but also left ventricular (LV) end-diastolic volume (EDV), end-systolic volume (ESV) and ejection fraction (EF). LV volumes and EF are important diagnostic and prognostic information for patients with heart disease. As the normal gated MPI database is established on basis of western patients, we investigate in this paper the accuracy and repeatability of the parameters gained by gated MPI from Chinese patients. The methods to gain the data include angiography, echocardiography, magnetic resonance imaging (MRI), equilibrium radionuclide ventriculography (ERV), and positron emission tomography (PET). Many studies [1-6] compared the gated MPI by SPECT with the other methods in LV volumes and functional measurements. There were moderate to high correlations among the results of different methods; however, large discrepancies in patients with small LV [2, 7] were investigated. Unfortunately, there was no determined cut-off value of LV volume for evaluating LV volume and function accuracy, especially for Chinese. Here we aimed at answering this question.
2 Materials and Methods
2.1 Population
From January 2014 to July 2015, patients with definite or suspected coronary artery disease (CAD) who were referred for 99mTc sestamibi (99mTc-MIBI) perfusion imaging with a protocol of 2-day rest/exercise, rest only, or exercise only, and resting echocardiography within a 1-week period. Exclusion criteria were irregular heart rate and myocardial infarction. This retrospectively study was approval by our hospital ethics committee without patients’ informed consent.
A total of 110 patients (59.8±12.8 years; 30 women, 80 men) were included in this study. Their weight, height, and body mass index (BMI) were recorded. The patients whose LV EF<50% measured by echocardiography were defined as heart failure, while the rest were normal heart function. Two-day rest/exercise MPI (n=50), resting MPI (n=46), or exercise MPI (n=14) were followed by the participants.
2.2 SPECT imaging protocols.
The 99mTc-MIBI (740 MBq) was injected at rest or during ≥85% of maximal age-predicted heart rate achieved on an upright bicycle. Patients drank 250 mL of milk 30 min later. Supine eight-frame ECG-gated MPI SPECT images were acquired 1 h post-exercise or 2 h post-injection at rest. The images were gained on a dual-detector gamma camera (Infinia 4; GE Healthcare) with low-energy, high-resolution collimators using 60 projections over 180° from the right anterior oblique 45° to the left posterior oblique 45° at 20 s per projection. The energy window was set at 126–154 keV, and a 64 × 64 matrix, zoom 1.3 was used. Patient’s average heart rates during data acquisition were recorded. Images were reconstructed with MyoMetrix software (GE Healthcare) handled by a single experienced nuclear medicine physician. The projection data were pre-filtered using a Butterworth filter (critical frequency, 0.4 cycles per pixel; power, 10) and reconstructed by filtered back projection with scatter correction. The EDV, ESV and EF of LV were automatically computed by MyoMetrix code [6, 8].
2.3 Echocardiographic measurements
A single experienced cardiologist blinded to the patient group assignments performed all the echocardiographic studies using an ultrasound system (iE Elite; Philips Medical Solutions) equipped with an S5-1 transducer. The images were obtained from the parasternal and apical positions using two-dimensional, M-mode, and Doppler echocardiographic techniques in the left lateral decubitus position. In each patient, EDV, ESV and EF were measured using two-dimensional echocardiography in two- and four-chamber apical views by the modified Simpson's method [1]. The echocardiographic data were averaged from three measurement cycles.
2.4 Statistical analysis
The normal data distribution, t test, chi-square test, and correlation coefficient calculation were performed as appropriate. The data are presented as value (interquartile range) since they were not normally distributed. Linear regression analysis was performed to calculate Pearson’s correlations between gated MPI and echocardiographic LV function parameters. The cutoff value of ESV was 10, 15, 20, 25 or 30 mL. Two-tailed values of P<0.05 were considered statistically significant.
3 Results
Forty-three heart failure patients and 67 normal heart function patients were included in this study. Their clinical characteristics were shown in Table 1. The heart failure rate was almost 50% (39/80) in male patients, which was significantly higher than female (4/30) (P<0.01), while the age, weight, and BMI did not differ significantly between the heart failure and normal group. As we know, the resting heart rate, EDV, ESV of heart failure patients were significantly larger than those whose heart function were normal (P<0.01). However, no difference in the post-exercise heart rate was found between heart failure and normal groups (Table 2). And the resting and post-exercise heart rates did not differ significantly (t<1.50, P>0.05).
| Patients | EF<50% | EF≥50% | P |
|---|---|---|---|
| Female | 4 | 26 | |
| Male | 39 | 41 | <0.01* |
| Age (years) | 61.2±14.3 | 59.1±11.8 | >0.05(t=0.47) |
| Weight (kg) | 69.3±12.5 | 66.2±10.1 | >0.05(t=1.19) |
| Height (m) | 1.67±0.05 | 1.64±0.07 | 0.02(t=2.37) |
| BMI (kg·m−2) | 24.9±4.5 | 24.8±3.4 | 0.99(t=0.01) |
| Items | EF<50% | EF≥50% | P | |
|---|---|---|---|---|
| Heart rate (bpm)* | ||||
| At rest | 82.2±19.5 | 69.1±11.5 | <0.01(t=3.81) | |
| P.E.** | 78.5±13.6 | 72.9±13.2 | >0.05(t=1.64) | |
| EDV (mL) | ||||
| At rest | 189.2±70.3 | 93.0±37.3 | <0.01(t=9.16) | |
| P.E. | 200.3±69.9 | 91.2±34.0 | <0.01(t=9.62) | |
| ESV (mL) | ||||
| At rest | 145.2±64.1 | 32.6±19.5 | <0.01(t=12.3) | |
| P.E. | 155.5±64.7 | 31.2±18.7 | <0.01(t=11.7) | |
| EF (%) | ||||
| At rest | 25.7±9.6 | 66.3±9.0 | <0.01(t=-18.4) | |
| P.E. | 24.7±9.7 | 67.0±8.4 | <0.01(t=-15.3) | |

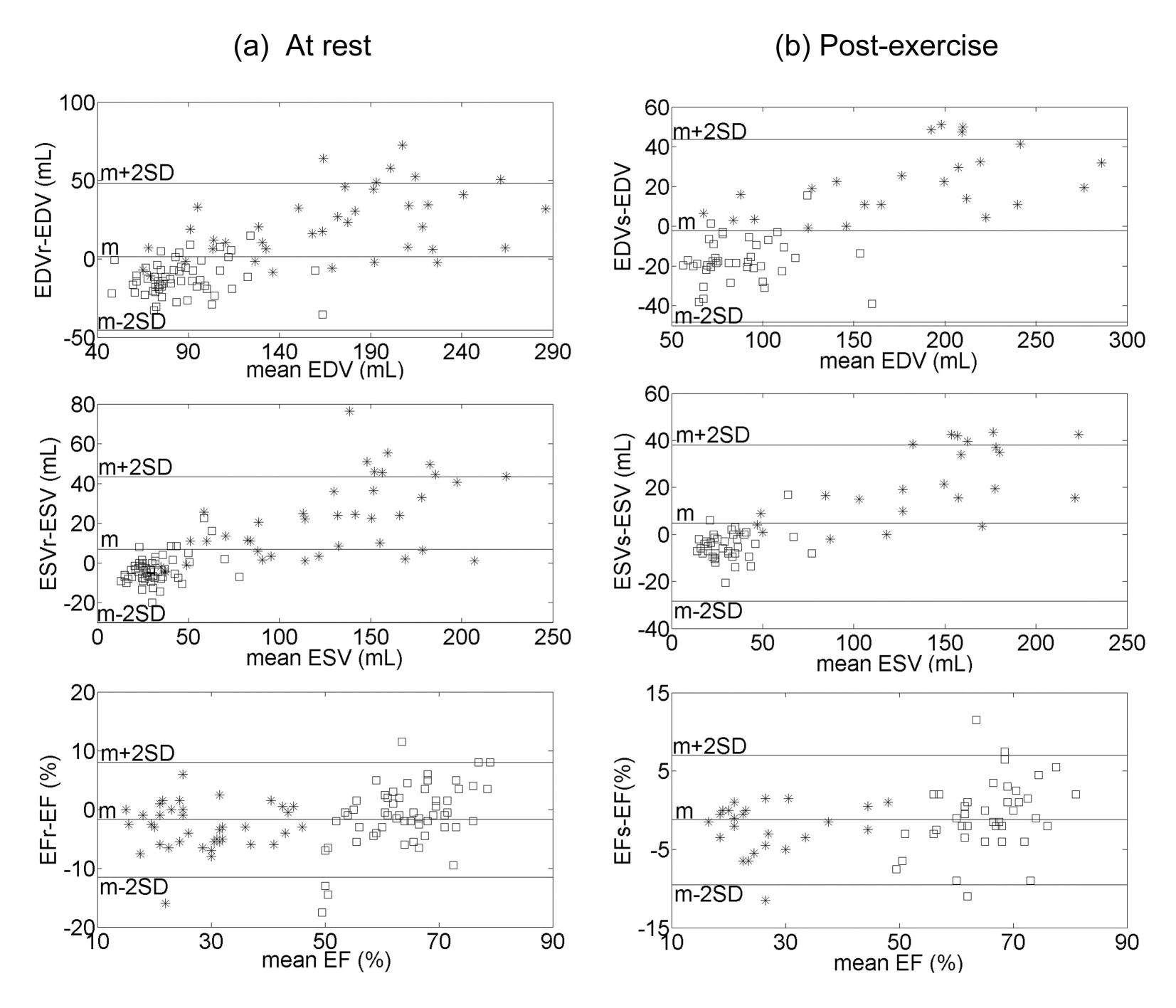

The Bland-Altman plots (Fig. 1) showed good correlation between gated MPI and echocardiographic EDV, ESV and EF. The differences in EDV (5/96), ESV (6/96), and EF (5/96) between the gated resting MPI and echocardiography, over 2SD (standard deviation) from the total mean difference are shown in Fig.1(a). The differences in EDV (4/64), ESV (6/64), and EF (3/64) between the gated post-exercise MPI and echocardiography, over 2SD from the total mean difference, are shown in Fig.1(b). The discrepancy of EDV and ESV extended as the volume increased; however, the EF discrepancy did not show this feature.
Table 3 shows moderate to high correlations between the gated MPI and echocardiographic EDV, ESV and EF, with the correlation coefficients of 0.75–0.95 (P<0.01). The ESV obtained from exercise MPI ≥ 15 mL, EF calculated from post-exercise MPI and echocardiography was highly correlated (r=0.95, P<0.01), and the linear regression equation was y=0.92x+7.8 (Table 3, Fig. 2). However, they were not significantly correlated when ESV<15 mL; and post-exercise EF was obviously smaller than echocardiographic EF (t=4.60, P<0.01) when ESV≥15 mL, but they did not differ greatly (t=1.68, P=0.12) when ESV<15 mL.
| ESV by ECG-gated MPI | >0 | ≥10 mL | ≥15 mL | ≥20 mL | ≥25 mL | ≥30 mL |
|---|---|---|---|---|---|---|
| EDV- EDVr (mL) | ρ=0.76 | ρ=0.75 | ρ=0.77 | ρ=0.77 | r=0.78 y=0.506x+54.3 | r=0.77 y=0.526x+49.9 |
| ESV- ESVr (mL) | ρ=0.85 | ρ=0.83 | ρ=0.86 | ρ=0.87 | ρ=0.88 | r=0.86 y=0.569x+18.3 |
| EF- EFr (%) | ρ=0.86 | ρ=0.84 | ρ=0.87 | r=0.89 y=0.84x+12.2 | r=0.89 y=0.884x+10.7 | r=0.86 y=0.887x+10.5 |
| EDV- EDVs (mL) | ρ=0.77 | ρ=0.78 | ρ=0.79 | ρ=0.78 | r=0.83 y=0.527x+58.8 | r=0.82 y=0.530x+58.0 |
| ESV- ESVs (mL) | ρ=0.86 | ρ=0.88 | ρ=0.89 | ρ=0.88 | r=0.94 y=0.610x+18.8 | r=0.93 y=0.603x+20.2 |
| EF – EFs (%) | ρ=0.85 | ρ=0.87 | r=0.95 y=0.92x+7.8 | r=0.94 y=0.937x+7.3 | r=0.94 y=0.961x+6.6 | r=0.93 y=0.943x+7.0 |
As ESV gained from resting MPI was ≥20 mL, EF calculated by resting MPI and echocardiography was moderately correlated (r=0.89, P<0.01); and the linear regression equation was y=0.84x+12.2 (Table 3, Fig. 3). Oppositely, they did not correlated significantly when ESV was <20 mL; and the resting EF was significantly smaller than echocardiographic EF (t=5.60, P<0.01) as ESV≥20 mL, but was significantly larger than echocardiographic EF (t=2.82, P=0.01) at ESV <20 mL.
The post-exercise ESV was significantly smaller than echocardiography when post-exercise ESV was <15 mL (t=6.00, P<0.01) (Table 4); while at ESV was ≥ 15 mL, it was significantly larger than that of echocardiography (t=3.33, P<0.01). Similarly, the resting ESV was smaller than that of echocardiography at ESV <20 mL (t=6.84, P<0.01) (Table 4); while at ESV≥ 20 mL, it was significantly larger than that of echocardiography (t=4.74, P<0.01).
| MPI protocol | ESV (mL) | Sex | Age (year) | Number | ESV (mL)/EF (%) | |||
|---|---|---|---|---|---|---|---|---|
| MyoMetrix | Echocardiography | |||||||
| At rest | <20 | Female | 59.6±11.1 | 11/24 | 13.5±5.1 | 72.9±7.7 | 27.5±8.6 | 68.2±6.3 |
| Male | 61.8±14.2 | 6/72 | 13.2±5.3 | 74.8±7.4 | 31.3±8.3 | 66.3±8.4 | ||
| Post-exercise | <15 | Female | 57.9±10.6 | 8/16 | 11.4±2.4 | 71.1±9.5 | 30.5±9.8 | 66.9±7.4 |
| Male | 60.7±12.5 | 3/48 | 12.0±2.6 | 79.0±4.0 | 25.3±8.5 | 70.3±8.5 | ||
4 Discussion
4.1 About our findings
LV EDV, ESV and EF play major roles in the management of patients with heart disease. We have compared ECG-gated at rest and post-exercise MPI imaging and echocardiographic EDV, ESV and EF, and confirmed that the data obtained automatically by MyoMetrix code were correlated, moderately to highly, to the echocardiography results.
When post-exercise MPI ESV was ≥15 mL, excellent Pearson’s correlation (r=0.95) was seen with post-exercise gated MPI and echocardiographic EF. When resting MPI ESV was ≥20 mL, good Pearson’s correlation (r=0.89) was seen with resting gated MPI and echocardiographic EF. However, no significant correlation was found when post-exercise MPI ESV was <15 mL or resting MPI ESV was <20 mL. Our results were similar with those of previous studies. Maret E et al. [9] showed that EF gained by manual Simpson testing had good correlation versus MPI (r=0.80) in 60 consecutive patients with known or suspected CAD. Hatipoglu F et al.[6] observed that EF calculated by MyoMetrix had good correlation with echocardiography in 30 patients with suspected CAD (r=0.78). Lipiec P et al.[2] observed good correlation between gated resting MPI and echocardiographic EF (r=0.88), but there were large discrepancies in patients with a small LV. Nakajima K, et al. [10] developed a volume-dependent edge correction algorithm to obtain an accurate ESV and EF for small hearts, but they did not compare their findings with echocardiography or MRI images. With proper ESV cutoff values, we obtained the strongest correlation between gated MPI and echocardiographic EF among the aforementioned studies.
Moderate to high correlation (ρ, r≥0.75) was observed between gated MPI and echocardiographic EDV and ESV in this study. However, the EDV difference was not significant (t<0.82, P>0.05), while gated MPI ESV was significantly larger than that of echocardiography (t>2.33, P<0.03). These were confirmed by other authors. Nakae I et al.[11] found that EDV and ESV values gained from gated MPI and echocardiography were moderately correlated (r=0.82, 0.85) in 60 patients with suspected or definite heart disease. Nichols K et al.[1] reported gated MPI and echocardiographic EDV and ESV showed high correlation in 33 patients (r=0.90, 0.94). Cwajg E et al.[3] obtained a good correlation between gated MPI and echocardiographic EDV and ESV; and they found that ESV data by gated MPI was similar to the echocardiography findings (P>0.05), while EDV of echocardiography was significantly larger (P<0.01).
In Table 4, because of the partial volume effect (PVE), a small ESV calculated by MyoMetrix (post-exercise ESV<15 mL, resting ESV<20 mL) was significantly smaller than that of echocardiography (P<0.01). Almost 50% of female patients were of small ESV, while less than 10% of male patients had small ESV. This suggests a modified MPI data acquisition protocol for female patients whose heart function was normal. Hedeer F, et al.[8] observed that gated MPI underestimated ESV compared to cardiac MRI in 100 patients with known or suspected CAD. Nakajima K et al.[10] showed that, in small hearts (ESV<20 mL), Quantitative Gated SPECT underestimated ESV and overestimated EF. Although ESV measured by MyoMetrix exceeded the aforementioned cutoff value, it was significantly larger than that of echocardiography (P<0.01). The cause of that discrepancy of EF quantified by MyoMetrix and echocardiography could be explained by PVE. In other words, when the measured ESV was less than the aforementioned cutoff value, it was underestimated by MyoMetrix, while EF could be overestimated by MyoMetrix. Nevertheless, the obtained ESV was not less than the aforementioned cutoff value, it was overestimated by MyoMetrix and EF was underestimated by MyoMetrix. This suggests a modification of the MyoMetrix software to increase ESV and EF measurement accuracy.
4.2 About limitations of the work
Filtering, reconstruction method, and automatic measurement software may affect the EDV, ESV and EF results [12-14]. According to the standard protocol in our department, this effect on LV volume and function measurements was not studied. However, our results were similar with the published data from different filtering, reconstruction method, and automatic measurement software.
Another limitation of our study is that MPI and echocardiography were not performed under the same conditions. For the exercise/rest or rest/exercise with 99mTc-MIBI in one day protocol should be performed around 5 hours, and the half life of 99mTc is 6 hours, the 1st imaging may affect the analysis of the 2nd imaging 5 hours later, and may not affect 24 hours later. To eliminate that confusion, we did the 2 day rest/exercise protocol. Different preload and afterload values can affect LV function, including EDV, ESV and EF. As Matsuo S et al. [15] reported the post-exercise EF was smaller than resting EF in three vessels disease. However, our echocardiographic and gated MPI data, at rest or post-exercise, were moderately to highly correlated. Borges-Neto S, et al. [16] found an excellent correlation (r=0.97, P<0.01) in a rest/post-exercise study.
The third limitation in our study is the MPI imaging LV EDV, ESV and EF measurements by a single experienced doctor, and also the echocardiographic LV EDV, ESV and EF. We didn’t investigate the inter- and intra-variability of the parameter measurement. Both are common measurement. Castell-Conesa J et al. [17] reported that the inter-observer variability for LV EDV, ESV and EF measurements by MPI were 1.9 mL, 0.5 mL and 0.5%, respectively. Thavendiranathan P et al. [18] reported the inter-observer and intra-observer variability for LV EDV, ESV and EF measurements by echocardiography were 8.4 mL, 5.3 mL and 3.3%; and 16.5 mL, 7.4 mL and 4.0%, respectively. Therefore, the inter- and intra-variability of measurements were far less than the SDs of the parameters in this study. So the results of our study were credible.
5 Conclusion
The LV EDV, ESV, and EF values automatically measured by MyoMetrix from gated MPI, including resting or post-exercise, exhibited good to excellent correlation with those obtained on echocardiography in Chinese. However, for PVE, a small ESV was underestimated by MyoMetrix, which could lead to EF overestimation. On the contrary, a normal or large ESV was overestimated by MyoMetrix, which led to EF underestimation.
