1 Introduction:
As the most dominant technique, X-ray diffraction (XRD) determined 89.56% structures (116,200) of Protein Data Bank (PDB, total structures 129,745, data on May 2nd, 2017, http://www.Rcsb.org/pdb). Nowadays, XRD is a routine way to determine how a small molecular inhibitor interacts with its target and how to improve it based on ligand-target complex crystal structure, which provides detailed interactions in an active state for drug design and structure modification. As a result, XRD has become a predominant standard technique for drug discovery area [1–3].
The heat shock protein 90 (Hsp90, 90 kD) is an α-α or β-β homodimer in the cytosolic, and each monomer consists of three domains. The C-terminal domain plays a key role for dimerization of Hsp90, while the central domain possesses a large hydrophobic surface to bind client proteins and facilitate them folding. The N-terminal domain with highly conserved residues across species contains an extraordinary ATP-binding pocket that is responsible for ATP-binding and hydrolysis, which is indispensable for the chaperone function of Hsp90[4–6]. The first crystal structure of human Hsp90N from Stebbins et al. revealed the α/β sandwich pocket in detail[7]. The pocket is about 15 Å deep, 12 Å in diameter for entrance and 8 Å for baseshapedasa flat-bottomed cone. The base comprises of eight antiparallel β sheets (three central β sheets, S3, S4 and S7), while the wall is consisted of three helices and a loop (H2-H4-H7-L1). From the entrance toward the bottom, the pocket becomes increasingly hydrophobic[4–8].
As a chaperone, Hsp90 has dual chaperone functions participating not only in the cellular stress response but also in folding or refolding, conformational maturation and activation of a wide range of client proteins[7–11]. More than 300Hsp90-dependent client proteins have been identified including varying eukaryotic protein kinases and nuclear hormone receptors related to multiple signaling pathways[12]. Of these, 48 client proteins are directly related to oncogenesis[10]. Hsp90 is overexpressed to facilitate these client proteins to fold and maintain their activity in malignant cells. Inhibitors of Hsp90 caninterfereinHsp90-mediated chaperone function to make the client proteins being an immature or misfolding state, which will be captured and degraded by proteasomes. With degraded proteins accumulated, multiple signaling pathways can be derailed simultaneously, which can hinder proliferation and progression of cancer[9–12]. Hsp90, therefore, has been paid more attention to as an anti-cancer drug target.
Hsp90 inhibitors contain C-terminal inhibitors such as novobiocin, and mainly N-terminal inhibitors such as geldanamycin (GDM) and radicicol (RDC)[12–14]. As a naturally occurring antitumor antibiotic, anticancer mechanism of GDM was unclear until GDM-Hsp90N crystal structure was determined [7]. It was suggested that GDM bound in the pocket to hinder ATP binding to Hsp90N, resulting in Hsp90-mediated folding or refolding, conformational mature or activation of client proteins failed. The growth and progression of cancer, therefore, can be inhibited [7,12–15]. Another naturally occurring antitumor antibiotic radicicol acts in the similar way[12–15].Several derivatives of GDM have entered clinical studies, for instance, 17-AAG[16], 17-DMAG[17] and IPI-504[18]. They, nevertheless, have several potential limitations, such as poor solubility, limited bioavailability and hepatotoxicity [16–18]. This leads to significant efforts to discover novel inhibitors of Hsp90.
It is a major challenge in the drug discovery to find novel compounds as starting points for optimization. Fragment-based Drug Discovery (FBDD) has become a powerful technique to find novel compounds, which was put forward by William P Jencks in 1981 for the first time [19]. It develops based on advantages combining random screening and Structure-based Drug Discovery (SBDD). Active fragments are discovered by random screening of built fragment library. Followed, promising compounds can be obtained by growth, jointing and self-assembly of active fragments. Finally, novel lead compounds will be got by several rounds of crystal structure-directed optimization. Compared with traditional method, FBDD has outstanding merits as follows: (1) To explore more chemical spaces with less fragments; (2) To find promising compounds with higher chances; (3) To find promising compounds with fine affinity and druggability with higher chances; (4) To avoid false positive results [19–21].
Here, a novel small inhibitor RJ19 has been designed using FBDD and synthesized. In addition, the complex crystals of RJ19 and Hsp90N were grown and a high resolution crystal structure was determined by XRD, which was deposited in PDB with accession code 4L90. The crystal structure of Hsp90N-RJ19 was analyzed in detail and compared with the crystal structure of Hsp90N, ATP-Hsp90N, GDM-Hsp90N, respectively. The complex crystal structure and the interaction between RJ19 and Hsp90N provide a rational basis for the design and optimization of novel anti-cancer drugs targeting Hsp90N with superior quality.
2 Experimental Section:
2.1 Synthesis of small molecule

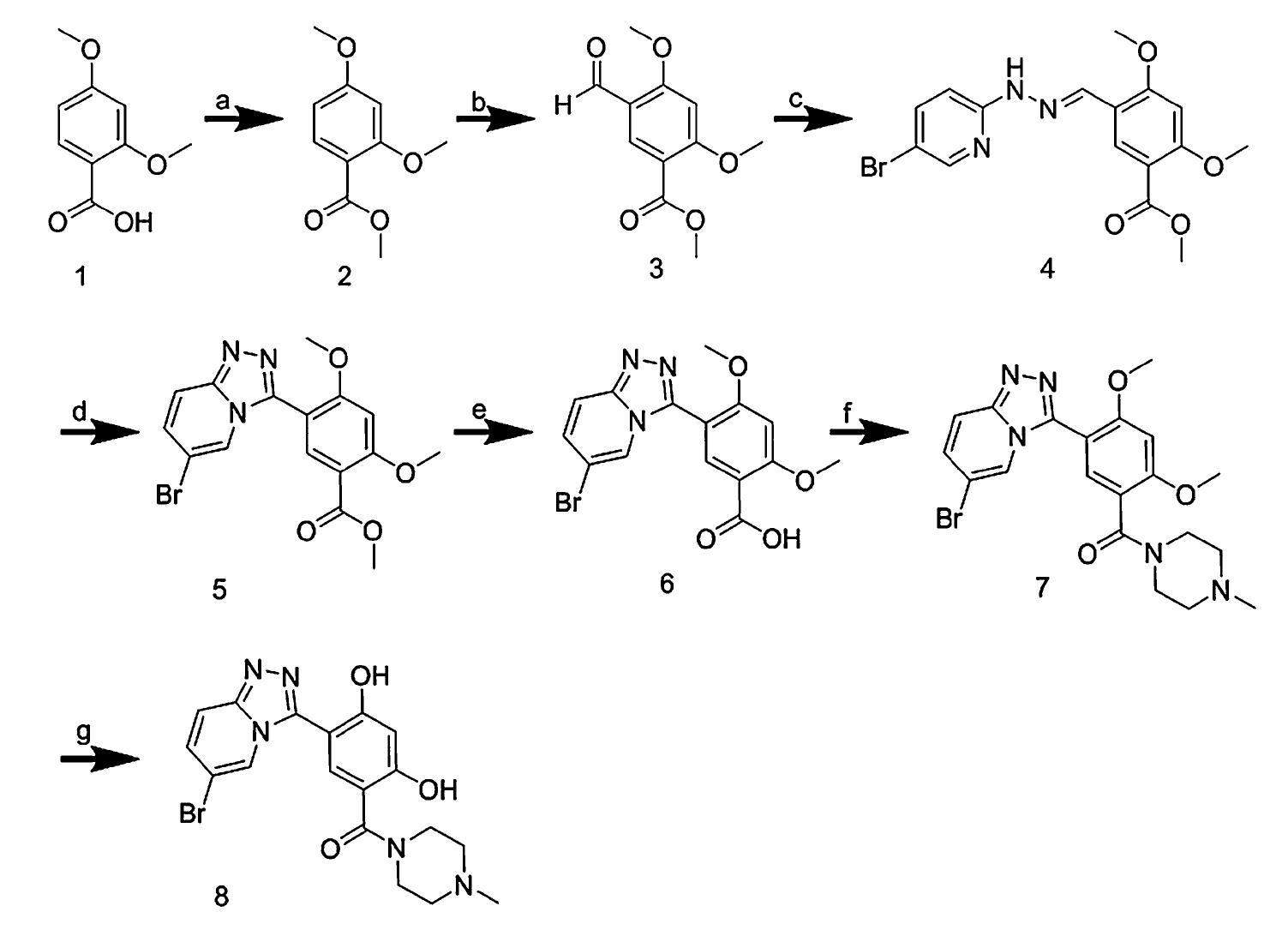

As show in Fig.1, Compound 1 reacted with methanol via Oxalyl chloride to afford compound 2, then followed by formylation with α,α-dichloromethyl methyl ether to obtain Compound 3. Construction of compound 5 utilized intramolecular ring-closing from compound 4 that was obtained by reacting with 5-Bromo-2-hydrazinopyridine and compound 3.Compound 5 washydrolysed with Lithium hydroxide inaqueous solutions of methanol to get Compound 6. Compound 6 was condensated with 1- methylpiperazine and deprotected by boron tribromide to obtain the target Compound 8(RJ19).
2.2 Protein purification and crystallization
The gene of human Hsp90α N-terminal domain including residues 9-236 was cloned into a pET28a vector, which was transformed into E.coli Rosetta (DE3) pLysSfor over-expression of drug target Hsp90N (Invitrogen, Carlsbad, America). The engineering bacteria were grown in 1,000 mL Luria-Bertani broth (LB) at 310 K to OD600 value of 0.6-0.8 and followed induced by 200 μM isopropyl β-D-thiogalacto pyranoside (IPTG) for 3-5 h at 303K. The express bacteria were collected by centrifugation at 10,000 g for 10 min (CF16RX, Hitachi, Japan). The precipitate was re-suspended in buffer A (pH 7.5, 0.1 M Tris-HCl, 0.3 M NaCland 5% glycerol) and followed crushed by Ultra-high Pressure Cell Disrupter (JN-02C, JNBIO, China). For preliminary purification, the product was centrifuged at 30,000 g for 30 minat277 K and the supernatant was loaded onto a 5mL Ni2+-nitrilotriacetate column (Ni-NTA, GE Healthcare, America).The target protein was eluted with buffer B (pH 7.5, 0.1 M Tris-HCl, 0.3M NaCl, 0.1M imidazole and 5% glycerol). The primary purified protein was concentrated and the buffer was exchanged to buffer C(pH 7.5, 0.1 M Tris-HCl, 0.15 M NaCl and 5% glycerol) using an 10,000 Mr cut-off centrifugal concentrator (Amicon Ultra-15, Millipore, America). For fine purification, the impurities were removed by a gelfiltration column (Superdex 75 PG, GE Healthcare, America) with buffer C. The purified protein was analyzed by a 15% SDS-PAGE to determine the purity. The fine purified protein was concentrated to a concentration of about 20 mg/mL with the 10 000 Mrcut-off centrifugal concentrator again and its concentration was determined using bicinchoninic acid method (BCA).The fine purified Hsp90N was flash-frozen with liquid nitrogen and stored at 193 K.
For crystallization, the initial concentration of target protein Hsp90N was approximately20 mg/mL. The small molecular inhibitorRJ19 was added to protein with 5:1 molar ratio and the mixture was incubated for 30 min at 277 K. And then the mixture was centrifuged for 10 min at 3,000 g and the supernate was for crystallization. Co-crystallization was conducted at 277 Kfor 3-7 days using the hanging drop vapor diffusion method in an incubator controlled by a bath circulator (PolyScience 9712, PolyScience, USA).The co-crystals were grown under the condition: pH 6.5, 0.2 M magnesium chloride, 0.1 M sodium cacodylate, 20%-25%(w/v) polyethylene glycol 2000 monomethyl ether (PEG2000 MME)[7].
2.3 Data collection, structure determination and refinement
Co-crystals were mounted with cryo-loop (Hampton research, America) and flash-frozen in liquid nitrogen for XRD data collection. All data sets were collected at 100 K on Macromolecular Crystallography Beamline17U1 (BL17U1) at Shanghai Synchrotron Radiation Facility (SSRF, Shanghai, China) using an ADSC Quantum 315r CCD detector [22]. All the data were integrated and merged using the HKL 2000 software package [23]. The structures were determined by molecular replacement with PHENIX software [24], using the structure of Hsp90N (PDB code 3T0H) as the research model [5]. The program Coot was used to rebuild the initial model [25]. The models were refined to resolution limit 2.0 Å using the PHENIX software. The superimposed contrast was analyzed with PyMOL software package [26].The complete data collection and refinement statistics are shown in Table 1. The coordinates and structure factors have been deposited in PDB (PDB code 4L90).
| PDB code | 4L90 |
|---|---|
| Synchrotron | SSRF |
| Beam line | BL17U1 |
| Wavelength (Å) | 0.97920 |
| Space group | I222 |
| a,b,c (Å) | 69.88, 88.59, 97.98 |
| α,β,γ(º) | 90.00,90.00, 90.00 |
| Resolution (Å) | 2.00(2.03-2.00) |
| R-merge (%) | 9.2(63.2) |
| Mean I / σ (I) | 25.2/3.1 |
| Completeness (%) | 99.8(100.0) |
| Redundancy | 4.9(4.9) |
| Resolution (Å) | 36.54-2.00 |
| Rwork/Rfree(%) | 18.80/21.94 |
| Atoms | 1751 |
| Ligand | RJ19 |
| Mean temperature factor (Å2) | 27.7 |
| Bond lengths (Å) | 0.007 |
| Bond angles (º) | 1.097 |
3 RESULTS AND DISCUSSION
3.1 Purification, crystallization and structure determination of Hsp90N-RJ19
Hsp90Nwas purified to apparent homogeneity using metal chelating chromatography, followed by gel filtration chromatography. The single elution volume peak accords with monomeric Hsp90N with a molecular weight of 25 kDa and showed a good purity which was assessed by SDS-PAGE to be 98% (as shown in Fig. S1).
After 3-5 days, complex crystals of Hsp90N-RJ19 were obtained by the hanging-drop method at 277 K. The average dimension of the crystals was approximately 200 μm×100 μm×50 μm, as shown in Fig. 2.
The structure of Hsp90N-RJ19 was determined by molecular replacement using Hsp90N (PDB code 3T0H) as there search model [5]. The complete data collection and refinement statistics are shown in Table 1. The coordinates have been deposited in PDB (PDB code 4L90). Diffraction data were collected to 2.0Åresolutionand indexed in space groups P212121. The unit cell parameters were as follows: a = 69.88Å, b = 88.59 Å, c = 97.98 Å; α = β = γ = 90.00º. The refined model contains residues Val17-Lys224 and no electron density was observed for residues Asp9-Glu16 and Glu225-Glu236 in the structure. It is conceivable that the missing residues at the N- and C-termini of the model could be disordered electron density.
3.2 Analysis on crystal structure and interaction of Hsp90N-RJ19
It was indicated from the complex crystal structure that RJ19bound to the ATP-binding pocket completely and its intact electron density has been captured (as shown in Fig.S2).The N-terminal domain of human Hsp90 contains a highly conserved ATP-binding pocket about 15 Å deep with α/β sandwich structure. Eight uninterrupted antiparallel β-sheets constitute the pocket base. The pocket walls are formed by three α-helices and a loop, H2-H4-H7-L1[7].
The H4-L2-H5-H6 secondary structure elements (residues 99-134) is called ATP lid. The ATP lid has open or close conformation which is responsible for regulating pocket size and accessibility. Only when the pocket is in an open conformation, Hsp90 can bind with ATP and interact with its client proteins to accomplish folding or refolding, conformational maturation and activation of client proteins [7–12].
A superimposing correlation was analyzed with PyMOL software between the crystal structure of Hsp90N-RJ19 and Hsp90N, ATP-Hsp90N or GDM-Hsp90N. It was indicated that the refined crystal structure of Hsp90N-RJ19 (PDB code 4L90) differed from that of Hsp90N (PDB code 3T0H), Hsp90N-ATP (PDB code 3T0Z) or Hsp90N- GDM (PDB code 1YET) in resolution level, as shown in Fig. 4. Their crystal packing patterns are of difference too, Hsp90N-RJ19 (P212121), Hsp90N (I222), Hsp90N-ATP (P21) and Hsp90N- GDM (P1211).
As can be seen from Fig. 3(a), there are some subtle differences from residues Ala101 to Phe138 in the crystal structures of Hsp90N-RJ19 and native Hsp90N. Fig. 3(c) shows that the complex crystal structure of Hsp90N-RJ19 differs from Hsp90N-ATP from residues Asp102 to Phe138. It is different from residues Ile104 to Gly137 in the complex crystal structure of Hsp90N-RJ19 and Hsp90N- GDM, as shown in Fig. 3(e).
The superimposition of crystal structure of Hsp90N-RJ19 with native Hsp90N (Fig.3 (b)) shows that the H4 helix(residues from Thr99 to Leu107) and H5 helix(residues from Thr114 to Ala124) of Hsp90N undergo a conformational rearrangement after binding RJ19, which impels the L2 loop (residues from Leu107 to Thr114) in Hsp90N-RJ19rearrangingand displacing to substitute portion of H4 helix as the pocket wall. L2 loop, therefore, acts as a switch to constrain the pocket entrance in diameter from 12 Å to 8 Å. Then, the pocket turns to a close conformation, resulting in disabled ATP-binding and failed chaperone function. The rearrangement and displacement of L2 plays an important role in function failure of Hsp90. The result is in accordance with that of Stebbins’s [7].
The superimposition of Hsp90N-RJ19 and Hsp90N-ATP (Fig.3(d)), Hsp90N –GDM (Fig.3(f)) indicates that there are differences in H4 helix, H5 helix or L2 loop, although RJ19, ATP and GDM all bind in the pocket, which imply their binding ways are different.

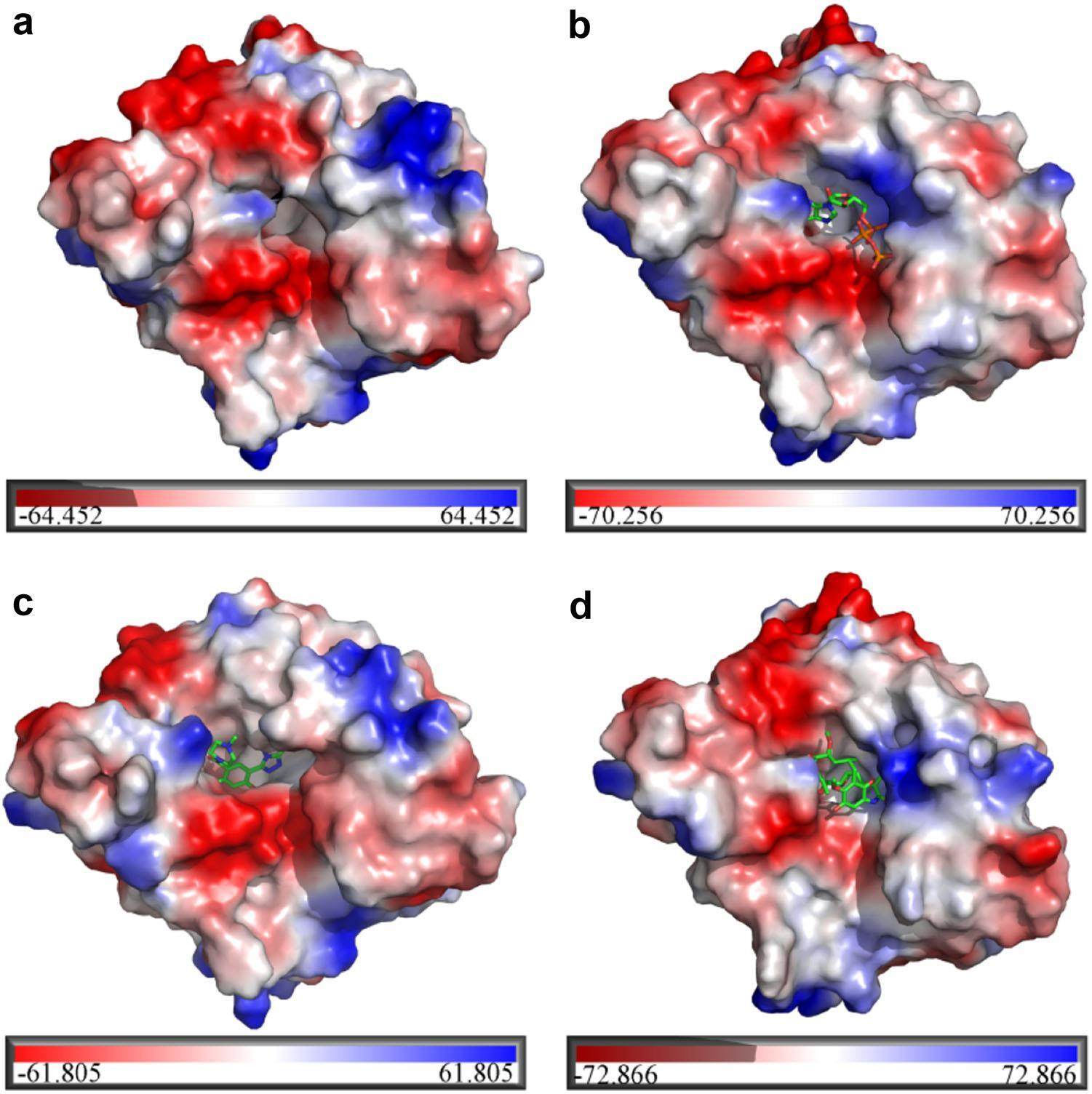

Figure.4 shows the electrostatic potential surface distribution surrounding the active pocket of Hsp90N (Fig. 4(a)), Hsp90N-ATP(Fig. 4(b)), Hsp90N-RJ19(Fig. 4(c)) and Hsp90N-GDM (Fig. 4(d)).Compared with native Hsp90N, changes have been taken place in the electrostatic potential surface surrounding the active pocket of Hsp90N responsible for binding of ATP, RJ19 or GDM. In common with the structure of ATP-Hsp90N, RJ19or GDM binding site of Hsp90 is located in the ATP-binding pocket. It is interesting that RJ19 binding induces structural rearrangements of L2loop and makes the ATP binding pocket wider and longer, which provides a larger room for structural modification of RJ19 later.
Figure 5 shows the crystal structural superimposition of Hsp90N-RJ19 (PDB code 4L90) with Hsp90N-GDM (PDB code 1YET), Hsp90N-17-DMAG (PDB code 1OSF), Hsp90N-Onalespib (PDB code 2XJX), Hsp90N-NMS-E973 (PDB code 4BQG) and Hsp90N-NVP (PDB code 5JZN). It is revealed that the RJ19, GDM, 17-DMAG, Onalespib, NMS-E973 and NVP occupied the same location and there are some tiny differences in the chemical group. It is notable that in the complex of Hsp90N-GDM, GDM nearly occupies the whole binding pocket and there is no much room for structure modification. It is, therefore, significant changes were rare in solubility, bioavailability and hepatotoxicity in derivatives of GDM. The situation, however, is different for RJ19 and there is enough room for redesigning and modification of RJ19 to obtain derivatives with high efficiency and low toxicity.
The pocket is mostly polarat its entrance, so hydrophilic groups, which can interact with polar amino acids, can be added to RJ19 to increase the solubility of small molecule. While it becomes predominantly hydrophobic near the pocket base, derivatives with increased affinity with Hsp90 may be yielded if groups with non-hydrogen atoms are added to RJ19 and hydrogen bond complementarity is increased.
The ATP lid consists of the H4-L2-H5-H6 secondary structure elements. It has open or close two different conformations which are responsible for regulating pocket size and accessibility [7]. The pocket in open conformation is about12 Å in diameter near its entrance. When small molecular inhibitor RJ19 binds to the pocket, H4 and H5 helixes undergo helix-to-coil and coil-to-helix transitions, which impels L2 loop rearranging, rolling-over 180 ° and moving toward the pocket to replace portion of H4 helix as one of the pocket wall. The L2 loop, therefore, acts as a switch to constrict the pocket entrance from a width of 12 Å to 8 Å. Then, the pocket changes into closed conformation, which results in disabled ATP-binding and chaperone function failure. The rearrangement and displacement of L2 loop play a key role in chaperone function failure. Various client proteins being immature or misfolding state, therefore, can be captured and degraded by proteasomes. And then, the cancer cells can be inhibited. RJ19, as a result, become a hopeful lead compound.
As can be seen from Fig. 6(b), there are two hydroxyls in the benzene of RJ19. The 4-hydroxyl near the isopropyl forms water-mediated hydrogen bonds with residue Ser52. The 2-hydroxyl forms a direct hydrogen bond with residue Asp93 (distance, 2.4Å) and three water-mediated hydrogen bonds with residue Asp93, Gly97 and Thr184, respectively. The carbonyl of RJ19 forms a direct hydrogen bond with residue Thr184 (distance, 2.8 Å) and three water-mediated hydrogen bonds with residue Asp93, Gly97 and Thr184, respectively. The hydrogen bonds or water-mediated hydrogen bonds play dominant role in keeping fine affinity between RJ19 and Hsp90N. In addition, extensive surface complementarity between RJ19 and the pocket results in a high density of van der Waals contacts, which also contributes to firmly binding of RJ19 and Hsp90N.
The complex structure of Hsp90N-RJ19and interaction provide the structural basis to further investigate the activated conformational change of Hsp90 after RJ19 binding, also for redesign and structure modification of RJ19.
4 Conclusion
(1) A novel anti-cancer small inhibitor RJ19 has been designed using FBDD and synthesized.
(2) Hsp90N-RJ19crystal structure was determined by XRD (2.0 Å), which was deposited in PDB with accession codes 4L90.
(3) RJ19 interacts with Hsp90N at the ATP-binding pocket, which suggests that RJ19 may replace nucleotides to bind with Hsp90N to disable chaperone function of Hsp90 to inhibit growth and progression of cancer. RJ19, therefore, can be a potential anti-cancer lead compound.
(4) The rearrangement and displacement of L2 loop in Hsp90N-RJ19 play an important role in function failure of Hsp90, which also makes ATP-binding pocket wider and longer and provides a larger room for redesign and structural modification of RJ19 later.
(5) The complex crystal structure and the interaction between RJ19 and Hsp90N provide a scientific basis for the design and optimization of novel anti-cancer drugs targeting Hsp90N.
