1 Introduction
Bulk germanium (Ge) is an indirect band-gap semiconductor with a band gap of 0.67 eV at room temperature. The high carrier mobilities of electrons and holes at room temperature are 3900 cm2/Vs and 1900 cm2/Vs, which are approximately 2.6 and 4.2 times that of silicon[1-2], respectively. High-purity Ge detectors (HPGe) have the advantages of high energy resolution, high detection efficiency, and strong stability for the detection of particles, especially X-rays and γ-rays[3-4]. Point-contact HPGe detectors have the advantages of low background and low energy threshold; thus, they can be applied in the detection of rare-event physics (e.g., dark matter direct detection and neutrinoless double beta decay).
Many international experimental groups, including China's dark matter experiment (CDEX), the GERmanium Detector Array (GERDA), Cryogenic Dark Matter Search (CDMS), Coherent Germanium Neutrino Technology (CoGeNT), Majorana, and EDELWEISS, have used HPGe detection systems to carry out relevant detection experiments[1-14]. The main objective of these experiments was to increase the sensitivity by enlarging the scale of the detector array; improving the performance of energy resolution, linearity, and stability; and suppressing background and electronic noise.
The direct detection of dark matter at a low background is leading the frontiers of physical research. Currently, the search parameter space and annual modulation effect of dark matter are experiencing fierce competition[6-8]. To improve the detection sensitivity of dark matter in a low-mass regime, the energy threshold and background environment need to be further reduced[9]. Point-contact and broad-energy Ge (PCGe and BEGe) detectors are highlighted in these experiments and related applications for their balance of high efficiency, high energy resolution, and low input capacitance (thus low serial noise). One desirable solution for future ton-scale HPGe-based experiments is to directly operate the bare detector array with low-mass electronics in a cryogenic liquid[15, 16].
Direct operation of a bare HPGe detector in a cryogenic liquid is desirable for rare-event physics experiments because of its potential to realize ultralow background and ultralow noise[12-14]. However, the interface problem of Ge is an important factor that limits the performance of HPGe[10-12]. First, Ge cannot form a stable passivation layer spontaneously like silicon dioxide on silicon, and the natural oxide of Ge is unstable and readily decomposes, introducing a high density of defect states at the interface between Ge and other materials. The natural oxide of Ge decomposes into several low-valent oxides of GexOy. Among them, GeO2 has high water solubility, poor interface characteristics, and instability. Second, processing and treatment introduce dangling bonds on the Ge crystal, which reduces its chemical stability and produces high-density defect states at the interface. Finally, the surface state results in a decrease in carrier mobility and a higher leakage current, leading to disadvantages in realizing the stability and promotion of the device performance. All of these limitations prevent the realization of low power consumption and the stability of Ge devices.
The energy threshold of the detectors is directly related to the electronic noise, further requiring low leakage currents[17]. The leakage current includes the bulk leakage current (minor carrier diffusion current, generation-recombination current, and tunneling current) and surface leakage current. The probability of generation-recombination is negligible at 77 K, and the minor carrier diffusion current and tunneling current can be controlled very well when the detector contacts are well made. Thus, the bulk leakage current is small, and the surface leakage current becomes the main influential factor.
The main factors affecting the surface leakage current of HPGe are as follows: (1) Contaminants and humidity on the crystal surface can change the surface state of Ge. This is because carriers carriers are generated or recombined through the interface state at recombination centers, resulting in a high interface state density. (2) When the surface states are introduced into the forbidden band, defective energy levels can result in Fermi-level pinning and band bending. The relative position of the Fermi level determines the potential difference and controls the surface recombination rate, surface leakage current, and noise [18]. (3) The interfacial electric field and charge collection of the surface passivation layer lead to an increase in leakage current [19]. Therefore, surface dangling bonds directly affect the band structure and density of states (DOS) of Ge.
The leakage current, energy threshold, and other characteristics of HPGe with surface passivation deserve further investigation [20, 21]. From an atomic-scale analysis, the interaction between the outermost Ge atoms and surface termination functional groups is different in strength. The theoretical first-principles calculations of Ge unit cells mainly focus on the band structure and electronic properties of different groups on the diameter, crystal orientation, and doping atoms of unit cells. Merid et al. found that the highest occupied orbitals and the lowest occupied orbitals of unterminated Ge occur more locally with surface states[22]. The unsaturated dangling bonds on the surface of the Ge unit cell introduce surface states and increase the unit cell conductance[21]. The passivation can reduce the leakage current by decreasing the interface state density.
In traditional HPGe detector processing technology, hydrogen ions are typically used to passivate the surface dangling bonds of Ge and reduce its surface interface state. HF, NH4F, HCl, and HBr can remove surface oxides and provide H-terminated surfaces[22-23]. However, the stability of hydrogen passivation is poor, and the passivation effect of H is poor with insufficient passivation, which affects the stability of the leakage current. Hydrogen passivation can be used as a pretreatment of the surface passivation layer to obtain a clean surface. A passivation layer with high quality and low interface state density is processed on the HPGe detector by evaporation and sputtering, which can effectively eliminate the influence of surface recombination. The Ge-passivation treatment methods include [21-26] the plasma surface treatment of NH3 and PH3, SiOx, GeOx, GeNx, GeOxNy, Al2O3, AlN, etc. The flexibility of the Si-O-Si bond in SiOx saturates most of the chemical bonds at the interface, so SiOx has excellent electrical and chemical passivation properties. Because of the high reactivity of Si, the valence state of Si in the SiOx film is between 0 and 4, and the x value of the oxygen content in the SiOx film is between 0 and 2.
The SiOx passivation layer not only reduces the interface state density but also achieves good passivation results through a built-in electric field formed by the fixed charge in the oxide layer. Therefore, the SiOx/Ge interface with an appropriate atomic ratio has a lower interface state density and fixed charge density, and it can match the energy band structure and low interface potential. All of these characteristics of SiOx achieve good control of the surface leakage current. At the same time, the low dielectric constant of SiOx can reduce the generation of oxide charges and surface energy bands.
It is known that HPGe passivation technology mainly involves depositing high-quality SiOx films as the passivation layer [22]. The SiOx passivation layer can reduce the DOS and achieve good passivation with an internal electric field formed by the fixed charge of the oxide layers. Furthermore, owing to the small dielectric constant of SiOx, the generation of surface energy states and oxide charges after radiation can be reduced. Because of the high reactivity of Si, the valence state of SiOx is distributed between 0 and 4. Because of the flexibility of Si-O-Si bonds in SiOx, most of the chemical bonds at the interface remain saturated, and the SiOx/Ge interface with a suitable atomic ratio has a lower interface state density, fixed charge density, matched band structure, and small interface potential difference. This can achieve good control of the surface leakage current with excellent electrical and chemical passivation properties.
To further reduce the energy threshold of HPGe, it is important to lead the international competition toward dark matter detection[27-28]. Surface passivation has been the key technology for realizing detectors with ultralow energy thresholds [29-32]. In this study, we combine computational simulations with experimental comparisons to promote the passivation effect of Ge. First-principles simulations are used to modify different groups of dangling bonds on the Ge surface. First, the energy band structure, band-gap width, and DOS of passivation groups -H, -N, -O, and -SiOx on the Ge surface are theoretically calculated. The interface state density and potential of the passivation layers with different atomic ratios are accurately analyzed. A comparison between the DOS of different groups and atomic ratio termination is precisely analyzed to find a relatively suitable surface passivation layer. In addition, the related mechanism of stable surface state formation is deeply understood. Then, the preparation conditions, minority carrier lifetime, and passivation effect of SiO and SiO2 passivation layers on the Ge surface of a single crystal by electron beam evaporation are systematically studied to determine the appropriate passivation process.
2 Calculation and Experimental Methods
2.1 Parameter settings of Ge
The space group of the Ge cubic crystal system is Fd-3m with an electron arrangement of 1s22s22p63s23p63d104s24p2. The Ge atoms occupy face-centered cubic nodes and four complementary adjacent tetrahedral gap positions in the unit cell. The energy-momentum (E-k) relationship of the band structure is obtained by solving the single-electron approximate Schrödinger equation using the Materials Studio CASTEP module. The generalized gradient approximation is used as an independent exchange-correlation function with gauge conservation pseudopotentials. A cut-off energy of 440 eV, k points of 4 × 4 × 4, and an energy convergence accuracy of 1.0 × 10-5 eV/atom are used in the simulation. The optimized lattice constant is 5.59 Å after relaxation, which is very close to the experimental value of 5.65 Å [17]. The indirect band gap is 0.667 eV with the valence band maximum (VBM) at the origin of the k-space at point G, and the conduction band minimum (CBM) is at the 111-direction boundary of the k-space at point L. These results are consistent with those of previous studies [24]. For the part of the valence band (-5 eV to 0) of the Ge single crystal, the 4p orbital electrons are the main contributors. In the conduction band field, the 4p orbital state density is slightly higher than that of the 4s orbital.
2.2 Model construction and parameter settings of surface termination on Ge
In the Visualizer module of the MS software, the Ge crystal was cut to obtain a super cell structure with a specific growth direction. To avoid the mutual influence of the periodic unit cells, a vacuum layer of 10 Å was added around, thus obtaining a cross-sectional period of (d + 10 Å) one-dimensional Ge supercell, where d represents the diameter of the unpassivated Ge unit cell. Then, a Ge-passivation atom model was constructed by adding functional groups, and the energy band structure and DOS was further calculated after optimizing the structure by relaxation. Based on the unpassivated Ge cell structure in the (100) direction, a saturated passivation layer structure of -H, -NH2, and -OH was constructed. There are 16 Ge atoms and 16 passivation groups (H, NH2, and OH) in three types of supercells to form bonds with them, and two or one henry atoms are added to each N atom and O atom to form a stable electronic structure, respectively.
Similarly, four types of passivation layer structures with different numbers of silicon and oxygen atoms were constructed. Refer to the calculation method for the band structure of the Ge unit cell with saturated hydrogen passivation. The local density approximation, generalized gradient approximation, and gauge conservation pseudopotentials were used to calculate the energy band structure. The cut-off energy was 650 eV with k points set to 4 × 1 × 1, and the energy convergence accuracy was 1.0 × 10-5 eV/atom.
2.3 Passivation film preparation and effect evaluation
The deposition substrate was an inner-circle cut Ge (100) single crystal with a diameter of 50 mm, and its resistivity was approximately 5–40 Ω·cm. The organic impurities on the surface of the Ge substrate were removed using ethanol, acetone, and deionized water ultrasonic cleaner for 15 min before deposition. The Ge substrate was then blow-dried with high-purity N2. ATS-500-type electron beam evaporation coating equipment was used, and the targets of SiO and SiO2 had a purity of 99.99%. The chamber was vacuumed to 5 × 10-6 mTorr using a molecular pump before the coating process.
The minority carrier lifetime is the average survival time of minority carriers from generation to recombination after electron-hole pair separation in semiconductor materials, generally in microseconds. Passivation is typically used to reduce the recombination rate of the sample surface and enhance the minority carrier lifetime. Microwave photoconductivity attenuation (μ-PCD) was used to measure the minority carrier lifetime. When the pulsed light source irradiates the sample surface, the conductivity of the sample changes, further affecting the reflected microwave energy. Therefore, the lifetime of nonequilibrium carriers is reflected by changes in conductivity. At a low injection level and certain frequency, the difference between the emitted and reflected microwave signals is proportional to the unbalanced carrier concentration. The minority carrier lifetime was obtained by fitting an exponential decay signal. The minority carrier lifetime measured in the μ-PCD system τMeas is the composite and comprehensive embodiment lifetime of the bulk and surface. However, the reflectivity of a microwave with a wavelength of 910 nm needs to be decreased; this can be deduced from the sample reflection spectrum. The minority carrier lifetimes of SiO and SiO2 films with a thickness of ~200 nm were measured to evaluate the surface conditions (Fig. 1).
3 Results & Discussions
The lattice structure, electronic energy band structure, and state density information of the -H,-NH2, -OH, and -SiOx passivation systems of the Ge surface were studied. The modifications of the energy band structure of the -H passivation and other passivating groups were compared.
3.1 Band structure of Ge termination (-H, -NH2, and -OH）

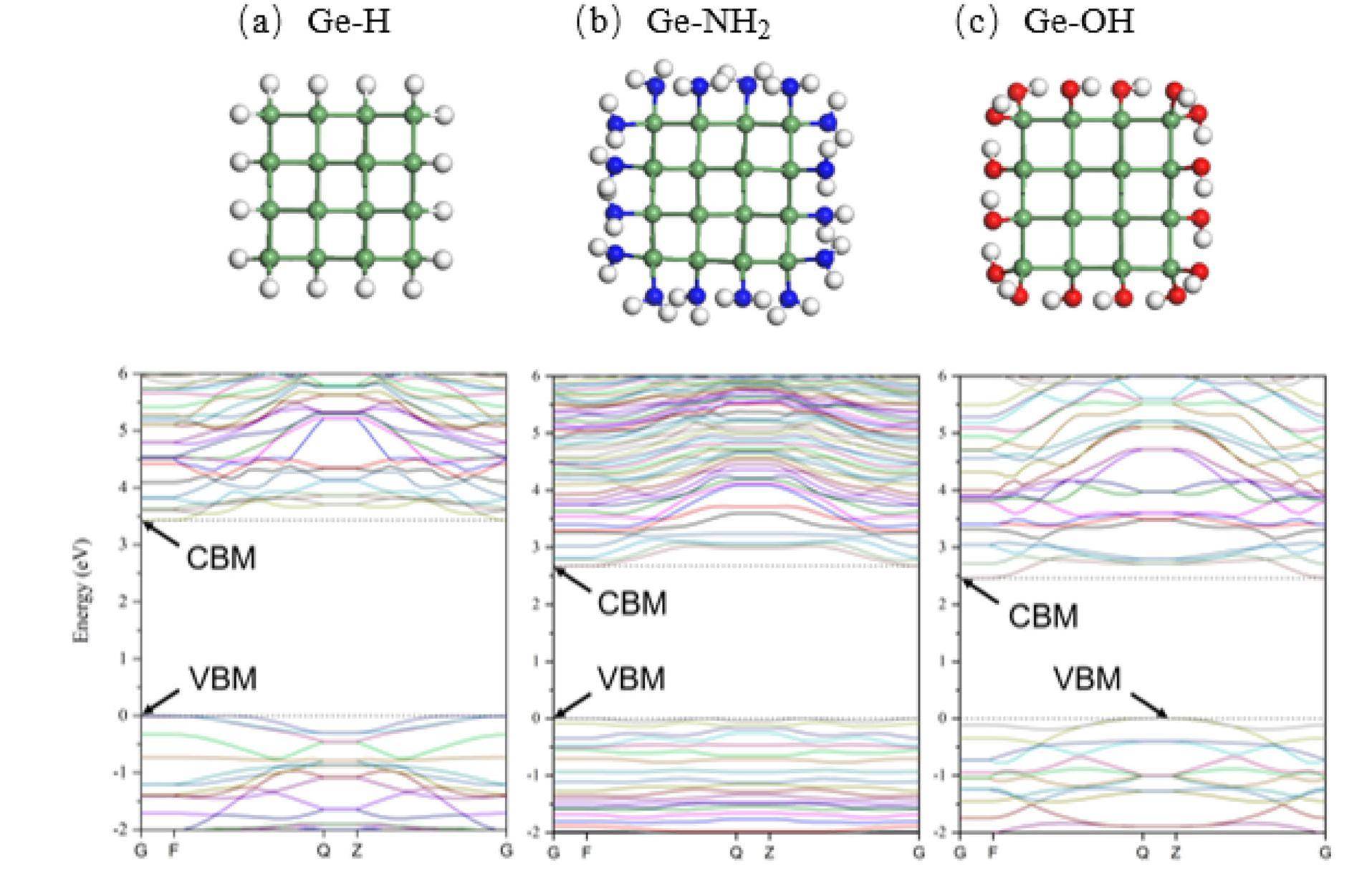

The constructed Ge supercell saturated with -H, -NH2, and -OH and their corresponding band structures are shown in Fig. 2. After structural optimization, the relaxation structures of the Ge supercell passivated by NH2 and H are similar. The Ge-Ge bond length of surface layer is about 0.01 Å shorter than that of the center. In the system of -OH termination, the Ge-Ge bond length at the surface is 0.01 Å longer than the central Ge-Ge bond. The Ge-H, Ge-NH2, and Ge-OH termination band gaps are 3.43, 2.68, and 2.46 eV, respectively. Compared with the Ge-H system, the band width of Ge-NH2 passivation is decreased, and Ge-OH has the shortest bandwidth. The band structures of H- and NH2 passivated Ge atoms with direct band gaps are similar, and the CBM and VBM are both at the origin of the G point. The Ge-OH system has an indirect band gap, and its CBM is at point G as well. However, the VBM is moved to a position between the Q and Z points in k-space.
3.2 DOS of Ge termination (-H, -NH2 and -OH）

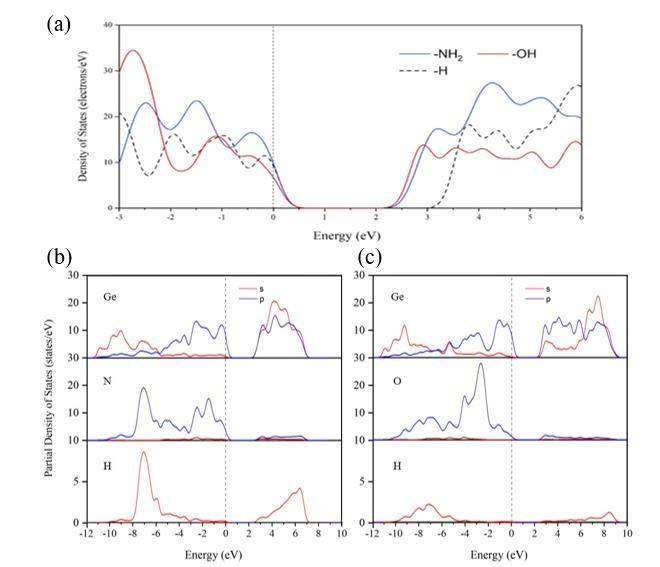

DOSs with three different termination systems are shown in Figure 3. At the CBM and Fermi levels, the Ge-NH2 system has the highest DOS, and the DOS of Ge-OH is lower than that of H termination. It is inferred that Ge-OH could have a better passivation effect than Ge-H and Ge -NH2 owing to the DOS reduction and the band edge characteristics. Comparing the calculation results of Legesse et al. using the GGA method [25], it was found that the NH2 and OH terminations both have a reduced band gap compared to the Ge-H supercell. Owing to the strong electronegativity of the terminated atoms, the electron cloud is rearranged, thereby changing the energy eigenvalues at different k vectors, and the electronic state distribution at the edge of the energy band is changed.
Generally, H is the most common passivation atom in Ge nanomodels owing to its surface passivation. In addition, all theoretical calculations on Ge termination were performed on the basis of H atoms. H passivation can be easily obtained by treating the Ge surface with an HF aqueous solution [26]. Dass used an sp3 tight-binding model to explore the electronic properties of H-terminated Ge cells and found that H saturation causes the band structure to change to a direct band gap. In addition, the bandwidth increases compared to the unterminated system with a highest value of 3.66 eV in the (100) direction [22].
To further analyze the contribution of each orbital to the band structure, the partial DOSs for different termination groups are shown in Fig. 3. Near the bottom of the CBM (2–6 eV), the s and p-orbitals of Ge-H and Ge-NH2 make the same contribution, while the DOS of the s-orbital of Ge-OH is significantly lower than that of the p-orbital. The VBM is mainly contributed by p-orbital electrons, and the DOS of the Ge-OH structure changes significantly in the valence band compared to other systems, with the lowest DOS of the s-orbital near the Fermi level.
Comparing the DOSs of different elements in the Ge-NH2, the H atoms in the NH2 group contribute to a higher s-orbital DOS in the conduction band, and the p-orbitals of N atoms have a higher DOS near the Fermi level. In the Ge-OH system, the interaction of O and Ge atoms causes the DOS peak of the p-orbital to remain. The p-orbital DOS of O atoms at the VBM was significantly lower than that of the N atoms. Researchers calculated the influence of other passivation groups on the electronic properties of the Ge unit cell. The movement of CBM led to a decrease in the bandwidth, and at the same time, it was transformed into an indirect band-gap structure [28]. In addition, Carturan et al. explored the influence of B and P atom doping on the electronic characteristics and band structure of Ge-H cells [26]. The calculation results showed that n-type and p-type doping produced similar responses to their band structures [30].
Figure 4 shows the partial DOS of Ge atoms and H atoms at different positions to further analyze their influence. The side H atoms are bonded to the outermost Ge atom on the side. Near the VBM (-4 eV–0), the DOS peak of the p-orbital of the Ge atom at the center is closer to the Fermi level, while that of the corner appears at -3.5. The DOS peak value of the s-orbital of the H and Ge atoms appears at the same position, which indicates that the s-orbitals of H atoms interact with the p-orbitals of the outermost Ge atoms, thus reducing the DOS near the Fermi level. The DOS of Ge atoms in the middle also proves this interaction, but the side Ge atom has only one dangling bond to form a bond with the H atom, making it not as obvious as the corner Ge atom.
The DOS near the Fermi level is mainly contributed by the 4p orbital electron of Ge at the VBM. The termination of H atoms reduces the DOS of the surface Ge atoms compared to the central Ge atomic band, which explains the passivation effect of H on the Ge surface. The Ge-NH2 passivation has a direct energy band, while Ge-OH passsivation changes to an indirect one, and compared with the passivation of Ge-H, their band gap decreases by 0.75 eV and 0.97 eV respectively. The passivation effect of Ge-OH is slightly better than that of Ge-H and Ge- NH2 in reducing the DOSs at the band edges.
3.3 Band structure of -SiOx termination
The understanding of the SiOx structure is based on two classical structural models: the random bonding (RB) model and random mixture (RM) model. The RB model indicates that the structure of SiOx is a single phase consisting of Si-Si bonds and Si-O bonds, which are distributed continuously and randomly throughout the entire network. The RM model indicates that it has a two-phase structure consisting of a mixture of Si and SiO2 in a very small category.
To clarify the interaction between the Ge and SiOx groups, it is necessary to consider the termination of different Si/O ratios and their corresponding band structures. The green, yellow, red, and white balls represent the Ge, Si, O, and H atoms in the structure, respectively. The energy band of Ge-SiOx passivation is shown in Fig. 5. After structure optimization, the relaxed structure and band gap of the Ge-SiOx passivation are related to the atomic ratio. Ge-SiO and Ge-Si2O2 systems have similar central symmetry structures, of which the Ge-Ge bond length at the surface is approximately 0.01–0.02 Å shorter than that of the central Ge atom. For Ge-SiO2 and Ge-Si2O3, the Ge-Ge bond length is longer (0.03–0.04 Å) than that of the central Ge atom.
The structure and energy band structures of Ge-SiOx and Ge-H are listed in Table 1. It can be seen that Ge-SiOx passivation has an indirect energy band with different degrees of reduction compared with the -H band gap. This means that the indirect band gap of the Ge-SiOx system is smaller than that of the Ge-H termination. The VBM is at the origin point G of k-space, and the CBM is mainly related to the termination structure. The bandwidth of Ge-SiO2 passivation is the smallest and is reduced by 1.9 eV compared to the Ge-H system. The Ge-SiO and Ge-Si2O2 band structures with more H atoms are discontinuous and have larger bandwidths than the other two.
| Direction | Passivation group | Siatom number | Oatom number | Hatom number | Eg (eV) | Band-gap type |
|---|---|---|---|---|---|---|
| 100 | -SiO | 4 | 4 | 12 | 2.94 | indirect |
| -SiO2 | 4 | 8 | 4 | 2.36 | indirect | |
| -Si2O3 | 8 | 12 | 4 | 2.39 | indirect | |
| -Si2O2 | 8 | 8 | 12 | 2.82 | indirect | |
| 100 | -H | - | - | 12 | 4.21 | direct |
3.4 DOS of -SiOx termination

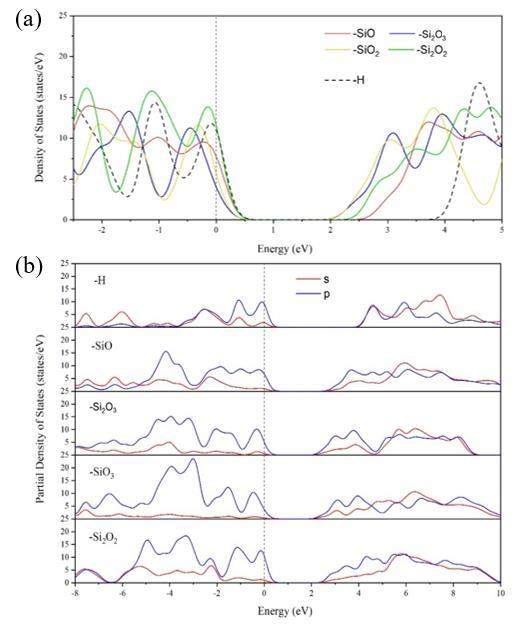

To further analyze the contribution of each orbital to the band structure, the DOS of Ge-SiOx is shown in Fig. 6. Compared to the Ge-H system, the DOS has different degrees of reduction in the vicinity of the Fermi level, except for the Ge-Si2O2 system. Near the CBM (2–6 eV), the contributions of the s-orbital and p-orbital of Ge-H are basically the same, while the DOS of the s-orbital of Ge-SiOx is significantly lower than that of the p-orbital. For the VBM, the peaks of the s and p-orbitals move away from the Fermi level, of which the Ge-SiO2 system moves farthest, and its DOS near the Fermi level is the lowest.
For Ge-SiO and Ge-SiO2, the DOS at the Fermi level is reduced, and their peak shifts to the left, indicating lower surface states. As the ratio of oxygen to silicon increases, the DOS near the Fermi level gradually decreases, and Ge-SiO2 is the lowest. The DOS peak of Ge-SiO2 is almost reduced to half that of Ge-H, indicating the best passivation effect. The DOS of Ge atoms is much higher than that of O atoms at the Fermi energy level because the electronegative O atom gains electrons from the Ge atom, which makes the passivation effect better than that of H atoms. Nevertheless, more passivation atoms and passivation layer structures (such as organic groups) can be selected and constructed, providing a better understanding of the chemical bonds between Ge and passivated atoms, as well as the electronic properties of Ge and different surface-passivated atoms.
3.5 Minority carrier lifetime of passivation film
The matching passivation layer of Ge can reduce the surface contaminants and dangling bonds. Covalent bonds between the passivated atoms and the outermost Ge can be formed, and the electronic state distribution at the edge of the energy band can be changed to optimize the energy band structure and reduce the interface state density [31-32]. Stable and insulating SiO and SiO2 films were deposited by electron beam evaporation at room temperature. Deposition at room temperature can prevent the diffusion of the passivation film into the Ge substrate, and a higher sputtering pressure reduces the fixed positive charge.
The minority carrier lifetime and electrical resistivity of the SiO and SiO2 passivation films were measured, as shown in Fig. 7(a). Resistivity is an important index that reflects the electrical properties of the passivation films. The four-probe method was used to test the resistivity of the SiO and SiO2 films. When the constant current source supplies a fixed current to the two probes outside, the voltage drop of the two probes inside is measured by a voltmeter. The square resistance of the sample can be read directly, and the film resistivity can be obtained by multiplying the thickness of the film. The square resistance of bare Ge substrate, SiO, and SiO2 with a thickness of ~200 nm is 0.26 Ω, 249 Ω and 550 Ω. The film resistivity of SiO2 (0.011 Ω· cm) is more than twice that of SiO (0.005 Ω· cm).
The electronegativity difference between Si and O is 1.7. The bond angle of the Si-O-Si bond with strong polarity can change in a range of 100° to 170°, and the rotation flexibility of Si-O-Si bonds makes most of the chemical bonds at the saturated interface [33]. In particular, oxygen acts as a bridge in the Si-O-Si bond. The interface between Ge and silicon oxide is a disordered system with dielectric properties. For the amorphous passivation film of an irregular network, the band-gap is occupied by a large number of defect states. The frequent scattering and trapping of silicon oxide substantially reduces the charge movement compared to the crystalline mobility. The charge carriers that would normally be forbidden to move in the gap region have a significant number of defect states. They can move from defects to defects in a process called phonon-assisted hopping, allowing for significant conduction near the Fermi level in the gap region. Silicon oxide contains acceptor-and donor-type localized states with considerable densities. The deep donor-type localized states are above the Fermi level, and the deep donor-type localized states are below the Fermi level. Therefore, it was found that the resistivity, Si-O bond, and band gap increased with oxygen content.
The composition and chemistry of the films were characterized using standard analysis techniques to ensure that high-quality films were deposited. The difference in the stoichiometric ratio and lattice mismatch between the passivation layer and substrate reduces the effect of surface passivation. Figures 7(b) and 7(c) show the Si-2p spectra of the EB-SiO and EB-SiO2 passivation films, respectively, obtained through X-ray photoelectron spectroscopy (XPS). By calculating the peak areas of the Si and O elements, the content ratios of Si and O can be obtained. For the EB-SiO sample, the binding energy is 102.84 eV, which is located between the absorption peaks of the 2 and +4 valence states. However, the binding energy corresponding to the strongest absorption peak of EB-SiO2 is 103.66 eV. This corresponds to the main absorption peak of SiO2, and no other peak appears from 99 eV (Si) to 103.6 eV (SiO2). The atomic ratios of O to Si in EB-SiO and EB-SiO2 are 1.140 and 1.97, respectively. As the oxygen content increases, the main absorption peak of Si shifts to the right, and the binding energy and valence of Si increases gradually.
The minority carrier lifetime of the passivation film is one of the main parameters used to characterize the quality of the SiOx passive films. The results show that the minority carrier lifetime of the passivation film SiO2 is 21.3 μs, which is higher than that of Ge-SiO. This means a lower defect density, higher short-range order, and better passivation effect. In addition, the high minority carrier lifetime can reduce the recombination rate of electron-hole pairs.
The passivation mechanism of different films was further analyzed based on the minority carrier lifetime and XPS measurements. Passivation of the sample surface reduces the surface recombination rate and affects the minority carrier lifetime [33]. The recombination of carriers is generated by the defect energy level (surface state) in the band gap. The suspended bond density of the sample surface is reduced by a combination of silicon oxide and dangling bonds, thus decreasing the density of the impurity energy level and the recombination center of minority carriers. EB-SiO2 provides a surface with relatively fewer dangling bonds and then decreases the DOSs and surface recombination velocity, further increasing the minority carrier lifetime.
The characteristics of the SiOx passive film affect the surface performance, and these characteristics depend largely on the sputtering deposition process parameters. The Ge surface between the electrical contacts must be passivated to minimize the surface-related leakage current. In addition, the intercontact surface must generate minimal dielectric noise. The surface leakage noise and passivant dielectric noise must remain low to achieve an acceptable signal-to-noise ratio.
Silicon oxides have been investigated as an alternative to H passivation for germanium detectors. The increase in the minority carrier lifetime near the interface leads to a decrease in the leakage current. Stable surface passivation is key to the application of Ge devices. The surface passivation layer should meet the requirements of a stable valence bond, high voltage, low dielectric constant, and high resistance layer. An effective surface passivation method can provide a surface with a smooth atomic arrangement and fewer dangling bonds and surface contaminants [34-36]. Controlling the surface chemistry and passivating Ge surfaces to achieve a consistently neutral intercontact surface is of paramount importance in the success of HPGe detector manufacturing processes and enhanced durability for long-term operation.
4 Conclusion
The performance of HPGe needs to be improved with long-term reliability and high resolution via surface passivation techniques. The interface quality of Ge is very important because it cannot form a stable oxide layer similar to silicon dioxide, thus affecting its chemical stability and electrical properties.
The band structures of Ge-H, Ge-NH2, Ge-OH, and Ge-SiOx termination systems were simulated using first-principles calculations. The band gap of Ge with different terminated atoms and groups was reduced to different degrees with Ge-OH and Ge-SiOx of indirect band gaps and Ge-H and Ge-NH2 of the direct band gap. The band gap of Ge-H was significantly larger than that of the Ge single crystal. The s-orbital of H interacted with the p-orbital of the outer Ge atoms, causing the DOS peak to move away from the band edge and reduce the DOS of the surface Ge atom near the Fermi level.
The DOS of the s-orbital of Ge-OH was significantly lower than that of the p-orbitals, indicating that the passivation effect of the OH group is slightly better than that of the H and NH2 terminations. H, N, and O atoms can effectively reduce the DOS of the Ge-based system, and the passivation effect of O atoms performed well. Because of the random mixing and bonding of Si and O atoms in the passivation layer of Ge, Ge-SiO2 offers the best passivation effect by reducing the DOS intensity. This helps explore the application in HPGe detectors with ultralow surface leakage current.
The relationship between the preparation parameters and electronic characteristics of SiO and SiO2 passive films was systematically studied. The different Si/O ratios have various defect state densities, and their conduction depends on the electron hopping in the local state near the Fermi level. The SiO2 passivation film by electron beam evaporation has a higher resistivity and minority carrier lifetime. This confirms that SiO2 reduces the recombination rate and eliminates the effect of surface recombination more effectively. This passivation technique, which can reduce the surface recombination of the outermost Ge atoms, provides superior resolution and reliability in HPGe and offers a critical application in the particle detection of HPGe detectors. The passivation effect and mechanism were discussed in terms of hopping conduction and surface defect density.
