Introduction

Commercial water reactors can usually reach a neutron flux level of 10¹⁴ n·cm^–2·s^–1. Neutron-based scientific research, isotope production, and material and fuel irradiation typically require a neutron flux of at least 10¹⁴ n·cm^–2·s^–1. Therefore, high flux research reactors that can supply fast or thermal neutron fluxes of at least 10¹⁴ n·cm^–2·s^–1 are in high demand worldwide. The high flux research reactor is not only an important experimental research facility for the development of nuclear energy but also a representative of the national comprehensive technical capability. High flux research reactors can supply, for example, sufficient neutron flux for fuel and material testing and efficient production of industrial and medical isotopes. Although some other researched reactors [1,2] have also been studied to yield radioisotopes or for other uses, high flux research reactors continue to play an important role in the development of nuclear energy.

The United States has two important high flux research reactors: a high flux isotope reactor (HFIR) and an advanced test reactor (ATR). The HFIR is in the Oak Ridge National Laboratory, with a maximum design thermal power of 100 MW [3], which reached the first criticality on August 25, 1965. The maximum neutron flux in the center channel of the HFIR is higher than 10¹⁵ n·cm^–2·s^–1 [3]. The original goal of HFIR was heavy isotope production. However, owing to the spatially varying neutron energy distribution, its application has expanded to neutron-focused scientific research, such as studies on matter structure, neutron damage to materials, and neutron activation analysis. One large flux trap is in the center core that can be configured to suit various tests and several reflector irradiation channels for additional material or fuel element irradiation [4].

The ATR is in Idaho National Laboratory (INL), and the designed thermal reactor power is 250 MW. The peak thermal neutron flux can reach 1.0×10¹⁵ n·cm^–2·s^–1 in the core [5, 6]. The ATR is currently operated at approximately 110 MW and can provide a thermal neutron flux of 4.4×10¹⁴ n·cm^–2·s^–1 and maximum fast (E > 1.0 MeV) neutron fluxes of 2.2×10¹⁴ n·cm^–2·s^–1 [7]. The ATR is the only research reactor in the United States that can provide large-volume, high-flux neutron irradiation in a prototype environment. The ATR makes studying the effects of intense neutron and gamma radiation on reactor materials and fuels possible. The ATR can provide high flux irradiation test capabilities similar to those of the HFIR, but the former has more irradiation channels than the latter does.

Japan has several high flux research reactors, among which the Japan Material Testing Reactor (JMTR) has the highest thermal power level (50 MW). The maximum neutron flux of the JMTR is approximately 4×10¹⁴ n·cm^–2·s^–1 [8, 9]. The JMTR features a tank in a pool type reactor with light water cooling. The JMTR reached criticality for the first time in March 1968 and was mainly applied to fuel and material irradiation tests for light water reactors, high-temperature gas-cooled reactors, and radioactive isotope production [10].

The high flux reactor (HFR) in Petten, the Netherlands, is also a poop-type test reactor with a thermal power of 45 MW [11,12]. The HFR has been operating steadily since September 1960 and has been widely used in nuclear fuel irradiation tests and medical isotope production. The HFR has already reached its designed life, and its decommissioning is in the planning stage.

The Jules Horowitz Reactor (JHR) is now under construction at the Cadarache Research Center in the south of France, and the plan is for it to maintain fission research capacity in Europe after 2020. The JHR is also a tank pool type reactor with a thermal power of 100 MW and can reach a high fast neutron flux level in the core (~10¹⁵ n·cm^–2·s^–1, E ≥0.1 MeV) and a high thermal flux level in the reflector (~ 4.5×0¹⁴ n·cm^–2·s^–1, E≤0.625 eV) [13]. The JHR has been designed with high flexibility to satisfy the requirements of fuel or material irradiation tests and medical isotope production.

The SM-3 reactor in Russia is a pressurized water reactor with a thermal power of 100 MW, and the neutron flux in the irradiation channels can reach (3–5)×10¹⁵ n·cm^–2·s^–1 [14]. The missions of SM-3, such as testing nuclear fuel and material irradiation and producing radioactive isotopes, are similar to those of other high flux research reactors.

China has three high flux research reactors in operation: the High Flux Engineering Test Reactor (HFETR) [15], the China Advanced Research Reactor (CARR) [16], and the China Mianyang Research Reactor (CMRR) [17]. The HFETR can provide the highest neutron flux level among the three research reactors.

The main parameters of these typical high flux reactors are listed in Table 1.

As shown in Table 1, most high flux research reactors are pool type tanks because the primary coolant system needs to be pressurized to increase the saturation temperature. This measure can avoid primary coolant boiling in the outlet. These high flux research reactors have adopted a compact core arrangement with plate type fuel elements, whose average power densities are usually higher than those of commercial pressurized water reactors. The reactor core arrangements of several typical high flux research reactors are illustrated in Fig. 1 [4, 6, 12, 15]. The diameter and height of these high flux research reactor active cores are typically no longer than 1 m. The average power density is usually hundreds of kilowatts per liter. The features of high safety and high neutron flux cannot be achieved simultaneously in the early high flux research reactors. For example, the neutron flux of the HFIR is the highest in the United States, but the safety feature cannot fulfill current requirements. Therefore, high flux research reactors that can simultaneously fulfill multiple requirements are necessary for advancing the nuclear industry.

Fig. 1Full-screen View

(Color online) Reactor core cross-section schematics for several high flux reactors. (a) Cross section view of HFIR core; (b) Schematic of HFR core; (c) Cross section view of ATR core; (d) Reactor core diagram of HFETR.

These high flux research reactors are the cornerstone in the development of nuclear technologies. As demonstrated, the missions of current high flux research reactors can generally be summarized as follows:

1. Conduct nuclear fuels and materials behavior research under real irradiation conditions.

2. Produce radioactive isotopes for medical and industrial purposes.

3. Conduct neutron scientific research, for example, neutron scattering, neutron imaging, neutron activation.

4. Supply a platform to the nuclear industry for education and training for scientists, engineers, students, and companies.

China currently has three high flux research reactors, which do not satisfy the requirements of the nuclear industry and nuclear technology application. Therefore, an innovative multi-mission high flux research reactor, as one of the national major scientific research infrastructures, is being designed by Tsinghua University. This paper mainly focuses on the characteristics and safety performance of this new multi-mission high flux research reactor designed by Tsinghua University (hereafter, MHFRR). The main design objectives of this MHFRR are as follows:

1. Both the average thermal and fast neutron flux will be higher than 1.5×10¹⁵ n·cm^–2·s^–1 to satisfy the various irradiation and scientific missions.

2. The length of a single fuel cycle must be longer than 25 days to reduce the frequency of refueling operations and improve the reactor economy.

3. The safety performance must satisfy the current nuclear safety requirements and standards of the National Nuclear Safety Administration.

In this paper, the second section introduces the general design of the MHFRR, including the design of the reactor core and thermal hydraulic. The third section analyzes the irradiation ability of the MHFRR. Some typical accidents that reflect the safety characteristics of the MHFRR will be analyzed in detail. The thermal hydraulic computational model of the MHFRR was simulated using RELAP5. The correlations for predicting the critical heat flux were written as a control component type card in the RELAP5 input files.

General design

2.1

Design of reactor core

As discussed, the purpose of high flux research reactors is to conduct various irradiation tests and neutron-related studies. Therefore, a high fast and thermal neutron flux is the key target of the core design. Some methods can be applied to improve the neutron flux, and the main methods are discussed as follows.

2.1.1

Methods of improving neutron flux

The goal of a commercial nuclear power plant is to generate electricity and make the output power as high as possible. However, high flux research reactors must have sufficient irradiation space and high thermal or fast neutron flux in the irradiation channels to promote safety and reduce costs. Without the restriction of output power and high efficiency, high power density can become the key factor in improving the neutron flux.

According to reactor physics, the neutron flux is related to the power density and fission cross-section, which can be expressed by the following equation [18, 19]: $\varphi =\frac{R_{\text{f}}}{{\text{Σ}}_{\text{f}}}=\frac{R_{\text{f}}}{N\cdot {\sigma }_{\text{f}}}\alpha \frac{P_{\text{d}}}{N\cdot {\sigma }_{\text{f}}},$ (1) where R_f is the fuel fission reaction rate, cm^–3·s^–1；P_d is the average power density, W·cm^–3; ∑_f is the macroscopic fission cross-section, cm^–1; σ_f is the microscopic fission cross-section, cm²; N is the nuclide number density, cm^–3; and φ is the neutron flux, n·cm^–2·s^–1.

The aforementioned equations show that the neutron flux φ is directly proportional to the average power density P_d and inversely proportional to the macroscopic fission cross-section ∑_f. Therefore, the following two methods can be considered to improve the neutron flux: improve the fuel power density and reduce the macroscopic fission cross-section ∑_f.

The neutron flux can be effectively increased by improving the core power density. As shown in Table 1, the power density of current high flux research reactors is significantly higher than that of commercial pressurized water reactors. For example, the power density of HFIR or SM-3 is approximately 17 times that of the typical pressurized water reactor AP1000 [20]. For obtaining reactor criticality and increasing power densities simultaneously, highly enriched uranium fuel is usually required. However, a high power density also means a short continuous core operation time for the same fuel loading; thus, the length of the fuel cycle is usually only a few tens of days. For example, for the HFIR core, the neutron flux of the irradiation channel in the core center and the single length of the fuel cycle at different power densities are shown in Table 2. The maximum neutron flux with a power of 150 MW is approximately two times that with 85 MW, and the single fuel cycle length is only 13.9 days when the power is 150 MW. Therefore, the neutron flux cannot be improved limitlessly by increasing the reactor power density.

Table 2Full-screen View

Maximum neutron flux in irradiation channel and cycle length of HFIR

Power (MW)	Maximum neutron flux (n/cm2·s)			Single cycle length (d)
	E<0.625 eV	E>100 eV	Total neutron flux
85	2.30×1015	2.20×1015	4.64×1015	24.6
100	2.71×1015	2.59×1015	5.46×1015	20.9
120	3.25×1015	3.11×1015	6.55×1015	17.4
150	4.06×1015	3.88×1015	8.19×1015	13.9

Show more

Aforementioned parameters were calculated based on the Cycle 400 input file for HFIR [21];

As aforementioned, decreasing the average fission cross-section can also improve the neutron flux, which can be realized by making the core area undermoderated and the energy spectrum hard. In this manner, the core area can reach a high fast neutron flux. Materials such as heavy water, beryllium, or graphite can be used as reflectors and arranged surround the core. Thus, the fast neutrons that leak from the core are fully moderated in the reflector and mostly become thermal neutrons. Therefore, the thermal neutron flux in the reflector can reach a high level. By means of this design idea, the fast neutron irradiation channels are arranged in the core area, and the thermal neutron irradiation channels are arranged in the reflector area, which can realize the space separation of fast neutrons and thermal neutrons. This design is a typical “anti-neutron trap-type” core design.

2.1.2

Core design

The MHFRR is a pressure vessel type research reactor with concentric fuel plate elements, heavy water as the coolant and moderator, and beryllium as the reflector, and the entire reactor pressure vessel is located in a light water pool. The core is composed of seven fuel assemblies and surrounded by a beryllium reflector, which provides efficient neutron moderation and reflection. The fuel assembly comprises a series of concentric regions. Each fuel plate contains fuel meat in the form of U₃Si₂-Al dispersion encapsulated in the aluminum alloy matrix. The fuel plate thickness is 2 mm. The fuel meat is 1 mm, and the outer cladding is 0.5 mm. The channel gap between the two plates of the inner fuel assemblies is 2 mm, and that of outer fuel assemblies is 4 mm. Six control drums are arranged in the reflector. The active core is compact: 50 cm high and an equivalent active diameter of approximately 60 cm. The in-core irradiation channel is in the center of the fuel assembly. In addition, irradiation channels are arranged in the beryllium reflector and outside the reactor for thermal neutron utility. Horizontal neutron beam channels can also be set for neutron scattering experiments. The MHFRR can be used to support, for example, radioactive isotope production, fuel and material irradiation tests, cold and thermal neutron scattering experiments, and neutron activation analysis. The main design parameters of the MHFRR is shown in Table 3. The core cross-section is shown in Figs. 2 and 3.

Table 3Full-screen View

Main design parameters of the MHFRR at steady state condition

Parameters		Value
Thermal power (MW)		70
Pressure of the primary coolant system (MPa)		2
Reactor core height (cm)		50
Equivalent diameter of reactor core active region (cm)		60.0
Reflector material/thickness (cm)		Be/30
Radius of inner/outer fuel assembly (cm)		10.5/10.5
Radius of inner/outer irradiation channel (cm)		5.5/4.0
Average coolant temperature of reactor inlet (℃)		50
Average coolant temperature of reactor outlet (℃)		60
Coolant flow rate between fuel plates (m·s–1)		10.0
Maximum temperature of cladding surface (℃)		178
minimum departure from nucleate boiling ratio (MDNBR)		3.2
Multiplication factor (keff) with all the control drums out/in		1.1693/0.8396
Moderator/fuel temperature coefficient (pcm·K–1)		–17.6/–1.79
Initial uranium loading/235U loading (kg)		67/12.4
The length of fuel cycle (d)		27.5
Average power density (MW·m–3)		680
Average power density of inner/outer fuel region (MW·m–3)		1551/567
Maximum surface heat flux (MW·m–2)		3.5
The average value of neutron flux in the center channel (n·cm–2·s–1)	Thermal (E<1 eV)	2.9×1015
	Fast (E>100 eV)	2.0×1015

Show more

Fig. 2Full-screen View

(Color online) Schematic cross-section of the reactor core

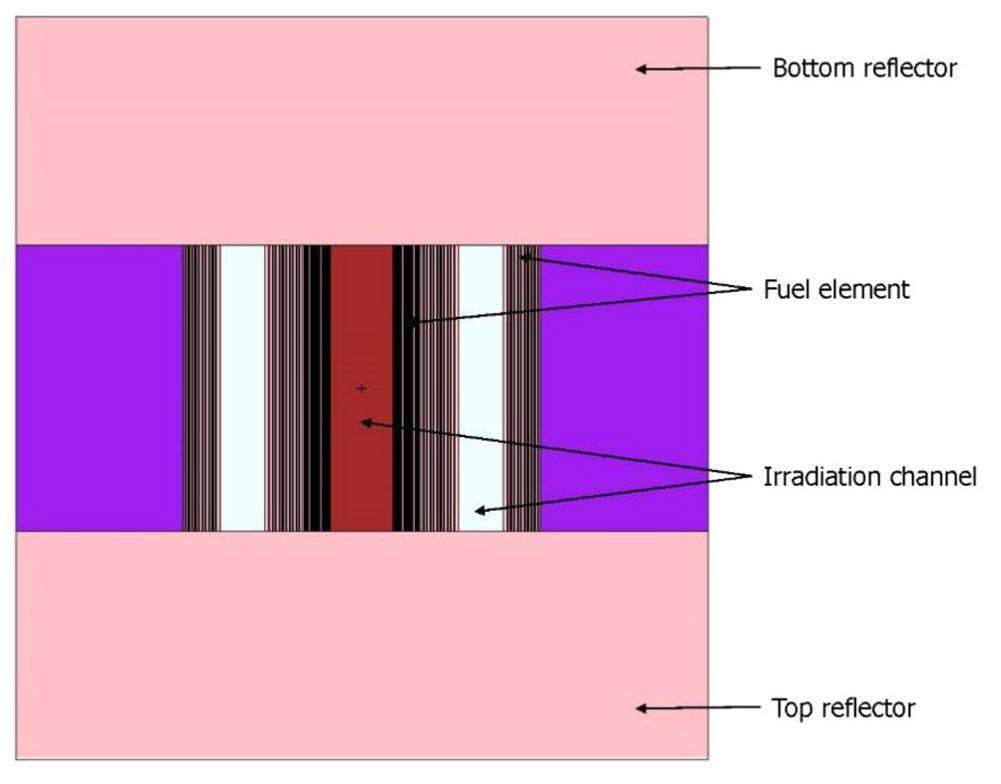

Fig. 3Full-screen View

(Color online) Schematic of the longitudinal section of the reactor core

This MHFRR adopts heavy water as the coolant because of its excellent moderated performance. The core fuel zone is radially divided into one central fuel zone and six peripheral fuel zones. The inner fuel zone is 90 wt% high-enriched uranium, and the outer six fuel zones are 20 wt% low-enriched uranium. Therefore, the fuel content per unit volume in the central fuel zone is much higher than that in the peripheral fuel zone, and the difference in the water-to-uranium ratio between these two regions could reach more than 20 times. Thus, the neutron energy spectra are very different. Figure 4 shows the normalized neutron energy spectra of the inner and outer irradiation channels for the MHFRR. The inner irradiation channel is a fast neutron (E> 100 eV) spectrum area, and the outer irradiation channel is a thermal neutron (E< 1 eV) spectrum area. Thus, the space separation of fast and thermal neutrons in the active region of the core is realized. In practical applications, only fast neutrons or thermal neutrons in the irradiation channel are typically used, and obtaining high fast and thermal neutron fluxes at the same location is unnecessary. If both fast and thermal neutrons reach a high neutron flux in the same irradiation channel, the total neutron flux at this location would be too large, which requires the surrounding fuel to reach a very high power density. The space separation of fast and thermal neutrons in the active region of the core can significantly reduce the average power density and increase the number and volume of irradiation channels. In addition, the power density in the central fuel area is significantly higher than that in the peripheral fuel area, which makes fission neutrons concentrate in the central fuel region. Taking full advantage of the long average free path length of neutrons in heavy water, fast neutrons in the central fuel area can enter the central channel, and most of the leaked neutrons can also enter the irradiation channel around the core. This design increase the number of fission neutrons to reach the irradiation channel and improve their utilization rate of fission neutrons.

Fig. 4Full-screen View

(Color online) Normalized neutron energy spectrum of the irradiation channel

With the characteristics of a long diffusion length and a large leakage of heavy water, fission neutrons in the core would leak into the beryllium reflector. Therefore, irradiation channels can also be set in the reflector. In order to avoid the power shape distortion caused by the insertion of the control rod, the control requirements can be fulfilled only by the control drum set in the reflector, which can greatly reduce the maximum power density and improve safety.

2.2

Design of thermal hydraulic

As shown in Fig. 5, the primary coolant system has four loops under operation with one loop spare set. Four primary coolant pumps, connected in parallel, circulate 2000 kg·s^–1 under nominal conditions. The pressurized water enters the reactor vessel, approximately 50% of the coolant flows through the fuel elements, and the remainder is used to cool the reactor internals and auxiliary experimental facilities. The basic premise of thermal hydraulic analysis is that the maximum temperature of the fuel plate cladding surface should be no higher than the temperature design limit, and no nucleate boiling will commence on the plate surface. In order to achieve these goals, some design concepts are adopted in the MHFRR.

Fig. 5Full-screen View

(Color online) Primary coolant system of the MHFRR

2.2.1

Plate type fuels

Because of the high reactor power density and large fuel loading capacity, the plate type fuel element is usually used to efficiently transfer the heat generated by the fuel. As Fig. 6 shows, the uranium-containing fuel is dispersed in the aluminum matrix, and the fuel plates can be machined into different shapes, such as involute plates, flat plates, folding plate types, and concentric circular rings [22]. A thin fuel plate can have a larger heat transfer area with the same volume of fuel than other types, but the temperature limit of this thin fuel plate is relatively low. Usually, the temperature design limit of the fuel plate cladding surface is not more than 250 ℃ to prevent cladding blisters, and the maximum temperature of the fuel meat is not more than 500 ℃. The temperature design limit of the cladding surface limits the maximum power density. As shown in Fig. 2, the fuel plates of the MHFRR are similar to those of the HFETR and ATR, and the temperature design limit is 234 ℃ according to the HFETR [15]. The maximum temperature of the cladding surface at the nominal operating condition is only 178 ℃, which still has a margin of approximately 56 ℃.

Fig. 6Full-screen View

(Color online) Schematic of plate fuel elements used in the research reactors. (a) The flat fuel plates in JMTR and JRRS; (b) The concentric fuel plates in HFETR; (c) The cylindrical fuel plates in ATR; (d) The involute fuel plates in HFIR and ANSR; (e) The folded fuel plates.

2.2.2

Pressurized coolant with high velocity

Owing to the high power density, the enthalpy rise of the coolant is relatively large. In order to prevent coolant boiling at the outlet, methods such as reducing the coolant temperature at the inlet or increasing the coolant saturation temperature by increasing the pressure of the primary coolant system are typically adopted. Therefore, current high flux research reactors are mostly pressurized, and the inlet temperature of the coolant is significantly lower than that of commercial power plants. The pressure of the primary coolant system is 2 MPa, and the reactor coolant inlet temperature is 50 ℃ for the MHFRR. In addition, owing to the high power density, the coolant flow velocity between the thin plates is usually relatively high to prevent the departure from nucleate boiling (DNB). The coolant velocity through fuel is usually approximately 10 m·s^–1. For example, the mean velocity through fuel is 12 m·s^–1 for the HFIR [4], 14 m·s^–1 for the ATR [5], 15 m·s^–1 for the JHR[13], and 10 m·s^–1 for the HFETR[15] but only 4.8 m·s^–1 for the AP1000[20]. High velocity may cause plate vibration and result in high requirements for the structural performance of fuel plates. Therefore, the design average coolant velocity between fuel plates is 10 m·s^–1 for the MHFRR.

2.2.3

Downward flow in the reactor core

Compared with commercial nuclear power plants, high flux research reactors have a shorter fuel cycle, usually tens of days. Frequent refueling operation means that the top cover of the tank or vessel needs to be opened frequently. For easy refueling operation, the structure of the top of the reactor core needs to be as simple as possible, and the fuel assemblies are usually simply placed on the support component. If the coolant flows from bottom to top through the core, it may wash away the fuel assemblies; thus, the coolant of most high flux reactors flows from top to bottom through the core. Therefore, the flow direction is also designed to be downward in the reactor core for this MHFRR.

However, this downward flow may create a new problem: in the case of a station blackout (SBO) accident, the forced circulation of the residual heat removal system is stopped when the emergency accumulator battery stops the power supply. A natural circulation between the reactor core and the emergency heat exchanger will occur owing to the temperature difference. This natural circulation flows from bottom to top in the core, contrary to the forced flow direction in normal operation. When the forced flow stops and decay heat release remains in the core, a transition process from forced flow to natural circulation occurs, called "flow inversion”. This situation inevitably occurs after an SBO accident if the forced flow direction is from top to bottom in the core. Therefore, the decay heat and natural circulation capacity should be considered in reactor design. A detailed analysis of natural circulation capacity is in Sect. 4.2.

Irradiation ability analysis

The primary role of the MHFRR is to conduct irradiation tests of advanced fuels and structural materials and produce radioactive isotopes. Therefore, irradiation ability is an important technical index for high flux research reactors. The HFETR is the only research reactor that can supply neutron flux with a 10¹⁵ n·cm^–2·s^–1 level and has the best irradiation ability among those in China. Therefore, this section presents a detailed irradiation ability comparison with HFETR on the premise of reactor safety.

The safety characteristics of a high flux research reactor can be reflected by safety margins. The safety margin of the high flux research reactor is the difference or the ratio between the limiting threshold value and the actual value. Exceeding the limiting threshold value leads to the failure of a component or system in the reactor [23]. The safety margins of these research reactors include the maximum temperature of the cladding surface and the minimum departure of the nucleate boiling ratio (MDNBR). The safety margins of the HFETR and MHFRR at steady state conditions are shown in Fig. 7.

Fig. 7Full-screen View

(Color online) Safety margins at steady state condition. (a) Safety margin of maximum cladding surface temperature; (b) Safety margin of MDNBR.

The irradiation ability is a comprehensive reflection of the neutron flux, irradiation space, and irradiation time provided by the high flux research reactor. The irradiation time is dependent on the operation time of the research reactor. For the current core design, a large irradiation volume and high neutron flux are required. The irradiation ability can be calculated using Eqs. (2) and (3) [24]: $Q_{\text{y}}=86400t\varphi V,$ (2) $Q_{\text{d}}=86400\varphi V,$ (3) where Q_y is the irradiation ability per year, cm·a^–1; Q_d is the irradiation ability per day, cm·d^–1; $\varphi$ is the average neutron flux at design power, n·cm^–2·s^–1; and V is the volume of the irradiation space, cm³. t is the irradiation time, d. A comparison of the irradiation ability of the HFETR and MHFRR is shown in Table 4.

As shown in Fig. 7, both the safety margin of the maximum temperature of the cladding surface and the MDNBR of the MHFRR are larger than those of the HFETR under steady state conditions. In other words, the MHFRR has better safety performance than the HFETR. Further, as shown in Table 4, the neutron flux and irradiation ability of the MHFRR are better than those of the HFETR. In conclusion, the MHFRR has an excellent irradiation ability and sufficient safety margins.

Safety analysis

In the current design of the MHFRR, the pressure of the primary coolant system is 2 MPa, the coolant velocity between the channels of fuel plates is 10 m·s^–1, and the coolant inlet temperature is 50℃. Four loops are in operation, and one loop is in a standby state under normal operation. For ensuring the removal of reactor decay heat, there is also a residual heat removal system. The residual heat removal system comprises two emergency pumps and two emergency heat exchangers. Based on this preliminary design, the temperature design limit of the cladding surface to prevent cladding blister, the MDNBR, and the onset of nucleate boiling to prevent heat transfer deterioration are the main safety criteria, specifically,

1. The maximum temperature of cladding surface is T_c,max< 234 ℃；

2. The minimum DNB ratio is (MDNBR)> 1.5；

3. The wall temperature T_w is less than the onset of nucleate boiling temperature T_ONB, namely, T_ONB>T_w.

Under accident conditions, when all three safety criteria are satisfied, the safety performance of the MHFRR can be acceptable. In order to verify the three safety criteria of the MHFRR, typical accidents such as SBO accidents, loss of coolant accidents (LOCAs), and reactivity accidents have been analyzed by RELAP5/MOD3.2. A nodalization diagram of the primary coolant and heat removal systems is shown in Fig. 8. The critical heat flux (CHF) model adopts the correlations of Sudo [25-26]. The Bergles–Rohsenow correlation was adopted to predict the onset of nucleate boiling (ONB) [27]. The heat transfer correlation uses the Dittus–Boelter correlation [28].

Fig. 8Full-screen View

(Color online) RELAP5 nodalization diagram of the primary coolant system and the heat removal system

CHF correlations: $q_{\text{CHF},1}^{\text{*}}=0.005{\left|G^{\text{*}}\right|}^{0.611}\left(1+\frac{5000}{\left|G^{\text{*}}\right|}\Delta T_{\text{sub},\text{o}}^{\text{*}}\right)$ (4) $q_{\text{CHF},2}^{\text{*}}=\frac{A}{A_H}\Delta T_{\text{sub},\text{i}}^{\text{*}}\left|G^{\text{*}}\right|$ (5) $q_{\text{CHF},3}^{\text{*}}=0.7\frac{A}{A_{\text{H}}}\times \frac{\sqrt{W/\lambda }}{{\left[1+{\left({\rho }_{\text{g}}/{\rho }_{\text{l}}\right)}^{0.25}\right]}^2}$ (6)

ONB correlation: $q_{ONB}=1.798\times {10}^{-3}{P}^{1.156}{\left[1.8\left(T_{\text{w}}-T_{\text{s}}\right)\right]}^{2.828/P^{0.0234}}$ (7)

Heat transfer correlation： $Nu=0.023R{e}^{0.8}P{r}^{0.4}$ (8)

4.1

SBO accident analysis

According to the analysis of existing high flux research reactors in China, from 1981 to the end of 1995, more than 40 unplanned shutdowns were caused by the loss of external power supply [29]. Therefore, to ensure the safety of the MHFRR, SBO accidents must be analyzed in detail. The results of the SBO accident analysis for the MHFRR are shown in Fig. 9.

Fig. 9Full-screen View

Results of SBO accident for MHFRR. (a) Normalized power versus time (b) Cladding surface temperature versus time (c) MDNBR versus time in beginning period (d) MDNBR versus time after 10800 s

An SBO accident is supposed to occur at 0 s, and the emergency shutdown signal will be delayed for 2 s after an 80% low flow rate signal is detected (2 s for the delay time is conservative). The results of the SBO accident analysis show that the maximum temperature of the cladding surface is 196.7 ℃, which is lower than the temperature limit of 234 ℃ and still has a margin of 37 ℃. The coolant outlet temperature of the hot channel is approximately 107.1 ℃, and the corresponding saturation temperature is approximately 212 ℃. Thus, no coolant boiling phenomenon occurs in the core, and the margin remains 105 ℃. As shown in Fig. 9, there are two danger points in the entire process after reactor shutdown. The first point appears at 3 s, and the MDNBR is 2.32, which occurs just before the emergency reactor shutdown signal is issued. In this period, the coolant flow through the core begins to decrease, the reactor power remains at nearly full power, the cooling of the fuel is insufficient, and the fuel temperature increases. After the reactor shutdown signal is triggered, the reactor power decreases rapidly, and the MDNBR begins to increase. The second danger point occurs at the moment of “flow inversion” after the emergency pump stops at 10800 s. The MDNBR decreases rapidly, and the second minimum point, 7.31, of the MDNBR appears at 10826 s. The coolant velocity at this moment is zero, and subsequently, the coolant between the fuel plates begins to flow upward. This phenomenon is “flow inversion”. After the natural circulation between the emergency heat exchanger and reactor core is established, the MDNBR is increased.

The aforementioned analysis of SBO accidents shows that the safety margins of the MDNBR and maximum temperature of the cladding surface remain sufficient. As shown in Table 5, the safety margin of the MHFRR remains larger than that of the other three high flux research reactors in China [30]. The safety margin of the maximum temperature of the cladding surface for the CMRR is large because of the low coolant inlet temperature. However, for the MHFRR, the advanced design concept of the space separation of fast and thermal neutrons in the active core region can improve the neutron flux and increase the safety margin increased simultaneously.

Table 5Full-screen View

Safety margin of high flux research reactors in SBO accident

Parameters	MHFRR	HFETR	CARR	CMRR
Thermal power (MW)	70	125	56.4	20
Safety margin of MDNBR	0.82	0.65	0.36	0.22
Safety margin of maximum temperature of cladding surface (℃)	37.3	39	11	51

Show more

Note: The MDNBR and maximum temperature of the cladding surface of the HFETR are obtained from analysis under steady state conditions. The safety margin in an SBO accident will be less than 0.65 and 39 ℃.

4.4

Reactivity accident

In order to avoid distortion of axial power, the MHFRR uses six control drums to adjust reactivity. Misoperation, a failure of the reactor regulation system, or a failure of the control drum system may cause the control drum to rotate out. Positive reactivity is introduced if the control drum rotates from the critical position, which leads to an increase in reactor power and fuel temperature. The mismatch of the reactor power and primary coolant flow rate may result in the maximum surface temperature of the fuel cladding exceeding the temperature limit and the MDNBR being lower than the safety criteria. Figure 10 shows the reactivity value curve of the single control drum. According to curve of the reactivity value for the control drum, the simulation results when the control drum is rotated out from the critical position under full power operation are shown in Fig. 11.

Fig. 10Full-screen View

Reactivity value curve of the single control drum

Fig. 11Full-screen View

Results of the control drum rotating out from the critical position under full power operation. (a) Total power versus time (b) Reactivity versus time (c) Maximum temperature of cladding surface versus time (d) MDNBR versus time

The simulation results were obtained under the assumption that the control drum can return to its original position, which is equivalent to introducing step positive reactivity. Additionally, a more conservative assumption is adopted, that is, no other protective measures are implemented except to make the control drum rotate to its original position.

The analysis results show that when the introduced positive reactivity is lower than 280 pcm (corresponding to the control drum rotation of 3 degrees), the maximum temperature of the fuel cladding surface is 230.4 ℃, which is lower than the temperature limit of 234 ℃; the minimum value of DNBR is 1.73, which is higher than the limit value of 1.5; and the minimum temperature difference between the wall temperature and ONB temperature is 5.3 ℃. The maximum temperature of the fuel cladding surface, the MDNBR, and the ONB temperature satisfy the requirements of the safety criteria. Moreover, the rotation speed of the control drum can be controlled to 0.1 degree/s. Three degrees require 30 s, which is sufficient for the protection systems to implement.

These results were obtained under the conservative assumption that no protective actions were implemented. Notably, once the power level reaches a certain level, various protective signals are triggered, and the reactor automatically implements protective measures, such as reactor shutdown. In this case, the consequences will be much lighter than those aforementioned, and the safety margins will be sufficient.

Conclusion

In conclusion, the MHFRR is designed as a vessel in a pool type high flux research reactor with concentric fuel plate elements. The primary coolant system is 2 MPa to avoid coolant boiling in the reactor core. Heavy water was adopted as the coolant and moderator, and beryllium was used as the reflector. The average values of thermal and fast neutron flux in the irradiation channels are above 2.0×10¹⁵ n·cm^–2·s^–1. This high neutron flux can fulfill the needs of most scientific research and medical and industrial isotope production.

Moreover, the space separation of fast and thermal neutrons can reduce the total neutron demand of each region. In this manner, the average power density can be greatly reduced, and the number and volume of irradiation channels can be increased. The design of a high neutron flux trap by optimizing the arrangement of heavy water and beryllium makes the utilization of fuel effective. Control drums are adopted to adjust the reactivity, which avoids power shape distortion and improves safety features. Based on these design principles, the irradiation ability and safety margins are significantly improved.

Furthermore, according to the accident analysis of the SBO accident, LOCA, and reactivity analysis, the maximum temperature of the fuel cladding surface, the MDNBR, and the ONB temperature can satisfy the requirements of the current safety criteria. These analysis results further prove the safety performance of the MHFRR. In addition, owing to the rich construction experience of pressurized water reactors, engineering the construction of MHFRR is less difficult and highly feasible.
