1 Introduction
Humic acids (HA) is a kind of Macromolecular organic matter in natural water, contains many kind of functional group, such as hydroxyl group, carboxyl group, benzo- quinonyl, methoxy group, and carbonyl group[1]. During chloridizing disinfection of drinking water, it can reacts with Cl2 to form chlorinated disinfection by-produces(DBPs), such as THMs[2], and can affect water’s color and taste. As HA can collect some trace metal elements[3] it can reduce water’s mineralization even increased some of heavy metal's toxicity. So, it is very important to remove (or reduce concentration of) HA from water.
HA is a bio-refractory material. In the research of using activated sludge to degrade HA[4], X.Y. Xiong found its biodegradability is very poor and degradation rate is very slow. Traditional methods of its degradation include coagulation sedimentation[5], adsorption[6], ion exchange[7] technique and so on. In recent years, some advanced oxidation processes (AOPs) such as Fenton[8], photocatalytic oxidation[9], ultrasound oxidation[10], and electrochemical oxidization[11] have been used in the study of HA degradation. Ionization radiation technology is an efficient, rapid and advanced oxidation technology, without second pollution, have been widely used in the exploration of organic pollutant degradation and waste water treatment[12]. However, using ionization radiation to do the HA degradation research is few and far between. Hidehiko Arai et al. had degraded HA by using ionization radiation and ozonation, which have studied the chlorination products and the chain reaction mechanism during the oxidation of HA[13]. H.B. Liang et al. have used electron beam to degrade HA, dealing with the difference of chemical structure and biological activity before and after irradiation[14].
This paper aimed to study the degradation effect of gamma irradiation to HA in aqueous solutions. Its degradation is shown by measuring the change of UV-Vis absorbance, COD and pH value before and after irradiation. Furthermore, the factors, such as pH value, and initial concentrations of HA, affected on degradation were investigated.
2 Materials and methods
2.1 Materials
The HA (BR) used in the present study was purchased from Shanghai Fanke biotech company (Shanghai, China), and both of the sodium hydroxide (AR) and sulfuric acid (AR) were obtained from Nanjing Reagent (Nanjing, China). All aqueous solutions were prepared with ultrapure water obtained from an UP-10 ultrapure water system (NJQY, Nanjing, China), resulting in a resistivity >18.2 MΩcm.
2.2 Analysis methods
The pH of the solutions was measured by PHS-3C pH meter, Chemical Oxygen Demand (COD) was analyzed using the COD Meter (ET99718, Italy), UV-Vis absorbance was determined by UV-1800 (Shimadzu, Japan).
2.3 Experimental procedure
The desired concentrations of HA solutions were prepared between 0.02 g/L to 0.12 g/L by using ultrapure water. The pH of the solution was adjusted by H2SO4 (1 mol/L) or NaOH (1 mol/L). Each sample of 50 mL was sealed in the 100 mL brown glass bottle with plastic cap. Each of the concentrations of HA solutions were prepared two samples, one of the sample were irradiated under the gamma radiation (60Co, 1 kGy/h, NUAA), the range of irradiated dose between 0 to 40 kGy, and the dose were determined by Silver dichromate dose meter. The other preservation was done in the shadows as a blank sample. All of the samples were analyzed at the same time after irradiation. All operations were performed at room temperature.
3 Results and discussion
3.1 Effect of irradiation dose on UV-Vis absorption spectrum
To clarify the degradation characteristics of HA as a result of gamma irradiation, spectroscopic data for the irradiated and un-irradiated HA were compared. Fig.1 shows the UV-Vis absorption spectrum of HA which the concentration was 0.12 g/L and the range of absorbance between 190 to 800 nm with a maximum absorption peak at 310 nm. There are strong absorbance at 250‒400 nm, it may be due to that HA's composition is very complex and contains a large number of benzene rings and have a large conjugated system in HA molecule[15]. The absorbance at 200‒500 nm decreased with increasing the irradiation dose as a result of gamma irradiation. It was confirmed that HA was effectively decomposed under gamma irradiation. However, the absorbance at 500‒800 nm was slowly increasing at the beginning of the irradiation, and then decreased with increasing the irradiation dose. This would be due to some intermediates formed in the process of HA decomposition at the beginning of irradiation, and then they were decomposed with increasing irradiation dose.
3.2 Effect of irradiation dose on COD removal
The COD removal was used to represent the degree of HA degradation by gamma radiation. The COD removal was calculated as follow.
where COD0 and CODD were the COD concentrations before and after gamma irradiation.
Figure 2 shows the effect of irradiation dose on COD removal when initial concentration is 0.12 g/L.
It can be seen that the COD removal of HA solutions increased with increasing the irradiation dose. The COD removal was up to 52% when the irradiation dose reaches 40 kGy. This suggests that the degradation of the HA solution by gamma irradiation is effective.
3.3 Change of pH
The effect of irradiation dose on pH was investigated at initial concentration of 0.12 g/L. As shown in Fig.3, the initial pH of HA solution was 7.05. After irradiation, the HA solutions pH decreased with increasing irradiation dose. It’s because some small molecule organic acids such as oxalic acid, formic acid generated in the process of HA decomposition[16]. However, when the irradiation dose was up to 40 kGy, the solutions pH showed small increase, which might be due to the small molecule acids resulted from completely mineralized of HA to form CO2 and H2O under the high irradiation dose condition.
3.4 Effect of initial concentrations on COD removal

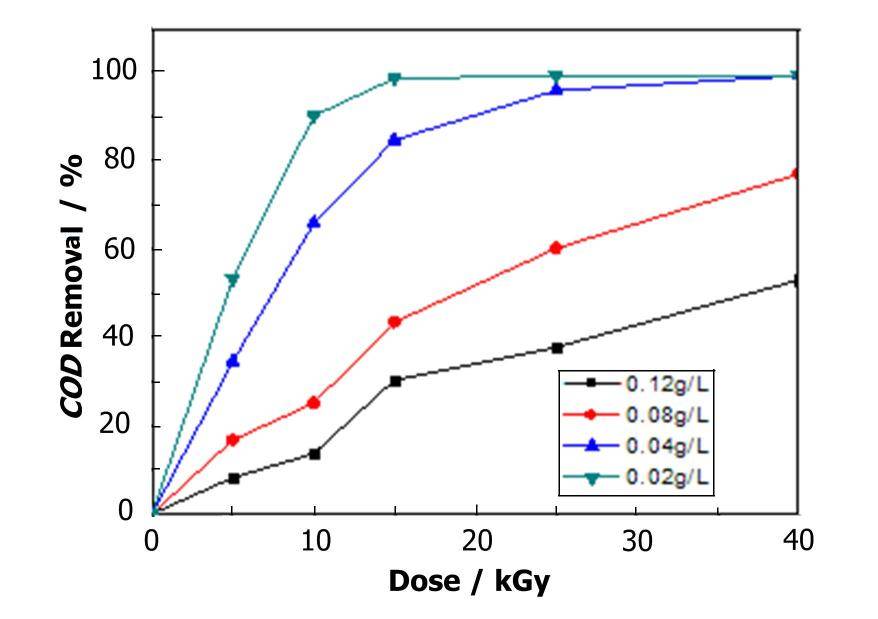

Figure 4 shows the COD removal of different concentrations of HA solutions after gamma irradiation with different irradiation doses. It should be noted that the HA solutions initial pH was 7.05 with different concentration of HA, 0.02 g/L, 0.04 g/L, 0.08 g/L, 0.12 g/L respectively. As show in Fig.5, it is clearly that the initial concentration acts an important role in the process of HA decomposition. It can be seen that the COD removal decreased with increasing initial concentrations under the same irradiation dose. For example, for the same gamma irradiation dose (15 kGy), the HA solution’s COD removal is 95% when the initial concentrations was 0.02 g/L. However, the COD removal is only 31% when the initial concentration was 0.12 g/L. It means that the amount of organic carbon with higher HA concentration is larger than that of low concentration and the OH radical formed in this process is dependent on the irradiation doses, so the HA degradation efficiency should be low with its high concentration[17].
3.5 Kinetic analysis of COD removal
As illustrated in Fig.4, approximately COD removal of HA solution exponentially ascends with the increase of irradiation dose, indicating that COD removal of HA solution maybe follow pseudo first-order kinetics. By assuming that the gamma irradiation process of HA follows pseudo first-order kinetics, relationship between COD removal of HA solution with irradiation time would be follow Eq.(2).
C0 and Ct were the COD values before and after irradiation, t was the irradiation time (h), k was the reaction rate constant.
As shown in Table 1, the high value of correlation coefficient R in Table 1 suggests that the degradation of HA solution by gamma radiation follows pseudo first-order kinetics. It can be seen that the k value decreases with the increment of initial HA solutions concentration. As discussed above, under the same irradiation condition and pH value, when the HA concentration was lower, the relative probability that HA reacting with OH radical was greater.
| Concentrations (g/L) | Kinetics equations | Correlation coefficient (R2) |
| 0.12 | lnCt /C0=‒0.0194t+9.2607×10-4 | 0.9727 |
| 0.08 | lnCt /C0=‒0.3683t+0.0149 | 0.9951 |
| 0.04 | lnCt /C0=‒0.0863t‒0.0658 | 0.9936 |
| 0.02 | lnCt /C0=‒0.2387t+0.1257 | 0.9823 |
3.6 Effect of initial pH on COD removal
For investigating the effect of initial pH on the degradation efficiency, the experiment was performed at initial HA concentrations of 0.1 g/L and irradiation dose was 25 kGy, and pH was changed from 3 to 12 as shown in Fig.6. The COD removal was different with the different initial pH values. It is clear that the optimal COD removal condition was pH 3. Accordingly, the pH may affect the molecular structure of HA, which will result in different degradation efficiency. On other hand the oxidation potential of OH radical at low pH is higher than that at high pH, so the degradation of HA may be favorable to OH at low pH.
4 Conclusion
The degradation of HA in aqueous solution was investigated by gamma irradiation. Results from this study show that gamma irradiation might be effective method for degradation of HA in aqueous solution. After irradiation, UV-Vis absorbance and COD concentration of the HA solution have a significant decline. If initial concentration is 0.12 g/L, initial PH=7, after 40 kGy irradiation, UV-Vis absorbance at 310nm will decline 90%, COD concentrations will decline 52%. Further, the change of COD concentration matched the first-order kinetics equation. The higher the initial concentration is, the lower the reaction rate coefficient is.
In addition, initial concentration and initial pH of HA solutions have important effects on irradiation degradation. Under the same irradiation condition, the efficiency of irradiation degradation decreases with increase of initial concentration. When initial pH value is between 6 and 8, the efficiency of the irradiation degradation is the highest. Too low or too high initial pH value is not conducive to the irradiation degradation of HA solutions.
