Flow characteristics of natural circulation in a lead-bismuth eutectic loop

NUCLEAR ENERGY SCIENCE AND ENGINEERING

Flow characteristics of natural circulation in a lead-bismuth eutectic loop

Chen-Chong Yue，

Liu-Li Chen，

Ke-Feng Lyu，

Yang Li，

Sheng Gao，

Yue-Jing Liu，

Qun-Ying Huang

Nuclear Science and Techniques

Vol.28, No.3

Article number 39

Published in print 01 Mar 2017

Available online 11 Feb 2017

DOI：10.1007/s41365-017-0187-x

41600

Lead and lead-alloys are proposed in future advanced nuclear system as coolant and spallation target. To test the natural circulation and gas-lift, and obtain thermal-hydraulics data for computational fluid dynamics (CFD) and system code validation, a lead-bismuth eutectic (LBE) rectangular loop, the KYLIN-II Thermal Hydraulic natural circulation test loop, has been designed and constructed by the FDS team. In this paper, theoretical analysis on natural circulation thermal-hydraulic performance is described and the steady state natural circulation experiment is performed. The results indicated that the natural circulation capability depends on the loop resistance and the temperature and center height differences between the hot and cold legs. The theoretical analysis results agree well with, while the CFD deviate from, the experimental results.

Accelerator driven systemsLead-bismuth eutecticNatural circulationCFD.

1. Introduction

Due to their chemical inertness and good thermal-physical properties, which are in favor of the reactors’ reliability and safety, liquid lead or lead-bismuth eutectic (LBE) were proposed as a potential candidate coolant materials for future advanced nuclear systems such as accelerator driven systems (ADS) and lead-cooled fast reactors (LFR) ^[1]. The high atomic number of LBE makes it also suitable as a spallation target of ADS which has been proposed for the transmutation of nuclear waste ^[2,3].

Owing to the property of large thermal expansion coefficient, a significant natural circulation capability emerges in HLM (heavy liquid metal)-cooled reactor designs ^[4]. Natural circulation is driven by the hydrostatic head due to the density difference of LBE between the hot and cold legs. It takes away the heat generated in the reactor core via natural circulation of the coolant under accident conditions. Natural circulation even has been adopted as the normal operation mode for primary cooling in some advanced HLM-cooled reactor designs, e.g. the Small Secure Transportable Autonomous Reactor (SSTAR) ^[5,6], one of the Generation-IV designs proposed in USA. As the passive safety and reliability is likely being employed for Generation-IV nuclear reactors, attentions have been increasingly given to natural circulation performance in the advanced reactor designs.

Both theoretical and experimental efforts were made to study natural circulation of LBE in various nuclear reactor systems. Davis analyzed thermal-hydraulics of HLM-cooled reactors ^[7]. Ma et al. did experiments on forced flow and natural circulation of LBE, and its stability, for ADS in TALL facility ^[8,9]. Tarantino et al. ^[10] carried out steady state pre-test analysis of an LBE test loop, NACIE, through steady state 1D analysis and 3D CFD studies. Borgohain et al. investigated natural circulation in HANS test loop^[11] and indicated that natural circulation capability depended on loop structure parameters.

An engineering project to develop ADS and lead-base fast reactors technology was launched in China in 2011, with the CLEAR (China LEAd-based Reactor) being the reference reactor for ADS and fast reactor. It is performed by a number of institutions led by Institute of Nuclear Energy Safety Technology, Chinese Academy of Sciences (INEST). To support the design and construction of CLEAR-I, an LBE rectangular loop named KYLIN-II Thermal Hydraulic (KYLIN-II TH) natural circulation test loop was constructed on basis of available experience on lead-lithium technology ^[12], including the fusion reactor design ^[13-15], R&D on blanket ^[16,17], R&D on fusion materials and technologies ^[18-20]. To verify the capability of natural circulation in KYLIN-II TH natural circulation test loop, it is necessary to analyze flow characteristics of natural circulation. One of the goals of KYLIN-II facility is to carry out natural circulation experiments under different conditions, aiming at, among others, supporting the verification & validation of numerical codes.

In this paper, steady state experiments on natural circulation with different heating powers are performed in the loop. The results are compared with theoretical analysis and CFD simulation results.

2. KYLIN-II TH natural circulation loop

The KYLIN-II TH natural circulation loop is an LBE rectangular loop as depicted in Fig. 1. The loop basically consists of two vertical pipes working as riser and downcomer, respectively, connected by two horizontal branches. In the bottom part of the riser, a heat source (HS) of 24.0 kW is installed, while the upper part of the downcomer is connected to a heat exchanger (HX). An expansion vessel is installed on the loop top, coaxially to the riser. By a valve installed in the cold part of the loop, the singular pressure losses of the system are modified in the tests. Table 1 shows the main parameters of the loop.

Main parameters of the KYLIN-II TH natural circulation loop.

Parameters	Values
Total height (m)	5
Length of HS (mm)	1800
Pipe inner diameter (mm)	26
HS inner diameter (mm)	54
Electrical rod diameter (mm)	22
Active heating length (mm)	800
Operating temperature (°C)	150–500
Operating pressure (atm)	1–1.5
Input power (kW)	0–24
Maximum wall heat flux (W·cm⁻²)	43.4

Fig. 1.

Lay-out of the KYLIN-II TH natural circulation loop.

The HS is arranged at the bottom of the riser containing an electrical rod simulator, which is concentrically inserted in a 54-mm-ID tube made of 316L stainless steel. As the HS is larger in I.D. than the main pipe, the average velocity in the main pipe is estimated at 0.12–0.25 m/s, while it is 0.03–0.06 m/s in the HS channel. Connected coaxially to the top of the riser, the expansion vessel provides a suitable volume to allow the LBE expansion when it is heated to hundreds of degrees in the test. To avoid the LBE being oxidized, the free level of LBE is covered by argon gas with a slight overpressure of tens of kPa. Considering the heat exchange capability without introducing extra pressure loss, a ‘tube in tube’, counter flow type heat exchanger is adopted. High temperature heat-conducting oil is used as the secondary fluid. Four immersion K type thermocouples are installed at the both ends of the HS and HX to measure the loop temperature.

3. Theoretical analysis

3.1 Theoretical analysis model for natural circulation

A one-dimensional theoretical model is adopted for analyzing natural circulation in the KYLIN-II TH natural circulation loop. For calculating the LBE flow rate through the loop, the momentum equation under steady state condition, integrated along the whole loop, can be written as:

Δ P_{D} = Δ P_{fr},

(1)

where ΔP_D is the driving force for the natural circulation and ΔP_fr the total friction along the loop.

The driving force is caused by density difference of LBE between the hot and cold legs, and is related to the temperature difference (thermal buoyancy). According to the energy conservation law, the temperature difference can be calculated with the input power of the electrical rod simulator (P_th), the specific heat capacity of the fluid (c_p) and the mass flow rate of LBE( $\dot{m})$ . Thus the driving force term can be written as:

Δ P_{D} = ρ_{0} β g H P_{th} / (\dot{m} c_{p}),

(2)

where ρ₀ is the fluid density corresponding to the average temperature in the loop, β is the fluid isobaric thermal expansion coefficient, g is gravitational acceleration, and H is the effective elevation change between heating and cooling centers.

To evaluate the total pressure drop along the flow path, a total singular pressure drop coefficient is defined as:

K = \sum_{i} [{(k + f \frac{L}{D_{H}})}_{i} \frac{A_{pipe}^{2}}{A_{i}^{2}}],

(3)

where k is the singular pressure drop coefficient in the i^th branch of the loop; f is the Darcy–Weisbach friction factor in the i^th branch of the loop; L, D_H and A_i are the length, hydraulic diameter and flow area of the i^th branch of the loop, respectively; A_pipe is the main cross section along the flow path. The total singular pressure drop coefficient will be discussed again in Section 3.2.

The friction term in Eq. (1) can be expressed as:

Δ P_{fr} = K \frac{1}{2} ρ_{0} v^{2} = \frac{1}{2} K \frac{{\dot{m}}^{2}}{ρ_{0} A_{pipe}^{2}},

(4)

where $v$ is the velocity in main pipe.

Assuming that K does not depend on the velocity, and using Eqs. (1), (2) and (4), the mass flow rate in the natural circulation flow regime can be calculated by Eq. (5).

\dot{m} = {(\frac{2 β ρ_{0}^{2} g H A_{pipe}^{2} P_{th}}{c_{p} K})}^{\frac{1}{3}}

(5)

The $\dot{m}$ and K can be optimized as a function of the Reynolds number. Finally, the results can be optimized by iteration.

3.2 Resistance coefficients of parts and components

The resistance coefficient of the loop in Eq. (3) can be obtained by a thermal-hydraulic modeling for different parts of the primary loop. The total singular pressure drop coefficient K can be expressed by:

K = K_{HS} + K_{EV} + K_{pipe},

(6)

where, K_HS is the pressure drop coefficient in HS; K_EV is the pressure drop coefficient in expansion vessel; K_pipe is the pressure drop coefficient along the pipe. Since the cross section of the tube in HX is coincident with the cross section of the pipe, K_pipe contains the pressure drop in HX, and the pressure drop in two 90° elbows are included in K_pipe, too.

As the flow area in the HS differs from the pipe cross section, and the flow direction changes, the pressure drop coefficient in HS can be written as:

K_{HS} = K_{in} + K_{out} + K_{l, eff},

(7)

where K_in is the pressure drop coefficient of the HS inlet, consisting the effects of changes in flow direction (a T-shaped elbow with one end blocked, K=1.29) ^[21] and the flow area(K≈0.64); K_out is the pressure drop coefficient of the HS outlet, mainly influenced by the change in flow area; and K_l,eff is the pressure drop coefficient along the HS, defined as:

K_{l, eff} = \frac{f L_{HS}}{D_{H}} {(\frac{A_{pipe}}{A_{HS}})}^{2},

(8)

where, f is the Darcy–Weisbach friction factor; L_HS is the HS length; D_H is hydraulic diameter of the HS; and A_HS = A−A_r is flow area of the HS, with A being the cross section of HS and A_r, cross section of the heater.

The pressure drop in expansion vessel is caused by the inlet (K≈1), the outlet (K≈0.5) and the change in flow direction, and some chemical control instrumentation (K≈1) as well. According to previous experience on other loops of KYLIN-II facility, the resistance coefficient of the expansion vessel is K_EV≈2.5.

It is assumed conservatively that the total length of the pipe (I.D.=26 mm) is L_pipe ≈11 m with 2–90° elbows (K=0.5×2=1, the other two elbows for the expansion vessel and the HS, respectively) ^[21]. The resistance coefficient, for the pressure drop along the pipe and 2 (90°) elbows, can therefore be expressed as:

K_{pipe} = \frac{f L_{pipe}}{D} + 1.

(9)

3.3 The preliminary results of theoretical analysis

The thermal-hydraulic performance in natural circulation can be calculated with geometrical configuration of the loop known. According to the approaches in Section 3.2, the hydraulic parameters of Reynolds numbers, resistance coefficients and overall pressure loss can be calculated as a function of the LBE mass flow rate. The main results are listed in Table 2. The total singular pressure drop coefficient declines with the mass flow rate, mainly because the K_pipe declines with increasing Reynolds number.

Reynolds numbers, resistance coefficients and overall pressure loss as a function of the LBE mass flow rate.

$\dot{m}$ (kg·s⁻¹)	Re_tube (×10³)	Re_HS (×10³)	K_HS	K_EV	K_pipe	K_total	ΔP_{f r}(Pa)
0.25	5.56	1.90	2.9	2.5	19.1	24.5	261.9
0.5	11.10	3.81	2.8	2.5	18.9	24.2	1034.8
0.75	16.70	5.71	2.8	2.5	18.5	23.8	2289.9
1	22.30	7.62	2.7	2.5	18.1	23.3	3985.4
1.25	27.80	9.52	2.6	2.5	17.7	22.8	6093.6

By solving Eq. (5), one can estimate the equilibrium mass flow rate of natural circulation in the loop at different input powers. The main thermal-hydraulic parameters at different power levels are summarized in Table 3.

Thermal-hydraulic performance matrix in natural circulation

P (kW)	$\dot{m}$ (kg·s⁻¹)	ΔT (°C)	v (m·s⁻¹)
4	0.657	41.4	0.119
8	0.834	65.3	0.151
12	0.957	85.3	0.174
16	1.058	102.9	0.192
20	1.143	119.1	0.208
24	1.215	134.4	0.221

4. The CFD simulation

4.1 Description of CFD modeling

CFD simulations were carried to evaluate the KYLIN-II natural circulation loop, together with the expansion tank. The geometry model of expansion tank, heating rod, and HX was adopted as shown in Fig.2. The valve at the bottom was replaced by a tube. The 3D geometry was modeled in ICEM CFD (The Integrated Computer Engineering and Manufacturing code for Computational Fluid Dynamics) with dimensions of the pipes and other key component described in Section 2. The heating volume did not consist of solid volume, only a surface source on the pin wall was adopted. A commercial code FLUNET was employed to simulate the steady state of natural circulation at different heating powers.

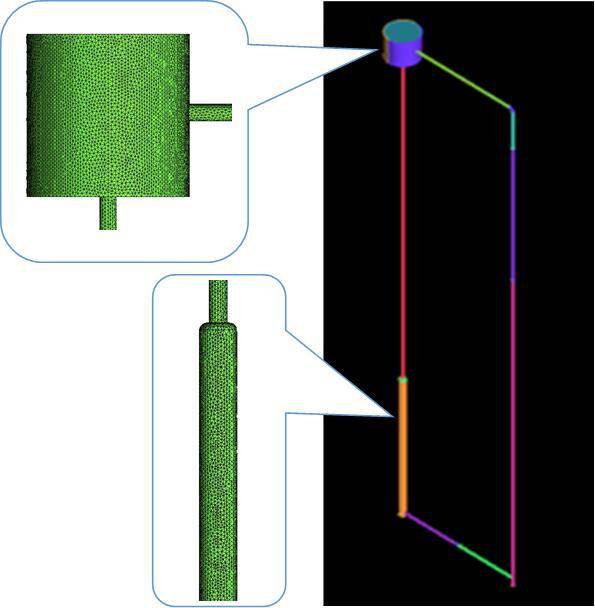

Fig. 2

3D geometry model and unstructured grid mesh of the loop.

The simulation model is RNG κ-ε model with standard wall treatment ^[11]. The heating powers of 4.3, 7.6, 11.2, 15.3, and 17.9 kW were decided on experimental basis. Correspondingly, the heat fluxes of 5.15, 9.20, 13.47, 18.40, and 21.52 W/cm² were imposed on the rod bundle surface. Regarding the HX, a heat transfer coefficient of 4.89 W·cm⁻²·K⁻¹ and a free stream temperature of 200°C was utilized on the oil side. After a sensitivity analysis on the unstructured mesh, the grid numbers were defined as 1.3×10⁶.°C

4.2 CFD simulation results of the steady-state experiments

The CFD results at different input powers were obtained using FLUENT. The temperature and velocity contours at heating power of 17.9 kW are shown in Fig. 3. The maximum temperature appeared on upper end of the heating rod (Fig.3a). The loop was assumed adiabatic, without heat losses, so the outlet temperature of HX matches with the inlet temperature of HS. The HS outlet temperature was 334.4°C and the temperature difference through the HS was 101.5°C. From Fig.3(b), the velocity through all pipes was almost constant, hence a steady state.

Fig. 3

CFD results at input power of 17.9 kW.

5. Results and discussion

5.1 Experimental results and discussions

To understand the LBE flow characteristics in natural circulation loop and evaluate the CFD results, steady state experiments at different heating powers were performed in the KYLIN-II TH natural circulation loop. At the first stage, flow rate of the loop was obtained by energy balance method. The power and temperatures at the inlet and outlet of the HS and HX were recorded. According to the conservation equation of energy, the mass flow rate was estimated from the input power and the temperature difference between the outlet and inlet of the HS.

Fig. 4(a) shows the inlet and outlet temperature of the HS and the temperature difference at 17.9 kW input power, while Figs. 4(b) and 4(c) show the temperature differences and LBE mass flow rate at different input powers respectively. To investigate how the power impact on natural circulation, the oil flow rate in the secondary loop was kept at the same conditions. Temperature in the primary loop increased continuously. Due to the LBE flow rate onset, the temperature differences increased to their maximum and then, as the flow started, decreased towards a stable value. After a transient of about 4 minutes, the temperature differences and mass flow rates stabilized, indicating the establishment of natural circulation. Also, it can be seen that the greater is the power, the higher is the temperature peak and the shorter is the transient time.

Fig. 4

Temperatures of the heater inlet and outlet at input power 17.9 kW (a) and the temperature differences and flow rates at different powers (b, c).

5.2 Comparison of the results

The experimental and CFD results are compared in Fig. 5, where the temperature difference between the HS outlet and inlet, the mass flow rate and the average velocity vary with the input power. Owing to the property of large thermal expansion coefficient, the temperature difference could cause a difference in density between the hot leg and the cold leg. The density difference could introduce buoyancy force, which drives the LBE circulation in the loop. As a result, the temperature difference, mass flow rate and average velocity increase with the input power. At 17.9 kW, by the theoretical analysis, measurement and CFD simulation, the temperature differences between the outlet and inlet of HS are 110.3°C, 108.6°C and 101.5°C, respectively; the mass flow rates are 1.10,,1.12 and1.20 kg/s, respectively; and the average velocities are 0.200, 0.203 and 0.222 m/s, respectively.

Fig. 5

Comparison of theoretical, experimental and CFD results.

After optimization of the resistance coefficients, the theoretical analysis results agree well with the experimental results. However, the CFD simulation results deviate greatly from the experimental results. This may have two reasons:

(1) Adiabatic condition is assumed in CFD. The inlet temperature of HS is experimentally lower than the outlet temperature of HX because of the heat losses, and the evaluated temperature difference is smaller than the experimental results.

(2) The valve on the horizontal branch is not simulated in CFD model, hence an under estimation of the pressure drop and thus a larger mass flow rate.

6. Summary

Theoretical analysis was carried out for the natural circulation and thermal-hydraulic performance in the KYLIN-II TH natural circulation loop to investigate the LBE flow characteristics. Steady state experiments were performed at heating powers from 4.3 kW to 24.0 kW. A CFD simulation with FLUENT code was carried out to predict the temperature and flow distribution in the loop. The natural circulation was easily established and stabilized in a few minutes. The theoretical analysis results of temperature differences, mass flow rate and velocity results agreed well with the experimental results, but the CFD prediction results had a maximum difference of 10% from the experimental data.

For further analysis of thermal-hydraulic performance in natural circulation of the LBE, experiments on transient state and heat transfer of natural circulation will be carried out. Gas enhanced circulation study is to be carried out, too.
