Introduction

The X-ray Absorption Fine Structure (XAFS) technique is widely used to characterize the chemical valence and coordination environments of elements in materials [1, 2]. XAFS has been widely used in research on in situ dynamic processes due to its sensitivity to local atomic structures. For example, research on element chemical valence changes during the charging and discharging of batteries [3-7], determination of active sites in catalytic reactions [8-11], and nucleation and growth in the synthesis of nanomaterials [12]. In situ sample environment systems and sample cells are indispensable in realizing in situ (or operando) XAFS measurements. In providing in situ experimental conditions, the sample cells often need to be specially designed, even those with an irregular shape [13-15]. For instance, the in situ Small Angle X-ray Scattering (SAXS)/X-ray Diffraction (XRD)/XAFS combined technique frequently prioritizes capillary sample cell to fulfill the requirements of simultaneous measurements with multiple experimental techniques [16]. In such a combined measurement, the capillary sample cell is favorable for the XRD and SAXS measurements but not optimum for the XAFS measurement because of the variation in sample thickness or the X-ray path length passed through the sample. Unlike standard XAFS measurements at a uniform sample thickness, distortion and correction must be considered in the XAFS spectra collected by the capillary sample cell.

The transmission X-ray absorption spectrum (XAS) follows the Beer-Lambert Law [17], I_t = I₀ exp(-μd), where I₀ is the incident X-ray intensity, I_t is the transmitted X-ray intensity, d is the length of the X-ray path in the sample or the physical thickness of the sample, and μ is the absorption coefficient of the material. In the range of X-ray energy nearing the absorption edge of the measured element in the sample, the X-ray absorption coefficient μ exhibits an oscillation structure known as XAFS signals. By extracting and analyzing the XAFS signals of a specific element, local coordination information, including the species of coordination atoms, coordination numbers, coordination distances, and the Debye-Waller factors, can be obtained. Experimentally, the transmission mode is commonly used to obtain the XAS curve [18-20]. Two gas ion chambers collect the incident X-ray intensity (I₀) and the transmission X-ray intensity (I_t), which are placed in front of and behind the sample, respectively [21, 22]. The measurement of transmission XAFS spectra requires uniform sample thickness. The literature has confirmed that the inhomogeneity of sample thickness distorts the collected XAFS spectrum [23-25]. When a capillary sample cell is used to measure the transmission XAFS spectrum and two ion chambers without spatial resolution are used for the data acquisition of the XAFS spectra, the XAFS spectrum distortion caused by the cylindrical sample's different thicknesses is inevitable.

This study derives the distortion of the XAS curve caused by the capillary samples. On this basis, a possible method for correcting distorted XAFS spectra is proposed. The feasibility of collecting XAFS spectra using a capillary sample cell is discussed.

XAS Distortion

To consider the distortion of the XAS spectrum caused by the filling of the cylindrical sample in the capillary sample cell, a Cartesian coordinate system with the origin of the coordinates on the central axis of the capillary was established. The x-axis is along the axial direction of the capillary, the y-axis is in the vertically upward direction, and the z-axis is along the incident X-ray direction. In general, the incident X-ray beams are not perfectly parallel. The slight divergence (or focusing) degree of the incident X-ray beam results in slightly different path lengths of the X-rays through the sample, behaving as a similar thickness effect. This effect of beam divergence is not unique to capillary sample cells but is a commonly observed phenomenon in all XAFS measurements. To focus on the XAFS distortion caused by the capillary sample cell, we assumed that the incident X-rays were parallel beams. In addition, we assumed that the central axis of the incident X-ray beam was orthogonal to the central axis of the capillary. The transverse section of the capillary was in the yOz plane, as shown in Fig. 1.

Fig. 1Full-screen View

(Color online) Geometric model of capillary sample cell used as XAS measurements. A Cartesian coordinate system was established, and parameters were defined for calculating and correcting the distortion of XAS spectra caused by the capillary.

For simplicity, the influence of the air path length change on X-ray absorption was not considered for the following reasons: First, the change in air path length caused by different thicknesses of the cylindrical samples is negligible. Second, the X-ray absorption caused by the air path of the capillary samples is basically the same as that of conventional flat-plate samples; therefore, no special consideration is required. Third, the X-ray absorption curve of the air path is monotonic, producing only monotonic variations in the background of the XAS curve, and no additional distortion is superimposed on the XAFS signals. Therefore, we did not consider X-ray absorption by the air path in the subsequent discussion of the distortion simulation and correction methods.

The inner and outer radii of the capillary are defined as R_in and R_out, respectively. Based on the geometric model of the capillary sample cell, as shown in Fig. 1, the X-ray path lengths in the sample and capillary wall are only dependent on the y-values and independent of the x-values and z-values. The X-ray absorption path lengths in the sample and capillary wall can be defined as d_s(y) and d_c(y), respectively, as shown in Eqs. (1) and (2). $d_s(y)=\{\begin{array}{ll}0,\hfill & R_{\text{in}}<y\hfill \\ 2\sqrt{R_{\text{in}}^2-y^2},\hfill & -R_{\text{in}}<y<R_{\text{in}}\hfill \\ 0,\hfill & y<-R_{\text{in}}\hfill \end{array}$ (1) $d_c(y)=\{\begin{array}{ll}0,\hfill & R_{\text{out}}<y\hfill \\ 2\sqrt{R_{\text{out}}^2-y^2}-d_s(y),\hfill & -R_{\text{out}}<y<R_{\text{out}}\hfill \\ 0,\hfill & y<-R_{\text{out}}\hfill \end{array}$ (2)

The absorption coefficients of the sample and capillary are defined as μ_s(E) and μ_c(E), respectively. In general, the incident X-ray intensity is not uniform in the transverse section of the incident X-ray beam and can be expressed as an intensity distribution i₀(x, y, E) in the xOy plane. Similarly, the transmitted X-ray intensity is also not uniform in the transverse section of the transmitted X-ray beam. The transmission-beam X-ray intensity distribution can also be written as i_t(x, y, E) in the xOy plane. However, X-ray intensities i₀(x, y, E) and i_t(x, y, E) at different locations on the transverse section of the incident and transmission X-ray beams cannot be obtained in real-time because the ion chambers used to measure the transmission XAFS spectrum do not have spatial resolution. X-ray intensity measured by the ion chamber is the total incident X-ray intensity I₀(E) or the total transmission X-ray intensity I_t(E). The former is the integral of i₀(x, y, E) over the entire xOy plane, and the latter is the integral of i_t(x, y, E) over the entire xOy plane. In addition, the physical thickness of the sample [d_s(y)] and the capillary wall [d_c(y)] is not uniform only in the y direction; thus, the absorption thicknesses of the sample [μ_s(E)d_s(y)] and the capillary wall [μ_c(E)d_c(y)] only change along the vertical (y-axis) direction. Based on this discussion, we defined the incident X-ray intensity I₀(E), transmission X-ray intensity I_t(E), and projection j₀(y, E) of the incident X-ray intensity along the y-axis as follows: $I_0(E)={\displaystyle {\iint }_{\infty }{i}_0(x,y,E)\text{d}x\text{d}y}.$ (3) $I_t(E)={\displaystyle {\iint }_{\infty }{i}_t\left(x,y,E\right)\text{d}x\text{d}y}.$ (4) $j_0\left(y,E\right)={\displaystyle {\int }_{-\infty }^{+\infty }{i}_0\left(x,y,E\right)\text{d}x}.$ (5)

The measured XAS curve, which comprises the distortion caused by the uneven thickness of the cylindrical sample, is described in Eq. (6). $\begin{array}{c}{\mu }^{\prime }(E)d_{\text{eq}}=\ln \left[\frac{I_0(E)}{I_t(E)}\right]=\ln \left[\frac{I_0(E)}{{\displaystyle {\iint }_{\infty }{i}_t\left(x,y,E\right)\text{d}x\text{d}y}}\right]\\ =-\ln \left[{\displaystyle {\int }_{\infty }^{+\infty }\frac{j_0\left(y,E\right)}{I_0(E)}{e}^{-{\mu }_s(E)d_s(y)-{\mu }_c(E)d_c(y)}\text{d}y}\right].\end{array}$ (6)

In the equation above, d_eq is equivalent thickness of a cylindrical sample (i.e., the thickness when the cylindrical sample is equivalent to flat-plane sample), and i_t(x, y, E) = i₀(x, y, E)·exp[-(μ_s(E)d_s(y)+μ_c(E)d_c(y))]. The equivalent thickness of the cylindrical sample was determined using Eq. (6), which is related to the distribution of incident X-ray intensity but cannot be easily calculated from the capillary geometry. Eq. (6) shows the quantitative relationship between the measured X-ray absorption coefficient μ’(E), including distortion, and the real X-ray absorption coefficient μ_s(E) without distortion. According to Eq. (6), the distortion of the XAS curve is related to the capillary parameters [d_s(y), d_c(y), μ_c(E)] and the normalized incident X-ray intensity distribution j₀(y, E)/I₀(E) in the vertical direction (y-axis).

Influence of XAS distortion

For further discussion, Eq. (6) can be taken as a function of distorted XAS spectra μ’d_eq versus real X-ray absorption coefficient μ_sd_eq, namely, μ’d_eq = f(μ_sd_eq). For simplicity, energy E is not explicitly included in this function, because the expression of μ’d_eq versus μ_sd_eq does not change with the incident X-ray energy. Therefore, in this study, the discussion of XAS distortion is available for each data point of an XAS curve. The three parameters μ_c, d_s(y), and d_c(y) in Eq. (6) are known in advance from the capillary parameters (μ_c, R_in, and R_out). J₀(y) = j₀(y)/I₀ is the normalized intensity distribution of the incident X-ray beam in the vertical direction. In general, J₀(y) can be approximately simulated and replaced by a Hann function [26]. $J_0(y)=\{\begin{array}{ll}0,\hfill & y-\epsilon <-h\hfill \\ \frac{1}{2}\left[1-\cos \left(\frac{\pi \left(y-\epsilon +h\right)}{h}\right)\right],\hfill & -h<y-\epsilon <h\hfill \\ 0,\hfill & h<y-\epsilon \hfill \end{array}.$ (7)

The Hann function is a symmetrical distribution function with its symmetrical axis at y= ε. In this study, ε = 0, which means the central axis of the incident X-ray beam, was assumed to pass through the central axis of the capillary. This assumption is not mandatory for deriving Eq. (6). If the central axis of the incident X-ray beam deviates distance ε from the central axis of the capillary, then it is sufficient that the normalized intensity distribution of the incident X-ray beam is expressed as J₀(y-ε), no other changes are necessary. The full size of X-ray beam spot in the vertical direction is 2h. The spatial distribution of X-ray beam spot intensity is also often simulated by a Gaussian function [27, 28]. The difference between the two functions is that the Gaussian function is defined in an infinite domain of (-∞, +∞), and the Hann function is defined in a finite domain of [ε - h, ε + h]. Theoretically, X-ray leakage is inevitable in XAS measurements if the incident X-ray intensity distribution is in an infinite domain of definition. Therefore, the incident X-ray intensity distribution can be described as a function, such as the Hann function, with a finite domain of definition, which seems more appropriate for the XAS measurement of a cylindrical sample distributed in the inner diameter of a capillary tube than Gaussian function.

Under the different vertical sizes (2h) of the incident X-ray beam spot, the dependences of the distorted XAS spectrum μ’d_eq on the real X-ray absorption coefficient μ_sd_eq were calculated and shown in Fig. 2(a). These calculations were performed considering specific capillary parameters: R_in = 0.5 mm, R_out = 0.55 mm, ε = 0 mm, and μ_c = 0.4 mm⁻¹. When the vertical size (2h) of the X-ray beam spot is infinitely close to zero, and d_s=2R_in, d_c=2R_out-2R_in, J₀(y) =1; then the function μ’d_eq= f (μ_sd_eq) converges to a straight line, which corresponds to the top line without any distortion. The dependence of μ’d_eq on μ_sd_eq is approximately linear when the relative size h/R_in of the incident X-ray beam spot 2h to the inner diameter 2R_in of the capillary is smaller than 60%. This implies that the XAS data collected using the capillary sample cell can be used directly for XAFS analysis without further distortion correction.

Fig. 2Full-screen View

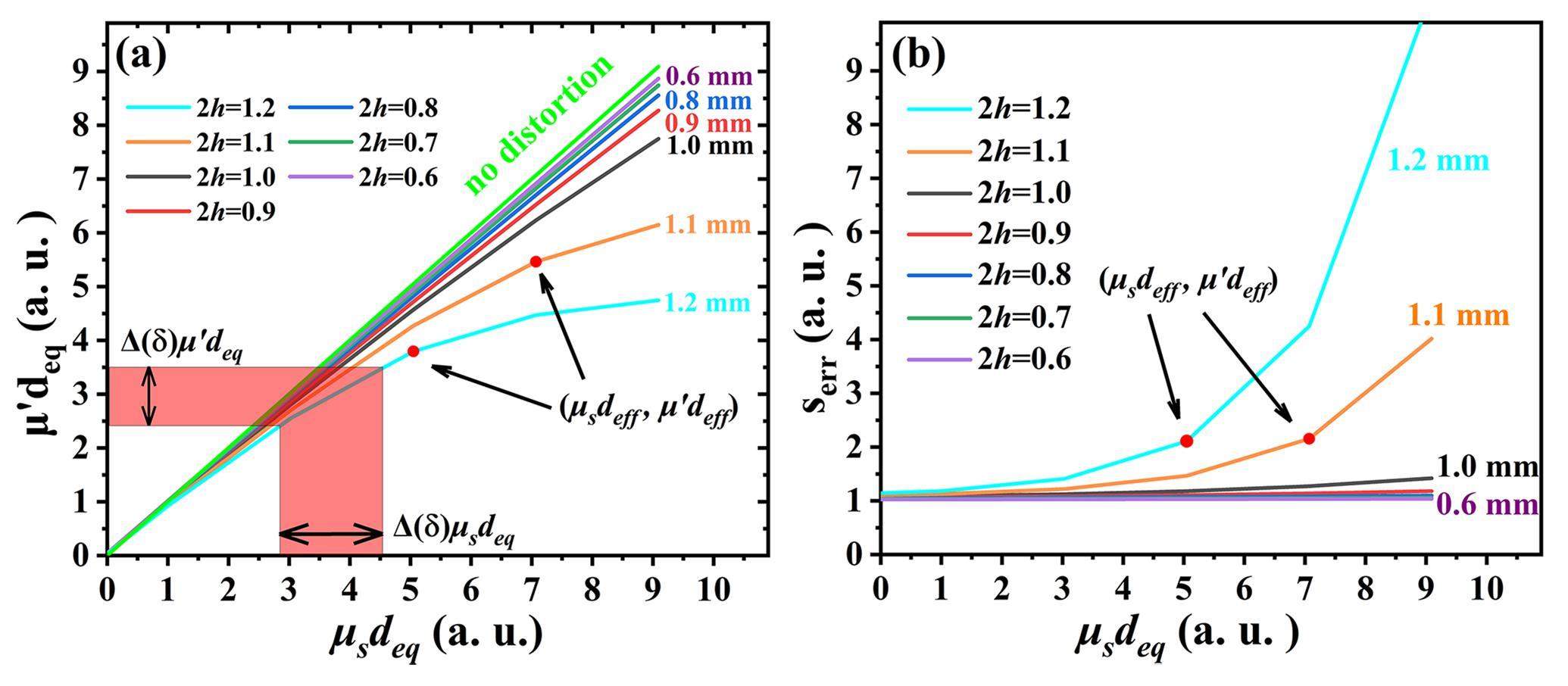

(Color online) (a) Relationships between μ’d_eq and μ_sd_eq, i.e., the function of μ’d_eq = f (μ_sd_eq) with different vertical sizes of X-ray beam spot 2h under these capillary parameters R_in = 0.5 mm, R_out = 0.55 mm, ε = 0 mm, and μ_c = 0.4 mm⁻¹. Generally, the μ_c value of the capillary is a monotonous and smooth function of energy E. When discussing the curve of μ’ =f (μ_s) defined by Eq. (6), μ_c(E) can be approximated to a constant. (b) Curves of defined error sensitivity function s_err (μ) with different vertical sizes of X-ray beam spot 2h.

With an increase of 2h, the distortion of the XAS became more pronounced. Figure 2(a) shows that the Δμ_sd_eq change is compressed to a reduced Δμ’d_eq change in the distorted XAS curve. Such an effect is called the “nonlinear compression effect”, meaning the real XAS amplitude Δμ_sd_eq will be distorted to a reduced XAS amplitude Δμ’d_eq by a cylindrical sample. In other words, a smaller error [δμ’(E)d_eq] in the distorted XAS curve could be further amplified to a larger error [δμ_s(E)d_eq] in the real XAS curve obtained by correcting the distorted XAS curve.

To further analyze the influence of the distortion caused by capillary sample cells with different inner diameters, the asymptotic behavior of Eq. (6), or the function μ’d_eq = f (μ_sd_eq), is discussed. First, the lengths of the X-ray path in the sample and capillary, and the intensity distribution of the incident X-rays, are symmetric functions for the central axis of the capillary (y=0) in the vertical direction. The integral range of Eq. (6) can be divided into two parts: from 0 to R_in and from R_in to infinity. When 0 < 2h ⪯ 2R_in (i.e., the vertical size of the X-ray beam spot is smaller than or equal to the inner diameter of the capillary), the distorted μ’d_eq increases towards infinity with an increase in real μ_sd_eq, and there is no asymptotic behavior. When 2h > 2R_in, the distorted XAS μ’(E)d_eq increases towards a finite value, and the function μ’d_eq = f (μ_sd_eq) reveals an asymptotic behavior, as shown in Eq. (8). $\underset{{\mu }_{\text{s}}{d}_{\text{eq}}\to \infty }{\lim }f\left({\mu }_{\text{s}}{d}_{\text{eq}}\right)=-\ln \left[\text{2}{\displaystyle {\int }_{R_{in}}^{+\infty }\frac{j_0(y)}{I_0}{e}^{-{\mu }_{\text{c}}{d}_{\text{c}}(y)}\text{d}y}\right].$ (8)

This asymptotic behavior demonstrates that as the real XAS signal (μ_sd_eq) decreases, the distortion becomes smaller, or the consistency between μ’d_eq and μ_sd_eq improves. However, the X-ray absorption coefficient is an intrinsic property of the element and does not change with experimental conditions. This phenomenon implies that the smaller the equivalent thickness (d_eq) of the sample, the smaller the distortion. Specifically, when μ_sd_eq approaches 0, or the inner diameter of the capillary tube approaches 0, the distortion caused by a cylindrical sample on the measured XAS curve (μ’d_eq) is negligible, confirmed by Fig. 2(a). By contrast, the intensity of the measured XAS signal (μ’d_eq) would also approach 0 if the inner diameter of the capillary tube or μ_sd_eq approaches 0. This result implies that the larger the inner diameter of the capillary tube or the equivalent thickness d_eq, the better the XAS intensity. The conflicting requirements of the inner diameter of the capillary and the equivalent thickness of the sample indicate that the inner diameter of the capillary tube should be optimized to an ideal value. Using an edge jump of 1 (Δμd =1) has been widely accepted as the ideal thickness of a flat-plane sample [29]. In a capillary sample system, introducing equivalent thickness d_eq enables the transmission X-ray intensity to be expressed identically to that of a flat-plane sample. The optimization of the sample thickness was exactly the same as that for the flat-plane sample. Therefore, the equivalent edge jump, Δμ_sd_eq =1, can also be used to determine the ideal inner diameter of the capillary tube. However, arbitrarily changing the inner diameter of the capillary tube is difficult. To a certain extent, edge jump Δμ_sd_eq can be adjusted by diluting the sample with low-density and relatively stable substances, such as boron nitride (BN). For a capillary tube with a fixed inner diameter, the available range of μ’d_eq used for extracting the absorption coefficient (μ_sd_eq) should be limited.

To limit the available range that can be used to correct the distortion, we defined the knee point of curve μ’d_eq = f (μ_sd_eq) as the upper limit (μ_sd_eff, μ’d_eff) of the available effective data points. With the increase in the vertical size of X-ray beam spot 2h, the upper limit (μ_sd_eff, μ’d_eff) of the available effective XAS value decreases. This attribute means correcting the distorted XAS curve becomes increasingly difficult as the X-ray beam spot size increases. For a reasonable, quantitative evaluation, the error sensitivity s_err is defined as follows: $s_{\text{err}}\left({\mu }_{\text{s}}{d}_{\text{eq}}\right)={\left(\frac{d({\mu }^{\prime }{d}_{\text{eq}})}{d({\mu }_{\text{s}}{d}_{\text{eq}})}\right)}^{-1}.$ (9) s_err represents error magnification. s_err= 0 indicates a complete insensitivity to errors. s_err < 1 indicates that the distortion correction reduces the error. s_err = 1 means that the error in the μ’d_eq curve is directly transferred to the μ_sd_eq curve without changing the magnitude of the error. s_err > 1 indicates that the distortion correction process amplifies the error. the s_err (μ_sd_eq) curves, corresponding to these curves of μ’d_eq = f (μ_sd_eq) with different 2h values, can be calculated and are illustrated in Fig. 2(b). The error sensitivity increases rapidly with the increase in μ_sd_eq when μ’d_eq>μ’d_eff, especially in those cases of 2h > 2R_in. Only when 2h < 2R_in can the error sensitivity be effectively suppressed at the low end of μ_sd_eq. When the distorted XAS curve (μ’d_eq) is smaller than its upper limit (μ’d_eff), the correction of the distorted XAS curve is reliable. Otherwise, the sample has to be diluted to fulfill the requirement of μ’d_eq<μ’d_eff.

For estimating the influence of the XAS distortion caused by the capillary sample cell on the XAS curve, the Ga K-edge XAS curve of the gallium arsenide (GaAs) powder without distortion was first collected with a flat-plane sample at beamline 4B9A of the Beijing Synchrotron Radiation Facility (BSRF). The storage ring run at 2.5 GeV with an electron-beam current of approximately 250 mA. The photon flux was approximately 1×10¹⁰ photons/s at the Cu-K-edge (8979 eV). A monochromatic incident X-ray beam was generated using a Si (111) double-crystal monochromator with an energy resolution (ΔE/E) of approximately 3 × 10⁻⁴. The GaAs sample was diluted with BN powder so that the edge jump was 1. The distorted XAS curves with different incident X-ray beam spot sizes (2h) can be simulated and calculated based on Eq. (6), as shown in Fig. 3(a), and used to assess the influence of distortion on the XAS curves. To observe the difference in those XAS curves, we present in Fig. 3(a) only the data points within a range from 0 to 100 eV relative to the absorption edge. The XAFS oscillations decrease more significantly with an increase in the beam spot size. However, only when 2h >2R_in can the difference in the XAFS oscillations be easily observed. To quantify the magnitude of the distortion, we defined the deviation factor of the normalized distorted XAS curve μ’(E)d_eq from the normalized real XAS curve μ_std(E)d as $Dev=\left\{\frac{1}{n}{\displaystyle {\sum }_{i=1}^n\left[\left|\frac{{\mu }^{\prime }(E_i)d_{\text{eq}}-{\mu }_{\text{std}}(E_i)d}{{\mu }_{\text{std}}(E_i)d}\right|\right]}\right\}\times 100\%.$ (10) where n is the number of data points in μ’(E_i)d_eq or in the real XAS curve μ_std(E_i)d. The change in deviation factor (Dev) with respect to the vertical size (2h) of the incident X-ray beam spot is shown in Fig. 3(b). The deviation factor increased slowly with an increase in the vertical size of the incident X-ray beam spot. When the vertical size of the incident X-ray beam spot increased to greater than the inner diameter of the capillary (i.e., 2h > 2R_in), the deviation factor increased rapidly. Furthermore, structural parameters, including the coordination number (N), coordination bond length (R), and the Debye-Waller factor (σ²), were determined by fitting the XAFS signals extracted from these distorted XAS curves. Relative errors N, R, and σ² depend on the vertical size (2h) of the incident X-ray beam spot, as shown in Fig. 3(c). Once again, when 2h > 2R_in, the errors in these parameters caused by the cylindrical sample increase sharply. However, when 2h < 2R_in, the errors in these structural parameters increased gradually with 2h. Based on a theoretically simulated XAS curve, the additional errors for structural parameters N, R, and σ² caused by the cylindrical sample in a capillary sample cell are estimated to be 0.07%, 0.00%, and 0.00%, respectively, if fixing h=0.6R_in, or 0.96%, 0.00%, and 0.20% if fixing h=R_in. This result demonstrates that the additional errors in the structural parameters were minute when considering only the shape effect of the cylindrical sample. However, the deviation of the X-ray path length from the ideal sample thickness in a cylindrical sample and the insufficient of high statistics for the weak edge intensity of the incident X-ray beam may be significant sources of error.

Fig. 3Full-screen View

(Color online) (a) Normalized distorted Ga K-edge XAS curve of gallium arsenide (GaAs) powder in a capillary: inner diameter, R_in = 0.5 mm, and outer diameter, R_out = 0.55 mm. Different vertical sizes (2h) of the incident X-ray beam spot were used to simulate the distorted XAS curves. (b) Change in deviation factors of the distorted XAS curve versus vertical sizes (2h) of the incident X-ray beam spot. (c) Changes in the relative errors of coordination number (N), coordination bond length (R), and Debye-Waller factor (σ²) versus vertical size (2h) of the incident X-ray beam spot. Additional fitting results are in the supporting information.

Correction of XAS Distortion

The main purpose of this study was to correct distorted XAS data caused by a cylindrical sample in a capillary sample cell. Thus, a correction method was proposed for XAS data distorted by a cylindrical sample in a capillary. The dependence of μ’d_eq on μ_sd_eq is shown in Fig. 2(a) and Eq. (6). When a capillary sample cell is used to collect the XAS curve; the collected XAS curve is distorted if the vertical size of the incident X-ray beam spot is sufficiently large (for example, h > 0.6 R_in) compared to the inner diameter of the capillary. The corresponding measurement parameters, R_in, R_out, μ_c, and 2h, were determined in advance. The relative intensity distribution of the incident X-ray beam spot j₀(y, E)/I₀(E) can also be determined in advance or approximately simulated by the Hann function in Eq. (7) with the vertical size (2h) of the incident X-ray beam spot. Therefore, the relationship between μ’d_eq and μ_sd_eq can be determined. That is, each data point in the distorted XAS curve (μ’d_eq) always has a corresponding data point in the real XAS curve (μ_sd_eq). Such a corresponding relation between μ’d_eq and μ_sd_eq, as shown in Fig. 2(a), can be used to correct the distorted XAS curve.

In beamline 4B9A of the BSRF, the distorted XAS data were first collected using a cylindrical powder sample packed in a capillary. The synchrotron radiation conditions for the experimental measurements were identical to those described in Section 3 for the XAS measurement of a flat sample. High-purity amorphous SiO₂ (fused silica) capillary tubes with an inner diameter (2R_in) of 1.0 mm and an outer diameter (2R_out) of 1.1 mm were selected for the measurements. Its X-ray absorption coefficient μ_c(E) is known [30]. The capillary tube filled with BN-diluted GaAs powder was placed horizontally and perpendicular to the incident X-ray beam. The central axis of the capillary was adjusted to coincide with the center of the incident X-ray beam. The K-edge XAS curves of Ga were collected at vertical X-ray beam spots 0.8, 1.0, 1.5, 2.5, and 3.7 mm and labeled D0.8, D1.0, D1.5, D2.5, and D3.7, respectively. For reference, the Ga K-edge XAS data of a standard GaAs plates were collected under the same experimental conditions and labeled Ga-std.

When the vertical cross-section size of the incident X-ray beam was greater than the inner diameter of the capillary tube (h > R_in), some data points in D2.5 and D3.7 did not fulfill the requirement of μ’d_eq < μ’d_eff constraint; thus, the experimental error of these data points will be greatly amplified after distortion correction, resulting in the unreliable correction values for D2.5 and D3.7. This result confirms that the correction of the distorted XAS data fails if the vertical size of the incident X-ray beam spot is too large. The distorted XAS curves D1.5 (red dashed line), D2.5 (orange dotted line), and D3.7 (blue dashed-dotted line); the corrected XAS curve C1.5 (solid green line); and the reference XAS data Ga-std (black circles) without distortion were compared, as shown in Fig. 4(a). To indicate the differences among the three XAS curves, only the data within the range of 0 to 100 eV relative to the Ga absorption K-edge are shown. The difference between the distorted XAS curve and the corrected XAS curve was observed. Although the vertical size (2h=1.5 mm) of the incident X-ray beam spot was still very large and the distortion was severe, a high degree of agreement was observed between the corrected XAS curve and the reference XAS curve. This result demonstrates that the correction method partially corrected the distortion caused by the cylindrical sample in the capillary sample cell.

Fig. 4Full-screen View

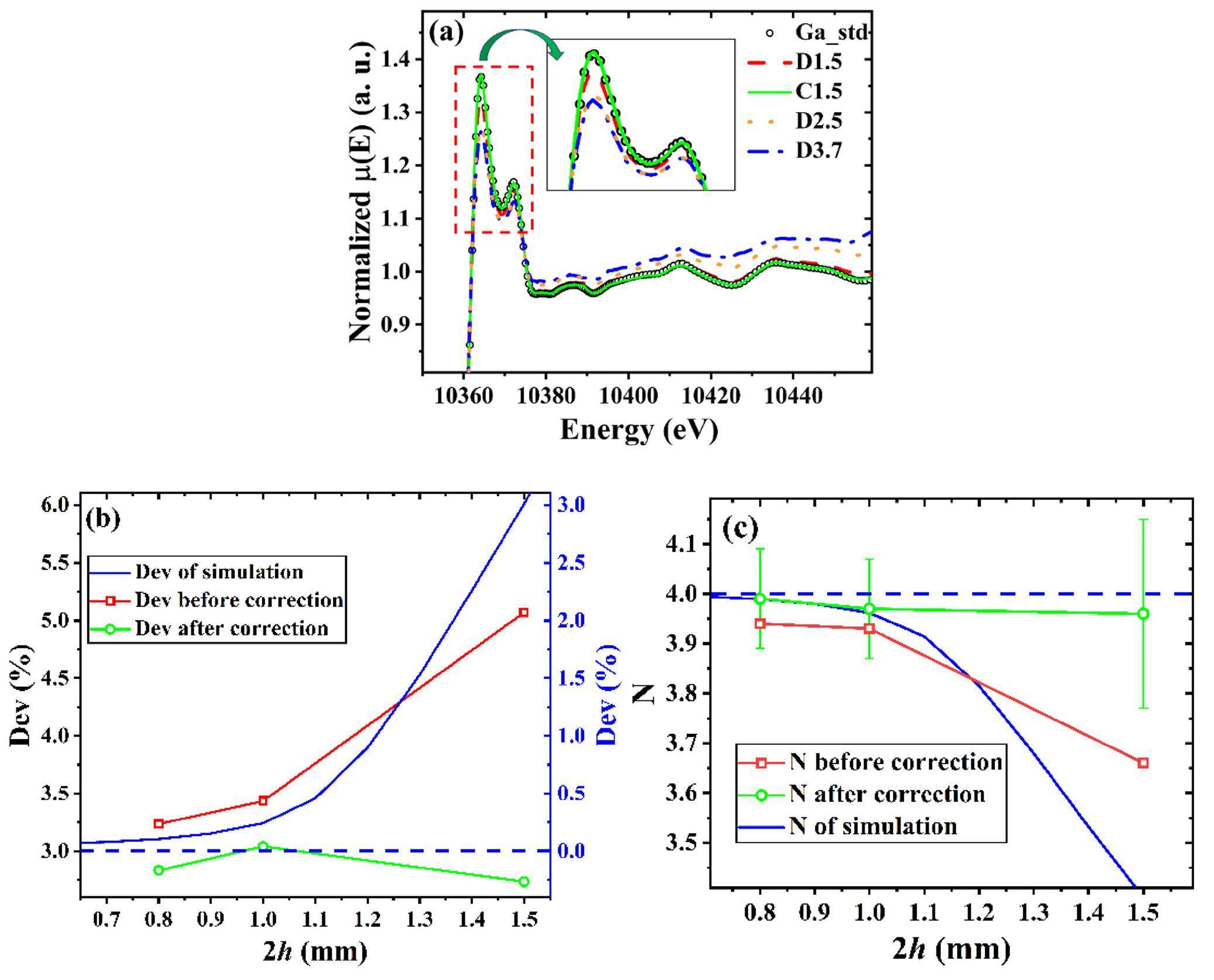

(Color online) (a) Normalized XAS curves for distorted samples D1.5 (red dash line), D2.5 (orange dot line), D3.7 (blue dash-dot line), the corrected sample C1.5 (solid green line), and the reference sample Ga-std (black circles). (b) Deviation factors of distorted XAS curves D0.8, D1.0, and D1.5 (hollow red squares, left axis); corrected XAS curves C0.8, C1.0, and C1.5 (hollow green circles, left axis); and simulated XAS distortion curves (solid blue line, right axis). (c) Coordination numbers of Ga-As obtained by fitting the normalized XAFS spectra of distorted samples D0.8, D1.0, and D1.5 (red hollow squares); corrected samples C0.8, C1.0, and C1.5 (green hollow circles); and the simulated XAS distortion curves (blue solid line).

To further verify the effectiveness of this distortion correction, we compared the deviation factors of the distorted XAS curves (D0.8, D1.0, D1.5) with those of the corrected XAS curves (C0.8, C1.0, C1.5); these deviation factors before and after correction are shown in Fig. 4(b). The deviation factor increased with increasing X-ray beam spot size, particularly for distorted XAS curves with 2h > 2R_in. After the distortion correction, the deviation of the corrected XAS curves from the real or standard XAS curves improved significantly. For comparison, the deviation factors of the simulated XAS curves are shown in Fig. 4(b). The deviation factors of the distorted XAS curves acquired experimentally before correction were significantly greater than those of the simulated XAS curves. The main reason for this difference is the influence of other experimental factors, excluding the capillary sample shape. These additional factors resulted in the distorted XAS curves having higher statistical noise or additional distortion in the experiment; by contrast, the simulated XAS curves had no statistical noise and were not affected by other experimental factors. For a further comparison, the XAFS oscillations were extracted from the distorted and corrected XAS curves. The extracted XAFS spectra were routinely analyzed to determine near-neighbor structural parameters. The coordination numbers obtained from these XAFS oscillations are compared in Fig. 4(c). GaAs has a zincblende-type crystal structure, in which each Ga atom is surrounded by four As atoms; inversely, each As atom is surrounded by four Ga atoms [31]. The coordination numbers extracted from the distorted XAS curves (D0.8, D1.0, D1.5) are lower than the real coordination number (N=4). The greater the incident X-ray beam spot, the greater the deviation of the coordination number. However, the coordination numbers extracted from the corrected XAS curves (C0.8, C1.0, C1.5) were closer to the actual value of 4. The deviation factors and coordination numbers calculated from the simulated XAS curves are compared in Fig. 3(b)-3(c), respectively.

Inhomogeneous X-ray paths cause a thickness effect that attenuates the amplitude of XAFS oscillations [23-25]. However, amplitude attenuation mainly leads to an underestimation of the coordination number. As shown in Fig. 4(c), the underestimation of the coordination number slowly becomes serious as the incident X-ray beam spot size increases but rapidly deteriorates when the incident X-ray beam spot size is greater than the inner diameter of the capillary tube. We compared these underestimated values of the coordination number with the theoretically predicted errors shown in Fig. 3(c). The underestimated values of the fitted coordination number of the experimentally distorted XAFS spectra appeared to be within the error of the correction value when 2h was greater than 2R_in but beyond the error when 2h was less than or equal to 2R_in. Evidently, the fitting parameters for the experimental XAFS spectra without distortion correction are limited not only by the influence of inhomogeneous thickness but also by other experimental factors, for example, the fluctuation of X-ray intensity and divergence. In general, the experimental errors are always larger than the theoretically predicted values. The estimated error bars for the distortion-corrected coordination numbers are shown in Fig. 4(c). Based on the aforementioned discussion, we posit that correction of the distorted XAS curve is reasonable only when the size of the incident X-ray beam spot is smaller than the inner diameter of the capillary tube. In other words, XAS measurements with 2h>2R_in should be avoided. This study demonstrates that this correction method for distorted XAS curves is feasible and acceptable only when the size of the incident X-ray beam spot is smaller than the inner diameter of the capillary tube. Additional fitting details are presented in Fig. S1 and Table S. In this study, only the distortion of XAS data caused by a cylindrical sample in a capillary sample cell was considered. The influence of other factors, for example, instrument error and signal-to-noise ratio [32-33], is a topic for further research.

Conclusion

The distortion of the XAS should be considered when a capillary sample cell is used to collect XAS. In this study, the dependence μ’(E)d_eq=f[μ_s(E)d_eq] of the distorted XAS curves μ’(E)d_eq on the real XAS curves μ_s(E)d_eq was derived. Based on the known conditions, including the inner diameter R_in, the outer diameter R_out, the X-ray absorption coefficient of capillary μ_c(E), and the intensity distribution on the cross-section of the incident X-ray beam, the correction curve of μ’d_eq=f(μ_sd_eq) can be calculated. A corrected method for the distorted XAS curve was proposed and was identified as feasible. This suggests that the distorted XAS data can be used for distortion correction only when the vertical size (2h) of the incident X-ray beam spot is smaller than the capillary tube's inner diameter (2R_in). When h/R_in < 0.6, distortion can be ignored. In addition, this correction method can be applied to XAS measurements of other sample systems with inhomogeneous thicknesses if the thickness change in the sample can be mathematically expressed.
