1. INTRODUCTION
Cancer is currently one of the main mortality causes worldwide, making it one of the greatest public health issues. It is estimated that every year 11 million new cases are diagnosed and approximately 7 million people die from cancer. The World Health Organization (WHO) considers that it will be the principal cause of death by the year 2020 [1]. Thus, as radiotherapy is an important treatment modality for patients with various types of tumors, there is a need for immobilization systems to provide an effective degree of rigidity, together with an acceptable degree of comfort for the patient. However, no matter which mask molding process is considered, it can be particularly distressing for patients, and even intolerable for those who suffer from claustrophobia. Although the full-head mask can be cut open around the eyes and mouth to improve patients’ comfort, mask cutting after molding is difficult, producing sharp edges. Moreover, when a thermoplastic mask is produced, different parts of it are stretched by different amounts, changing its size and thickness. In the context of diagnosis or preliminary planning, a typical positron emission tomography (PET) brain imaging session can last up to half an hour, and it is not reasonable to expect a patient to remain motionless during this period. There are no standard or routine screening tests for head and neck cancers. Standard treatments for head and neck cancers include radiation therapy and surgery, and for certain types of head and neck cancer, chemotherapy [2-3]. Radiation therapy aims to deliver an appropriate tumoricidal dose while respecting the radiation tolerance of adjacent tissues, so it is also important to consider that the application of radiotherapy is often constrained by sequealae to the surrounding tissue outside the treatment field.
The use of head restraints is thus crucial [4-5], despite the reported discomfort and/or claustrophobia they may produce.
The evolution of reverse engineering techniques has contributed to the development of new interdisciplinary research areas, specifically those involving medicine and engineering areas, with effective benefits for patients and various scientific areas. It is in this interdisciplinary context that it is important to find useful solutions to this problem.
A review of the literature suggests that a combination of acquisition and reconstruction techniques, as well as subsequent modeling, can provide purpose-oriented customized devices. Immobilization devices for limbs [6] and other body areas can promote a better constraint of the anatomic segments for increased diagnosis success and image quality. In fact, currently used restraint devices have been revealed to be inaccurate for keeping the patient in the correct position, compromising the effectiveness of the medical procedure [7]. Only a few published works are found in this multidisciplinary context. Concerning head immobilization systems, there have been only a few studies; these include recent reports by Fisher et al. [8] and Chen et al. [9]. Fisher et al. [8] performed a preclinical evaluation of an immobilization system for patients undergoing external beam radiation treatment of head and neck tumors. The mask only modeled a phantom face, and it was manufactured from a 3-D model, built using the computed tomography (CT) data routinely acquired for treatment planning. The mask was composed of a continuous 4-mm-thick surface without holes, with no additional surfaces or fixation devices to connect to a radiotherapy table. The authors used the Hausdorff distance to analyze CT slices obtained by rescanning the phantom with a printed mask in position. The authors concluded that for more than 80% of the slices, the median "worse-case" tolerance is approximately 4 mm; thus, the analyzed mask was able to achieve similar levels of immobilization as those of current systems. Chen et al. [9] proposed an automatic framework to construct and produce immobilization masks for radiation therapy of the head/neck. These authors used 3D printing technology along with image analysis approaches based on 3D CT image data. As in the study by Fisher et al., these authors only considered construction of the facial model, discarding any connection to an "exterior" table and the necessary correspondence between these parts of the system as a whole. The model construction considered the extraction of the skin surface of the head/neck/shoulder, after which the facial features were recognized automatically based on deformable shape models. The 3D model obtained was an open shell with holes in the eyes, nose, and mouth locations. In this case, no assessment of the effectiveness of such a model was performed.
More recently, Sousa et al. [10] considered the possibility of obtaining the geometrical characteristics of a phantom head (PIXI) skin surface using various acquisition sources, namely 3D laser scanning (3DLS) and computed tomography. From the statistical analysis they performed, they concluded that there were no significant statistically differences when measuring the anthropometry features based on the different 3D full head models obtained.
To the author’s knowledge, there are no published works that consider the global process, starting at data acquisition and proceeding to analysis and production of a complete head immobilization system.
To enable this, the present work is organized in three main stages. In the first stage, related to the acquisition of the head geometry and the customized design of the corresponding masks to fit the head computational models, the necessary data were acquired via CT and 3DLS. These data were subsequently processed to reconstruct the corresponding 3D surface models. The masks’ full models (with no holes) were primarily developed taking into account three aspects: the obtained head surfaces, a head support commonly used in clinical practice, and the required connection to a radiotherapy table.
In the second stage, taking into account some patients’ informal opinion related to the aspects that would be of help to minimize the claustrophobia sensation, three different geometries were designed by removing material from the full masks. The possibility of making these masks from different materials used in the radiotherapy field was considered to proceed to analysis concerning the immobilization effectiveness and material strength.
The final stage of the present work involved the production of the immobilization masks via fusion deposition modeling (FDM) 3D printing of these models and characterization of the production parameters for the various designed masks, to enable a future assessment in terms of costs.
This complete procedure framework to obtain immobilization masks for the head and eventually also for the neck is foreseen to have an effective application not only in radiotherapy, but also in brain imaging.
2. MATERIALS AND METHODS
The main objective of the present work is the establishment of a data flow from the geometry acquisition of the head 3D surface to production of the corresponding immobilization mask. To this purpose, the head of a physical phantom (PIXI) used in radiotherapy and nuclear medicine for teaching purposes was used. To achieve this purpose, two data sources were considered: computed tomography (CT) images and the point clouds originated via 3D laser scanning (3DLS). The details concerning the equipment and acquisition conditions will be mentioned in section 2.1.
It is important to note here that the reason why these two approaches are considered is related in the first case to the fact that CT is a diagnosis/planning tool that may also be used to obtain the customized mask, thus eliminating the usual manual conformation to the head. The use of 3DLS is considered because it is a non-invasive technique used in other science fields; thus, it can be used as an alternative to CT because according to the conclusions obtained in a previous work by some of the co-authors, no statistically significant differences are observed between the models achieved using different approaches (Sousa et al. [10], Loja et al. [11]).
According to the logical procedure flow that structures the present work, section 2.2 describes various aspects that guided the design of the geometrical modelling of the different mask geometries, as well as their connection to the radiotherapy table. The requirements that the materials of the masks have to meet are the object of section 2.3, taking into account the radiotransparency by considering different materials that according to the manufacturers may offer potential solutions, and the mechanical/physical properties that will be needed to fulfil both production and immobilization purposes, without mechanical failure.
The definition of the loads to which the masks will be submitted, is addressed in section 2.4 to assess the masks’ performance and thus provide better/feasible solutions. As this information is not found in the literature, the conclusions of a study in another field of science, which analyzed the maximum forces developed when athletes perform a different set of movements, were utilized. Finally, section 2.5 characterizes the conditions and parameters of the FDM 3D printing considered for mask production via FDM 3D printing.
2.1. Phantom head geometrical models
In this study, a 3D Scanner Ultra HD from NextEngine was used to acquire the 3D point cloud of the phantom head, and a PET/CT, model Gemini TF 16 (Philips Healthcare, Netherlands, Europe), was used to obtain the CT images. The point clouds were obtained considering a medium range acquisition and a number of ten sectors (36° angles) with a density of 132 points per square centimeter. The CT was performed using the settings often used in a normal planning CT: 1 mm slice thickness, 20 mAs, 120 kVp, pitch of 0.938, 512 x 512 pixel matrix, and rotation speed of 0.5 s per rotation.
The CT images were next used to reconstruct the 3D head surface, using the 3D Viewer plug-in of ImageJ [12], whereas the global point cloud was obtained at the end of the scanning process. In both cases, the surface obtained from ImageJ and the point cloud obtained from the 3D Scanner Ultra HD software (NextEngine ScanStudio) were imported to the computer aided design application SolidWorks [13] to further obtain a polygonal mesh for subsequent elimination of eventual defects, e.g., holes. The models were next converted to solid entities to proceed to the mask modeling stage.
Figure 1-a) illustrates the PIXI head during the 3DLS acquisition, Figure 1-b) presents the corresponding solid model obtained from 3DLS, and Figure 1-c) shows the solid model obtained from CT (1-mm slice thickness).
The 3DLS reconstruction is more detailed, which is explained by the high definition of the scanning system used. However, as some of the present co-authors concluded in a preliminary study (Sousa et al. [10]), there are no statistically significant differences in the measurements of a set of head anthropometric features using the different 3D full head models obtained. Additionally, these regions with different levels of detail will be eliminated in the designed masks as they coincide with the introduced "holes."
2.2. Immobilization mask models
Based on the two head models obtained and taking into account the main characteristics of head supports that can be found on various manufacturers’ websites, the next step was modeling of such an auxiliary device adapted to the PIXY head. This device model was also designed using SolidWorks, and its elevator and support functions are illustrated in Figure 2. At this stage, a set of possible design configurations was considered, bearing in mind the comfort of the patient and minimization of claustrophobia.
With the head supported and in position, a full surrounding surface was extruded toward the radiotherapy table plane, where it meets a U-shaped fixture though which the connections to the table will be made. The fixture and the immobilization mask were bonded horizontally (table plane). This process was performed for both the 3DLS and CT head models (Figure 3).
Three geometric configurations were next designed for both for the 3DLS and CT immobilization masks, as presented in Figure 4.
To simplify the reference to the various mask models (Figure 4), the following nomenclature was adopted: M* denotes the model (M) geometry and the symbol (*) may assume the values 1 to 3 (three geometric configurations). The following designations (CT or 3DLS) have already been defined in this document and are related to the data acquisition method.
As it is possible to observe, these masks’ configurations differ from the ones presently used, as they are much less closed, thus providing a less stressful treatment. The designed geometries were based on the opinion of some patients about the areas that they would think would alleviate the discomfort of the mask. However, other geometry solutions may naturally be considered and analyzed. It is fundamentally worth mentioning that as these masks will not be manually molded to the patient’s head as currently occurs, they will not be affected by variations in their thickness and hole distortions, which is another drawback of actual systems.
Another characteristic of these masks is that by default they are fully conformed to the head surface model. The existence of any clearance, restricting only some anatomical points, may be considered if found adequate, but in the present work, a total contact surface to the head solid model was considered.
2.3. Masks’ material properties
As these masks are intended to be manufactured using an additive technique, namely fusion deposition modeling 3D printing, the selection of materials for these devices is dependent on the minimum extrusion temperature suitable for 3D printing manufacturing, and of course because of the operation conditions of the masks, on the mass attenuation coefficient.
From the materials’ databases and technical datasheets available [14,15], four materials were selected that would be able to meet both the operating conditions and the production requirements, namely, polymethyl methacrylate (PMMA), polyphenylene sulfide, polycarbonate, and acrylonitrile butadiene styrene (ABS), which are denoted hereafter as T1, T2, T3, and T4, respectively.
The mean values of the material properties with relevance for the present work are presented in Table 1.
| Properties | Material ID | |||
|---|---|---|---|---|
| T1 | T2 | T3 | T4 | |
| Young’s modulus, E (GPa) | 3.30 | 4.33 | 2.36 | 2.10 |
| Poisson’s ratio, ν | 0.43 | 0.40 | 0.33 | 0.35 |
| Yield strength, σys (MPa) | 86.00 | 154.50 | 63.30 | 40.70 |
| Melting point (℃) | 218 | 282 | 302 | 221 |
| Molding point (℃) | 64.50 | 135.00 | 84.50 | 59.70 |
| Density, ρ (g/cm3) | 1.19 | 1.37 | 1.20 | 1.05 |
| Tolerance level to radiation, KGY | 100 | 1000 | 1000 | 1000 |
It is relevant to note that any other material may be easily considered for simulation purposes; however, it should observe the previously mentioned requirements.
2.4. Masks’ mechanical performance
Considering the immobilization objective of these masks, it is fundamental to guarantee that they will accomplish the required performance from a mechanical perspective. Accordingly, an analysis of the static behavior of the masks when submitted to typical loading situations was carried out using the finite element method [16,17]. To simulate the connection of the masks to the table, the degrees of freedom associated with the fixture holes were constrained.
The selection of the loads to apply was based on a study by Almosnino et al. [18], which focused on the force-generating capacity of neck muscles under isometric conditions by athletes. Considering this, and the probable patient’s movement intention, two case studies were analyzed. The first case simulates a left lateral bending of the neck with 158.1 N applied on the left side of the mask (Figure 5-a)).
The second study considers a flexion of the neck with 152 N applied on the front of the mask (Figure 5-b)). The corresponding computational modeling of these loads can be observed in the free body diagram of 3DLS masks in Figure 6-top for the lateral bending load of the neck. Similar diagrams were also obtained for CT masks.
To better approximate the actions associated with each movement translating the forehead surface ability to support higher loads when compared with other regions of the face, these load actions were modeled as linearly varying loads.
Similarly, Figure 6-bottom illustrates the load corresponding to the neck flexion movement, through a free body diagram, where the forces corresponding to the boundary conditions at the points where the masks are fixed to the table are also visible.
2.5. 3D Printing Mask Models
To illustrate the final stage of the present work, three mask configurations were manufactured in a Makerbot Replicator 3D printer (Makerbot). Considering that at this stage, the masks manufacturing has a single illustration purpose, the three mask models were printed in a 1:2 scale. The three mask models were printed using a 15% hexagonal infill scheme, which corresponded to an estimated printing time of 4h 47min, 4h 46min, and 4h 08min, respectively, for models M1, M2, and M3. The estimated masses for each model were 94.36 g, 95.74 g, and 83.56 g, respectively, for both 3DLS and CT models, as will be mentioned in the next section.
3. RESULTS AND DISCUSSION
In this section, first, the convergence studies developed for the masks are presented. Next, characterization of the influence of the thickness on these masks, made from the materials listed in sub-section 2.3, is presented. For various typical head movements, a finer tuning analysis is performed concerning the relationship between the desired immobilization degree and the mask thickness.
3.1. Convergence analysis
For the convergence analysis, the masks are made of T1 material (PMMA) and submitted to a left lateral bending load. The thickness of the mask was set at 4 mm. The convergence study was performed according to an h-refinement approach, i.e., by increasing the number of elements, thus reducing the characteristic dimensions. The analyzed quantities considered relevant for this study were the equivalent von Mises stress and the resultant displacement, to respectively ensure that the maximum equivalent stress will be less than the material yield stress and that the maximum displacement will also be consistent with the desired immobilization. Figure 7 presents the convergence results for the resulting maximum displacement for all mask models.

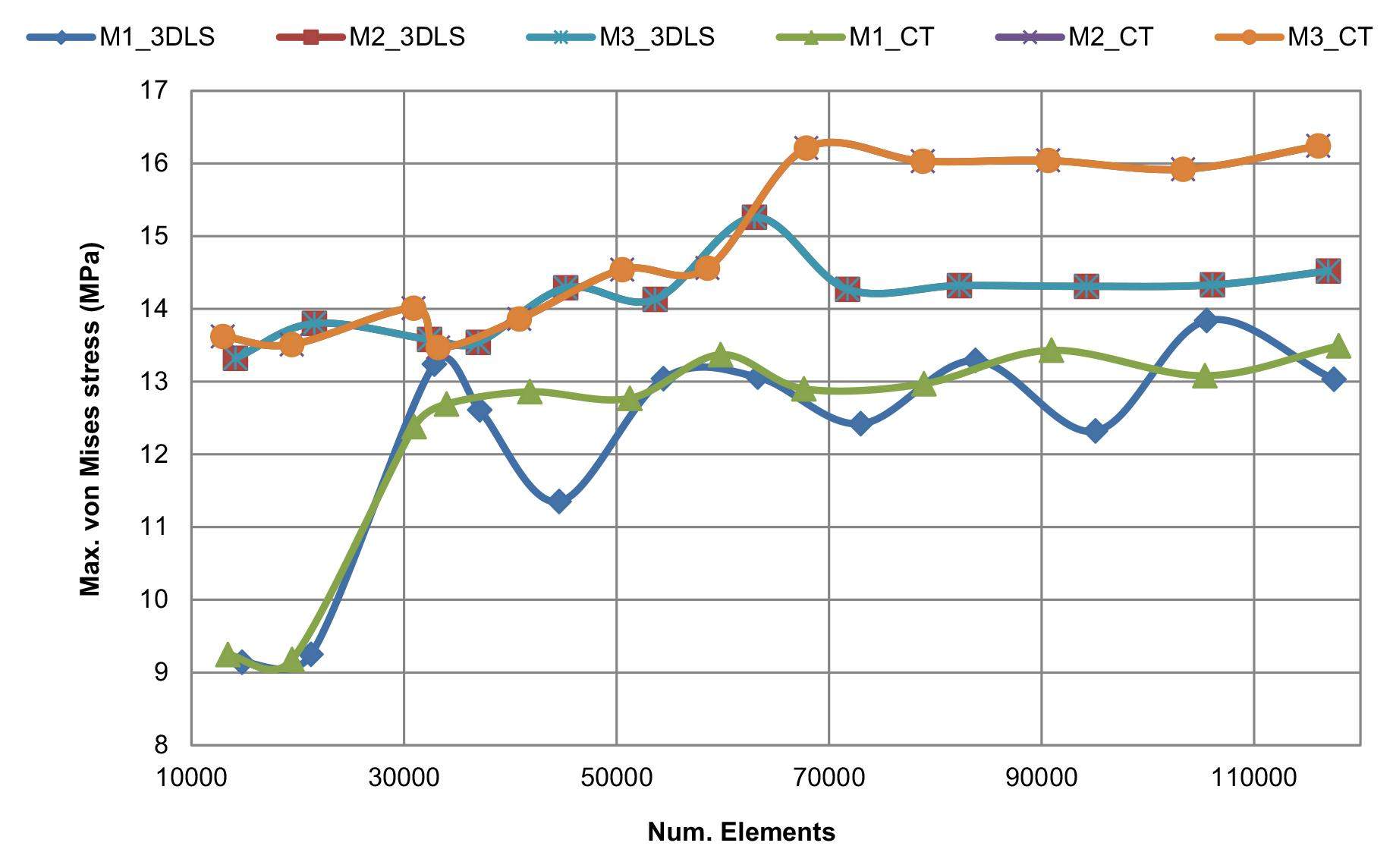

Figure 8 shows the curves depicting the von Mises stress as a function of the number of elements associated with the h-refinement.
From Figures 7 and 8, it is possible to see that, with the exception of the 3DLS, all the models present a globally convergent pattern. Nevertheless, this model presents an oscillatory behavior around a mean value that will likely disappear with more refined meshes. Concerning the maximum displacement, it is possible to see that in the M1 configuration there is a slight difference between the values obtained with the models reconstructed from the CT images and those from the point cloud. In the context of the equivalent stress, we also observe a slight oscillation, although with a convergent trend. Configurations M2 and M3 and their corresponding 3DLS and CT models present a similar convergence behavior for both the displacements and the von Mises stress. It is relevant to note that, in all cases, the maximum equivalent stress is far lower than the yield point (86 MPa), providing a high safety factor.
To complement these results, Figure 9 presents, for the three geometries and one of the acquisition methods (CT), the distributions of both the von Mises stress and displacement, using the last finite element mesh of the convergence studies.
It is important to add that the 3DLS models present similar results to those shown in Figure 9, concerning both the distributions and maximum values of the resultant displacement and von Mises stress.
3.2. Influence of material and thickness
In addition to the previous static convergence analysis, where only a material and a constant thickness were applied, a new study was developed.
Considering four different thicknesses and four different materials, the static analysis was rebuilt with the last mesh obtained in the convergence study for all masks.
3.2.1. Maximum displacement
The results obtained for the same neck lateral bending load are presented in Table 2, for all the masks, considering a discrete set of thickness values ranging from 3 to 5 mm.
| Thickness(mm) | Mask Model | |||||||
|---|---|---|---|---|---|---|---|---|
| M1_CT | M2_CT | M3_CT | M1_3DLS | M2_3DLS | M3_3DLS | |||
| T1 (Polymethyl Methacrylate) | ||||||||
| 3 | 5.575 | 5.214 | 5.326 | 5.707 | 5.347 | 5.444 | ||
| 4 | 2.699 | 2.540 | 2.593 | 2.752 | 2.594 | 2.640 | ||
| 5 | 1.528 | 1.443 | 1.472 | 1.555 | 1.471 | 1.495 | ||
| T2 (Polyphenylene Sulfide) | ||||||||
| 3 | 4.242 | 3.969 | 4.053 | 4.343 | 4.071 | 4.144 | ||
| 4 | 2.055 | 1.934 | 1.975 | 2.095 | 1.976 | 2.011 | ||
| 5 | 1.164 | 1.100 | 1.121 | 1.185 | 1.121 | 1.139 | ||
| T3 (Polycarbonate) | ||||||||
| 3 | 7.728 | 7.235 | 7.386 | 7.916 | 7.424 | 7.555 | ||
| 4 | 3.748 | 3.530 | 3.603 | 3.823 | 3.608 | 3.670 | ||
| 5 | 2.127 | 2.011 | 2.049 | 2.164 | 2.050 | 2.082 | ||
| T4 (Acrylonitrile Butadiene Styrene) | ||||||||
| 3 | 8.707 | 8.150 | 8.321 | 8.917 | 8.362 | 8.510 | ||
| 4 | 4.221 | 3.975 | 4.057 | 4.306 | 4.062 | 4.132 | ||
| 5 | 2.394 | 2.263 | 2.306 | 2.436 | 2.307 | 2.343 | ||
There is an expected inverse relationship between the mask thickness and the maximum displacement. The material that performs best, according to the immobilization objective, is T2.
Concerning the geometry, the M2 model presents the lowest values of displacement, closely followed by the M3 model. This allows an additional conclusion: the masks with forehead constraint perform better than those without it.
3.2.2. Mask safety factor
The safety factor associated with the strength of each of the designed immobilization devices is an important aspect to consider. Therefore, the safety factor was also evaluated for the previous thicknesses and materials. The results obtained are presented in Table 3.
| Thickness(mm) | Mask Model | ||||||
|---|---|---|---|---|---|---|---|
| M1_CT | M2_CT | M3_CT | M1_3DLS | M2_3DLS | M3_3DLS | ||
| T1 (Polymethyl Methacrylate) | |||||||
| 3 | 2.8 | 3 | 3.1 | 3.3 | 3.5 | 3.5 | |
| 4 | 4.8 | 5.1 | 5 | 5.6 | 6 | 4.7 | |
| 5 | 6.9 | 7.1 | 5.6 | 7.3 | 6.9 | 5.3 | |
| T2 (Polyphenylene Sulfide) | |||||||
| 3 | 4.1 | 4.4 | 4.4 | 4.7 | 5 | 5 | |
| 4 | 6.9 | 7.4 | 7 | 8 | 8.5 | 6.7 | |
| 5 | 9.7 | 9.9 | 7.9 | 10 | 9.6 | 7.6 | |
| T3 (Polycarbonate) | |||||||
| 3 | 2.2 | 2.4 | 2.3 | 2.5 | 2.6 | 2.6 | |
| 4 | 3.8 | 4 | 3.6 | 4.2 | 4.3 | 3.5 | |
| 5 | 4.8 | 4.9 | 4.1 | 5.1 | 4.8 | 3.9 | |
| T4 (Acrylonitrile Butadiene Styrene) | |||||||
| 3 | 1.4 | 1.5 | 1.5 | 1.6 | 1.7 | 1.7 | |
| 4 | 2.4 | 2.6 | 2.3 | 2.7 | 2.8 | 2.2 | |
| 5 | 3.1 | 3.2 | 2.6 | 3.3 | 3.1 | 2.5 | |
From these results, it is possible to conclude that the material T2 yields the highest safety factors. Concerning the geometric configurations of the masks, it is also clear that M2 is responsible for the greatest values. It is also possible to conclude that the masks made with the T2 material present the best safety factors. This is verified for all the geometric models. On the contrary, the material that demonstrates the worst performance from the safety factor perspective is T4.
Considering the results listed in both tables, it can be globally concluded that despite a 5-mm thickness, high safety factors are achieved, and this most likely would not be necessary, as the selected degree of immobilization requires that thicker masks be used. Therefore, the stiffness constraint prevails over the strength constraint.
To enable a better illustration of the factor evolution trend, Figure 10 depicts the influence that the mask thickness has on the safety factor for the M2 configuration with each material and both 3DLS and CT models.
Regarding the relationship between the safety factor and the mask thickness, it is also possible to conclude that the former increases as the thickness increases. As this safety factor has a relationship among between the material yield strength and the maximum von Mises stress, the visible trend evolution means that this stress decreases as the mask thickness increases. Although there are slight differences between the safety factors associated with each mask geometry when the data source is the 3DLS or the CT, this is not relevant because even in the most unfavorable case, the yield strength of the material is not attained, i.e., the maximum equivalent stress stays bellow that value. Thus, the structural integrity of the mask would not be compromised.
3.3. Stiffness criterion assessment
As it is possible to conclude from the previous results, the maximum displacement always occurs in the lower jaw region for all the models considered. This is a localized phenomenon associated with the fact that this region has a larger free edge. However, it is also clear that the remaining regions of the mask present stiffer behavior. Although the stiffening of this region can be achieved through local mask thickening, this could contribute to a differentiated behavior concerning the attenuation, so to improve the stiffness performance of the masks, a finer tuning analysis was developed considering a maximum displacement of 1 mm as an acceptable value.
Considering that the material that performed best in previous studies was T2, it was selected for the present case study. The analyzed loading cases were the two mentioned above, corresponding to neck lateral bending and neck flexion (Figure 5). An iterative procedure was adopted that utilized a 0.1-mm increment, which would be comparable with the resolution of 3D printers. The results obtained are presented in Tables 4 and 5.
| Thickness (mm) | Maximum Displacement (mm) | |||||
|---|---|---|---|---|---|---|
| M1_CT | M1_3DLS | M2_CT | M2_3DLS | M3_CT | M3_3DLS | |
| 5 | 1.164 | 1.185 | 1.100 | 1.121 | 1.121 | 1.139 |
| 5.1 | 1.107 | 1.126 | 1.046 | 1.066 | 1.066 | 1.083 |
| 5.2 | 1.053 | 1.071 | 0.996 | 1.015 | 1.015 | 1.030 |
| 5.3 | 1.003 | 1.021 | - | 0.967 | 0.967 | 0.982 |
| 5.4 | 0.957 | 0.973 | - | - | - | - |
| Thickness (mm) | Maximum Displacement (mm) | |||||
|---|---|---|---|---|---|---|
| M1_CT | M1_3DLS | M2_CT | M2_3DLS | M3_CT | M3_3DLS | |
| 2 | 2.050 | 2.120 | 1.858 | 1.925 | 2.071 | 2.128 |
| 2.1 | 1.809 | 1.869 | 1.639 | 1.697 | 1.824 | 1.874 |
| 2.2 | 1.607 | 1.660 | 1.456 | 1.507 | 1.618 | 1.661 |
| 2.3 | 1.436 | 1.483 | 1.301 | 1.346 | 1.444 | 1.482 |
| 2.4 | 1.291 | 1.334 | 1.170 | 1.210 | 1.296 | 1.330 |
| 2.5 | 1.167 | 1.206 | 1.058 | 1.094 | 1.170 | 1.200 |
| 2.6 | 1.060 | 1.096 | 0.961 | 0.993 | 1.061 | 1.088 |
| 2.7 | 0.968 | 1.000 | - | - | 0.966 | 0.991 |
In a lateral bending load situation, all the models present similar results. However, the M1 masks require a slightly higher thickness value to provide a displacement less than 1 mm. The M2 models present a good behavior, followed by the M3 ones. Although constituting a slightly less severe load case, the flexion of the neck is probably a more natural movement; thus, it is important to analyze the effects the corresponding load would produce in the immobilization masks.
Concerning the results achieved for the neck flexion load, the M2 masks require a slightly lower thickness to achieve maximum displacements below the established 1-mm limit. Again, one may conclude that the masks that restrain the forehead present better performance. Figures 11 and 12 illustrate the maximum resultant displacement for the M2_CT model when submitted to each of the load cases.
From Figures 11 and 12, it is possible to have a global view of the distribution of the resultant displacements for the entire mask. When the load case corresponds to neck flexion, as presented in Figure 11, the resultant displacements are highest at the chin region and nose.
A similar situation occurs for the lateral bending load, where the highest displacement values occur at the lower jaw region.
This occurs in both cases, which is expected, as one has larger free edges. Nevertheless, it is also worth noting that for the other mask regions, the resultant displacement clearly decreases.
Concerning the von Mises distributions associated with the same mask under the two load cases, Figures 13 and 14 clearly illustrate that their maximum values are far from the material yield stress.
3.4. 3D printed masks
As mentioned above, the masks were printed using a reduced 1:2 scale, as the purpose in the present context was illustrative. The physical models obtained can be observed in Figure 15.
A study of the effects that different infill characteristics and percentages have on the estimated normalized printing time and filament mass was conducted.
Table 6 presents the non-dimensional masses
| Infill (%) | M1 | M2 | M3 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hexagonal | Linear | Hexagonal | Linear | Hexagonal | Linear | |||||||
| m | Δt | m | Δt | m | Δt | m | Δt | m | Δt | m | Δt | |
| 10 | 0.948 | 0.963 | 0.949 | 0.963 | 0.962 | 0.960 | 0.959 | 0.960 | 0.953 | 0.969 | 0.949 | 0.965 |
| 20 | 0.951 | 0.963 | 0.954 | 0.967 | 0.965 | 0.963 | 0.964 | 0.963 | 0.955 | 0.969 | 0.954 | 0.969 |
| 30 | 0.955 | 0.967 | 0.960 | 0.973 | 0.966 | 0.966 | 0.964 | 0.970 | 0.959 | 0.973 | 0.961 | 0.973 |
| 40 | 0.961 | 0.973 | 0.965 | 0.977 | 0.969 | 0.966 | 0.975 | 0.966 | 0.960 | 0.973 | 0.963 | 0.977 |
| 50 | 0.961 | 0.973 | 0.971 | 0.980 | 0.972 | 0.970 | 0.981 | 0.976 | 0.964 | 0.977 | 0.970 | 0.980 |
| 60 | 0.969 | 0.980 | 0.978 | 0.987 | 0.971 | 0.976 | 0.979 | 0.983 | 0.967 | 0.980 | 0.976 | 0.984 |
| 70 | 0.972 | 0.983 | 0.983 | 0.990 | 0.974 | 0.980 | 0.984 | 0.983 | 0.970 | 0.980 | 0.981 | 0.988 |
| 80 | 0.975 | 0.983 | 0.988 | 0.993 | 0.977 | 0.983 | 0.989 | 0.990 | 0.973 | 0.984 | 0.987 | 0.992 |
| 90 | 0.978 | 0.987 | 0.994 | 0.997 | 0.978 | 0.983 | 0.994 | 0.993 | 0.976 | 0.984 | 0.993 | 0.996 |
| 100 | 1.000 | 1.000 | 1.000 | 1.000 | 1.000 | 1.000 | 1.000 | 1.000 | 1.000 | 1.000 | 1.000 | 1.000 |
It is possible to conclude there is not a linear relationship between the infill percentage and the estimated time and mass. This is not only because of the characteristics of each mask, but also because of the different needs concerning the printing supports, which is a requirement of the 3D printing technique used.
Although the results presented in Table 6 are related to those obtained for the 3DLS masks, it is relevant to note that the printing times and masses are similar for CT masks. In fact, the masks are quite similar, as the regions where they differ in detail when considering the full masks (no holes) were removed to achieve the various hole geometries.
The results obtained suggest the viability of establishing an automated manufacturing procedure for head immobilization masks. Based on the present conclusions, it is necessary for another study to be carried out to assess/quantify the influence of such an automated solution on the minimization of some sources of patients’ distress, although this is an expected result.
It is also important to state that although such different procedures may imply changes in clinical protocols, this may pave the way for improved conditions and therefore perspectives for the diagnosis and therapeutic of brain diseases. However, following the present work, other studies concerning radiation attenuation will be required to determine the most suitable material for this purpose.
4. CONCLUSION
Immobilization medical devices may be a valuable aid to ensure improved effectiveness for specific therapies. The objective of the present study was to present a preliminary design of various head immobilizations masks considering the anthropometric characteristics acquired via computed tomography and 3D laser scanning.
From the analyses developed, it was possible to conclude that there were no remarkable differences regarding the responses provided by the same mask configuration, regardless of the head geometry acquisition source. Therefore, it is possible to consider alternative methods of acquiring external anatomic parts, thus minimizing the exposure of the patient to high-energy radiation.
Considering the results obtained for the proposed mask configurations, it can be concluded that the immobilization requisite is the criterion that most affects the thickness. The strength criteria illustrated via the von Mises maximum stresses denote that, in any situation, these stresses are far lower than the material yield stress point, thus ensuring a high strength safety factor.
These results suggest the feasibility of a complete computational design and manufacturing procedure to achieve head immobilization systems. It is also possible to state that the established methodology can be used for other regions of the body, for different immobilization conditions, allowing for eventual localized clearances.
Although the mechanical performance of the different masks has been successfully tested for a set of movements, other movements may be considered, if they are found to be important to characterize situations that may occur during the real conditions associated with radiotherapy treatment. However, this will require an accurate previous estimation of the load the patient will exert when performing a specific movement.
Further studies are still necessary to evaluate the physical properties of the 3D printed masks when in contact with radiation. It is also necessary to take into account limitations such as the printing time and the economic costs of the masks to evaluate if they can be a feasible alternative to those available in current clinical practice. Additionally, and based on these conclusions, it will be important to determine what improvements and/or procedural modifications will be necessary to enable their future use.
