1 Introduction

The properties of nuclei near a beta-stable line including the nuclear structure and reactions have been well known through decades of effort by various scientists. The characteristics of exotic nuclei near neutron and proton drip lines have gradually attracted attention since Tanihata first found the neutron-halo structure of ¹¹Li, and a large number of radioactive ion beam facilities have been built in many national laboratories in recent years. As the most important structural behavior of a neutron-rich nucleus, the neutrons have much more extended density distributions than the protons, i.e., a neutron skin or halo, which can be applied by certain theoretical models of nuclear structures, such as the relativistic-mean-field [1-4], Skyrme—Hartree–Fock [5-7], and shell model [8-10]. It also has some other properties such as a small separation energy, low angular momentum on the orbits of the last few nucleons, and an increased reaction cross section, which can be measured experimentally [11-14]. However, studies have mostly focused on neutron skins and halos, with fewer studies conducted on proton skins and halos, and the experimental approaches used to study exotic nuclei must be expanded to include the isospin. Directed and elliptical flows have been identified as sensitive observables with regard to the isospin effect in equations of state for nuclear matter and the dynamics of nuclear collisions [15-20]; for instance, neutron-rich systems have a higher balance energy (at which the in-plane transverse flow disappears) compared to neutron-deficient systems for all colliding parameters [20], and the isospin dependence of collective flows has been explained as competition among various isospin-dependent reaction mechanisms including nucleon-nucleon collisions, symmetry energy, the surface property of the colliding nuclei, and the Coulomb force. The yield ratio of neutrons to protons has also been proposed as a candidate to investigate the isospin physics, such as the symmetry energy at subnormal and supranormal densities, isospin splitting of the nucleon effective mass, and an in-medium nucleon-nucleon cross section [21-30]. However, such studies have mostly focused on neutron-rich nuclei-induced collisions, with a lack of research conducted on reactions induced through proton-rich nuclei. In this work, the yield ratios and directed flows of light particles from proton-rich nucleus ²⁸S induced reactions ²⁸S + ²⁸Si at 50 and 400 MeV/u are explored, and stable isotopic nuclei ³²S induced collisions ³²S + ²⁸Si are used for comparison.

2 Theoretical descriptions

The dynamics of heavy ion reactions should consist of three components: propagation of nucleons in the mean field, nucleon-nucleon collisions in a nuclear medium, and Pauli blocking. The quantum-molecular-dynamics (QMD) model is a successful many-body theory that can explicitly describe the state of a reaction system and can represent the time evolution of the colliding system extremely well from intermediate to relativistic energies. A detailed review of the QMD model can be found in Ref.[31]. The isospin-dependent quantum molecular dynamics (IQMD) model is based on the above theory, affiliated with the isospin effect on the above three constituents [32, 33].

The nuclear mean-field potential used in the IQMD model can be parameterized as follows [32, 33]:

where ρ₀ is the normal nuclear matter density (0.16 fm^-3); ρ, ρ_p, and ρ_n are the total, proton, and neutron densities, respectively; and τz is the zth constituent of the isospin degree of freedom, which equals 1 or -1 for neutrons or protons, respectively. The different parameters α, β, and γ represent the different nuclear equations of state. In addition, C_sym is the symmetry energy strength owing to the asymmetry of the neutrons and protons in the nucleus. In this work, C_sym= 32 MeV is used. Here, V_c is the Coulomb potential and U_Yuk is the Yukawa (surface) potential. In the present study, we also adopt α = -356 MeV, β = 303 MeV, and γ = 1.17, corresponding to the so-called soft EOS with an incompressibility of K = 200 MeV.

In the IQMD model, clusters emitted during a collision are usually distinguished through a coalescence method: When the two nucleons in a phase space satisfy a spatial distance Δr of smaller than 3.5 fm and a momentum difference Δp of smaller than 300 MeV/c, they can be treated as a part of a cluster [31, 34]. With this simple coalescence method, different sized clusters can be recognized, which has been extensively applied in transport theory for a cluster formation.

The nucleon-nucleon cross section used in this model is an experimental parametrization, which is also isospin-dependent. The cross section between a neutron and proton is about 3-times bigger than that between a neutron and neutron, or proton and proton, when the collision energy is below 300 MeV/u.

3 Results and discussion

Approximately 300,000 collisions are simulated for ²⁸S + ²⁸Si and ³²S + ²⁸Si with soft EOS at 50 and 400 MeV/u, respectively. In this study, the physical information of the projectile-like particles are extracted at 200 fm/c.

For the initialization of the nucleons of a projectile and target, the protons and neutrons are distinguished in the IQMD model, and the stability of the initialization sample must be tested. The Skyrme—Hartree–Fock (SHF) theory is used to determine the neutron and proton density distributions of the projectile and target nuclei. The proton (dot), neutron (dash), and total matter (solid) densities of ²⁸S and ³²S, given by the SHF method, are shown in the left and right panels of Fig. 1, respectively. It can be observed that an apparent proton skin exists in ²⁸S [1, 35], but not in ³²S.

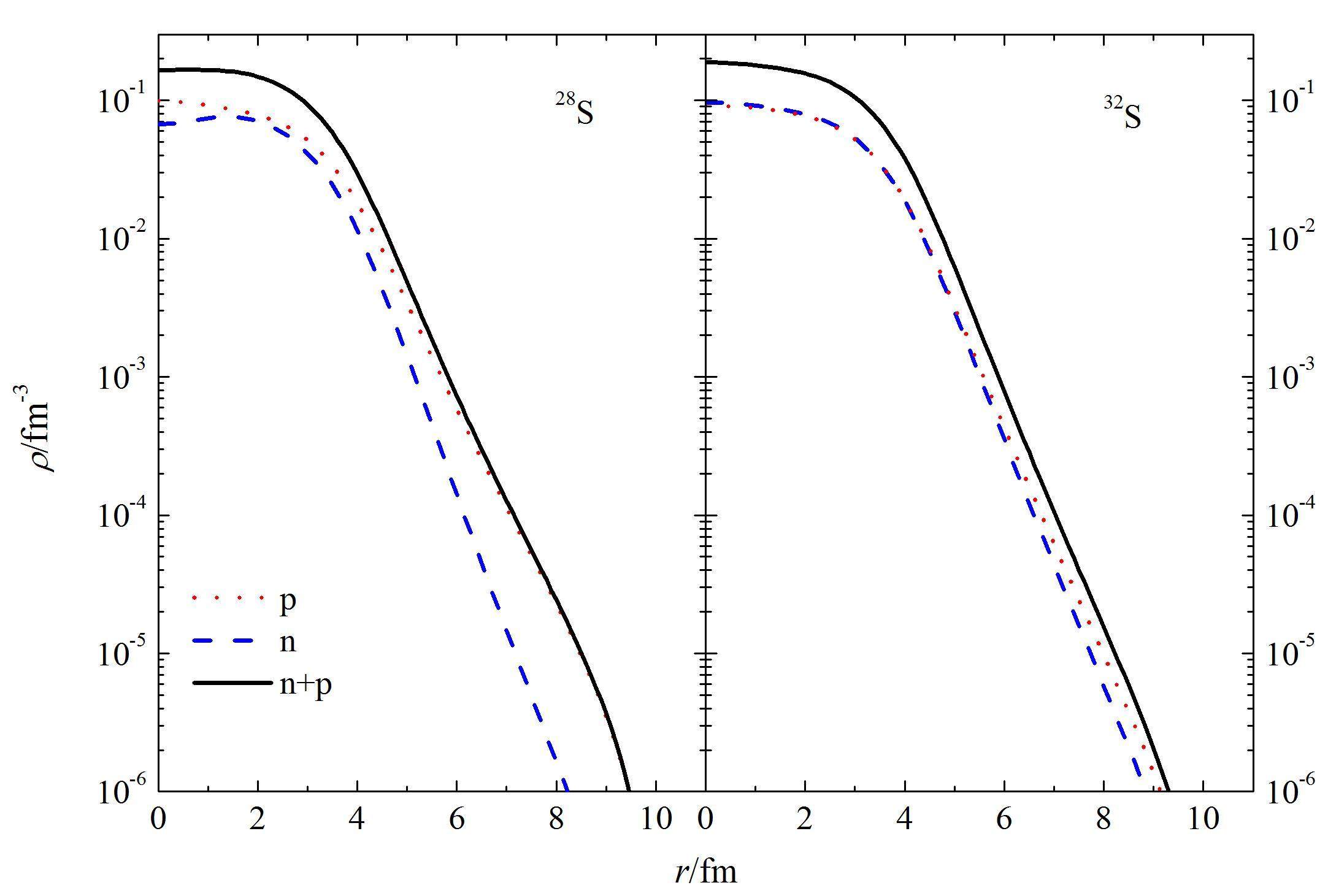

Fig. 1.Full-screen View

(Color online) Neutron (dashed line), proton (dotted line), and total matter (solid line) density distributions of ²⁸S and ³²S given by the Skyrme–Hartree–Fock method.

The upper panel of Fig. 2 shows the reduced impact parameter (b_re) dependence of the proton-to-neutron (n/p, solid square) and ³H-to-³He (³H/³He, solid circle) yield ratios from a ²⁸S + ²⁸Si system at 50 MeV/u, where the hollow symbols are for the corresponding fragments from the ³²S + ²⁸Si system. Here, b_re=b/b_max, where b_max is the total radii of the projectile and target nuclei. The yield ratios of n/p and ³H/³He both decrease slightly with the reduced impact parameter for the attracting mean field and Coulomb effect within this energy range. The average ratios of n/p and ³H/³He are roughly evaluated to be 1.0 and 1.1, respectively, for the³²S + ²⁸Si system and 0.75 and 0.85, respectively, for the ²⁸S + ²⁸Si system. The ratios of constituent neutrons to protons (N/P) of the two projectiles ³²S and ²⁸S are 1.0 and 0.75, respectively, which nearly coincide with the above yield ratios of the projectile-like fragments. This is a consequence of the coalescence method used in the IQMD model, and the emission probability of projectile-like particles should be proportional to the emission probabilities of their constituent nucleons. Thus, the yield ratio of ³H/³He should be close to that of n/p. The reason why the ratio of ³H/³He is larger than that of n/p may be because the larger charge of ³He causes a much lower yield in low-energy collisions in which the attractive mean field plays a critical role. The lower panel of Fig. 2 shows the same correlation but for a collision energy of 400 MeV/u. It can be observed that the yield ratios of both n/p and ³H/³He are nearly unchanged with the reduced impact parameter because nucleon-nucleon collisions play a dominant role within this energy range. The yield ratios of n/p and ³H/³He are nearly equal for a certain collision system; in other words, they are both approximately 1.0 for the ³²S + ²⁸Si system and approximately 0.75 for the ²⁸S + ²⁸Si system, which is coincident with the N/P ratio of the projectile nucleus. Therefore, the yield ratios of n/p and ³H/³He can be used as isospin-dependent observables for investigating the reaction dynamics induced through a proton-rich nucleus.

Fig. 2.Full-screen View

(Color online) The reduced impact parameter dependence of the neutron-to-proton (square) and ³H-to-³He (circle) yield ratios from ²⁸S + ²⁸Si (solid symbols) and ³²S + ²⁸Si (hollow symbols) at 50 (upper panel) and 400 MeV/u (lower panel).

The transverse collective flows carry important information regarding the pressure gradient, which builds up in the compressed zone, and are a direct way to the study the nuclear EOS. The invariant azimuthal distribution of the emitted fragments can be stated in the form of a Fourier expansion, as described below:

Here, ϕ is the azimuthal angle, which is defined as the angle between the particle’s transverse momentum and the collision plane, labeled as the x-z plane, whereas the beam direction is defined as the z-axis of the coordinate system, and the collision parameter direction is the x-axis. The so-called directed flow is the first harmonic coefficient v₁, which is expressed as follows:

where p_t ($p_{\text{t}}=\sqrt{p_x^2+p_y^2}$) is the transverse momentum of a fragment. The directed flow is dependent on the transverse momentum, rapidity, and other factors, and herein the rapidity is commonly used as the reduced rapidity in a center-of-mass frame, i.e., $y=y/y_{\text{p}}{}_{\text{c}\text{.m}\text{.}}$, where y_p is the rapidity of a projectile.

We show the scaled rapidity dependence of directed flows for neutrons and protons in a different centrality from ²⁸S + ²⁸Si and ³²S + ²⁸Si for the collisions at 50 and 400 MeV/u shown in Fig. 3. The directed flow at mid-rapidity (0 lt;y lt;0.5) is negative for collisions at 50 MeV/u, but positive for those at 400 MeV/u, which is because the attractive mean field and rotation effect of the overlap zone play an important role in 50 MeV/u collisions, whereas the compulsive nucleon-nucleon collisions and expansion of the overlap zone play a dominant role at 400 MeV/u. Looking at the various panels in Fig. 3, there is a large similarity of the data in the different centralities. It can be observed that there are clear differences between the neutron and proton directed flows from ²⁸S + ²⁸Si collisions at 50 MeV/u, i.e., the absolute strength of v₁ in a proton is clearly larger than that in a neutron, which may be because protons have a positive symmetric potential, whereas neutrons have negative symmetric potential in ²⁸S; in other words, protons in a larger attractive mean field are emitted with a stronger directed flow. Thus, for the ³²S + ²⁸Si system, the directed flows of protons and neutrons are nearly equal to each other. For a similar reason, at high energy where compulsive nucleon-nucleon collisions play a dominant role, the neutrons should have a larger v₁ than the protons for ²⁸S + ²⁸Si collisions at 400 MeV/u, which we can also observe in Fig. 3, although not so clearly, for a small value of v₁ at this energy level.

Fig. 3.Full-screen View

(Color online) The reduced rapidity dependence of directed flows at a different centrality. The solid squares and circles indicate neutrons and protons from ²⁸S + ²⁸Si at 50 MeV/u, the solid upward and downward triangles indicate neutrons and protons from ²⁸S + ²⁸Si at 400 MeV/u, and the hollow upward and downward triangles indicate neutrons and protons from ³²S + ²⁸Si at 50 and 400 MeV/u respectively.

The directed flows of isospin-related fragments ³H and ³He are also investigated, as shown in Fig. 4, for ²⁸S + ²⁸Si and ³²S + ²⁸Si at 50 MeV/u; however, no data are available for 400 MeV/u collisions owing to such small yields of ³H and ³He from such small impact systems at such a high collision energy. It can be observed that ³He has a stronger directed flow than ³H, which is similarly due to more protons and fewer neutrons present in ³He.

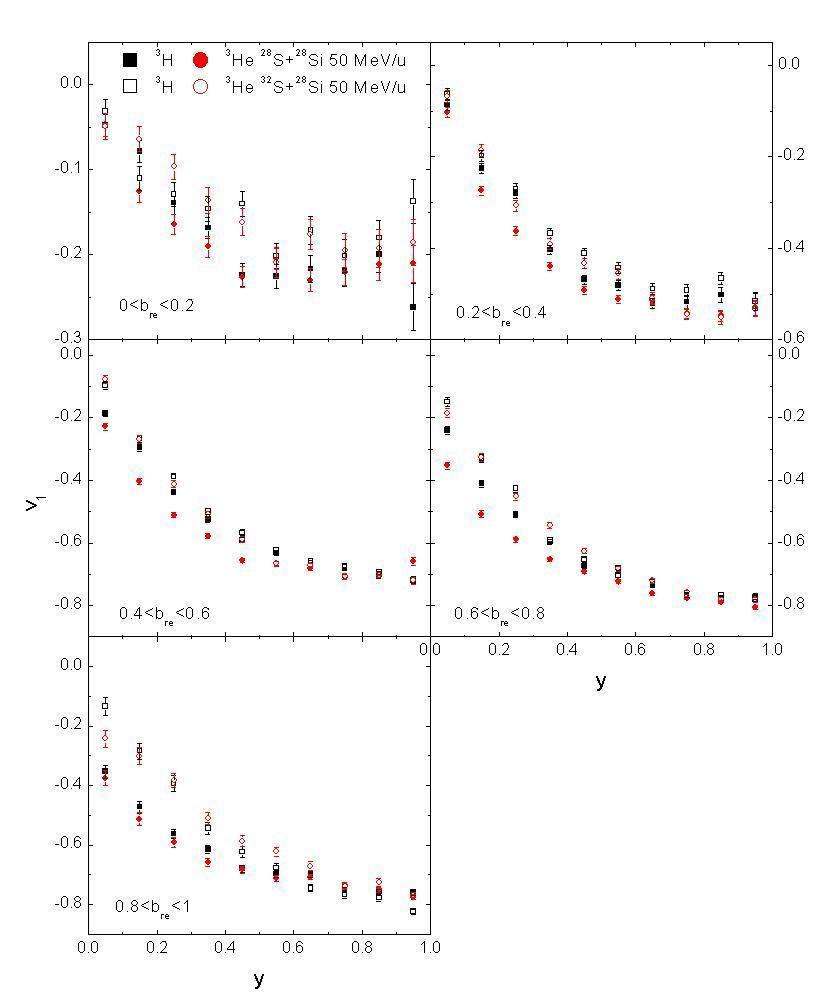

Fig. 4.Full-screen View

(Color online) Reduced rapidity dependence of directed flows at a different centrality. The solid squares and circles indicate ³H and ³He from ²⁸S + ²⁸Si at 50 MeV/u, and the hollow squares and circles indicate ³H and ³He from ³²S + ²⁸Si at 50 MeV/u, respectively.

The differential transverse momentum per nucleon (p_t/A) dependence of a directed flow limited in terms of the mid-rapidity interval 0 lt;y lt;0.5 for a neutron and proton in a different centrality from ²⁸S + ²⁸Si and ³²S + ²⁸Si in collisions at 50 and 400 MeV/u is shown in Fig. 5. The figure also shows that the directed flows of neutrons and protons are negative at 50 MeV/u and positive at 400 MeV/u for the same reason discussed above, and that a change of v₁ occurs at 50 MeV/u after reaching the extremum, which may be due to the shadow effect of the spectators. Similarly, the absolute strength of v₁ of a proton is larger than that of a neutron from ²⁸S + ²⁸Si collisions at 50 MeV/u, whereas the absolute strength of v₁ of a proton is smaller (although not so clearly so) than that of a neutron for 400 MeV/u ²⁸S + ²⁸Si collisions. Fig. 6 shows the same results as Fig. 5 but for fragments ³H and ³He at 50 MeV/u, and no data are available for 400 MeV/u collisions for the low yields of ³H and ³He. This indicates that ³He has a stronger directed flow than ³H, particularly in the middle centrality.

Fig. 5.Full-screen View

(Color online) Similar to Fig. 3 but for transverse momentum per nucleon (p_t/A) dependence. The scaled rapidity is selected as 0 lt;y lt;0.5.

Fig. 6.Full-screen View

(Color online) Similar to Fig. 4 but for transverse momentum per nucleon (p_t/A) dependence. The scaled rapidity is selected as 0 lt;y lt;0.5.

To quantitatively compare the difference between the isospin-related fragments and reduce the statistical error, the reduced impact parameter dependence of the directed flows integrated over 0 lt;y lt;0.5 and p_t/A lt;0.15 GeV/A is determined. The upper panel of Fig. 7 shows the reduced impact parameter dependence of the directed flows of neutrons and protons from collisions at 50 MeV/u ²⁸S + ²⁸Si and ³²S + ²⁸Si. It can be observed that the integrated directed flows of neutrons and protons are both negative owing to the attractive mean field playing a dominant role at this low energy. The absolute values, i.e., the strength of directed flows of neutrons and protons, increase continuously with the reduced impact parameter for which the accompanied rotation effect also increases. This also indicates that the strength of v₁ of a proton is clearly larger, as mentioned above, than that of a neutron from a ²⁸S + ²⁸Si reaction system; however, for ³²S + ²⁸Si, there is no significant difference between protons and neutrons. Similar phenomena exist for ³H and ³He, as shown in the middle panel labeled with upward and downward triangles, respectively, i.e., ³He has a stronger v₁ than ³H for a ²⁸S + ²⁸Si system, although no clear distinction exists for a ³²S + ²⁸Si system. To quantify their distinctions, the differences in v₁ (△v₁) for neutron-proton (v₁(n)-v₁(p)) and ³H-³He (v₁(³H)-v₁(³He)) are determined, as shown in the lower panel of Fig. 7. The figure indicates that the differences for neutron-proton and ³H-³He are noticeable and are nearly equal to each other for ²⁸S + ²⁸Si, and larger at intermediate impact parameters; however, they are extremely small and fluctuate at near zero for ³²S + ²⁸Si within all collision parameters.

Fig. 7.Full-screen View

(Color online) Upper and middle panel: Directed flows dependent on reduced impact parameter. The squares, circles, upward triangles, and downward triangles indicate neutrons, protons, ³H, and ³He, respectively. Lower panel: The differences in v₁ (Δv₁) dependent on a reduced impact parameter. The diamonds and stars indicate v₁(n)-v₁(p) (n-p) and v₁(³H)-v₁(³He) (³H-³He), respectively. The solid and hollow symbols indicate ²⁸S + ²⁸Si and ³²S + ²⁸Si at 50 MeV/u, respectively.

The results shown in Fig. 8 are similar to those in Fig. 7 but at an impact energy of 400 MeV/u. It can be observed that the directed flows of the light particles (shown in the upper and middle panels) are positive because nucleon-nucleon collisions and the expansion of the overlap zone play a dominant role at 400 MeV/u, and because the directed flows increase with a reduced impact parameter, but decrease in peripheral collisions, which may be due to the decreasing compression energy and gradient in the overlap zone. It can also be observed that neutrons have a clearly larger v₁ than protons from ²⁸S + ²⁸Si reactions, which may be because neutrons own a weaker mean-field potential for a negative symmetric potential, and are emitted with stronger directed flow during expansion. The differences in v₁ for neutron-proton and ³H-³He are also presented in the lower panel of Fig. 8. The figure indicates that only the difference in neutron-proton from the ²⁸S + ²⁸Si system is relatively noticeable, and is larger for intermediate impact parameters, but much smaller than that from 50 MeV/u ²⁸S + ²⁸Si, and that the difference in n-p from a ³²S + ²⁸Si system is extremely small, reaching approximately zero, whereas the differences in ³H-³He from the two reaction systems fluctuate significantly owing to the small yields of ³H and ³He; in addition, the average value is also approximately zero within all collision parameters. Thus, from the previous analysis, the differences in directed flows for neutron-proton and ³H-³He can also represent isospin physics, and it is recommended to measure these physical quantities at low energies to obtain a larger value.

Fig. 8.Full-screen View

(Color online) Same as in Fig. 7 but for 400 MeV/u.

4 Summary

Using the IQMD model, we studied the rapidity and transverse momentum dependent directed flows of projectile-like neutrons, protons, ³H, and ³He within full collision parameters for simulations of ²⁸S + ²⁸Si and ³²S + ²⁸Si at 50 and 400 MeV/u; in addition, the differences in v₁ for neutron-proton and ³H-³He, and the yield ratios of these light particles from the two reaction systems, were also investigated. It was also demonstrated that the yield ratios of n/p and ³H/³He for projectile-like fragments from low-energy collisions slightly decrease with reduced impact parameters, but are on average equal to the constituent N/P ratio of the projectile nuclei, whereas they are both nearly equal to the N/P of the projectile nuclei within all reduced impact parameters for high energy collisions. The detailed characteristics of this may depend on the different parameters of the EOS, collision system, and other factors, requiring further theoretical research. The differences in directed flows for neutron-proton and ³H-³He from ²⁸S + ²⁸Si collisions at low energies are noticeably equal and relatively larger under intermediate impact parameters, but reach zero for ³²S + ²⁸Si reactions, and only the difference in directed flows for neutron-proton from high-energy ²⁸S + ²⁸Si collisions is noticeable although much smaller than that from low-energy ²⁸S + ²⁸Si collisions. Thus, the differences of v₁ and the yield ratios for neutron-proton and ³H-³He under medium impact parameters are proposed as isospin observables for exotic nuclei. Further study on the quantitative relationship between a proton or neutron skin, as well as the yield ratio and difference in the directed flow, is being conducted.
