Multi-objective optimization and evaluation of supercritical CO2 Brayton cycle for nuclear power generation

NUCLEAR ENERGY SCIENCE AND ENGINEERING

Multi-objective optimization and evaluation of supercritical CO₂ Brayton cycle for nuclear power generation

Guo-Peng Yu ，

Yong-Feng Cheng，

Na Zhang，

Ping-Jian Ming

Nuclear Science and Techniques

Vol.35, No.2

Article number 22

Published in print Feb 2024

Available online 05 Feb 2024

DOI：10.1007/s41365-024-01363-y

68601

The supercritical CO₂ Brayton cycle is considered a promising energy conversion system for Generation IV reactors for its simple layout, compact structure, and high cycle efficiency. Mathematical models of four Brayton cycle layouts are developed in this study for different reactors to reduce the cost and increase the thermohydraulic performance of nuclear power generation to promote the commercialization of nuclear energy. Parametric analysis, multi-objective optimizations, and four decision-making methods are applied to obtain each Brayton scheme’s optimal thermohydraulic and economic indexes. Results show that for the same design thermal power scale of reactors, the higher the core’s exit temperature, the better the Brayton cycle’s thermo-economic performance. Among the four-cycle layouts, the recompression cycle (RC) has the best overall performance, followed by the simple recuperation cycle (SR) and the intercooling cycle (IC), and the worst is the re-heating cycle (RH). However, RH has the lowest total cost of investment (C_tot) of $1619.85 million, and IC has the lowest levelized cost of energy (LCOE) of 0.012$/(kWh). The nuclear Brayton cycle system’s overall performance has been improved due to optimization. The performance of the Molten Salt Reactor combined with the intercooling cycle (MSR-IC) scheme has the greatest improvement, with the net output power (W_net), thermal efficiency η_t, and exergy efficiency (η_e) improved by 8.58%, 8.58%, and 11.21% respectively. The performance of the Lead-cooled Fast Reactor combined with the simple recuperation cycle scheme was optimized to increase C_tot by 27.78%. In comparison, the internal rate of return (IRR) increased by only 7.8%, which is not friendly to investors with limited funds. For the nuclear Brayton cycle, the Molten Salt Reactor combined with the recompression cycle scheme should receive priority, and the Gas-cooled Fast Reactor combined with the re-heating cycle scheme should be considered carefully.

Supercritical CO2 Brayton cycleNuclear power generationThermo-economic analysisMulti-objective optimizationDecision-making methods

Introduction

The overuse of fossil energy is one of the major causes of global warming [1]. As one of the most efficient and clean energy sources, nuclear energy has been criticized for its high investment costs [2] and poor safety [3]. However, scholars have not given up their research on nuclear energy, and with the introduction of fourth-generation nuclear reactors, nuclear power generation has gradually become a research hotspot [4-6]. Most current power conversion systems in power plants use the steam Rankine cycle and gas turbine systems. However, the high reactor outlet temperatures and pressures limit the efficiency of nuclear power conversion systems [7]. Compared with the steam Rankine cycle [8], the supercritical carbon dioxide (S-CO₂) power cycle has the advantages of higher system thermal efficiency and a more compact power system equipment structure [9], which makes it well matched with nuclear power applications. However, compared to the advantages of supercritical helium power cycles in ultra-high temperature systems (above 1000°C), S-CO₂ power cycles are more suitable for medium-temperature operation (450-600°C) in Generation IV reactors [10]. The advantages of a simple layout and compact structure can save the investment cost of nuclear power generation systems, which is economically more advantageous than other energy types [11]. Simultaneously, the small footprint allows high-power-density nuclear power equipment to be assembled in the factory before being transported to the construction site by truck or train [12], facilitating the commercial use of nuclear power.

Currently, research on the supercritical carbon dioxide Brayton cycle (S-CO₂BC) has focused on system performance optimization [13], working fluid selection [14], techno-economic features, and their combinations with other thermal energy systems [15-17]. Ahn et al. [7] conducted a comparative analysis of S-CO₂BC systems under various cycle layouts and obtained that recompressed Brayton cycle systems have a higher thermal system efficiency and emergency efficiency than other cycle layouts. Kim et al. [18] analyzed the parameters, such as thermal system efficiency and net system output power, as evaluation indices for an S-CO₂ recompressed Brayton cycle system using the pinch-point temperature difference method, optimizing the operating parameters of the system to determine the optimal operating conditions of the heat exchanger and other equipment. Song et al. [19] investigated the combined cycle system of the S-CO₂ Brayton cycle and organic Rankine cycle (ORC), optimizing the system’s operating parameters to improve the thermal performance of the combined cycle system significantly. Bian et al. [20] investigated and compared the effects of different control valves on the dynamic performance of the SCO₂BC system in terms of both thermodynamic and safety performance. Wang et al. [21] investigated the dynamic response characteristics under S-CO₂ Brayton cycle failure conditions and proposed corresponding contingency measures.

All the above studies on the S-CO₂ cycle system use a single objective function for evaluation. Since the single objective function cannot fully reflect the performance characteristics of the S-CO₂ cycle system, many scholars have also established multi-objective functions to research key evaluation parameters of the cycle system, such as thermal efficiency, net output power, and irreversible energy loss of the system. Wang et al. [22] established multi-objective functions, such as system thermal efficiency and net system output power, as evaluation parameters in the application of SCO₂BC in tower solar power systems to optimize various cycle systems, such as the simple recuperation, recompression, and pre-compression cycles. BATTISTI et al. [23] used the system thermal efficiency and heat transfer coefficient as objective functions in the S-CO₂BC cycle to find the optimal performance of the system based on the variation of the heat source temperature, the mass flow rate of the working fluid on the heat source side, and the maximum temperature of the working fluid, respectively. Nami et al. [24] conducted an exergoeconomic analysis of a cogeneration system, a combined heat and power (CHP) system, including a gas turbine, SCO₂BC, and ORC. The average product unit cost of the system was reduced by 0.56$/GJ after optimization, using the sum of investment cost, total endemic damage cost, and environmental impact cost as the objective function. Mohammad et al. [25] optimized the techno-economics of a simple recuperation Brayton cycle based on the genetic algorithm (GA) so that the cycle produces 71% of the maximum power at the optimum point but at a cost rate of only 33% of the maximum power state. Li et al. [26] also considered the ecological performance of the system. They used the non-dominated sorting genetic algorithm (NSGA-II) to optimize the net output power, thermal efficiency, and ecological performance of the Brayton cycle system driven by a hybrid of fossil fuel and solar power.

In multi-objective optimization, due to the conflict between different objectives, optimizing one objective is at the cost of deteriorating other objectives, so obtaining a unique optimal solution is difficult. Instead, coordination and compromise are made among them so that the overall objective is as optimal as possible [27]. The general optimization algorithms all aim to obtain an optimal set of solutions called the Pareto frontier [28]. Many methods have been proposed for obtaining compromise solutions from the Pareto frontier. Li et al. [29] used the NSGA-II method to optimize the proposed Brayton cycle model. In addition, multi-attribute decision-making methods (MADM), such as TOPSIS, LINMAP, and Shannon entropy, were used to select the optimal system parameters from the Pareto frontier calculated by the NSGA-II method. Arora et al. [30] proposed a thermodynamic model of a simple recuperation Brayton system with irreversibility based on finite-element thermodynamic analysis. The proposed model was optimized using NSGA-II and a multi-objective evolutionary algorithm based on decomposition (MOEAD), and the proposed model was optimized by Shannon entropy, LINMAP, Fuzzy, Bellman-Zadeh, TOPSIS, and other MADM methods to find the optimal system parameters from the Pareto frontier. Rao et al. [31] proposed a new multi-objective optimization method, the Rao algorithm. A combined solar Brayton cycle-power system case study also investigated the proposed Rao algorithm. The MADM method was used to rank the Pareto optimal solutions based on the average rank. Kumar et al. [30] performed a multi-objective optimization of the Brayton cycle system model by NSGA-II, determining the optimal design parameters from the Pareto frontier using MADM methods such as Shannon entropy, LINMAP, Fuzzy, and TOPSIS.

Therefore, most of the research on multi-objective optimization of S-CO₂BC based on nuclear power generation has been limited to thermodynamic performance. In contrast, some research has been conducted on its economics and safety. Also, there are few effective methods for determining the unique optimal solution for multi-objective optimization. This study develops a mathematical model of the Brayton cycle for four different cycle layouts and four Generation IV nuclear reactors. NSGA-Ⅱ is used to optimize two objectives, η_t and LCOE, simultaneously. The results of the four decision methods are evaluated using Taylor diagrams to obtain the unique optimal solution. Finally, the comprehensive evaluation results of the multi-index are provided. The main contribution of this study is as follows:

• A sensitivity analysis of seven key parameters for four different layouts of the Brayton cycle was carried out to determine the decision variables and their range of values. The influence of the design parameters on the thermodynamics and economics of the system was analyzed.

• Taylor diagrams were used to evaluate the Pareto compromise solutions determined by the four MADM methods and to determine the unique optimal solution.

• The G1+TOPSIS method was used to comprehensively evaluate the optimization results by comparing 16 schemes comprising four nuclear reactors and four layouts in terms of safety, compactness, thermal, and economic performances. The characteristics and final ranking of each scheme are also given. Decision-makers can make scheme choices based on demand.

System layouts and assumptions

This study uses four different layouts of the Brayton cycle for optimization. One of the most basic cycle layouts is the simple recuperation cycle (SR). It consists of a turbine (Turb), a heat exchanger (HX), a recuperator (RC), a pre-cooler (PC), a compressor, and a generator, as shown in Figure 1. The working fluid is heated in the recuperator (state points 2 to 3) after being compressed near the critical point (state points 1 to 2) and then reheated by the cooling medium of reactor coolant in the heat exchanger (state points 3 to 4). At this point, the working fluid, which has a high enthalpy at the heat exchanger outlet, will expand in the turbine to do work and drive the generator to produce electricity (state points 4 to 5). The expanded working fluid is then cooled on the low-pressure side of the recuperator (state points 5 to 6) and further cooled by exchanging heat with cooling water in the pre-cooler before being compressed again (state points 6 to 1).

Fig. 1

(Color online) (a) Schematic and (b) T-S diagram of a simple recuperation cycle (SR)

Fig. 2 shows the recompression cycle (RC), which has one more recompressor and recuperator than the simple recuperation cycle. In the recompression cycle, the working fluid is split at the outlet of the low-temperature recuperator (LTR) (state point 8), part of the fluid enters the pre-cooler (state points 2 to 3), and the rest enters the recompressor (state points 8 to 3b), finally converging at the high-pressure inlet side of the high-temperature recuperator (state point 3b). As the specific heat capacity of the fluid on the low-pressure side of the recuperator is less than that on the high-pressure side, increasing the mass flow rate of the fluid on the low-pressure side can balance the specific heat capacity on both sides of the recuperator, enhancing heat recovery and avoiding the pinch point.

Fig. 2

(Color online) (a) Schematic and (b) T-S diagram of the recompression cycle (RC)

The other two-cycle layouts are the reheating cycle and the intercooling cycle. As shown in Fig. 3 and Fig. 4, the working fluid is heated and expanded twice in the reheating cycle (state points 4 to 5 and 6 to 7), which means that more expansion work (W_tur1 and W_tur2) can be produced for the same compression work input (W_c), resulting in a higher net output work and cycle efficiency. The intercooling cycle regulates the minimum pressure (P₁) and intermediate pressure (P₈) of the cycle using secondary compression and intercooling, thus reducing the required compression work (W_c1 and W_c2) to increase the cycle efficiency.

Fig. 3

(Color online) (a) Schematic and (b) T-S diagram of the reheating cycle (RH)

Fig. 4

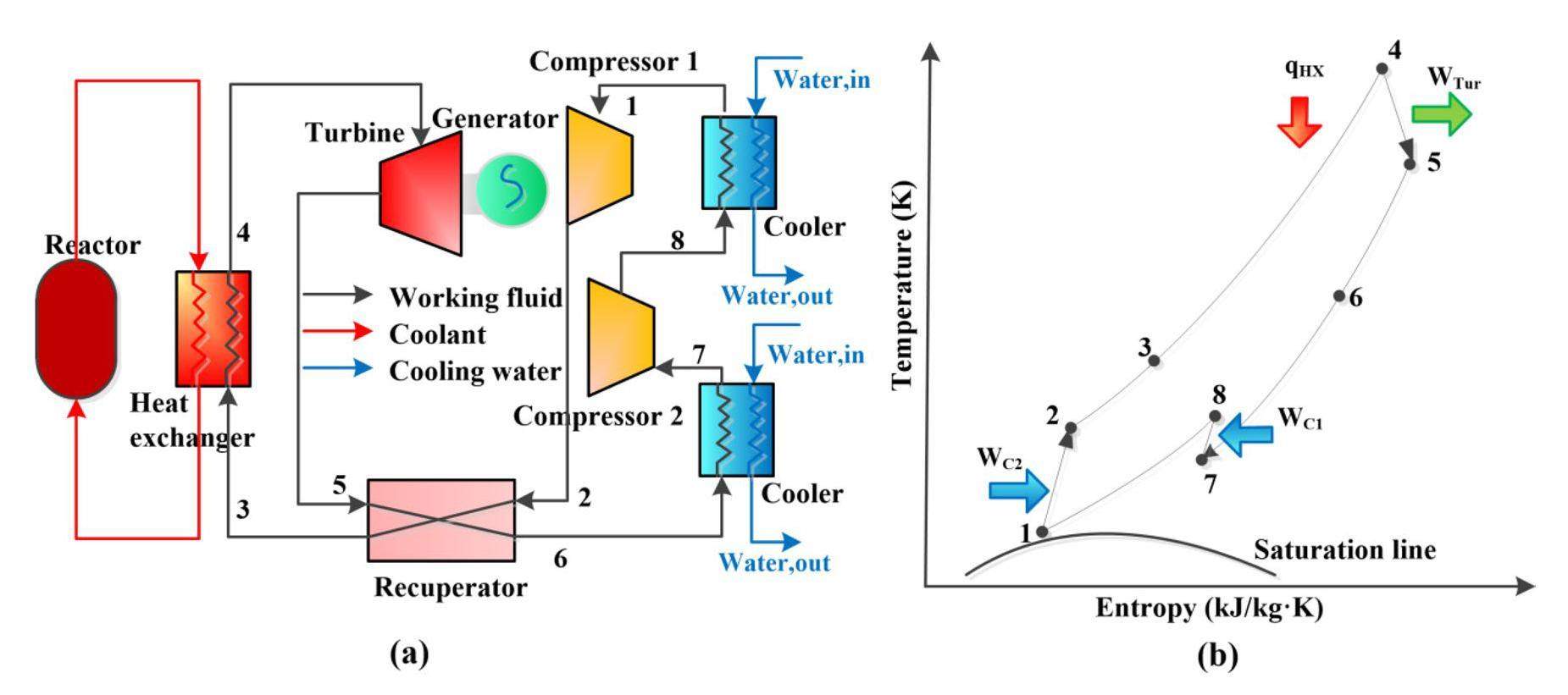

(Color online) (a) Schematic and (b) T-S diagram of the intercooling cycle (IC)

Several general assumptions are made to simplify the simulation, as follows:

(1) The S-CO₂BC operates in the steady state.

(2) The heat losses are neglected during each part of the experiment.

(3) The cooling water used in the cooler is in the environmental state.

(4) The resistance loss of the pipeline is ignored.

Methodology description

A comprehensive multi-index evaluation and optimization method based on designing power conversion systems for nuclear power plants can guide decision-makers. As shown in Fig. 5, the method is based on the hierarchical analysis method, which consists of the scheme hierarchy (four nuclear reactors and four-cycle layouts), the index hierarchy (consisting of 11 indices at four levels), and the target hierarchy (The best scheme can be evaluated based on the actual needs of decision-makers). The data in the index hierarchy is obtained from the model layer. Before the final evaluation, it is necessary to optimize each scheme to ensure the accuracy of the evaluation. The optimization process mainly uses the NSGA-Ⅱ algorithm to obtain the Pareto optimal frontier. Then, four multi-attribute decision methods are used to obtain the compromise schemes. Finally, the optimal results of each scheme were obtained by comparing the four compromise schemes through Taylor diagrams. The optimal results are evaluated to obtain the optimal scheme.

Fig. 5

Description of comprehensive multi-index evaluation and optimization method

3.1

Fundamental Model

This section presents the thermodynamic model, the heat exchanger thermal-hydraulic model, and the techno-economic model for the nuclear Brayton cycle system. The models are mainly constructed by calling the NIST REFPROP database through the simulation program.

3.1.1

Thermodynamic model

A thermodynamic model was constructed based on the first and second principles of thermodynamics. The energy calculations for the main components for all cycle layouts are given in Table 1. In Table 1, Q represents the heat transfer flow rate, W represents output/input power, and h represents enthalpy.

Calculation of energy of main components

Components	Energy
Heat exchanger	$Q_{HX} = m_{f} (h_{HX , out} - h_{HX , in}) = m_{R} c_{P} (T_{R , in} - T_{R , out})$
Recuperator	$Q_{Recup} = m_{f,H} (h_{H,in} - h_{H .out}) = m_{f,L} (h_{L,out} - h_{L,in})$
Turbine	$h_{Tur,out} = (h_{Tur , out , is} - h_{Tur,in}) η_{T} + h_{Tur, in}$
	$W_{Tur} = h_{Tur, out} - h_{Tur,in}$
Compressor	$h_{C, out} = (h_{C, out , is} - h_{C, in}) / η_{C} + h_{C, in}$
	$W_{C} = h_{C, out} - h_{C, in}$

For the recompression cycle, the total input power of the main compressor and recompressor can be expressed as: $W_{MC} = m_{f} (h_{MC,out} - h_{MC,out}) SR$ (1) $W_{RC} = m_{f} (h_{RC,out} - h_{RC,out}) (1 - SR)$ (2) where SR is the system circulation diversion ratio.

In the reheating cycle, as shown in Fig. 3, the reactor cooling fluid is divided equally into two parts, which are heated in turn to the working fluid and then converge and enter the reactor, and the heat transfer flow rate between the two times is expressed as: $Q_{HX1} = m_{f} (h_{4} - h_{3}) = 0.5 m_{R} c_{P} (T_{R , in} - T_{R , out,1})$ (3) $Q_{HX2} = m_{f} (h_{6} - h_{5}) = 0.5 m_{R} c_{P} (T_{R , in} - T_{R , out,2})$ (4) $Δ T_{cf} = (T_{R , out, 2} - T_{R, out, 1}) / 2$ (5) where c_p is the specific heat capacity of the reactor cooling fluid, and ΔT_cf is the confluence temperature difference of the reactor cooling fluid.

The net output work of the S-CO₂BC system: $W_{net} = W_{Tur} - W_{C}$ (6)

The thermal efficiency of the S-CO₂BC system: $η_{t} = W_{net} / Q_{HX} \times 100 %$ (7)

Exergy is the part of the energy that can do work, and the exergy destruction is inevitable in the actual process. Exergy efficiency is an effective method to evaluate the supercritical Brayton cycle. The exergy of each state point can be calculated by: $E_{i} = m [(h_{i} - h_{0}) - T_{0} (s_{i} - s_{0})]$ (8) $E_{in} = Q_{HX} (1 - T_{0} / T_{R})$ (9) where m denotes the working fluid mass flow rate, h_i and s_i are the specific enthalpy and entropy at each point, and 0 refers to the environment state. T_R is the temperature of the coolant that enters HX to provide heat for the cycle (Fig. 5).

The cycle exergy efficiency is defined as: $η_{e} = W_{net} / E_{in}^{}$ (10)

3.1.2

Heat exchangers’ thermal-hydraulic model

PCHEs were chosen for the heat exchange thermal-hydraulic model because they have been adopted in many studies on SCO₂-based power cycles due to their compact size and ability to withstand high pressures. A model similar to that proposed in Dostal’s Thesis [32] is used in this work. According to the assumptions established in the Ref.[32], it is sufficient to model a pair of hot and cold channels rather than the entire core of the PCHE. PCHEs adopt a semi-circular straight channel model [33]. Fig. 6 is the structural diagram of a heat exchange unit.

Fig. 6

Structure diagram of PCHE

The logarithmic mean temperature difference (LMTD) method was used to calculate the heat transfer area, as indicated in Eq.(11). The total heat transfer coefficient was calculated using the contributions of the thermal resistances by conduction and convection (Eq.(12)), and the convective heat transfer coefficient was calculated using Eq.(13), where D is the hydraulic diameter. The calculation formula is shown in Eq.(14), and the Reynolds number is calculated using Eq.(15). $Q = U A Δ T_{lmtd}$ (11) $\frac{1}{U} = \frac{1}{α_{hot}} + \frac{t}{λ} + \frac{1}{α_{cold}}$ (12) $α = \frac{N u k}{D}$ (13) $D = \frac{4 π d^{2}}{8 (\frac{1}{2} π d + d)}$ (14) $R e = \frac{G D}{μ}$ (15)

For the hydraulic model, only pressure drops due to friction were considered. The well-known Darcy-Weisbach equation (Eq.(16)) was applied in each segment. The total pressure drop for each channel is given by Eq. (27).

Appendix A, the equations used to calculate the Nusselt number (Nu) and the friction factor (f) are presented. It is worth noting that in PCHE, the relative roughnessδ of the pipe is the ratio of the surface roughnessε(ε=10^-3 is used in this study) [32] to the pipe diameter d. $Δ P = f \frac{L}{D} ρ \frac{V^{2}}{2} + C ρ \frac{V^{2}}{2}$ (16)

3.1.3

Model validation

This study intends to establish and verify the model through simulation software based on the data of the Advanced Burner Test Reactor Preconceptual Design Report provided by Argonne National Laboratory in the United States [33]. This experiment is a performance study of the Sodium-cooled Fast Reactor coupled with the S-CO₂ recompression Brayton cycle (RC); the reactor cooling medium is metallic sodium. The initial parameters for cycle simulation are given in Table 2 and Table 3 for validation. The comparison between the model established in this study and the experimental parameters in the references is shown in Fig. 7 and Table 4. The errors of entropy and temperature at each point of the cycle are guaranteed to be within 3%, which verifies the model’s accuracy. Therefore, the model can be used for further parameter analysis and optimization.

Setting parameters in the experiment [33]

Term	Value
Turbine inlet temperature, T_max (K)	744.95
Main compressor inlet temperature, T_min (K)	304.4
Main compressor inlet pressure, P_min (MPa)	31.25
Main compressor outlet pressure, P_max (MPa)	7.4
Turbine isentropic efficiency, η_T	0.934
Main compressor isentropic efficiency, η_MC	0.891
Recompressor isentropic efficiency, η_RC	0.875
Environment temperature, T₀ (K)	303.15
Environment pressure P₀ (MPa)	0.1
Shunt ratio, SR	0.71
Reactor power, Q_r (MWt)	250
Sodium mass flow, m_r (Kg/s)	1259
Sodium inlet temperature, T_r,in (K)	761.15
Sodium outlet temperature, T_r,out (K)	606.15

Geometric parameters of PCHE [33]

	T (mm)	d (mm)	p (mm)	L (m)
Heat eachanger	2.0	2	2.4	1
Recuperator	2	1.5	2.3	0.6
Cooler	1.66	2.0	2.4	0.593

Comparison between the results calculated using the established model and the data from Ref [33]

Parameters	Reference	Calculated	Error (%)
Working fluid (CO₂) mass flow rate, m_f (kg/s)	1377	1371.4	0.4
Compressor input power, W_C (KW)	53,151	56,114	5.57
Turbine output power, W_Tur (KW)	157,530	159,570	1.29
Cooler outlet water temperature, T_Water,out (℃)	35.8	36.5	1.95
Thermal efficiency, η_t (%)	41.6	41.41	0.46

Fig. 7

(Color online) Validation of the constructed S-CO₂BC model

3.1.4

Techno-economic model

Four economic indices and two compactness indices have been adopted in this study to holistically assess the techno-economics of the nuclear Brayton cycle holistically. Specifically, these include the heat transfer area per net output power (APR) and the turbine characteristic size parameter (SP), which represents compactness, and C_tot, SC, LCOE, and IRR, which represent economy.

The heat transfer area per net output power (APR), which is the ratio of heat exchange area to net output work, is used as an evaluation criterion for the compactness of the heat exchanger. APR is defined as: $APR = (A_{HX} + A_{RC} + A_{C}) / W_{net}$ (17)

The turbine characteristic size parameter (SP) is an index used to evaluate the ease and compactness of turbine manufacturing. The smaller the SP, the more compact the turbine structure. It is defined as: $SP = \sqrt{V_{Tur}} / Δ h_{isen}^{0 .25}$ (18) Where V_Tur denotes the volume flow rate of the working fluid in the turbine, Δh_isen denotes the isentropic enthalpy drop at the inlet and outlet of the working fluid of the turbine.

The specific cost (SC) represents the average investment cost of the unit power output of the power plant and is defined as: $SC = \frac{C_{tot}}{W_{net}}$ (19) $C_{tot} = (C_{R} + \sum_{j = 1}^{N} C_{PCHE, j} + \sum_{j = 1}^{N} C_{Tur, j} + \sum_{j = 1}^{N} C_{C, j}) C_{inst}$ (20) where C_tot is the total investment cost, considering the equipment cost (including reactor, PCHE, compressor, and turbine) and the auxiliary equipment and installation cost. C_inst is the auxiliary installation cost index.

The cost of PCHE is calculated by referring to the calculation method in Dr Dostal and the quotation of Heatric (30 $/kg for stainless steel units) [32], calculating the weight of PCHE to estimate its cost. The formula for calculating the weight of the PCHE is given in Eqs. (21) and (22). $M_{PCHE} = V_{PCHE} \cdot f_{m} \cdot ρ$ (21) $f_{m} = 1 - \frac{π d^{2}}{8 P t}$ (22)

where V_PCHE denotes the volume of the PCHE, f_m represents the actual volume per cubic meter of the heat exchanger. The cost calculation method for other parts is shown in Table 5. Notably, among the costs calculated by these formulas, the heat exchangers and reactors cost the equivalent of 2003 dollar values, while the remaining components cost the equivalent of 1994 dollar values [32]. This study converts the calculated cost multiplied by the inflation factor to the cost at the end of 2022. Inflation data for the US power sector shows that the inflation rates for 1994 and 2003 to 2022 are 78.29% and 60.78%, respectively.

Method of calculating the cost of system components

Components	Capital investment cost function	Data Sources
Reactor	$Z_{R} {=C}_{in} Q_{r} {, C}_{in} {=283 $/kW}_{th}$	[34]
Turbine	$C_{T} = 479.34 m_{T} (\frac{1}{0.93 - η_{T}}) \ln (β_{T}) (1 + \exp (0.036 T_{T} - 54.4))$	[35]
Compressors	$C_{c} = 71.1 m_{in} (1 / 0.92 - η_{c}) PRc \cdot ln (PRc)$	[35]

The levelized cost of electricity (LCOE) is the cost of generating electricity over the full life cycle of the power plant, defined as: $LCOE = \frac{PVE}{8760 u \cdot NY \cdot W_{net}}$ (23) $PVE = C_{tot} + \sum_{k = 1}^{NY} \frac{C F_{x p, k}}{{(1 + r)}^{k}}$ (24) $C F_{xp, k} = W_{net} (O M {(1 + e r)}^{k})$ (25)

The internal rate of return (IRR) is defined as: $- C_{tot} + \sum_{k = 1}^{NY} \frac{C F_{rev, k} - C F_{xp, k}}{{(1 + I R R)}^{k}} = 0$ (26) $C F_{rev, k} = W_{net} (8760 \cdot u \cdot C_{e} {(1 - d r)}^{k})$ (27)

The data required to calculate the economic indices are shown in Table 6.

Assumptions in the economic calculation [36]

Plant	Data
Plant installation cost, C_inst	1.3
O&M operations, OM ($/kWe)	30
Escalation rate, er (%)	3
Plant degradation rate, dr (%)	1
Electricity market price, Ce ($/kWh)	0.06
Plant lifetime, NY (years)	20
Plant utilization factor, u (%)	85
Discount rate, r (%)	5

3.2

Multi-objective optimization model

Compared to single-objective optimization, multi-objective optimization can optimize two or more mutually constrained objectives simultaneously. This study used the non-dominant sorting genetic algorithm NSGA-Ⅱ to optimize two contradictory objectives: η_t (thermodynamic performance) and LCOE (economic performance). The turbine inlet temperature T_max, main compressor outlet pressure P_max, turbine efficiency, compressor efficiency η_C, split ratio SR (only for recompression cycle), confluence temperature difference ΔT_cf (only for reheating cycle) and primary compression pressure P_pr (only for intercooling cycle) were selected as the decision variables for optimization. Therefore, the multi-objective optimization model can be expressed as: ${\begin{matrix} \max (η_{t}) = f_{1} (P_{max}, T_{max}, η_{T}, η_{C}, S R, Δ T_{cf}, P_{pr}) \\ \min (LCOE) = f_{2} (P_{max}, T_{max}, η_{T}, η_{C}, S R, Δ T_{cf}, P_{pr}) \end{matrix}$ (28)

The NSGA-Ⅱ method is based on a genetic algorithm and the Pareto optimal concept. It is a commonly used multi-objective optimization algorithm whose basic idea is to generate different sets of decision variables (also called individuals) within a certain range and to use these sets of variables to calculate thermodynamic and techno-economic metrics. By evaluating and ranking the objective functions, NSGA-Ⅱ can analyze each optimal solution and the suboptimal solutions adjacent to them according to the value of the objective function and plot these solutions on a Pareto frontal map to help decision-makers find an equilibrium point to achieve multi-objective optimization. The main parameters of the NSGA-II are listed in Table 7. These parameters are used to control the execution of the algorithm and influence the quality and computational efficiency of the solution.

Input parameters of NSGA-II

Parameters	Value
Population size	100
Maximum generation	120
Crossover probability	0.8
Mutation probability	0.2
Selection function	Binary Tournament
Objective functions	LCOE(min), η_t(max)
Decision variables	P_max, T_max,η_C,η_T, SR, ΔT_cf, P_pr

3.3

Decision-making methods (DMM)

After NSGA-II optimization, only an optimal solution set can be obtained. Further, Pareto compromise solutions must be obtained to obtain a unique solution. Previous studies have shown a large variation in the Pareto compromise solution obtained by different decision methods, making it impossible for decision-makers to judge which method obtains the desired results. Therefore, this study uses various decision methods, including Shannon entropy, a modified technique for order preference by similarity to ideal solution (TOPSIS), linear programming techniques, multidimensional analysis preference (LINMAP), and the analytic hierarchy process (AHP) to determine four Pareto compromise solutions. Finally, Taylor diagrams are used to evaluate the priority of these compromise solutions to obtain the final Pareto optimal compromise solution.

3.3.1

DMM1: Shannon entropy model

The basic idea of the Shannon entropy method is to determine the optimal solution by calculating the information entropy value of each solution to measure its stochasticity and uncertainty. A smaller information entropy value indicates a more deterministic and reliable solution and, conversely, a more uncertain and stochastic solution.

Normalization of the decision-making matrix: $E_{i j} = \frac{F_{i j}}{\sum_{i = 1}^{n} F_{i j}}, i = 1, 2, \dots, n, j = 1, 2, \dots, m$ (29) where E_ij is the objective value, i and j represent the quantities of the scheme and objective function.

The Shannon entropy is defined as: $H_{j} = - \frac{1}{\ln (n)} \sum_{i = 1}^{n} E_{i j} \ln E_{i j}$ (30)

Eq.(31) evaluates the weight of the objective. Eq.(32) calculates the matrix of solutions sorted in descending order after decision-making. Shannon Entropy point is searched from the W_i, which ranked first. $w_{j} = (1 - H_{j}) / \sum_{j = 1}^{m} (1 - H_{j})$ (31) $W_{i} = E_{i j} \cdot w_{j}$ (32)

3.3.2

DMM2 and DMM3: Modified TOPSIS and LINMAP model

The shortest Euclidean distance between the Pareto optimal solution and the longest distance with the nadir point identifies the traditional (TOPSIS) points. The limitation of this method is that there may be two TOPSIS decision-making points at different locations. For this reason, relative entropy is introduced in this study to correct it.

Positive Z+ = (z+1, z+2, ..., z+n) and negative Z− = (z−1, z−2, ..., z−n) ideal solutions are explained as below: $z_{j}^{+} = \max_{1 ⩽ i ⩽ n} {R_{i j}} z_{j}^{-} = \min_{1 ⩽ i ⩽ n} {R_{i j}}, for the higher the better criteria$ (33) $z_{j}^{+} = \min_{1 ⩽ i ⩽ n} {R_{i j}} z_{j}^{-} = \max_{1 ⩽ i ⩽ n} {R_{i j}}, for the lower the better criteria$ (34)

Relative entropy distance is calculated as: $D_{i}^{+} = \sum_{j = 1}^{m} {z_{j}^{+} \lg \frac{z_{j}^{+}}{R_{i}} + (1 - z_{j}^{+}) \lg \frac{1 - z_{j}^{+}}{1 - R_{i}}}$ (35) $D_{i}^{-} = \sum_{j = 1}^{m} {z_{j}^{-} \lg \frac{z_{j}^{-}}{R_{i}} + (1 - z_{j}^{-}) \lg \frac{1 - z_{j}^{-}}{1 - R_{i}}}$ (36)

The modified TOPSIS point is selected according to the maximum coefficient T_i: $T_{i} = \frac{D_{i}^{-}}{D_{i}^{-} + D_{i}^{+}}$ (37)

Based on the relative entropy, the modified LINMAP point is defined as: $L_{i} \in min (D_{i}^{+})$ (38)

3.3.3

DMM4: AHP model

Compared to the previous methods, AHP (Analytic Hierarchy Process) is a subjective weighting method. It allows for defining the weight of the objective values in decision-making according to the decision-maker's preference. The judgment matrix constructed for the Pareto frontier is defined as: $a_{i}_{j} = \frac{i}{j}$ (39) where i and j represent the importance of the corresponding indices, and the importance of the thermodynamic, tech-economic, and compactness indices are 3, 2, and 1, respectively, for this study. The weight matrix of the AHP method is defined as： $ω_{j} = {(\prod_{j = 1}^{n} a_{i j})}^{\frac{1}{n}} / \sum_{k = 1}^{n} {(\prod_{j = 1}^{n} a_{k j})}^{\frac{1}{n}}$ (40)

The normalization matrix constructed by the AHP method is the same as that of the Shannon entropy model, with specific reference to Eq.(29). The final decision matrix, Eq.(41), is obtained by multiplying the two. The AHP point is searched based on the A_i, which ranked first. $A_{i} = E_{i}_{j} \cdot ω_{j}$ (41)

3.3.4

Taylor diagram evaluation model

Taylor diagrams [37] are a graphical technique for comparing performance differences between multi-objective optimization solutions. Taylor diagrams allow the performance metrics of multiple solutions to be plotted in the same coordinate system to visualize the differences between them. The performance metrics include root-mean-square difference (R_rmsd), correlation coefficient (C_coef), and standard deviation (S_std). The specific formulas are expressed as: $R_{rmsd} = \sqrt{\frac{1}{n} \sum_{i = 1}^{n} {[(f_{i} - \bar{f}) - (r_{i} - \bar{r})]}^{2}}$ (42) $C_{coef} = \frac{\sum_{i = 1}^{n} (f_{i} - \bar{f}) (r_{i} - \bar{r})}{\sqrt{\sum_{i = 1}^{n} {(f_{i} - \bar{f})}^{2}} \sqrt{\sum_{i = 1}^{n} {(r_{i} - \bar{r})}^{2}}}$ (43) $S_{std} = \sqrt{\frac{1}{n} \sum_{i = 1}^{n} {(f_{i} - \bar{f})}^{2}}, S_{{std}_{r}} = \sqrt{\frac{1}{n} \sum_{i = 1}^{n} {(r_{i} - \bar{r})}^{2}}$ (44)

3.4

Final evaluation model: G1+TOPSIS

The optimal result for each solution can be obtained after performing multi-objective optimization. In order to comprehensively compare the advantages and disadvantages of each scheme, in this study, the G1 [38] (Ordinal Relation Analysis Method) +TOPSIS comprehensive evaluation model is established. The four reactors and four-cycle layouts are compared in all aspects, including safety, thermodynamics, economics, and compactness. The safety problems of nuclear reactors are related to aspects that this study has not discussed deeply. This study refers to Bertrand F et al.[4] for the safety assessment of Generation IV nuclear reactors. The safety of different nuclear reactors is scored in terms of Natural prevention capability for each concept and Natural mitigation capability for each concept. Notably, Ref. [4] does not assess the safety of lead-cooled fast reactors, and this study combines the evaluation of the safety of Gen IV reactors by Kelly [39] and Tuček et al. [6] to finalize the values of indexes C1 and C2. The concept scores for prevention and mitigation are shown in Table 8. Table 9 shows all the indexes used for the evaluation. The evaluation process can be referred to Fig. 8.

Reactor concept scores for prevention and mitigation (x and + means multiplying and adding indicators of the same box) [4]

Prevention indicators /concept	GFR	SFR	LFR	MSR
Loss of heat sink	31	31	31	33
(Unprotected) loss of flow accident / Loss of coolant accident	21	21	21	11
TOP margin to prompt-criticality x power increase dynamics	11	32	32	11
Passive cooling conduction	11	13	11	33
Prevention total score	1.9	3.9	3.9	5.6
Cladding loading in Sub-assembly thermo mechanical + chemical	33	22	22	13
Primary boundary thermal loading	13	13	13	21
Containment loading mechanical (static)+ mechanical (dynamic)	23	33	23	11
Fission product release inventory x confinement/ retention	12	32	32	22
Mitigation total score	6.3	7.4	6.8	4.8

Comprehensive evaluation indices

Criterion	Indexes
Security（B1）	Natural prevention capability (C1)
	Natural mitigation capability (C2)
Thermodynamic（B2）	W_net (C3)
	η_t (C4)
	η_e (C5)
Economy（B3）	C_tot(C6)
	SC (C7)
	LCOE (C8)
	IRR (C9)
Compactness（B4）	PBP (C10)
	APR（C11）

Fig. 8

G1+TOPSIS comprehensive evaluation process

The TOPSIS model is described in section 3.3.2. The Ordinal Relation Analysis Method (G1) uses the weighting between each criterion layer. The following briefly describes the steps in the G1 method when determining weights.

Step 1. Determine the ranking relationship of each index according to the importance of each evaluation index in the research object. The ranking determined in this study is B1>B2>B3>B4. Their relative importance was 1.6, 1.2, and 1.4, respectively.

Step 2. Give a comparative judgment of the relative importance between adjacent indexes and assign a value: $r_{k} = \frac{w_{k - 1}}{w_{k}} (k = n, n - 1, \dots, 2)$ (45) where, n is the total number of evaluation indexes.

Step 3. Calculate the index weights $w_{k}$ , and give the Rational assignment $w_{k}$ subjectively. $\begin{matrix} w_{n} = {(1 + \sum_{i = k}^{n} \prod_{i = k}^{n} r_{i})}^{- 1} \\ w_{k - 1} = r_{k} w_{k} (k = n, n - 1, \dots, 2) \end{matrix}$ (46)

The set of weights derived by the G1 method is ${(w_{1}, w_{2}, \dots, w_{n})}^{T}$ .

The final score for each scheme is the sum of the index score for each criterion level multiplied by the weights.

Results and discussion

This section focuses on the effect of seven key parameters on the thermal economy of a Brayton cycle system. The feasibility of four decision methods to obtain Pareto compromise solutions is analyzed. The differences in the thermo-economic indexes of each scheme before and after optimization are compared. Finally, the characteristics of each scheme are given by comprehensive evaluation. The main parameters used for the system simulation analysis are given in Table 10 and Table 11. The specific parameters of PCHE can be obtained from

Main parameters of the reactor

	GFR[40]	SFR[41]	LFR[42]	MSR[42]
Power rating (MWt)	2400	2400	2400	2400
Coolant	S-CO₂	Sodium	Lead	NaCl–KCl–MgCl₂ salt
Primary system pressure（MPa）	20	0.1	0.1	0.1
Core inlet temperature（℃）	485.5	371	479	496
Core outlet temperature（℃）	650	510	573	581
Core flow rate（Kg/s）	11,708	13,580	173,600	29,000
Power conversion system	S-CO₂	S-CO₂	S-CO₂	S-CO₂

Conditions of the simulation

Input parameters	Value
Compressor inlet temperature, T_min (K)	304.4
Compressor inlet pressure, P_min (MPa)	31.25
Compressor outlet pressure, P_max (MPa)	7.4
Turbine isentropic efficiency, η_T [43]	0.9
Compressor isentropic efficiency, η_C [43]	0.85
Environment temperature, T₀ (K)	303.15
Environment pressure, P₀ (MPa)[33]	0.1
Shunt ratio, SR	0.71

4.1

Parametric Analysis

Firstly, a single-objective parametric analysis was performed to determine the direction of the multi-objective optimization. The parameters on the heat source side of this section are analyzed using sodium-cooled fast reactors (SFR). Fig. 9 shows the variation of the four indices representing thermodynamics and economy with compressor outlet pressure. As P_max increases, the total cost of the system and the exergy efficiency both show an increasing trend. For RC and RH, the system’s thermal efficiency increases and then reduces as P_max increases. The levelized electricity cost in the system reduces and then increases as P_max increases. The reason for this trend is that as the pressure increases, the enthalpy of the turbine inlet working fluid increases, leading to an increase in output power. However, simultaneously, the pressure-bearing requirements of the components increase, the system’s total cost increases, and the cost increases faster than the system’s power output, meaning that there is an intermediate P_max at which η_t or LCOE of the system is optimized. Fig. 10 shows that as P_max increases, the thermodynamic performance of the system increases, and the LCOE decreases. However, the initial investment cost (C_tot) also increases, meaning that the higher the system temperature within a certain range, the better the obtainable thermal and economic performances, but with a higher initial investment. Both the cycle efficiency and the cost of the system are influenced by the efficiency of the turbine (η_T) and the compressor (η_C), so this study analyzes their thermo-economic impact. Fig. 11 and Fig. 12 show the effect of η_C and η_T on the thermo-economic performance of the system, and they have a similar impact on other system indices. Both system η_t and η_e increase as they increase, and the system’s thermodynamic performance is enhanced. The system’s total cost increases rapidly after η_T and η_C around 0.85. LCOE shows a decreasing trend and then increases, reaching a minimum at η_T and η_C around 0.85. Not the higher the η_T and η_C, the better it is. Decision-makers should consider this carefully.

Fig. 9

Effect of main compressor outlet pressure (P_max) on system thermo-economic performance

Fig. 10

Effect of turbine inlet temperature (T_max) on system thermo-economic performance

Fig. 11

Effect of compressor efficiency (η_C) on system thermo-economic performance

Fig. 12

Effect of turbine efficiency (η_T) on system thermo-economic performance

This study investigates specific RC, RH, and IC cycle parameters. Among them, the shunt ratio (SR) is an important parameter in the recompression cycle, and its influence on the thermo-economic of the cycle is shown in Fig. 13. The effect of SR on the thermo-economic of the system is monotonic. As the thermodynamic performance of the system decreases with increasing SR, the system’s total cost decreases. Nevertheless, the LCOE increases with it, meaning that the smaller the SR within a certain range, the better, without considering investment costs. The △T_cf in the reheat cycle affects the operating temperature of the system. Therefore, it is necessary to study the △T_cf effect on the thermal properties of the system. As shown in Fig. 14, the thermodynamic performance and the system’s economy increase with increasing △T_cf. However, the system’s total cost also increases. A proper primary compression pressure (P_pr) can bring lower input power to the system. The η_t and η_e junctions of the system decrease P_pr increases, which indicates that an increase in P_pr is not beneficial to the thermodynamic performance of the system. Also, LCOE tends to be unfavorable under the influence of P_pr (Fig. 15).

Fig. 13

Effect of shunt ratio (SR) on system thermo-economic performance

Fig. 14

Effect of confluence temperature difference (△T_cf) on system thermo-economic performance

Fig. 15

Effect of primary compression pressure (P_pr) on system thermo-economic performance

4.2

Multi-objective optimization results

From the analysis in Section 4.1, the cycle parameters P_max and T_max affect the system’s thermodynamics and economy greatly, and the trends of the effects conflict with each other. This section conducts a multi-objective optimization study with these parameters as decision variables. The constraint conditions of the decision parameters of the cycle with multi-objective optimization are shown in Table 12, respectively. Fig. 16 depicts the Pareto optimal frontier of a supercritical CO₂ Brayton cycle system using NSGA-II optimization for four nuclear reactors combined with four-cycle layouts. The optimization objectives are the net cycle efficiency (η_t) and the plant’s levelized cost of electricity (LCOE). The LCOE increases moderately and then rapidly with the increase of η_t because the system-levelized cost of electricity increases faster than the net cycle efficiency at higher evaporation pressure and turbine inlet temperature. Similar results have been found in previous studies, where thermodynamic and techno-economic performance are mutually constrained, with higher thermodynamic performance leading to decreased techno-economic performance. Comparing the optimization results of different nuclear reactors, the highest η_t is for Gas-cooled Fast Reactors, where the highest is for recompression cycles (RC), up to 54.67%, due to the higher core exit temperature of the GFR for the same thermal power of the reactor, resulting in a higher cycle efficiency. The LCOE of the intercooling cycle is the lowest at 0.1207$/KWh, meaning that no single reactor type and cycle layout can achieve the techno-economic and thermodynamic performance optimum. The choice can be made according to the different needs.

Bounds of the decision variables

Parameters	GFR	SFR	LFR	MSR	Layouts
Compressor outlet pressure, P_max (MPa)	17~30	17~30	17~30	17~30	All
Turbine inlet temperature, T_max (K)	803.15~903.15	663.15~763.15	726.15~826.15	734.15~834.15
Compressor efficiency, η_C	0.6~0.9	0.6~0.9	0.6~0.9	0.6~0.9
Turbine efficiency, η_T	0.65~0.9	0.65~0.9	0.65~0.9	0.65~0.9
Shunt ratio, SR	0.5~0.9	0.5~0.9	0.5~0.9	0.5~0.9	RC
Confluence temperature difference, ΔT_cf (K)	0~10	0~10	0~10	0~10	RH
Primary compression pressure, P_pr (MPa)	8~12	8~12	8~12	8~12	IC

Fig. 16

(Color online) Pareto optimal frontier and four decision-making points

The ideal point of the Pareto frontier diagram is in the lower right corner outside the rectangular frontier, representing the theoretical goal of simultaneously obtaining the maximum η_t and the minimum LCOE. To determine the Pareto compromise solution, four decision methods, Shannon entropy, modified TOPSIS, LINMAP, and AHP, are applied in this study and compared on the Taylor diagram. Using Taylor diagrams, the final Pareto optimal solution is determined from these four decision points by measuring the root-mean-square difference, correlation coefficient, and standard deviation. Fig. 16 shows the positions of the optimal solutions determined by the different decision methods in the Pareto frontier. For the decision points, the Shannon entropy point is located at the maximum η_t point at the top of the frontier, while the LINMAP point is in the middle of the frontier. The TOPSIS and AHP points are close to the minimum LCOE points, respectively. The Taylor diagram of the decision process is shown in Fig. 17.

Fig. 17

Taylor diagram for measuring four decision-making points

Fig. 17 shows the scatter distribution of the four decision points in the Taylor diagram. In the figure, the correlation coefficient (C_coef), root-mean-squared deviation (R_rmsd), and standard deviation (S_std) are represented by blue dashed lines, green dashed lines, and black arcs, respectively. For example, the C_coef, R_rmsd, and S_srd of the TOPSIS point of RC in the SFR system are 0.9596, 0.0093, and 0.0094, respectively. The values of the ideal point are 1, 0, and 0.0179, respectively. The ideal point in the Taylor diagram has maximum W_net, η_t, η_e, and IRR, and minimum LCOE, Ctot, SC, APR, and SP, which differs from the interpretation of the Pareto optimal frontier. These decision points are judged according to the principle that the smaller the R_rmsd is, the closer the absolute value of C_coef is to 1, and the decision point closer to the ideal point is selected. The Shannon point is noticeably always far away from the ideal point, which indicates that the single-objective optimal result (maximum η_t) should not be chosen as the optimized working condition. From Fig. 17, the R_rmsd of ideal, Shannon entropy, LINMAP, TOPSIS and AHP points in the SFR-RC system are 0, 0.0386, 0.0117, 0.0093 and 0.0054, the C_coef are 1, -0.9648, 0.9682, 0.9596 and 0.9529, and the S_std are 0.0178, 0.0210, 0.0065, 0.0094, and 0.00170, respectively. Therefore, the AHP is determined as the final optimal Pareto solution closest to the ideal point. Similarly, the R_rmsd of the four decision points in the GFR-SR system are 0.01376 and 0.00417, 0.00512 and 0.0041, and the C_coef are -0.6512, 0.8969, 0.5718 and 0.8245. The R_rmsd of Shannon entropy and TOPSIS points are larger, and the R_rmsd of LINMAP and AHP are close, but the C_coef of LINMAP is closer to 1. Therefore, the LINMAP point is chosen as the optimal point. Fig. 18 summarizes the specific values in the Taylor diagram for all scenarios.

Fig. 18

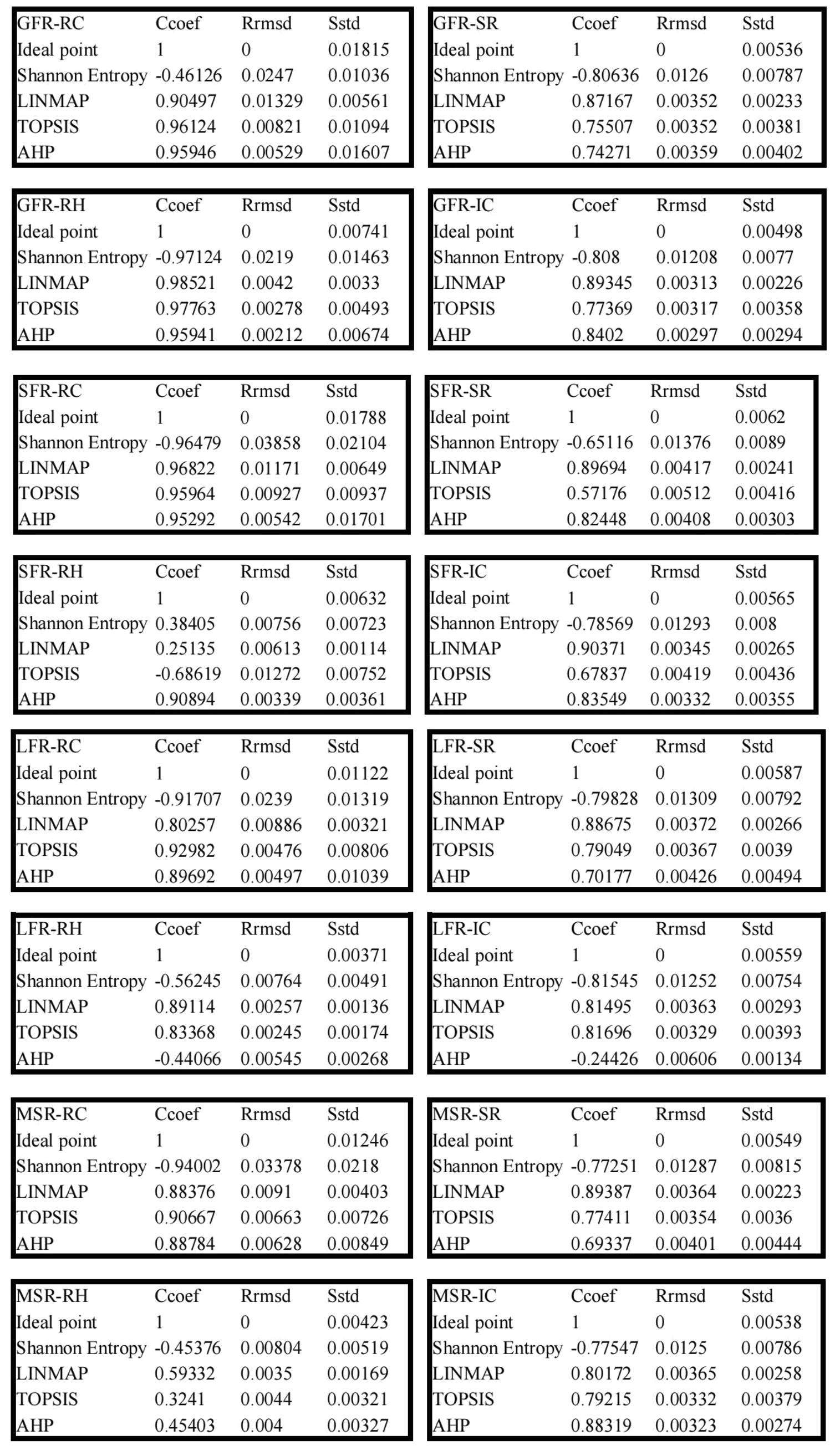

　C_coef, R_rmsd, and S_std of the Taylor diagram

Table 13 shows the specific values of the multi-objective optimization results. Notably, the shunt ratio (SR) and the primary compression pressure (P_z) are concentrated around 50% and 8.0 MPa, which are the minimum values of their iteration ranges. The smaller cycle shunt ratio improves the narrow point temperature difference of the cycle, increasing the heat transfer efficiency of the cycle, which in turn improves the net cycle efficiency and reduces the power generation cost. Smaller primary compression pressure can reduce the primary compression energy consumption and thus improve the cycle efficiency. The cycle maximum temperature is close to the maximum of their iterations, indicating that within a certain range, the higher the turbine inlet temperature is, the higher the net cycle efficiency is and the lower the LCOE is. The optimal value of the cycle maximum pressure (P_max) is around 20 MPa or 30 MPa near the upper limit of the iterative range. A higher pressure does not imply better thermodynamic efficiency of the system and the cost of power generation. RC and RH cycles can achieve better thermodynamic and techno-economic performance with a lower cycle pressure. The η_C and η_T are in the range of 84% to 89%, which indicates that although the efficiency of the cycle is higher with larger η_C and η_T, the cost of the system also increases. An appropriate value can make the thermodynamic and economic performance of the system reach the optimal value. Most of the final decision points fall under the AHP, TOPSIS, and LINMAP schemes, and the Shannon entropy method does not apply in the optimization decision.

Pareto optimal working conditions and decision solutions

Schemes	P_max (MPa)	T_max (K)	η_C (%)	η_T (%)	SR (%)	ΔT_cf (K)	P_z (MPa)	Solutions
GFR-RC	20.7331	903.1488	84.54	84.98	50.34	—	—	AHP
SFR-RC	18.1709	763.1468	85.19	85.19	50.01	—	—	AHP
LFR-RC	19.8486	826.1500	86.14	87.06	50.11	—	—	TOPSIS
MSR-RC	20.0013	834.1500	85.22	85.76	50.00	—	—	AHP
GFR-SR	29.9826	903.1500	84.49	87.27	—	—	—	TOPSIS
SFR-SR	29.3426	763.1499	85.44	88.03	—	—	—	AHP
LFR-SR	29.9884	826.1500	86.39	88.06	—	—	—	LINMAP
MSR-SR	29.9921	834.1255	85.1	87.43	—	—	—	TOPSIS
GFR-RH	20.1769	903.1485	83.78	86.19	—	7.4083	—	AHP
SFR-RH	18.8858	763.1500	87.19	88.75	—	9.7056	—	LINMAP
LFR-RH	20.6056	826.1500	87.07	87.88	—	9.9534	—	TOPSIS
MSR-RH	20.6007	834.1500	86.75	88.65	—	9.9981	—	LINMAP
GFR-IC	29.9999	903.1497	84.35	87.56	—	—	8.0000	AHP
SFR-IC	29.9960	763.1494	84.25	87.6	—	—	8.0083	AHP
LFR-IC	29.8960	826.1494	84.44	87.08	—	—	8.0060	TOPSIS
MSR-IC	30.0000	834.1500	84.33	87.97	—	—	8.0126	AHP

The specific data for schemes before and after optimization are given in Table 14 and Table 15. Fig. 19 shows the percentage change of each index before and after optimization. Comparing the data before and after optimization shows that the entire system performance improved significantly after NSGA-II optimization. The positive change indicates an increase, while the negative change represents a decrease. The net output power (W_net), net efficiency (η_t), and exergy efficiency (η_e) all show an increasing trend, which indicates that the thermodynamic performance of the system has a great improvement after the optimization of operating parameters. The MSR-IC scheme has the most obvious improvement, with the three indices increasing by 8.58%, 8.58%, and 11.21%, respectively.

Results for schemes before optimization

Schemes	W_net (kW)	η_t (%)	η_e (%)	C_tot (10⁶$)	SC ($/W)	LCOE ($/(KW·h))	IRR (%)	APR (m²/W)	SP
GFR-RC	1135.50	47.40	56.48	1518.84	1738.86	0.014	24	0.513	0.039
SFR-RC	971.80	40.41	51.81	1574.80	2106.66	0.016	19.3	0.522	0.038
LFR-RC	1048.80	43.81	54.05	1546.38	1916.76	0.015	21.5	0.467	0.038
MSR-RC	1052.67	44.21	54.32	1540.87	1902.91	0.015	21.7	0.459	0.039
GFR-SR	953.05	39.78	45.86	1399.38	1908.80	0.014	24.1	0.223	0.040
SFR-SR	817.71	34.00	41.23	1428.22	2270.59	0.016	19.9	0.215	0.038
LFR-SR	880.19	36.76	43.43	1413.58	2087.78	0.015	21.8	0.199	0.039
MSR-SR	883.33	37.09	43.69	1410.29	2075.53	0.015	22	0.196	0.039
GFR-RH	702.84	29.34	34.94	1336.55	2472.11	0.017	18	0.459	0.057
SFR-RH	663.68	27.60	34.39	1384.00	2710.96	0.018	16.1	0.335	0.055
LFR-RH	716.05	29.91	36.22	1370.82	2488.75	0.017	17.8	0.255	0.056
MSR-RH	718.97	30.19	36.44	1367.98	2473.50	0.017	18	0.247	0.056
GFR-IC	957.81	39.98	44.10	1371.33	1861.26	0.013	24.8	0.494	0.040
SFR-IC	833.75	34.67	39.52	1395.37	2175.70	0.015	20.9	0.549	0.038
LFR-IC	890.58	37.20	41.69	1383.15	2019.01	0.014	22.7	0.505	0.039
MSR-IC	893.03	37.50	41.96	1380.29	2009.33	0.014	22.8	0.498	0.039

Results for schemes after optimization

Schemes	W_net (kW)	η_t (%)	η_e (%)	C_tot (10⁶$)	SC ($/W)	LCOE ($/(KW·h))	IRR (%)	APR (m²/W)	SP
GFR-RC	1208.81	50.46	62.81	1797.04	1486.62	0.012	28.5	0.263	0.040
SFR-RC	1012.70	42.11	56.71	1840.04	1816.96	0.014	22.9	0.196	0.039
LFR-RC	1138.21	47.54	60.59	1905.22	1673.88	0.014	25	0.277	0.039
MSR-RC	1123.27	47.17	60.56	1841.93	1639.79	0.013	25.6	0.290	0.039
GFR-SR	990.18	41.33	49.08	1727.39	1744.53	0.013	26.6	0.153	0.035
SFR-SR	846.09	35.18	44.31	1801.34	2129.00	0.015	21.4	0.156	0.034
LFR-SR	922.60	38.53	46.85	1806.26	1957.79	0.014	23.5	0.140	0.035
MSR-SR	916.01	38.47	46.89	1753.89	1914.71	0.014	24.1	0.140	0.035
GFR-RH	757.27	31.61	37.73	1619.85	2139.06	0.015	21.3	0.279	0.057
SFR-RH	666.85	27.73	34.59	1734.03	2600.31	0.018	16.9	0.227	0.055
LFR-RH	718.78	30.02	36.31	1694.69	2357.73	0.016	19	0.254	0.056
MSR-RH	726.96	30.53	36.73	1714.08	2357.88	0.016	19	0.242	0.056
GFR-IC	1038.81	43.36	48.81	1713.79	1649.76	0.012	28.3	0.337	0.036
SFR-IC	897.88	37.33	43.94	1744.44	1942.84	0.014	23.7	0.389	0.034
LFR-IC	959.08	40.06	46.10	1713.28	1786.38	0.013	25.9	0.356	0.035
MSR-IC	969.69	40.72	46.66	1740.60	1795.00	0.013	25.8	0.346	0.035

Fig. 19

Percentage change of each index before and after optimization

The SC and LCOE show a decreasing trend, and the IRR shows an increasing trend, which means that the overall economy of the system is improved. However, the C_tot of the system also increases. This is because the ηt and the LCOE as the optimization objectives do not consider the C_tot simultaneously, and they are mutually constrained. The LFR-SR scheme has the largest increase in C_tot, by 27.78%, while its IRR increases by only 7.8%. This optimization improves the thermodynamic efficiency of the system and the later revenue of the plant, but the optimization results are not friendly to investors with limited funds. For different cycle arrangements, the change in SP is not the same, where the compactness of the turbine for IC and SR has respectively improved by 10%-15%, while the compactness of RC and RH has decreased, the compactness of SFR-RC has decreased by 3.79%, and the rest is not significant.

4.3

Comprehensive multi-index evaluation results

After processing the indexes of the optimized scheme using the G1+TOPSIS method, we obtained the strengths and weaknesses of each index at each level for each scheme, as shown in Fig. 20. Each color line in the diagram represents a combination of reactor and cycle arrangement, and the area enclosed by the diagram lines represents the degree of superiority or inferiority of this option. From the figure, the area enclosed by RC is the largest, which indicates that RC has the best overall performance among the four-cycle layouts, followed by SR and IC, and the worst is RH. The C10 index of SR is more prominent, and the C10 index of RC is more depressed, which indicates that the heat transfer area required for RC to obtain unit net output power is larger, and the system is less compact. Although all the indexes of RH are poor, its C6 index is the most prominent among all cycle arrangements, which indicates that RH requires the lowest initial investment cost. The C8 index for IC is more prominent, indicating that it has the lowest LCOE. Each scheme has different characteristics that decision-makers can choose according to their needs. All indexes were assembled to finally obtain the comprehensive evaluation results for each scheme, as shown in Fig. 21. The results of the weights calculated in this study using the G1 method are B1 (0.3972), B2 (0.2482), B3 (0.2069), B4 (0.1478). From the evaluation results, the final reactor ranking is MSR>LFR>SFR>GFR, and the ranking for the cycle layouts is RC>SR>IC>RH. For the nuclear Brayton cycle, MSR-RC is the best scheme, followed by MSR-SR and GFR-RC, and the worst evaluation results are GFR-SR and GFR-RH. The results analysis is because safety is considered more important, and MSR has the best safety. The results of the cycle layouts ranking are consistent with the previous single-objective analysis.

Fig. 20

(Color online) Comparison of all indexes of each optimal scheme

Fig. 21

(Color onlie) Comprehensive evaluation results

Conclusion

In this study, a mathematical model of the Brayton cycle was developed for four different cycle layouts. Parametric analysis was conducted to investigate seven crucial parameters that affect the thermo-economic performance of the Brayton cycle. The NSGA-Ⅱ method was used to simultaneously optimize maximizing η_t and minimizing LCOE. Four decision methods obtained the compromise scheme from the Pareto optimal frontiers. Taylor diagrams are used to evaluate the four compromise solutions to find the optimal scheme. The changes in the indexes of each scheme before and after optimization are analyzed and discussed. Finally, the characteristics of each index after optimization for all schemes are given. The main conclusions are summarized as follows:

(1) Higher pressure does not lead to better thermodynamic efficiency of the system and power generation costs. RC and RH cycles can achieve better thermodynamic and techno-economic performance with a lower cycle pressure.

(2) The overall performance of the nuclear Brayton cycle system has been improved due to optimization. The MSR-IC scheme has the most noticeable improvement, with the net output power W_net, thermodynamic efficiency η_t, and exergy efficiency η_e improved by 8.58%, 8.58%, and 11.21%, respectively.

(3) The LFR-SR scheme was optimized to increase C_tot by 27.78%, while the internal rate of return (IRR) increased by only 7.8%. This is not friendly to investors with limited funds.

(4) Among the four layouts, RC has the best overall performance, followed by SR and IC, and the worst is RH. However, RH has the lowest C_tot, and IC has the lowest LCOE.

(5) Considering all indices of the four levels, the final reactor ranking is MSR>LFR>SFR>GFR, and the cycle layouts ranking is RC>SR>IC>RH. For the nuclear Brayton cycle, MSR-RC should be given priority, while GFR-RH should be considered carefully.

Supercritical fluid power cycles have great potential for application. In this study, the application of the supercritical CO₂ Brayton cycle in nuclear power plants is considered. The constructed mathematical models and optimization decision methods can guide the design of nuclear power plants and wider energy fields with potential heat resources.

References

N. Bauer, I. Mouratiadou, G. Luderer, et al.

Global fossil energy markets and climate change mitigation–an analysis with REMIND

. Clim. Change. 136, 69–82 (2016). https://doi.org/10.1007/s10584-013-0901-6.
