Introduction

Reduced activation ferritic martensitic (RAFM) steel and its improved models, such as oxide dispersion strengthened (ODS), thermomechanical treatments (TMT), and castable nanostructured alloys (CNA) steels, are the primary candidate structural steels for future fusion reactor and advanced fission reactors owing to their excellent irradiation resistance, high temperature performance, and high level of technological and processing maturity [1–8]. However, in the service environment of fusion reactors, high-energy neutron irradiation will introduce a large number of helium atoms (i.e., up to 10–15 appm/dpa) into structural steel through the (n, α) reaction [9–11]. Due to the extremely low solubility of helium atoms in metallic alloys, helium atoms have a strong tendency to coalesce in the form of nanometric bubbles. Moreover, helium bubbles tend to nucleate and grow at intrinsic or irradiation defects with sizeable free volumes, such as grain boundaries (GBs) and dislocations. While helium contributes to the safe use of fission reactor materials in some cases, such as by protecting the integrity of the fuel rod cladding [12], it is harmful to structural material used in fusion reactors. A high density of helium bubbles on the GB can significantly weaken the GB cohesive strength and lead to a drop in the fracture stress, exacerbating the failure of RAFM steel via intergranular fracture. Therefore, it is essential to elucidate the underlying mechanism of helium-induced GB embrittlement and establish the relationship between the helium embrittlement susceptibility of GB and GB structure characteristics to explore possible ways to improve the resistance of RAFM steel against helium-induced GB embrittlement.

Few experiments have investigated the mechanical response of individual GBs to helium. For example, Miura et al. [13] investigated the effect of helium on the fracture properties of six different non-coincidence site lattice GBs of austenitic stainless steel by using micro-tensile tests combined with electron backscatter diffraction (EBSD) and focused ion beam (FIB) techniques. The results indicate that the segregation capacity of GBs to helium impurities plays an important role in GB helium embrittlement. However, there is no report on the results of GB micro-tensile tests of RAFM steels. Atomic scale simulation methods are convenient for investigating the mechanical behavior of different types of GBs under the influence of helium bubbles. Terentyev et al. [14] used uniaxial tensile simulations to study the effect of helium bubbles on the fracture processes of six different GBs with <110> as the tilt axis at 0 K in body-centered cubic (bcc) iron. The results indicate that the helium bubbles have a substantial effect on the fracture stress and strain of GBs and an intensive suppression on the slip related to plastic deformation. Moreover, our previous work [15] also investigated the effect of small helium-vacancy clusters on the tensile deformation of two types of symmetric tilt grain boundaries (STGBs) with <110> and <100> tilt axes at both 0 K and 300 K. The results indicated that the helium-vacancy clusters exert a significant suppressive effect on GB sliding and that the size effect of helium-vacancy clusters on GB sliding seems to be stronger than that of the He/V ratio. However, whether the helium-embrittlement mechanism changes for different GBs remains unclear.

Moreover, in these previous simulation studies, a single helium bubble was created by removing Fe atoms from a spherical region and filling up the volume with helium atoms, which did not take into account the effect of GBs on helium segregation. In our recent work, we comprehensively investigated the effects of GB characteristic parameters on helium segregation, helium bubble nucleation and growth processes in bcc iron for high-energy neutron irradiation-related service environments [16]. The spatial distributions of helium bubbles in bubble-decorated bicrystal models were obtained via kinetic evolution at 600 K, and the helium concentration was set as 2000 appm. In this paper, the uniaxial tensile simulations of 10 different clean GBs (4 GBs with <100> as the tilt axis and 6 GBs with <110> as the tilt axis) and their corresponding bubble-decorated GBs were performed at 600 K using molecular dynamics methods. The experimental characterization of ferritic steels has shown that several of the studied GBs were observed at concentrations higher than those of random GBs [17, 18]. The microscopic mechanism of helium-induced GB embrittlement at high temperatures was studied by comparing and analyzing the tensile processes of clean GBs and bubble-decorated GBs. The fracture strength and strain of bubble-decorated GBs were analyzed and correlated with the misorientation angle of GB to characterize the helium embrittlement susceptibilities of different GBs.

Simulation methods

In this work, the parallel molecular dynamics (MD) code LAMMPS [19, 20] was used to simulate the tensile processes of GBs in bcc iron with and without the presence of helium bubbles. The s-band Fe-He many-body potential [21], along with the Fe-Fe potential of Ackland and Mendelev [22] and He-He potential of Aziz [23, 24], was selected to describe the interatomic interaction in the Fe-He system. Based on the potential set, the calculated properties are in good agreement with data from experimental and ab initio calculations demonstrated in previous works [25–29].

Based on the coincidence site lattice (CSL) theory, 10 types of STGBs that were observed at concentrations higher than those of random GBs [17, 18] were constructed via the bicrystal method. The GB is located at the interface of two perfect grains with different orientations. The detailed parameters of these GBs are listed in Table 1. To acquire the equilibrium GB structures of the bicrystal system, we sampled over 10,000 structures using rigid body translations. The displacement shift complete lattice was used to characterize the translational vector. The equilibrium structure was identified as the optimized lowest energy structure. Table 2 shows a comparison of the GB energy calculated in this paper with the results of DFT calculations [30–35] and other MD calculations [14, 36–38]. The majority of the GB energy values calculated in this work are consistent with other MD calculations but are slightly lower than the results obtained via DFT calculations. Details of the bicrystal method for the construction of GB structures can be found in Refs. [39-43]. In the Cartesian coordinate system of the simulation box, the tilt axis is aligned with the z-coordinate direction, and the normal direction of the GB is parallel to the y-coordinate direction. Figure 1 shows the side view of the supercells for 10 different STGBs. The structural units that make up each GB are marked in the figure.

Fig. 1Full-screen View

(Color online) Schematic diagram of bcc iron bicrystals with STGBs located at the center. Iron atoms of each <100> or <110> layer are shown in a different color. The A, B, C and D notation refers to the different structural units that make up the GBs. The marks consisting of A, B, C and D below each GB refer to the structural units and its order that make up this GB

The He concentration in structural steels for the first wall of a fusion power plant can reach 1090 appm after 5 years [44] and 2000 appm after longer service times [10]. Thus, the initial helium concentration for our simulation was set as 2000 appm to study the GB mechanical properties at a high He concentration. Initially, all of the helium atoms were randomly distributed in the bicrystal model. A stable helium bubble distribution in the bicrystal model was obtained after 1.6 ns of MD evolution with the NPT ensemble under 600 K. Then, the bicrystal model with helium bubble distribution was used as the initial model for GB tensile simulation. The detailed process for building the initial models of bubble-decorated GBs and quantitative information on helium bubbles can be found in our previous work [16]. Owing to the high yield of helium, spallation neutron irradiation applications are widely used to test the properties of fusion reactor candidate materials. The distribution of high-density and small-sized helium bubbles on the GBs in the bubble-decorated GBs models (as shown in Fig. 2(b)) is consistent with the distribution of bubbles on the GBs in the spallation neutron irradiated RAFM steel specimens (as shown in Fig. 2(c, d)) presented in Refs. [45, 46].

Fig. 2Full-screen View

(Color online) The uniaxial tensile model of (a) clean GB and (b) bubble-decorated GB, taking the Ʃ3<110>{112} GB as an example. The red spheres in panel (b) represent helium atoms, and the blue spheres in both figures represent iron atoms. The vacuum layers, fixed layers, and GB planes are indicated by black, red, and green rectangular boxes, respectively. Panels (c) and (d) [46] show a high-density distribution of small-scale helium bubbles at GBs in RAFM steel irradiated by spallation neutrons

The uniaxial tensile simulations for GBs with and without helium bubbles were performed under the same conditions. The tensile strain rate was set as 10⁸ s^-1 after comparison tests with 10⁷ s^-1 and 10⁹ s^-1. The results showed that the deformation mechanism of GBs remains unchanged at different strain rates. Under the strain rate of 10⁸ s^-1, relatively accurate fracture strength and strain values can be obtained while greatly saving computational resources. The direction of the uniaxial tensile load is perpendicular to the GB plane. Periodic boundary conditions were applied along x and z directions. To avoid the interactions of boundary atoms in the y-direction, iron atoms more than 120 nm away from the GB plane were removed to create a vacuum layer, as shown in Fig. 2. In order to control the tensile strain, iron atoms located 115–120 nm from the GB plane were fixed. The strain was increased by moving both of the fixed layers, one along the positive y-direction and the other along the negative y-direction, and remapping the rest of the atom coordinates. Each strain step increased the strain by 0.01 percent, and this was followed by a 1.0 ps relaxation with the NVT ensemble. This process was executed cyclically until the bicrystal model fractured. After the relaxation of each strain step, the strain and stress in the y-direction were recorded to analyze the tensile deformation process of the GB. The visualization and analysis of the atomic configurations were performed using the dislocation extraction analysis (DXA) and common neighbor analysis (CNA) as implemented in OVITO [47].

Results

The studied GBs can be classified into two categories based on the tensile behavior of clean GBs: (1) brittle GBs with no plastic deformation stage, including Ʃ3{111}, Ʃ9{114}, and Ʃ9{221}GB (hereafter, the notation of the tilt axis is omitted) and (2) ductile GBs with a plastic deformation stage. Ductile GBs have complex plastic deformation mechanisms at high temperatures. The plastic deformation mechanisms observed in the current work can be classified into three categories: (1) Bain path phase transition with a lath structure, including Ʃ5{210}, Ʃ5{310}, Ʃ13{320} and Ʃ13{510} GB; (2) deformation twinning, which only occurs during the uniaxial tensile process of the twin boundary Ʃ3{112}; (3) holonomic Bain/Burgers path phase transition, including Ʃ11{113} and Ʃ11{332} GB. In order to comprehensively study the plastic deformation behaviors of different clean GBs and elucidate the influence of helium bubbles on tensile deformation behavior, the tensile processes of GBs were investigated in detail by combining the stress-strain curves with an atomic configuration analysis.

The tensile deformation processes of Ʃ5{210}, Ʃ5{310}, Ʃ13{320}, and Ʃ13{510} GBs via the first deformation mechanism, i.e., Bain path phase transition with a lath structure, were analyzed in Fig. 3. The results indicate that during uniaxial tensile simulations, the four clean GBs all underwent a plastic deformation stage in which the stress first dropped rapidly and then increased slowly. Ʃ5{310} GB was taken as an example to illustrate the deformation process from the atomic scale configuration perspective. Figure 3(b–e) show the atomic scale configuration of the bicrystal at different stages during the tensile process. The stress and strain corresponding to each configuration are indicated with stars in Fig. 3(a). Figure 3(b) shows that the initial GB configuration remains intact at high temperatures. In the elastic stage, the stress increased linearly as the strain increased, and no phase transition initially occurred. Fig. 3(c) shows that once the strain reached 7.28% and the corresponding stress reached 9.77 GPa, the GB region of the upper grain began to undergo a Bain path phase transition (bcc to fcc). Fig. 3(d) shows that as the tensile strain increased, the phase transition region in the grain then began to expand to the fixed end in both upper and lower grains, and fcc lath grains were formed in the phase transition region. As the strain further increased, the phase transition region continued to expand, leading to an increased size of the lath grains. Figure 3(e) shows the largest phase transition region covering almost the entire grains. Soon after the strain reached a limit of 18.95%, cracks started to form at the GB plane. However, Fig. 3(a) shows that with the presence of helium bubbles, there was no plastic deformation stage in any of the four GBs. The elongation at the fractures decreased sharply, and the ultimate tensile strength also decreased. Figure 3(f–i) shows the atomic configurations of crack initiation in bubble-decorated Ʃ5{210}, Ʃ5{310}, Ʃ13{320}, and Ʃ13{510} GB. As shown in the figure, no phase transition region appeared in the grains before the fracture of the bicrystals. When the applied stress surpassed a certain threshold, the dislocation loops nucleated around the helium bubbles in the bulk gradually grew and finally reached the fixed end of the bicrystal model, which absorbed part of the strain energy. Moreover, the helium bubbles on the GB reduced the bonding area of the boundary, which led to a drop in cohesive strength. In this case, the fracture stress was lower than the critical stress for the Bain path phase transition. This means that the existence of helium bubbles at the GB inhibited the channel of the Bain path phase transition, which led to the brittle rupture of the bicrystal at the GB.

Fig. 3Full-screen View

(Color online) Stress-strain curves and atomic configurations of GBs with a Bain path phase transition and lath structure. (a) Stress-strain curves of Ʃ5{210}, Ʃ5{310}, Ʃ13{320}, and Ʃ13{510} GBs with (dotted line) and without (solid line) helium bubbles. Panels (b–e) illustrate the atomic configurations of clean Ʃ5{310} GB at different deformation stages. The blue, green, red, and white spheres represent iron atoms with bcc, fcc, hcp, and other structures, respectively. Panels (f–i) illustrate the atomic configurations of the crack initiation of bubble-decorated Ʃ5{210}, Ʃ5{310}, Ʃ13{320}, and Ʃ13{510} GBs, respectively. Parts of the curves are horizontally translated for clarity. The blue spheres, red spheres, green lines, and pink lines represent iron atoms, helium atoms, ½<111> dislocation/dislocation loops, and <100> dislocation/dislocation loops, respectively. The black rectangle indicates the regions where crack initiation occurred

The tensile deformation process of Ʃ3{112} GB via the second deformation mechanism, i.e., deformation twinning, was analyzed, as shown in Fig. 4. Ʃ3{112} GB is a unique twin GB, and the tensile direction along the <112> orientation leads to the activation of its twin system {112}<111> [48, 49]. In particular, Fig. 4(a) depicts the stress-strain curve of clean Ʃ3{112} GB, which shows that the tensile stress presented a fluctuating increase at the plastic deformation stage. During the uniaxial tensile test, atomic configurations of clean Ʃ3{112} GB were analyzed to explain this phenomenon, as shown in Fig. 4(b–f). The stress and strain corresponding to each configuration are indicated in Fig. 4(a) by stars. In contrast to other GBs, the initial Ʃ3{112} GB configuration is a narrow region consisting of two atomic layers, which reflects the peculiarity of Ʃ3{112} GB as a twin GB, as shown in Fig. 4(b). The stress increased linearly with the strain in the elastic stage, and no phase transition occurred at this stage. Figure 4(c, d) show that when the tensile strain reached 8.13% and the corresponding stress rose to 12.78 GPa, the GB plane started to slip along the (1-21)[111] slip system to the fixed end and formed a set of deformation twins perpendicular to the original GB plane. The GB structures of the deformation twins were entirely consistent with the original twin boundary. Thereafter, the shape and size of the deformation twins were gradually optimized to be consistent under the action of applied stress, as shown in Fig. 4(e). Figure 4(h) shows that the structures of these deformation twins closely match with those observed in RAFM [50, 51] and austenitic steels [13], as observed by TEM. However, the difference in critical stress for deformation twinning was relatively large, and this was mainly owing to the high strain rate in the MD simulation. During the twinning period, the tensile stress rose in a fluctuating manner. Figure 4(f) shows that with the further increase of strain, the high-stress state at the fixed end led to the formation of a Bain path phase transition region near the newly formed twin boundaries. Deformation twinning refined the newly formed grains, quickly hindering the expansion of the phase transition region. Eventually, the bicrystal fractures at the interface between the deformation twin boundary and the fixed end, which is consistent with the experimental finding that deformation twins can act as micro-crack initiators, as shown in Fig. 4(i) [51]. The stress-strain curve of the bubble-decorated Ʃ3{112} GB is shown with a dashed line in Fig. 4(a). However, compared with clean Ʃ3{112} GB, the fracture strength and elongation of bubble-decorated GB are much lower. The fracture stress is lower than the critical stress for deformation twinning. Figure 4(a) shows that despite the process of deformation twinning having been inhibited, the twin boundary still retained some plasticity under the influence of helium bubbles. The atomic-scale configuration showed that the plasticity derived from the relatively active dislocation evolution process at the crack tip, as shown in Fig. 4(g).

Fig. 4Full-screen View

(Color online) Stress-strain curves and atomic configurations of Ʃ3{112} GB with deformation twins. (a) Stress-strain curves of Ʃ3{112} GBs with (dotted line) and without (solid line) helium bubbles. Panels (b–f) illustrate the atomic configurations of clean Ʃ3{112} GB at different deformation stages. The blue, green, red, and white spheres represent iron atoms with bcc, fcc, hcp, and other structures, respectively. Panel (g) illustrates the atomic configuration of the crack initiation of helium bubble-decorated Ʃ3{112} GB. The blue spheres, red spheres, green lines, and pink lines represent iron atoms, helium atoms, ½<111> dislocation/dislocation loops, and <100> dislocation/dislocation loops, respectively. Panel (h) [51] shows the deformation twin structure observed during tensile tests under TEM. Panel (i) [51] shows the initiation of microcracks caused by deformation twins

Figure 5 shows the tensile deformation processes of Ʃ11{113} and Ʃ11{332} GBs via the third deformation mechanism, i.e., holonomic Bain/Burgers path phase transition. Figure 5(a) shows that both clean GBs underwent a plastic deformation stage with constant stress during the uniaxial tensile simulations. However, the atomic scale analysis revealed that the two GBs had different phase transition mechanisms. Figure 5(b–e) show the atomic scale configuration of the Ʃ11{332} GB with a Burgers path phase transition (bcc to hcp) at different stages during the tensile process. In Fig. 5(a), a star indicates the corresponding stress and strain of each configuration. Figure 5(g–j) show the atomic scale configuration of the Ʃ11{113} GB with a Bain path phase transition at different stages during the tensile process. The corresponding stress and strain of each configuration are also indicated in Fig. 5(a) by stars. As shown in Fig. 5(b, g), the initial configurations of Ʃ11{332} and Ʃ11{113} GB were different. Some atoms at the Ʃ11{332} GB plane had atomic configurations similar to those of hcp crystals, which provided a large number of nucleation sites for Burgers path phase transitions. Nonetheless, the Ʃ11{113} GB does not have such a structure. As shown in Fig. 5(c, h), when the strain increased to 7.64%/7.0%, the Burgers/Bain path phase transition began to progress steadily in the direction perpendicular to the original GB plane in Ʃ11{332} and Ʃ11{113} GB, respectively. As strain increased, atoms with the bcc structure on both sides of the GB continuously transformed into the hcp or fcc structure. Simultaneously, the bcc-hcp or bcc-fcc phase boundary began to move toward the fixed end of the bicrystal. During this period, the stress remained almost constant as the strain increased. Then, once the strain reached 10.86%/13.00%, the volume of the hcp/fcc region reached its maximum value for Ʃ11{332} and Ʃ11{113} GB, respectively, as shown in Fig. 5(d, i).

Fig. 5Full-screen View

(Color online) Stress-strain curves and atomic configurations of GBs with holonomic Bain/Burgers path phase transitions. (a) Stress-strain curves of Ʃ11{113} and Ʃ11{332} GBs with (dotted line) and without (solid line) helium bubbles. Panels (b–e) and (g–j) illustrate the atomic configurations of clean Ʃ11{332} and Ʃ11{113} GBs at different deformation stages, respectively. The blue, red, green, and white spheres represent iron atoms with bcc, hcp, fcc, and other structures, respectively. Panels (f) and (k) illustrate the atomic configurations of the crack initiation of helium bubble-decorated GBs. The blue spheres, red spheres, and green lines represent iron atoms, helium atoms, and 1/2<111> dislocation/dislocation loops, respectively

Typically, the phase transition process continues until the bcc-hcp or bcc-fcc phase boundary reaches the fixed end at 0 K [15]. However, the phase boundary is unstable at high temperatures. Figure 5(e) shows that for Ʃ11{332} GB, a stacking fault slip occurred at the upper bcc-hcp phase boundary, resulting in the disruption of the Burgers path phase transition and the further destruction of the phase transition region. Likewise, Fig. 5(j) shows that for Ʃ11{113} GB, a series of dislocations were emitted from the lower bcc-fcc phase boundary and piled up at the fixed end of the lower grain, further resulting in the stress concentration and grain cracking at the lower fixed end. Also, under the effect of high temperature, at the beginning of the plastic deformation of the Ʃ11{113} GB, there was a stage where the stress briefly decreased. This stage was related to one dislocation emission at the GB in the initial stage. After the dislocation emission, the phase transition region was divided into two parts, as shown in Fig. 5(i). Finally, when the strain reached 10.96%/13.42%, an initial crack formed in the slip band for Ʃ11{332} GB or at the lower fixed end for Ʃ11{113} GB, as shown in Fig. 5(e, j).

In contrast, there was no phase transition during the tensile process of bubble-decorated Ʃ11{332} and Ʃ11{113} GB, and the initial crack presented at the grain boundary, as shown in Fig. 5(f, k). Likewise, the fracture stress was lower than the critical stress for the Bain/Burgers path phase transitions, which led to the brittle fracture and a noticeable drop in the elongation.

Figure 6 shows the fracture processes of the three brittle GBs, namely, Ʃ3{111}, Ʃ9{114}, and Ʃ9{221}, with and without helium bubbles. Fig. 6(a) shows that the three clean GBs have similar stress-strain curves. Figure 6(b–d) present the atomic configurations of three clean GBs just before fracture. The stress and strain corresponding to each configuration are indicated in Fig. 6(a) by stars. The configurations show that under the combined effects of high temperatures and stress, the GB regions of these bicrystals widened, and their original GB structure units were completely lost. In fact, the spatial distribution of atoms in the GB region became abnormally disordered [16]. The disorder of the GB structure hindered the aforementioned phase transition paths. Therefore, for clean GBs, the disorder of GB atoms is the fundamental cause of their brittle fractures. Figure 6(e, f) show that the tensile behavior of bubble-decorated brittle GBs is similar to that of bubble-decorated ductile GB. Under the influence of helium bubbles, the fracture strength and elongation of GBs both decreased to varying degrees, as expected.

Fig. 6Full-screen View

(Color online) Stress-strain curves and atomic configurations of brittle GBs. (a) Stress-strain curves of Ʃ3{111}, Ʃ9{114}, and Ʃ9{221} GBs with (dotted line) and without (solid line) helium bubbles. Panels (b–d) illustrate the atomic configurations of clean Ʃ3{111}, Ʃ9{114}, and Ʃ9{221} GBs under ultimate tensile stress, respectively. The blue, green, and white spheres represent iron atoms with bcc, fcc, and other structures, respectively. Panels (e–g) present the atomic configurations of the crack initiation of bubble-decorated Ʃ3{111}, Ʃ9{114}, and Ʃ9{221} GBs, respectively. The blue spheres, red spheres, and green lines represent iron atoms, helium atoms, and 1/2<111> dislocation/dislocation loops, respectively

Discussion

To further analyze the role of the Bain path phase transition in the plastic deformation of ductile GBs, the orientation relationship in the Bain path phase transition from bcc to fcc was investigated, as shown in Fig. 7. Figure 7(a–e) shows the correspondence of the crystal planes and crystallographic directions in the bcc and fcc phases for Ʃ5{210}, Ʃ5{310}, Ʃ13{320}, Ʃ13{510}, and Ʃ11{113} GBs during the phase transition, respectively. In the phase transition process from the bcc structure to fcc structure, the <110>_α direction in the bcc structure and the <121>_γ direction in the fcc structure were always parallel. In addition, the {110}_α plane in the bcc structure was always parallel to the {111}_γ plane in the fcc structure. Fig. 7(f) presents a schematic diagram of the Bain path phase transition and shows that as long as a tensile deformation of about 40% occurs along the y-axis (<100> crystal direction), that is, as long as the lattice constant in the y-direction is elongated from the original $a$ to $\sqrt{2}a$, the original bcc unit cell can be transformed into an fcc unit cell. The newly formed fcc unit cell has a lattice constant of $\sqrt{2}a$, and can therefore store higher strain energy than the original bcc unit cell with $a$ as its lattice constant. For crystal planes, the {111}_γ planes in the fcc lattice corresponded to the {110}_α planes in the bcc lattice. For the crystal orientation, the <112>_γ orientation in the fcc lattice corresponded to the <110>_α orientation in the bcc lattice, and the <110>_γ orientation in the fcc lattice corresponded to the <111>_α orientation in the bcc lattice. The correspondence of the crystal planes and crystallographic directions in the bcc and fcc phases during the GB phase transition are in agreement with the Bain path phase transition mechanism found in the bulk [52].

Fig. 7Full-screen View

(Color online) Schematic diagram of the orientation relationship in the Bain path phase transition from a bcc to an fcc lattice. (a) Ʃ5{210}; (b) Ʃ5{310}; (c) Ʃ13{320}; (d) Ʃ13{510}; (e) Ʃ11{113}; (f) correspondence of the crystal planes and crystallographic directions between the bcc and fcc phases. The blue, green, and yellow spheres represent iron atoms with bcc, fcc, and hcp structures, respectively, in panels (a–e). The solid red spheres represent the original bcc lattice before the phase transition in panel (f)

In order to investigate the susceptibility of different GBs to helium embrittlement, the relationship between the ultimate tensile (fracture) strength as well as the failure (fracture) strain and the misorientation angle under the influence of helium bubbles was analyzed, as shown in Fig. 8. For a comparative analysis, the ultimate tensile strength and failure strain for clean GBs are also included in Fig. 8(a, b). First, the failure strain dropped under the influence of helium bubbles. Second, the ultimate tensile strength of individual GBs also decreased under the influence of helium bubbles, and this finding has been confirmed by the results of Ref. [13]. Previous experimentation has shown that the ultimate tensile strength of helium-containing GBs is related to the misorientation angle [13]. Our results in Fig. 8(a) further show that the ultimate tensile strength generally displayed an increasing trend as the misorientation angle increased. There is an excellent linear relationship between the ultimate tensile strength and the misorientation angle, especially for GBs with a <100> tilt axis. Compared with the tensile results of clean GBs, it was found that although helium bubbles reduce the ultimate tensile strength of each GB, they do not break the relationship between the ultimate tensile strength and misorientation angle.

Fig. 8Full-screen View

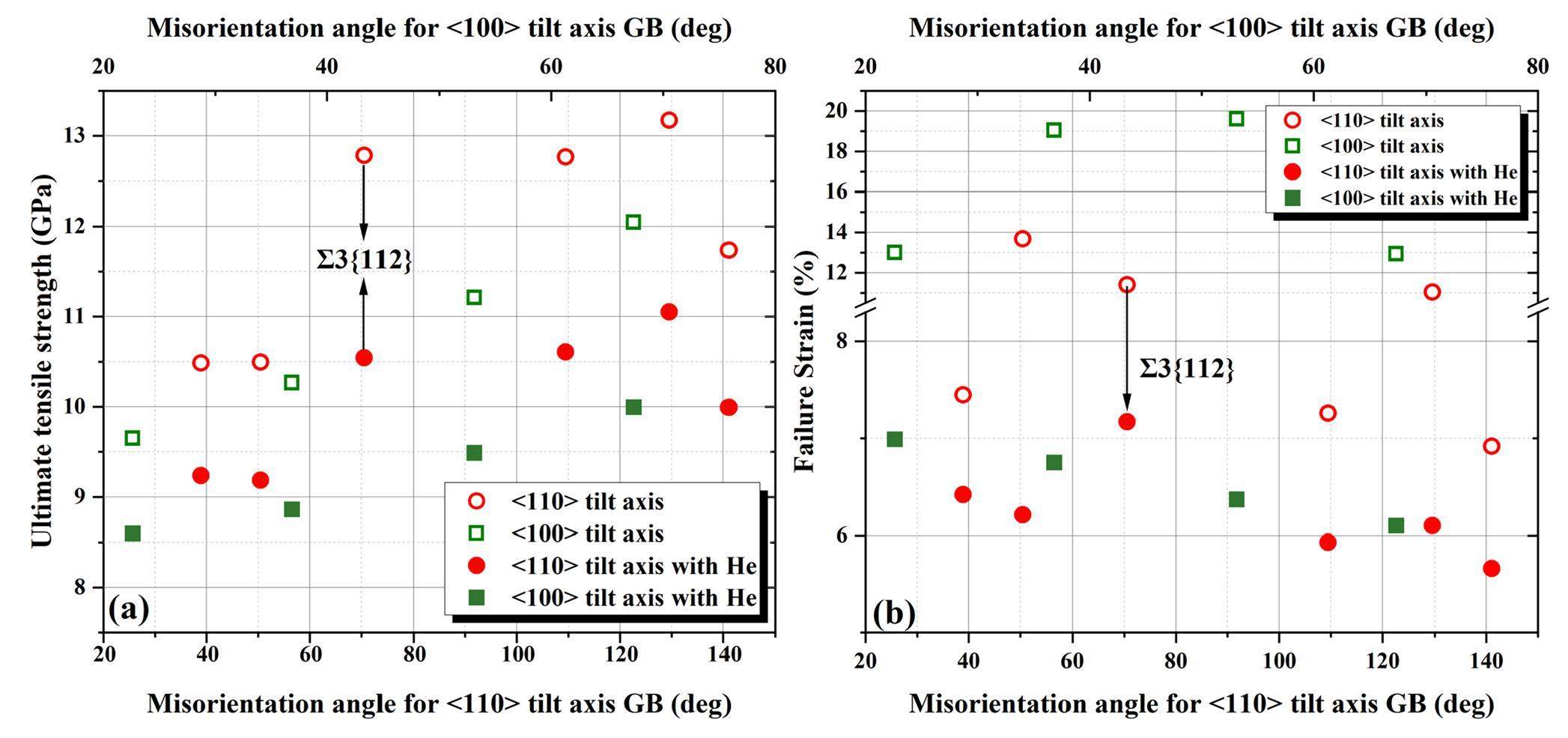

(Color online) The relationship between (a) the ultimate tensile strength and (b) the failure strain and the misorientation angle for clean (hollow) and bubble-decorated (solid) GBs. The red circles and green squares refer to <110> and <100> tilt axis GBs, respectively

Figure 8(b) shows the relationship between the failure strain and misorientation angle. The coherent twin boundary Ʃ3{112}, with its low GB energy and sigma value, had a larger failure strain than did the other bubble-decorated GBs, and it also had the lowest strain drop among the ductile GBs. Apart from the Ʃ3{112} GB, the fracture strain generally decreased as the misorientation angle increased. Compared with other bubble-decorated GBs, Ʃ3{112} GB displayed a high ultimate tensile strength while maintaining the largest failure strain. Therefore, it is suggested that the distribution of Ʃ3{112} GBs in RAFM steel should be optimized by grain boundary engineering to improve their resistance to GB helium embrittlement, similar to the related improvement of resistance against intergranular damage in Refs. [8, 53–55].

Conclusion

In order to elucidate the microscopic mechanism of high temperature GB helium embrittlement and the susceptibility of different types of GBs to helium embrittlement in RAFM steel, we investigated the uniaxial tensile processes of 10 different clean GBs with two types of tilt axis (i.e., <110> and <100>) as well as their corresponding bubble-decorated GBs in bcc iron at 600 K. The tensile behavior reveals that the studied GBs fall into two distinct categories: brittle and ductile. There are three different types of plastic deformation mechanisms in ductile GBs. The first type is a Bain path phase transition with a lath structure, which only occurs during the tensile process of GBs with <100> as the tilt axis. The second type is deformation twinning, which only occurs at the unique twin GB Ʃ3{112}. The third type is a holonomic Bain/Burgers path phase transition, which occurs in some of the GBs with <110> as the tilt axis. The results of a structural analysis of the tensile process at the atomic scale imply that the plastic deformation mechanisms of almost all of the ductile GBs studied here are related to the Bain path phase transition, which plays a vital role in the plastic deformation of the GBs. However, the presence of helium bubbles results in all GBs failing via brittle fracture and causes both the GB ultimate tensile strength and the failure strain to decrease. Helium bubbles significantly reduce the failure strain of ductile GBs by inhibiting the channel of plastic deformation. In the presence of helium bubbles, the ultimate tensile strength of GBs increases with the increase of the GB misorientation angle. The coherent twin GB Ʃ3{112} maintains the maximum failure strain and a relatively high ultimate tensile strength under the influence of helium bubbles.
