Materials

Virgin PTFE sheets (Daikin Fluorochemicals (China) Co., Ltd.) with a thickness of approximately 2.0 mm and an average molecular weight of approximately 1.6 × 10⁶ were used in this experiment. The XPTFE samples were prepared by electron beam irradiation of molten PTFE in a specially designed irradiation vessel at a temperature of 335±5 °C under N₂ [18]. The doses absorbed by the samples (hereinafter adsorbed doses) were 90, 500, and 2000 kGy, and the obtained samples are denoted as XPTFE90, XPTFE500, and XPTFE2000, respectively. After cooling the mixture to room temperature, no residual free-radicals were detected.

Irradiation and annealing treatment

Before irradiation, the samples were cut into small strips of 2.0 mm × 2.0 mm × 10.0 mm and placed in standard nuclear magnetic resonance (NMR) tubes under air atmosphere or sealed in NMR tubes in a glove-box filled with Ar, respectively. The samples and NMR tubes were irradiated by γ-rays generated by a ⁶⁰Co source at room temperature. Each sample was irradiated for 17.0 h, where the total absorbed dose for each sample was 0, 20, 50, 100, 200, and 500 kGy. The samples were annealed at 30–280 °C in 50 °C increments under air for 15.0 min using a muffle furnace.

DSC measurements

The samples were weighed and placed in an aluminum crucible with a pierced lid. The crucible was then placed in a differential scanning calorimetry (DSC) device (DSC 3+, METTLER TOLEDO). Nitrogen at a flow rate of 50 mL/min was used as the protective gas. The temperature was raised and lowered at a rate of 10 ℃/min. The heating and cooling processes were repeated to eliminate the effect of thermal stress on the specimen. The crystallinity (${\chi }_c$) of the sample was calculated using the software accompanying the analytical instrument by applying the following formula [28]: $\begin{array}{c}{\chi }_c= \frac{\text{Δ}{H}_c}{\text{Δ}{H}_f} \times 100\% \end{array}$ (1) where $\text{Δ}{H}_c$ is the enthalpy of fusion and $\text{Δ}{H}_f$ is the enthalpy of the crystal phase transition of PTFE (82 J/g) [28].

ESR measurements

Before testing, the bottom portion of the inverted NMR tube was annealed to eliminate the free-radicals formed in the NMR tubes. ESR measurements were performed at room temperature and at different time intervals after irradiation to investigate the decay of the free-radicals. ESR spectra were acquired at room temperature with a microwave power of 0.998 mW and 100 kHz field modulation using an X-band spectrometer (JES-FA200). The free-radicals concentration of the samples was obtained from the ratio of the sample absorption peak area to that of the manganese standard sample and was calculated as follows: $\begin{array}{c}\text{ X=}\frac{{\text{S}}_{\text{i}}}{\overline{{\text{S}}_{\text{Mn}}}}\text{×3}{\text{.02×10}}^{\text{14}}\end{array}$ (2) where $\text{X}$ is the concentration of free-radicals in the sample, ${\text{S}}_{\text{i}}$ is the integrated absorption peak area of the sample, and $\overline{{\text{S}}_{\text{Mn}}}$ is the mean value of the integrated area of the manganese standard sample.

IsoSimu/FA (version 2.4.3, JEOL RESONANCE Incorporated) software was used to simulate the experimental spectra.

DSC studies

DSC is an effective method for studying the melting and crystallization behavior of samples. The difference between the first and second cooling curves of the samples may be due to the thermal history (processing conditions, cooling rate, etc.) of the samples. To eliminate the effect of the thermal history of each sample and maintain consistency in the experiments, the second heating and cooling curves were chosen for inter-sample comparison. As shown in Fig. 1a, as the absorbed dose increased, the melting point and enthalpy of XPTFE gradually decreased, and the melting range became broader. The melting point of a polymer is usually affected by its crystallinity, chain structure, molecular weight, and other factors. When PTFE is irradiated by electron beam at high temperature, the generated free-radicals can easily react to form a cross-linked network structure owing to the high mobility of the chain segments. The crosslinked network structure may disrupt the original crystalline structure of PTFE, leading to an imperfect crystal structure. The degree of imperfection increased with increasing absorbed dose, and the imperfect crystals tended to melt at lower temperatures, which lowered the melting point. The broadening of the melting range was also due to the imperfect crystals. When the radiation dose absorbed by XPTFE was low, the extent of crosslinking was low, where some of the molecular chains broken by irradiation may form additional crystalline structures, leading to an increase in the melting enthalpy and crystallinity. As the cross-linking degree increased, the cross-linked structure prevented crystallization, leading to a decrease in the melting enthalpy and crystallinity.

Fig. 1Full-screen View

DSC thermograms of initial samples. (a) Heating curves; (b) cooling curves.

These results indicate that different XPTFE samples have different crystalline regions. The melting point, melting enthalpy, and crystallinity of the samples are summarized in Table 1.

Types and concentration of free-radicals

The ESR spectra of PTFE and XPTFE at an absorbed dose of 100 kGy when irradiated under Ar and air are shown in Fig. 2. Because the g-factor and hyperfine splitting obtained from Fig. 2 are the same, it is deduced that the paramagnetic center does not change significantly with the degree of crosslinking [22,29]. When the samples were irradiated under Ar, as shown in Fig. 2a, some peaks overlapped due to the poor resolution of the ESR technique, which may be due to the distribution of hyperfine splitting caused by the steric angular dependency of the F_β atoms on the p-orbitals of the free-radicals [23]. The spectra of PTFE and XPTFE were observed to be composed of a relatively low-strength double quintet (2 × 5 lines) and a triple triplet (3 × 3 lines), as previously reported [30,31]. The strength of both sets of peaks increased as the crosslinking degree of the samples increased. In contrast, the intensity of the broad single peak (marked by the diamond symbol with a solid line) in the ESR spectrum of XPTFE at approximately 323 mT increased with increasing crosslinking degree of the samples [22,32]. For the samples irradiated under air atmosphere (Fig. 2b), except for some small peaks where the intensity increased with the degree of crosslinking, the broad peak at approximately 323 mT in the ESR spectrum of XPTFE was relatively symmetrical compared to that of PTFE, and the degree of symmetry also increased with the degree of crosslinking. In short, there are differences in the free-radicalspecies formed in PTFE and XPTFE, as indicated by their different ESR spectra, but the same types of free-radicals are formed in XPTFE irradiated under different atmospheres, as indicated by the similar shapes of the ESR spectra. The variations in the type and concentration of free-radicals generated in XPTFE by irradiation under air and Ar at room temperature are discussed hereinafter.

Fig. 2Full-screen View

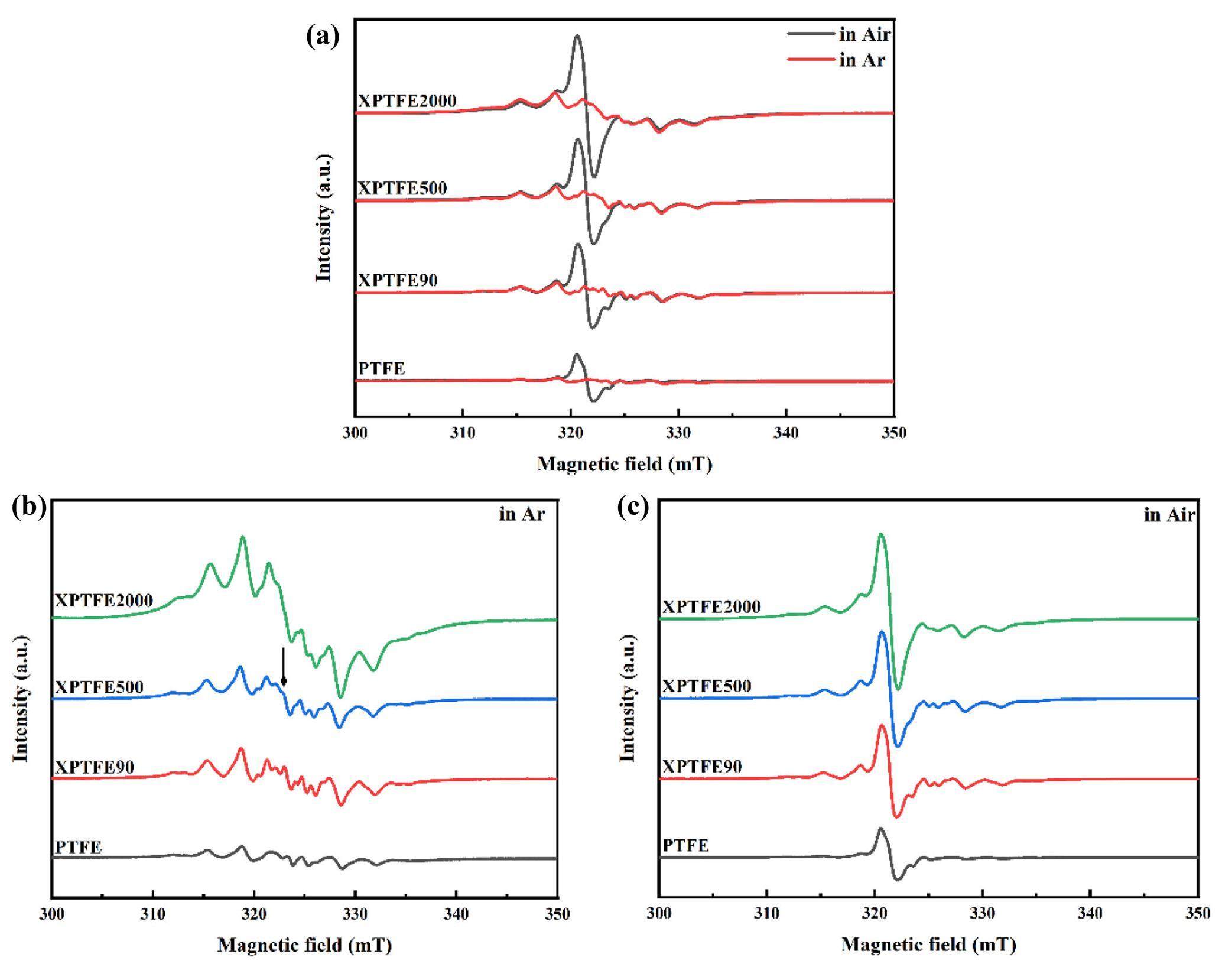

(Color online) ESR spectra of PTFE and XPTFE with an absorbed dose of 100 kGy (a); under Ar (b) and under air (c).

Because the same types of free-radicals were present in XPTFE irradiated under different conditions and due to the moderate crosslinking of XPTFE500, XPTFE500 was chosen as a representative for further study. The ESR spectrogram of XPTFE500 with an absorbed dose of 100 kGy after irradiation under Ar and air is shown in Fig. 3a. The stick diagrams of the ESR spectra for the chain alkyl free-radicals and chain end-type free-radicals are shown in Fig. 3b. The characteristic peaks are marked as P₁ and P₂. Considering the ESR spectra of XPTFE500 irradiated under Ar and the ESR stick plots, the double quintet is attributed to chain alkyl free-radicals, and the triple triplet with relatively low strength (approximately one eleventh of the former) is assigned to chain end type free-radicals, based on analysis of hyperfine splitting (hfs) caused by the interaction between the unpaired electron and fluorine nucleus [24]. Moreover, these two types of free-radicals are widely recognized to be trapped in the crystalline regions [33]. The parameters used to simulate chain alkyl free-radicals were one F(α) atom ($\text{Δ}{H}_{\alpha }\approx 9.0\text{ mT}$) and four equivalent F(β) atoms ($\text{Δ}{H}_{\beta }\approx 3.3\text{ mT}$). The parameters used to simulate chain end-type free-radicals were two F(α) atoms ($\text{Δ}{H^{\prime }}_{\alpha }\approx 10.0 \text{mT}$) and two F(β) atoms ($\text{Δ}{H^{\prime }}_{\beta }\approx 1.3 \text{mT}$). In the simulation, the intensity of the chain alkyl free-radicals was eleven times stronger than that of the chain end-type free-radicals. The experimental and simulated spectra are shown in Fig. 3c. The simulated results are consistent with the experimental results. In addition, the broad single peak was thought to be associated with crosslinked tertiary alkyl free-radicals that were perceived to be trapped in crosslinked amorphous regions [33]. Crosslinking greatly changes the molecular conformation near the crosslinking sites and reduces the ionization or excitation potential. Thus, free-radicals can be selectively generated in this area. This broad single peak is believed to be caused by hyperfine splitting due to the F atoms on the C_β and C_β atoms depending on the disordered configuration of these atoms in the crosslinked regions, as well as the poor resolution of the ESR spectrogram.

Fig. 3Full-screen View

(Color online) (a) ESR spectra of XPTFE500 with absorbed dose of 100 kGy under Ar and air, respectively. The characteristic peaks are marked by arrows (P₁: chain end type free-radicals and chain alkyl free-radicals; P₂: chain alkyl free-radicals). (b) ESR stick plots for chain alkyl free-radicals and chain end type free-radicals. The heights of the sticks are positively related to the relative strength of the lines [24]. (c) Experimental and simulated spectra of PTFE with absorbed dose of 100 kGy.

The ESR spectra of XPTFE500 irradiated under air at room temperature are shown in Fig. 3a. Some small peaks in this spectrum are derived from residual free-radicals that did not undergo recombination or oxidation reactions. When XPTFE was irradiated under air, chain-type peroxy free-radicals $\left(-{\text{CF}}_2-\text{CF}\left(\text{OO}·\right)-{\text{CF}}_2-\right)$ with symmetrical ESR spectra (originating from alkyl free-radicals), scission-type peroxy radicals $\left(-{\text{CF}}_2-\text{CFOO}·\right)$, and tertiary peroxy radicals $\left(-{\text{CF}}_2-{\text{CR}}_{\text{f}}\left(\text{OO}·\right)-{\text{CF}}_2-\right)$ with asymmetric ESR spectra originating from tertiary alkyl free-radicals were generated. The total spectrum of XPTFE was symmetric as it comprised asymmetrical ESR spectra from two types of peroxy free-radicals and a symmetrical spectrum from one type of peroxy radical. The more symmetric line-shape of the broad peak for crosslinked XPTFE may be caused by the increased molecular movements in the amorphous region above the temperature of the γ-transition (−97 ℃) [23].

From comparison of the peak intensity in Fig. 3, it is clear that the intensity of the peaks for the chain end-type free-radicals and chain alkyl free-radicals trapped in the crystalline regions was basically the same for the samples irradiated under Ar and air; however, the intensity was slightly lower for the sample irradiated under air. This observation indicates that the free-radicals trapped in the crystalline regions were relatively stable during irradiation. When the sample was irradiated under air, the signals of the tertiary alkyl free-radicals generated by irradiation under Ar were masked by the broad peak of the peroxy free-radicals. At room temperature, the reactions between free-radicals and migration of the free-radicals are hindered by the low mobility of the XPTFE molecular chains [24]. The decay behavior of free-radicals within a certain time at room temperature for the samples irradiated under air is mainly due to reactions with oxygen. These reactions depend mainly on the rate of oxygen diffusion in the polymer matrix. Thus, the free-radicals trapped in the crystalline region, where oxygen could not easily penetrate, were relatively stable. Only an exceedingly small portion of these free-radicals moved to the crystal surface and subsequently reacted with oxygen. In contrast, tertiary alkyl free-radicals trapped in the crosslinked disordered region were relatively prone to transformation into tertiary peroxyl free-radicals due to the diffusion of oxygen.

The concentrations of free-radicals in XPTFE90, XPTFE500, and XPTFE2000 after irradiation with 100 kGy under Ar and air are illustrated in Fig. 4. For the same absorbed dose, more free-radicals were generated in XPTFE with a greater degree of crosslinking. Oshima et al. [22] attributed the higher concentration of free-radicals in XPTFE to selective energy or charge transfer to the crosslinking site from the initial highly excited states, or the role of sub-excited electrons. At room temperature, the PTFE chain segments are rigid due to the tight packing of its molecules, and the rotational freedom of the −CF₂− unit along the molecular chain axis is limited even in the amorphous regions due to the larger size of the F atom (van der Waals' radius 1.35 Å) compared to that of H atom (van der Waals’ radius 1.1 Å). Crosslinking further reduced the mobility of the molecular chains. Thus, the possible reactions between the free-radicals were reduced because of the lower crystallinity and restricted migration caused by crosslinking, which may be the reason for the higher concentration of free-radicals. Cross-linking of XPTFE under irradiation in the molten state formed a mesh structure, which led to poor mobility of the molecular chains. The crystals formed during the cooling and crystallization processes were not perfect. When the cross-linking degree increased, the crystallinity of XPTFE decreased. Owing to the weak intermolecular forces in XPTFE, the probability of reaction between free-radicals in the non-crystalline and disordered regions is much lower than that in the crystalline regions. Therefore, XPTFE with a higher degree of crosslinking had a higher concentration of free-radicals. As illustrated in Fig. 4, the concentration of free-radicals produced by irradiation under air was greater than that generated under Ar. The evolution of free-radicals in XPTFE under different atmospheres is discussed in detail hereinafter.

Fig. 4Full-screen View

Concentration of radicals in XPTFE after irradiation with 100 kGy under Ar and air, respectively.

The ESR spectra of XPTFE500 subjected to different irradiation doses under Ar and air are shown in Fig. 5. No residual free-radicals were detected when the absorbed irradiation dose was 0 kGy because the EB irradiation was carried out at a high temperature of approximately 335 °C. After EB irradiation, the sample was slowly cooled and the free-radicals gradually decayed. Under Ar atmosphere (Fig. 5a), the intensity of the ESR peak for the chain end-type free-radicals (marked by the arrow with a dotted line), chain alkyl free-radicals (marked by the arrow with solid line), and crosslinking tertiary alkyl free-radicals (marked by the diamond symbol with solid line) increased with increasing radiation dose within a certain range. However, under air (Fig. 5b), the intensity of the ESR signal of free-radicals trapped in the crystalline regions increased with increasing radiation dose, whereas the intensity of the broad single peak associated with peroxy free-radicals first increased and then decreased with increasing absorbed dose. When the sample was irradiated under air, more free-radicals were generated as the absorbed dose increased. However, only a small number of free-radicals trapped in the crystal regions was converted to the corresponding peroxy free-radicals, whereas the tertiary alkyl free-radicals trapped in the crosslinked disordered region reacted with oxygen to form tertiary alkyl peroxyl free-radicals. Therefore, the intensity of the broad single peak increased, and the spectrum became less symmetrical within a certain dose range. At an absorbed dose of 500 kGy, the broad single peak became less intense, which may be due to almost complete destruction of the cross-linked structure of XPTFE500 at such high absorbed doses. In this case, air can easily diffuse into the polymer matrix, causing the free-radicals located in the amorphous region to decay.

Fig. 5Full-screen View

(Color online) ESR spectrum of XPTFE500 irradiated under Ar (a) and air (b) with different doses.

The variation in the radical concentration of XPTFE irradiated under Ar and air at different doses is shown in Fig. 6. Figure 6(a and b) shows that the concentration of free-radicals in XPTFE first increased linearly as the absorbed dose increased, then gradually saturated. The saturation concentration of radicals in XPTFE90, XPTFE500, and XPTFE2000 after irradiation under Ar was calculated to be around 5.6 × 10¹⁸, 9.7 × 10¹⁸, and 17.6 × 10¹⁸ spins/g, respectively. Similarly, the saturation concentration of radicals in XPTFE90, XPTFE500, and XPTFE2000 after irradiation under air was calculated to be approximately 4.9 × 10¹, 10.2 × 10¹⁸, and 21.2 × 10¹⁸ spins/g, respectively. Because 100 kGy was the end point of the linear increase in the free-radicalconcentration, the radiation chemical yield ($\text{G(}\dot{R}\text{)}$) of the samples was calculated for radiation doses below 100 kGy. $\text{G(}\dot{R}\text{)}$ is defined as the number of free-radicals formed per 100 eV of energy absorbed and was calculated according to the following formula: $\begin{array}{c}G\text{(}\dot{R}\text{)}=\frac{n\left(x\right)}{100 \text{eV}},\end{array}$ (3) where, $n\left(x\right)$ represents the number of free-radicals.

Fig. 6Full-screen View

(Color online) Variation of free-radicalconcentration in XPTFE exposed to different irradiation doses under Ar (a) and air (b).

The $\text{G(}\dot{R}\text{)}$ values of XPTFE90, XPTFE500, and XPTFE2000 after irradiation under Ar were calculated to be approximately 0.81, 1.12, and 1.91, respectively. The $\text{G(}\dot{R}\text{)}$ values for XPTFE90, XPTFE500, and XPTFE2000 after irradiation under air were calculated as approximately 0.94, 1.74, and 2.26, respectively. XPTFE with a higher degree of crosslinking had a larger $\text{G(}\dot{R}\text{)}$. Moreover, the $\text{G(}\dot{R}\text{) }$ value of XPTFE after irradiation under air was greater than that of the sample irradiated under Ar. As discussed in the previous section, the movement of the XPTFE chain segments was hindered by crosslinking and the possible reactions between free-radicals were reduced. The crystallinity of XPTFE decreased as the degree of crosslinking increased, resulting in smaller crystal regions. The probability of free-radicalreactions in the amorphous and disordered regions is much lower than that in the crystalline regions, owing to the low intermolecular forces of XPTFE. Therefore, XPTFE with a higher degree of crosslinking had a higher concentration of free-radicals.

Evolution and decay of free-radicals at room temperature

The free-radicals trapped in XPTFE gradually decay over time, where their decay behavior is significantly affected by the post-irradiation environment. The ESR spectra of XPTFE500 irradiated at a dose of 100 kGy and kept under different environments as a function of the storage time are shown in Fig. 7. Clearly, the peak intensity varied with time, suggesting that the stability of the free-radicals varied under different atmospheres. Accurate calculation of the concentration of each free-radicalis difficult because of the overlapping signals of the different free-radicals. Because the peak height in the ESR spectrum of the free-radicals is positively correlated with the concentration of free-radicals, the change in the peak height may reflect the changes in the free-radicalconcentration. Therefore, the peak height ratio (PHR) can be employed to reflect the changes in the composition of free-radicals. As shown in Fig. 3, P₂ is the characteristic peak of chain alkyl free-radicals and P₁ is the superposed peak of chain end-type free-radicals and chain alkyl free-radicals. Because the intensity of the P₁ peak (of chain alkyl free-radicals) is a quarter that of the P₂ peak, the peak height of the chain-end free-radicals can be expressed as $H_1- \frac{1}{4}{H}_2$. Therefore, the PHR of chain-alkyl free-radicals to chain-end free-radicals was calculated as follows: $\begin{array}{c}PHR= \frac{H_2}{H_1- \frac{1}{4}{H}_2} , \end{array}$ (4) where, $H_1$ is the height of the P₁ peak in the ESR spectrum and $H_2$ is the height of the P₂ peak in the ESR spectrum.

Fig. 7Full-screen View

(Color online) Variation of ESR spectrum for XPTFE500 irradiated at100 kGy dose under Ar and kept under Ar (a); irradiated under Ar and subsequently exposed to air (b); irradiated under air and kept under air (c); plot of radical concentration versus storage time (d).

The variation in the ESR spectra of XPTFE500 irradiated under Ar with an absorbed dose of 100 kGy against the storage time at room temperature is shown in Fig. 7a. For XPTFE500 irradiated and kept under Ar (Fig. 7a), the intensity of the peak in the ESR spectra representing chain end-type free-radicals and chain alkyl free-radicals gradually decreased with time, while those associated with tertiary alkyl free-radicals remained relatively stable. Tertiary alkyl free-radicals trapped in the crosslinked disordered regions of XPTFE remained relatively stable, which is not only due to the weak intermolecular forces in XPTFE, but also because there was little translational diffusion of the segments in the para-crystalline region below the melting point for the rigid chain segments, in addition to the restricted rotational freedom of the −CF₂− unit along the molecular chain axis, and cross-linking. Combined with Figure 8, it can be seen that the PHR decreased over time, indicating that under Ar, the chain-alkyl free-radicals decayed faster than the chain-end free-radicals. Several possible reactions have been reported. Forsythe and Hill et al. showed that in the radiation chemistry of fluoropolymers, fluorine transfer is highly unlikely [34]. The β-scission reaction of the main-chain free-radicals $\left(-{\text{CF}}_2-\dot{C}\text{F}-{\text{CF}}_2\cdots {\text{CF}}_2-{\text{CF}}_2-\to -{\text{CF}}_2-\text{CF}={\text{CF}}_2+-{\text{CF}}_2-{\dot{C}\text{F}}_2\right)$ and fluoride abstraction from the chain-end free-radicals $\left(-{\text{CF}}_2-{\dot{C}\text{F}}_2+-{\text{CF}}_2-{\text{CF}}_2-{\text{CF}}_2-\to -{\text{CF}}_2-{\text{CF}}_3+-{\text{CF}}_2-\dot{C}\text{F}-{\text{CF}}_2-\right)$ at a specified temperature were reported by Hara et al. [24]. Therefore, the β-scission reaction of main-chain free-radicals may reasonably explain the decrease in the PHR under Ar at room temperature. As shown in Fig. 7d, only approximately 50% of the free-radicals remained after five days.

Fig. 8Full-screen View

(Color online) PHR of XPTFE500 irradiated and kept under different atmospheres versus storage time.

To investigate the influence of oxygen engagement on free-radical evolution, XPTFE500 was irradiated under Ar and subsequently exposed to air atmosphere, as shown in Fig. 7b. The free-radical profile rapidly changed. Over time, the peaks corresponding to tertiary alkyl free-radicals gradually became covered by those of peroxy free-radicals. The peak intensities of the two types of free-radicals trapped in the crystalline regions gradually decreased until the peaks disappeared completely. Finally, only an asymmetric broad peak associated with the peroxy free-radicals was observed after 3240 min. The evolution of free-radicals was significantly affected by the participation of oxygen. The free-radicals were converted to the corresponding peroxy free-radicals by the diffusion of oxygen in the XPTFE matrix. In this case, the free-radicals also undergo oxidation reactions with oxygen, in addition to reactions between the free-radicals; the former dominates and is related to the rate of oxygen diffusion in the polymer matrix. In contrast, as shown in Fig. 8, the PHR increased with time when the sample was exposed to air, where the behavior differed significantly from that of the sample kept under Ar, indicating that chain end free-radicals were more sensitive to oxygen than chain alkyl free-radicals. Eventually, the scission-type peroxy free-radicals were transformed into the corresponding alkyl radicals by eliminating the COF₂ group. Chain-type peroxy free-radicals are converted to carboxyl and terminal carboxyl groups [35]. This eventually led to shortening of the PTFE chain ends, which compromised the mechanical properties. As shown in Fig. 7d, compared to the sample kept under Ar, the total radical concentration decreased more slowly in this case owing to the participation of oxygen.

To mitigate the influence of the oxygen diffusion rate on the evolution of free-radicals, XPTFE500 was irradiated and kept under air. Owing to the relatively long irradiation time, it was assumed that oxygen had completely diffused into the polymer matrix, except for in the crystalline regions where it is difficult for oxygen to diffuse during the irradiation process. As shown in Fig. 7c, the peaks of the two types of free-radicals trapped in the crystalline regions gradually became less intense until they completely disappeared, and the intensity of the broad single peak first increased and then decreased over time. Tertiary alkyl free-radicals trapped in the crosslinked disordered regions are oxidized to the corresponding peroxy free-radicals. The free-radicals trapped in the crystalline region slowly move to the surface of the crystalline phase, where they easily react with the oxygen present in the amorphous region. Finally, over time, these peroxy free-radicals gradually disappear. As expected, as illustrated in Fig. 7d and Fig. 8, the total radical concentration is the parameter that decayed the slowest with time, whereas the PHR increased rapidly with time. This further verifies the conclusion that chain-end free-radicals are more sensitive to oxygen than chain alkyl free-radicals.

In general, there are significant differences in the stability of chain alkyl free-radicals and chain end-type free-radicals in different post-irradiation atmospheres. Combined with previous conclusions, chain end-type free-radicals are more sensitive to oxygen than chain alkyl free-radicals. The possible reactions of free-radicals in XPTFE irradiated at room temperature by γ-rays are as follows:

Irradiation stage:

${\text{R}}_{\text{f}}-{\text{CF}}_2-{\text{CF}}_2-{\text{CF}}_2-{\text{R}}_{\text{f}}\to -{\text{CF}}_2-\dot{C}\text{F}-{\text{CF}}_2-+\dot{F}$ Primary

${\text{R}}_{\text{f}}-{\text{CF}}_2-{\text{CF}}_2-{\text{CF}}_2-{\text{CF}}_2-{\text{R}}_{\text{f}}\to -{\text{CF}}_2-{\dot{C}\text{F}}_2+{\dot{C}\text{F}}_2-{\text{CF}}_2-$ Secondary

${\text{R}}_{\text{f}}-{\text{CF}}_2-{\text{CFR}}_{\text{f}}-{\text{CF}}_2-{\text{R}}_{\text{f}}\to -{\text{CF}}_2-{\dot{C}\text{R}}_{\text{f}}-{\text{CF}}_2-+\dot{F}$

With the participation of oxygen:

$-{\text{CF}}_2-\dot{C}\text{F}-{\text{CF}}_2-+{\text{O}}_2\to -{\text{CF}}_2-\text{CF}\left(\text{OO}·\right)-{\text{CF}}_2-$ Secondary

$-{\text{CF}}_2-{\dot{C}\text{F}}_2+{\text{O}}_2\to -{\text{CF}}_2-{\text{CF}}_2\text{OO}·$ Primary

$-{\text{CF}}_2-{\dot{C}\text{R}}_{\text{f}}-{\text{CF}}_2-+{\text{O}}_2\to -{\text{CF}}_2-{\text{CR}}_{\text{f}}\left(\text{OO}·\right)-{\text{CF}}_2-$

Preservation stage:

Under Ar:

$-{\text{CF}}_2-\dot{C}\text{F}-{\text{CF}}_2\cdots {\text{CF}}_2-{\text{CF}}_2-\to -{\text{CF}}_2-\text{CF}={\text{CF}}_2+-{\text{CF}}_2-{\dot{C}\text{F}}_2$

Under air:

$-{\text{CF}}_2-\dot{C}\text{F}-{\text{CF}}_2-+{\text{O}}_2\to -{\text{CF}}_2-\text{CF}\left(\text{OO}·\right)-{\text{CF}}_2-$ Secondary

$-{\text{CF}}_2-{\dot{C}\text{F}}_2+{\text{O}}_2\to -{\text{CF}}_2-{\text{CF}}_2\text{OO}·$ Primary

$-{\text{CF}}_2-{\dot{C}\text{R}}_{\text{f}}-{\text{CF}}_2-+{\text{ O}}_2\to -{\text{CF}}_2-{\text{CR}}_{\text{f}}\left(\text{OO}·\right)-{\text{CF}}_2-$

Evolution and decay of free-radicals at elevated temperatures

The free-radicals in XPTFE500 are relatively stable at room temperature under air atmosphere, which may result in significant variations in their physical properties during long-term storage and use of the polymer [8]. Therefore, it is essential to investigate the decay behavior of free-radicals in XPTFE500 at elevated temperatures under air, which is generally related to the motion of the molecular chain segment. Thus, XPTFE500 was thermally treated (from room temperature to 280 °C) under air atmosphere to track the decay of free-radicals. Figure 9a shows the ESR spectrum of XPTFE500 exposed to an irradiation dose of 100 kGy under air atmosphere, with heat treatment. The ESR peaks gradually became less intense with increasing temperature, and finally disappeared when the temperature reached 280 °C. No noticeable variations in the shape of the ESR spectra were detected below the temperature of 230 °C. No generation of new free-radicals was observed with increasing temperature because the temperature was relatively low and was not sufficient to break the molecular chains or induce new reactions in XPTFE500. In this case, the free-radicals decayed mainly by reacting with oxygen, and migration of the free-radicals was accelerated at elevated temperatures. Oshima et al. [36] concluded that α, β, and γ relaxation processes occurred in PTFE at approximately 130, 19, and −97 ℃, respectively. By introducing crosslinking, the α relaxation temperature became lower, while γ relaxation occurred at higher temperatures, and no β relaxation was observed. As shown in Fig. 8b, the free-radicals trapped in XPTFE decayed fastest within the temperature interval of 80–130 °C, indicative of the α relaxation process (corresponding to long-range molecular motion). Migration and recombination of the free-radicals, as well as the diffusion of oxygen, were accelerated above the α relaxation temperature. Therefore, the decay rate of samples in this temperature interval increased significantly. In conclusion, it is feasible to achieve rapid decay of trapped free-radicals by increasing the temperature to accelerate the migration rate of the molecular chain segments.

Fig. 9Full-screen View

(Color online) Temperature-dependent changes in ESR spectra of XPTFE500 with 100 kGy irradiation dose under air (a); variation in free-radical concentration with temperature (b).
