Introduction

When a spacecraft is in space, it is constantly exposed to a space radiation environment. When high-energy charged particles are incident on the sensitive volume of electronic devices in a spacecraft, the radiation will affect these devices in various ways, which may disturb the logic of the device, affect the device performance, reduce the reliability, and even permanently damage the spacecraft. To ensure a stable operation of the spacecraft in space, it is necessary to study the space radiation effect and construct more radiation-resistant electronic devices.

To study the effects of space radiation, in addition to theoretical analysis and simulation, it is necessary to conduct radiation experiments. Compared with sending electronic devices into space for experiments, accelerator-based ground radiation environment simulations are more convenient and economical. Based on the fact that protons account for the largest portion of space radiation and cause the most damage, many international laboratories have built accelerators and beamlines for studying proton radiation effects, such as the 230舁MeV cyclotron at Indiana University [1] in the US and Paul Scherrer Institute in Switzerland [2].

The Xi'an Proton Application Facility (XiPAF) is the first Chinese facility dedicated to simulating space radiation environments. It consists of a 7舁MeV linac injector, a synchrotron (60~200舁MeV), and two experimental stations [3, 4]. According to the requirements of space radiation simulation, the proton accelerator should provide a quasi-DC-extracted beam with an adjustable width from 1舁s to longer than 10舁s. Third order resonance extraction is adopted to obtain a long extraction time. The RF-knockout (RF-KO) method [5] is used to feed the excited resonance by exciting the particles transverse emittance growth. The RF-KO method is widely used in the hadron therapy field because of its quick response to beam-on and beam-off applications. Moreover, it can easily control the intensity of the extracted beam.

The extracted beam in the third-order extraction is also referred to as the “spill". The spill uniformity is crucially important in some applications, namely, "fixed target experiments" [6, 7] and hadron therapy [8]. The third-order resonant extraction process is sensitive to the horizontal betatron tune because the horizontal betatron tune is close to the third-order resonance. Owing to the sensitive nature of the third-order resonant extraction, the tune ripple has a significant influence on the temporal structure of the beam spill. Tune ripples can induce betatron tune fluctuations, which lead to the temporal modulation of the spill. In other words, the tune ripple is transferred to the beam spill ripple via betatron tune modulation.

Tune ripples mainly originate from the power supply ripple, especially the main dipole and quadrupole power supply. To deal with the power supply ripple, a lot of research and efforts have been made to explain how the power supply ripple transfers to the beam spill ripple and mitigate the power supply ripple influence. Research regarding the transfer function between the quadrupole power supply ripple and beam spill ripple in quadrupole-driven resonance slow extraction has been reported in J-PARC [9] and CERN [6]. The transit time during the slow extraction process has been researched in proton ion medical machine study (PIMMS) [10] and has been utilized to suppress the spill ripple caused by the power supply ripple in GSI SIS-18 [7, 11]. However, these studies are mainly concerned with the power supply ripple in quadrupole-driven slow extraction rather than RF-KO slow extraction.

In third-order slow extraction, the stable triangle separatrix area depends on the horizontal betatron tune distance from the third-order resonance, in addition to the sextupole field strength. Therefore, the betatron tune variation induces a stable separatrix area variation. In quadrupole-driven slow extraction, the stable separatrix area slowly shrinks with time owing to moving the machine tune towards resonance. If there is a tune ripple, the area shrinkage is modulated by the tune ripple; then the spill ripple occurs. However, RF-KO slow extraction is somewhat different from quadrupole-driven slow extraction. In RF-KO slow extraction, the stable separatrix area remains constant and a transverse RF-field is used to excite the particle emittance growth to enter the unstable area. Quadrupole-driven slow extraction has no such emittance growth caused by the RF-field. Naturally, in RF-KO slow extraction, not only the separatrix area but also the emittance growth is affected by the tune ripple. The emittance growth rate in RF-KO slow extraction usually depends on the parameters of the RF-field used to excite particles, in addition to the horizontal betatron tune. Based on the tune ripple effect, the betatron tune fluctuates while the RF-KO parameters remain constant, which induces emittance growth rate variation and finally is transferred to beam spill ripple. The separatrix area and emittance growth rate variations both contribute to spill ripple. However, in a previous study on the tune ripple influence in RF-KO slow extraction [12], only the variation of the stable separatrix area was considered and tune ripple influence on the emittance growth was neglected. In this study, a model is proposed to explain how the tune ripple is transferred to the beam spill ripple in RF-KO slow extraction, which includes both the stable separatrix area and beam emittance growth rate variation. Subsequently, a simulation using the XiPAF synchrotron lattice was performed to verify the model.

A previous study on tune ripple effect in RF-KO slow extraction

A model of how the tune ripple transfers to the beam spill ripple in RF-KO slow extraction has been proposed in a previous study by HIMAC [12]. The stable triangle separatrix area A produced by the third-order resonance and sextupole magnetic field is defined as follows: $A=48\sqrt{3}{\pi }^2\frac{q^2}{S^2}\mathrm{,}$ (1) where $q\equiv Q_x-Q_{\text{res}}$, Qx is the horizontal betatron tune, Q_res is the resonance tune, q is the horizontal betatron tune distance from the third-order resonance, and S is the normalized strength of a virtual sextupole created by an arrangement of N sextupoles. The stable triangle separatrix area depends on q and S. Therefore, the stable triangle separatrix area variation can be expressed as follows: $\frac{\Delta A}{A}=2\frac{\Delta q}{q}-2\frac{\Delta S}{S}\mathrm{.}$ (2) The condition $|(\Delta q/q)/(\Delta S/S)|\gg 1$ is usually satisfied because the betatron tune is close to the resonance and q is very small. Hence, the effect of sextupole ripple can be neglected compared with that of the tune ripple.

The beam is extracted at an intensity of I particles per second (PPS) using the RF-knockout slow extraction method; the extracted beam intensity remains constant without the ripple effect. The beam spill ripple is induced by the separatrix area variation through the tune ripple by spilling out the particles near the separatrix. Considering the separatrix area variation, the extracted beam intensity I is expressed as follows: $I\left(t\right)=I_0-\rho \frac{\text{d}A(t)}{\text{d}t}\mathrm{,}$ (3) where I₀ is the extracted beam intensity without any ripple influence and ρ is the average particle density near separatrix.

The main dipole or quadrupole power supply ripple causes a betatron tune ripple. Without loss of generality, we assume that the betatron tune fluctuates with ripple frequency f and amplitude a as follows: $q\left(t\right)=q_0+a\sin (2\pi ft)\mathrm{,}$ (4) where q₀ is the tune distance without the tune ripple effect. The tune ripple amplitude a is usually quite small compared with that of q₀. Therefore, considering first-order approximation, I(t) can be expressed as follows: $\begin{array}{ll}I\left(t\right)\hfill & =I_0-\rho \frac{\text{d}A\left(t\right)}{\text{d}t}=I_0-\rho \frac{2A\left(t\right)}{q\left(t\right)}\frac{\text{d}q\left(t\right)}{\text{d}t}\hfill \\ \hfill & =I_0-4\pi fa\rho \frac{A(t)}{q(t)}\cos (2\pi ft)\hfill \\ \hfill & \approx I_0-4\pi fa\rho \frac{A_0}{q_0}\cos (2\pi ft)\mathrm{,}\hfill \end{array}$ (5) where $A_0=48\sqrt{3}{\pi }^2\frac{q_0^2}{S^2}$. The beam spill ripple amplitude I_r can be defined as follows: $I_{\text{r}}\equiv 4\pi fa\rho \frac{A_0}{q_0}\mathrm{.}$ (6) From Eq. (6), it can be found that the beam spill ripple amplitude induced by the tune ripple is proportional to the tune ripple amplitude a, frequency f, and average particle density near separatrix ρ. However, notice that only the stable triangle separatrix area variation caused by the tune ripple is considered in this model. The emittance growth is not considered. The experimental data [12] for the beam spill ripple amplitude induced by the tune ripple are presented in Fig. 1. Observe that the beam spill ripple amplitude is proportional to the tune ripple amplitude, and the vertical axis intercept is almost zero in Fig. 1. However, the vertical axis intercept in Fig. 1 is nonzero, which means that the spill ripple is not proportional to the tune ripple frequency. Although there are only two frequencies in Fig. 1, the nonzero intercept is clear. Moreover, the intercept depends on the tune ripple amplitude, whose value increases with the tune ripple amplitude. This means that the experimental results are inconsistent with the theoretical analysis obtained from the model. The emittance growth rate variation is neglected in this model, which may have caused the difference between theoretical and experimental results.

Fig. 1Full-screen View

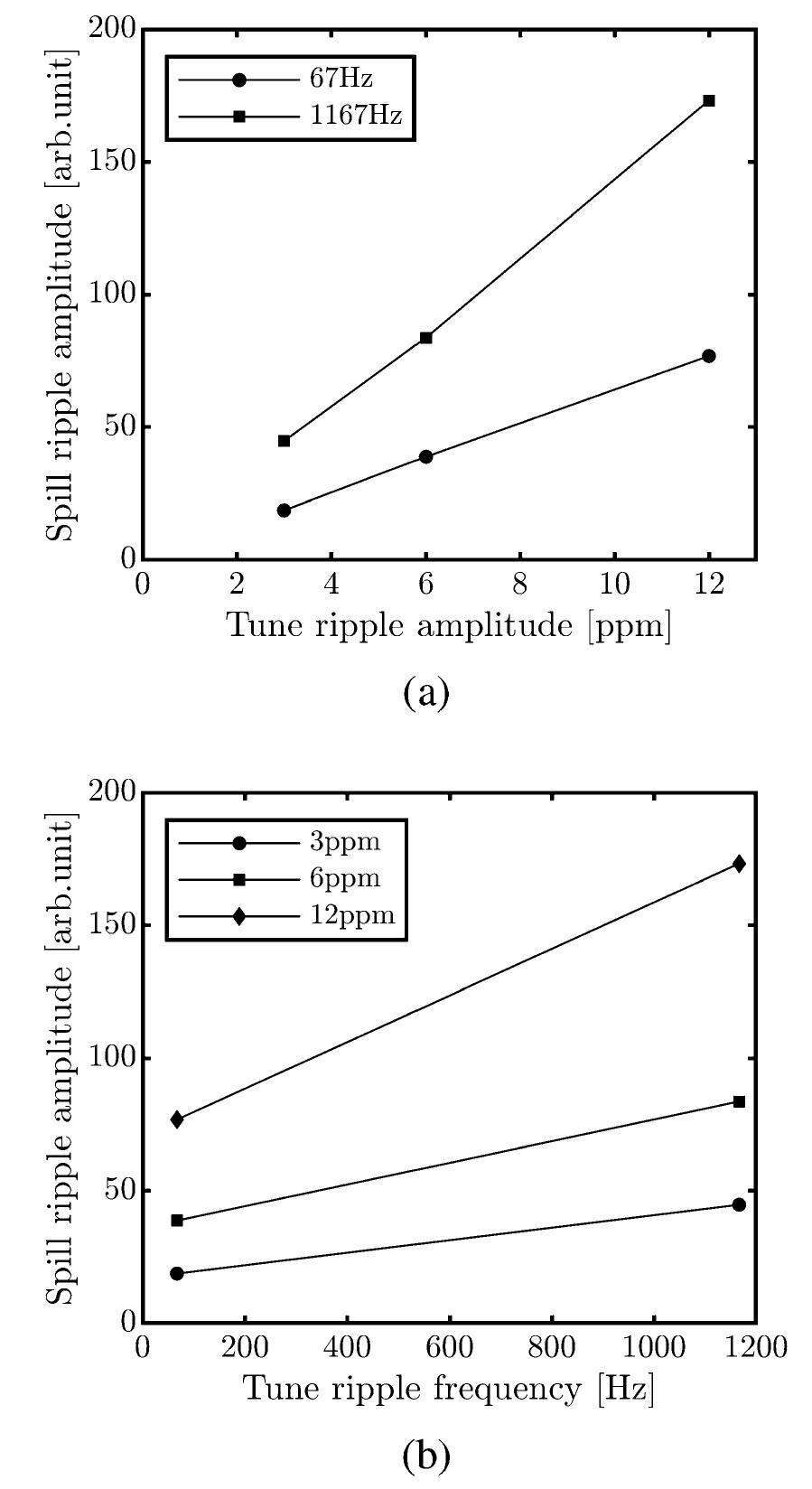

Experimental data from [12]. (a) Spill ripple amplitude vs. tune ripple amplitude for different tune ripple frequencies and (b) spill ripple amplitude vs. tune ripple frequency for different tune ripple amplitudes.

A novel beam spill ripple model

We propose a novel model to describe the beam spill ripple, which includes the influence of separatrix area and emittance growth rate variation.

If the particle distributions in x and x' directions follows a Gaussian distribution, the radial distribution function of the particles in the normalized phase space (X,X’) can be expressed using the Rayleigh distribution function as follows [13] : $p\left(r\right)=\frac{2r}{{\sigma }^2}\exp (-\frac{r^2}{{\sigma }^2})\mathrm{,}$ (7) where $r=\sqrt{X^2+X{’}^2}$, σ²=2ε_rms and ε_rms is the root-mean-square (RMS) emittance. In the third-order extraction, the stable triangle separatrix defines the boundary r₀, where $r_0=\sqrt{A/\pi }$. It is assumed that particles with a radial amplitude larger than r₀ are extracted from the ring. Therefore, the total number of extracted particles N_ext can be expressed as follows: $N_{\text{ext}}(n)={\displaystyle {\int }_{r_0}^{\infty }}{N}_{0}p(r)dr=N_0\exp \left(-\frac{r_0^2}{{\sigma }^2(n)}\right)\mathrm{,}$ (8) where N₀ is the total number of particles stored in the ring, n is the revolution turn number, and σ²(n) changes with the turn in RF-KO slow extraction because of the transverse RF-field excitation. Thus, the particles extracted per turn or beam intensity can be represented as follows: $I\left(n\right)=\frac{\text{d}{N}_{\text{ext}}}{\text{d}n}=N_0\frac{\text{d}{\sigma }^2\left(n\right)}{\text{d}n}\frac{r_0^2}{{\sigma }^4(n)}\exp \left(-\frac{r_0^2}{{\sigma }^2(n)}\right)\mathrm{.}$ (9) In RF-KO slow extraction, a transverse RF-field is applied to diffuse the particles. Under transverse RF-field diffusion, σ²(n) can be expressed as follows[13]: $\text{d}{\sigma }^2\left(n\right)=k{\theta }^2\left(n\right)\text{d}n\mathrm{,}$ (10) where θ is the kick angle amplitude of the transverse RF-field and k is a coefficient related to the parameters of the RF-KO and horizontal betatron tune. By choosing a suitable amplitude modulation function θ(n), where ∂N_ext/∂n remains constant, a flat spill can be achieved. However, if a tune ripple is induced by the power supply ripple, the beam intensity will be affected.

Figure 2 shows the Steinbach diagrams for the RF-KO slow extraction process without and with ripple, respectively. In a Steinbach diagram, the horizontal axis represents the betatron tune of the particles and vertical axis represents the particle radial amplitude in the normalized phase space. The separatrix divides the normalized phase space into two regions: a stable and an unstable area. The particles in the stable area are excited by a transverse RF-field; then, these particles' emittance growths enter the unstable area. If there is no tune ripple, the separatrix area and emittance growth rate are both constant. However, both the separatrix area and emittance growth rate fluctuate if a tune ripple exists. The separatrix area and emittance growth variation affect the beam spill.

Fig. 2Full-screen View

Steinbach diagram of the RF-KO slow extraction (a) without tune ripple influence and both a constant separatrix area and emittance growth rate; (b) with tune ripple influence and both a fluctuating (time-varying) separatrix area and emittance growth rate.

First, we consider the influence of the tune ripple on the stable triangle separatrix area. r₀ is the equivalent radius of a circle with the same area as the stable triangle. In other words, $\pi r_0^2$ is equal to the separatrix area A₀. With the tune ripple effect, the separatrix area is no longer a constant and can be expressed as: $\begin{array}{ll}{r}^2\hfill & ={\left(r_0+\Delta r\sin \left(2\pi fnT\right)\right)}^2\hfill \\ \hfill & \approx r_0^2+2r_0\Delta r\sin (2\pi fnT)\mathrm{,}\hfill \end{array}$ (11) where T is the revolution period of the reference particle and Δ r is proportional to the tune ripple amplitude a. The extracted beam intensity can be expressed as follows: $\begin{array}{c}I\left(n\right)=\frac{\text{d}{N}_{\text{ext}}}{\text{d}n}=N_0\left[\frac{r^2}{{\sigma }^4}\frac{\text{d}{\sigma }^2}{\text{d}n}-\frac{1}{{\sigma }^2}\frac{\text{d}{r}^2}{\text{d}n}\right]\exp \left(-\frac{r^2}{{\sigma }^2}\right)\\ =N_0\frac{1}{{\sigma }^2}\left[\frac{r^2}{{\sigma }^2}k{\theta }^2-4\pi fT{r}_0\Delta r\cos \left(2\pi fnT\right)\right]\\ \exp \left(-\frac{r^2}{{\sigma }^2}\right)\mathrm{.}\end{array}$ (12) The first term on the right side of Eq. (12) can be considered a constant, while the second cosine term denotes the spill ripple induced by separatrix area fluctuation. Because $\Delta r\propto a$, the spill ripple amplitude is proportional to the tune ripple amplitude and frequency. This conclusion agrees with Eq. (6) taken from the previous model.

Then, we consider the influence of the tune ripple on emittance growth. In RF-KO slow extraction, to excite all particles effectively, the transverse RF-field should have a frequency bandwidth Δ f that covers the betatron tune spread. In general, the center frequency and bandwidth of RF-KO are chosen to cover the tune spread. The coefficient k mentioned in Eq. (10) represents the emittance growth rate. The larger the value of k is, the faster the emittance increases. The coefficient k is related to the beta function β, center frequency of RF-KO, bandwidth of RF-KO, and betatron tune [13]. Here, k is proportional to β and 1/Δ f. The variation in β caused by tune variation is quite small, which is not the main reason for the variation in k. In fact, the change in Δ f is the main reason for this. When the tune varies, the tune spread also changes. However, the center frequency and bandwidth of RF-KO remains constant. The parameters of RF-KO do not match the betatron tune and tune spread. In other words, the effective bandwidth of RF-KO vary as well. Thus, the emittance growth rate, that is, the coefficient k, varies. If the variation is small, considering the first-order approximation, k can be expressed as follows: $\begin{array}{ll}k\hfill & =k_0+K_q(q-q_0)=k_0+K_{q}a\sin (2\pi fnT)\hfill \\ \hfill & =k_0+\Delta k\sin (2\pi fnT)\mathrm{,}\hfill \end{array}$ (13) where Kq is the coefficient of the first-order approximation, k₀ represents the emittance growth rate or RF-KO excitation efficiency without the ripple effect, and $\Delta k\equiv K_{q}a$ denotes the variation of k, which is proportional to the tune ripple amplitude a. Note that Eq. (13) requires that the repetition frequency of FM (frequency modulation) is much larger than the tune ripple frequency. k is the average emittance growth rate in an FM period. The higher the repetition frequency of FM is, the shorter is the FM period. A shorter FM period means that the emittance growth is modulated by the tune ripple more clearly. If the repetition frequency of FM is smaller than the tune ripple frequency, the FM period is longer than that of the tune ripple, which means that in an FM period, the betatron tune variation averaged over time is extremely small. Thus, the emittance growth rate modulation by the tune ripple is weak and Eq. (13) may no longer hold.

After considering the emittance growth rate variation, the beam intensity can be expressed as follows: $\begin{array}{c}I\left(n\right)=\frac{\text{d}{N}_{\text{ext}}}{\text{d}n}\\ =N_0\frac{1}{{\sigma }^2}[\frac{r^2}{{\sigma }^2}\left(k_0+\Delta k\sin \left(2\pi fnT\right)\right){\theta }^2\\ -4\pi fT{r}_0\Delta r\cos \left(2\pi fnT\right)]\exp \left(-\frac{r^2}{{\sigma }^2}\right)\\ =N_0\frac{1}{{\sigma }^2}[\frac{r^2}{{\sigma }^2}{k}_0{\theta }^2+\frac{r^2}{{\sigma }^2}{\theta }^2\Delta k\sin \left(2\pi fnT\right)\\ -4\pi fT{r}_0\Delta r\cos \left(2\pi fnT\right)\exp \left(-\frac{r^2}{{\sigma }^2}\right)]\\ =N_0\frac{1}{{\sigma }^2}[\frac{r^2}{{\sigma }^2}{k}_0{\theta }^2+\sqrt{{\left(\frac{r^2}{{\sigma }^2}{\theta }^2\Delta k\right)}^2+{\left(4\pi fT{r}_0\Delta r\right)}^2}\\ \sin \left(2\pi fnT+\varphi \right)]\exp \left(-\frac{r^2}{{\sigma }^2}\right)\mathrm{,}\end{array}$ (14) where $=-4\pi fT{r}_0\Delta r/(\frac{r^2}{{\sigma }^2}{\theta }^2\Delta k)$.

There are two terms regarding the beam spill ripple in Eq. (14). As mentioned previously, the cosine term denotes the spill ripple caused by the stable triangle separatrix area variation, whose amplitude is proportional to the tune ripple amplitude and frequency. The sine term represents the spill ripple induced by emittance growth rate variation, whose amplitude depends only on the tune ripple amplitude. If the tune ripple frequency f approaches zero, then the amplitude of the cosine term also approaches zero. However, the amplitude of the sine term remains the same, which causes a nonzero intercept as depicted in Fig. 1. Note that certain parameters mentioned in Eq. (14), namely, k₀ and Δ k, are difficult to determine theoretically, and σ² and θ are time-dependent. Thus, Eq. (14) is suitable only for qualitative analysis. It is almost impossible to calculate the real spill ripple using Eq. (14).

Furthermore, the cosine and sine terms can be summed as a sine term as shown in Eq. (14). Because both Δ r and Δ k are proportional to the tune ripple amplitude a, the relationship between the beam spill ripple and tune ripple amplitudes and frequency can be expressed as follows: $I_{\text{r}}\propto \sqrt{{\left(\frac{r^2}{{\sigma }^2}{\theta }^2\Delta k\right)}^2+{\left(4\pi fT{r}_0\Delta r\right)}^2}\propto a\sqrt{1+c{f}^2}\mathrm{,}$ (15) where c is a coefficient. Observe that the beam spill ripple amplitude has a linear dependence on the tune ripple amplitude and nonlinear dependence on the tune ripple frequency.

Simulation method and results

4.2

Influence of the power supply ripple amplitude

To measure the correlation between the beam spill ripple and QF ripple amplitudes, we fixed the QF ripple frequency at 50舁Hz and varied the amplitude from 50舁ppm (parts per million) to 300舁ppm. Figure 3 shows the time structure of the spill under different QF ripple amplitudes. The beam intensity fluctuates significantly as the QF ripple amplitude increases.

Fig. 3Full-screen View

Simulation results of the extracted beam spill under different power supply ripple amplitudes: (a) QF power supply ripple is a sine waveform with a frequency of 50舁Hz and amplitude of 100舁ppm. (b) QF power supply ripple is a sine waveform with a frequency of 50舁Hz and amplitude of 250舁ppm.

Although the beam spill ripple amplitude is time-dependent, the average amplitude can be obtained by FFT. The correlation between the average normalized beam spill ripple and QF ripple amplitudes is depicted in Fig. 4. Observe from Fig. 4 that the average normalized beam spill ripple amplitude linearly depends on the QF ripple amplitude and the intercept of the vertical axis is almost zero, which agrees well with the theoretical analysis results.

Fig. 4Full-screen View

Correlation between the average normalized beam spill ripple and QF power supply ripple amplitudes. The dashed line is the curve fitted using a linear fit, and the dots represent the data obtained from the simulation results. The linear dependence can be observed; the intercept of the vertical axis is almost zero.

4.3

Influence of the power supply ripple frequency

To measure the correlation between the beam spill ripple amplitude and QF ripple frequency, QF ripple amplitude was kept constant while the frequency was varied from 25舁Hz to 250舁Hz. In this simulation, the QF ripple amplitude was fixed at three values, namely, 100舁ppm, 150舁ppm, and 200舁ppm. Figure 5 shows the time structure of the spill under different QF ripple frequencies. The extracted beam intensity fluctuates significantly as the QF ripple frequency increases.

Fig. 5Full-screen View

Simulation results of the extracted beam spill under different power supply ripple frequencies: (a) QF power supply ripple is a sine waveform with a frequency of 100舁Hz and amplitude of 200舁ppm. (b) QF power supply ripple is a sine waveform with a frequency of 200舁Hz and amplitude of 200舁ppm.

From Eq. (15), the relationship between the average normalized beam spill ripple amplitude I_nr and QF power supply ripple frequency can be deduced as follows: $I_{\text{nr}}=c_1\sqrt{1+c_2{f}^2}\mathrm{,}$ (17) where c₁ and c₂ are the fitting coefficients. According to Eq. (15), c₁ is proportional to QF ripple amplitude whereas c₂ is independent of QF ripple amplitude. The correlation between the average normalized beam spill ripple amplitude and QF ripple frequency obtained via the simulation is presented in Fig. 6. The dashed lines in Fig. 6 are the curves fitted using Eq. (17). Observe that the relationship between the average normalized spill ripple amplitude and QF ripple frequency is nonlinear.

Fig. 6Full-screen View

Correlation between the average normalized beam spill ripple amplitude and QF power supply ripple frequency. The dashed lines represent the curves fitted using Eq. (17). The diamonds, squares, and dots represent the data obtained from the simulation results with QF power supply ripple amplitudes of 100舁ppm, 150舁ppm, and 200舁ppm, respectively. A nonlinear dependence can be observed, and the intercept of the vertical axis is nonzero.

Coefficients c₁ and c₂ can be derived by fitting the simulation data. The QF ripple amplitudes were set to 100舁ppm, 150舁ppm, and 200舁ppm in the simulations. The values of c₁ are 0.0882, 0.1373, and 0.1854, respectively, and the values of c₂ are 4.5e-4, 4.1e-4, and 4.1e-4, respectively, with each amplitude value. c₁ is approximately proportional to the QF ripple amplitude, whereas c₂ is independent of QF ripple amplitude. In other words, the relationship between the fitting coefficients c₁, c₂, and QF ripple approximately agrees with the theoretical analysis results obtained from the model.

Furthermore, we compared the fluctuation effect of the separatrix area with that of the emittance growth rate obtained from the simulation results. The nonzero intercept of the vertical axis results from emittance growth rate fluctuation. According to the fitted curves presented in Fig. 6, the intercepts were 0.0882, 0.1373, and 0.1854, respectively, for the three conditions. For the low-frequency QF ripple, taking 50舁Hz as an example, the normalized spill ripple amplitudes were 0.1262, 0.1928, and 0.2486, respectively. This implies that in the low-frequency regime (< 50 Hz), the spill ripple is mainly determined by the emittance growth rate fluctuation effect. In the high-frequency regime (> 100 Hz), fluctuation in the separatrix area is dominant. Note that this conclusion may not be established for all situations because the emittance growth rate variation depends on the parameters of the RF-KO. Different RF-KO parameters cause different spill ripples.

4.4

Emittance fluctuation

The simulation program Li-Track can output the phase space distribution of particles at a fixed frequency. Thus, the circulating beam evolution in the phase space can be obtained during the RF-KO slow extraction process. Figures 7 and 8 demonstrate the circulating beam evolution in the normalized phase space in one QF ripple period. The frequency of QF ripple is 50舁Hz; therefore, its period is 20舁ms. The subgraph in Fig. 7 and Fig. 8 correspond to the normalized phase space at different moments. In Fig. 7, the amplitude of the QF ripple is zero and there is no ripple effect. In Fig. 8, the frequency of the QF ripple is 50舁Hz and amplitude is 200舁ppm. Compared with Fig. 7, the evolution in the normalized phase space depicted in Fig. 8 is different owing to the QF ripple effect. This indicates that the QF ripple influences not only the separatrix area but also the emittance growth. In RF-KO slow extraction, there are two tune regions: the extraction region near the boundary of the separatrix and diffusion region deep inside the separatrix [16]. Because of the emittance growth caused by RF-KO, the particles in the diffusion region are diffused into the extraction region and then extracted from the extraction region. The extracted beam intensity is determined by the particle density near the separatrix (i.e., the extraction region) and extraction rate from the extraction region to the unstable area. Because the QF ripple affects the emittance growth, the diffusion rate from the diffusion region to the extraction region and extraction rate from the extraction region to the unstable area change. Both the particle density in the extraction region and extraction rate vary, both of which contribute to the beam spill ripple.

Fig. 7Full-screen View

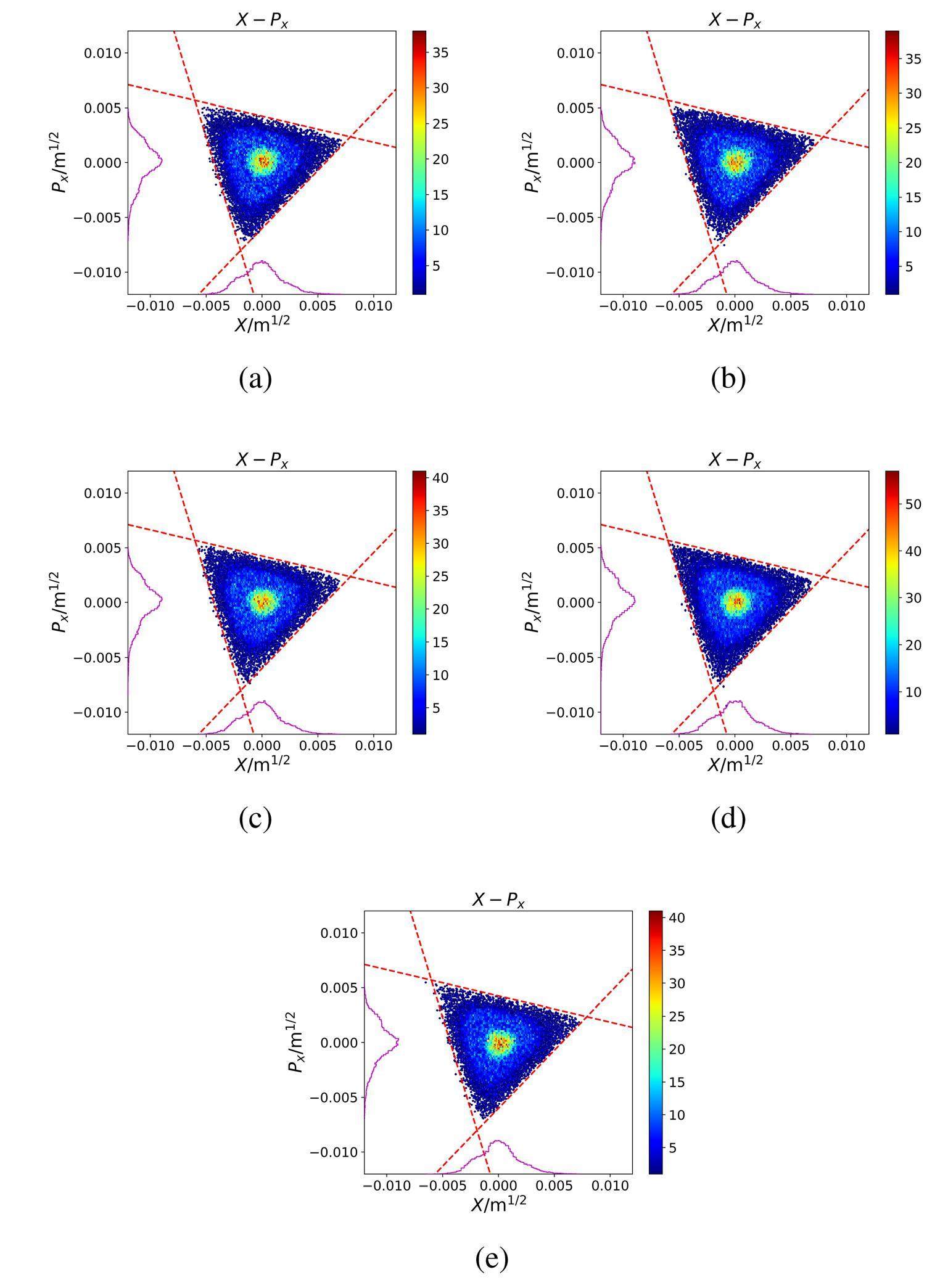

(Color online) Circulating beam evolution in the normalized phase space without any QF ripple. (a), (b), (c), (d), and (e) correspond to the phase space at times 100舁ms, 105舁ms, 110舁ms, 115舁ms, and 120舁ms, respectively.

Fig. 8Full-screen View

(Color online) Circulating beam evolution in the normalized phase space in one QF ripple period. A QF ripple with a frequency of 50舁Hz and amplitude of 200舁ppm was considered. (a), (b), (c), (d), and (e) correspond to the phase space at times 100舁ms, 105舁ms, 110舁ms, 115舁ms, and 120舁ms, respectively.

We calculated the change in emittance with respect to time to directly observe the circulating beam evolution in phase space. To exclude the influence of separatrix area fluctuation, particles near the separatrix were not included when calculating the RMS emittance. Only particles with emittances smaller than 25舁pi ·mm ·mrad were considered. The separatrix area was 28.2舁pi ·mm ·mrad without a ripple effect, which could be shrunk to 26.7舁pi .mm.mrad with a 200舁ppm QF ripple. Therefore, the 25舁pi ·mm ·mrad was sufficiently small to exclude the influence of separatrix area fluctuation. The RMS emittance varied over time under different conditions as shown in Fig. 9. The RMS emittance was effectively modulated by the QF ripple compared to the no-power-supply ripple case, which agrees with the theoretical analysis. As mentioned previously, the emittance growth rate depends on the parameters of RF-KO; consequently, it is possible to adjust the RF-KO parameters to reduce the emittance growth rate fluctuation.

Fig. 9Full-screen View

(Color online) RMS emittance vs. time under different conditions.

Discussion

The beam spill ripple originates from two phenomena: the stable triangle separatrix fluctuation and emittance growth rate fluctuation. Therefore, we can mitigate the influence of the tune ripple considering two perspectives. The first is to reduce the separatrix area fluctuation influence; for example, by enlarging the betatron tune distance and sextupole field strength simultaneously while keeping the separatrix area constant [12] or lowering the particle density near the separatrix by an extra transverse RF-field [17]. Another is to reduce the emittance growth rate sensitivity to tune ripple, which requires determining adequate RF-KO parameters. As mentioned in Sect. 3, a shorter FM period means that the emittance growth is modulated by the tune ripple more clearly. Hence, appropriately reducing the repetition frequency and lengthening the FM period is a possible way to mitigate the power supply influence. The effects of other parameters, such as the center frequency and bandwidth of the RF-KO, still need to be researched. Further study is needed to realize the mitigation tune ripple influence from the emittance growth perspective.

Conclusion

The tune ripple significantly affects the beam spill ripple in RF-KO slow extraction. A novel beam spill-ripple model is proposed in this study. On the one hand, the tune ripple causes the separatrix area fluctuation; on the other hand, it influences the emittance growth rate in the RF-KO extraction method. These two aspects simultaneously contribute to the beam spill ripple. To verify this model, a simulation was performed using the XiPAF synchrotron lattice. The simulation results agreed well with those of the theoretical analysis. Further studies are still needed to mitigate the tune ripple influence to a greater extent.
