Introduction

Superconducting radio-frequency (SRF) cavities are widely used in modern particle accelerators [1], including high-energy colliders [2, 3], synchrotron light sources [4], free electron lasers [5-7], and proton/neutron sources [8-12]. SRF cavities made of niobium, which has a high residual resistance ratio (RRR), and exhibiting a high accelerating gradient (E_acc) and high intrinsic quality factor (Q₀) are required for such accelerators. Therefore, many technologies and approaches have been studied to improve the E_acc and Q₀ of SRF cavities; these approaches include the International Linear Collider (ILC) recipe, nitrogen doping, and mid-T baking [13-17]. The electropolishing (EP) technique has been developed into a standard treatment for the 1.3 GHz 9-cell cavity for the ILC and is known as “the ILC recipe”. The maximum E_acc of 1.3 GHz 9-cell cavities achieved using the ILC recipe exceeds 40 MV/m, which is remarkably high for SRF cavities [5, 18, 19]. The 2/0 recipe (two minutes of nitrogen exposure followed by zero minutes of annealing at 800 ℃ in a furnace) was used for the nitrogen doping of 1.3 GHz 9-cell cavities for the Linac Coherent Light Source II High Energy. Consequently, the Q₀ of the cavities was improved to 3.0 × 10¹⁰ at 21 MV/m, which is higher than the specification of the Linac Coherent Light Source II (2.7 × 10¹⁰ at 16 MV/m) [20]. Moreover, following mid-T furnace baking, the Q₀ of 1.3 GHz 9-cell cavities reached 3.8 × 10¹⁰ at 16 MV/m on average at the Institute of High Energy Physics (IHEP), Chinese Academy of Sciences [21]. Thus, exceptionally high E_acc and Q₀ have been achieved for the 1.3 GHz 9-cell cavities.

The Circular Electron Positron Collider (CEPC), which was proposed by the IHEP in 2012, is a 100-km collider with a center-of-mass energy of 90-240 GeV for Z, W, and Higgs bosons [22]. Precise measurements of the Higgs boson are considered critical for developments in high-energy physics. The CEPC is capable of producing 1,000,000 Higgs bosons within 10 years and is regarded as a Higgs factory. The SRF system of the CEPC is critical and challenging owing to the wide range of beam energies and currents [23]. The booster ring of CEPC adopts 1.3 GHz 9-cell cavities, as well as E-XFEL and ILC. The collider ring of the CEPC adopts hundreds of 650 MHz SRF cavities operated in the continuous wave (CW) mode [24], which compensate for the loss of beam energy resulting from synchrotron radiation. Large elliptical (< 1 GHz) cavities with high E_acc and Q₀ have been widely adopted for accelerator applications, such as in the European Spallation Source (ESS) [8], Facility Rare Isotope Beams (FRIB) [9], Spallation Neutron Source (SNS) [10], Proton Improvement Plan II (PIP-II) [12], Beijing Electron Positron Collider II (BEPC II) [25], and the China initiative Accelerator Driven System (CiADS) [26]. However, they have not been studied as extensively as 1.3 GHz cavities. The operation specification of 805 MHz cavities with β = 0.81 for SNS is 5.0 × 10⁹ @ 15.8 MV/m at 2.1 K [10], whereas the operation specification of 704.42 MHz cavities with β = 0.86 for ESS is 5.0 × 10⁹ @ 19.9 MV/m at 2.0 K [27]. The 650 MHz cavities with β = 0.92 for PIP-II require a Q₀ of 3.0 × 10¹⁰ at 18.8 MV/m (at 2.0 K), which indicates a requirement of a higher Q₀ than that required for ESS and SNS [12]. Finally, the 650 MHz cavities with β = 1 for CEPC require a Q₀ of 4 × 10¹⁰ at 22 MV/m during the vertical test (VT) at 2.0 K; these specifications are difficult to realize compared with those of other cavities.

In the past, large elliptical cavities were mostly processed using buffered chemical polishing (BCP), which met the specifications for projects such as ESS and SNS. BCP is more convenient and simpler than EP. However, the surface roughness of SRF cavities processed by BCP is almost an order of magnitude higher than that processed by EP; thus, achieving high E_acc by BCP is difficult [28-30]. Hence, cavities processed by BCP could not consistently exceed the specifications of the 650 MHz cavities for PIP-II and CEPC, whereas those processed by EP could achieve higher E_acc and Q₀. After the EP process, the 650 MHz single-cell cavity of PIP-II reached a maximum E_acc of ~ 37 MV/m at the Fermi National Accelerator Laboratory (FNAL), which is an ultrahigh value for large elliptical cavities [12]. However, EP is complicated to perform and is expensive. Thus, the combination of BCP and EP may be efficient and convenient for large elliptical cavities with high E_acc and Q₀. Therefore, validating the “BCP + EP” recipe for 650 MHz cavities is of considerable interest for our research. In our study, two 650 MHz single-cell cavities for CEPC were processed by BCP and EP, both of which exceeded the E_acc of 40 MV/m.

The remainder of this paper is organized as follows. Section 2 briefly describes the materials used, fabrication, BCP process, and vertical test results of 650 MHz single-cell cavities. Section 3 describes the 1^st EP process and discusses the performance of the 650 MHz single-cell cavities. Section 4 describes the mid-T furnace baking implemented after the 1^st EP process. The 2^nd EP process (cold EP) and the performance of the cavities are discussed in detail in Sect. 5. Finally, the conclusions of this study are presented in Sect. 6.

BCP process

The two 650 MHz single-cell cavities, 650S4 and 650S5, investigated in this study, were made of fine-grain niobium, except for the flanges made of niobium-titanium (NbTi) alloy. The main parameters of the fine-grain niobium are listed in Table 1. The cavity components were formed by deep drawing and joined by electron beam welding. After fabrication, 650S4 and 650S5 were subjected to the same surface treatments, i.e., bulk BCP (~ 200 μm), high-temperature annealing at 800 ℃ for 3 h, and light BCP (~ 30 μm), all of which were conducted at Ningxia Orient Superconductor Technology Co., Ltd. (OSTEC). A mixture of hydrofluoric acid (HF), nitric acid (HNO₃), and orthophosphoric acid (H₃PO₄) in a ratio of 1:1:2 was adopted for the BCP process. Then, the cavities were transferred to the IHEP, where a high-pressure water rinse (HPR), an assembly with flanges in a cleanroom, and low-temperature baking (120 ℃ for 48 h) were performed. Uniform low-temperature baking was performed using a heating jacket, as shown in Fig. 1. Subsequently, vertical tests were conducted, as shown in Fig. 2. The residual magnetic field around the cavity was less than 5 mGs because of magnetic shielding inside the dewar [31, 32]. During the vertical tests, 650S4 and 650S5 were both quenched below an accelerating gradient of 25 MV/m, as shown in Fig. 3, along with a strong field emission. The accelerating voltage (V_C = E_acc × 0.23) and surface peak RF magnetic field (B_peak) as well as E_acc are adopted as scales of the RF field in Fig. 3. For 650S4 and 650S5, the relation between B_peak and E_acc is expressed as follows: B_peak/E_acc ≈ 4.2 mT/(MV/m). Thus, the Q₀ values of 650S4 and 650S5 were both lower than the CEPC VT specification of 4 × 10¹⁰ at 22 MV/m. Subsequently, 650S4 and 650S5 were subjected to the EP process.

Fig. 1Full-screen View

(Color online) Low-temperature baking of 650 MHz single-cell cavity

Fig. 2Full-screen View

(Color online) Vertical test of 650 MHz single-cell cavity

Fig. 3Full-screen View

(Color online) Vertical test results of 650S4 and 650S5, which demonstrate Q₀ and radiation versus accelerating gradient.

1st EP process

The EP was performed at the OSTEC, too. The setup of the EP process for the 650 MHz single-cell cavity is depicted in Fig. 4. The electrolyte for the EP process was a mixture of HF and H₂SO₄ at a ratio of 1:9. Various acid flow rates were investigated in this study. Finally, a flow rate of 15 L/min was used. A nominal voltage of 21 V was adopted for the EP process. First, 650S5 was subjected to EP, and its inner surface was removed by ~ 215 μm at < 25 ℃ and ~ 100 μm at ~ 17.5 ℃. Next, the surface of 650S4 was removed by ~ 20 μm by light EP at ~ 25 ℃, followed by high-temperature annealing at 950 ℃ for 3 h; subsequently, another removal of ~ 20 μm by light EP at ~ 17.5 ℃ was performed again. The details are introduced in [24]. Subsequently, 650S4 and 650S5 were shipped to the IHEP, where the HPR, assembly with flanges, low-temperature baking (120 ℃ for 48 h), and vertical tests were conducted. Higher E_acc and Q₀ values were observed after the EP process, as shown in Fig. 3. 650S4 quenched at ~ 35.0 MV/m with a Q₀ of 2.7 × 10¹⁰, whereas 650S5 quenched at ~ 37.5 MV/m with a Q₀ of 1.4 × 10¹⁰. The combination of BCP and EP was effective for achieving a high E_acc and Q₀ [13]. Hence, bulk EP in the ILC recipe may be replaced by bulk BCP, which is favorable mass production and surface treatments of SRF cavities. In addition, the Q₀ of 650S5 was slightly lower than that of 650S4 at a high gradient (> 20 MV/m), which may be because it was not subjected to high-temperature annealing [24]. Annealing can degas hydrogen trapped in niobium, thereby reducing the RF loss and increasing Q₀ of the SRF cavity [33].

Fig. 4Full-screen View

(Color online) Setup of EP process of 650 MHz single-cell cavity

Subsequently, 650S5 was again subjected to high-temperature annealing at 900 ℃ for 3 h, which was aimed at hydrogen degassing. Next, the 650 MHz single-cell cavities were transferred to an ISO 6 cleanroom. The inner and outer surfaces of the cavities were manually rinsed with Liquinox solution (2 %), followed by HPR, and then dried in the cleanroom.

Mid-T furnace baking

Following drying, the 650 MHz single-cell cavities were transferred to a furnace for mid-T baking. The recipe of baking at 300 ℃ for 3 h as well as 1.3 GHz cavities used in reference [21] were used. During the entire process, the cavities were supported by two niobium holders. The flanges of the cavities were covered with niobium foils, as shown in Fig. 5 (a), and were freshly polished chemically to prevent particles from entering the interior space of the cavities during the baking process. The vacuum and temperature curves during the mid-T furnace baking of 650S4 are shown in Fig. 5 (b). Prior to heating, the furnace was evacuated to an ultrahigh vacuum (< 5 × 10⁻⁶ Pa) using two cryopumps. The peak pressure reached ~ 2.3 × 10⁻⁵ Pa during the baking process. When the temperature dropped to ~ 50 ℃, the pressure decreased to ~ 2.1 × 10⁻⁶ Pa, and the cavity was removed from the furnace. The mid-T furnace baking of 650S5 was identical to that of 650S4.

Fig. 5Full-screen View

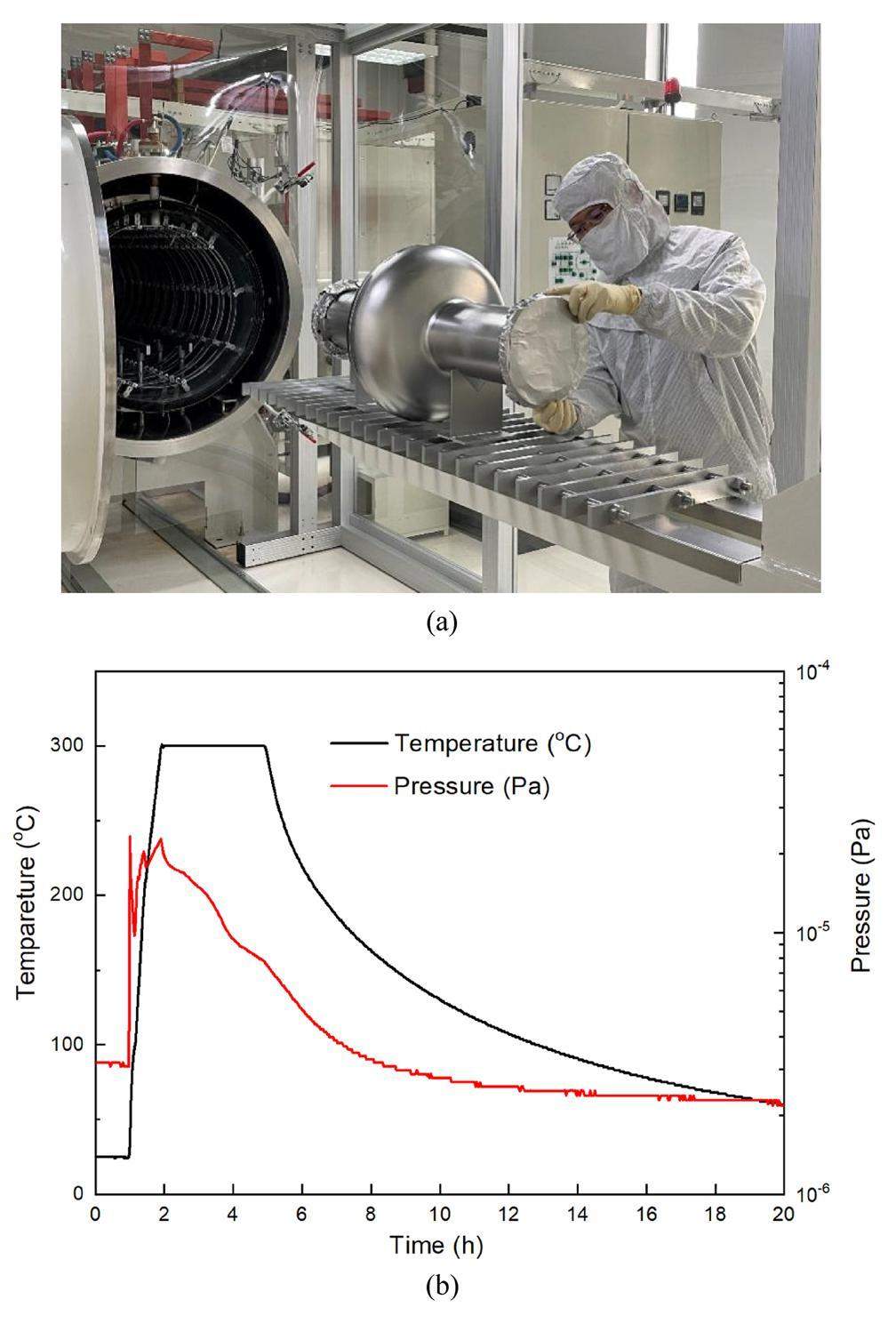

(Color online) Mid-T furnace baking of 650 MHz sing-cell cavity. (a) Setup of mid-T furnace baking for 650 MHz single-cell cavity with flanges covered by niobium foils; (b) Vacuum and temperature curves during mid-T furnace baking of 650S4.

Following mid-T furnace baking, 650S4 and 650S5 were subjected to HPR, clean assembly with flanges, and vertical tests; low-temperature baking was not performed. The curves of Q₀ versus E_acc during the vertical tests are shown in Fig. 3. Both cavities demonstrated significantly high Q₀ values for all the RF fields. The Q₀ values of 650S4 and 650S5 exceeded 8.0 × 10¹⁰ at 22 MV/m, which was twice that of the CEPC VT specification (4.0 × 10¹⁰). 650S5 achieved a high Q₀ of 6.4 × 10¹⁰ at 30 MV/m, which was a relatively high E_acc at this frequency. No field emissions were observed during the vertical tests of the 650S4 and 650S5. In addition, neither of the 650 MHz single-cell cavities demonstrated the anti-Q-slope behavior, which is typically observed in 1.3 GHz cavities subjected to mid-T baking [16, 17, 21]. Finally, 650S4 and 650S5 quenched at ~ 24.2 MV/m and ~ 31.2 MV/m, respectively. Thus, the maximum E_acc of the 650 MHz single-cell cavities subjected to mid-T furnace baking decreased substantially. In other words, mid-T furnace baking could increase the Q₀ of 650 MHz cavities but lowered the E_acc.

For the RF cavity, Q₀ is defined as Q₀ = G/RS, where G denotes the geometric factor, and R_S denotes the surface resistance. For 650S4 and 650S5, G is 284 Ω. Hence, the Q₀ of 650 MHz single-cell cavities was enhanced after mid-T furnace baking, indicating a reduction in R_S. R_S consists of two parts: temperature-dependent resistance (R_BCS) and temperature-independent resistance (R_res) [33-35]. $R_{\text{S}}=A\frac{f^2}{T}\exp \left(-\frac{\Delta T}{kT}\right)+R_{\text{res}}$ (1)

The first term in the equation is R_BCS, which depends on the Boltzmann constant (k), temperature (T), resonant frequency of the SRF cavity (f), energy gap of the superconductor (2Δ), and the fitting constant (A). A depends on material parameters.

For the investigations of R_BCS and R_res, 650S4 was subjected to vertical tests at different temperatures below 2.0 K. The R_BCS at 2.0 K and R_res of 650S4 were calculated using Equation (1), as shown in Fig. 6. The values were compared with those of the 1.3 GHz nine-cell cavity (N8), which was subjected to the EP process and mid-T furnace baking at 300 ℃ for 3 h [21]. The R_BCS of 650S4 was ~ 1 nΩ and remained constant as a function of E_acc and B_peak, similar to that of 650 MHz single-cell cavities subjected to nitrogen doping at FNAL [12]. The decrease in R_BCS as a function of the RF field for N8 was not reproduced for 650S4. It was observed that mid-T furnace baking and nitrogen doping could not reverse the R_BCS at the frequency of 650 MHz [12]. Therefore, the anti-Q-slope behavior could not be achieved for the 650 MHz cavity subjected to mid-T furnace baking. Therefore, the RF field dependence of R_BCS was correlated with the resonant frequency of the SRF cavity, which has been explained in detail in [34-36]. Furthermore, R_res increased gradually to ~ 2 nΩ with the RF field.

Fig. 6Full-screen View

(Color online) BCS resistance and residual resistance for 650S4 and N8. (a) R_BCS; (b) R_res

2nd EP process (cold EP)

Subsequently, 650S4 and 650S5 were subjected to 30 μm EP, aiming to eliminate mid-T furnace baking and reset the inner surface. The temperature for this 2^nd EP was lower than that of the 1^st EP and was maintained below ~ 13 ℃; thus, it was called “cold EP.” Recently, it was found that cold EP could achieve uniform removal of a 1.3 GHz cavity, thereby improving the quench field [37, 38].

For 650 MHz single-cell cavities, the surface removal at the beam tubes, irises, and equators, represented by Nos. 1 - 6 in Fig. 7 (a), was measured during the EP process. Fig. 7 (b) presents the results of the 1^st EP for 650S4, which indicate that the removal at the equators (3, 4) was less than that at the beam tubes (1, 6). Fig. 7 (c) shows the results of the 2^nd EP for 650S4, which demonstrate that the removal at the equators (3, 4) was almost the same as that at the beam tubes (1, 6). Therefore, the cold EP could successfully achieve uniform removal of the 650 MHz cavities as well as the 1.3 GHz cavity.

Fig. 7Full-screen View

(Color online) EP removal of 650S4: (a) Red arrows and numbers indicate the locations where thickness was measured; (b) surface removal of the 1^st EP; (c) surface removal of the 2^nd EP

After the 2^nd EP process, the inner surfaces of 650S4 and 650S5 were examined. There were no apparent defects in either of the cavities. The surface of 650S4 was similar before and after the 2^nd EP, as shown in Fig. 8. Both of the 650 MHz single-cell cavities were subsequently subjected to HPR, clean assembly with flanges, and low-temperature baking at 120 ℃ for 48 h, followed by vertical tests.

Fig. 8Full-screen View

(Color online) Inner surface of 650S4 (cell). (a) Before the 2^nd EP; (b) After the 2^nd EP

The vertical test results for samples 650S4 and 650S5 are shown in Fig. 9. The Q₀ values of both cavities decreased slightly as a function of E_acc, which is typical for cavities processed with EP. The high-field Q-slope (HFQS) phenomenon was not evident for either of the cavities. Finally, 650S4 and 650S5 achieved a higher gradient after the 2^nd EP than after the 1^st EP, and they quenched at ~ 41.0 MV/m (B_peak ≈ 172 mT) with Q₀ of 1.5 × 10¹⁰ and ~ 41.6 MV/m (B_peak ≈ 175 mT) with Q₀ of 2.3× 10¹⁰, respectively. The B_peak values of 650S4 and 650S5 were exceptionally high and exceeded the lower critical field (B_C1 = 170 mT) of niobium. No field emission was observed during the vertical test of 650S4, which is rare for such large cavities. During the vertical test of 650S5, the field emission began to increase above a gradient of 37 MV/m and was weakly accompanied by X-ray radiation. In summary, a significantly high RF field was achieved by 650S4 and 650S5 during the vertical tests, which indicated that the inner surfaces of both cavities were smooth and defect-free. Thus, the 2^nd EP, HPR, assembly, low-temperature baking, and vertical tests for 650S4 and 650S5 were successful. This indicated that cold EP could enhance the quench RF field of 650 MHz cavities. Moreover, the values of Q₀ for 650S4 after the 1^st and 2^nd EP were almost the same.

Fig. 9Full-screen View

(Color online) Comparison of vertical test results of 650 MHz single-cell cavities

The R_BCS and R_res values of 650S4 during the 2^nd EP were also estimated, as shown in Fig. 6. R_BCS increased from ~ 2 nΩ at 4 MV/m to ~ 4 nΩ at 24 MV/m, which is higher than that achieved by mid-T furnace baking. Hence, 30 μm removal by the 2^nd EP was sufficient to eliminate the effects of mid-T furnace baking. Moreover, R_res was between 2 and 3 nΩ, similar to the value after mid-T furnace baking.

Conclusion

State-of-the-art surface treatments for improving the performance of CEPC 650 MHz single-cell cavities were investigated in this study. The combination of BCP and EP was successfully applied to 650S4 and 650S5, both of which exceeded the accelerating gradient of 40 MV/m, which is remarkably high. Finally, 650S4 quenched at ~ 41.0 MV/m (B_peak ≈ 172 mT) with Q₀ = 1.5 × 10¹⁰, whereas 650S5 quenched at ~ 41.6 MV/m (B_peak ≈ 175 mT) with Q₀ = 2.3 × 10¹⁰. Previously, large elliptical cavities seldom exceeded the E_acc of 40 MV/m or B_peak of 170 mT, which is the lower critical magnetic field of niobium. BCP is easy but has low precision, whereas EP is complicated but has high precision. Therefore, the “BCP + EP” recipe is attractive and efficient for surface treatments of mass SRF cavities, such as CEPC, CiADS, and PIP-II.

Mid-T furnace baking of 650S4 and 650S5 demonstrated ultrahigh quality factors at medium RF fields. Q₀ exceeded 8 × 10¹⁰ at 22 MV/m for both 650 MHz single-cell cavities. An extremely low R_BCS (~ 1.0 nΩ) was achieved at 2.0 K; this is a notable result. Moreover, the anti-Q-slope behavior was not observed, which is similar to that of nitrogen-doped 650 MHz cavities.

The research presented in this paper is beneficial for improving the performance and enhancing the fundamental understanding of P-band (0.23-1 GHz) elliptical cavities, which are of interest for next-generation high-energy colliders, proton sources, and synchrotron light sources. The surface treatments of the SRF cavity developed in this study are simplified and easy to replicate, which will benefit researchers working in the field of SRF.
