introduction

The equation of state (EoS) of asymmetric nuclear matter (ANM), especially its nuclear symmetry energy E_sym(ρ) term, plays an essential role in studying the structure [1-4] and evolution of radioactive nuclei [5-8], as well as the synthesis of medium and heavy nuclei [9-12]. The E_sym(ρ) characterizes the variation in the EoS of the symmetric nuclear matter (SNM) to that of the pure neutron matter (PNM); the latter is closely connected to the neutron star (NS) matter. Naturally, the properties of NS, such as the radius and the deformation of the NS merger, are also closely related to E_sym(ρ), especially at densities of approximately twice the saturation density ρ₀ [13-20]. Nevertheless, knowledge of the E_sym(ρ) at suprasaturation densities is still limited, although that around and below ρ₀ [21, 22] as well as the isospin-independent part of EoS for ANM (i.e., EoS of SNM [23-25]) are relatively well determined. Essentially, the EoS of the ANM and its E_sym(ρ) term are determined by the nuclear mean field, especially its isovector part (i.e., the symmetry/isovector potential [27, 26]). However, because of the extreme challenge of relatively direct detection of the isovector potential in experiments, one extracted only using the nucleon-nucleus scattering and (p,n) charge-exchange reactions between isobaric analog states limited information of the isovector potential at ρ₀ and parameterized as $U_{\text{sym}}({\rho }_0\mathrm{,}{\text{E}}_k)=a-b{\text{E}}_k$, where $a\approx 22-34$ MeV, $b\approx 0.1-0.2$, and Ek is limited to no more than 200 MeV [28-30].

Heavy-ion collision (HIC) is one of the most promising approaches for exploring the symmetry potential/energy, especially at supersaturation densities [3, 4, 13, 31-33]. Recently, the SπRIT collaboration reported results from the first measurement dedicated to probing the E_sym(ρ) at suprasaturation densities through pion production in Sn + Sn collisions at 270 MeV/nucleon carried out at RIKEN-RIBF in Japan [31]. Moreover, they compared the charged pion yields and their single and double pion ratios with the corresponding simulation results from seven transport models. Qualitatively, the theoretical simulations from the seven transport models reach an agreement with the data, yet quantitatively, almost all the models cannot satisfactorily reproduce both the pion yields and their single and double pion ratios of the experimental data [31]. In this situation, author of Ref. [34] claimed that by considering approximately 20% of high-momentum nucleons in colliding nuclei can reproduce both the charged pion yields and their pion ratios of the experimental data quite well because of the high momentum distribution in nuclei caused by short-range correlations (SRCs) [35-40]. Following this work, we focused on the momentum dependence of the symmetry potential because it plays an important role in probing the high-density behavior of E_sym(ρ) [41-43]. In fact, in [31] and in [44-48] of the transport model comparison project, the possible reasons for the unsatisfactory results of the seven models quantitatively fitting the experimental data may be due to different assumptions regarding the mean field potential, pion potential, and the treatment of the Coulomb field. Therefore, exploring how the momentum dependence of the symmetry potential affects the pion production in HICs is necessary. Regarding the other aforementioned factors, we also provide detailed considerations based on sophisticated treatment methods, as discussed in Sect. 2. In Sect. 3, we discuss the results of the present study. Finally, a summary is presented in Sect. 4.

The Model

This study was carried out using an isospin- and momentum-dependent Boltzmann-Uehling-Uhlenbeck (IBUU) transport model. In the framework, the present model is originated from IBUU04 [49, 50] and/or IBUU11 [51] models. However, the present model has been greatly improved to accurately simulate pion production, as discussed below.

First, a separate density-dependent scenario for in-medium nucleon-nucleon interaction [52-54], which is expressed as $v_D=t_0(1+x_0{P}_{\sigma })[{\rho }_{{\tau }_i}(r_i)+{\rho }_{{\tau }_j}(r_j{)]}^{\alpha }\delta (r_{ij})\mathrm{,}$ (1) this equation is used to replace the density-dependent term of the original Gogny effective interaction [55], which is given by $\begin{array}{c}v(r)={\displaystyle \sum _{i=\mathrm{1,2}}}{\left(W+B{P}_{\sigma }-H{P}_{\tau }-M{P}_{\sigma }{P}_{\tau }\right)}_i{e}^{-r^2/{\mu }_i^2}\\ +t_0\left(1+x_0{P}_{\sigma }\right){\left[\rho \left(\frac{{\text{r}}_i+{\text{r}}_j}{2}\right)\right]}^{\alpha }\delta \left({\text{r}}_{ij}\right)\mathrm{,}\end{array}$ (2) where W, B, H, M, and μ are the five parameters, Pτ and Pσ are the isospin and spin exchange operators, respectively, and α is the density-dependent parameter used to mimic the medium effects of many-body interactions [52-54]. As indicated in Ref. [56], the separate density dependence of the effective two-body interactions originates from the renormalization of the multibody force effects, and the latter may extend the density dependence of the effective interactions for calculations beyond the mean-field approximation. Moreover, nuclear structure studies have shown that, with the separate density-dependent scenario for the in-medium nucleon-nucleon interaction, more satisfactory results (e.g., the binding energies, single-particle energies, and electron scattering cross-sections for ¹⁶O, ⁴⁰Ca, ⁴⁸Ca, ⁹⁰Zr, and ²⁰⁸Pr [57]) can be achieved compared with the corresponding experiments. Correspondingly, the potential energy density for the ANM with this improved momentum-dependent interaction (IMDI) is expressed [53] as $\begin{array}{c}V(\rho \mathrm{,}\delta )=\frac{{\text{A}}_u(x){\rho }_n{\rho }_p}{{\rho }_0}+\frac{{\text{A}}_l(x)}{2{\rho }_0}\left({\rho }_n^2+{\rho }_p^2\right)+\frac{\text{B}}{\sigma +1}\frac{{\rho }^{\sigma +1}}{{\rho }_0^{\sigma }}\\ \times \left\{\frac{1+x}{2}\left(1-{\delta }^2\right)+\frac{1-x}{4}\left[{(1+\delta )}^{\sigma +1}+{(1-\delta )}^{\sigma +1}\right]\right\}\\ +\frac{1}{{\rho }_0}{\displaystyle \sum _{\tau \mathrm{,}{\tau }^{\text{'}}}}{C}_{\tau \mathrm{,}{\tau }^{\text{'}}}{\displaystyle \int }{\displaystyle \int }{d}^{3}p{d}^3{p}^{\text{'}}\frac{f_{\tau }(\overrightarrow{r}\mathrm{,}\overrightarrow{p})f_{{\tau }^{\text{'}}}\left(\overrightarrow{r}\mathrm{,}{\overrightarrow{p}}^{\text{'}}\right)}{1+{\left(\overrightarrow{p}-{\overrightarrow{p}}^{\text{'}}\right)}^2/{\Lambda }^2}\mathrm{.}\end{array}$ (3) In the mean-field approximation, Eq. (3) leads to the following single-nucleon potential for the proposed model [52-54]: $\begin{array}{c}U\left(\rho \mathrm{,}\delta \mathrm{,}\overrightarrow{p}\mathrm{,}\tau \right)={\text{A}}_u(x)\frac{{\rho }_{-\tau }}{{\rho }_0}+{\text{A}}_l(x)\frac{{\rho }_{\tau }}{{\rho }_0}+\frac{\text{B}}{2}{\left(\frac{2{\rho }_{\tau }}{{\rho }_0}\right)}^{\sigma }\left(1-x\right)\\ +\frac{2\text{B}}{\sigma +1}{\left(\frac{\rho }{{\rho }_0}\right)}^{\sigma }\left(1+x\right)\frac{{\rho }_{-\tau }}{\rho }\left[1+(\sigma -1)\frac{{\rho }_{\tau }}{\rho }\right]\\ +\frac{2C_l}{{\rho }_0}{\displaystyle \int }{d}^3{p}^{\text{'}}\frac{f_{\tau }({\overrightarrow{p}}^{\text{'}})}{1+{\left(\overrightarrow{p}-{\overrightarrow{p}}^{\text{'}}\right)}^2/{\Lambda }^2}\\ +\frac{2C_u}{{\rho }_0}{\displaystyle \int }{d}^3{p}^{\text{'}}\frac{f_{-\tau }({\overrightarrow{p}}^{\text{'}})}{1+{\left(\overrightarrow{p}-{\overrightarrow{p}}^{\text{'}}\right)}^2/{\Lambda }^2}\mathrm{,}\end{array}$ (4) where σ=α+1, τ=1 for neutrons and -1 for protons, and the parameters Au(x), Al(x), $C_u(\equiv C_{\tau \mathrm{,}-\tau })$ and $C_l(\equiv C_{\tau \mathrm{,}\tau })$ are expressed as $\begin{array}{c}{\text{A}}_l(x)={\text{A}}_{l0}+U_{\text{sym}}^{\infty }({\rho }_0)-\frac{2\text{B}}{\sigma +1}\\ \times \left[\frac{\left(1-x\right)}{4}\sigma (\sigma +1)-\frac{1+x}{2}\right]\mathrm{,}\end{array}$ (5) $\begin{array}{c}{\text{A}}_u(x)={\text{A}}_{u0}-U_{\text{sym}}^{\infty }({\rho }_0)+\frac{2\text{B}}{\sigma +1}\\ \times \left[\frac{(1-x)}{4}\sigma (\sigma +1)-\frac{1+x}{2}\right]\mathrm{,}\end{array}$ (6) $C_l=C_{l0}-2U_{\text{sym}}^{\infty }({\rho }_0)\frac{p_{f0}^2}{{\Lambda }^2\ln [(4p_{f0}^2+{\Lambda }^2)/{\Lambda }^2]}\mathrm{,}$ (7) $C_u=C_{u0}+2U_{\text{sym}}^{\infty }({\rho }_0)\frac{p_{f0}^2}{{\Lambda }^2\ln [(4p_{f0}^2+{\Lambda }^2)/{\Lambda }^2]}\mathrm{,}$ (8) where p_f0 is the nucleon Fermi momentum in the SNM at ρ₀ and $U_{\text{sym}}^{\infty }({\rho }_0)$ proposed in [51] and is used to characterize the momentum dependence of the symmetry potential at ρ₀. We also illustrate the derivation of Eqs. (5)-(8) and the expression of the symmetry potential and/or energy (see [53]). Currently, knowledge of the momentum dependence of the symmetry potential even at ρ₀ is limited [28-30]. Therefore, taking the parameterized symmetry potential as a reference, we treat $U_{\text{sym}}^{\infty }({\rho }_0)$ as a free parameter similar to the x parameter, which is used to mimic the slope value $L\equiv 3\rho (\text{d}{\text{E}}_{\text{sym}}/\text{d}\rho )$ of E_sym(ρ) at ρ₀ without changing the value of E_sym(ρ) at ρ₀ and any properties of the SNM. A similar quantity (i.e., y parameter) in [58-60] has been used to describe the momentum dependence of the symmetry potential at ρ₀; however, its quantitative constraints have not been determined. Additionally, it should be noted that the B terms in Eqs. (3) and (4), as well as in the expressions of Au and Al are different from those in [58-60]. This is because the separate density-dependent scenario for in-medium nucleon-nucleon interaction has been adopted in the present model for a more delicate treatment of the in-medium many-body force effects [53], which significantly affects pion production in HICs [54]. The seven parameters A_l0, A_u0, B, σ, C_l0, C_u0, and Λ were determined by fitting seven experimental and/or empirical constraints on the properties of nuclear matter at ρ₀=0.16 fm^-3. The first six quantities are the binding energy -16 MeV, pressure P₀=0 MeV/fm³, incompressibility K₀=230 MeV for SNM, isoscalar effective mass $m_s^{*}=0.7m$, isoscalar potential at infinitely large nucleon momentum $U_0^{\infty }({\rho }_0)=75$ MeV, and symmetry energy E_sym(ρ₀)=32.5 MeV, and the seventh quantity is considered as $U_{\text{sym}}^{\infty }({\rho }_0)$. The values of these parameters are A_l0=A_u0=-66.963 MeV, B=141.963 MeV, C_l0=-60.486 MeV, C_u0=-99.702 MeV, σ=1.2652, and Λ=2.424p_f0.

The upper windows in Fig. 1 show the kinetic-energy-dependent neutron and proton potentials at ρ₀ with different $U_{\text{sym}}^{\infty }({\rho }_0)$ values calculated from the IMDI interaction. As $\left|U_{\text{sym}}^{\infty }({\rho }_0)\right|$ increases, the neutron potential shows the opposite variation tendency compared with the proton potential because of the isospin effects. The middle and lower windows in Fig. 1 show the isoscalar and isovector potentials at ρ₀ in comparison with the Schrödinger-equivalent isoscalar potential obtained by Hama et al. [61, 62] and parameterized isovector potentials from experimental and/or empirical data [28-30]. To provide more intuitive references for $U_{\text{sym}}^{\infty }({\rho }_0)$, we extrapolate the experimental and/or empirical isovector potential to the nucleon kinetic energy up to 1 GeV. Evidently, good consistency can be seen for the isoscalar potential between the present model and that of Hama et al.. Moreover, the values of our symmetry potentials at the Fermi kinetic energy (i.e., approximately 36.8 MeV), are the same and within the allowed range of experimental and/or empirical data, even with different $U_{\text{sym}}^{\infty }({\rho }_0)$. It is based on the values of symmetry potentials at the Fermi kinetic energy and the infinite nucleon momentum that we used to determine the momentum dependence of the symmetry potential at ρ₀. However, because the isoscalar potentials remain unchanged with different $U_{\text{sym}}^{\infty }({\rho }_0)$, differences in momentum dependence between symmetry potentials with different $U_{\text{sym}}^{\infty }({\rho }_0)$ are expected to be reflected by the pion observable in HICs because the different symmetry potentials can lead to different isospin effects and thus different π^-/π⁺ ratios for neutron-rich reactions. Therefore, to clearly obtain the pion observable, in which the effects of the momentum dependence of the symmetry potentials are reflected, it is useful to map momentum-dependent symmetry potentials with different $U_{\text{sym}}^{\infty }({\rho }_0)$ into cases with the same E_sym(ρ). This is performed by fitting identical constraints for SNM and identical slope parameter L of E_sym(ρ) at ρ₀, and the corresponding results are shown in Fig. 2. Even with the same E_sym(ρ), the corresponding symmetry potential could be considerably different because the symmetry potentials depend not only on the nucleon density but also on the nucleon momentum or energy.

Fig. 1Full-screen View

(Color online) Kinetic-energy dependent neutron (a) and proton (b) potentials as well the isoscalar (c) and isovector (d) potentials at ρ₀ calculated from the IMDI interaction. The Schrödinger-equivalent isoscalar potential obtained by Hama et al. and the parameterized isovector potential from the experimental and/or empirical data are also shown to compare with the isoscalar and isovector potentials calculated from the IMDI interaction.

Fig. 2Full-screen View

(Color online) Density dependence of the E_sym(ρ) with different $U_{\text{sym}}^{\infty }({\rho }_0)$ calculated from the IMDI interaction.

Second, we also considered the pion potential effects in HICs to accurately simulate pion production in HICs. Specifically, when the pionic momentum is greater than 140 MeV/c, we use the pion potential based on the Δ-hole model of the form adopted in [62]. We adopt the pion potential of the form used in [63-65] when the pionic momentum is lower than 80 MeV/c, whereas for the pionic momentum falling in the range of 80 to 140 MeV/c, an interpolative pion potential constructed in [62] is used. The present pion potential includes the isospin- and momentum-dependent pion s- and p-wave potentials in a nuclear medium, as in [66] (see [62-65]).

The in-medium isospin-dependent baryon-baryon elastic and inelastic scattering cross-sections σ_medium are determined by the corresponding free-space cross-sections σ_free multiplied by a factor R_medium, which is expressed as ${\sigma }_{\text{medium}}={\sigma }_{\text{free}}{R}_{\text{medium}}(\rho \mathrm{,}\delta \mathrm{,}\text{p})\mathrm{,}$ (9) where the reduced factor is determined as $R_{\text{medium}}=({\mu }_{\text{BB}}^{*}/{\mu }_{\text{BB}}{)}^2$, and μ_BB and ${\mu }_{\text{BB}}^{*}$ are the reduced masses of the colliding baryon pairs in free space and nuclear medium, respectively.

Finally, for the treatment of the Coulomb field, we calculate the electromagnetic (EM) interactions from the Maxwell equation, that is, $\text{E}=-\nabla \phi -\partial \text{A}/\partial t$, $\text{B}=\nabla \times \text{A}$, where the scalar potential φ and vector potential A of the EM fields are calculated from the resources of charges Ze and currents Zev. For details on EM field effects in HICs, we refer readers to [67-69].

Results and Discussions

In this section, we focus on the pion production in ¹⁰⁸Sn + ¹¹²Sn and ¹³²Sn + ¹²⁴Sn reactions at 270 MeV/nucleon with an impact parameter of b=3 fm. To investigate the sensitivity of pion yields to the high-density behavior of E_sym(ρ) (i.e., L) and the momentum dependence of the symmetry potential (i.e., $U_{\text{sym}}^{\infty }({\rho }_0)$), pion yields is regarded as a function of L for different $U_{\text{sym}}^{\infty }({\rho }_0)$ values, as shown in Fig. 3. First, consistent with the findings in [34, 70], it is observed that the multiplicities of π^- are more sensitive to L than those of π⁺, particularly for the larger isospin asymmetry reactions ¹³²Sn + ¹²⁴Sn, because π^- is mostly produced from the neutron-neutron inelastic collisions [70]. Second, with a certain L, the symmetry potential with a larger value of $\left|U_{\text{sym}}^{\infty }({\rho }_0)\right|$ leads to an increased production of π^- and π⁺. To understand this observation, we first check the evolution of the central region densities formed in the HICs. Figure 4 shows the evolutions of the central reduced densities ρ_cent./ρ₀ formed in ¹³²Sn + ¹²⁴Sn reactions with different $U_{\text{sym}}^{\infty }({\rho }_0)$ but for a certain L of 62.7 MeV. For comparison, we also show the evolution of ρ_cent./ρ₀ for the same reaction with L=123.4 MeV and $U_{\text{sym}}^{\infty }({\rho }_0)=-240$ MeV. With a certain $U_{\text{sym}}^{\infty }({\rho }_0)=-240$ MeV, the soft symmetry energy with L=62.7 MeV leads to a higher compression compared to that with a stiff symmetry energy L=123.4 MeV, which agrees with previous observations in many studies. Interestingly, we noticed that for a certain L=62.7 MeV, $U_{\text{sym}}^{\infty }({\rho }_0)$ also affects the evolution of the central region densities. Specifically, approximately at 13 fm/c independent of $U_{\text{sym}}^{\infty }({\rho }_0)$, the reaction with a certain L=62.7 MeV approaches the maximum compression, generating a maximum compression density 1.5ρ₀ in the central region; however, the decreasing velocity of this density is slightly faster in the case with a larger $\left|U_{\text{sym}}^{\infty }({\rho }_0)\right|$. This is because the symmetry potential with a larger $\left|U_{\text{sym}}^{\infty }({\rho }_0)\right|$ causes some high-density nucleons to gain more acceleration in the subsequent reaction stages, leading to the densities of the compression region to reduce slightly faster. This can be demonstrated by checking the kinetic energy distribution of the nucleons in the compression region with local densities higher than ρ₀ at t=20 fm/c, as shown in Fig. 5. Clearly, with a certain L=62.7 MeV but varying $U_{\text{sym}}^{\infty }({\rho }_0)$ from -80 to -240 MeV, we observed increased high-energy nucleons but reduced low-energy nucleons. In general, because the scalar potential has the same repulsive effects on neutrons and protons, whereas the symmetry potential has repulsive (attractive) effects on the high density but low energy¹ neutrons (protons), these high-energy nucleons might be expected as neutrons. However, as illustrated in Fig. 6, these high-energy nucleons contain both neutrons and protons, and neutrons outnumber protons because the reaction is a neutron-rich system. Moreover, as indicated by the arrows in Fig. 5, the kinetic energies of these energetic neutrons and protons are greater than 150 MeV, whereas the threshold energy of pion production through NN inelastic collisions is not more than 300 MeV. Naturally, with a certain L but varying $U_{\text{sym}}^{\infty }({\rho }_0)$ from -80 to -240 MeV, we can understand the increased production of both π^- and π⁺ shown in Fig. 3 because π^- and π⁺ are produced mainly from inelastic $nn\to pn{\pi }^{-}$ and $pp\to pn{\pi }^{+}$ channels. Third, compared with the SπRIT data, as shown in Fig. 3, our prediction of pion multiplicities within a certain range of $U_{\text{sym}}^{\infty }({\rho }_0)$ can fit the experimental data in general. For the predicted multiplicities, π⁺ is not as good as π^-.

Fig. 3Full-screen View

(Color online) Upper: Multiplicities of π^- generated in reactions ¹⁰⁸Sn + ¹¹²Sn (a) and ¹³²Sn + ¹²⁴Sn (b) with different $U_{\text{sym}}^{\infty }({\rho }_0)$ as a function of L in comparison with the corresponding SπRIT data. Lower: Multiplicities of π⁺ generated in reactions ¹⁰⁸Sn + ¹¹²Sn (c) and ¹³²Sn + ¹²⁴Sn (d) with different $U_{\text{sym}}^{\infty }({\rho }_0)$ as a function of L in comparison with the corresponding SπRIT data.

Fig. 4Full-screen View

(Color online) Evolution of the reduced average densities in central region (ρ_cent./ρ₀) produced in ¹³²Sn + ¹²⁴Sn reactions at 270 MeV/nucleon.

Fig. 5Full-screen View

(Color online) Kinetic-energy distribution of nucleons in compression region at t=20 fm/c in ¹³²Sn + ¹²⁴Sn reactions at 270 MeV/nucleon.

Fig. 6Full-screen View

(Color online) Kinetic-energy distribution of neutrons (a) and protons (b) in compression region at t=20 fm/c in ¹³²Sn + ¹²⁴Sn reactions at 270 MeV/nucleon.

To date, one might wonder whether the symmetry potential at 1.5ρ₀ (i.e., attainable maximum densities in the compression stage) with a certain L but varying $U_{\text{sym}}^{\infty }({\rho }_0)$ from -80 to -240 MeV could cause both high-energy neutrons and protons to increase. To understand this observation, we illustrate it in the right panel of Fig. 7, which shows the symmetry potential at 1.5ρ₀ with a certain L=62.7 MeV but different $U_{\text{sym}}^{\infty }({\rho }_0)$. For completeness, we also demonstrate the corresponding symmetry potential at low densities (i.e., 0.5ρ₀), as shown in the left panel of Fig. 7. Similar to the symmetry potential at ρ₀, the symmetry potentials at 1.5ρ₀ even with different $U_{\text{sym}}^{\infty }({\rho }_0)$ have the same value at approximately the nucleon kinetic energy of 47 MeV. In addition, the value of the symmetry potential also changes from positive to negative when the kinetic energy of the nucleon is larger than a certain value, depending on the value of $U_{\text{sym}}^{\infty }({\rho }_0)$. Specifically, with a certain L=62.7 MeV but varying $U_{\text{sym}}^{\infty }({\rho }_0)$ from -80 to -240 MeV, protons (neutrons) in the high-density phase experience stronger attractive (repulsive) effects from the symmetry potentials when their kinetic energies are lower than 47 MeV. In contrast, if their kinetic energies are larger than 47 MeV but lower than approximately 81 MeV², protons (neutrons) in the high-density phase will experience more weaker attractive (repulsive) effects from the symmetry potentials. Therefore, with a certain L but varying $U_{\text{sym}}^{\infty }({\rho }_0)$ from -80 to -240 MeV, the repulsive scalar potential and the weakened attractive symmetry potential can cause some protons to increase their kinetic energies to 150 MeV and above. It should be emphasized that for a reaction with a certain $U_{\text{sym}}^{\infty }({\rho }_0)$, the effects of L on pion production can be interpreted through the density criterion (i.e., the average maximum densities formed in the reaction compression stages). Nevertheless, for the case with a certain L, interpreting the effects of $U_{\text{sym}}^{\infty }({\rho }_0)$ on pion production requires both density and energy criteria because a small reduction in the average maximum densities formed in the reaction compression stages but a significant increase in the kinetic energy for these high-density nucleons could also lead to increased production of pions.

Fig. 7Full-screen View

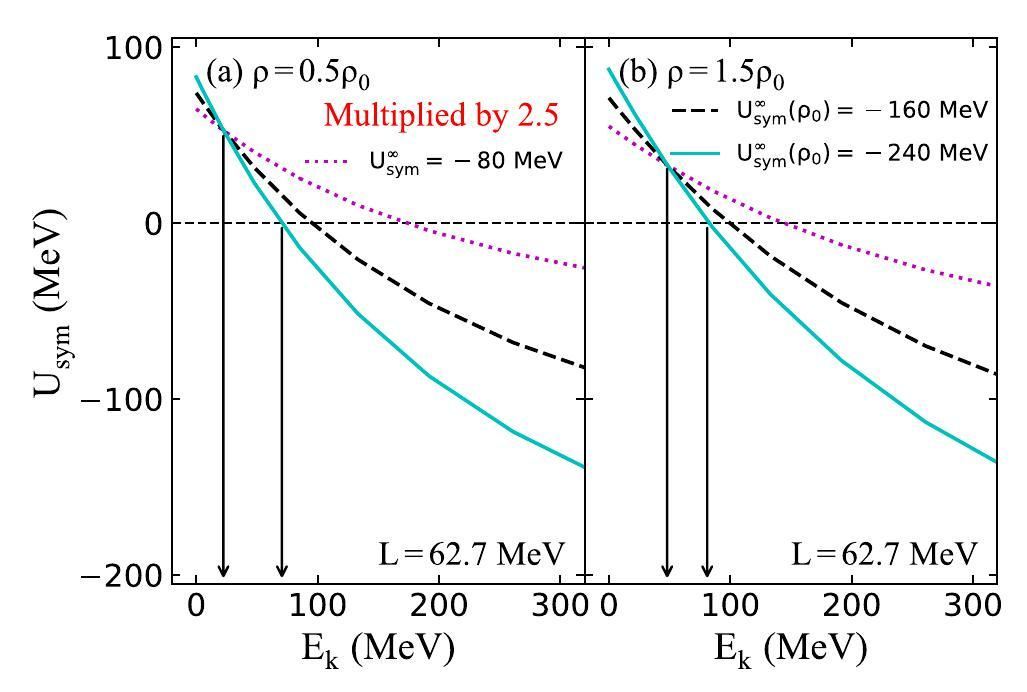

(Color online) Kinetic-energy dependent symmetry potentials at ρ=0.5ρ₀ (a) and ρ=1.5ρ₀ (b) with different $U_{\text{sym}}^{\infty }({\rho }_0)$ calculated from the IMDI interaction. The values of symmetry potential at ρ=0.5ρ₀ are multiplied by a factor of 2.5.

Figure 8 shows the π^-/π⁺ ratios of the theoretical simulations for the same reactions in comparison with SπRIT data. First, consistent with the observations of most transport models, the upper windows of Fig. 8 shows that the π^-/π⁺ ratios are indeed more sensitive to L than the pion yields, and a softer symmetry energy with a smaller L value leads to a higher π^-/π⁺ ratio. Moreover, for a more neutron-rich reaction ¹³²Sn + ¹²⁴Sn, the π^-/π⁺ ratios show a greater sensitivity to L. Second, from the lower windows in Fig. 8, the π^-/π⁺ ratios increase with $\left|U_{\text{sym}}^{\infty }({\rho }_0)\right|$ for a certain L. Similar with the reason for more pion production, this observation can also be understood by examining the kinetic energy distribution of neutrons over protons n/p with local densities higher than ρ₀ at t=20 fm/c in reactions ¹³²Sn + ¹²⁴Sn with a certain L, as shown in Fig. 9. It is observed that with a certain L=62.7 MeV, the ratio n/p increases as $U_{\text{sym}}^{\infty }({\rho }_0)$ increases from -80 to -240 MeV, because the increment of high-energy neutrons is larger than that of protons for neutron-rich reactions. For this reason, we can observe that for a certain L the π^-/π⁺ ratios increase with the value of $\left|U_{\text{sym}}^{\infty }({\rho }_0)\right|$ as shown in Fig. 8. In addition, compared with the SπRIT data, our results for π^-/π⁺ ratios also fit the experimental data quite well within a certain range for the value of $U_{\text{sym}}^{\infty }({\rho }_0)$.

Fig. 8Full-screen View

(Color online) Upper: Ratios of π^-/π⁺ generated in reactions ¹⁰⁸Sn + ¹¹²Sn (a) and ¹³²Sn + ¹²⁴Sn (b) with different $U_{\text{sym}}^{\infty }({\rho }_0)$ as a function of L in comparison with the corresponding SπRIT data. Lower: Ratios of π^-/π⁺ generated in reactions ¹⁰⁸Sn + ¹¹²Sn (c) and ¹³²Sn + ¹²⁴Sn (d) with different L as a function of $U_{\text{sym}}^{\infty }({\rho }_0)$ in comparison with the corresponding SπRIT data.

Fig. 9Full-screen View

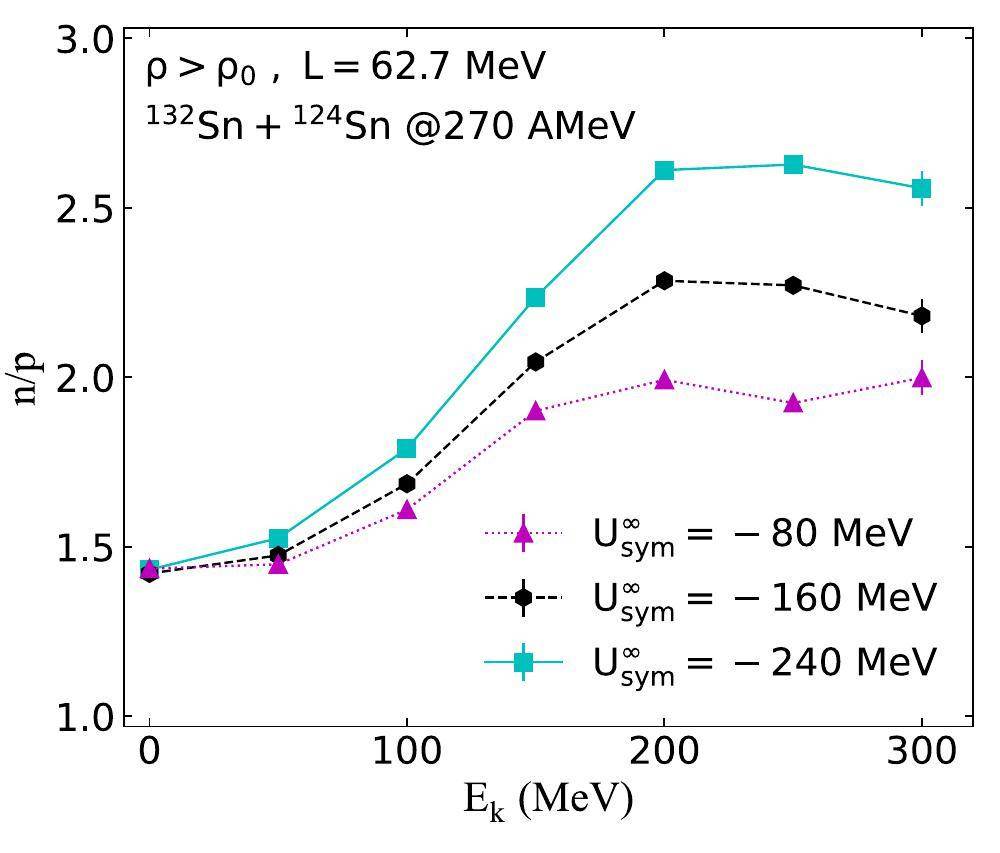

(Color online) Kinetic energy distribution of neutrons over protons n/p with local densities higher than ρ₀ produced at t=20 fm/c in the reaction ¹³²Sn + ¹²⁴Sn with different $U_{\text{sym}}^{\infty }({\rho }_0)$ and a certain L.

As a cleaner observable, the double ratio of the two reactions (i.e., the DR(π^-/π⁺) ratio of reactions ¹³²Sn + ¹²⁴Sn over ¹⁰⁸Sn + ¹¹²Sn) has the advantage of reducing both the isoscalar potential effects and the Coulomb field effects; thus, it is expected to disentangle the effects of symmetry potential/energy from both isoscalar potentials and Coulomb fields in HICs. Therefore, in Fig. 10, we show the DR(π^-/π⁺) ratios of the two reactions in comparison with SπRIT data. The left panel of Fig. 10 shows that the DR(π^-/π⁺) ratios of the two reactions are more sensitive to the high-density behavior of E_sym(ρ). Moreover, the DR(π^-/π⁺) ratios are also more clearly separated by varying the value of $U_{\text{sym}}^{\infty }({\rho }_0)$ from -80 to -240 MeV, making them more sensitive to the momentum dependence of the symmetry potential, as shown in the right panel of Fig. 10.

Fig. 10Full-screen View

(Color online) The double π^-/π⁺ ratios [i.e., DR(π^-/π⁺)] of the reactions ¹³²Sn + ¹²⁴Sn over ¹⁰⁸Sn + ¹¹²Sn with different $U_{\text{sym}}^{\infty }({\rho }_0)$ as a function of L (a) and different L as a function of $U_{\text{sym}}^{\infty }({\rho }_0)$ (b) in comparison with the corresponding SπRIT data.

Now, we attempted to use the above three observables (i.e., pion yields and their single π^-/π⁺ and double DR(π^-/π⁺) ratios) to constrain the values of $U_{\text{sym}}^{\infty }({\rho }_0)$ and L. To this end, we perform systematic error analyses for pion yields and their single π^-/π⁺ and double DR(π^-/π⁺) ratios at different $U_{\text{sym}}^{\infty }({\rho }_0)$ and L. Apart from pion yields as well as their single π^-/π⁺ and double DR(π^-/π⁺) ratios at $U_{\text{sym}}^{\infty }({\rho }_0)=-\mathrm{80,}-160$ and -240 MeV and L=2.1, 32.4, 62.7, 93.1, and 123.4 MeV, the values of these observables at other $U_{\text{sym}}^{\infty }({\rho }_0)$ and L with an interval of 10 MeV are obtained by interpolating the simulation ones. As shown in Fig. 11, the contours of the relative error are the two-dimensional function of L and $U_{\text{sym}}^{\infty }({\rho }_0)$. However, it is difficult to constrain the values of L and $U_{\text{sym}}^{\infty }({\rho }_0)$ simultaneously from the relative errors between the theoretical simulations and experimental data. Therefore, we further performed systematic χ-square analyses for these observables at different L and $U_{\text{sym}}^{\infty }({\rho }_0)$, and the corresponding χ values as a two-dimensional function of L and $U_{\text{sym}}^{\infty }({\rho }_0)$ are shown in Fig. 12. It is observed that there is an area with the highest confidence, in which $U_{\text{sym}}^{\infty }({\rho }_0)$ is constrained to $-{160}_{-9}^{+18}$ MeV, and the lower limit of L is approximately no less than 55 MeV.

Fig. 11Full-screen View

(Color online) Contours of the relative errors for pion yields and their single and double pion ratios as a function of L and $U_{\text{sym}}^{\infty }({\rho }_0)$ in reactions ¹⁰⁸Sn + ¹¹²Sn and ¹³²Sn + ¹²⁴Sn.

Fig. 12Full-screen View

(Color online) The value of χ as a two dimensional function of $U_{\text{sym}}^{\infty }({\rho }_0)$ and L in reactions ¹⁰⁸Sn + ¹¹²Sn and ¹³²Sn + ¹²⁴Sn.

To further verify the above results, we select a value of -160 MeV for $U_{\text{sym}}^{\infty }({\rho }_0)$ to check the spectral pion ratios of the reactions ¹⁰⁸Sn + ¹¹²Sn and ¹³²Sn + ¹²⁴Sn because this observable, especially its high-energy parts, might be the best probe for the high-density behavior of E_sym(ρ), as shown in [13, 48]. Figure 13 shows the spectral pion ratios of the theoretical simulations in comparison with the corresponding data [13]. With this value for $U_{\text{sym}}^{\infty }({\rho }_0)$, the spectral pion ratios of our simulations, especially its high-energy parts, can fit fairly the experimental data when L ranges from 62.7 to 93.1 MeV. In addition, the pion observable in ¹⁹⁷Au + ¹⁹⁷Au collisions at 400 MeV/nucleon also supports this value for $U_{\text{sym}}^{\infty }({\rho }_0)$, as shown in Fig. 14. On the other hand, isospin splitting of the in-medium nucleon effective mass is resulting from the momentum dependence of the symmetry potential. Therefore, it is useful to evaluate the isospin splitting of the in-medium nucleon effective mass for $U_{\text{sym}}^{\infty }({\rho }_0)$. Based on the formula for the nucleon effective mass $m_{\tau }^{*}/m=[1+\frac{m}{k_{\tau }}\frac{d{U}_{\tau }}{dk}{]}^{-1}\mathrm{,}$ (10) for the used $U_{\text{sym}}^{\infty }({\rho }_0)=-10$, -80, -160, and -240 MeV, the corresponding neutron-proton effective mass splittings $\Delta m_{\text{np}}^{*}$ are 0.178δ, 0.384δ, 0.622δ, and 0.864δ, respectively.

Fig. 13Full-screen View

(Color online) The spectral pion ratios of theoretical simulations for the reactions ¹⁰⁸Sn + ¹¹²Sn (a) and ¹³²Sn + ¹²⁴Sn (b) as a function of transverse momentum in comparison with the corresponding data.

Fig. 14Full-screen View

(Color online) Multiplicities of charged pions (a) and their pion ratios (b) in ¹⁹⁷Au + ¹⁹⁷Au collisions at 400 MeV/nucleon in comparison with the corresponding data.

So far, one can find that our results suggest a constraint on L (i.e., 62.7<L<93.1 MeV). This constraint on L is considerably close to the values 70<L<101 MeV extracted from charge exchange and elastic scattering reactions in [71] and within the constrained range of 42<L<117 MeV in [13]. Moreover, our results also suggest a constraint on $U_{\text{sym}}^{\infty }({\rho }_0)$ (i.e., $-{160}_{-9}^{+18}$ MeV). We also note that our extracted value for $U_{\text{sym}}^{\infty }({\rho }_0)$, for example, -160MeV, leads to a larger isospin splitting than the upper limit of 0.33δ in [13, 60]. There may be two reasons for this. First, authors of Ref. [13] used a more accurate criterion (i.e., E_sym(2ρ₀/3)=25.5 MeV [72]), and thus considered the uncertainties of E_sym(ρ₀) (i.e., 32.5 MeV<E_sym(ρ₀)<38.1 MeV). In this study, we use a fixed value 32.5 MeV for E_sym(ρ₀) as commonly used, and thus do not consider its uncertainties. Second, as the separate density-dependent scenario for in-medium nucleon-nucleon interaction has been used in this study, the corresponding potential energy density and single nucleon potential in Eqs. (3) and (4) and the corresponding expressions for Al and Au are different from those in [60]. These two aspects might be the reason for the difference between our extracted isospin splitting and that in [13, 60]. As indicated in [73, 74], the accurate inclusion of these effects might be important for transport model simulations, which may further improve our results (e.g., the deviations of the simulated π⁺ from the corresponding data).

Finally, it should be mentioned that our results in the present work are mainly based on SπRIT experiments. It will also be interesting to see how $U_{\text{sym}}^{\infty }({\rho }_0)$ affects observables measured in other experiments, such as FOPI experiments [33] and ASY-EOS experiments [75].

Summary

In conclusion, we studied the effects of the momentum dependence of the symmetry potential on pion production in central Sn + Sn collisions at 270 MeV/nucleon. It was found that with a certain L, the characteristic parameter $U_{\text{sym}}^{\infty }({\rho }_0)$ of the momentum-dependent symmetry potential significantly affected the production of π^- and π⁺ and their pion ratios. Moreover, by performing systematic analyses of these observables and comparing the spectral pion ratios of theoretical simulations with the experimental data, we found a constraint on L (i.e., 62.7<L<93.1 MeV). In addition, $U_{\text{sym}}^{\infty }({\rho }_0)$ was constrained to $-{160}_{-9}^{+18}$ MeV. Moreover, the pion observable for ¹⁹⁷Au + ¹⁹⁷Au collisions at 400 MeV/nucleon supported the extracted value for $U_{\text{sym}}^{\infty }({\rho }_0)$.
