2.1 Rotationally symmetric polygonal pixel based image expression & display

The core concept of this paper is based on a novel rotationally symmetric polygonal pixel grid. A representative division pattern of the polygonal pixel grid is shown in Fig.1(a). The structure contains 8 segments in Fig.1(a) which are rotationally symmetric with respect to the center of the image. The arrangement of polygonal pixel is same from segment to segment.

Compared to the conventional rectangle pixel division pattern (Fig.1(b)), the introduction of rotational symmetry helps to compress the storage space of the system matrix.

Compared to the existing polar pixel grid pattern (Fig.1(c)), the regularity of this division mode ensures a simplified expression and automatic segmentation. In another aspect, there are only three types of basic pixel shapes. One can easily adjust the area of each type of pixel to minimize the difference of pixel area over the image FOV. Therefore, this structure may have an edge over polar grid in terms of reducing pixel area unevenness.

Enslaved by the typical image display mode of modern computer, the main challenge of this novel structure is that the image expressed in this rotational symmetry polygon pixel grid has to be translated into the cubic ones for image display. Besides, a new method is needed to calculate geometrical weights of system matrix since the universal algorithms such as Siddons ray-tracing method^[14] is not applicable in this particular case.

2.2 Geometrical description of polygonal pixels

Based on the concept of building arotationally symmetric geometrical structure, the definition of polygonal pixels consists of three steps: (1) segment definition, (2) layer definition inside segments and (3) pixel definition, as illustrated in Figs.2(a), (b) and (c), respectively.

Fig.1Full-screen View

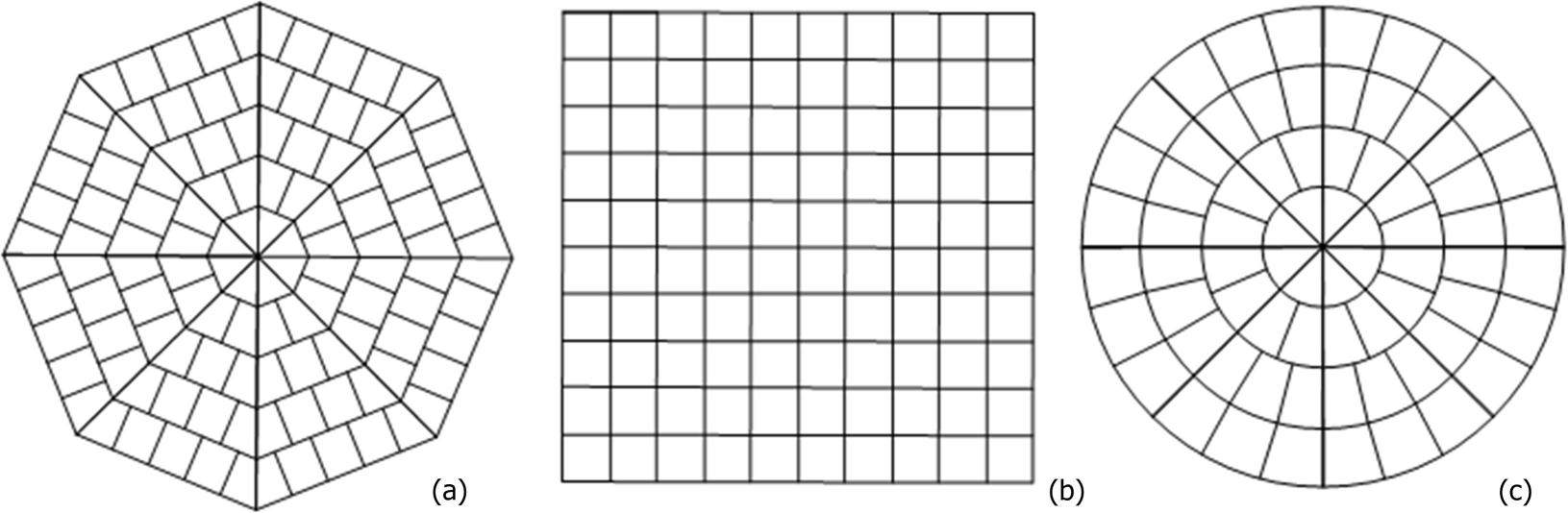

Comparison of basic structures of (a)rotationally symmetric polygonal pixel, (b)conventional rectangle pixel and (c) polar pixel. The compression factors of polygonal and polar pixels are both eight.

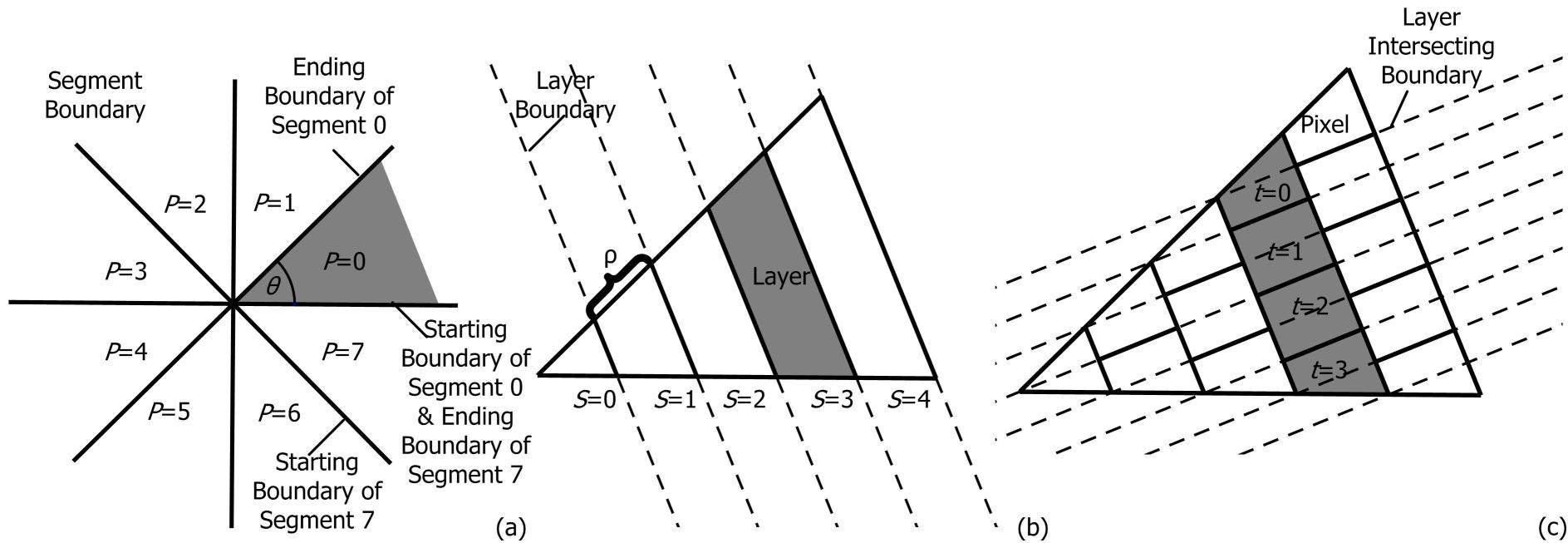

Fig.2Full-screen View

Division mode of rotationally symmetric polygonal pixel grid. (a) segment-division. P -rays starting from the image center (origin) define the P fan-shaped segments (0~P-1, in (a), P=8). Angle of two adjacent rays is also the vertex of each segment defined as θ. An index number p = 0, 1… 7 is anti-clockwise assigned to each of the 8 segments. The starting and ending boundaries of only segment 0 and 7are shown for clarity. (b) layer-division. A group of parallel lines which are perpendicular to the vertex angle bisector divide a segment into several layers. The layer-height ρ is defined as the length of intersecting lines of adjacent layer-boundaries and the segment-boundary. The indexing number of layers is increased from the layer containing the vertex. (c) pixel-division. A group of lay-intersecting lines which are parallel to the vertex angle bisector divide pixels in-layers. The layer 3 has 4 pixels. Inside layer 3, the 0-th pixel contains the ending boundary, and the 3-th pixel contains the starting boundary.

Segment definition: When the compression factor is P, P rays are drawn starting from the center of image field of view (FOV), which divides the FOV into fan-shaped segments. The angle θ between the two adjacent rays, i.e. the vertex angle of each segment is θ=2π/P. The shape and area of every arrangement is equal to each other.

Starting from the positive x-axis which is defined to be the starting boundary of the first segment, an index number p=0, 1…P-1 is anticlockwise assigned to each of the P segments. The ending boundary of p-th segment is the same as the starting boundary of (p+1)-th segment, where p=0, 1…P-2. The ending boundary of segment P-1 coincides with the positive x-axis.

As all the segments are identical in shape, the arrangement of pixels can be defined only once for one segment, which can be rotationally replicated to other segments. Therefore, the definition of layers and pixels are discussed only in segment 0.

Fig.3Full-screen View

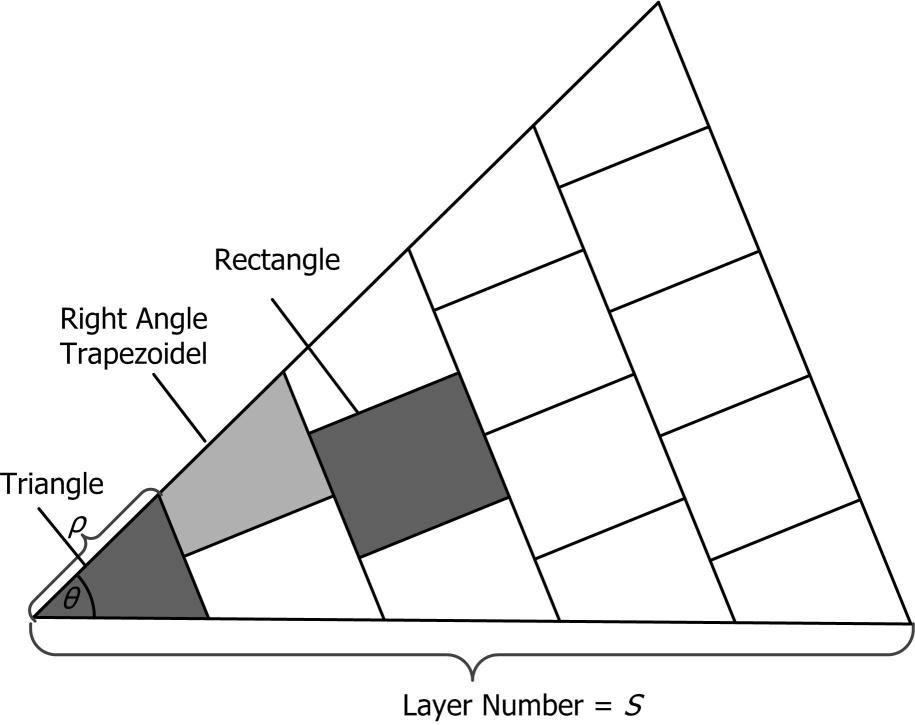

In the segment belonging to a 8-segment polygonal pixel grid, of which the vertex angle is θ, the layer-height is ρ and the layer number is S, there are only three shapes of polygonal pixels. There are only one pixel shaped like triangle and the area is ${\rho }^2\sin \theta /2$. There are 2S right angle trapezoidals, of which the area is $3{\rho }^2\sin \theta /4$, and the number of rectangle is (s-1)s/2 as well as an area of ${\rho }^2\sin \theta$.

Layer definition: The area inside one segment is divided into several regions by a group of layer-boundary lines which are perpendicular to the vertex angle bisector and intersect the segment-boundary with equal distance ρ. The distance between two adjacent layer-boundary lines is$\rho \cos (\theta /2)$. The area embraced by the two adjacent parallel lines and the two segment-boundary rays is called a layer, except the centermost layer which is formed by the two segment-boundary rays and one layer-boundary line which is the closest to the vertex angle. Each layer is identified by an index number s. The layer containing the vertex is layer 0, whose adjacent layer is layer 1, and so on. The total number of layers is defined as S, which is determined by the size of the image.

Table 1Full-screen View

Parameters of three basic geometric structures belonging to an S-layer segment of the rotationally symmetric pixel grid

Parameters
Shape name	Triangle	Right angle trapezoidal	Rectangle
Number of pixels	1	2S	(S-1)S/2
Area	ρ2 sin θ/2	3ρ2 sin θ/4	ρ2 sin θ
Relative area ratio	2	3	4

Show more

Pixel definition: As illustrated in Fig.2(c), a set of lines parallel to the vertex angle bisector are drawn which divide each layer into one or multiple polygonal regions. Those lines are denoted as lay-intersecting lines to be distinguished from layer-boundary line in layer definition, and each polygonal region is defined as one pixel. The distances between the neighborhood layer-intersecting lines are all equal to 2ρ sin θ/2. The s-th layer has s+1 pixels that are in a row. The row-index for those pixels labeled as t. We define that in each layer, the 0-th pixel contains the ending boundary, and the s-th pixel contains the starting boundary.

With the above steps described, one can establish a rotationally symmetric polygonal pixel grid and enumerate all the pixels with three parameters, i.e. segment-index p, layer-index s and row-index t. Therefore, a pixel is uniquely specified by (p,s,t).

In comparison with conventional rectangular-pixel based image division pattern, the proposed pixel division strategy has a P-fold rotational symmetry when there are P segments, leading to a 1/P storage size of the system matrix. The existing polar-pixel based methods can achieve a similar compression factor. However, considerable difference of both pixel shape and area exists in pixel division pattern. E.g. in Ref.[15], the largest area ratio of pixels reaches almost 5, which may lead to non-uniform image quality distribution and even image artifacts. As listed in Table 1, in the proposed polygon pixel division strategy, there are only 3 basic pixel types: triangle, right angle trapezoidal and rectangle, and the area ratios of these three types of pixel are 2:3:4. The simple pixel shapes and reduced pixel area difference are beneficial in minimizing resolution non-uniformity and reducing image artifacts.

2.3 Pixel indexing and addressing

In order to store a digital image into computer memory, a pixel indexing rule is needed to map each pixel to a memory unit. Likewise, a pixel addressing method is needed to calculate the pixel coordinate given its memory address.

In an image expressed by rotationally symmetric polygonal pixels, each pixel is uniquely represented by its three indices (p,s,t). When the image is stored in computer, it occupies a continuous space of computer memory, for each pixel (p,s,t), a unique address i needs to be determined.

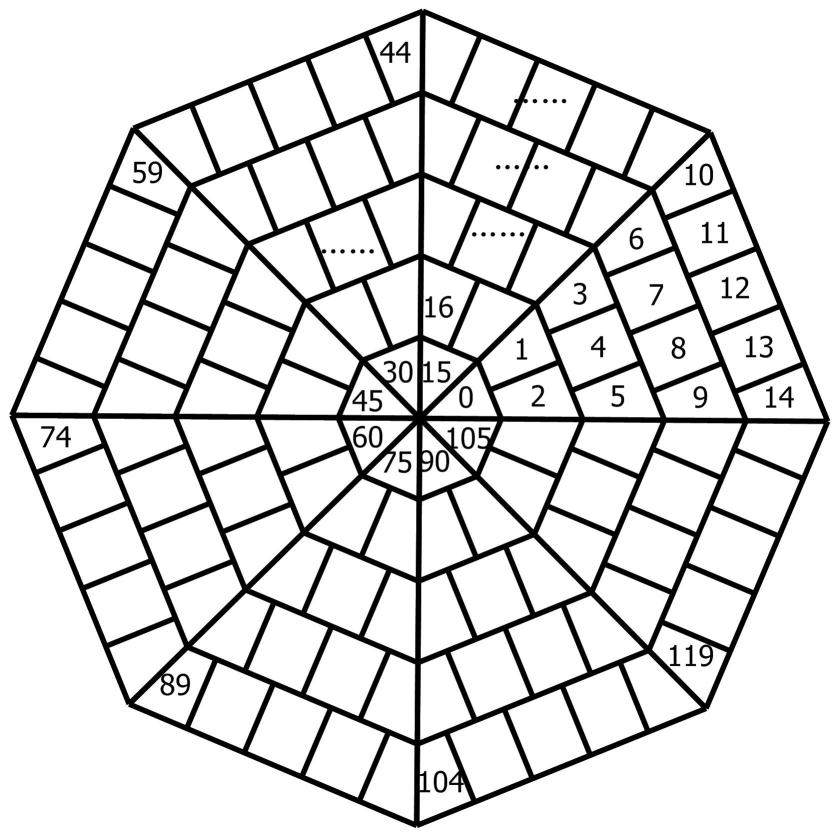

Figure 4 shows a representative scheme for assigning memory address to image pixels in an 8-segment, 5-layer image. The pixel indices are determined with a segment-by-segment and layer-by-layer sequence. The pixel indices inside p-th segment are from 15p to 15p+14. Inside a segment, the pixel indices are increasingly assigned from smaller layers to larger layers and from smaller rows to larger rows inside each layer.

Fig.4Full-screen View

Diagram for stored orders (pixel code) of pixel values of the rotationally symmetric polygonal structure, taking P=8, S=5, I=120 as an example.

According to above rules, one has the mapping relationship between i and (p,s,t) is:

Where $I=(S+1)(S+2)/2$ is the total number of pixels in one segment.

Meanwhile, the coordinate (p,s,t) of the i-th pixel is determined as:

And

2.4 Image pixel structure conversion

To view an image stored in the rotationally symmetric polygonal pixel structure on computer screen, it has to be firstly converted to a conventional rectangular pixel structure. The conversion process can be expressed as:

Where Image_M is the converted image in rectangular pixel based structure, Image_N is the original image in rotationally symmetric polygonal pixel structure, both organized in column vector format, and Q_MN is the conversion matrix.

Fig.5Full-screen View

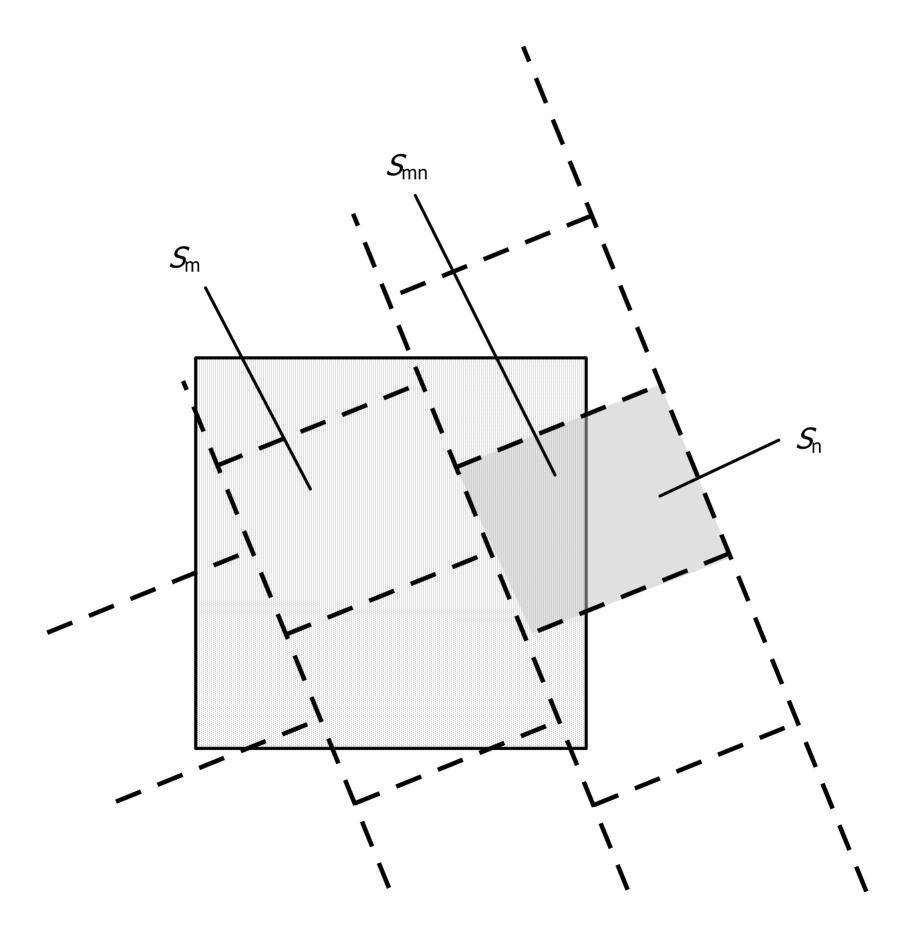

Sketch map for pixel transforming. The m-th square pixel, whose area is S_m, is covered by several pixels in rotationally symmetric structure; the value of which can be expressed as a weighted sum of those unconventional pixels covering this square one. The weight is considered as the ratio of the overlap area and the total area of the cubic pixel: q_mn=S_mn/S_m.

As illustrated in Fig.5, the value of m-th rectangular pixel in Image_M can be expressed as a weighted sum of the values of multiple polygonal pixels overlapping it. The overlap area of the n-th pixel in polygonal structure and the m-th pixel in rectangular structure is denoted as S_mn. The weight is considered as the ratio of the intersection area and the total area of the cubic pixel. Therefore, one has

2.5 Verification of image expression and structure conversion

In order to verify that an image is correctly stored in a rotationally symmetric polygonal structure and converted to a rectangular pixel structure, a set of test images are analytically defined:

By selecting different segment number, a set of images A_n is numerically defined. Fig.6 illustrates the test images of 8, 9 and 12 segments, respectively. Those images are converted to B_m, stored in rectangular pixel structure, and displayed on computer screen for examination. If the structure is defined correctly and the transforming matrix works effectively, one should see the images corresponding to the predefined ones in various rotationally symmetric polygonal grids.

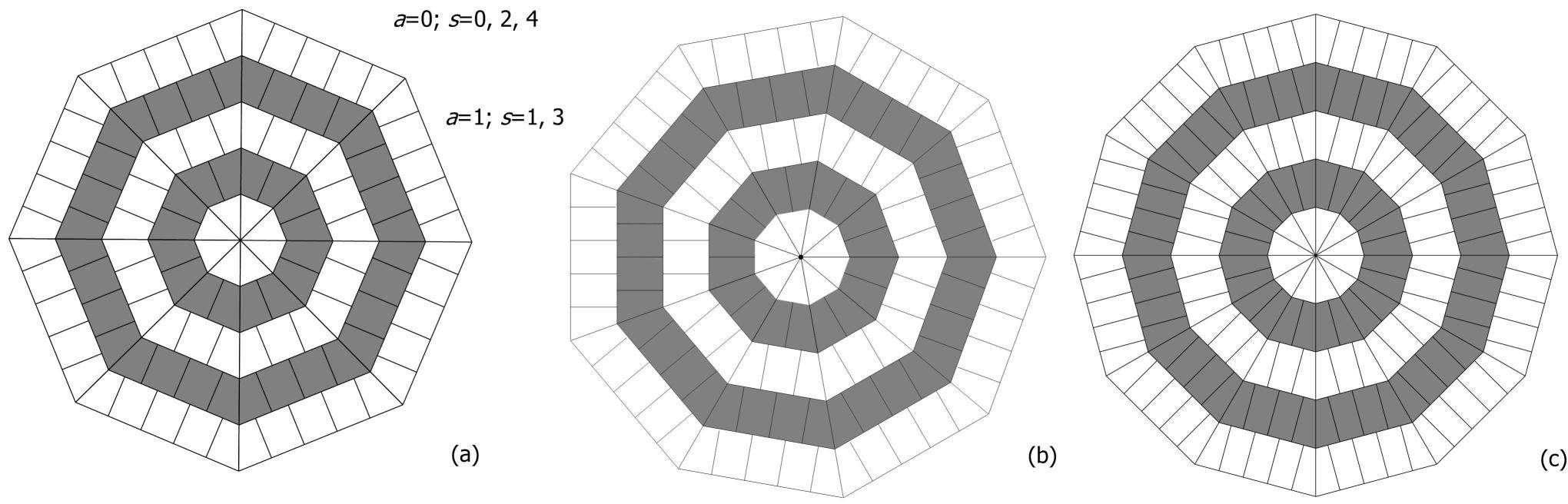

Fig.6Full-screen View

Schematic diagram for the testing images of 8 segments(a), 9 segments(b) and 12 segments(c) for image expression and conversion, where the value of pixels equals 0 when s=0,2,4; and the value of pixels equals 1 when s=1, 3.

3.1 Generation of a compressed system matrix

In the calculation of the system matrix, each line-of-response (LOR) is considered as a tape with certain length. As shown in Fig.7, each LOR is uniquely identified with its projection angle φ and the distance to the center of FOV r. Therefore, the j-th LOR is denoted as j(φ,r). Each element c_i,j in the system matrix records the probability that the j-th LOR detects a photon emitted from the i-th pixel, denoted as i(p,s,t). In this study, the impact of physical effects, such as positron range, photon non-collinearity, attenuation and scattering are ignored, and pure geometric detector response is modeled. In this way, c_i,j is considered to be proportional to the overlapping area of the i-th pixel and j-th LOR.

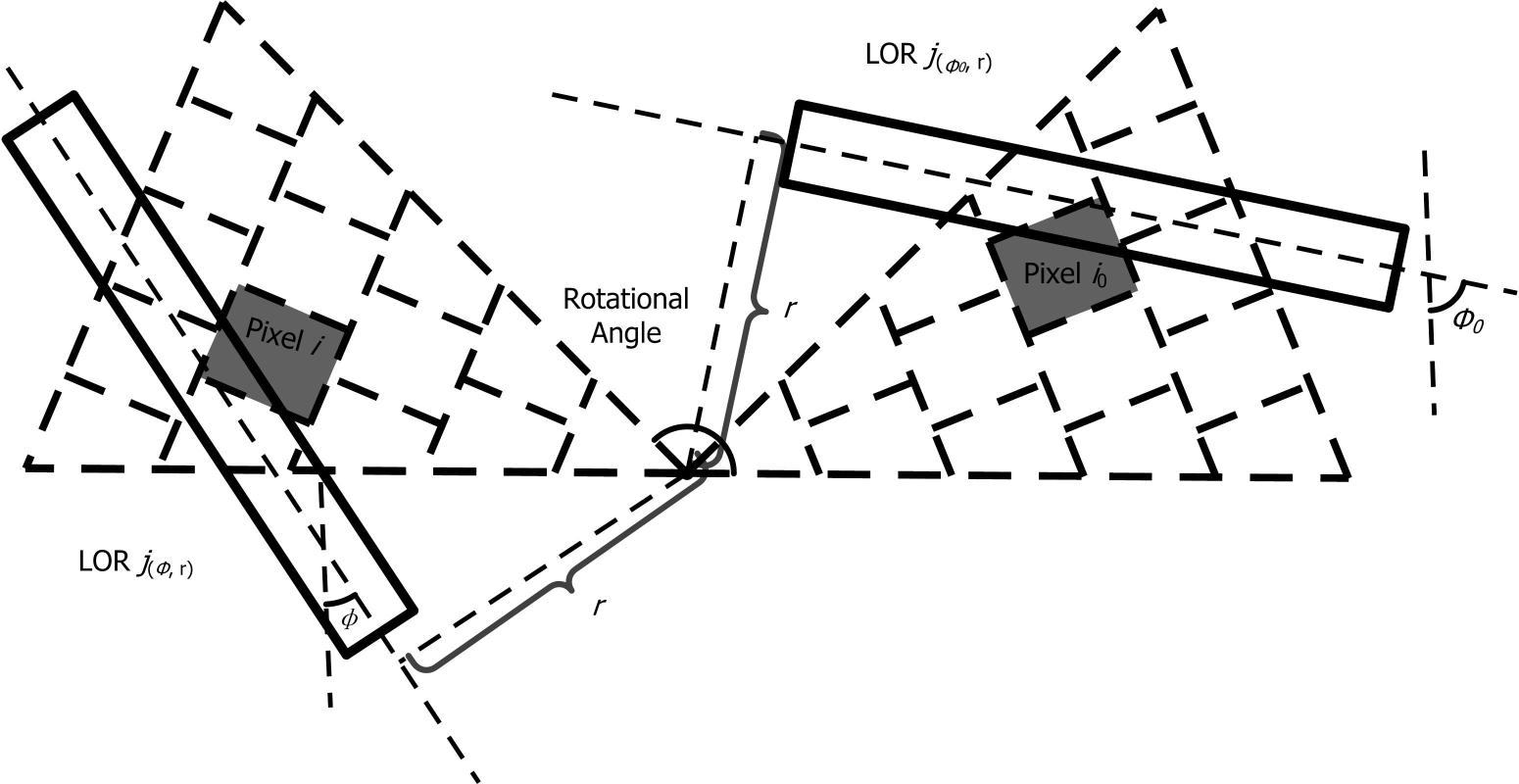

It is clear the rotational symmetric structure in the image domain can be utilized to compress the system matrix. As shown in Fig.8, considering two image pixels i₀ and i, when they have same layer index s and row index t, and when the angle from LOR j₀ to j is equal to pθ, i.e. the angle from segments p₀ to p, the overlapped area between pixel i and LOR j is rotationally symmetric to that between pixel i₀ and LOR j₀, thus the corresponding system matrix element has same values, i.e. $c_{{}_{i,j}}=c_{i_0,j_0}$.

The relationship between i and i₀ is shown followed:

The relationship between j and j₀ can be expressed by relationships of r and r₀ as well as φ and φ0:

Fig.7Full-screen View

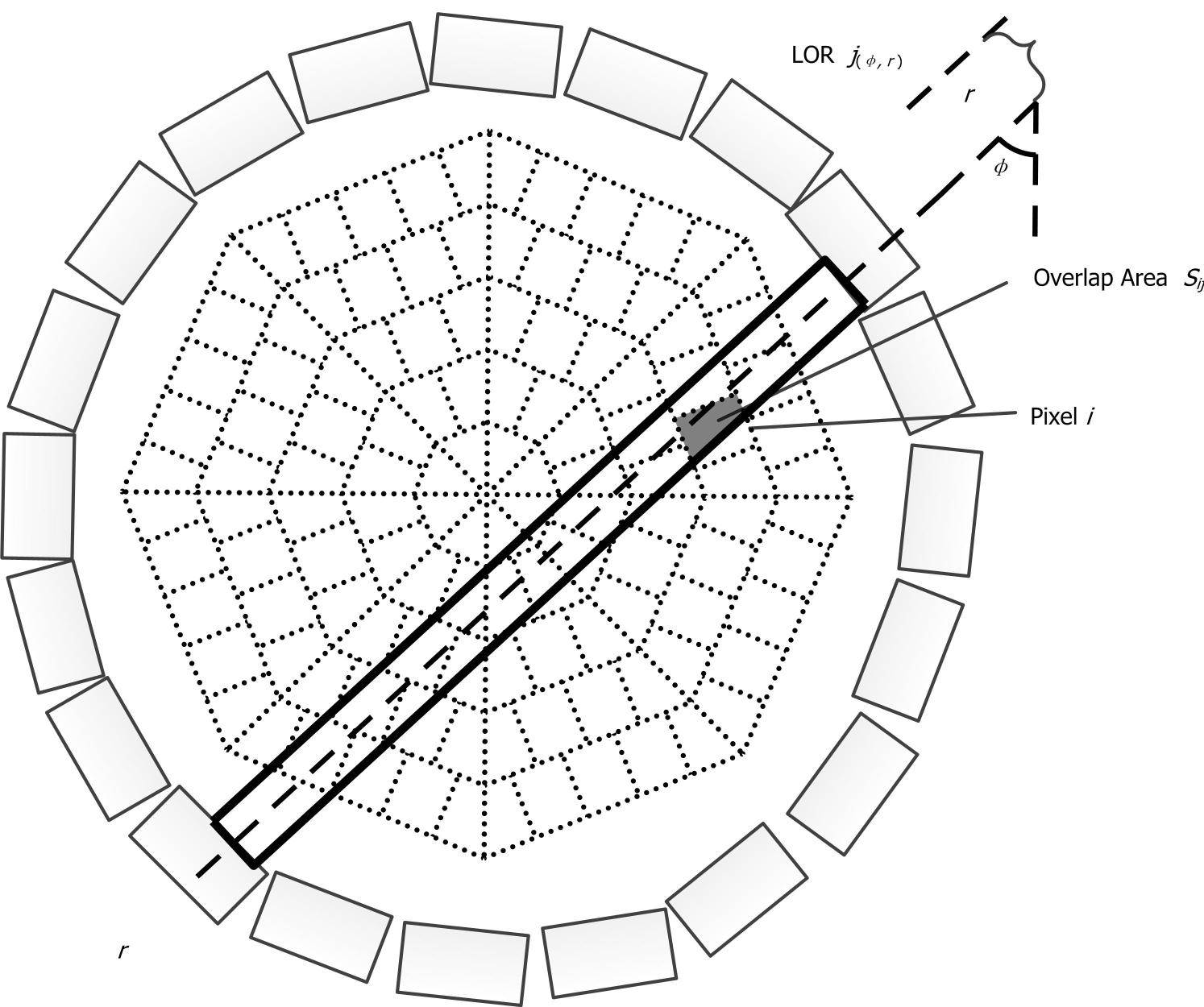

General view for calculation of system matrix with projection-tapes model. In PET detector structure, The ratio of the projection tape j_(φ,r) and i-th pixel’s overlapping area Sl_i(φ,r) and the total area of pixel i, S_i, are taken as the weight of system matrix when we regarded projection lines as a group of tapes with a certain width.

3.2 Verification of system matrix

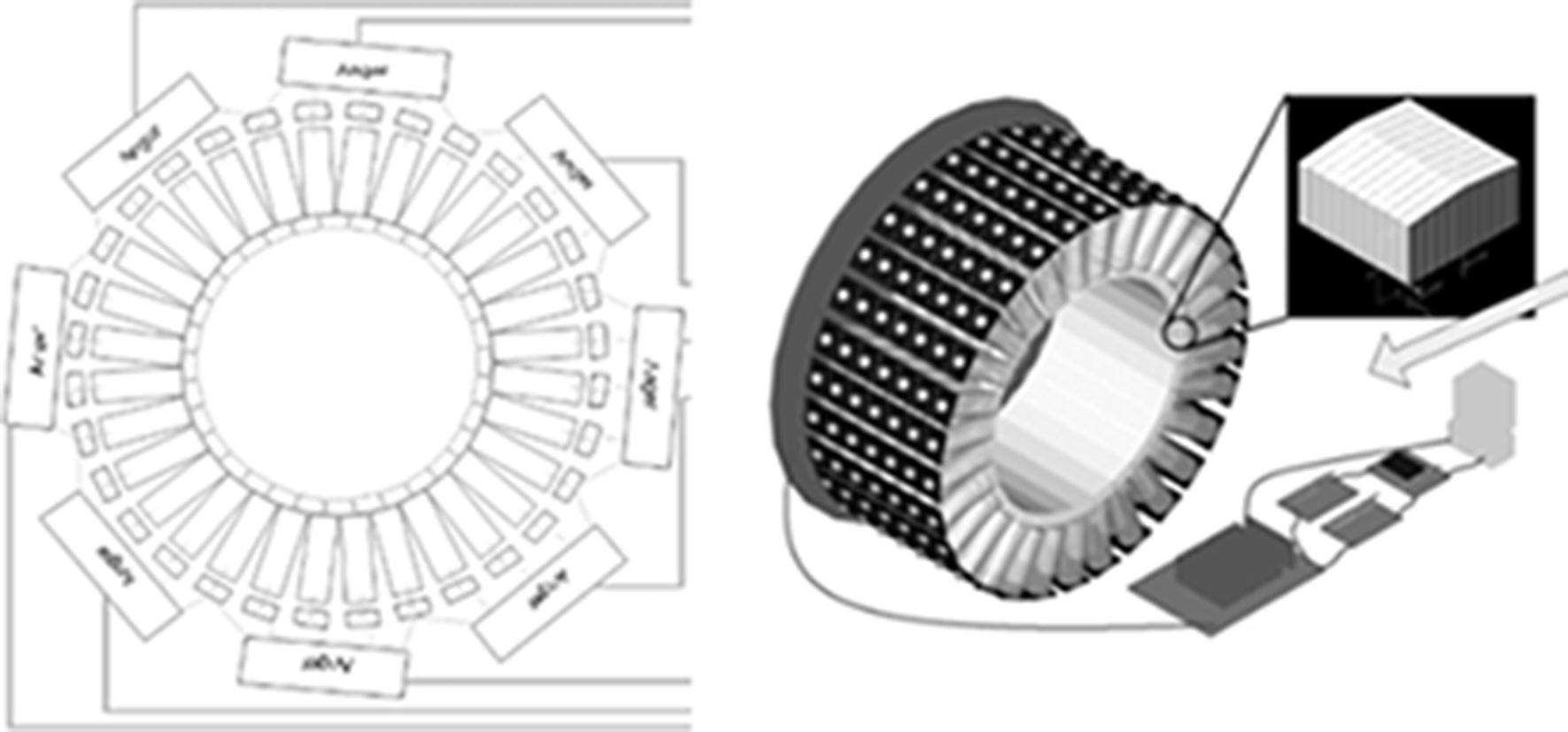

The following verification studies are based on a simulated typical small animal PET system. As shown in Fig.9, the detector consists of 6 rings, on each of which 32 detector blocks are evenly distributed. Every block is composed of 8×8 LYSO crystals. The size of crystal is 1.59 mm×1.59 mm×10 mm. The detector ring diameter is 147.2 mm, and the size of FOV is 30 mm in diameter and 76.32 mm in axial length. Radial center of the entire detector field of view is a circular with a radius of about 30 mm.

A rotationally symmetric polygonal pixel structure with P=12, ρ=0.5 mm is defined. The layer-height ρ is chosen so that it is much smaller than the desired PET system resolution i.e. 1.6 mm. To cover the 30 mm FOV, the image has 60 layers. The acquired 2D PET data are organized to a sinogram with 155 angular samplings over 180 degree and 60 radial samplings over 30 mm trans-axial FOV, and the width of the LOR tape is the same as the layer-height.

By defining different source distributions in the image structure, the corresponding sinogram data were generated by projecting the source image into LOR space using the pre-calculated system matrix. The sinograms are visually examined and compared to theoretical expectation to verify the correctness of the system matrix and projection model.

5.1 Structural testing for rotationally symmetric polygonal pixel grid

As defined in Eq.(7), three test images are defined with three different segment numbers: P=8, P=9 and P=12. These images are defined with rotationally symmetric polygonal structures, and converted to images expressed with conventional rectangular pixel structure as described in Eq.(5). The pixel size in the converted images is almost 1/5 of that of original images. Three converted images are shown in Fig.11. No image quality loss is observed after the conversion, which demonstrates the correctness of the image structure conversion process.

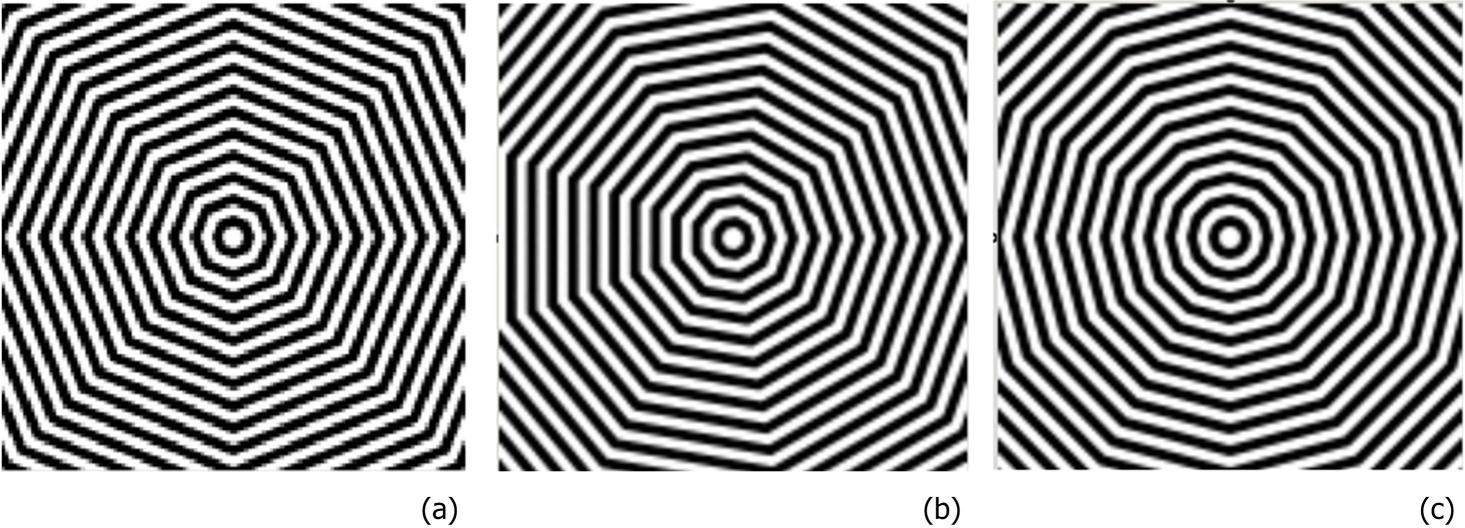

Figure 10 displays results of the test images defined in Eq.(7) converted to Cartesian coordinate. The segment number P of Figs.10(a-c) is respectively 8, 9 and 12, and the pro-defined images are shown in Fig.6. The layer-height ρ of the rotationally symmetric structure is 3 mm. The pixel size of the rectangular pixel structure is 1mm, and the final size of the image is 128×128.

5.2 Validation of the generated system matrix through forward-projection process

In this test, three different distributions of radioactive sources were defined:

1) A point source located at the center of FOV;

2) A point source located radially 29.6 mm off the center of FOV;

3) A volumetric source which uniformly fills the entire FOV.

Three corresponding sinograms were generated by forward projecting the above source images with the generated system matrix, which are shown in Fig.11.

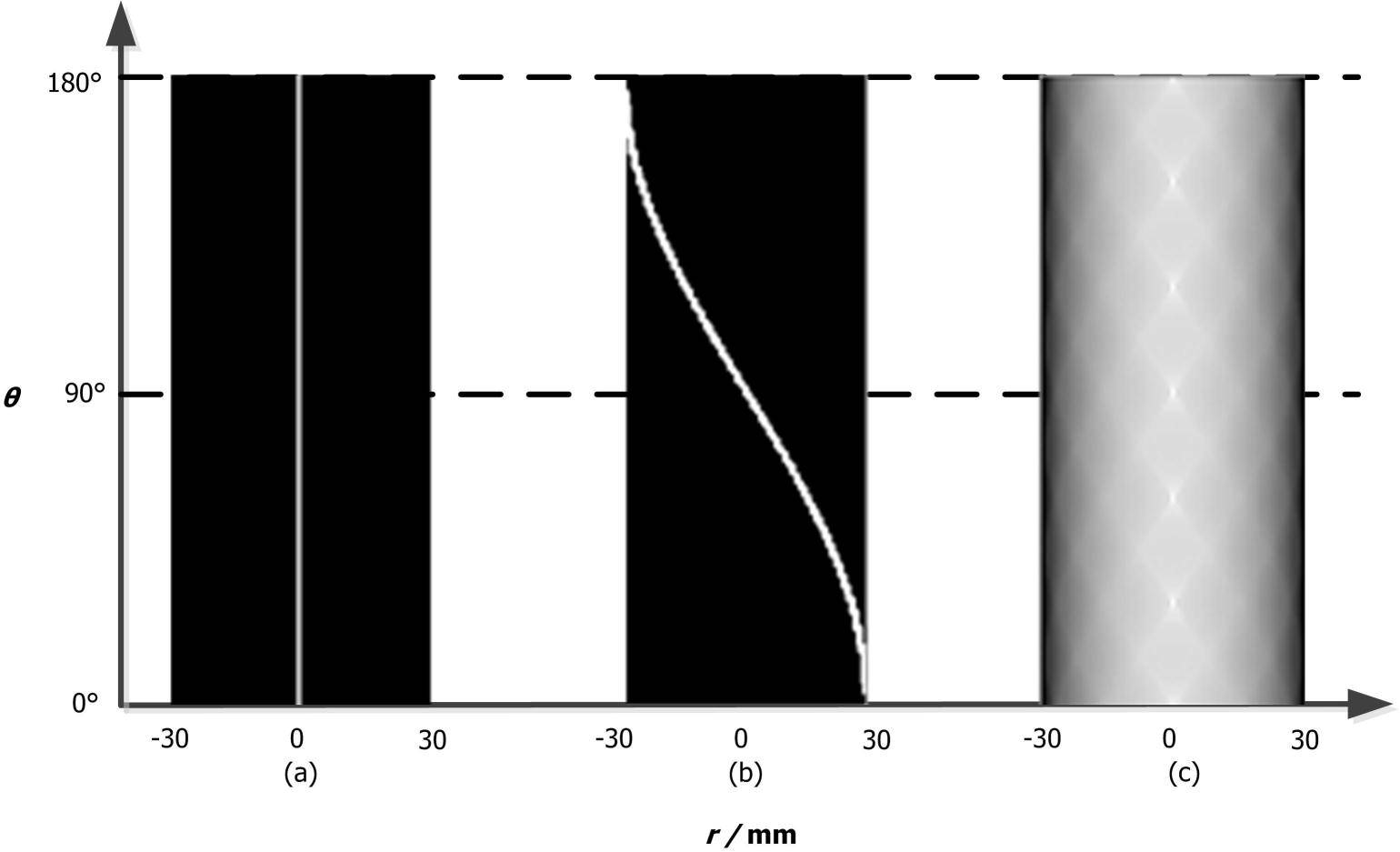

Fig.11Full-screen View

The results of the forward-projection test for System Matrix, (a) the sinogram for a point source located at the center of FOV, (b) the sinogram for a point source 29.6 mm off the center of FOV and (c) the sinogram for a volumetric source uniformly fills the entire FOV.

In Fig.11(a), the sinogram is expected to be a straight line (r=0), and the generated sinogram agrees well with the expectation. When the point source is 29.6 mm off-centered, the expected sinogram is a sinusoidal curve with 29.6 mm amplitude. In the generated sinogram, the measured amplitude is 29.6 mm. In Fig.11(c), the covered range in the r direction of the generated sinogram is 29.5 mm. Since the size of FOV is 30 mm, the covered range well matches the FOV size. Therefore, the sinograms generated by system matrix are corresponding to the theoretical expectations, and it approves that the system matrix is calculated correctly.

Fig.12Full-screen View

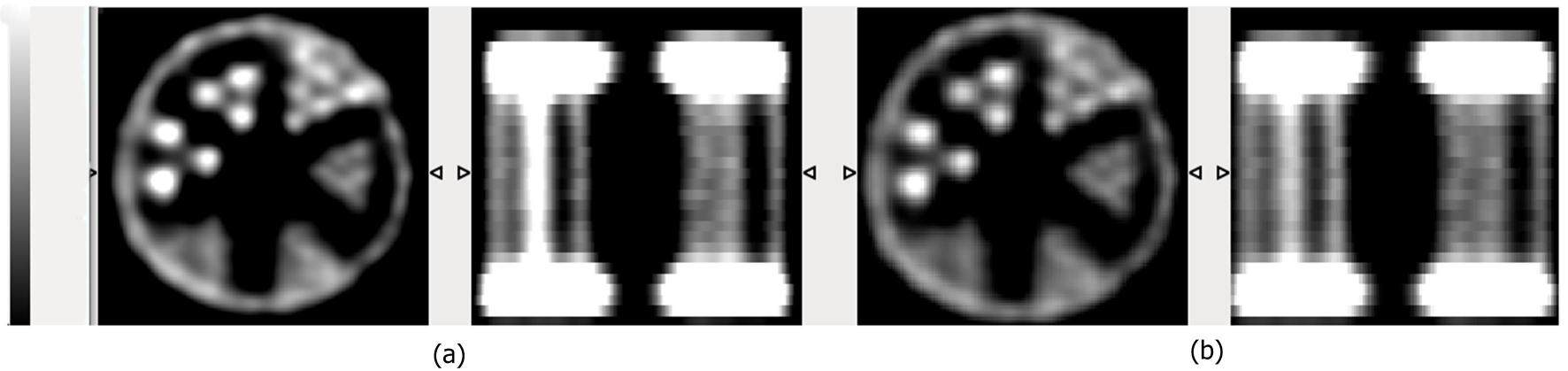

Comparison of central transaxial and coronal slice of reconstructed phantom images based on a polygonal pixel structure with P=12 and ρ=0.5 mm (a) and a 141×141 cubic pixel grid (b). We implemented OS-EM iterative image reconstruction with 54 iterations. Data were collected from actual list-mode data and organized into projection in 108 projection angles and 70 intervals. The sizes of derenzo model are 0.75 mm, 1.0 mm, 1.35 mm, 1.7 mm, 2.0 mm and 2.4 mm, respectively.

5.3 Image reconstruction results

A hot rod phantom with 6 sections of hot rods (0.75 mm, 1.0 mm, 1.35 mm, 1.7 mm, 2.0 mm and 2.4 mm in diameter, respectively) and 30 mm cross sectional size was scanned using a practical animal PET system. 2D sinograms (108 angular bins and 70 radial bins) were generated from the list-mode event data. The images reconstructed with OS-EM iterations in polygonal pixel grid and cubic grid are shown in Figs.12(a) and (b), respectively.

Figure 12(a) shows reconstructed images based on a rotationally symmetric polygonal structure, with 12 segments and 79 layers. The layer height was ρ =0.33 mm. After the reconstruction, the images were converted to conventional rectangular pixel structure, with 0.1 mm×0.1 mm pixel size. We can see typical rotational polygonal pixel shaped artifacts in the lower, middle part of the zoomed image section.

The right column shows reconstructed images based on a cubic pixel grid with 142×142 pixels of 0.33 mm×0.33 mm sizes.

Both in Figs.12(a) and (b), the 1.35 mm hot rod sections can be distinguished. Line profiles in Fig.13 illustrated that the desired 1.35 mm image resolution can be achieved with the proposed rotationally symmetric polygonal structure.

Fig.13Full-screen View

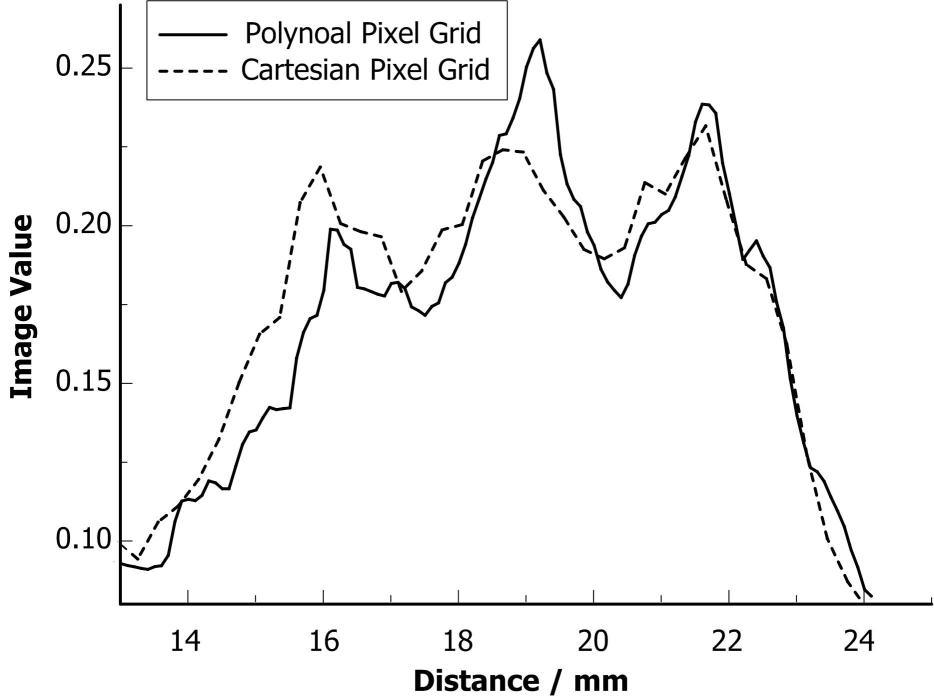

Vertical line profiles through the section with 1.35 mm in diameter in the reconstructed phantom images in Fig.12.

Based on this small animal PET system mentioned previously, the memory size of system matrix can be compressed to 46.1 MB when elements are stored as 32-bit float numbers using this polygonal pixel grid. In comparison, when we use the conventional rectangular pixel grid, the required memory size reaches 581.5 MB. The compression ratio of the system matrix size is 12.6:1.

It took 2804 s to run 54 iterations in polygonal pixel grid running in a PC with a 2.5 GHz Inter(R) Core(TM) i5-3210M CPU and 4 G memory. The iterations conducted in cubic grid cost 2440 s.

Considering the total pixels number in polygonal gird is 1.88 times more than the regular one, the slight increase reconstruction time is acceptable.
