1 Introduction
Wheat straw is an annually renewable fiber resource in abundant quantity in many regions of the world. However, wheat straw is often considered as solid waste because of its limited industrial application due to its low cellulose content, high extractives content, ash-forming minerals, inaccessible morphology, insolubility, and loose structure [1]. Wheat straw usually consists of rigid cellulosic microfibrils embedded in a soft hemicelluloses and lignin matrix. Cellulose chains are packed in an ordered manner to form compact microfibrils, which are stabilized by both inter-molecular and intramolecular hydrogen bonding. Hemicelluloses and lignin belong to thermoplastic polymer. However, the thermoplasticity of wheat straw is poor [2]. In other words, the melting temperature of wheat straw is higher than its decomposed temperature, because there is no sufficient temperature gap between the temperature sufficient to open the intermolecular bond and the temperature at which degradation of the entire material starts [3]. In a word, wheat straw alone is difficult to mold and process. Therefore, it is necessary to modify the wheat straw to improve its plasticity and processibility.
Wheat straw can be chemical modified by acetylation, benzylation, acid chlorides, several anhydrides, carboxylic acids, isocyanates, formaldehyde and other aldehydes, methylation, alkyl chlorides, propiolactone, acrylonitrile and epoxides via reaction with hydroxyl (OH) groups [4-7]. Another way to improve plasticity of wheat straw is graft-copolymerization of flexible molecular chains. Being a simple method, free-radical polymerization induced by γ-rays can functionalize wheat straw with vinyl monomers [8, 9]. Vinyl acetate is an organic compound in the formula of CH3COOCHCH2. Poly(vinyl acetate) (PVAc) is known as a ductile and non-toxic polymer, synthesized by free radical polymerization [10]. By grafting vinyl acetate onto substrate, the properties can be endued with desirable properties. By grafting copolymerization of vinyl acetate onto lignin, the mechanical and thermal properties of lignin can be enhanced to make value-added greener products [8]. The graft copolymerization of vinyl acetate onto the chitosan chain was initiated by chemical method to decrease the water absorption of the chitosan material [11]. However, few studies have addressed the effect of modified wheat straw by radiation-induced grafting of vinyl acetate on the properties of PE composites.
In this paper, the 60Co γ-rays are used to graft vinyl acetate onto wheat straw to impart thermoplasticity. The samples are characterized to examine the chemical structure, crystallite structure, thermal stability, and surface morphology. Effects of the γ-ray irradiation and grafting on rheological and mechanical properties of PE/wheat straw composites are investigated.
2 Experimental
2.1. Materials
Wheat straw was obtained from a wheat field in Jiangsu Academy of Agricultural Science, China. Vinyl acetate was purchased from Shantou Xilong Chemical Factory, Guangdong, China. High density polyethylene (HDPE, Density: 0.95 g/cm3, MFR: 8 g/10 min) was purchased from Sinopec Yangzi Petrochemical Company Ltd.
2.2. Sample preparation
Vinyl acetate was used as the low surface energy functional monomers. To prepare the grafted wheat straw, the wheat straw samples were soaked in vinyl acetate solution in methanol, and irradiated by 60Co γ-rays to 100 kGy in N2 environment. After the graft polymerization, the homopolymers were thoroughly removed by means of hot solvent extraction for 48 hours. The degree of grafting (DG) was determined by:
where W1 and W2 are the wheat straw weight before and after grafting, respectively.
The controls were a blank sample treated exactly in the same experimental conditions without monomer, and a poly(vinyl acetate) sample prepared in the same experimental conditions.
2.3. Characterizations
2.3.1. Fourier transform infrared spectroscopy
Using dried powdered samples, attenuated total reflection Fourier transform infrared spectroscopy (ATR-FTIR) spectra were obtained on an Nicolet iS10 FTIR system (Thermo Scientific, USA) in the range of 4000–500 cm−1. 32 scans were accumulated at a resolution of 4 cm−1.
2.3.2. Thermal analysis
DSC curve of different samples was performed on a TA Q20 DSC apparatus (TA Instruments, USA) with a discovery refrigerated cooling system (RCS40) and nitrogen as purge gas.
Thermal stability of the samples was assessed with thermo-gravimetric analysis (TGA) (SII-7200, Japan), from room temperature to 600°C at a heating rate of 20°C/min. The tests were carried out in N2 atmosphere (20 mL/min) to prevent thermoxidative degradations. The sample pan was placed on the Pt basket in the furnace, and 5 mg of materials was used for each measurement.
2.3.3. X-ray diffraction analysis
XRD patterns of the samples were collected with a Bruker D8 Advance X-ray diffractometer (Bruker AXS, Karlsruhe, Germany) at 20 kV, 5 mA, using Cu Kα (λ = 1.5418 Å), with a scan speed of 6°/min and a step size of 0.05° in 2θ ranging from 5° to 60° at room temperature.
2.3.4. Morphological analysis
Morphology of the samples, gold-sputtered, was checked by SEM (EVO-LS10, Germany).
2.3.5. Rheological properties of PE/wheat straw composites
The PE-wheat straw blends were prepared with a ZHL-I torque rheometer (Changchun Intelligent Instrument and Equipment Co., Ltd., China). The weight ratio of wheat straw and PE was 1:4, mixed at 160°C and 50 rpm for 2400 s.
2.3.6. Mechanical properties
Test specimens were prepared using a Haake minijet (Thermo fisher Scientific, Germany). The injection was performed at 700 bar. Mechanical tests were carried out with a mechanical testing machine (HY-0580, Shanghai Hengyi Testing Machine Co., LTD., China), at room temperature. Mechanical properties of the specimens were tested according to DIN EN ISO 527-2. For each formulation at least five samples were tested.
3 Results and Discussion
3.1. Chemical structure of the graft copolymers
FTIR spectra of the irradiated wheat straw, the grafted wheat straw (PDG of 25.1%), and the controls were collected, as shown in Fig. 1. The peak at around 3335 cm−1 is attributed to the hydrogen bond association among molecules of cellulose, hemicellulose, lignin, and water in wheat straw. The characteristic peaks of cellulose are observed at 3335, 2924, 1158 and 896 cm−1. The absorption peaks at 1512 and 1619 cm−1 are attributed to the stretching vibration of aromatic rings, which are the characteristic absorption peaks of lignin. The characteristic peak of hemicellulose is located at 1372 cm−1 [12]. The strong peak at 3335 cm−1 is broadened after irradiation, indicating that the strong hydrogen bond association is reformed among molecules due to the free radical initiation. The stretching and asymmetric vibration of C-O-C at 896 and 1158 cm−1 become stronger after irradiation. The results show that the chemical bonds in wheat straw are partially destructed, the crystalline structure of cellulose and the compact structure become loose [13].
The peaks at 1438 and 1372 cm−1 are attributed to bending vibration of CH2 and CH3 in PVAc. The peak at 1730 cm−1 of the grafted wheat straw is the stretching vibration band of the –C=O functional group of PVAc, while the bond is not observed in the spectrum of the pristine wheat straw. This proves that the PVAc is grafted onto the wheat straw.

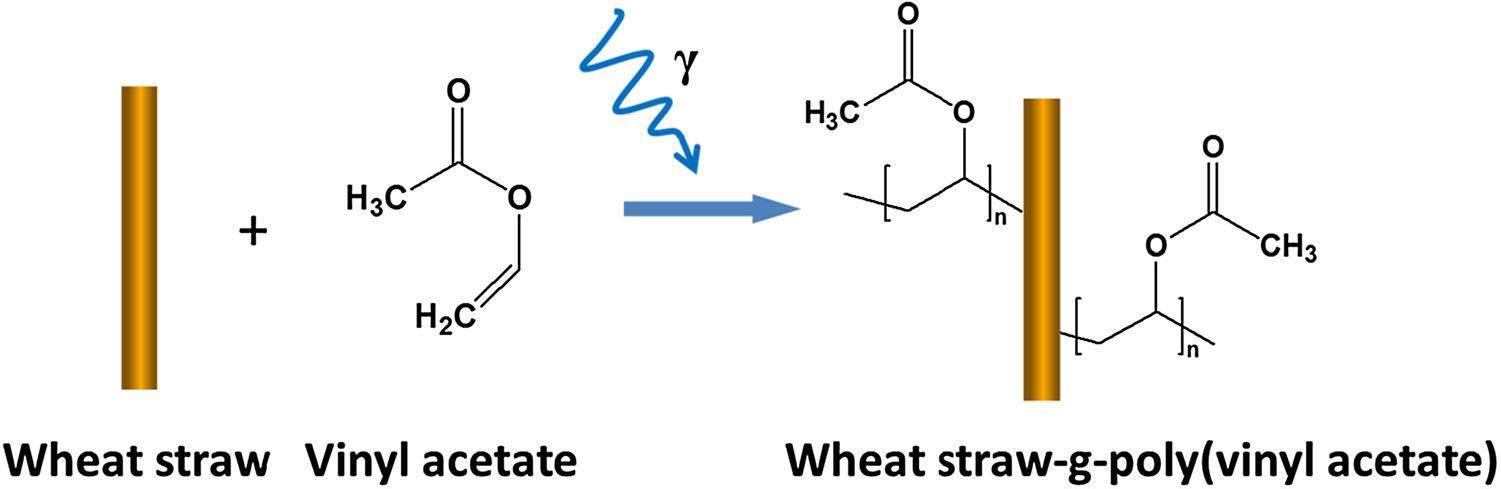

The radiation-grafting mechanism is exhibited in Fig. 2. The covalent bonds in wheat straw molecules can be broken randomly by the γ-rays [12]. And the covalent bonds in vinyl acetate can be broken simultaneously, and new covalent bonds are formed between wheat straw and PVAc [14]. Also, homopolymerization of PVAc occurs. Wheat straw-g-poly(vinyl acetate) with DG of 30% is characterized and blended with PE in this work.
3.2. Thermal properties of wheat straw
Differential scanning calorimetry curves of the pristine, irradiated, and grafted (PDG =25.1%)wheat straw are presented in Fig. 3, as the amount of heat required as a function of temperature. The Tg of PVAc is 36°C [15]. The peak and onset temperature of irradiated wheat straw are lower than the pristine wheat straw, because the interactions among molecules are interrupted by the γ-rays. Also, the molecular chains in wheat straw are broken. The fractured molecular chains need less energy for thermal transition. The irradiated wheat straw has reduced value of ΔH, i.e. the whole energy required become less due to the irradiation [16]. However, the grafted wheat straw has higher onset and peak temperature. The PVAc chains that grafted on wheat straw limits the mobility of wheat straw molecules. Finally, the grafted wheat straw has lower ΔH value, i.e. the whole energy required decreases siganificantly.
TGA, DTG, DTA curves of the pristine, irradiated and grafted (PDG=25.1%) wheat straw samples are shown in Fig. 4. The TGA curves (Fig. 4a) show that the water was evaporated in the temperature range of 30°C–200°C. The thermal stability of the untreated wheat straw is better than the modified wheat straw in the temperature range of room temperature to 300°C. Above 400°C, the char residues of the pristine wheat straw was less than that the irradiated wheat straw, because the molecules being easy to decompose were transformed into volatile gas during the γ-irradiation. Then smaller molecules could transform to volatile molecules in the pyrolysis process, and more residues were left [17]. The PVAc had the least amount of residues, i.e. PVAc molecules could convert to volatile molecules easily above 500°C. Therefore, the residues of grafted wheat straw were less than that of the untreated wheat straw. In addition, the PVAc possess better thermal stability from room temperature to 300°C, indicating that PVAc can meet the processing requirements.
In the DTG curves (Fig. 4b), the maximum pyrolysis temperatures of the pristine, irradiated and grafted wheat straw samples, and the PVAc, are 336.1°C, 334.0°C, 362.8°C, and 348.5°C, respectively. The maximum pyrolysis temperature of the pristine wheat straw decreased after irradiation, indicating the radiation-induced reduction of thermal stability of wheat straw [18], due to the scission of molecular chains in wheat straw fiber by the γ-rays. The maximum pyrolysis temperature of the grafted wheat straw is the highest of all samples, showing that the grafted PVAc act as a protective barrier for the wheat straw, preventing the heat transfer. Thus, Its maximum pyrolysis temperature shifted to higher values [19].
In the DTA curves (Fig. 4c), the endothermic peak temperatures of the pristine, irradiated and grafted wheat straw samples, and the PVAc, are 337.4°C, 337.6°C, 364.9°C, and 334.4°C, respectively. The endothermic peak temperature of the irradiated wheat straw is nearly the same as the controls, and that of the grafted wheat straw is the highest. Besides, the endothermic energy of grafted wheat straw is greater than that of the untreated wheat straw. These indicate that the PVAc contributes to the increase of activation energy.
XRD patterns of the untreated and treated wheat straw samples, and the average crystallite size and crystallinity, are shown in Fig. 5. Crystallite sizes (Lhkl) of wheat straw fiber were calculated from the Scherrer’s equation along (002) orintation.
where K=0.89 is the shape factor, λ=0.154 nm is the Cu Kα1 wavelength, β is the full width at half maximum (2θ, rad), and 2θ=22.0° is the diffraction angle. The crystallinity of wheat straw fiber were estimated using the following equation (3).
where I002 is the height of (002) reflection (2θ=22.0°), Iam is the minimum between the (002) and (110) peaks (2θ=17.6°).
Typical diffraction pattern of cellulose type I is attributed at 16.3° and 22.0° [20]. The crystallite size and crystallinity decreased after irradiation, as the partial crystalline structure was destructed by the γ-rays. The grafted wheat straw decreased in crystallinity. On other hand, the grafted PVAc is kind of amorphous compound, and the chains growth from active sites in the non-crystalline zone of wheat straw would increase the disorder of structure, due to decreased crystallinity of grafted wheat straw.
The small increase in crystallite size and crystallinity of the grafted wheat straw indicates strong interactions, such as chemical bonds, van der Waals forces, and hydrogen bonds, between grafted PVAc and wheat straw molecules.
3.3. Surface morphology of the treated wheat straw
SEM images of the wheat straw samples before and after irradiation are shown in Fig. 6. The pristine sample is of a smooth structure with few attachments, while the irradiated samples is of rough and uneven surface morphology, with holes and trenches. The energy deposition by the γ-rays generates free radicals, which cause molecular chain scission and crosslinking [21]. The irradiated sample has increased specific surface area [22]. The grafted sample exhibits round holes on the surface, but the surface morphology is relatively smooth.
3.4. Thermal properties of PE/wheat straw composites
DSC was used to study the crystallization and melting behavior of the PE/wheat straw composites. The crystallization behavior and thermal properties were analyzed. DSC curves of the composites of PE and wheat straws before and after irradiation/grafting, and the crystallization temperature (Tc), crystallization heat (ΔHc) and melting point (Tm), are shown in Fig. 7. Generally, introducing of the irradiated and grafted wheat straw decreased the crystallization temperature of the composites. The crystallization growth rate of PE decreased. That is to say the rate of crystallization was reduced by the grafted wheat straw. [23]. Adding irradiated wheat straw led to a slight increase of ΔHc. This is possibly due to the produced small molecules and reduced polarity during the irradiation. The grafted wheat straw/PE had a larger ΔHc, due to the ductile molecules PVAc. The composite with the grafted wheat straw had a slight decrease in melting point. The results show that the reduced polarity, fractured structure, and grafted PVAc help to decrease the processing temperature and improve the compatibility with PE.
3.5. Torque rheology
The torque versus time for the wheat straw/PE melts, and data from the torque curves, are presented in Fig. 8. Crystallinity, crystallite size and surface characteristic of the wheat straw affect greatly rheological properties of the wheat straw/PE composites [24]. The appearance of peak torque of the pristine wheat straw is the fastest of all the samples, while its peak torque and equilibrium torque are the highest, due to the difficulty in dispersing of wheat straw in PE matrix. The γ-irradiation decreases the peak torque and equilibrium torque. The time of peak torque of the grafted wheat straw is longer than the irradiated wheat straw. The irradiated wheat straw is easy to blend with PE due to the lower crystallinity and crystallite size, fractured structure, increased specific surface area and density. The equilibrium torque decreases for the PE/irradiated wheat straw and PE/grafted wheat straw melts, due to the lower crystallinity, smaller crystallite size and less porous, which improve the thermal mobility [24]. The compatibility of grafted wheat straw and PE is better than that of the others, and higher graft ratio leads to better compatibility between PE and wheat straw. Also, changes in microstructure helps to improve the interaction between wheat straw and PE. Therefore, the grafted wheat straw/PE melt shows a lower time of peak torque.
3.6. Mechanical properties
Mechanical properties of various wheat straw/PE composites are listed in Table 1. The PE/pristine wheat straw is of the least elongation, because of the low compatibility of wheat straw and PE. Mechanical properties of PE/irradiated wheat straw increase a little, due to the reduced polarity, increased density and specific surface area, after destruction of the porous structure by irradiation. The tensile strength, elongation, tensile modulus, flexural strength, and flexural modulus of the PE/grafted wheat straw (PDG=25.1%) increased by 36.52%, 65.86%, 52.38%, 31.74%, and 36.78%, respectively, than those of the PE/pristine wheat straw composites. The property improvements are more obvious for higher graft degree. This can be explained by an enhanced compatibility and a more even distribution of grafted wheat straw in PE matrix [25]. The grafted PVAc on the wheat straw belongs to polyvinyl ester family with the general formula –[RCOOCHCH2]-. The non-toxic and thermoplastic PVAc can penetrate into the PE matrix and form strong interaction and entanglement with PE. The better interfacial adhesion provides stress transfer from the matrix to the fibers. The weak interface between wheat straw and PE is improved by the irradiation grafting copolymerization.
| Samples | Tensile strength (MPa) | Elongation (%) | Tensile modulus (GPa) | Flexural Strength (MPa) | Flexural modulus (GPa) |
|---|---|---|---|---|---|
| a | 18.43±0.78 | 2.49±0.79 | 0.21±0.04 | 38.09±1.34 | 0.87±0.06 |
| b | 21.32±0.35 | 2.86±0.92 | 0.20±0.03 | 38.44±0.76 | 1.08±0.05 |
| c | 22.13±0.15 | 2.98±0.72 | 0.26±0.95 | 41.23±0.74 | 1.12±0.32 |
| d | 25.16±0.91 | 4.13±0.78 | 0.32±0.05 | 50.18±0.54 | 1.19±0.04 |
Overall, our results indicate a mechanism of radiation-induced grafting of vinyl acetate onto wheat straw to improve its compatibility with polyethylene (Fig. 9). Wheat straw is a compact structure, which is composed of rigid cellulose, and thermoplastic hemicellulose and lignin. The γ-rays produce free radicals to cleave the molecules and initiate chemical reactions. The free radicals can react further, causing degradation of wheat straw by chain scission, depolymerization or oxidation [26]. The cell walls and microstructure are destructed, with increased density of wheat straw. Meanwhile, new covalent bonds are formed between wheat straw and PVAc. The reduced polarity, fractured structure and grafted PVAc help to improve the compatibility with PE. Wheat straw-g-poly(vinyl acetate) is easily transferred into wheat straw-g-poly(vinyl alcohol) via saponification reaction [27].
4 Conclusion
PVAc is grafted onto wheat straw by irradiation grafting to improve its plasticity. Effects of the PVAc-grafting and irradiation on rheological and mechanical properties are evaluated. Covalent bonds are formed between wheat straw and PVAc. Increases in the peak, onset temperature and ΔH value of the grafted wheat straw are observed. Although irradiation reduces the thermal stability of the wheat straw, the grafted PVAc can prevent the heat transfer and improve thermal stability of wheat straw. The mechanical properties of the PE/grafted wheat straw (PDG=25.1%) are improved greatly(32%–66%), due to the improved compatibility between grafted wheat straw and PE. The PVAc-grafting improves the plasticity and processibility of PE/wheat straw composites, too.
