Multiplicity dependence of charged particle, ϕ meson, and multi-strange particle productions in p+p collisions at s = 200 GeV from PYTHIA simulation

NUCLEAR PHYSICS AND INTERDISCIPLINARY RESEARCH

Multiplicity dependence of charged particle, ϕ meson, and multi-strange particle productions in p+p collisions at $\sqrt{s}$ = 200 GeV from PYTHIA simulation

Sheng-Hui Zhang，

Long Zhou，

Yi-Fei Zhang，

Ming-Wei Zhang，

Cheng Li，

Ming Shao，

Yong-Jie Sun，

Ze-Bo Tang

Nuclear Science and Techniques

Vol.29, No.9

Article number 136

Published in print 01 Sep 2018

Available online 02 Aug 2018

DOI：10.1007/s41365-018-0469-y

41600

We report the multiplicity dependence of charged particle production for the π^±, K^±, p, $\bar{p}$ , and ϕ mesons at |y| < 1.0 in p+p collisions at $\sqrt{s}$ = 200 GeV from a PYTHIA simulation. The impact of multiple parton interactions and gluon contributions is studied and found to be a possible source of the splitting of the particle yields as a function of p_T with respect to the multiplicity. No obvious particle species dependence of the splitting is observed. The multiplicity dependence of the ratios K^-/π^-, K⁺/π⁺, $\bar{p} / π^{-}$ , p/π⁺, and $Λ / K_{s}^{0}$ at mid-rapidity in p+p collisions is found to follow a tendency similar to that in Au+Au collisions at $\sqrt{s_{NN}}$ = 200 GeV at the Relativistic Heavy Ion Collider, indicating similar underlying initial production mechanisms despite the differences in the initial colliding systems.

particle productionheavy-ion collisionssmall systemmultiple parton interactionsgluon contributions

1 Introduction

Searching for a novel form of nuclear matter with deconfined quarks and gluons created in ultrarelativistic heavy-ion collisions is the main goal of high-energy nuclear physics. The properties of this strongly coupled form of matter, the so-called quark–gluon plasma (QGP) [1-3], emerge by experimental comparison of elementary particle collisions. Measurements of particle production in proton–proton (p+p) collisions are critical to provide a baseline for understanding the interactions in the QGP created in heavy-ion collisions. In recent decades, there have been many measurements of the multiplicity or centrality dependence of particle production in heavy-ion collisions [4-7]. In particular, the production mechanism of hadrons containing strangeness is believed to be a signature of QGP formation in heavy-ion collisions [8-10]. To support this, it is worth studying the multiplicity dependence of strangeness production in elementary particle collisions without any medium effect. Recently, strangeness enhancement in high-multiplicity p+p collisions was observed in the ALICE experiment [11], which is similar to that observed in heavy-ion collisions [12], where a hot dense medium is created. This contradicts our knowledge that elementary particle collisions create cold, tiny systems; thus, it has attracted considerable interest. However, the p+p colliding system is always treated as a fundamental particle collision, and the particle production with respect to multiplicity is rarely studied, especially at a colliding energy of a few hundred gigaelectron volts at the Relativistic Heavy Ion Collider (RHIC). Thus, it is also of interest to investigate the multiplicity dependence of particle production in p+p collisions at RHIC energies to see if there is any similarity to that in Au+Au collisions.

In this paper, we report the multiplicity dependence of particle production for π^±, K^±, p, and $\bar{p}$ in p+p collisions at $\sqrt{s}$ = 200 GeV on the basis of a PYTHIA simulation. We study the multiplicity dependence of particle yields as a function of the transverse momentum (p_T) for π^±, K^±, p, $\bar{p}$ , and ϕ and the ratios K^-/π^-, K⁺/π⁺, $\bar{p} / π^{-}$ , and $p / π^{+}$ . There are three important sources of the splitting of the p_T distribution with multiplicity: jet fragmentation, multiple parton interactions (MPIs), and gluon contributions. Because the jet fragmentation effect has been discussed in Ref. [13], we focus on the effects of MPIs and gluon contributions. The particle ratios K^-/π^-, K⁺/π⁺, $\bar{p} / π^{-}$ , and p/π⁺ with respect to multiplicity are presented and compared to those in Au+Au collisions at $\sqrt{s_{N N}}$ = 200 GeV measured by RHIC-STAR [4, 5]. The $Λ / K_{s}^{0}$ ratio in p+p collisions at $\sqrt{s}$ = 200 GeV at RHIC energies is also presented and compared with experimental results in Au+Au collisions.

The paper is organized as follows: Section 2 presents the simulation process and detailed PYTHIA settings. Simulation results for the charged particle and ϕ meson p_T spectra, average 〈p_T〉, and particle yield ratios, and related discussions, are presented in Sect. 3. Finally, Section 4 gives a summary.

2 Simulation processes

The PYTHIA program is widely used for event generation in high-energy physics to simulate multiparticle production in collisions between elementary particles [14]. In this work, PYTHIA version 6.416 is used. The p+p collision events at $\sqrt{s}$ = 200 GeV are generated and categorized in six multiplicity bins, as shown in Fig. 1, to study the multiplicity dependence of π^±, K^±, p, $\bar{p}$ , ϕ, and multi-strange particle production. The initial configurations in PYTHIA are as follows:

Figure 1:

(Color online) Charged particle multiplicity distribution obtained from PYTHIA within |η| < 0.5 in p+p collisions at

\sqrt{s}

= 200 GeV. The regions between dotted lines indicate the multiplicity bins 〈N_ch〉 used in the analysis.

MSEL(1) (a switch to select between full user control and some preprogrammed alternatives) includes ISUB = 11 qiqj → qiqj, 12 $q_{i} {\bar{q}}_{i} \to q_{k} {\bar{q}}_{k}$ , 13 $q_{i} {\bar{q}}_{i} \to g g$ , 28 qig → qig, 53 $g g \to q_{k} {\bar{q}}_{k}$ , 68 gg → gg, and 96 semihard QCD 2 → 2. If all processes are considered, an event is called a minimum bias (minibias) event. The gluon contribution is studied by changing the ISUB 28, 53, and 68 process setups.

MSTP(81, 1): Turn multiple interactions on.

MSTP(61, 1), MSTP(71, 1): Initial- and final-state QCD radiation is added to the above processes.

MSTP(51, 7): CTEQ5L parton distribution function

MSTP(33, 1): A common K factor is used, as stored in PARP(31).

PARP(31, 1.5): (D = 1.5) Common K factor for multiplying the differential cross section for hard parton–parton processes

3 Results and discussion

3.1 Ratios of particle production yields

The p+p collision events generated by PYTHIA produce charged particles (π^±, K^±, p, $\bar{p}$ , e^±, and μ^±) within |η| < 0.5 at $\sqrt{s}$ = 200 GeV. The number of events is called the charged multiplicity, N_ch. The multiplicity distribution is shown in Fig. 1. Six multiplicity bins are chosen so that there is an equal number of events in each bin. The events without any multiplicity selection are called minibias events. The ratio of the particle production yield normalized by 〈N_ch〉 (the mean of N_ch) in each multiplicity bin over that in minibias events is used to study the event activity with respect to different multiplicities, which can be defined as

R_{pp} = \frac{d N / d p_{T} (mult, p_{T}) / 〈 N_{ch} (mult) 〉}{d N / d p_{T} (minibias, p_{T}) / 〈 N_{ch} (minibias) 〉} .

(1)

The multiplicity dependence of the transverse momentum spectra of the π^- meson with and without MPIs and gluon contributions in p+p collisions at $\sqrt{s}$ = 200 GeV within |y| < 1.0 is shown in Fig. 2. 〈N_ch〉 for different multiplicity bins and different configurations is shown in Table 1. We observe a clear hardening of the p_T spectra of the π^- meson from low to high multiplicity, which is consistent with the results in Ref. [15], although the collision energies are different. Further, the p_T spectra of kaons, protons, and ϕ mesons [16] versus the multiplicity are similar to those of the pion despite having different integrated yields, which are not shown here.

〈N_ch〉 for different multiplicities and different mechanisms.

Mechanism	〈N_ch1〉	〈N_ch2〉	〈N_ch3〉	〈N_ch4〉	〈N_ch5〉	〈N_ch6〉	〈N_ch(minibias)〉
minibias w MPIs	1.50	3.41	5.38	7.65	10.80	14.99	3.14
minibias wo MPIs	1.48	3.38	5.31	7.45	10.52	14.84	2.55
gluon off w MPIs	1.51	3.40	5.36	7.62	10.77	14.95	2.99
gluon off wo MPIs	1.46	3.34	5.27	7.35	10.42	15.04	2.28

Figure 2:

(Color online) p_T spectra of π⁺ in different multiplicity bins with and without MPIs and gluon contributions in p+p collisions at

\sqrt{s}

= 200 GeV.

The R_pp distributions of π^±, K^±, p, $\bar{p}$ , and ϕ mesons in p+p collisions at $\sqrt{s}$ = 200 GeV are extracted using formula (1). The pion R_pp distributions as a function of p_T in different multiplicity bins for different initial production mechanisms are shown in Fig. 3. We observe clear R_pp splitting with different production mechanisms, and the splitting becomes more obvious as p_T increases. The MPIs suppress the splitting in the higher p_T range. The contribution of gluon processes to the change in the relative momentum shape with respect to the multiplicity is small. We find similar conclusions for the R_pp distributions of kaons, protons, and ϕ mesons, which are not shown here.

Figure 3:

(Color online) R_pp spectra as a function of p_T for π^- in different multiplicity bins with and without MPIs and gluon contributions in p+p collisions at

\sqrt{s}

= 200 GeV.

The integrated R_pp distributions for different particle species at p_T > 1.3 GeV/c are shown in Fig. 4. The increase in the integrated R_pp could be due to jet fragmentation, as described in Ref. [13]. As we can see, MPIs are the dominant source of R_pp splitting suppression. The reason may be that the particle momenta become softer after multiple scatterings as energy is transferred to surrounding partons. Thus, the MPIs are the main source competing with jet fragmentation. We also find that gluon contributions have little impact on the R_pp splitting. Furthermore, qualitatively, no obvious particle–antiparticle dependence of the R_pp splitting is observed. More quantitative studies of the production difference between particle and antiparticle species are presented in Sect. 3.3.

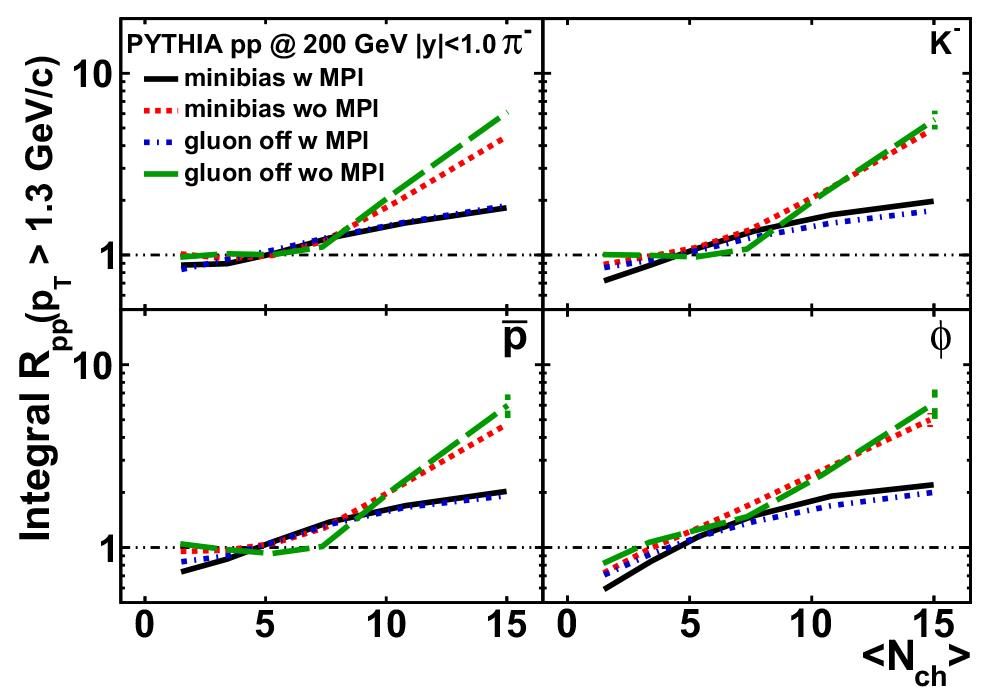

Figure 4:

(Color online) Integrated R_pp as a function of 〈N_ch〉 for π^-, K^-,

\bar{p}

, and ϕ mesons with and without MPIs and gluon contributions in p+p collisions at

\sqrt{s}

= 200 GeV.

3.2 Average transverse momenta 〈p_T〉

In this section, the multiplicity dependence of 〈p_T〉 for π^-, K^-, and $\bar{p}$ in p+p collisions is presented and compared with those in d+Au and Au+Au collisions at $\sqrt{s_{N N}}$ = 200 GeV from the STAR experiment [4]. Here the charged particle rapidity density (dN_ch/dy) is used instead of 〈N_ch〉 in each multiplicity bin for an apple-to-apple comparison with the data. It is extracted by summing up the rapidity density of pions, kaons, protons, and antiprotons within |y| < 0.1. Fig. 5 shows the 〈p_T〉 distributions of π^-, K^-, and $\bar{p}$ as a function of dN_ch/dy for different initial production mechanisms in p+p collisions at $\sqrt{s}$ = 200 GeV. The 〈p_T〉 distributions of pions, kaons, and protons in p+p collisions increase significantly with the multiplicity. The tendency is the same as that in Au+Au collisions but with a slightly larger slope. In p+p collisions, there are only hadronic processes, whereas the situation is much more complicated in Au+Au collisions; in addition to jet fragmentation and MPIs, radial flow and energy-loss mechanisms can modify the particle momentum, thus changing the 〈p_T〉 distribution. However, the similar increasing tendency as a function of the charged particle density in both p+p and Au+Au collisions suggests that the baseline contributions of jet fragmentation and MPIs hold in different collision systems.

Figure 5:

(Color online) 〈p_T〉 distribution as a function of dN_ch/dy for π^-, K^-, and

\bar{p}

for different initial production mechanisms in p+p collisions and in Au+Au collisions at

\sqrt{s_{N N}}

= 200 GeV.

3.3 Particle ratios

In this section, the multiplicity dependence of the particle ratios π^-, K^-/K⁺, $\bar{p} / p$ , K⁺/π⁺, K^-/π^-, p/π⁺, and $\bar{p} / π^{-}$ in p+p collisions are presented and compared with those in Au+Au collisions. The antiparticle-to-particle ratios (π^-/π⁺, K^-/K⁺, $\bar{p} / p$ ) as a function of the charged particle multiplicity within |y| < 0.1 for different initial production mechanisms in p+p collisions at $\sqrt{s}$ = 200 GeV are shown in Fig. 6. In order to further understand the antiparticle and particle production mechanisms, the antiparticle-to-particle ratios are studied in different p_T regions as a function of dN_ch/dy. We observe that the π^-π⁺ ratio is independent of the multiplicity, and the K^-/K⁺ and $\bar{p} / p$ ratios depend slightly on the multiplicity in the entire p_T region. However, in the high-p_T region (p_T > 2 GeV/c), the dependence of the multiplicity in the low-multiplicity region is obvious for the π^-/π⁺ ratio and is stronger for the K^-/K⁺ and $\bar{p} / p$ ratios. The dependence becomes smaller when we switch off the gluon contributions.

Figure 6:

(Color online) Ratios of antiparticles to particles as a function of dN_ch/dy within |y| < 0.1 for different initial production mechanisms of p+p collisions at

\sqrt{s}

= 200 GeV.

The ratios K⁺/π⁺, K^-/π^-, p/π⁺, and $\bar{p} / π^{-}$ for different multiplicities with different initial production mechanisms in p+p collisions at $\sqrt{s}$ = 200 GeV are shown in Fig. 7, along with a comparison to those in Au+Au collisions at $\sqrt{s_{N N}}$ = 200 GeV [4, 5]. We also compare them with the published STAR results in minimum-bias p+p collisions at the same collision energy. The ratios are consistent with the published STAR results within the uncertainties in p+p collisions [4, 5]. The similar tendency of the particle ratios in p+p and Au+Au collisions within |y| < 0.1 indicates that similar production mechanisms hold in different collision systems.

Figure 7:

(Color online) Ratios K⁺/π⁺, K^-/π^-, p/π⁺, and

\bar{p} / π^{-}

as a function of dN_ch/dy within |y| < 0.1 for different initial production mechanisms in p+p collisions and in Au+Au collisions at

\sqrt{s_{N N}}

= 200 GeV.

Likewise, we also study the ratios K⁺/π⁺, K^-/π^-, p/π⁺, and $\bar{p} / π^{-}$ with respect to the multiplicity in different p_T regions. The results are shown in Figs. 8 and 9. Weak multiplicity dependence is observed for the integrated particle yield ratios in the entire p_T region, where the low-p_T dN/dy dominates. However, in the high-p_T region, we see a clear difference between the particle (K⁺, p)-to-π⁺ and antiparticle (K^-, $\bar{p}$ )-to-π^- ratios in the low-multiplicity region. This difference could be due to gluon contributions because it becomes smaller after the gluon contributions are switched off. This may suggest that the high-p_T gluon jet compositions are different in terms of the particle-to-π⁺ and antiparticle-to-π^- ratios.

Figure 8:

(Color online) Ratios K⁺/π⁺ and K^-/π^- as a function of dN_ch/dy within |y| < 0.1 in different p_T regions for different initial production mechanisms in p+p collisions at

\sqrt{s}

= 200 GeV.

Figure 9:

Ratios p/π⁺ and

\bar{p} / π^{-}

as a function of dN_ch/dy within |y| < 0.1 in different p_T regions for different initial production mechanisms in p+p collisions at

\sqrt{s}

= 200 GeV.

Fig. 10 shows the ratio $Λ / K_{S}^{0}$ as a function of p_T at high multiplicity in p+p collisions at $\sqrt{s}$ = 200 GeV, in comparison with those in central and peripheral Au+Au collisions with the same collision energy [6]. The ratio at high multiplicity in p+p collisions is consistent with the data for peripheral Au+Au collisions. However, the enhancements of the $Λ / K_{s}^{0}$ ratio measured in central Au+Au collisions at the RHIC and p+p collisions at the Large Hadron Collider cannot be reproduced in the PYTHIA simulation, which is supposed that no hot medium is created. This provides additional support for coalescence hadronization [17] in the nuclear medium created in Au+Au collisions at the RHIC or even p+p collisions in TeV at reference to in the ALICE Nature article about enhanced production of multi-strange hadrons in high-multiplicity proton-proton collisions [11].

Figure 10:

(Color online) Ratio

Λ / K_{S}^{0}

as a function of p_T with MPIs at high multiplicity in p+p collisions and in Au+Au collisions with different centralities at

\sqrt{s_{N N}}

= 200 GeV.

Furthermore, the distribution of the $Λ / K_{S}^{0}$ ratio as a function of dN_ch/dy is studied and compared with data for Au+Au collisions. The dN_ch/dy used for the Au+Au data is extracted from the published STAR results by polynomial extrapolation to full the number of participating nucleons (N_part) coverage [4]. The distributions of the $Λ / K_{S}^{0}$ ratio as a function of dN_ch/dy in p+p and Au+Au collisions are shown in Fig. 11. The ratio decreases as a function of dN_ch/dy in p+p collisions, whereas it remains constant in Au+Au collisions at the same collision energy. We find that the $Λ / K_{s}^{0}$ ratio in high-multiplicity events in 200 GeV p+p collisions in the PYTHIA simulation is comparable to that in most peripheral Au+Au collisions at the RHIC. The multiplicity dependence of the $Λ / K_{s}^{0}$ ratio in p+p collisions shows a smooth connection to that in Au+Au collisions at $\sqrt{s_{N N}}$ = 200 GeV, which may indicate that some similar production mechanisms transfer p+p collisions to a hotter and denser system.

Figure 11:

(Color online) Ratio

Λ / K_{S}^{0}

as a function of dN_ch/dy with MPIs in p+p and Au+Au collisions at

\sqrt{s_{N N}}

= 200 GeV.

4 Summary

The multiplicity dependence of the π^±, K^±, p, $\bar{p}$ , and ϕ meson production yields at |y| < 1.0 in proton–proton collisions at $\sqrt{s}$ = 200 GeV from a PYTHIA simulation were presented. The R_pp distributions showed obvious splitting as a function of multiplicity for all particle species, which is caused by jet fragmentation, MPIs, and gluon contributions. MPIs obviously suppress the splitting, whereas the gluon contributions play a less important role. The distributions of the K⁺/π⁺, K^-/π^-, p/π⁺, and $\bar{p} / π^{-}$ ratios with respect to the multiplicity in p+p collisions were compared with those in Au+Au collisions within |y| < 0.1 and were found to show a similar tendency. This suggests that there are similar underlying initial production mechanisms in p+p and Au+Au collisions. We also presented the multiplicity dependence of the $Λ / K_{s}^{0}$ ratio at |y| < 0.5 in p+p collisions at $\sqrt{s}$ = 200 GeV on the basis of a PYTHIA simulation. A smooth connection of the $Λ / K_{s}^{0}$ ratio in p+p collisions to that in Au+Au collisions was observed, which may provide a hint that a smaller hot medium may be created in such fundamental particle collisions with a sufficiently high initial energy density or that some similar production mechanisms make p+p collisions a hotter and denser system.

References

[1]

S. Edward,

Strongly coupled quark-gluon plasma in heavy ion collisions

. Rev. Mod. Phys. 89, 035001 (2017). doi: 10.1103/RevModPhys.89.035001
