2.1 Woods-Saxon single-particle Hamiltonian

The single-particle levels and wave functions are calculated by numerically solving the stationary Schrödinger equation with an average nuclear field of the Woods-Saxon type. The single-particle Hamiltonian for this equation is given by [5, 6]

where the Coulomb potential $V_{\text{Coul}}(\overrightarrow{r}\mathrm{,}\widehat{\beta })$, defined as a classical electrostatic potential of a uniformly charged drop is added for protons. The first part on the right side of Eq. (1) is the kinetic energy term. The central part of the Woods-Saxon potential, which mainly controls the number of levels in the potential well is [6]

where the plus and minus signs hold for protons and neutrons, respectively, and a is the diffuseness parameter of the nuclear surface. The spin-orbit potential, which can strongly affect the level order, is defined as follows:

where λ denotes the strength parameter of the effective spin-orbit force acting on the individual nucleons. In Eq. (2), the term $\text{d}i{s}_{\sum }(\overrightarrow{r}\mathrm{,}\widehat{\beta })$ indicates the distance of a point $\overrightarrow{r}$ from the nuclear surface, ∑. The nuclear surface is parameterized in terms of the multipole expansion of spherical harmonics Y_λμ(θ,ϕ), namely,

where the function $c(\widehat{\beta })$ ensures the conservation of the nuclear volume with a change in the nuclear shape, and $\widehat{\beta }$ denotes the set of all considered deformation parameters. This is similar in Eq. 3, although the new surface ∑_so needs to be calculated using different radius parameters.

Based on the Woods-Saxon Hamiltonian as mentioned above, the Hamiltonian matrix is calculated using the axially deformed harmonic-oscillator basis in the cylindrical coordinate system with the principal quantum number N≤12 and 14 or protons and neutrons, respectively. Then, after a diagonalization procedure, the single-particle levels and their wave functions can be obtained. It is shown in the present study that the calculated single-particle levels with such a basis cutoff will be sufficiently stable with respect to a possible basis enlargement. Of course, one can see that for a given (Z,N) nucleus, the calculated energy levels {e}_π,ν depend on two sets of six free parameters:

one set with the symbol π for protons, and the other set with ν for neutrons; in addition, the superscripts ‘c’ and ‘so’ denote the abbreviations for ‘central’ and ‘spin-orbit’, respectively.

For convenience, we define the parameter set {p} ≡ {p₁, p₂, p₃, p₄, p₅, p₆}, which is associated with the original as follows:

Further, following the notation of [32, 33], we can denote a point in such a parameter space by p =p₁, p₂, p₃, p₄, p₅, p₆). According to the inverse problem theory, the model parameters are usually determined by fitting to a set of observables within a selected sample (e.g., the available sample database of the experimental single-particle levels). For a given mathematical model, for example, accepting the Woods-Saxon Hamiltonian with free parameters, the optimum parametrization p° can usually be obtained with a least-squares fitting using a global quality measure [33-35],

where ‘th’ indicates the calculated values, ‘exp’ represents the experimental data, and ΔO indicates the adopted errors, which generally contain the contributions from both experimental and theoretical aspects. Note that the definition of the objective function χ² is the standard, and several powerful techniques for finding its minimum value have already been developed. The universal parameter set used in the present investigation is indeed one such ‘optimal’ parameter set. Having determined p°, in principle, any physics quantity, for example, the single-particle level ei, can be computed at ei(p°). From this point, we can to an extent regard the calculated energy level ei as a function of the corresponding parameter set {p}, namely,

There is no doubt that the p value depends on the size and quality of the selected sample database. In fact, the functional relationship of Eq. (8) expresses not only a physical law but also the measured and calculated processes. All uncertainties during the physical modeling, experimental measurement, and theoretical calculation may lead to uncertainty of the p value. By contrast, the uncertainty of the p value will propagate to the results of the calculations.

2.2 Uncertainty estimation of single-particle levels

By reasonably assuming that input parameters {p} are Gaussian random variables, we will be able to estimate the uncertainties of the single-particle levels owing to the input uncertainties of the potential parameters using the conventional analysis method [36-38] (e.g., the formula of uncertainty propagation) and the Monte Carlo method [39-43]. Based on the functional relationship of Eq. (8) and the uncertainty propagation formula, the uncertainty of the ith single-particle level ei with random and uncorrelated inputs can be given analytically by the following:

where ${\sigma }_{p_j}$ is the standard deviation of the input parameter pj; in addition, the partial derivative $\partial e_i/\partial p_j$ is usually called the sensitivity coefficient, which provide the effect of the corresponding input parameter on the final result. Note that both the linearity of the function (at least, near the calculated point pj) and the ‘small’ uncertainty of the input parameter are prerequisites of a conventional uncertainty estimation method. However, there is no such limitation for the Monte Carlo simulation method, which can handle both small and large uncertainties in the input quantities. Moreover, the Monte Carlo simulation, which can be generally defined as the process of replication of the ‘real’ world, has the ability to account for partial correlation effects for the input parameters. It is also convenient to study the correlation effect, e.g., between two Gaussian-distributed variables, whereas the conventional method cannot do so.

As known in such a simulation, the availability of high-quality Gaussian random numbers is important. Generally speaking, the realization of a Gaussian-random-number generator can adopt both software and hardware methods. The former has limited speed and poor real-time characteristics, whereas the latter (which is based on digital devices) is not only fast, with real-time implementation, but also has good flexibility and accuracy. At present, the majority of the frequently used digital methods for generating Gaussian random variables are based on transformations from uniform random variables. Popular methods, for instance, include the Ziggurat method [44], an inversion method [45], the Wallace method [46], and the Box–Muller method [47-50]. In the present study, we realize hardware Gaussian random number generators using the Box-Muller algorithm. In other words, taking each value $p_j^{\text{o}}$ of the universal parameter set $\left\{p_1^{\text{o}}\mathrm{,}{p}_2^{\text{o}}\mathrm{,}{p}_3^{\text{o}}\mathrm{,}{p}_4^{\text{o}}\mathrm{,}{p}_5^{\text{o}}\mathrm{,}{p}_6^{\text{o}}\right\}$ as the corresponding mean value, one can generate the random and uncorrelated input parameter pj following a normal distribution $N(p_j^{\text{o}}\mathrm{,}{\sigma }_{p_j})$. With a large sample of input parameters, the uncertainties of single-particle levels can be estimated. For instance, considering the uncertainty of one input parameter pj and keeping other universal values unchanged, the variance of the calculated ei can be given by the following:

where the sampling number N should be chosen to be sufficiently large (e.g., 10 000 or more). Similar calculations can be conducted when the uncertainties of two or more input parameters are opened. Therefore, we will be able to investigate the effects of the uncertainties of different input parameters and their combinations on the uncertainties of single-particle levels.

2.3 Pearson Product Moment Correlation

The single-particle levels with certain uncertainties can usually be regarded as the input variables in further nuclear mean-field calculations, for example, K isomeric calculations. In this case, to evaluate further theoretical predictions, it will be extremely useful to know both the uncertainties and correlation properties of the single-particle levels. As a simple example, the energy uncertainty of one-particle one-hole (1p1h) excitation is directly related to two corresponding single-particle levels to a large extent. We can arbitrarily regard the excitation energy E_1p1h as a function of two single-particle levels e₁ and e₂ with the standard deviations ${\sigma }_{e_1}$ and ${\sigma }_{e_2}$, respectively, namely,

Regardless of whether e₁ and e₂ are independent, the standard uncertainty of such an excited state can be written as [51]

where the quantity ρ(e₁, e₂) is the Pearson’s correlation coefficient, which is given by [52, 53]

Such a cross-correlation coefficient measures the strength and direction of a linear relationship between two variables, for example, e₁ and e₂. The greater the absolute value of the correlation coefficient, the stronger the relationship. The extreme values of -1 and 1 indicate a perfectly linear relationship where a change in one variable is accompanied by a perfectly consistent change in the other. For these two cases, all of the data points fall on a line. A zero coefficient represents a non-linear relationship. That is, as one variable increases, there is no tendency in the other variable to either increase or decrease. When the cross-correlation coefficient is between 0 and +1/-1, there will be a relationship, but not all points fall on a line. The sign of the correlation coefficient represents the direction of the linear relationship. Positive coefficients indicate that when the value of one variable increases, the value of the other variable also tends to increase. Positive relationships produce an upward slope on a scatterplot. Negative coefficients indicate that when the value of one variable increases, the value of the other variable tends to decrease. Correspondingly, negative relationships produce a downward slope. It should be noted that the Pearson’s correlation coefficient, which measures only the linear relationships between two variables, will not detect a curvilinear relationship. For instance, when the scatterplot of two variables shows a symmetric distribution, a relationship may exist, but the correlation coefficient is zero.

3.1 Evaluation of Woods-Saxon potential parameters

In the phenomenological nuclear mean field, the realistic Woods-Saxon potential has shown certain advantages and is still widely used. For instance, it provides a good description of not only the ground-state properties but also the excited-state properties of the nuclei. Currently, many authors are still working on different issues with the Woods-Saxon potential. Such a simple nuclear mean field has been successfully applied to explain and predict the nuclear equilibrium deformations, the high-K isomer, the nucleon binding energies, the fission barriers, numerous single-particle effects for super-deformed and fast rotating nuclei, and so on. As shown in Table 1, there exist various parametrizations of the Woods-Saxon potential ([6] and references therein), which are usually obtained by fitting the available single-particle data (or part of the data, namely, one of the sub-databases) or other observables. Indeed, based on the same mathematical modeling and different sample databases and sub-databases, different parameter sets can be obtained. It can be seen that these parameter sets are somewhat different, even rather different for some quantities among them. Correspondingly, the different parameter sets are suitable for a certain nuclear mass region. Occasional, the difference in the corresponding quantity (e.g., single-particle energies) calculated theoretically using different parameter sets is referred to as a model discrepancy, which can be evaluated by using different models and/or different parameter sets. The universal parameter set of the Woods-Saxon potential is one of the most common parameter sets. In principle, it can be used for the ‘global’ calculation of the nuclei. In the present study, we conducted our investigation based on the universal parameter set.

To evaluate the universal potential parameters, Figure. 1(a) shows the discrepancies ΔE ($\equiv e_i^{\text{theo}\mathrm{.}}-e_i^{\text{exp}\mathrm{.}}$) of the calculated single-particle energies from the available data (e.g., eight spherical nuclei [54, 55]: ¹⁶O, ⁴⁰Ca,⁴⁸Ca, ⁵⁶Ni,⁹⁰Zr,¹³²Sn,¹⁴⁶Gd and ²⁰⁸Pb). The discrepancies show us that the single-particle levels generated by the universal parameters, in fact, cannot agree with the data very well (i.e., similar to the mass calculation [56], the quest for some possibly missing interactions and ‘better’ mathematical modeling will never cease). Moreover, most of the values are smaller or larger than the data. For instance, as shown, a systematic overestimation and underestimation for protons and neutrons exist, respectively, particularly in lighter nuclei. To see the statistical properties of the parameters, the percentage difference, PD(pj), of the model parameter pj (as an example, j = 1 herein) extracted from the experimental data is presented in Fig. 1(b), which is defined as follows:

Fig. 1.Full-screen View

(Color online) (a) Discrepancies between the available experimental data and the calculated single-particle energies using the Woods-Saxon Universal parameter set for even-even nuclei ¹⁶O, ⁴⁰Ca,⁴⁸Ca, ⁵⁶Ni,⁹⁰Zr,¹³²Sn,¹⁴⁶Gd and ²⁰⁸Pb. The data were taken from [55, 54]. (b) Percentage differences between the ‘best’ and ‘optimal’ p₁ (namely, V₀) parameters. See the text for more details.

where $p_j^{\text{o}}$ indicates the jth ‘optimal’ (universal) value of the {p} parameters, and the $p_j^{\text{b}}$ parameter denotes the so-called best value that can be obtained based on the following method. For a certain model parameter, for example, the potential depth p₁ (namely, V₀) of the Woods-Saxon parameters, we calculate the corresponding single-particle energies of a given nucleus by varying the value of this parameter p₁ around its optimal value $p_1^{\text{o}}$ and keeping other parameters with universal values unchanged. If the discrepancy of the calculated single-particle energy for a certain nucleus from the corresponding experimental data equals zero, the “best” value $p_1^{rmb}$ of this parameter p₁ for this nucleus is therefore obtained. In principle, for a large sample, we can extract the standard deviation σ_p1 with a confidence level of 68.3% for the parameter p₁. From Fig. 1(b), it was found that the percentage differences distribute between ± 10%. Similar distributions exist for other potential parameters as well. Based on these statistical properties and some previous studies (for example, [16, 19]), we can evaluate the uncertainty of Woods-Saxon parameters to an extent. Furthermore, we will be able to temporarily provide the standard deviations {σp} ≡ {σ_p1,σ_p2,σ_p3,σ_p4,σ_p5,σ_p6} for the parameters {p} within reasonable domains, taking the universal parameters $\{p_1^{\text{o}},p_2^{\text{o}},p_3^{\text{o}},p_4^{\text{o}},p_5^{\text{o}},p_6^{\text{o}}\}$ as the corresponding mean values.

3.2 Producing pseudo-data of potential parameters

Based on the given mean values {p°} and the corresponding standard deviations {σp}, the Gaussian-distributed random sets {p} can, in principle, be numerically generated in the spirit of the Monte Carlo approach. Considering the uncertainty estimations of the Woods-Saxon parameters and the sensitivity coefficients of single-particle levels, in practice, we use a set of percentage coefficients {c} ≡ {c₁, c₂, c₃, c₄, c₅, c₆}= {0.1%,0.1%,1%,3%,1%,10%} to calibrate the standard deviations {σp} during the calculations. That is, the standard deviations are given by the following:

Such a set σp may deviate from the ‘true’ values to a certain extent but does not affect the conclusion of our investigation because the values lie within the reasonable domains. Moreover, the strong overlaps of the ‘peaks’ of single-particle levels can be avoided (as shown below). We conducted Woods-Saxon single-particle-level calculations with 10 000 samples for {p}, which is sufficient large to suppress the error coming from stochastic choices. To show the quality of the normally distributed random quantities {p}, Figure 2 presents the two-dimensional scatter plots related to the six Woods-Saxon parameter samplings of neutrons, together with the corresponding correlation coefficients. Note that this is similar for the protons as well. For comparison, the normal distribution $N(p_i^{\text{o}}\mathrm{,}{\sigma }_{p_i})$ is transformed into the standard normal distribution N(0, 1) by defining the dimensionless parameter $x_i=(p_i-p_i^{\text{o}})/{\sigma }_{p_i}$ in Fig. 2. The Gaussian-distributed and independent properties of these parameters can be seen. In addition, the calculated skewness and kurtosis values are zero, as expected, indicating Gaussian-type distributions.

Fig. 2.Full-screen View

Two-dimensional scatter plots, together with their corresponding correlation coefficients, between six independent WS model parameters.

3.3 Uncertainties of single-particle energies

With the sampling {p}, the uncertainties of the single-particle energies will be able to be precisely evaluated. Indeed, this is an advantage of the Monte Carlo method. For convenience, using a similar γ-γ coincidence technique, which is widely applied for experimentally deducing the nuclear level scheme, we construct a level-level coincidence matrix (namely, a two-dimensional histogram). Each axis of the matrix corresponds to the energy of the calculated single-particle levels. The matrix has channel dimensions of 4096 × 4096, with an energy calibration of 10 keV/channel. Such a matrix provides an energy range of -40.96 to 0.00 MeV, covering the range of the single-particle energies (e.g., all bounded ones for neutrons) considered. By using the gated spectra on different level-level matrice, the peak distributions of single-particle levels and even their correlation properties can be conveniently analyzed under different conditions.

It is well known that there are three typical types of single-particle levels during the evolution of the nuclear models (for instance, from the harmonic oscillator model, adding strong spin-orbit coupling to obtain the shell model, and an axial deformation to provide the collective model). In this study, we use a more realistic Woods-Saxon potential (lying between the harmonic oscillator potential and the finite square well) to produce these three types of single-particle levels and study their energy uncertainties originating from the model parameters. Similar to the parameter space (p₁, p₂, p₃, p₄, p₅, p₆), let us define a correspondingly six-dimensional ‘switch’ space (s₁, s₂, s₃, s₄, s₅, s₆), where si=0 or 1 (for i=1, 2,…,6). Moreover, if si=0, the universal parameter $p_i^{\text{o}}$ is always adopted (i.e., the standard deviation σpi is not used). For si=1, this indicates that the sampling pi value is adopted (i.e., the parameter σpi is opened). Clearly, we can evaluate the effects of different parameter uncertainties and their combinations on single-particle levels by calculating at different points s =(s₁, s₂, s₃, s₄, s₅, s₆).

In Fig.3, we show the spherical single-particle levels (labeled as {nl} quantum numbers) calculated using the Woods-Saxon potential without the inclusion of spin-orbit coupling. Note that in the spectroscopic notation, the bounded states under angular momentum with l=0, 1, 2, 3, 4, 5,… are indicated with the letter s, p, d, f, g, h,…, respectively. The projection spectra at different s points are obtained by gating at the 1s level. Figure 4 shows the second type of single-particle levels (labeled as {nlj}) calculated at two s points using the spherically Woods-Saxon potential with the spin-orbit part. In this case, the l orbital is split into two $j=l\pm \frac{1}{2}$ substates. Similar to Fig. 4, in Fig. 5, we show the deformed Woods-Saxon single-particle levels (labeled as {Ω[NnzΛ]}, the so-called Nilsson quantum numbers) calculated at β₂=0.1, which is an arbitrarily selected axial deformation value. In Fig. 5, the peak heights of the deformed single-particle levels are all the same, with a sampling value of 10 000, because the two-fold degenerate levels {Ω[NnzΛ]} are no longer degenerate. However, the levels labeled {nl} and {nlj} have (2n+1)- and $(j+\frac{1}{2})$-fold degeneracies, respectively, owing to the spherical symmetry of the Woods-Saxon potential. As shown in Figs. 3(a) and 4(a), the counts dividing by 10 000 indicate the degrees of degeneracy of the corresponding levels. Based on these gated spectra at different s points, we can analyze the distributed properties of the single-particle levels without a strong overlap. For instance, it is convenient to fit the distributions in Figs. 3 and 4, whereas it is difficult to do so in the right part of Fig. 5 because the distributions strongly overlap.

Fig. 3.Full-screen View

Calculated single-neutron levels labeled {nl} in ²⁰⁸Pb (gated at the 1s level). The dotted lines are provided to guide the eye. See the text for further details.

Fig. 4.Full-screen View

(Color online) Similar to Fig. 3, although spin-orbit coupling is considered (gated at the 1s_1/2 level).

Fig. 5.Full-screen View

Similar to Fig. 4, although the axial deformation is added (gated at the 1/2[100] level). Note that only the first three {Ω[NnzΛ]} quantum numbers are given owing to space limitations.

In Fig. 6(a), as an example, we show the uncertainty evolution of the selected spherical i_13/2 level as an increasing number of uncertainty parameters are revealed. It can be seen that the energy uncertainty of this level increases with increasing ‘1’ in the ‘switch’ space. The results of the Gaussian fits to the peaks at the s =(1, 0, 0, 0, 0, 0) and (1, 1, 1, 1, 1, 1) points are presented in Fig. 6(b), including the standard deviations and full width at half maximum (FWHM). The FWHM is a parameter commonly used to describe the width of a “bump,” e.g., on a function curve given by the distance between points on the curve at which the function reaches half its maximum value. The FWHM can be used to describe the width of any distribution. For a normal distribution N(μ, σ), its FWHM is $2\sqrt{2\text{l}n2}$ σ(≈2.3548σ). In principle, we can extract the standard deviation ${\sigma }_{e_i}$ for each single-particle level ei and further find the possible evolutionary law. It was found that, in practice, the correct fitting will be rather difficult to be achieved once the peak is not ‘pure’, although we try to limit the amplitudes of the given standard deviations {σp}.

Fig. 6.Full-screen View

(Color online) (a) Distributions of the spherical i_13/2 level calculated at different s = (s₁, s₂, s₃, s₄, s₅, s₆) points. (b) The Gaussian fits to the distributions at the s =(1, 0, 0, 0, 0, 0) and (1, 1, 1, 1, 1, 1) points.

Fortunately, we found that the single-particle energy ei depends linearly on the potential parameters within the uncertainty domain near the universal parameters. That is, it is sufficient to use the first-order Taylor approximation in Eq. (8), which means that we can approximate the function ei=ei(pj) using its tangent line at the $p_j^{\text{o}}$ point. Therefore, we can analytically calculate the energy uncertainty ${\sigma }_{e_i}$ according to Eq. (8). The partial derivatives (sensitivity coefficients) of the single-particle energies ei with respect to the potential parameters {p} at {p°} can be numerically calculated using the finite-difference formula:

with values of $p_j^{+}$ and $p_j^{-}$ suitably close to $p_j^{\text{o}}$. For convenience, we define an adjusted sensitivity coefficient as follows:

By giving a set of suitable {σp}, the adjusted sensitivity coefficients {∂ei}{∂₁ei,∂₂ei,∂₃e_i,∂₄e_i,∂₅e_i,∂₆e_i} will have a similar order of magnitude. Figure 5 shows the adjusted sensitivity coefficients for the three types of calculated neutron single-particle levels labeled respectively by {nl}, {nlj}, and {Ω[NnzΛ]} in ²⁰⁸Pb. From this figure, it can be seen that the adjusted sensitivity coefficients show us regular evolution trends. In particular, the spectrum envelopes, e.g., in Figs. 7(g)-7(i) and Figs. 7(m)-7(o), show different but interesting properties. It will be meaningful to reveal the physics behind them. Based on these sensitivity coefficients and the standard deviations of these model parameters or their combinations (namely, the adjusted sensitivity coefficients), we can calculate the energy uncertainty ei analytically. Indeed, for the i_13/2 level, the analytical result coincides with the fitting value of the peak generated using the Monte-Carlo method. The typical error between the calculated and fitted values is less than 3%.

Fig. 7.Full-screen View

(Color online) The adjusted sensitivity coefficients ∂jei of the three types of typical neutron single-particle levels labeled by {nl}, {nlj}, and {Ω[NnzΛ]} in ²⁰⁸Pb. See the text for more details.

Based on the above method, we analytically calculate the overall uncertainties of the three levels mentioned above for both neutrons and protons in ²⁰⁸Pb. In the calculations, all parameter uncertainties are taken into account, which indicates that calculations are conducted at the s = (1, 1, 1) point for {nl} levels and at the s = (1, 1, 1, 1, 1, 1) point for {nlj} and {Ω[NnzΛ]}. As shown in Fig 8, one can note that the changing trends of the standard deviations are similar for neutrons and protons. For the {nl} single-particle levels, there is no obvious change with changing n,l quantum numbers or single-particle energies. For {nlj} and {Ω[NnzΛ]}, respectively, it seems that the increasing trends of the energy uncertainties appear with increasing energies or angular momentum j for a given n, for example, n=1. Note that one spherical j mean-field orbital will split into $(j+\frac{1}{2})$ deformed substates, for example, at β₂=0.1. In addition, it was confirmed that the same conclusions should be obtained using the Monte Carlo technique. More attention has been paid to the uncertainty propagation from the model parameter rather than the physical discussion behind it.

Fig. 8.Full-screen View

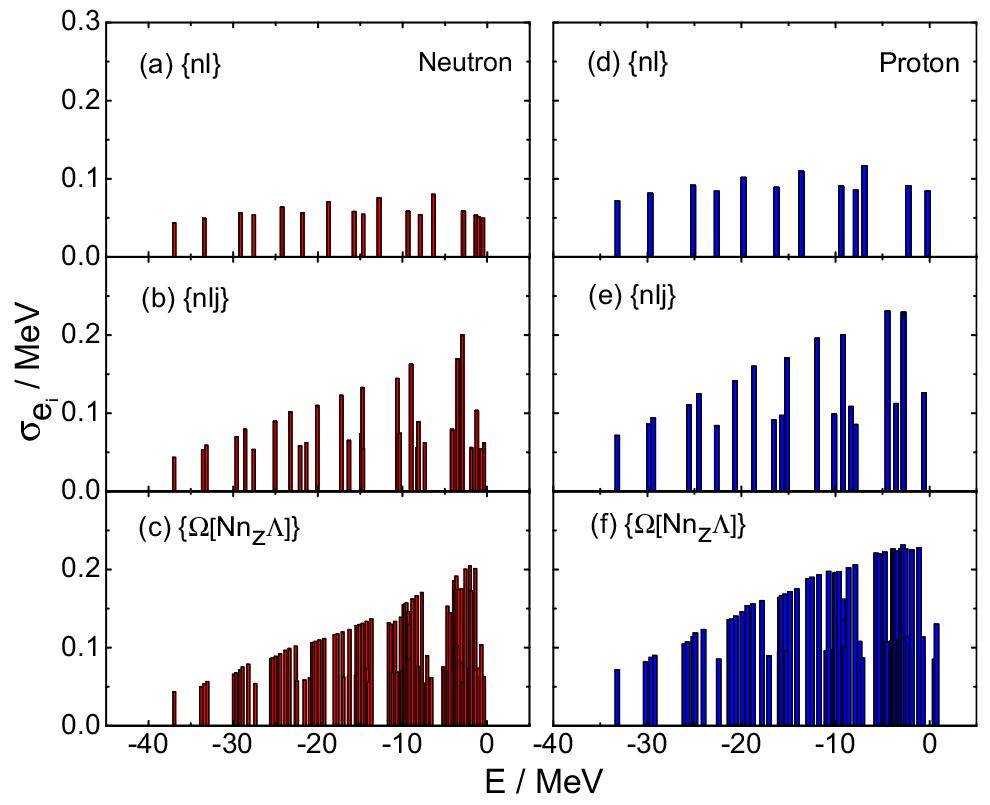

(Color online) The standard deviation ${\sigma }_{e_i}$ of three kinds of typically single neutron (left) and proton (right) energies in ²⁰⁸Pb.

3.4 Correlation coefficients between single-particle energies

As mentioned above, the single-particle levels are usually the input quantities in further theoretical calculations (e.g., [64, 65]), for example, the calculations of high-K isomers, shell correction, and pairing correction. Both the energy uncertainties and the correlation effects are important for further uncertainty predictions. Based on Eq. 13 the Pearson’s correlation coefficients will be able to be calculated between any two levels. Further, we can investigate the correlation effects among them within the ‘small’ energy domains associated with parameter uncertainties, {σp}. Figure 9 shows the two-dimensional scatter plots between three pairs of arbitrarily selected {nlj} single-neutron energies,1i_13/2 ⊕ 1j_15/2, 1i_13/2 ⊕ 3p_1/2, and 1g_7/2 ⊕ 1i_13/2, near the Fermi surface. From the left to right side in this figure, the calculations are applied at s =(1, 0, 0, 0, 0, 0), (1, 1, 0, 0, 0, 0), (1, 1, 1, 0, 0, 0), (1, 1, 1, 1, 0, 0), (1, 1, 1, 1, 1, 0), and (1, 1, 1, 1, 1, 1) points, respectively. It should be noted that, similar to the operation shown in the plot in Figure 2, before plotting, the normal distributions of the selected single-particle levels are transferred into the standard normal distributions by defining a dimensionless parameter, $x_i=[e_i(p)-e_i(p^{\text{o}})]/{\sigma }_{e_i}$. In Fig. 7, the dimensionless parameters xμ for μ=1, 2, 3, and 4 correspond to the spherically mean-field single-particle levels 1i_13/2, 1j_15/2, 3p_1/2, and 1g_7/2. When revealing an increasing number of uncertainty parameters, the evolutions of the correlation coefficients and the scatterplot distributions can clearly be seen. In particular, it was found that positive, zero, and negative values appear in the correlation coefficients.

Fig. 9.Full-screen View

(Color online) Scatter plots (with correlation coefficients ρ) between three pairs of arbitrarily selected single-neutron energies, 1i_13/2 ⊕ 1j15/2 (top), 1i_13/2 ⊕ 3p1/2 (middle), and 1g_7/2 ⊕ 1i13/2 (bottom), near the Fermi surface in ²⁰⁸Pb. From left to right, the uncertainties of an increasing number of parameters are considered as indicated in the text.

To provide an overall investigation, we show the color-coded plot of the calculated correlation coefficients between single-particle levels with energy ei < 0 for protons and neutrons in Fig. 10. As shown, the correlation coefficients do not have the same values but cover a rather wide range. It is certainly important to consider these correlation effects when the single-particle levels with energy uncertainties are taken as input data to conduct further calculations.

Fig. 10.Full-screen View

(Color online) Color-coded plot of the calculated correlation coefficients between single-particle energy levels for neutrons (a) and protons (b) in ²⁰⁸Pb.
