Searching for single-particle resonances with the Green’s function method

NUCLEAR PHYSICS AND INTERDISCIPLINARY RESEARCH

Searching for single-particle resonances with the Green’s function method

Ya-Tian Wang，

Ting-Ting Sun

Nuclear Science and Techniques

Vol.32, No.5

Article number 46

Published in print 01 May 2021

Available online 08 May 2021

DOI：10.1007/s41365-021-00884-0

37101

Single-particle resonances in the continuum are crucial for studies of exotic nuclei. In this study, the Green’s function approach is employed to search for single-particle resonances based on the relativistic-mean-field model. Taking ¹²⁰Sn as an example, we identify single-particle resonances and determine the energies and widths directly by probing the extrema of the Green’s functions. In contrast to the results found by exploring for the extremum of the density of states proposed in our recent study [Chin. Phys. C, 44:084105 (2020)], which has proven to be very successful, the same resonances as well as very close energies and widths are obtained. By comparing the Green’s functions plotted in different coordinate space sizes, we also found that the results very slightly depend on the space size. These findings demonstrate that the approach by exploring for the extremum of the Green’s function is also very reliable and effective for identifying resonant states, regardless of whether they are wide or narrow.

Single-particle resonancesExtrema of Green’s functionsRelativistic-mean-field theory

1 Introduction

Recently, explorations for single-particle resonances are attracting increasing attention because of their significant role in studies of exotic nuclei. Many exotic phenomena such as halos [1], deformed halos [2], and giant halos [3-5] are explained by the occupations of valence neutrons in the continuum. For example, giant halos predicted in neutron-rich Zr and Ca isotopes are caused by valence neutrons scattered to the continuum and occupying p orbitals [3, 4], and the possible deformed halos in ^40,42Mg and ²²C are mainly caused by the occupations of single-particle states around the Fermi surface [6-8]. Numerous studies have shown that, in weakly bound exotic nuclei with very small gaps, between the Fermi surface and the continuum threshold, the valence nucleons can be scattered to the continuum effortlessly by pairing correlations. Halos can be formed if the valence nucleons occupy an orbit with a small angular momentum l, which can contribute a large radius [9, 10].

To explore single-particle resonances, researchers have developed a series of approaches. One technique starts from scattering theory, such as K-matrix theory [12, 13], R-matrix theory [14, 15], the Jost function approach [16, 17], and the scattering phase shift method [18, 19]. Meanwhile, approaches for bound states are also widely used; these include the real stabilization method [20, 21], the complex scaling method [22-25], the analytical continuation of the coupling constant method [26, 27], the complex momentum representation method [28, 29], and the complex-scaled Green’s function method [30].

The Green’s function approach [31, 32], which has wide applications in various fields of physics [33, 34], has also been demonstrated to be very effective for studying the continuum and single-particle resonant states. Owing to its advantages, such as its being able to handle bound states and the continuum uniformly by using the density of states (DOS) tool, the resonance energies and widths can be determined easily, the asymptotic behavior of the spatial extended density in weakly bound nuclei can be properly described, and, most importantly, it can be combined with different nuclear models very conveniently. The Green’s function method has yielded significant achievements in nuclear physics in investigating the effects of the continuum on the properties of atomic nuclei. For example, to describe the continuum exactly in exotic nuclei near the drip line and study the possible effects of the continuum on the properties of the ground state, Zhang et al. developed the self-consistent continuum Skyrme Hartree–Fock–Bogoliubov (HFB) theory [35, 36], based on which a series of research projects have been conducted. These include establishment of the energies and wave functions for single-particle canonical bound and resonant states with different space sizes [37], study of the possible impacts of mean-field and pairing on the resonances [38, 39], and the extension to the odd-A systems by including the blocking effect [40]. To explore the contribution of the continuous spectrum to nuclear collective excitations, Matsuo applied the HFB Green’s function [41] to the quasiparticle random-phase approximation [42, 43], enabling further study of the collective excitations coupled to the continuum [44-47], microscopic structures of monopole pair vibrational modes and associated two-neutron transfer amplitudes [48], and neutron capture reactions [49].

Given the great successes that the Green’s function method achieved in the nonrelativistic framework, it is naturally applied in covariant density functional theory [50-52], which has been demonstrated to be a powerful tool in researching various nuclear systems and properties, such as superheavy nuclei [53-55], pseudospin symmetry [56-58], hypernuclei [59-61], and neutron stars [62, 63]. In Refs. [64, 65], the relativistic continuum random-phase approximation theory is developed by adopting the Green’s function of the Dirac equation [31] to investigate collective excitations. In Ref. [66], we introduced the Green’s function approach to the relativistic-mean-field (RMF) model and studied single-particle resonances for the first time. Later, this approach was further extended to studies of single-particle resonances of protons [67], hyperons [68], and those in deformed nuclei with a quadrupole-deformed Woods–Saxon potential [69]. In addition, the pseudospin symmetries hidden in resonant states were also investigated by applying the Green’s function method [70]. In Ref. [71], to study the halo structures in neutron-rich nuclei, we further included the pairing correlation and introduced the Green’s function approach to the continuum relativistic Hartree–Bogoliubov theory.

In our previous studies of single-particle resonant states [66-68], the resonant states are determined by comparing the DOS of particles in the mean field to those for free particles. In this framework, resonance energies and widths are simply determined as the position and full width at half-maximum of the resonant peak, respectively. With this method, one can describe narrow resonances very well, but the accuracy is poor for wide ones. Therefore, in our recent studies [69, 72], we proposed an effective and direct way to identify the resonant states by exploring for the extremum of the DOS. The exact energies and widths for the resonant states in all types can be obtained, whether for wide or narrow resonant states. However, the DOS in the calculations are approximate ones because they are calculated in a finite space size. In this work, we will directly analyze Green’s functions and search for their poles or extrema to determine the resonant states.

The paper is organized as follows: The RMF model formulated with Green’s functions is briefly presented in Sec. 2. Numerical details are given in Sec. 3. After the results and discussion are presented in Sec. 4, a brief summary and perspectives are given in Sec. 5.

2 THEORETICAL FRAMEWORK

In the RMF model, neutrons and protons are described as Dirac particles moving in a mean-field potential characterized by scalar S and vector V potentials. The Dirac equation for a nucleon with mass M is as follows:

[α \cdot p + V (r) + β (M + S (r))] ψ_{n} (r) = ε_{n} ψ_{n} (r),

(1)

where α and β are Dirac matrices.

Various methods have been used to solve the Dirac equation. These include the shooting method [10], the Green’s function method [66], and the finite element method [73], which are performed in the coordinate space, as well as those in the harmonic oscillator basis [74] or Woods–Saxon basis [75]. When introducing the Green’s function method to mean-field density functionals, the densities and single-particle spectrum can be determined directly by the Green’s functions [35, 36, 40, 66]. Following the definition of the single-particle Green’s function,

[ε - \hat{h} (r)] G (r, r'; ε) = δ (r - r'),

(2)

a relativistic Green’s function 𝒢(r,r’;ε) for the Dirac equation can be constructed at arbitrary single-particle energies ε when ĥ(r) is chosen as the Dirac Hamiltonian. Taking a complete set of solutions of the Dirac equation, including the eigenstates ψn(r) and eigenvalues εn, we can write the Green’s function in Eq. (2) as

G (r, r'; ε) = \sum_{n} \frac{ψ_{n} (r) ψ_{n}^{†} (r')}{ε - ε_{n}} .

(3)

With the single-particle energy ε approaching the energy εn, the absolute value of 𝒢(r,r’;ε) will increase significantly and reach the extremum. Therefore, one can determine the single-particle energies εn by calculating different Green’s functions at various energies ε and search for the extremum. For resonant states with resonant energies E and widths Γ, one can write their energies as εn=E-iΓ/2. Correspondingly, the energies ε in Eqs. (2) and (3) are complex: ε=εr+iεi with εr and εi being the real and imaginary parts of the energy, respectively.

Because the Dirac spinor ψn(r) has upper and lower components, the corresponding Green’s function has the form of a 2×2 matrix,

G (r, r'; ε) = (\begin{matrix} G^{(11)} (r, r'; ε) & G^{(12)} (r, r'; ε) \\ G^{(21)} (r, r'; ε) & G^{(22)} (r, r'; ε) \end{matrix}) .

(4)

With spherical symmetry, one can expand the Green’s function as

G (r, r^{'}; ε) = \sum_{κ m} Y_{κ m} (θ, ϕ) \frac{G_{κ} (r, r^{'}; ε)}{r r^{'}} Y_{κ m}^{*} (θ^{'}, ϕ^{'}),

(5)

where 𝒢κ(r,r’;ε) is the radial part, Yκm(θ,ϕ) is the spin spherical harmonic, and the quantum number κ=(-1)^j+l+1/2(j+1/2) labels different “channels.”

For a given single-particle energy ε and quantum number κ, we can construct the radial Green’s function 𝒢κ(r, r’;ε) as [31]

\begin{array}{l} G_{κ} (r, r^{'}; ε) = \frac{1}{W_{κ} (ε)} [θ (r - r^{'}) ϕ_{κ}^{(2)} (r, ε) ϕ_{κ}^{(1) †} (r^{'}, ε) \\ + θ (r^{'} - r) ϕ_{κ}^{(1)} (r, ε) ϕ_{κ}^{(2) †} (r^{'}, ε)], \end{array}

(6)

with $ϕ_{κ}^{(1)} (r, ε)$ and $ϕ_{κ}^{(2)} (r, ε)$ being two Dirac spinors given by

\begin{array}{l} ϕ_{κ}^{(1)} (r, ε) = (\begin{matrix} g_{κ}^{(1)} (r, ε) \\ f_{κ}^{(1)} (r, ε) \end{matrix}), \\ ϕ_{κ}^{(2)} (r, ε) = (\begin{matrix} g_{κ}^{(2)} (r, ε) \\ f_{κ}^{(2)} (r, ε) \end{matrix}), \end{array}

(7)

which are linearly independent and obtained by solving the Runge–Kutta integrals in the full coordinate r space starting, respectively, from the asymptotic behaviors at r→0 and r→∞ θ(r-r’) is a step function; and Wκ(ε) is the Wronskian function,

W_{κ} (ε) = g_{κ}^{(1)} (r, ε) f_{κ}^{(2)} (r, ε) - g_{κ}^{(2)} (r, ε) f_{κ}^{(1)} (r, ε),

(8)

which is independent of r. It can be checked that the constructed Green’s function 𝒢κ(r,r’;ε) of Eq. (6) meets the definition equation (2) in the radial form.

In practical calculations, one will adopt the exact asymptotic behaviors of the Dirac spinors to construct Green’s functions. As a result, weakly bound states around the Fermi surface as well as the resonances above the continuum threshold, which are essential for the unstable nuclei, can be adddressed when calculating densities and single-particle spectra. At r 0, the asymptotic behavior of the Dirac spinor $ϕ_{κ}^{(1)} (r, ε)$ satisfies

ϕ_{κ}^{(1)} (r, ε) \to r (\begin{matrix} j_{l} (k r) \\ \frac{κ}{| κ |} \frac{ε - V - S}{k} j_{\tilde{l}} (k r) \end{matrix}),

(9)

where $k = \sqrt{(ε - V - S) (ε - V + S + 2 M)}$ is the single-particle momentum, the quantum number $\tilde{l} = l + {(- 1)}^{j + l - 1 / 2}$ denotes the angular momentum for the lower component of the Dirac spinor, and jl(kr) is the spherical Bessel function of the first kind, which satisfies

j_{l} (k r) \to \frac{{(k r)}^{l}}{(2 l + 1)!!}, when r \to 0.

(10)

At r→∞, the Dirac spinor $ϕ_{κ}^{(2)} (r, ε)$ is oscillating outgoing for the continuum and exponentially decaying for the bound states, which can be represented uniformly as

ϕ_{κ}^{(2)} (r, ε) \to (\begin{matrix} r k h_{l}^{(1)} (k r) \\ \frac{κ}{| κ |} \frac{r k^{2}}{ε + 2 M} h_{\tilde{l}}^{(1)} (k r) \end{matrix}),

(11)

where $k = \sqrt{ε (ε + 2 M)}$ and $h_{l}^{(1)} (k r)$ is the spherical Hankel function of the first kind.

3 Numerical details

In this work, the single-particle resonant states were studied by employing the Green’s function method based on RMF theory, where the resonance energies E and widths Γ were obtained directly by probing the extrema of the Green’s functions. To compare with the previous results obtained by using Green’s functions calculations [66, 72], where the resonances were identified by probing the extremum of the DOS, nκ(ε), defined in a finite space size R_box, the same nucleus ¹²⁰Sn and density functional PK1 [76] were adopted.

The Green’s functions and RMF equations were solved in the coordinate r space with a space size of R_box=20 fm and a step of dr=0.1 fm. To check the dependence of the obtained resonances on the space sizes, calculations with R_box=25, 30 fm were also performed. To search for the energy position corresponding to the poles of the Green’s functions, the complex single-particle energies ε=εr+iεi were scanned widely on the complex energy plane to calculate the Green’s functions 𝒢(r,r;ε). The energy step was dε=1 × 10^-4 MeV for both the real εr and imaginary εi parts. With this scanning energy step, the accuracy of the obtained resonance energies and widths were up to 0.1 keV. In addition, the accuracy can be increased further once the scanning energy step dε is decreased.

4 Results and discussion

On the complex single-particle energy plane, single-particle resonances are located in the fourth quadrant, with the real energy being the resonance energy E and the imaginary energy being half of the resonance width Γ/2. According to Eq. (3), the single-particle energies εn=E-iΓ/2 of the resonant states also correspond to the extrema of the Green’s functions 𝒢(r,r;ε). As a result, one can search for these poles or extrema to determine the locations of the resonate sates by scanning the complex energies ε=εr+iεi in the fourth quadrant and calculating the Green’s functions 𝒢(r,r;ε).

In Fig. 1, taking the neutron single-particle resonant state 2f_5/2 in ¹²⁰Sn as an example, we plot the Green’s functions 𝒢(r,r;ε) at various scanned single-particle complex energies ε=εr+iεi. With the real energy εr varying from 0.8703 to 0.8707 MeV and the imaginary energy εi varying from -0.0324 to -0.0328 MeV, the height of the Green’s function changes significantly. Comparing panels (a), (b), and (c) in the left column, we can see that the modulus of the Green’s function |𝒢⁽¹¹⁾| has a larger amplitude at a real energy εr=0.8705 MeV, as shown in panel (b). More specifically, the Green’s function reaches its extremum at an imaginary energy εi=-0.0326 MeV (plotted by the red line). All these analyses indicate that the Green’s function reaches its extremum at an energy of ε=0.8705-i0.0326 MeV. In the same way, we show the moduli of the Green’s functions for the “22" component |𝒢⁽²²⁾| in the right column, which are determined by the small component of the Dirac spinor. The amplitudes are much lower than those in the left column. However, the Green’s function reaches its maximum amplitude at the same energy ε=0.8705-i0.0326 MeV. Therefore, we can conclude that ε=0.8705-i0.0326 MeV corresponds to the energy of the single-particle resonant state 2f_5/2 in ¹²⁰Sn, which is almost the same value as the result obtained by exploring for the extremum of the DOS [72] with a difference of 0.1 keV for the width.

Fig. 1

(Color online) Green’s functions 𝒢(r,r;ε) at different complex energies ε=εr+iεi plotted as a function of coordinate r for the resonant state 2f_5/2 in ¹²⁰Sn. The left and right columns are, respectively, the moduli of “11" and “22" components of Green’s functions |𝒢⁽¹¹⁾| and |𝒢⁽²²⁾|. The complex energy ε is scanned widely, and the results with the real energies εr=0.8703, 0.8705, and 0.8707 MeV, and imaginary energies εi=-0.0324, -0.0326, and -0.0328 MeV are shown.

To be more intuitive, one can integrate the Green’s function 𝒢(r,r;ε) over coordinate r and compare the integral values at different scanning single-particle energies ε. The integral function Gκ(ε) for each partial wave κ at energy ε can be written as

G_{κ} (ε) = \int d r [| G_{κ}^{(11)} (r, r; ε) | + | G_{κ}^{(22)} (r, r; ε) |],

(12)

where $| G_{κ}^{(11)} (r, r; ε) |$ and $| G_{κ}^{(22)} (r, r; ε) |$ , respectively, correspond to the moduli of the “11” and “22” matrix elements of the Green’s functions, as shown in Eq. (4). A sharp peak should be observed for the integral function Gκ(ε) at the energy where the Green’s function reaches its extremum. In Fig. 1, the result for the single-particle resonant state 2f_5/2 in ¹²⁰Sn is plotted on the complex energy plane. A peak with an extremum located at εr=0.8705 MeV and εi=-0.0326 MeV is observed, indicating that the energy of the resonant state 2f_5/2 is εn=0.8705-i0.0326 MeV, which is the same as the result obtained in Fig. 1.

To check the universality of this approach, the same analysis was performed for a relatively wide single-particle resonant state 2g_9/2 in Fig. 3. Similarly, a sharp peak is identified with the extremum located at εr=5.4428 MeV and εi=-1.6948 MeV, indicating that the energy of the resonant state 2g_9/2 is εn=5.4428-i1.6948 MeV. However, compared with the narrow resonant state 2f_5/2, the peak of the wide resonant state 2g_9/2 is much sharper, which can be explained by the greater integral values Gκ(ε) for the wide resonant states caused by the extended distributions of Green’s functions. From Figs. 2 and 3, we can conclude that it is very direct and effective to search for the single-particle resonant states and determine the energies and widths for both narrow and wide resonances by searching for the extrema of the Green’s functions.

Fig. 3

(Color online) Integral function Gκ(ε) distributed on the complex energy plane for the resonant state 2g_9/2 in ¹²⁰Sn.

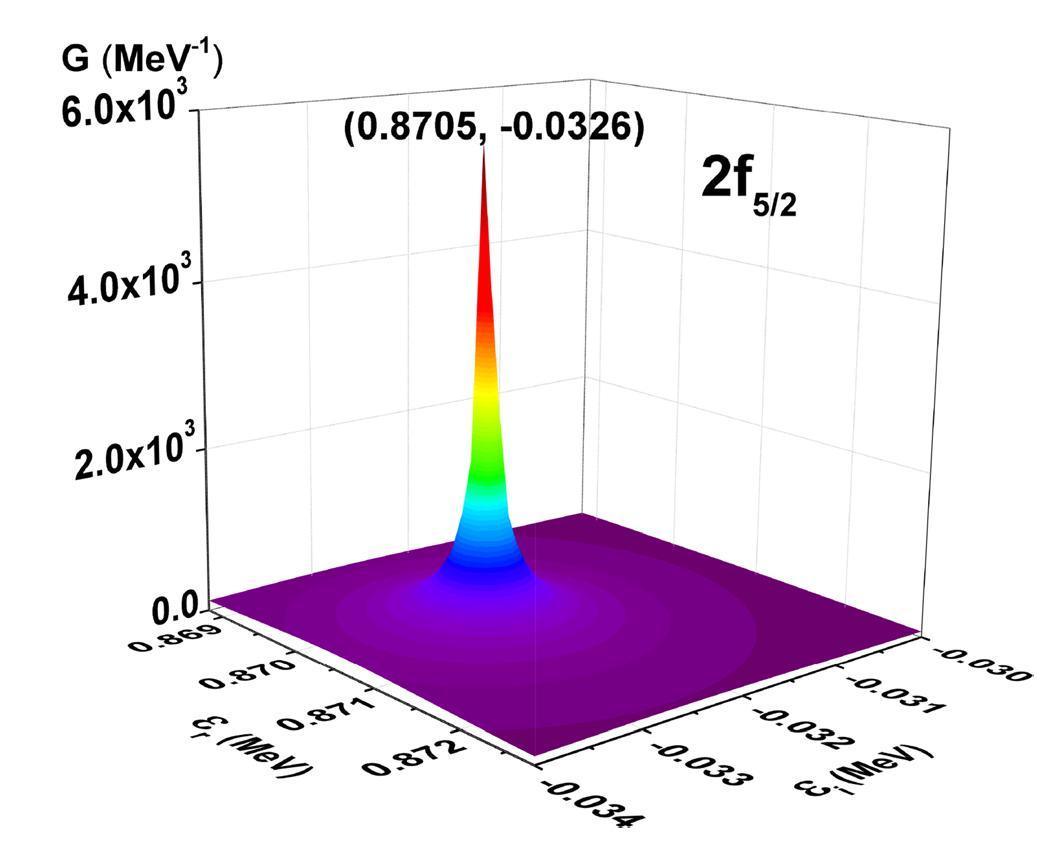

Fig. 2

(Color online) Integral function Gκ(ε) distributed on the complex energy plane for the resonant state 2f_5/2 in ¹²⁰Sn.

In Fig. 4, the dependence of the Green’s functions on the coordinate space sizes R_box is checked by taking the resonant state 2f_5/2 as an example and plotting |𝒢⁽¹¹⁾(r,r;ε)| and |𝒢⁽²²⁾(r,r;ε)| with R_box=20, 25, and 30 fm, respectively. Obviously, we can see that exactly the same distributions for both the “11" and “22" components are obtained, indicating that the Green’s function method depends slightly on the space sizes, which is consistent with the conclusions obtained by analyzing the density distributions ρκ(r,ε) plotted in different space sizes [72].

Fig. 4

(Color online) Green’s functions 𝒢(r,r;ε) for the resonant state 2f_5/2 in ¹²⁰Sn at the resonant energy ε=E-iΓ/2 calculated with space sizes R_box=20, 25, and 30 fm.

In Table 1, neutron single-particle resonant states in ¹²⁰Sn with energies and widths E-iΓ/2 obtained by searching for the extrema of the Green’s functions are listed, and these are compared with those obtained by exploring for the maximum of the DOS [72]. For most of the resonant sates, exactly the same energies and widths are obtained while very small differences (within 0.2 keV) exist for others. Compared with the results obtained by comparing the DOSs for nucleons and free particles in Ref. [66], four wide resonant states (2g_7/2, 2g_9/2, 2h_11/2, and 1j_13/2) are identified. Furthermore, the accuracy of the width for the narrow resonant state 1h_9/2 is highly refined to be 1 × 10^-8 MeV. All these results prove that the approach by probing the extremum of the Green’s functions is as effective and reliable as that by exploring for the extremum of the DOS in identifying the resonant states, irrespective of whether the resonant state is wide or narrow. Moreover, compared with the approach by exploring for the extremum of the DOS, the approach by searching for the extremum of the Green’s functions is easier, more direct, and less time-consuming. However, without the DOS, this approach cannot describe intuitively the structures of the single-particle spectrum for the bound and resonant states.

Neutron single-particle resonances nlj in ¹²⁰Sn with energies and widths E-iΓ/2 obtained by probing the extrema of the Green’s functions, compared with the results by exploring for the extremum of the DOS in our previous study [et~al.(2020), Li, Li, and Sun]. The PK1 effective density functional was used. All quantities are in MeV.

Positive parity	Green’s function	DOS	Negative parity	Green’s function	DOS
g_7/2	6.3585- i3.1053	6.3585- i3.1052	3p_1/2	0.0504- i0.0164	0.0504- i0.0164
g_9/2	5.4428- i1.6948	5.4428- i1.6948	2f_5/2	0.8705- i0.0326	0.8705- i0.0325
i_11/2	9.8544-i0.6413	9.8544- i0.6413	1h_9/2	0.2507- i4×10^-8	0.2508- i4×10^-8
i_13/2	3.4686-i0.0025	3.4686-i0.0024	2h_11/2	10.5130-i6.7683	10.5130- i6.7681
			1j_13/2	18.1846-i3.1532	18.1846- i3.1531
			1j_15/2	12.8929-i0.5323	12.8929- i0.5322

5 Summary and Perspectives

Significant roles are played by the single-particle resonances in the structure of exotic nuclei. The Green’s function method has been demonstrated to be one of the most effective approaches in searching for single-particle resonant states. In our recent work [72], by probing the extremum of the DOSs nκ(ε) defined in a finite space size R_box, the Green’s function method has been proven to be very reliable, regardless of whether the resonances are wide or narrow. In this work, another direct and effective approach by probing the extremum of the Green’s functions is proposed to identify the resonant states.

Taking the same nucleus ¹²⁰Sn as an example, by searching for the poles or extrema of the Green’s functions, we obtain almost the same energies and widths for the resonant states as obtained by exploring for the extremum of the DOS. In addition, the dependence of the Green’s functions on the space size is checked and found to be very stable. Compared with the results obtained by comparing the DOSs for nucleons and free particles [66], four wide resonant states (2g_7/2, 2g_9/2, 2h_11/2, and 1j_13/2) are identified, and the accuracy of the width of the narrow resonant state 1h_9/2 is highly refined to 1×10^-8 MeV. All these results prove that the approach by probing the extremum of the Green’s functions has the same reliability and effectiveness as that by probing the extremum of the DOS to identify the resonant states, regardless of whether the resonant states are wide or narrow.

As is well known, both pairing correlations and the continuum play core roles in exotic nuclei. Therefore, studies on the possible effects of pairing on the resonant states are significant and very interesting. In the investigations with the continuum Skyrme HFB approach in Refs. [38, 39], the authors concluded that the pairing correlation can enhance the resonant energies and widths for all quasiparticle resonances, whether hole-like or particle-like. However, in Ref. [77], an opposite conclusion was obtained for the particle-like quasiparticle resonances studied with a fixed resonant energy. In the future, we will take the self-consistent relativistic continuum Hartree–Bogoliubov model with the Green’s function method [71] to explore the possible effects of pairing on the resonant states. Moreover, we would like to apply the Green’s function method to dynamic reactions and search for resonance structures, for which vast theoretical and experimental works have been performed [78, 79]. In Ref. [80], the complex molecular resonances in the ¹²C+¹²C fusion reaction were explored with the thick-target method.
