Gaseous TPC with Micromegas

The Screener3D TPC primarily comprises a readout plane with Micromegas modules, a cathode, a field cage, a gas medium, and an outer vessel (Fig. 1). The rectangular readout plane on the top collects drift electrons after amplification via avalanche. The cathode is at the bottom and provides a negative high voltage. The field cage connects the readout plane and cathode mechanically and aids in maintaining a uniform drift electric field in the active volume, which is the cuboid space enclosed by the aforementioned components. The active volume is 60 cm long, 40 cm wide, and 10 cm high, which is filled with 1 bar of an argon and isobutane gas mixture during operation. All the components are fixed inside the vessel with signal feedthroughs and various ports for gas circulation and pumping.

Figure 1:Full-screen View

(Color online) Schematic design of Screener3D with the main components labeled. (Top) The inside view with field cage drawer pulled out. Samples are placed at the bottom of the drawer (on the cathode). (Bottom) The detector with front cap closed and ready for measurement.

During measurement, a thin slab sample, such as a sheet of metal, plastic film, or silicon wafer, would be placed on the cathode plane. Radioactive contaminations on the top surface of the sample emit α and β particles into the active volume. We focus primarily on the identification of α particles from samples since the energy deposition in the unit distance is large and trajectory characteristics are easier to define. The typical α emissions emanate from uranium and thorium decay chains. Nuclides such as ²³²Th, ²³⁸U, ²¹⁴Po, and ²¹²Po emit α particles with energies of 4.0, 4.1, 7.7, and 8.8 MeV, respectively. A few other isotopes along the decay chains emit α particles in the energy range of 4 to 7 MeV.

The readout plane may consist of multiple Micromegas modules. In our current design, six modules of approximately 20×20 cm^{^2} are tiled together to form a total readout area of 2400 cm². In Fig. 1, the modules, supported by an acrylic frame, are shown face-down. For each module, the active area is split into 64×64 diamond-shaped pads, each of which has a diagonal length of 3 mm. The pads are inter-connected in the vertical or horizontal direction and form the so-called X or Y readout strips. With 64 X and 64 Y strips, the total number of electronics channels is 128 per module. Flat signal cables fabricated from a Kapton-based flexible printed circuit board (PCB) pass through the feedthroughs on the top of the vessel to send the signals to readout electronics (not shown in the figure) outside the TPC. Micromegas modules are frequently biased at a few hundreds of volts and the voltage is also provided through the flat Kapton cable.

Figure 1 (top) also shows the field cage and cathode as a drawer pulled out from the acrylic frame. The sidewall of the field cage is created from 2 cm-thick acrylic plates with a Kapton-based flexible PCB attached to the outside. There are uniformly spaced copper strips on the PCB, and the adjacent strips are connected with surface mount resistors to maintain a uniform electric field. At the bottom of the drawer, a polished copper plate with a thickness of 0.2 cm is used as the cathode. The cathode is electrically connected to the bottom strip of the field cage PCB. A uniform electric field is formed within the field cage when a negative high voltage is provided to the cathode. The entire setup is enclosed in an outer vessel created from 1 cm-thick stainless steel (SS). For easy sample loading with the drawer-style field cage, the opening of the vessel is at the front (Fig. 1 (bottom)). Ports for gas lines, a vacuum pump, and feedthrough for the cathode high-voltage cable are added on the side of the vessel.

Samples are placed on the cathode for measurement. In our current design shown in Fig. 1, the front panel of the vessel is unmounted, the field cage is pulled out, and the sample can be placed on the cathode. When closed again, we pump down the vessel to 𝒪(1) mPa before flushing argon gas in. We expect the entire sample loading process to be accomplished in a period of an hour. Alternative designs, such as a stationary field cage with a slit opening on the front, are also under consideration to further streamline the sample loading process.

When samples are placed in the active volume, the counting efficiency is high and the measurement of α-particle energy is more accurate. An aspect of concern may be the disturbance of electric potential lines when samples are on the cathode. We simulated the effect of a thin Kapton sample using the finite element analysis software COMSOL Multiphysics [24] (Fig. 2). The black wireframes in Fig. 2 represent the internal structure of the TPC, such as the field cage, cathode, and readout modules. We supplied the cathode with a 1 kV negative voltage and the readout plane with a 250 V negative voltage. The Kapton sample 54.4 cm long, 34.4 cm wide, and 0.1 cm thick is shown as the innermost rectangle in Fig. 2 (a). Fig. 2 (b) shows the side view of field cage. The field lines inside the field cage exhibited minimal distortions. In the X-Z plane, the electric field in the X-direction was 3.6% of that in the vertical Z-direction at 2 mm from the edge of the sample, while the value was less than 1% at 2 cm from the edge of the sample. The uniformity of the electric field was almost the same for a 0.1 cm-thick copper or silicon sample of the same size; thus, it was negligible for our measurement.

Figure 2:Full-screen View

(Color online) Electric field simulation using COMSOL, which demonstrated minimal impact to the electric field of samples on the cathode. (a) Top view of the detector showing the potential on the X-Y plane. The innermost black rectangle shows the boundary of the sample, which had a slightly smaller footprint than the active volume of the TPC. (b) Side view of the detector showing the potential on the X-Z plane. Red lines with arrows indicate the electric field lines. We can observe that the field lines were in almost perfect vertical directions above the sample’s footprint.

The distortion of the electric field at the edge of the sample became more severe with increased sample thickness. For a 1 cm-thick copper sample, the distortion became smaller than 1% when measured at approximately 7 cm from the edge. Therefore, we can mitigate this problem using more aggressive fiducial cuts. However, we should note that the main objective of Screener3D is to measure thin millimeter-scale samples.

Gas and slow monitoring systems

The energy response and resolution of gaseous TPC are highly sensitive to the purity of gas medium, particularly electronegative impurities such as oxygen and water. The impurities may attract and absorb drift electrons in the active volume. They may also reduce the gain in the avalanche gap of the Micromegas. For the stability of the prolonged measurement period of Screener3D, a gas circulation and purification system (shown in Fig. 3) are designed. Before flowing into the TPC, gas mixtures travels through a set of gas purifiers. Given the different precision requirements of measurement, the purifier may be a charcoal-based absorber (primarily to absorb radio-impurities such as radon), a chemical-reaction-based getter (primarily to absorb electronegative impurities), or a combination of both. A circulation loop is added for the continuous purification of the working gas for an extended measurement of low-radioactivity samples.

Figure 3:Full-screen View

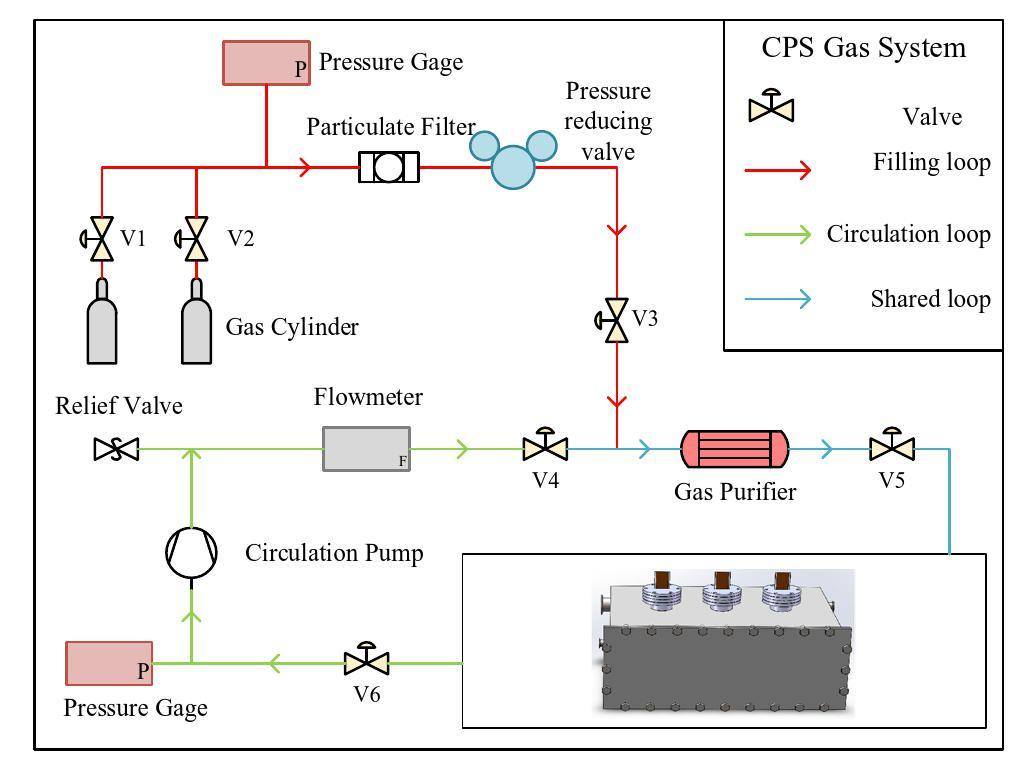

(Color online) Schematic diagram of the Screener3D gas system. Red arrows denote the filling loop. Green arrows denote the circulation loop. Blue arrows are the loops shared by the filling and circulation. After the pressure-reducing valve, the working pressure is limited to 1 bar.

To quantify the long-term (in)stability of the detector, we monitor key operation parameters, such as ambient temperature, detector temperature, gas pressure, Micromegas bias voltage, leakage current, TPC drift voltage, and event rates. We design and build a centralized slow monitoring system [25] (SMS) with all the parameter values stored in a database and are accessible in real-time on a web browser. With pre-defined safety ranges of the key parameters, the SMS can also send alerts via email or phone text messages. The SMS data would also enable us to reject or correct poor-quality data based on the variation of operating conditions. The SMS system may also store sample information, such as area, material, and screening time to serve as a centralized catalog of measurements.

Intrinsic background sources and mitigation

To improve the signal-to-background ratio in screening, we must minimize the radioactive background from Screener3D itself. The inner part of the Screener3D TPC will be built with materials of low radioactivity, screened using HPGe and/or mass spectrometer techniques. The cathode will be fabricated from high-purity oxygen-free copper particularly screened for low uranium and thorium contaminations. The field cage is designed to have only low-radioactivity acrylic facing the active volume to avoid background events from the PCB and resistors. Surface contaminations of the Micromegas are more challenging to measure and control. In this study, we used microbulk Micromegas [21], which is created from Kapton and copper using the PCB lithography technique and has been proven to have good performance and low surface radioactivity [26]. Furthermore, the surfaces of detector components, particularly those facing the active volume of the TPC, will be thoroughly cleaned to reduce the emission of α particles. The inner volume of the Screener3D will be always filled or flushed with argon gas to avoid radon contamination from the air. In our sensitivity study later, we assume all the detector components are created from low-radioactivity materials and no secondary surface contaminations are introduced in construction.

In addition to minimizing the radioactive emission from detector components, we can further suppress the background with topological information from particle tracks, which is the key feature of Screener3D. Tracks of α particles from a sample and various TPC components are shown in Fig. 4. The high energy α tracks are mostly straight in 1 bar of argon. A large blob at one end of the track highlights the dE/dx increase when α particles stop. α events originating from the sample would have starting points from the sample surface and an upward-going direction in our detector geometry. For the contaminations of the field cage, α tracks enter the active volume from the side and may travel upward or downward. Surface α events from the readout plane point downward and can be easily distinguished from those of the samples. During sample measurement, the majority of the surface area of the cathode is covered by a sample and no α particle from the cathode could enter the active volume excepted the very edge (Fig. 4). With the distinguished track features, we can significantly suppress α backgrounds from the detector and achieve a higher sensitivity. In the following section, we demonstrate the suppression power using simulation data.

Figure 4:Full-screen View

Illustration of α particle trajectories in a gaseous TPC. α particles travel mostly in a straight line in 1 bar of argon and 5% isobutane gas with a prominent Bragg peak at the end. We utilize this feature for background suppression in our detector.

Screener3D background

Figure 5 shows the detector geometry constructed in the Geant4 simulation [27]. The setup consisted of the sensitive volume, field cage, readout plane, cathode, and SS vessel with dimensions identical to the detector’s conceptual design. The sensitive volume in the center was a 60×40×10 cm³ cuboid with 1 bar argon and 5% isobutane mixture. The readout plane is expected to be instrumented using microbulk Micromegas, which has complicated mechanical structures, such as a lithographed copper mesh, avalanche holes, and underlining PCB patterns [21]. The structure was substituted with a 0.1 mm-thick copper. The readout plane on the top of the sensitive volume consisted of 6 Micromegas modules and was 58.0 cm long and 38.5 cm wide. The cathode, created from 2 mm-thick oxygen-free copper, had the same surface area and faced the readout plane beneath the sensitive volume. A 4 cm-thick acrylic frame surrounding the sensitive volume from four sides represented the mechanical structure of the field cage and acrylic frame. We placed a 55×35×0.01 cm³ sample on the cathode in the simulation. All the components described above were enclosed in a 1 cm-thick SS vessel with an inner volume of 80× 60 × 15 cm³.

Figure 5:Full-screen View

(Color online) Geometry of main components of Screener3D as constructed in the Geant4 simulation. All the dimensions followed the schematic design as shown in Fig. 1.

We simulated major background contributions from surface and bulk containments of all components. The energy deposition process of α, β, and γ particles in the TPC were simulated in Geant4. For the study of α contamination on the sample surface, we expected the β and γ background events from detector bulk material to have a marginal impact. We confirmed this in our simulation first before focusing on the α background from surfaces of detector components.

Major bulk background sources such as ²³⁸U, ²³²Th, and other radio-contaminations in different materials are listed in Table 6. The radio-contamination of oxygen-free copper and SS followed measurements of the PandaX Collaboration [14]. For acrylic, the radioactivities were assumed to be the same as that used by Ref. [31]. The working gas medium for α contamination measurement was argon. The radio-purity of commercial argon gas varies significantly from different vendors or even different batches of the same vendor. For ²³⁸U and ²³²Th in argon, we adopted values from GERDA [28]. Moreover, atmospheric argon contains approximately 1 Bq⋅kg^-1 of cosmogenic ³⁹Ar [29], which is a concern for β measurement but will not introduce background in the high-energy region for α measurement.

²²²Rn in argon is listed separately from the parent ²³⁸U chain. Radon is a noble gas and is frequently at the μBq-mBq⋅m^-3 level in commercial argon gas supply. The contamination can be reduced by at least three orders of magnitude after passing through an activated carbon cold trap [30]. We assumed a concentration of ²²²Rn of 10 μBq⋅m^-3 in our simulations.

Figure 6 shows the energy deposition of β and γ events in Screener3D. Owing to the relatively small dE/dx of β and γ particles, the typical energy deposition is less than 1 MeV, which is distinctively different from that of α particles. Therefore, we defined the region of interest (ROI) for α particle measurement as above 1 MeV. The upper limit for α ROI was 10 MeV, which is above the highest α energy of naturally occurring radioactivity of the decay chains of uranium and thorium.

Figure 6:Full-screen View

(Color online) Low-energy spectra of Screener3D. Main contributions in the energy range were from γ and β events.

Only the α-emitting surface directly facing the sensitive volume, including argon gas, readout plane, field cage, and cathode contribute to the α background. α particles with energy below 10 MeV travel less than 20 μm in copper and less than 100 μm in acrylic. Therefore, α contamination near the surface were our main focus. The concentration of α-emitting radio-isotopes, particularly decay chains of ²³⁸U and ²³²Th, on the surface is frequently higher than that in the bulk, owing to secondary contamination. The surface radioactivities of acrylic, oxygen-free copper, and Micromegas readout plane are shown in Table 1. We deduced a conservative surface contamination level of acrylic by comparing two sets of acrylic contamination levels with and without the surface cleaning from the JUNO Collaboration [31]. For copper, we adopted the maximum values measured by the CUORE Collaboration in dedicated bolometer arrays [32]. The radioactivity levels of the readout plane followed the results of microbulk Micromegas measured using the BiPo-3 detector [26, 23].

The depth profile of surface contaminations can be approximated using an exponential curve, $\rho ={\rho }_0{e}^{-\frac{x}{\lambda }}+b\mathrm{,}$ (1) where ρ₀ is the surface contamination per unit volume at the very surface, x is the distance into the bulk material, λ is the characteristic penetration depth of the contamination, and b is the contamination level in the bulk material. At the very surface, the contamination level is ρ₀+b [32]. λ may vary significantly with the contamination type and causes of contamination. The depth profile can be verified and the exact value of λ determined by measuring the peak shape of α spectrum, but they are challenging experimentally. In our simulation, we set λ=0.1 μm, which is a shallow distribution, but the effects can still be experimentally identified. Additionally, we compared our results with λ=1 μm, to study the influence of the penetration depth of the contamination. For both λ values, the total amount of the surface contaminations in the materials was the same.

Figure 7 shows the energy spectra of a copper sample on the cathode plane and different detector components for both λ values. The count rates of the sample, field cage, readout plane, and cathode were scaled with the surface area and the corresponding surface radioactivity level listed in Table 2. For the gas medium, the spectrum was determined by the contamination level of radon and total argon mass. The bulk radioactivity level used in the simulation is listed in Table 1.

Figure 7:Full-screen View

(Color online) Geant4-simulated energy spectra of Screener3D. (a) Geant4-simulated energy spectra assuming λ=0.1 μm. (b)Geant4-simulated energy spectra assuming λ=1 μm. For a longer penetration depth of λ = 1μm, α particles are more likely to lose partial energy before escaping the surface. Therefore, the tail of the characteristic peak is more apparent in figure (b).

In the ROI between 1 and 10 MeV, the total expected background rate was 82.4 (76.1) counts per day for λ=0.1 μm (1 μm). Approximately 46.0% (45.4%) of the background was from the readout plane, 36.1% (35.8%) from the cathode, 17.6% (18.5%) from the field cage, and 0.3% (0.3%) from the working gas. The difference in α peak shapes of Fig. 7(a) and Fig. 7(b) highlight the impact of depth profile. For relatively radio-active samples with high contamination levels, we can potentially have a quantitative estimation of the depth profile. In the two figures, the spectra from argon gas are identical.

Detector response simulation

Detector response, including electron diffusion, energy resolution, readout scheme, and electronics response, was added to the Geant4 simulation data to produce mock detector data for downstream analysis. The detector response was simulated using the REST framework [33, 34], which was developed and used by PandaX-III [23] and other gas TPC projects. If we use an α particle traveling in gas as an example, Geant4 recorded the differential energy deposition dE/dx along the trajectory. In REST, the differential energy deposition was converted to the number of ionization electrons in gas. The ionization electrons diffused while drifting to the readout plane. REST interfaced with the Garfield program [35] to calculate diffusion coefficients. For argon/isobutane(5%) mixture at 1 bar and under an electric field of 100 V/cm, the transverse (longitudinal) diffusion coefficient was 0.048 (0.044) $\sqrt{\text{cm}}$. The diffusion of the electrons was then calculated as $D_{\text{ic}}\sqrt{L_{\text{d}}}$, where D_ic is the diffusion coefficient and L_d is the drifting distance. When the diffused electrons reached the readout plane, the position and arrival time were recorded. Following the strip-readout schemes of Micromegas in the actual detectors, ionization electrons were grouped by strips, and pulses were generated strip by strip (Fig. 8 (a)). The colored pulses represent signals from different strips. The pulse amplitude in Fig. 8 is proportional to the number of electrons collected per strip. The amplitudes were smeared according to a Gaussian function to account for an energy resolution of 3% full width at half maximum (FWHM) at 2.5 MeV in the detector response simulation. Pulse widths were determined from electronics shaping and a 1 μs shaping time was used (Fig. 8 (a)). The relative timing among pulses indicated the arrival time of electrons. Under a relative constant drift velocity of approximately 30 mm/μs, the arrival time denoted the relative energy deposition position in the drift direction. For a sampling rate of 50 MHz and a record length of 512 sample points per signal, we recorded approximately 10 μs of data per signal window. For a drift length of 10 cm in our TPC, the signal window was more than adequate, as shown in the figure. We also implemented triggers in REST, but the trigger threshold effect was negligible for α events in the ROI.

Figure 8:Full-screen View

(Color online) Simulated and measured waveforms of an α event. (a) Simulated waveforms recorded by Micromegas. (b) Waveforms of an α event in a TPC measured with a microbulk Micromegas readout plane. The measurement was performed with 1 bar of argon and 5% isobutane gas mixture.

For comparison, Fig. 8 (b) shows an α event recorded by a gaseous detector. The detector was equipped with a 20×20cm² Micromegas and filled with 1 bar of argon and 5% isobutane gas mixture. The height of the drift volume was 10 cm, the same as in our simulation. Our mock pulses re-produced the key features of detector pulses. Next, the mock pulses of each simulated event were analyzed using the same procedure as detector data.

Energy was reconstructed using mock pulses and the resulting spectra are shown in Fig. 9. Compared with Fig. 7, the α peaks were broadened owing to the detector resolution. Since the effective area of the readout plane did not cover the full area of the field cage, partial energy of background events from the field cage were not be recorded. Therefore, the spectrum of background events from the field cage shifted to a lower energy compared with that in Fig. 7. Meanwhile, a small peak was observed in front of some characteristic peaks from the readout plane.

Figure 9:Full-screen View

(Color online) Simulated energy spectra of Screener3D with detector response added. (a) Simulated energy spectra with detector response assuming λ=0.1 μm. (b) Simulated energy spectra with detector response assuming λ=1 μm.

Track reconstruction

The main application of mock pulses is track reconstruction. As mentioned earlier, the amplitude and timing of pulses of different strips contain all the information we would collect from an actual detector. Therefore, this information can be used to reconstruct the particle tracks and differential energy loss along the tracks in a TPC. Track reconstruction was performed in the X-Z and Y-Z planes, where Z denotes the drift direction and X and Y represent transverse directions. In 1 bar argon, α particles would rarely be scattered by a large angle and the tracks are mostly straight. Figure 10 (a) shows an α track in the X-Z and Y-Z planes. The red trace represents the trajectory and yellow dots represent the energy deposition vertex. The size of yellow dots illustrates the relative amount of energy deposition. The Bragg peak is prominent at the end of the trajectory on the top left of the figures.

Figure 10:Full-screen View

(Color online) (a) Geant4-simulated tracks of an α particle; (b) Hits recorded using Micromegas strips and the reconstructed track. In (a), the straight red line represents the α particle track and yellow dots represent the relative size of energy deposition. In (b), each red/green dot represents a triggered strip signal and the size of the dot represents the amount of deposited energy in the strip. The black line is the reconstructed track by connecting nearby hits.

In Fig. 10 (b), we show the reconstructed track in the X-Z and Y-Z planes of the same event as in Fig. 10 (a). Each red (or green) point in the figures represents a triggered strip signal, and the size of the point represents the amount of deposited energy. The X(Y) coordinate was determined from the position of the strip. The Z-axis indicates the position of the ionized electron relative to that of the first electron to reach the readout plane, as determined using the drift velocity and pulse timing. For long, near-straight α tracks, sorting by timing or X/Y position can reliably reconstruct the true tracks. The black lines in Fig. 10 (b) represent a well-reconstructed track. Track reconstruction can be challenging when the tracks are short. For example, the length of the X-Z and/or Y-Z tracks may be very short because of the projection angle. The tracks may also be short when α particles only deposit partial energy in the active volume.

Screener3D background suppression

In our ROI from 1 to 10 MeV for α measurement, effectively all the β/γ background were removed. The ROI cut also removed 11% of α background and maintained 98.9% of the signal events. Alpha background could be further suppressed using fiducial, angle, and hit-number cuts. We explain the cuts in detail as follows.

We set the cut values to maximize the detector sensitivity S_d. For measurements with a large number of backgrounds B, background fluctuation follows a Poisson distribution and equals $\sqrt{B}$. Therefore, the detector sensitivity is proportional to ${ϵ}_{\text{s}}/\sqrt{{ϵ}_{\text{b}}}$, where ϵ_s is the signal detecting efficiency and ϵ_b is the efficiency in which background events are maintained through selection cuts. For each cut, we selected the cut values that maximized the ${ϵ}_{\text{s}}/\sqrt{{ϵ}_{\text{b}}}$.

We devised two competing algorithms to identify the Bragg peak of a track and thus the track’s origin and direction. A track in the X-Z or Y-Z plane was split into two segments from the mid-point, and the energy in each segment was calculated. The Bragg peak was more likely to be in the segment with larger energy. The energy of each hit point and dE/dx along the vertical direction could also be used to locate Bragg peaks. When particle energy was higher than 1 MeV and the total number of hits was larger than 10, the identified efficiency of the track’s direction was approximately 97%.

We identified the starting point of each track, and the distribution is shown in Fig. 11. The X-axis in the figure is called the fiducial distance, which is defined as the distance in the inward direction from the inner surface of the field cage. The majority of the events from the field cage and cathode originated from the edge of the sensitive volume. For those events, the fiducial distance was less than 50 mm. We performed a fiducial cut at the fiducial distance of 27 mm and discarded any events with a smaller fiducial distance, i.e., closer to the edge of the active volume. After the fiducial cut, the signal efficiency was at 96.2%. Less than 3% of the events from field cage and cathode background remained. The cut was less effective for other background sources, and the efficiencies are listed in Table 3.

Figure 11:Full-screen View

(Color online) Distribution of tracks starting point. We created a cut at the fiducial distance of 27 mm to effectively remove the background events from the field cage and cathode.

Figure 12 shows the distribution of cos(θ), where θ is the angle between the particle traveling and upward vertical directions. The distribution is for events after the fiducial cut. The majority of α events from the sample had positive cos(θ) values while events from the readout plane had negative values, as shown clearly in the figure. Events from the sample with negative cos(θ) values were mostly short events with incorrect track reconstruction. The same was true for events from the readout plane but with positive cos(θ) values. Events from the cathode and field cage that survived the fiducial cut had incorrectly reconstructed starting points and possibly orientations. Therefore, the distribution of these events is nearly symmetrical in the figure. We created a cut at 0 and rejected events with cos(θ)<0.

Figure 12:Full-screen View

(Color online) Distribution of track direction, defined as the cosine of the angle between the track and vertical direction. The distribution is for events that survived the fiducial cut. We created a cut at 0 to effectively remove the background events from the readout plane and gas.

We also counted the number of hit strips to further reject background events. The distribution of the hits number after the fiducial cut and angle cut is shown in Fig. 13. We maintained only events that triggered more than 10 (9 when λ=1 μm) strips. The cut rejected background events from the readout plane most effectively since the remaining events that survived previous cuts were primarily particles with short tracks. The peak structure at the number of hits equal to 10 for events from the cathode was an artifact from the angle cut, where we had two algorithms to calculate the angles for tracks longer or shorter than 10 with different efficiencies.

Figure 13:Full-screen View

(Color online) Distribution of number of hits of an event. We created a cut at 10 (9 when λ=1 μm) to remove the events with short tracks.

Figure 14 shows the signal and background spectra after all cuts. The backgrounds were suppressed by nearly two orders of magnitude while maintaining a high signal efficiency. For λ=0.1 μm, the combination of all the cuts reduced the α background rate from 82.3 to 0.9 counts per day while maintaining 74.2% of the signals. Among the remaining background events, 49.7% emanated from the readout plane, 36.5% from the cathode, 7.1% from the field cage, and 6.7% from the gas. Assuming λ=1 μm, the background was suppressed from 76.1 to 0.8 counts per day while 67.9% of the signal was preserved. Approximately 52.5% of the remaining background was from the readout plane, 28.7% from the cathode, 10.2% from the field cage, and 8.6% from the gas. Owing to more α events generating below the surface and thus losing partial energy before they were emitted from the surface, the total residual events of both the background and signal were slightly fewer than those of λ=0.1 μm.

Figure 14:Full-screen View

(Color online) (a) Energy spectra after all the cuts assuming λ=0.1 μm. (b) Energy spectra after all the cuts assuming λ=1 μm. The total backgrounds were suppressed by nearly two orders of magnitude while nearly 70% signals were preserved.

Screener3D measurement sensitivity

Assuming no events are observed from the samples statistically different from the fluctuation of background, we can evaluate the sensitivity of Screener3D for a particular screening period T in days. With a background rate of R_bkg counts per day, the total background for a measurement is B=R_bkgT. We use the Poisson fluctuation of small background values to calculate the upper limit on counts and subsequent surface background rate. For small B and a confidence level of Γ, the upper limit for counts of signal $\widehat{S}$ can be expressed as ${\displaystyle \sum _{k=\widehat{S}+B}^{\infty }}{p}_B(k)=1-\Gamma \mathrm{,}$ (2) in which $\widehat{S}$ can be evaluated numerically or with a lower incomplete Gamma function. Finally, the sensitivity can be calculated using the signal efficiency, $\widehat{S}$, and sample surface areas. Table 5 shows the sensitivity of Screener3D with typical measurement periods. We can reach a sensitivity of 97 μBq⋅m^-2 at the 90%confidence level (C.L.) for a two-day measurement, assuming a typical sample such as copper and an exponential surface contamination profile with λ=0.1 μm. The sensitivity would be higher than 50 μBq⋅m^-2 when the measurement duration is extended to one week. For a characteristic depth λ=1 μm, the results are very similar (Table 5).

Screener3D can also measure α rates of a specific nuclide, such as ²¹²Po of the thorium decay chain and ²¹⁴Po of the uranium decay chain. The signature α peak of ²¹²Po is at 8.8 MeV and we define a specific ROI between 8 and 9 MeV. In the ROI, 7% of background events and 98% of the signals are reserved after the energy and topology cuts (fiducial and angle cuts). The final background rate is 0.03 (0.02 when λ=0.1 μm) counts per day. For ²¹⁴Po in the ROI of 7 and 8 MeV, 97% of the background is removed while 98% of the signals remains. The final background rate is 0.09 (0.05 when λ=0.1 μm) counts per day. For the near-zero background measurements at specific peaks, the Eq. 2 is no longer applicable. We use the Feldman-Cousins approach [36] with zero background as an approximation for this calculation. The sensitivity is 75 μBq⋅m^-2 for two-day measurements of both polonium isotopes.
