Cohesive models and algorithms for describing interfacial mechanical behavior

A cohesive model was used to describe the interfacial mechanical interaction between the cladding and fuel foil. The interlayer was regarded as a material layer with zero thickness, which was connected to the cladding by one side and to the fuel foil by the other. The main surface and the secondary surface were defined firstly in the contact algorithms, with the main surface having a larger stiffness or larger area. Therefore, the inner-surface of the zircaloy cladding was set as the main surface, while the outer-surface of the UMo fuel foil was the secondary surface. In fact, the cohesive model describes the relations of the interfacial tractions between the main/secondary surfaces (ti, which represents different cohesive stress components at the interface) with their opening displacement components δj. In the finite element (FE) simulation, the cohesive stresses (where one normal component and two rectangular shear components are included) of each node are solved by the local opening displacements, which refers to the separation, corresponding to the differences in the node displacement components of the secondary surface relative to those of the main surface. In the nonlinear iterative calculations, the tangential cohesive stiffness modulus should also be provided, which refers to $K_{ij}=\frac{\partial \Delta t_i}{\partial \Delta {\delta }_j}$. It was assumed that the cohesive stress along a direction was not influenced by the opening displacement components along the other two directions; therefore, when i≠j,Kij=0.

The shear stress at the interface may also cause interfacial failure, but the shear stress is much lower than the tensile stresses in the considered cases. In general, the interfacial tensile strength is lower than the interfacial shear strength. Consequently, in this study, we only considered the contribution of the interfacial tension.

In this study, a bilinear model of the interfacial normal traction and separation was adopted to describe the mechanical behavior of the fuel foil/cladding interface, and only the damage and failure caused by interfacial tension were considered, as shown in Fig. 2. The variable t_n represents the interfacial tension, which denotes the interfacial normal stress. The parameter t_nmax denotes the interfacial bonding strength, and δ₀ is the separation that initiates damage. The initial cohesive stiffness was obtained using $k_0=\frac{t_{n\max }}{{\delta }_0}$. When the separation reaches ${\delta }_f$, the interface fails. After the initiation of interfacial damage, the interfacial traction and separation follow the relation shown by the red dashed line in Fig. 2, if the separations are less than the experienced maximum valueδm. The cohesive stiffness isk=(1-D) k₀, where D represents the damage factor and $D=\frac{{\delta }_f\left({\delta }_m-{\delta }_0\right)}{{\delta }_m\left({\delta }_f-{\delta }_0\right)}$.

Fig. 2Full-screen View

Bilinear model of interfacial traction and separation.

The cohesive energy $W_f$ represents the energy needed to induce failure of the interface points, which is related to the cohesive strength $t_{n\max }$ and ${\delta }_f$, and is expressed as: $\frac{1}{2}{t}_{\max }{\delta }_f=W_f.$ (1)

Because of the existing nonlinearities, the process for simulating the irradiation-induced thermal-mechanical behaviors in a monolithic fuel plate was divided into a number of analysis steps, and each analysis step contained several increments. An algorithm for updating the cohesive stresses with known opening displacements must be developed. For a typical time increment, the largest historic opening displacement ${\delta }_m$ and damage factor $D^t$ at the beginning of this increment are given, as well as the opening displacement components at the end of the increment. Note that at the first time increment of the first analysis step, the damage factor $D^t$ was set as 0 with ${\delta }_m={\delta }_0$.

The algorithm for updating the cohesive stresses at the end of the time increment was developed as follows:

1) When ${\delta }_1<0$, the interface experienced compression, the normal cohesive stress was calculated as: $t_1=k_{11}{\delta }_1=k_0{\delta }_1$ (2)

2) When $0\le {\delta }_1\le {\delta }_m$, there was no further damage at this increment; thus, the cohesive stresses were expressed as: $\begin{array}{l}{t}_1=k_{11}\left(1-D^t\right){\delta }_1\\ t_2=k_{22}\left(1-D^t\right){\delta }_2\\ t_3=k_{33}\left(1-D^t\right){\delta }_3\end{array}$ (3) From these relations, the corresponding tangential cohesive stiffness modulus components were given as: $K_{11}=\left(1-D^t\right)k_{11}=\left(1-D^t\right)k_0$, $K_{22}=\left(1-D^t\right)k_{22}$, $K_{33}=\left(1-D^t\right)k_{33}$, with $k_{22}$ and $k_{33}$ denoting the initial shear cohesive stiffness values of the interface. Note that $k_{22}=k_{33}=k_0$ was assumed in this study.

3) When ${\delta }_m<{\delta }_1\le {\delta }_f$, damage of the interface proceeded. Firstly, the damage factor was updated as: $D=\frac{{\delta }_f\left({\delta }_1-{\delta }_0\right)}{{\delta }_1\left({\delta }_f-{\delta }_0\right)}$ (4) and the corresponding normal cohesive stress was obtained as: $\begin{array}{c}{t}_1=k_0\left(1-D\right){\delta }_1\\ =k_0\left(1-\frac{{\delta }_f\left({\delta }_1-{\delta }_0\right)}{{\delta }_1\left({\delta }_f-{\delta }_0\right)}\right){\delta }_1\\ =k_0\frac{-{\delta }_0}{{\delta }_f-{\delta }_0}{\delta }_1+k_0\frac{{\delta }_f{\delta }_0}{{\delta }_f-{\delta }_0}\end{array}$ (5)

The corresponding tangential stiffness modulus was calculated as $K_{11}=\frac{-{\delta }_0}{{\delta }_f-{\delta }_0}{k}_0$, where the historically largest opening displacement was updated as ${\delta }_m={\delta }_1$.

Therefore, the shear cohesive stress components were obtained as: $t_2=k_{22}(1-D){\delta }_2$ and $t_3=k_{33}(1-D){\delta }_3$. Correspondingly, $K_{22}=k_{22}(1-D)$ and $K_{33}=k_{33}(1-D)$.

4) When ${\delta }_1\ge {\delta }_f$, the local interface failed, and the cohesive stress components as well as the tangential stiffness modulus components were set as zero.

Model of degraded interfacial heat transfer ability

The interfacial thermal performance of the monolithic fuel plate was described by the heat-transfer model. Considering the temperature T₁ of the secondary surface and the temperature T₂ of the main surface, the heat flux towards both the secondary and main surfaces $f_{\alpha }$ should be solved. The derivative matrix of the heat flux with respect to temperature of the secondary and main surfaces $\frac{\partial f_{\alpha }}{\partial T_{\beta }}$ and the derivative matrix of the heat flux with respect to the opening displacement $\frac{\partial f_{\alpha }}{\partial {\delta }_j}$ should also be given.

The heat-transfer coefficient $h_0$ of the initial interface was set to $1\times {10}^8$ in this study. The interfacial heat-transfer coefficient was correlated with the normal separation ${\delta }_1$, and was given by: $h=h_0\frac{d_0-{\delta }_1}{d_0},$ (6) where, $d_0$ denoted a representative displacement and was set as 200 mm in this study. The heat flux components towards the secondary surface and the main surface were respectively described as: $f_1=-h(T_1-T_2)$ and $f_2=-f_1$.

The derivative matrix of the heat flux with respect to the temperatures of the secondary and main surfaces was $[\frac{\partial f_{\alpha }}{\partial T_{\beta }}]=\left[\begin{array}{cc}-h& h\\ h& -h\end{array}\right]$.

The derivative matrix of the heat flux with respect to the opening displacements was $\left[\frac{\partial f_{\alpha }}{\partial {\delta }_j}\right]=\left[\begin{array}{ccc}\frac{h_0}{200}\left(T_1-T_2\right)& 0& 0\\ -\frac{h_0}{200}\left(T_1-T_2\right)& 0& 0\end{array}\right]$.

Finite element model

A finite element model was built to simulate the in-pile thermal-mechanical behavior of the U-10Mo/Zr monolithic fuel plate. Under a certain irradiation conditionADDIN NE.Ref.{831FEE96-F35F-418D-B883-C1BFA4CAFA44}^[18], the fission rate of the fuel foil was set asADDIN NE.Ref.{EB0F4915-4BBC-47F5-810F-2F0DFB9E8616}^[20]: $\dot{f}={\dot{f}}_0\cdot \beta$ (7) $\begin{array}{c}\beta =3.567\times {10}^{-5}{\tilde{z}}^4-1.672\times {10}^{-3}{\tilde{z}}^3+3.026\times {10}^{-2}{\tilde{z}}^2\\ -0.2752\tilde{z}+1.900\end{array}$ (8) where $\beta$ was the distribution function of the fission rate, as shown in Fig. 3; $\tilde{z}$ was the through-width distance away from the heavily irradiated edge; and ${\dot{f}}_0$ was the average fission rate, with a value of 6.0 × 10²⁰ fission/m³s.

Fig. 3Full-screen View

Distribution of β as a function of the distance away from the heavily irradiated fuel foil edge.

The geometrical dimensions of the considered fuel plate were 100.0 mm × 25.0 mm × 1.4 mm, while those of the fuel foil were 82.6 mm × 19.0 mm × 0.25 mm^[20]. Based on the symmetries in the plate shape and load, the FE model was chosen as a 1/4 part of the entire plate to reduce the computational time. The thermal-mechanical properties of the fuel foil and cladding were introduced with the corresponding user-defined subroutines, which could be found in related studies^[20,23]. For the fuel foil, irradiation swelling and creep were considered. The irradiation swelling strain depended on the fission rate, temperature, and local external hydrostatic stress^[20]. For the zircaloy cladding, the irradiation-hardening effects of the plastic constitutive relation, irradiation creep, and irradiation growth were introduced. Detailed models and algorithms can be found in the literature^[23,24]. The thermal-mechanical boundary conditions were shown in Fig. 4. The thermo-mechanical properties of the interface between the fuel foil and cladding were described in the previous section. The element C3D8RT was adopted, which was an 8-node displacement and temperature-coupled element with a reduced integration strategy. The mesh grid parameters were listed in Table 1 and the details were illustrated in Fig. 5.

Fig. 4Full-screen View

(a) FE model and (b) boundary conditions.

Fig. 5Full-screen View

(Color online) Finite element meshes.

As shown in Fig. 4(b), the convection heat transfer boundary condition was set on the lower surface (the x-z plane), namely $-k\left(\frac{\partial T}{\partial n}\right)=h\left(T-T_f\right)$, with the coolant temperature T_f = 323 K and the heat transfer coefficient h = 0.035 W/mm²K; $\frac{\partial T}{\partial n}$ referred to the temperature gradient component along the normal direction of the surface. The other surfaces of the FE model satisfied the adiabatic boundary condition, with $-k\left(\frac{\partial T}{\partial n}\right)=0$.

In this study, uniform interfacial mechanical properties were assumed. The cohesive strength and cohesive energy were both affected by the fabrication process parameters and irradiation damage. Therefore, different parameters were selected to evaluate different effects, as listed in Table 2. Note that the initial cohesive stiffness values were all set as 10⁵ MPa/mm.

It should be mentioned that the temperature field was predicted to be slightly affected by the interface damage, using the adopted heat transfer model in Eq. (6). In the following, the results for the mechanical fields were analyzed.

Simulation results for displacement field

Cases 1, 2, and 3 had the same cohesive strength, where the cohesive energy gradually declined. The distributions of the interfacial damage factors were shown in Fig. 6.

Fig. 6Full-screen View

(Color online) Contour plots of interfacial damage factor for (a) Case 1, (b) Case 2, and (c) Case 3 after 120-day irradiation and (d) evolution of ${\delta }_{\text{1}}$/${\delta }_f$ for Node A.

Interfacial damage was observed in Case 1, but no interfacial area failed completely. In Cases 2 and 3, interfacial failure was observed near the corner of the fuel foil. Compared to Case 2, Case 3 had a smaller cohesive energy, and thus, a larger failure area was observed in the latter. As shown in Fig. 6(d), because the three cases had the same cohesive strength and cohesive stiffness, the time at which interfacial damage began was nearly the same. The interfacial damage evolved faster with an increase in the cohesive energy. In Case 1, no cracking was observed during irradiation for 120 days. In Case 2, the interface started to fail on the 60^th day, whereas failure occurred on the 48^th day for Case 3.

In Cases 3–6, the same cohesive energy and different cohesive strengths were assumed. The distribution of the interfacial damage factors was shown in Fig. 7. With a decrease in the cohesive strength, the cracked areas clearly expanded significantly. After 120-day irradiation, the cracked region was located near the corner of the fuel foil in Case 3, and a band-type damaged area was observed near the heavily irradiated side. In Case 4, the cohesive strength decreased to 20 MPa, and the fracture area was wider than that in Case 3. Cracking of a band-type area occurred near the heavily irradiated side, whereas a band-type damage region appeared on the opposite side. In Cases 5 and 6, the expanded fracture areas were connected, and more serious cracking was observed in Case 6.

Fig. 7Full-screen View

(Color online) Contour plots of interfacial damage factor for (a) Case 3, (b) Case 4, (c) Case 5, and (d) Case 6 after 120-day irradiation.

As shown in Fig. 8, on the 4^th day, the interfacial damage in Case 6 occurred near the side subjected to stronger irradiation, and a more seriously damaged area appeared near the corner. With prolonged irradiation time, the damaged area became larger, and through-width damage was found on the 30^th day, where the damage at the opposite side was greater. After the 120^th day, the connected fracture areas were predicted to continue growing towards the center of the interface. The failed area may form blisters, with the development of a large gap between the fuel foil and the cladding, as shown in Fig. 1(c).

Fig. 8Full-screen View

(Color online) Contour plot of interfacial damage factor for Case 6 after (a) 4-day, (b) 10-day, (c) 30-day, and (d) 120-day irradiation.

Fig. 9 showed the evolution of ${\delta }_1/{\delta }_f$ for Node A. With the same cohesive energy, the cases with lower cohesive strengths had higher values of ${\delta }_f$. The time at which cracked areas appeared in Case 3 and Case 6 were nearly the same on the 56^th day, whereas for Case 4 and Case 5, cracking appeared on the 52^nd day. The time at which failure was initiated was similar for the four cases, but the separation rates were significantly different.

Fig. 9Full-screen View

(Color online) Evolution of ${\delta }_{\text{1}}$/${\delta }_f$ for Node A.

Fig. 10(b)–(d) showed the through-thickness displacements of the fuel foil surface along Path 1 in Fig. 10(a). When the interfacial damage was considered, the obtained thickness increments of the fuel foil in the cracked areas were smaller than those obtained without considering the interfacial damage. However, the fuel foil was thicker at the edges of the cracked areas. The data in Fig. 10(d) suggest that the thickness of the fuel foil continually increased even after the interface cracked. The cohesive strength had a significant effect on the thickness increments of the fuel plate. As shown in Fig. 11, the cohesive strength decreased from Cases 3 to 6, and the plate thickness increased. The maximum relative increment of the plate thickness in the no-damage case was 16.97%, whereas in Case 6, the value was 20.40%, which was 20.21% higher than the former. In particular, the thickness increments in adjacent regions differed significantly. Thickening of the fuel plate may affect the safety of the reactor core.

Fig. 10Full-screen View

(Color online) (a) Contour plot of through-thickness displacement in fuel foil after 120 days of irradiation for Case 6; (b) through-thickness displacements in fuel foil along Path 1 for different cases; (c) locally zoomed results for red dash-box in (b); (d) comparison of through-thickness displacements in fuel foil along Path 1 for Case 6 and the no-damage case.

Fig. 11Full-screen View

(Color online) (a) Distribution of through-thickness displacement in fuel plate for Case 6 after 120-day irradiation; (b) relative thickness increment of the fuel plate on Path 2 in different cases after 120-day irradiation.

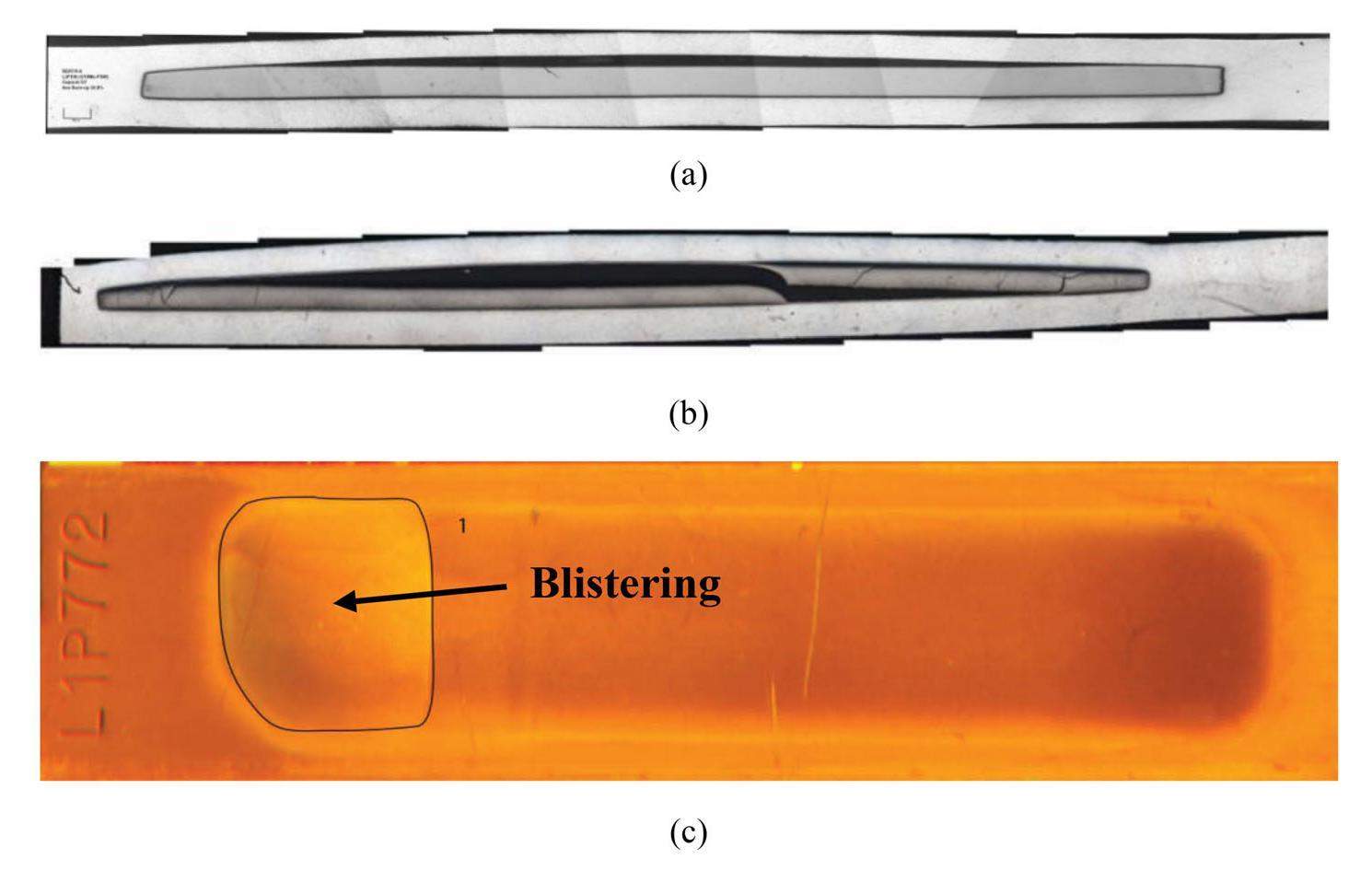

As shown in Fig. 12, after 120-day irradiation, obvious gaps appeared across the cracked interface of the fuel foil and cladding. This implies that similar phenomena will occur if the fuel foil fails near the interface. These predictions matched those of some post-irradiation examinations, as shown in Fig. 1. In Case 6, the gap near the side with enhanced irradiation was connected to the gap on the other side. The maximum width of the gap in Case 6 is greater than 0.08 mm. Considering that the original thickness of the fuel foil was 0.25 mm, this gap was quite considerable. If fracture of the fuel foil occurs, fission gas may be released into the gap, thereby causing more serious stresses and deformations, which will lead to obvious blistering, as found in some fuel plates (Fig. 1(c)).

Fig. 12Full-screen View

(Color online) Cross-section (about 38 mm away from the center cross-section) of Case 3 and Case 6 after 120-day irradiation (a scale factor of 4 is applied to the thickness dimension).

Simulation data for strain and stress fields

As shown in Fig. 13(a), the irradiation swelling strains in the fuel foil were smaller in the cracked area than in the no-damage case. The hydrostatic pressure in the cracked area was approximately 3–6 MPa. In the no-damage case, the corresponding pressures were negative, which means that the fuel foil experienced tensile stresses, leading to local enhancement of the fission-gas-induced swelling. At the edge of the cracked area, the irradiation swelling strains were obviously larger than those in the no-damage case because of the reduction in the hydrostatic pressure in the cases where the interfacial damage was considered.

Fig. 13Full-screen View

(Color online) (a) Irradiation swelling strain; (b) hydrostatic pressure; (c) equivalent irradiation creep strain, and (d) Mises stress along Path 1 in fuel foil after 120-day irradiation (the dashes and arrows show the cracked areas in each case).

Fig. 13(c) and (d) showed the distributions of the equivalent irradiation creep strain and von Mises stress in the fuel foil. In the cracked areas of Case 6, the von Mises stresses were smaller than those of the no-damage case; therefore, the equivalent creep strain was also smaller. In Cases 3–5, the equivalent irradiation creep strains in the undamaged area were similar to those in the no-damage case.

As shown in Fig. 14, the distributions of the first principal stress in the fuel foil differed significantly for the cases with different cohesive strengths. The maximum value of the first principal stress in each case decreased when the cohesive strength was lower. When the cohesive strength was higher, as shown in Case 3, the first principal stress was maximal around the failed area. In Cases 4–6, this location was on the other side of the failed area. During irradiation, cracking of the fuel foil may occur at a location with a high first principal stress. The simulation results indicated that there were higher first principal stresses, as shown in Fig. 15, which may cause cracking through the thickness of the fuel foil. Based on post-irradiation examination using RERTR-12^[8], it was found that cracking of the fuel foil occurred just around the failed part of the interface or near the interface, together with cracks along the thickness direction, as shown in Fig. 1(b). The results shown in Fig. 15 can be used to interpret this phenomenon.

Fig. 14Full-screen View

(Color online) Distribution of first principal stress on the surface of the fuel foil after 120-day irradiation in (a) Case 3; (b) Case 4, and (c) Case 6.

Fig. 15Full-screen View

(Color online) Distribution of first principal stress on the cross-section (38.6 mm away from the middle cross-section) of the fuel foil in Case 3.

The thickness of the fuel plate increased as the interfacial cohesive strength became weaker. In the cracked cases, the cladding suffered larger von Mises stresses than that in the no-damage case. From Fig. 16(b), the stress at the node corresponding to the dotted line in Fig.15(a) was quantified as 59.15 MPa in the no-damage case, and 270.98 MPa in Case 6. Fig. 16(c) showed the evolution of the von Mises stress. The von Mises stresses near the side with lower fission rates grew faster, with a maximum value on the 70^th day. The von Mises stresses near the side with higher fission rates increased more rapidly at the beginning, reached the maximum on the 50^th day, and then decreased slowly. The von Mises stresses in the cracked areas also increased rapidly. With a decrease in the cohesive strength, the equivalent plastic strains around the edge of the cracked area increased, while the equivalent irradiation creep strains decreased. Simultaneously, the equivalent creep strains increased with a decrease in the cohesive strength in the other cracked areas. Note that the equivalent creep strain was much higher than the equivalent plastic strains. It can be presumed that the thickening of the fuel plate in the cracked cases is mainly related to the larger creep deformations of the cladding.

Fig. 16Full-screen View

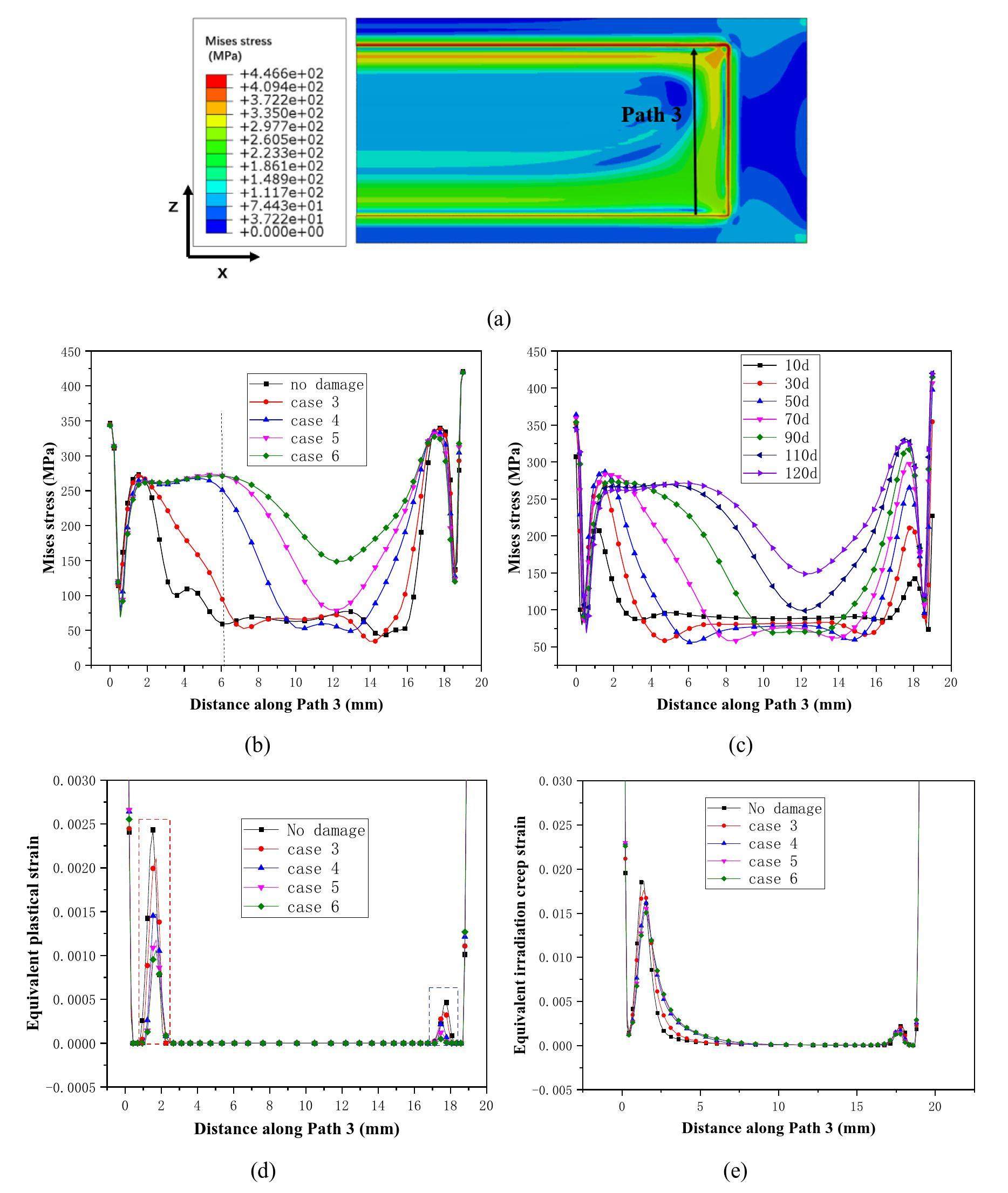

(Color online) (a) Distribution of Mises stress on the inner surface of the cladding after 120-day irradiation; (b) Mises stress in cladding along Path 3 after 120-day irradiation; (c) evolution of Mises stress on Path 3 of Case 6; (d) equivalent plastic strains in cladding along Path 3 after 120-day irradiation; (e) equivalent irradiation creep strains in cladding along Path 3 after 120-day irradiation.
