Introduction

High-quality monochromatic neutron beams have important applications in several fields. For instance, the neutron radiation hardness evaluation of electronic elements in aviation devices requires a neutron beam with well-defined energy [1, 2]. The assessment of the neutron dose received by patients in heavy ion therapy or by astronauts in aircraft relies on calibration using a well-defined neutron beam [3]. In fundamental research, high-energy neutron beams are essential for calibrating high-energy neutron detectors and accumulating data on the cross section of neutron-induced reactions [4]. Undoubtedly, high-quality and high-energy neutron beams have become essential tools [5-9].

Because neutrons have no charge, high-energy neutron beams can originate only from the nucleus in the beam or target. Although a neutron beams below 20 MeV can be produced by a nuclear reaction with a fixed Q value at a given angle, a monochromatic neutron beam above 20 MeV is usually produced in the laboratory with a proton-induced reaction on the lithium target. By deflecting the unreacted and secondary charged particles with a magnetic dipole, a semi-monochromatic neutron beam can be obtained at a forward angle [10, 7, 11]. Because the nucleons are bounded in the target nuclei by nuclear forces, neutrons possess a long low-energy tail that cannot be eliminated [7, 12]. Therefore, reducing the low-energy tail based on weakly bound nuclei such as deuteron becomes the next target.

The properties and applications of deuteron nuclei have been intensely researched since their discovery in 1932 [13]. A year later, a deuteron beam was produced for the first time [14]. The first photodisintegration of deuterons has been measured [15]. Using photographic photometry, the spin of deuterons was determined to be J=1 [16]. A deuteron was found to possess an electric quadrupole moment [17], indicating the existence of an additional D-wave component. Such D waves can be generated by the tensor part of the one-pion exchange (OPE) potential [18], leading to a stronger understanding of the nuclear force. Since the 1950s, numerous experiments on ed scattering have been performed to extract the form factors of deuteron nuclei, including charge monopole, magnetic dipole, and charge quadrupole form factors. For a review, refer to [19].

Using deuterons to generate high-quality neutron beams seems to possible. It has been mentioned that deuteron-induced reactions can be used to produce neutron beams, and the neutron energy can be tagged in the specific p(d, np)p channel [19]. Some early measurements on the n-p angular and energy correlation in deuteron breakup have been reported [20]. Recently, Jin and Qiu et al. reported that deuteron-induced spallation reactions can be used as a powerful method of generating neutron beams [21, 22]. These results are observed because deuteron is a loosely bound nucleus with binding energy E_B=2.2 MeV and is easily disassociated in the reaction with a target.

The motivation of this paper is to study the breakup process of deuteron in peripheral reactions, focusing on the advantageous possibility of precisely determining the energy of the neutron beam. Because monochromatic deuteron beams can easily gain on modern accelerators, if producing a neutron beam with deuteron is feasible, the neutron is expected to maintain half of the momentum of the incident deuteron and can be used as a (quasi)monochromatic neutron beam. The remainder of this paper is organized as follows. Section 2 briefly presents an improved quantum molecular dynamics (ImQMD) model. Section 3 discusses the distribution properties of generated neutron beams. Finally, Section 4 concludes the study.

Model Description

The ImQMD model was developed from the original version of the quantum molecular dynamics (QMD) code proposed by Aichelin et al.[23, 24]. A detailed description of the ImQMD model, including ImQMD05 version used in this work, and its applications can be found in Refs. [25, 27-32], where deuteron- and nucleon- induced reactions are simulated. Within the ImQMD05 model, the system wave function of the N-body system ψ is assumed to be a direct product of n coherent states, which is in the Hartree approximation, as shown in Eq. (1a), where the $r_i$ and $p_i$ are the centers of the wave packet of the i^th nucleon in the coordinate and momentum space, respectively. According to the results of our previous studies, the traditional value of ${\sigma }_{\text{r}}^2=2.0$ fm² is appropriate for intermediate-energy nucleon-induced reactions. Through the Wigner transformation of the wave function, the N-body phase-space distribution function is given by Eq. (1b). The density distribution of the system is expressed by Eq. (1c). ${\varphi }_i(r)=\frac{1}{{(2\pi {\sigma }_r^2)}^{3/4}}\exp \left[-\frac{{(r-r_i)}^2}{4{\sigma }_r^2}+\frac{i}{\hslash }r\cdot p_i\right]\mathrm{,}$ (1a) $f_N(r\mathrm{,}p)={\displaystyle \prod _{i=1}^N}\frac{1}{{(\pi \hslash )}^3}\exp \left[-\frac{{(r-r_i)}^2}{2{\sigma }_r^2}\right]\exp \left[-\frac{{(p-p_i)}^2}{2{\sigma }_p^2}\right]$ (1b) $\rho (r)={\displaystyle \int }{f}_N(r\mathrm{,}p)dp=\frac{1}{{(2\pi {\sigma }_r^2)}^{3/2}}{\displaystyle \sum _{i=1}^N}\exp \left[-\frac{{(r-r_i)}^2}{2{\sigma }_r^2}\right]\mathrm{,}$ (1c)

Nucleons in a system move under the mean field with the nuclear potential energy density functional, which reads: $\begin{array}{c}{V}_{\text{loc}}=\frac{\alpha }{2}\frac{{\rho }^2}{{\rho }_0}+\frac{\beta }{\eta +1}\frac{{\rho }^{\eta +1}}{{\rho }_0^{\eta }}+\frac{g_{\text{sur}}}{2{\rho }_0}{\left(\nabla \rho \right)}^2\\ +\frac{g_{\text{sur,iso}}}{{\rho }_0}{\left[\nabla \left({\rho }_{\text{n}}-{\rho }_{\text{p}}\right)\right]}^2+g_{\rho \tau }\frac{{\rho }^{8/3}}{{\rho }_0^{5/3}}+\frac{C_{\text{s}}}{2}\frac{{\rho }^{\gamma +1}}{{\rho }_0^{\gamma }}{\delta }^2\mathrm{,}\end{array}$ (2) where ρ, ρ_n, and ρ_p are the nucleon, neutron, and proton densities, respectively, δ = (ρ_n-ρ_p)/(ρ_n+ρ_p) is the isospin asymmetry degree. The parameters in Eq. (2), except C_s and γ, which describe the symmetry potential energy, are fully determined by Skyrme interactions. The Skyrme parameter set MSL0 [33], one of Skyrme parameter sets that satisfy the current understanding of the physics of nuclear matter over a wide range of applications [34], is used in the calculations. The parameters are listed in Table 1.

While the initialization of the heavy target nuclei is performed as in traditional QMD, the deuteron is initialized semi-classically in a simplified scheme, as in [25]. In the present work, the nuclei is initialized as that in traditional QMD as the follows: the positions of each nucleon in nuclei are sampled according to the density distribution with a "hard sphere" distribution, then the local density can be obtained based on the density distribution given by the expression 1c, and the local Fermi momentum p_F is obtained by the Fermi gas model. Then, the momentum of each nucleon is sampled using the Monte Carlo method from zero to p_F. The sampling process is repeated until stable pre-prepared initial nuclei with ground state properties, including the binding energy and root-mean-square radius, are obtained. Using this method, for deuteron with good ground properties, the momentum of the nucleon in deuteron sampled by the Monte Carlo method is from 8 to 125 MeV/c with an average momentum of 65 MeV/c. This is consistent with the experimental value obtained from the analysis of CLAS data of k_F=116 ± 7 MeV/c [26]. At the end of the ImQMD calculations, clusters are recognized by a minimum spanning tree (MST) algorithm [24, 35] widely used in QMD calculations and transport models for relativistic nuclear collisions [36]. In this study, the nucleons with relative momenta smaller than 250 MeV/c and relative distances smaller than 3.0 fm coalesced into the same cluster. The information of the cluster with excited energy was input into the GEMINI statistical decay model [37, 38] to perform statistical decay calculations.

Results and discussion

We first calculated the phase space distribution of free neutrons in d+C reactions at 102 MeV, where experimental data are available[39]. We chose stable carbon instead of a heavy metal as the target to suppress the contributions of neutrons from the target. Fig. 1 presents the doubly differential cross section of d²σ/dΩdE_n as a function of the kinetic energy E_n and polar angle θ in the laboratory for the neutrons produced in the reactions. The differential cross-section is calculated as follows: $\frac{{\text{d}}^2\sigma }{\text{d}\Omega dE}={\displaystyle {\int }_{b_{\text{min}}}^{b_{\text{max}}}}2\pi bf\left(E\mathrm{,}\Omega \mathrm{,}b\right)db={\displaystyle \sum _{i=\text{min}}^{\text{max}}}2\pi b_i\Delta bf(E\mathrm{,}\Omega \mathrm{,}{b}_i)\mathrm{,}$ (3) where b_min=0.5 fm, b_max=8 fm, and Δ b = 0.5 fm are taken in our calculation. The probability distribution is written as f(E,Ω,bi)=y(E, Ω, bi)/N, where y is the yield of the neutron in each cell, and N is the number of simulated events under certain reaction conditions. The scattering plot shows that two components stand out in the statistics. One was distributed nearly homogeneously over a wide angular range with E_n<20 MeV, originating from the target region, and the other was situated in the projectile region, approximately maintaining the beam energy per nucleon at a very forward angle with θ_lab<10°. Except for these two components, the neutrons originating from the target fragmentation are distributed widely in the plot. The intensity in the target rapidity region is not high because i) we chose a light target containing fewer neutrons and ii) the binding energy of deuteron is much less than the separation energy of neutrons in the carbon nucleus.

Fig. 1Full-screen View

(Color online) The doubly differential cross section of ${\text{d}}^2\sigma /\text{d}\Omega \text{d}{E}_{\text{n}}$ as a function of the kinetic energy and emitted angle with beam direction.

The energy spectra at a certain angle in the laboratory can be obtained from Fig. 1 by slicing a 2-dimensional histogram. Figure 2 presents the neutron energy spectra with a logarithmic scale on the ordinate at various angles, in comparison with the experimental data [39]. Our calculation reproduces the main peak in the vicinity of the beam energy per nucleon well, particularly at small angles with θ_lab≤5°. The height of the main peak decreases rapidly with θ_lab in accordance with the data, indicating that the neutrons peak at a forward angle. On the other hand, because of the clustering inefficiency of the transport model, that is, the model counts fewer (more) clusters (nucleons) than the experiment, the yield of neutrons at very low energies originating mainly from the target fragmentation is overestimated by approximately 30%. In addition, a very small peak near 100 MeV, which is the direct knockout neutron from the target, was not reproduced in our calculation. If only the main peak of the spectrum is checked at 0° and 5°, a full width at half maximum (FWHM) of approximately 20 MeV can be derived, indicating that the direct breakup of deuteron can be used as a neutron beam source with an energy broadening of 20 MeV.

Fig. 2Full-screen View

(Color online) Comparison of neutron spectra at various angles between experimental results [39] and ImQMD calculations.

From the comparison between the ImQMD and the experiment, the ImQMD can be used to describe the cross-section and dynamic process of the breakup of the deuteron. This conclusion has also been reached in earlier publications [40-42], where deuteron break have been suggested as an effective way to produce neutron beams. These results further demonstrated the applicability of the ImQMD model in our study.

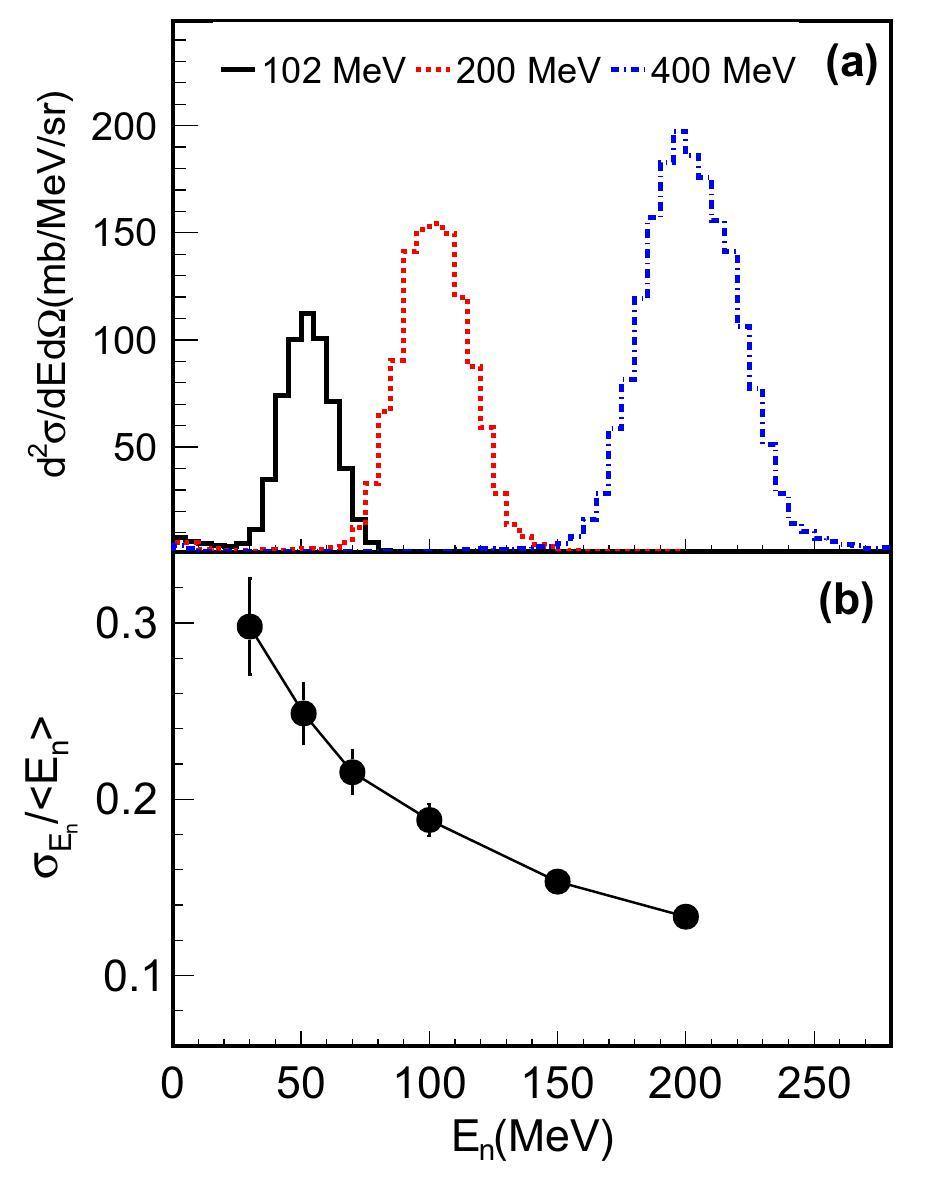

Figure 3(a) shows the neutron energy spectra in the angular range θ_n<2° produced in d+C reactions with incident deuteron energies of 102, 200, and 400 MeV, respectively. The results of the ImQMD simulation with the GEMINI afterburner are represented by histograms in the upper panel. The standard deviation ${\sigma }_{E_{\text{n}}}$ of the neutron beam normalized to the average neutron energy $<E_{\text{n}}>$ is plotted in panel (b). At E_beam= 200 MeV, ${\sigma }_{E_{\text{n}}}$ reflecting the monochromaticity of the second neutron beam is approximately 33 MeV, which is larger than the neutron spectra produced in p+Li reactions[7, 12]. The long tail on the low-energy side is significantly suppressed in d+C compared to that in the p+Li channel of neutron production.

Fig. 3Full-screen View

(Color online) The energy spectra (a) of the neutron in d+C with a deuteron beam energy at E_d=102, 200, and 400 MeV within θ_lab<2°. The relative standard deviation ${\sigma }_{E_{\text{n}}}/E_{\text{n}}$ as a function of neutron energy is plotted in panel (b).

Although the binding energy of deuteron is only 2.2 MeV, the proton and neutron in deuteron have Fermi motion with an average momentum of 75 MeV/c, which broadens the neutron energy in the main peak. In the breakup or stripping reaction of deuterons, the total energy of the projectile remains approximately constant, and an anti-correlation is then expected between the energy of the proton and neutron from deuteron breakup. Figure 4 (a) presents the scattering plot of the proton energy vs. neutron energy in the d+C reactions at various beam energies ranging from 60 to 400 MeV. A sharp band is observed at each energy point, confirming the anti-correlation between proton and neutron energies. The total energy of the proton and neutron E_n+E_p is displayed in panel (b), where the neutrons are counted within θ_lab<2°. The total energy is constant with an intrinsic FWHM of approximately 5 MeV, despite the appearance of a tiny tail at the low-energy side. This feature has been observed in d+¹²C at 270 MeV, where correlated protons and neutrons were measured at 0° [44]. According to the experiment, the FWHM of the E_n+E_p spectrum at 0° was approximately 2.5 MeV. Moreover, the intrinsic broadening of the total energy showed an insignificant dependence on the beam energy, implying that it originated from the Fermi motion of the nucleons rather than from the kinetic effect, suggesting that if one can measure the accompanying proton at a forward angle, the energy of the neutron can be tagged with greatly improved accuracy compared with the raw main peak in Fig. 3.

Fig. 4Full-screen View

(Color online) The correlation of high energy neutrons and protons in the forward angle (a), the total energy distribution of the neutron and accompanying proton (b).

Whether a high neutron beam delivery efficiency can be maintained with a well-defined energy using the proton tag remains to be determined. Figure 5 (a) and (b) presents the efficiency of the proton tag R_tag and the monochromaticity of the neutron beam using the coincident proton in a different angular cut as a tag, respectively. Here, R_tag is derived from the ratio of the number of coincidences between p and n to the total number of neutrons. When a neutron is found in θ_lab<2°, one searches for a coincident proton with an angular cut in the laboratory, as indicated in the figure: $R_{\text{tag}}=\frac{P_{\text{n}\times p}}{P_{\text{n}}}\mathrm{.}$ (4) The efficiency increases rapidly at a low beam energy and gradually saturates at 90% when the beam energy is above 200 MeV/u. A comparison of the results at different θ_p cuts implies that the coincident proton is still at forward angles in accordance with experimental observations [20]. The monochromaticity in panel (b) is defined as the standard deviation ${\sigma }_{E_{\text{n}p}}$ of the total energy E_n+E_p normalized to the mean neutron energy ${\sigma }_{E_{\text{n}p}}/<E_{\text{n}}>$. Clearly, the monochromaticity increases with beam energy and is better than 3% for producing neutron beams above 200 MeV.

Fig. 5Full-screen View

(Color online) The efficiency of proton tag and the monochromaticity of the total energy of the neutron and proton. The neutrons in θ_n are counted, while the coincident protons are searched in different angular cuts of θ_p in the laboratory.

Finally, Fig. 6 compares the cross section of the neutron production in two different channels, the deuteron-induced production d+¹²C in this work, and the conventional channel of p+⁷Li [12, 45-47]. The angular emittance of the neutron beam was θ_n<2° with respect to the primary deuteron beam in the laboratory system. It is shown that the cross-section of neutron production in d+¹²C is higher by a factor of 100, which is slightly dependent on the energy. This result has important implications, that is, to obtain the same neutron beam, the primary beam intensity of deuterons with (d,np) channels can be lower than that of protons with (p,n) channels by two orders of magnitude. As an advantage, the background was significantly reduced. The data point of E_n=51 MeV is at the top of the simulation[39], indicating that our calculation is reliable. This suggests that the breakup of deuterons provides a novel method for generating high-energy neutron beams with well-defined energy and efficiency. It is worth mentioning that the cross section of the secondary neutron from deuteron breakup increases with the atomic number of the target [44] but is likely to produce more neutrons originating from the target, which degrades the monochromaticity.

Fig. 6Full-screen View

(Color online) The cross section of the neutron production with two channels d+¹² C and p+⁷Li.

A thick target of the order of a few millimeters to centimeters has been proposed to achieve a high-intensity neutron beam based on a primary beam with reasonable luminosity. However, the method described in this work requires measuring the energy of the accompanying protons in an event-by-event scheme. To measure the energy of protons event-by-event, using a thin target is an optimized option that requires only a general data acquisition system and position-sensitive detector. With a thin target, for example, several tens to hundreds of microns, the effect of the target on the primary or secondary particles can be omitted, particularly for high-energy beams. Using the same setup as in (p,n) or (d,n)[39], a position-sensitive detector can be added to measure the energy of the accompanying proton.

Summary

To summarize, we calculated the neutron spectra produced in the d+C reactions at various incident energies and compared them with the experimental data, if available. We show that the neutron originating from the breakup of deuteron keeps the kinetic memory of the projectile with some broadening of the energy arising from the Fermi motion of the nucleon in the projectile. The accompanying proton from the deuteron breakup exhibits a sharp anti-correlation with the neutron, and the total energy of the neutron and the proton remains constant with less than 5 MeV intrinsic energy variation. Thus, with an efficiency of approximately 90%, the energy of the neutron can be tagged by the accompanying proton on an event-by-event basis with enhanced precision. The cross-section of producing the neutron beam is much higher in the (d,np) channel than in the (p,n) channel.
