A. Strain, medium and growth condition

The S. cerevisiae strain used throughout the work is CICC 1308 (MATa, budding, haploid) (obtained from the Center of Industrial Culture Collection of China). Yeast cells were inoculated in 20 mL yeast peptone dextrose (YPD) medium (1% yeast extract, 2% peptone and 2% glucose), and grown with mechanical oscillation (200 rpm) at 30 ℃. In order to optimize the growth, cells were continuously cultured three times. Then, yeast cells were cultured until reaching log phase (about 9 h) to been treated by X-ray irradiation.

B. X-ray irradiation

The aforementioned yeast cells were divided into eight groups at random. Each group was put into an individual sterilized dish of ϕ35 mm. The samples of the same cell density were irradiated in an ice bath to doses of 0, 25, 50, 75, 100, 125, 150 and 175 Gy with X-rays from an RX-650 X-ray biological irradiator (FAXITRON, USA) operated at 100 kV. The dose rate was 1.5 Gy/min. All samples were treated under the same conditions, except irradiation doses. At the dose rate, the 175 Gy irradiation took 117 min. To exclude the differences in irradiation time, all samples (0–175 Gy) were kept on ice for 117 min. A sham-irradiated control was used as reference.

C. Determination of yeast cells growth curve

After irradiation, the yeast cells were inoculated into 50 mL YPD medium (inoculum concentration = 1%) to prepare yeast suspension for growth curve determination. The growth curve of yeast was measured by a turbidimetric method. The absorbance values (OD) were measured at 600 nm every 3 h to determine the biomass of yeast as described [12]. All the experiments were made in triplicate. The sham-irradiated culture served as control. Afterwards, the data points were fitted by Gompertz equation that can be used to describe the growth characteristics of yeast [13, 14]. The equation is as follows,

where N is the total increment in biomass at time t; N₀ is the initial cell concentration; b is the equivalent yeast counts; c is the early adaptability to growth; and d is the growth rate constant.

D. Detection of DNA damage by comet assay

Cell culture of 1 mL was harvested by centrifugation at 5000 rpm, 4 ℃ for 5 min and washed twice with the same volume of S buffer (1 M sorbitol, 25 mM KH₂PO₄, pH 6.5). The cells were resuspended in 500 μL S buffer, adding 1 μL β-mercaptoethanol and 500 μL lyticase (0.5 U/μL) at 37 ℃, 1 h to obtain spheroplasts. Spheroplasts were collected by centrifugation at 5000 rmp, 4 ℃ for 5 min, and washed with the same volume of ice-cold S buffer. The comet assay was performed according to the protocol adopted for yeast cells [15, 16]. The pellets were resuspended carefully in the 500 μL 1.5% low-melting agarose (w/v in S buffer) at 35 ℃. Then 40 μL of this mixture were spread over a slide coated with a water solution of 0.5% normal-melting agarose, covered with a cover slip, and placed on ice to solidify. After cover slips were removed, the slides were incubated in lysis buffer (30 mM NaOH, 1 M NaCl, 0.05% laurylsarcosine, 50 mM EDTA, 10 mM Tris-HCl, pH 10) for 20 min at 4 ℃. Subsequently, the slides were submerged in electrophoresis buffer (30 mM NaOH, 10 mM EDTA, and 10 mM Tris-HCl, pH 10) for 20 min at 4 ℃. The samples were then submitted to electrophoresis in the same buffer for 8 min at 0.5 V/cm. After electrophoresis, the slides were incubated in a neutralization buffer (10 mM Tris-HCl, pH 7.4) for 10 min, followed by consecutive incubations in 76% and 96% ethanol and both for 5 min at room temperature. The slides were then air-dried and stained with 20 μL ethidium bromide (EB) (2 mg/mL), covered with a cover slips and analyzed comets by fluorescence microscopy (Olympus BX61, Japan) at × 400 magnifications, which 50 representative comets of per slide and 6 slides per sample were acquired. The extent of DNA damage was quantified with the help of freeware Cometscore using index of Olive Tail moment (OTM).

E. Detection of ROS

Analysis of intracellular ROS was performed with DCFH-DA (Sigma-Aldrich) as described previously [17]. Briefly, DCFH-DA at a final concentration of 10 μm was added to 0.5 mL of cell suspension (1×10⁷ cells/mL), followed by incubation at 37 ℃ for 20 min and then the cells were washed three times with PBS to remove the DCFH-DA, which had not entered the cells. Afterwards, the cells were entered FACSAria II flow cytometer (BD, USA) to measure with an excitation of 488 nm and an emission of 530(15) nm (FL1 channel).

F. Detection of ΔΨm

The assessment of ΔΨm was performed utilizing the fluorescent probe Rh123 (Sigma-Aldrich) staining and the procedure as described elsewhere [18]. After X-rays treatment, yeast cells were harvested and washed three times with PBS and incubated with Rh123 at 10 μm for 30 min in the dark. The cells were then recovered, resuspended in 400 mL distilled water and analyzed on the FACSAria II flow cytometer (BD, USA) by the FL1 channel (530(15) nm). The green fluorescence was gated in a scattergram of SSC (side scatter) FSC (forward scatter) in order to include the subpopulation with the highest frequency and homogeneity in the fluorescence measurement.

G. Detection of cell membrane integrity

Cell membrane permeability was monitored with the PI (Sigma-Aldrich). 0.5 mL of cell suspension (1×10⁷ cells/mL) in PBS buffer (pH 7.2), was incubated with PI (in a final concentration of 10 μm), for 30 min 30 ℃ in the dark. Subsequently, cells were washed three times with PBS. Analysis was also performed on FACSAria II flow cytometer (BD, USA) and PI was collected in the FL2 channel (620(15) nm).

H. Reproducibility of the results

All experiments were replicated, independently, at least three times for each radiation doses. Regarding to flow cytometry, the rate was adjusted to keep acquisition at 200 cells per second and a total of 10000 events were registered per sample. Although, in fluorescence measurements, absolute data were not comparable in the experiments performed on different days, the observed trends were fully consistent among the independent experiments and a typical example is shown. The software FlowJo7.6 was used to analyze flow cytometric data. The data reported for growth curve were the mean ±SD of three independent experiments.

A. Growth curve of yeast

Various kinds of external stresses could significantly impact the yeast growth and the dose effect itself. Low dose microwave favors yeast growth accompanying a repairable increase in cell membrane permeability. The reasons are low-level energy produces molecular transformations and alterations, but the energy is too weak to break down the chemical bonds or primary structure [13, 14, 19]. On the contrary, high dose microwave reduces the yeast growth or directly lead to cell death.

To examine the X-ray effects on yeast growth, yeast cells in the mid-exponential phase were irradiated by X-rays and then inoculated to 50 mL fresh YPD medium to analyze the growth curve using OD₆₀₀ which represents the yeast biomass [12]. As shown in Fig. 1, the yeast biomass increased gradually with the time of culturing. The cells entered the logarithmic phase after about 3 h and reached the post-diauxic phase at around 18 h. Then they finally passed into the stationary phase when the biomass decreased slightly. At 25 Gy dose, the process of yeast growth is almost similar to the sham-irradiated control, as 25 Gy is too low to produce a significant impact on yeast cells. However, the 50–125 Gy treatments resulted in a longer pre-exponential lag and rapider exponential growth rate than sham-irradiated control. Moreover, the 50–125 Gy irradiated cells showed a much earlier diauxic shift (DS) and a consequent reduction of their total biomass at plateau. At 150 and 175 Gy, we observed a significantly reduced exponential growth rate, a delayed DS and an increase of the total biomass at plateau. The time of half log phase and plateau phase were investigated and presented in Table 1.

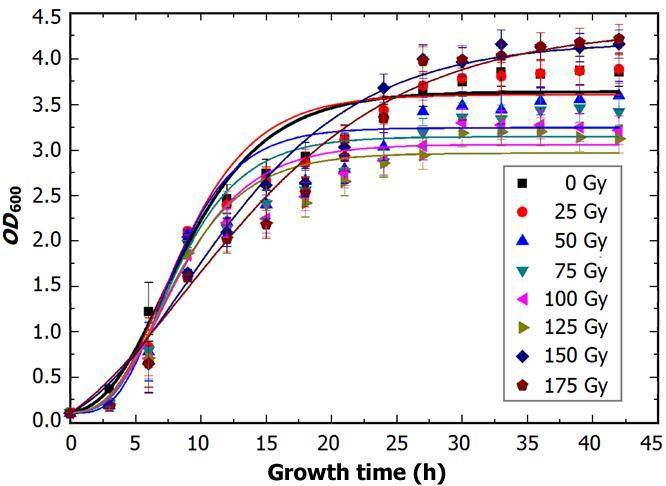

Fig. 1.Full-screen View

(Color online) Growth curves of yeast cells after X-rays treatment of various doses. OD were determined at 600 nm every 3 h to measure the concentration of yeast cells, and was fitted by Gompertz function. Each point represents the mean of results of three independent experiments; standard deviations are presented.

Gompertz equation was used to fit the growth curve, with a good fitting coefficient (data not shown). This indicates that the growth characteristics of yeast can be well described by the Gompertz equation. According to the equation, the coefficients of N₀, b, c and d at different doses were obtained (Table 2). The growth rate constant, d, increased with the dose from 50–125 Gy, as compared with the sham-irradiated control. The total biomass of yeast, b, decreased with increasing the dose from 125 Gy, but it increased with the dose from 150–175 Gy. These indicate that X-ray irradiation make the growth rate of yeast cells increase in dose range of 50–125 Gy, but biomass at plateau appears reduced. At 150 Gy and 175 Gy, the growth rate reduced, the DS delayed and the total mass at plateau increased consequently. These phenomena can be rationalized by previous transcriptomic studies. At lower doses of X-ray irradiation, yeast cells are perfectly viable and proliferating, inducing a set of genes involved in response to oxidation, glucose metabolism, DNA repair and protein synthesis [20]. At 170 Gy, however, in spite of an induced 45% mortality and an efficient cell cycle arrest in G2, the irradiation is less effective in inducing anti-oxidative genes, histone and protein synthesis genes [21]. It is therefore likely that yeast cells irradiated to lower doses in the expanded lag can accumulate proteins, which are required for a more efficient growth in oxidative conditions. They have a more efficient glucose consumption and therefore reach the DS earlier, typically with lower total biomass; while at higher doses, proliferation is impaired and DS is delayed with a higher total mass at plateau.

B. DNA damage induced by X-rays

It is well known that IR can result in DNA damage by directly physical effect and indirectly ROS, which are generated at localized regions in the nucleus. IR possess extensive broadness and manners of different DNA lesions that can cause structural damage to the DNA molecule and can alter or eliminate the cell’s ability of gene transcription [22]. Of the total DNA lesions induced by IR, 80% are base modifications and 20% are sugar phosphate backbone damage [23]. Forms of DNA damage include double-strand or single-strand breaks (DSBs or SSBs), cross-links, oxidative base modification and clustered base damage. Regarding to the numbers of DNA lesions, one Gy IR have been estimated to be approximately 1000 base modifications, 1000 SSBs, 40 DSBs, 20 DNA-DNA cross-links, 150 DNA-protein cross-links and 160-320 non-DSB clustered DNA damage per cell [24-26]. SSBs have lower biological impact since they are readily repaired using the opposite stand as a template, whereas DSBs are thought to be much more deleterious and occur when the two strands simultaneously break in close positions.

In order to quantify DNA damage of yeast cells exposed to X-rays, comet assay was applied in experimental conditions optimized for making detection of DNA damage more sensitive. For the quantitative index, we used OTM as a sensitive parameter for comet assay using a single cell species with a uniform DNA pattern and could evaluate a wide extent of DNA damage. Quantification of DNA damage (OTM) in yeast cells irradiated to 0, 25, 50, 75, 100, 125, 150 and 175 Gy, are 0.74 ± 1.2^*, 1.5 ± 1.3^*#, 2.4 ± 1.0^*#, 4.2 ± 2.2^*#, 6.5 ± 1.8^*#, 6.9 ± 2.1^*$, 8.5 ± 3.1^*# and 13.7 ± 2.9^*# (At least 300 comets per experiment. ^*: p<0.01 vs. control; $, #: p<0.05 and p<0.01 vs. prior group.). The results show that the DNA damage induced in yeast cells exposed to different doses of X-rays clearly increased with dose (p<0.05 or p<0.01). However, the increase of X-ray irradiation-induced DSBs follow a linear relationship in yeast cells [4], suggesting that the generation of DSBs may be more regular than total DNA damage in X-ray irradiated yeast cells. Similar results were observed by visual inspection of cell comet images at 100 and 175 Gy (Fig. 2), and the extent of damage also appears aggravated with the increase of X-ray irradiation doses.

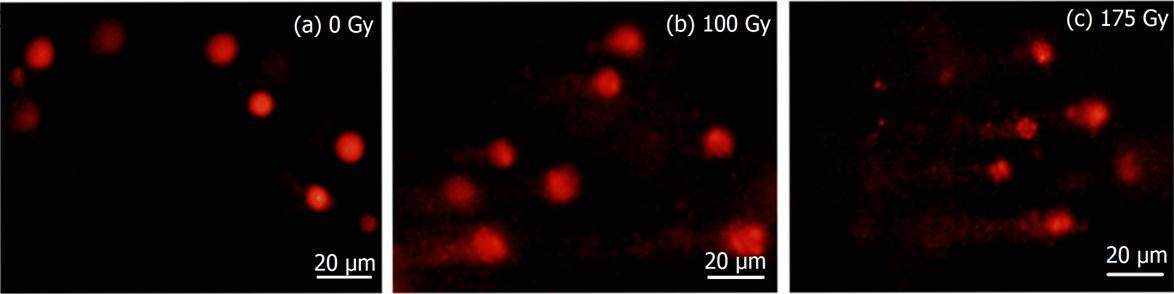

Fig. 2.Full-screen View

(Color online) Fluorescence mages (at × 400 magnification) from yeast comet assays in the cells irradiated to 0, 100 and 175 Gy.

C. ROS production induced by X-rays

In cells irradiated by X-rays, energy deposition causes endogenous bursts of ROS alone the radiation track and in the intercellular matrix due to the effects of water radiolysis, and the track structure determines the relative potency of biological effects of different radiations [27, 28]. It is well documented that the intracellular production of ROS causes cell damage. As a result, different signaling cascades responding to the stress conditions are triggered [29]. Also, ROS, as cell death regulators, has been linked with the phenomenon of apoptosis in yeast cells [30, 31].

To investigate the ROS accumulation in X-ray-induced yeast cells, we determined ROS with DCFH-DA, which enters the live cell and emits green fluorescence as is oxidized by ROS [32]. In quantification ROS production, flow cytometric analysis (Fig. 4, histograms) showed that the subpopulation of positive cells with signal intensity over a threshold value increased from ∼ 11.6% at 0 Gy to ∼ 71.3% at 175 Gy, in a well dose-dependent manner, i.e. the burst of ROS is proportional to the radiation dose. The microscopy observations of cells of 100 or 175 Gy showed a strong green fluorescence (Fig. 4, the upper images), indicating considerable amounts of ROS in the cells; while the control cells showed no fluorescence. These indicate that X-ray irradiation cause intracellular accumulation of ROS, causing induced damages in the yeast cells. The results are corresponding to the changes of anti-oxidative genes transcriptional described Ref. [20]. ROS levels show similar dose effect of DNA damage (Fig. 3). Thus, it can be argued that the increased ROS level is responsible for the loss of activity and production of DNA lesions in yeast cells exposed to X-rays.

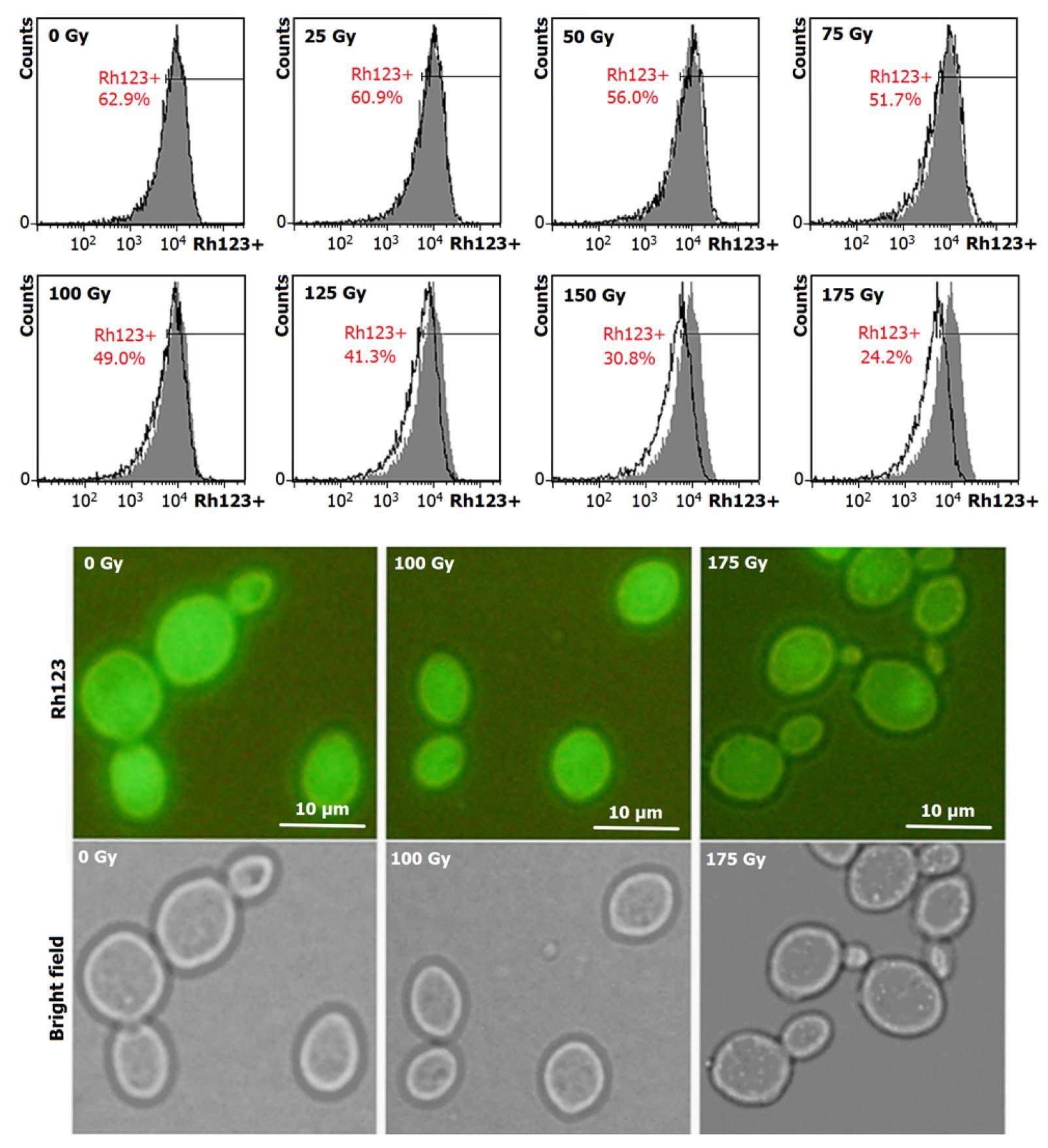

Fig. 4.Full-screen View

(Color online) Change of ΔΨm in yeast cells irradiated by different doses X-rays. The histograms are from flow cytometry analyses of ΔΨm in the yeast cells stained with Rh123, with the grey histograms being the control. The fluorescence images are taken from yeast cells stained with Rh123 after treatment of 0, 100 and 175 Gy, with the upper panel being fluorescence micrographs of incorporated Rh123, and the lower panel being phase contrast micrographs of the same cells.

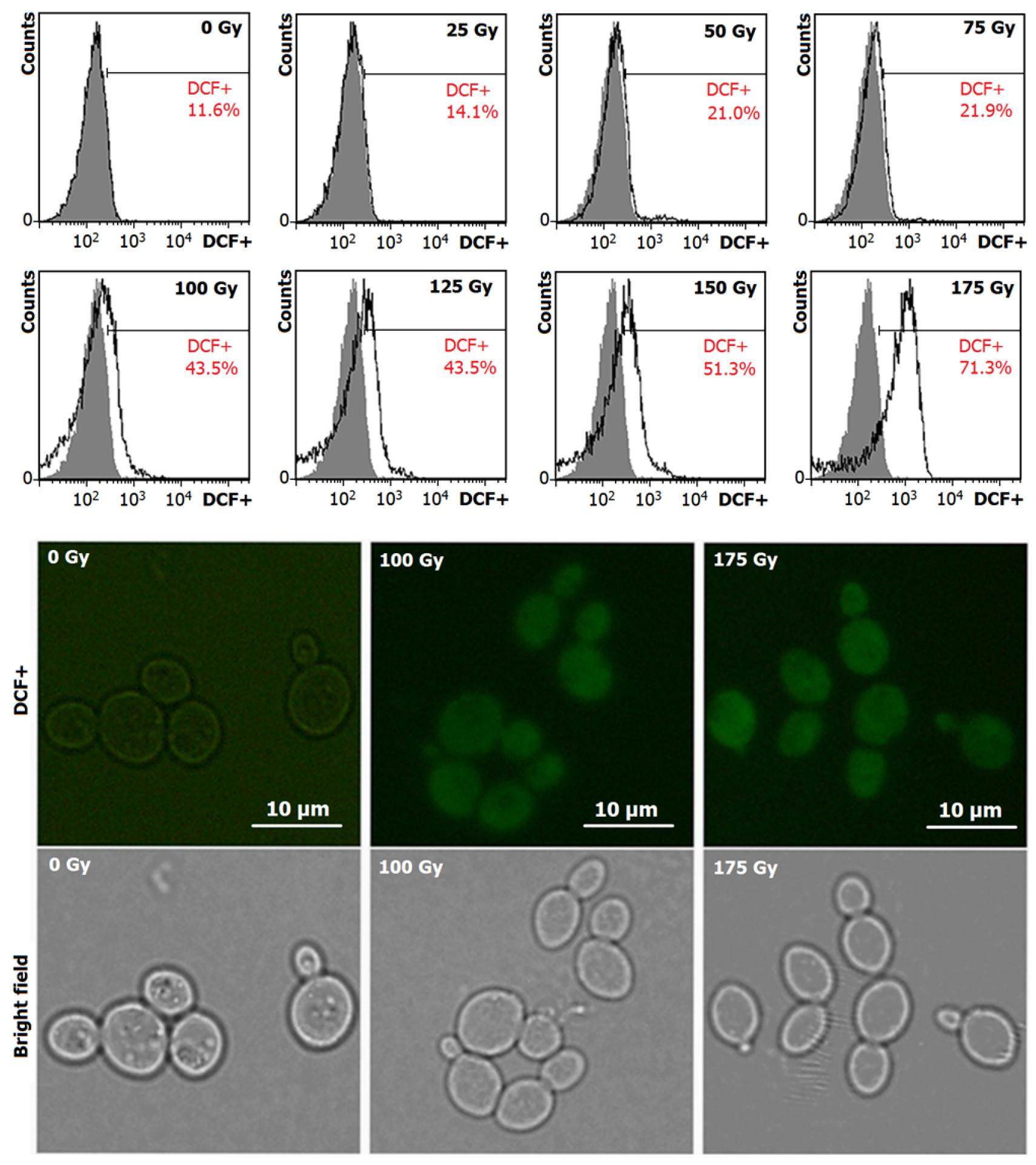

Fig. 3.Full-screen View

(Color online) ROS accumulation in yeast cells irradiated to different doses by X-rays. The histograms are flow cytometry analyses of production of ROS determined by DCFH-DA labeling, with the grey histograms being the control. The images are visualization of ROS production in yeast cells irradiated to 0 Gy (control), 100 Gy and 175 Gy by X-rays, and stained with DCFH-DA, with the upper panel being fluorescence micrographs of incorporated Rh123, and the lower panel being phase contrast micrographs of the same cells.

D. X-ray irradiation decrease ΔΨm

The mitochondria play an important role in yeast respiratory chain and energy coupling. And it was reported that mitochondrial involved apoptosis in yeast [33]. Mitochondria are well known as the primary coordinators of apoptotic processes to control the intrinsic apoptotic pathway [34], and the dissipation of ΔΨm is an early event in the apoptosis [35, 36]. Moreover, ΔΨm is also an indicator of the mitochondrial membrane integrity, which would depolarize when the membrane is perturbed, combining with less fluorescence probe [37].

The generation of ROS is an upstream event of ΔΨm decreasing. Therefore, we detected ΔΨm in yeast cells treated by X-rays. The yeast cells were incubated with Rh123, a fluorescent dye that specifically stains active mitochondria in living cells. The changes of Rh123 distribution in cells indicate variations in the ΔΨm [38]. As shown in Fig. 4, compared with the 0 Gy cells, ΔΨm of the irradiated yeast cells decreased with increasing doses of 25–175 Gy, with the percentage of the positive rate of Rh123 being 60.9% at 0 Gy and 24.2% at 175 Gy. Similarly, the fluorescence intensity of green fluorescence in the 100 and 175 Gy-treated cells decreased with increasing doses, and 175 Gy-treated cells was weaker than the 100 Gy-treated cells, confirming the ΔΨm disruption in X-rays-treated cells. Our results show that the production of ROS is accompanied by a reduction of ΔΨm in yeast cells treated with X-rays. The observations demonstrate that X-ray irradiation can result in depolarization of ΔΨm because of the intracellular accumulation of ROS and cause the opening of the mitochondrial permeability transition pore and mitochondrial swelling which eventually leads to the dysfunction of mitochondria.

E. Change of cell membrane integrity induced by X-rays

Research into the molecular mechanisms of the lesions of IR on organisms has been focused on complex, irreparable clustered DNA damage and deletion or insertion of single or multiple DNA bases [39]. Comparatively, the IR effects on yeast cell membranes have not been considered with enough attention, despite the fact that, as a physiological barrier, the cell membrane may be damaged due to the interaction between X-ray photons and biological macromolecules of the membrane. The effects on cell membranes may be a reasons for X-ray irradiation caused yeast apoptosis or cell death. The damage of cell membranes leads to changes of permeability or integrity, which can be measured by the uptake rate of PI (Fig. 5). PI is a nucleotide-binding probe used extensively to assess the membrane integrity. PI can freely penetrate to the cell interior and combine with DNA [40, 41]. As shown in Fig. 5, the numbers of the uptake PI cells (permeabilized cells) increased after X-rays irradiation, which indicated that other targets could also be more vital to X-rays irradiation inactivation than DNA.

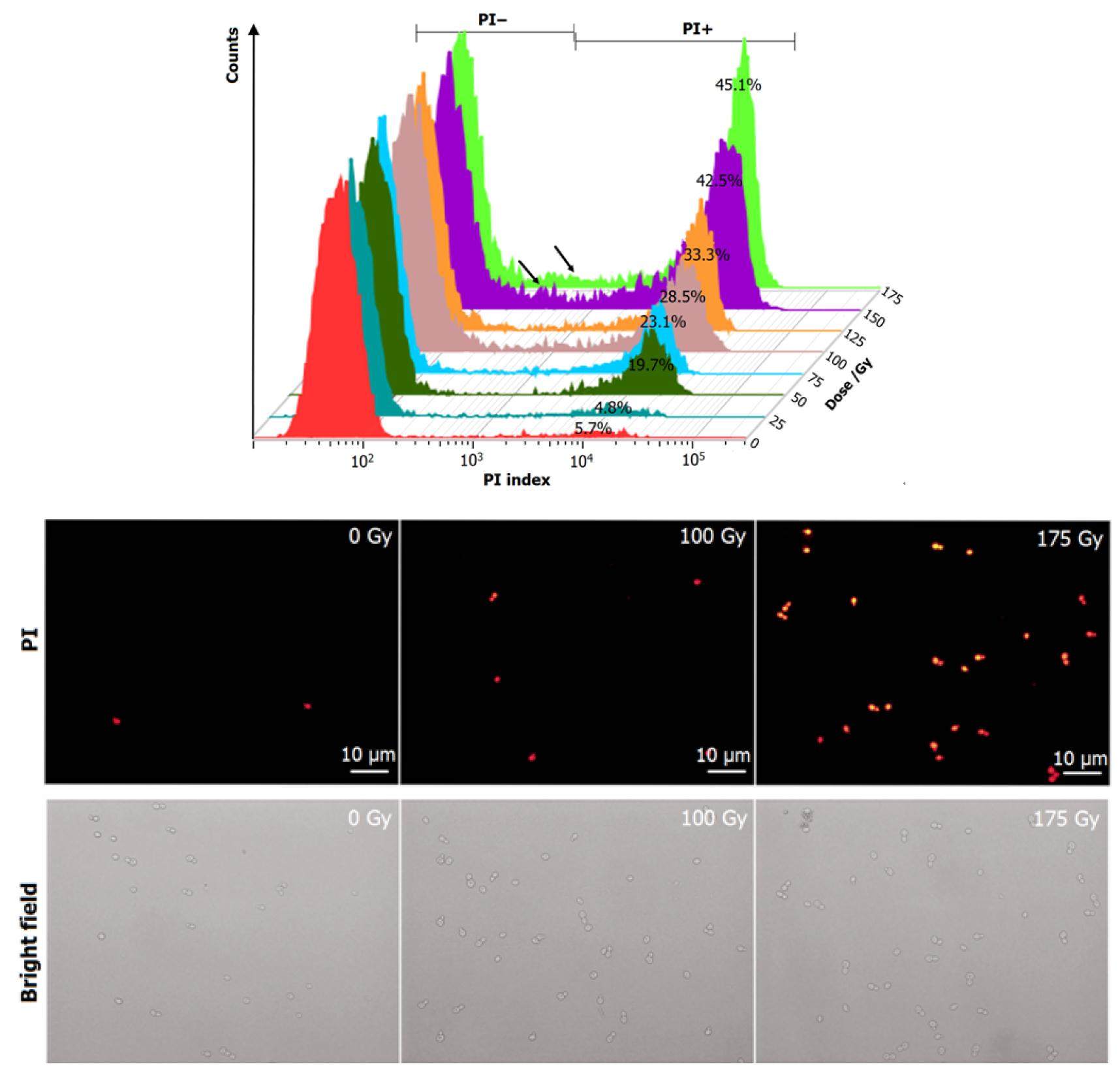

Fig. 5.Full-screen View

(Color online) Changes in cell membrane permeability in yeast cells irradiated to different doses by X-rays. The histograms are from flow cytometry analyses of cell membrane permeability evaluated by PI marking, with the rate of PI+ representing changes in permeability. The images are visualization of cell membrane permeability in PI-stained yeast cells treated at 0, 100 and 175 Gy, with the upper panel being fluorescence micrographs of incorporated PI, and the lower panel being phase contrast micrographs of the same cells.
