Introduction

Ultra-relativistic heavy-ion collisions at the Relativistic Heavy Ion Collider (RHIC) and the Large Hadron Collider (LHC) are believed to have created a new state of matter known as the Quark-Gluon Plasma (QGP)[1-14]. In these extreme environments, heavy quark systems serve as sensitive probes, enabling the investigation of QGP properties and the underlying strong interaction dynamics governed by Quantum Chromodynamics (QCD)[15-21]. Heavy quark-antiquark pairs form bound states through strong interactions mediated by gluons. It has been pointed out that owing to the formation of the hot and dense QGP medium [22], these pairs have a maximum dissociation distance, beyond which the pair becomes unstable and separates. The interquark potential governs the formation and stability of these bound states. As the temperature and density intensify, the medium’s color screening effect weakens the binding potential between heavy quarks, prompting dissociation – a hallmark phenomenon signifying the transition from confinement to deconfinement. Hence, exploring the in-medium heavy quark potential has emerged as a pivotal endeavor for deepening our understanding of hadronic structure and shedding light on the fundamental nature of QCD matter. Furthermore, the concept of the holographic potential for heavy quark-antiquark pairs was systematically introduced for the first time in [23], providing a theoretical foundation for investigating the structure of hadrons and the dynamics of QCD [17, 18, 24-47].

Heavy-ion collisions thus provide a unique and powerful experimental setting for probing QCD matter under extreme conditions. However, fully interpreting these experiments through lattice QCD simulations at finite chemical potentials is hindered by the fermion sign problem [48, 49], which severely limits numerical calculations in regions of high density. Although several innovative methodologies [50-61] have been developed to circumvent this obstacle, a complete and rigorous first-principles theoretical description of strongly coupled QCD matter under experimental conditions remains elusive. Consequently, complementary theoretical frameworks, particularly holographic QCD approaches inspired by the gauge/gravity duality from string theory, have gained prominence. Presently, the "top-down" approach is centered on constructing a realistic holographic QCD theory derived from string theory [62-66], whereas the “bottom-up” approach prioritizes the development of holographic model [67-73] informed by experimental observations and lattice QCD data. For instance, the incorporation of black hole configurations in five-dimensional space-time to elucidate boundary phenomena at finite temperatures, along with the exploration of broader theoretical frameworks, constitutes pivotal research directions in this field [34, 38, 74-79].

Within the framework of holographic theory, the dissociation of heavy quark bound states in QGP medium have been extensively studied [80, 81]. These heavy quark bound states can be geometrically represented by open strings [82, 83] whose endpoints correspond to a heavy quark and antiquark pair located at the spacetime boundary, separated by an interquark distance L. In such models, the thermodynamics of QCD matter at finite temperature is mapped onto a five-dimensional black hole geometry, where the gravitational attraction of the black hole horizon dynamically captures the medium-induced effects experienced by the heavy quark-antiquark string. The string serves as a geometric representation of a bound state in QCD within the holographic framework. Initially, the string remains static at the boundary. However, influenced by the gravitational effects of the background spacetime metric, the string is gradually drawn towards the black hole’s event horizon. This dynamic evolution of the string captures the microscopic mechanisms underlying the quark pair dissociation. As the string approaches the horizon, the system achieves equilibrium, and the binding energy of the string diminishes to a critical value, resulting in the dissociation of the quark-antiquark pair. The timescale associated with this process, known as dissociation time of the quark-antiquark pair, is a critical parameter in the study of quarkonium suppression and provides a key indicator of the non-equilibrium properties of strongly interacting media under extreme conditions. This timescale provides essential theoretical insights into the formation and evolution of the QGP. Moreover, examining the variations in the dissociation time not only helps elucidate the strongly coupled dynamics of QCD but also explains the experimentally observed suppression of heavy quarkonium states. Such analyses significantly enhance our understanding of matter under extreme conditions in high-energy nuclear physics.

Based on the holographic QCD models described in prior works [84-86], the main research objective of this study is to analyze the impact of varying temperature and chemical potential on the thermodynamic properties of heavy quarkonium in a 2+1 flavor system. The remainder of this paper is organized as follows: Section 2 provides a brief review of the holographic model that incorporates information about the QCD phase transition. In Sect. 3, we analyze the dissociation distance, potential energy, entropy, entropy force, binding energy, and internal energy of the heavy quark-antiquark pair under different temperature and chemical potential conditions. Section 4 examines the effects of temperature and chemical potential on the thermodynamic properties of a single quark. Finally, Sect. 5 summarizes the research findings and presents the concluding remarks.

The Setup

This section provides an overview of the Einstein-Maxwell-dilaton (EMD) model. Within the context of the string frame, the action for the EMD model reads [17, 18, 42, 44, 46, 84, 85, 87-90](1)Here, ϕ is a neutral dilaton scalar field. f(ϕ) is the gauge kinetic function coupled to the Maxwell field Aμ, and V(ϕ) defines the dilaton field’s potential. Parameter G₅ corresponds to the Newton constant in five-dimensional spacetime. By solving the equations of motion (EoMs), the functional forms of f(ϕ) and V(ϕ) can be determined consistently. The action is rewritten in the Einstein frame from the string frame through a specific set of transformations.(2)In the Einstein frame, the action is expressed as:(3)We propose the following metric ansatz:(4)In this context, z serves as the holographic coordinate in the fifth dimension, and the AdS₅ space is characterized by a fixed radial parameter . By employing the aforementioned metric ansatz, one can derive the corresponding equations of motion and constraints for the background fields(5)(6)(7)(8)(9)Among these five equations, only four are independent in a linear sense. The infrared (IR) boundary conditions for the equations of motion (EoMs) near the horizon () represent the boundary of the black hole, which is physically associated with the concept of temperature. This can be expressed as(10)As the IR boundary is approached , we impose the condition that the metric in the string frame converges to AdS₅. The conditions at the ultraviolet (UV) boundary (z=0) are as follows:(11)where μ denotes the baryon chemical potential, while scales proportionally with the baryon number density, The baryon number density can be calculated based on [91, 92](12)μ is related to the quark-number chemical potential . This allows us to derive(13)(14)(15)(16)where(17)The Hawking temperature [93, 94] is defined by(18)In order to achieve an analytical solution, we make use of(19)The gauge kinetic function f(z) is defined as(20)In the string frame, the potential of a quark-antiquark pair is determined via . Standard techniques enable the computation of their separation distance and interaction potential [30, 32, 40, 74, 79]. The dynamics of the string world-sheet are described by the Nambu-Goto action in the form shown below(21)In this context, gab refers to the induced metric, defined as(22)and is associated with the string tension and assigned a value of 1. In this context, XM represents the coordinates, and denotes the metric in the string frame. To calculate the heavy quark-antiquark potential, the string is anchored at a static quark-antiquark pair located at and . The most straightforward parametrization of the string world-sheet coordinates is and . In this scenario, the effective Nambu-Goto action can be represented as(23)where(24)Based on the research in [28, 74, 95-98], the Wigner-Wilson loop’s expectation value is linked to the on-shell string action by:(25)Here, represents a closed loop in spacetime. The heavy-quark potential is defined as [23, 39, 99]:(26)L denotes the distance between the quark-antiquark pair. Consequently, calculating the potential requires solving the on-shell string world-sheet action. Based on the standard framework [17, 28, 30, 32, 40, 46], we establish an effective “Hamiltonian”.(27)Here, , and solving for forms the equation(28)Here, z₀ marks the vertex where the quark-antiquark string connects, with values from z₀=0 to . This allows us to calculate the interquark distance and the potential energy,(29)(30)In our computational framework, the potential energy of the heavy quarkonium is equal to its free energy () [39, 100, 101]. The potential is regularized by subtracting the UV-divergent term.

The entropy of the quark-antiquark pair is derived as(31)where T represents the QGP temperature, and the binding energy can be given by [39](32)FQ represents the free energy of a single quark, which can be computed as shown in Ref. [18], with the integral’s upper limit fixed at z_h. Specifically:(33)In this study, we set for convenience. The internal energy of the quark-antiquark pair, as described in Refs. [39, 102], is(34)with related to the baryon number density.

For the 2+1 flavor system, the six parameters (a,b,c,d,k,G₅) in our model are derived from Ref. [86]. In Ref. [86], we obtained the posterior parameter distribution of the EMD model through Bayesian analysis, which integrates lattice QCD data at zero chemical potential [103, 104] within the EMD framework. The Bayesian analysis procedure consists of the following steps. First, based on Bayes’ theorem:(35) represents the posterior distribution, which is the conditional probability of the parameters given the observed data. denotes the prior distribution, reflecting our initial assumptions or prior knowledge about the parameters. refers to the likelihood function, that is, the probability of observing the data based on specific assumed parameter values. Here, “data” corresponds to the lattice QCD data (), while θ represents the parameters of the EMD model.

Then, for the prior distribution pertaining to the EMD model parameters , we established a range of prior parameters based on Ref. [85], as detailed in Table 1 of Ref. [86]. Within this prior range, 300 parameter sets θ were sampled using the Latin Hypercube Sampling (LHS) [105, 106]. These parameter sets were subsequently input into the EMD model to compute the observables , , and . The computation results were then processed via Principal Component Analysis (PCA) [107]. Finally, a Gaussian process emulator [108] was constructed by pairing the input 300 parameter sets with their corresponding PCA-transformed outputs for subsequent likelihood function development.

For the likelihood function , we employed a Gaussian distribution:(36) represents the lattice QCD data, denotes the output values of the EMD model, where the EMD model is replaced by a Gaussian processes emulator (to accelerate computational speed). σi represents the combined uncertainties from both the lattice QCD data and the Gaussian emulator. Finally, by performing Markov Chain Monte Carlo (MCMC) [109, 110] sampling on the posterior distribution, we obtained the posterior parameter distribution of the EMD model. As shown in Table 2, we present the 95% confidence level (CL) parameter ranges along with the maximum a posteriori (MAP) values [86].

Thermodynamics of heavy quarkonium

In this section, we systematically investigate the thermodynamic properties of heavy quark-antiquark pairs in a 2+1 flavor system, focusing on the effects of temperature and chemical potential on these properties to elucidate their behavior within a strongly interacting medium and the mechanism underlying their transition from the confined phase to the deconfined phase. Specifically, this chapter is divided into five subsections: (A) The interquark distance of heavy quark-antiquark pairs, in which we explore how the dissociation distance varies with temperature and chemical potential, as well as its relationship with confinement effects; (B) The potential energy of heavy quark-antiquark pairs, where we analyze the composition of the potential energy and the phenomenon of its truncation under the influence of temperature and chemical potential; (C) The entropy and entropy force of heavy quark-antiquark pairs, studying the variation of entropy with temperature and chemical potential to reveal the degree of disorder within the system; (D) The binding energy of heavy quark-antiquark pairs, investigating how the binding energy changes with temperature and chemical potential and its connection to quark dissociation; (E) The internal energy of heavy quark-antiquark pairs, analyzing the variation of internal energy with temperature and chemical potential and its role in thermodynamics. Through these studies, we aim to achieve a comprehensive understanding of the thermodynamic behavior of quark-antiquark pairs in a 2+1 flavor system.

3.1

The dissociation of heavy quark-antiquark pairs

In this subsection, we investigate the behavior of the interquark distance L of heavy quark-antiquark pairs in a 2+1 flavor system as a function of the z₀. Our calculated results of with the maximum a posteriori (MAP) inference setup for the Bayesian holographic model [86] are depicted in Fig. 1, with Fig. 1(a) shows the results of calculating the effect of different temperatures on L with the chemical potential fixed at zero, and Fig. 1(b) shows the results of calculating the effect of the chemical potential on L with the temperature fixed at T=0.134 GeV.

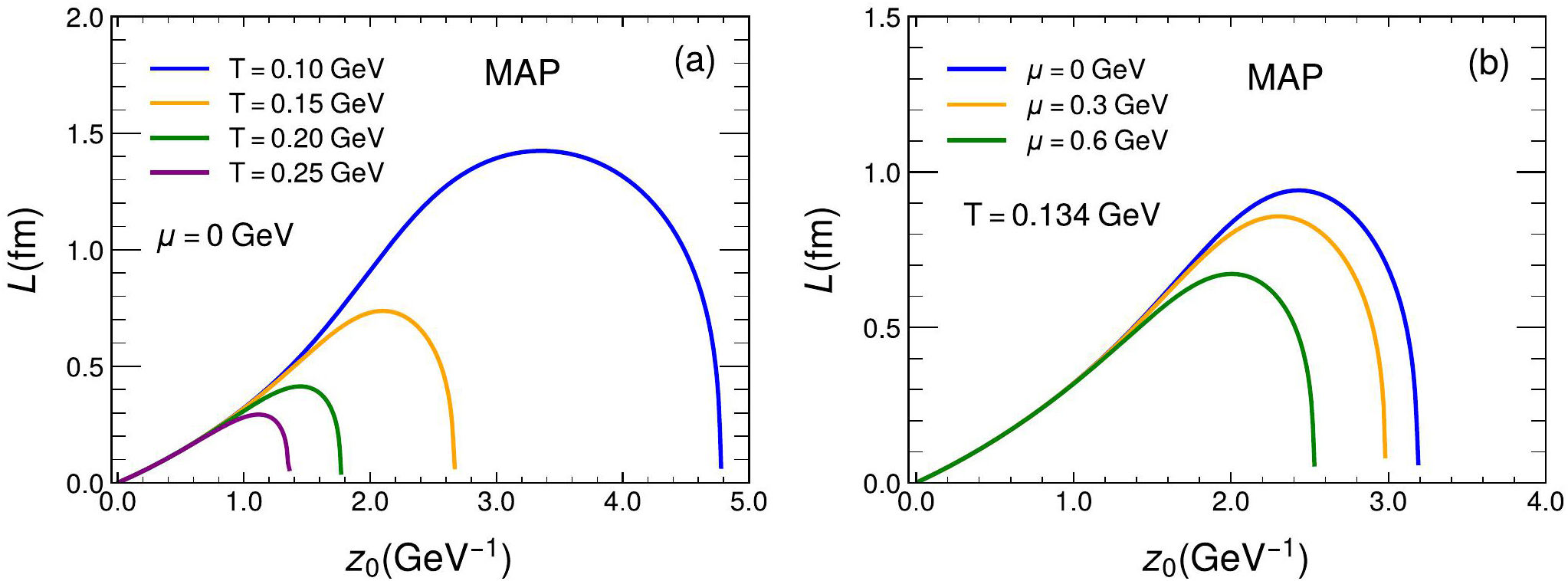

Fig. 1Full-screen View

(Color online) When selecting MAP setup for the Bayesian Holographic model, the calculated interquark distance L as a function of z₀ for the quark-antiquark pair at different temperatures when μ=0 (a) and at different chemical potential when T=0.134 GeV (b)

As illustrated in Fig. 1, it has been observed that the interquark distance L increases with z₀ until it reaches a peak value known as the dissociation distance L_max. After this maximum point, further increases in z₀ lead to a decrease in the interquark distance, L. This trend suggests that the quark-antiquark pairs transition into a deconfined state, resulting in the melting of the string connecting them. Consequently, the bound state of the quark-antiquark pairs dissociates, and they eventually become free heavy quarks. This phenomenon highlights the color screening effect of the medium on these bound states, which means that partons in the medium (QGP) can “shield” the interactions between the quark and antiquark pairs, preventing their tight binding.

By analyzing the behavior of the dissociation distance, we found that as the temperature and chemical potential increased, the dissociation distance L_max gradually became smaller. This is related to the increasing parton density in the medium with increasing temperature and chemical potential, which thereby enhances the screening effect on the heavy quark bound states. This leads to a decrease in the dissociation distance, making it easier for the quark-antiquark pairs to enter a deconfined state and transition into free quarks.

3.2

Potential energy

In this subsection, we investigate the potential energy of heavy quark-antiquark pairs, a crucial physical quantity that characterizes the interaction between quark and antiquark. Recent pNRQCD [111] studies and one-loop hard-thermal-loop (HTL) calculations [112] have shown that the heavy quark potential at finite temperatures also develops a nonvanishing imaginary part, reflecting the Laudau damping and color singlet to octet transition. In holographic models, the imaginary part of the heavy quarkonium potential was first computed in Ref. [113]. In the holographic model employed in this study, similar methods to those in Ref. [113] could also be utilized to calculate the imaginary part of the potential. We plan to address the computation of the imaginary part in a future study, as this study serves as a preliminary exploratory analysis, where we first aim to examine the real part of the potential obtained through Bayesian analysis. Subsequently, we intend to further investigate the imaginary part of the potential in follow-up work, again using Bayesian analysis combined with the EMD model. Currently, in lattice QCD, there is no definitive consensus regarding either the temperature dependence of the heavy quarkonium potential or the precise forms of its real and imaginary parts, and this issue remains under active debate. For example, Ref. [114] applied four distinct methods to compute the real and imaginary parts of the potential, and the conclusions drawn from these four methods are not entirely consistent. Although we also plan to compute the imaginary part of the potential in our future work, how to directly compare it with lattice QCD results remains an open and debated question.

This real part of the potential energy typically consists of a short-range Coulomb potential and a long-range linear potential. At short distances, the Coulomb potential dominates, expressed as , where α is the effective coupling constant of the strong interaction. The Coulomb potential reflects the attractive force between the quark and antiquark, similar to the Coulomb potential in electromagnetic interactions, but is mediated by the color charge of the strong interaction. At long distances, the potential energy gradually shifts to being dominated by the linear potential, reflecting the binding mechanism of quark pairs, expressed as , where σ is the string tension constant. This linear potential represents the binding effect of the "string" formed by the gluon field between the quark and antiquark, corresponding to the manifestation of confinement and is a significant feature of the strong interaction, ensuring that quarks and antiquarks remain bound together at large distances.

As shown in Fig. 2, when the separation distance between quarks is very small, the potential energy is primarily influenced by the Coulomb potential, resulting in a negative value. As the quark separation distance increases, the potential energy gradually transitions to being dominated by the linear potential. In Fig. 2, We calculated the results for the 95% CL (shaded area) and the MAP (red solid line) setup, sub-figure (a) displays the calculation results of the effect of different temperatures on the potential energy with the chemical potential fixed at zero, while sub-figure (b) presents the calculation results of the effect of chemical potential on the potential energy with the temperature fixed at T=0.134 GeV. Our calculations indicate that with an increase in the system temperature and chemical potential, the linear potential component of the quark pair slightly decreases but does not show a clear color screening effect. This phenomenon may be related to the tendency for quark pairs to dissociate owing to the increased thermal energy, which reduces the length of the linear component of the potential energy. Meanwhile, the Coulomb potential component remains almost unaffected, indicating that the short-range strong interactions remain stable under higher temperatures and chemical potentials. At extremely small interquark distances (typically far smaller than characteristic medium scales, such as the Debye screening length), the interaction enters the perturbative QCD regime. Under these conditions, the strong coupling constant becomes sufficiently small [115-117], rendering the potential energy predominantly governed by the Coulomb interaction mediated through single-gluon exchange. This perturbative mechanism is intrinsically dictated by the local quark-gluon dynamics of QCD. Consequently, across the temperature and chemical potential range considered in our study, medium modifications to the potential remained negligible. As shown in Fig. 3, we compare the results from our model with the recent lattice data [118], where the data points represent the lattice results, and the colored shaded regions along with the red lines depict our model’s predictions, this comparison clearly depicts a significant resemblance between the Bayesian holographic model’s results and the lattice data for heavy quark potential.

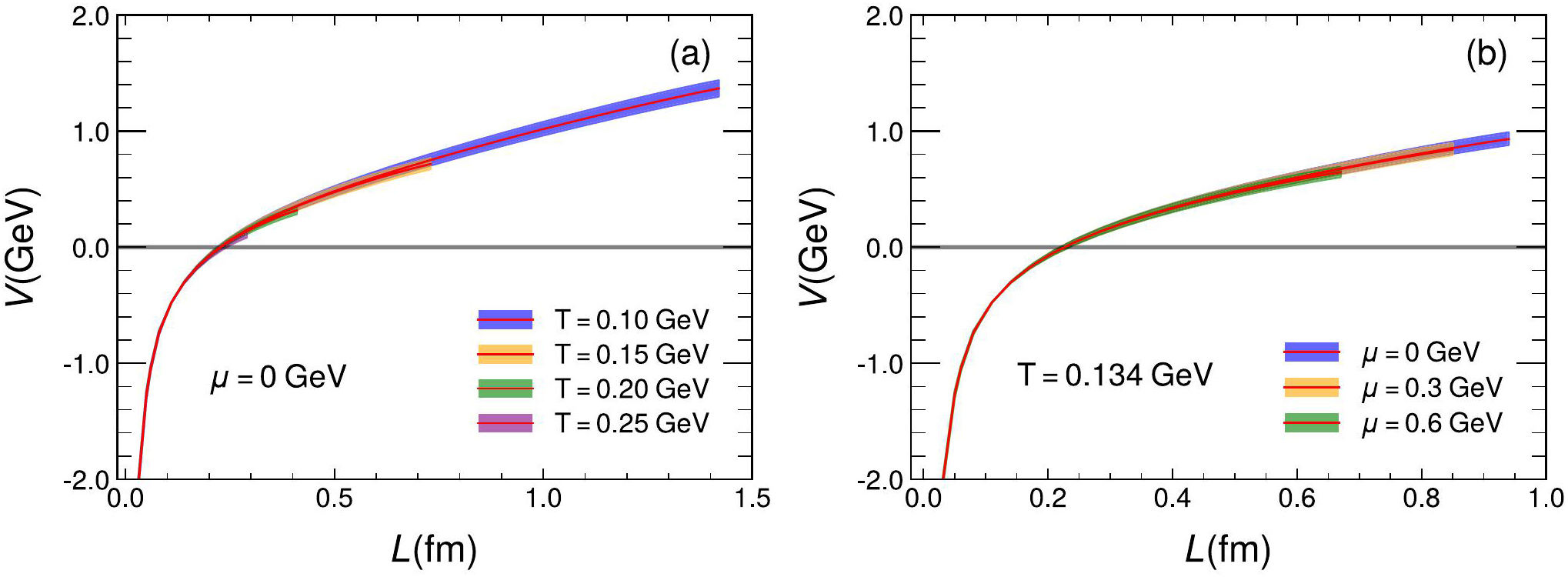

Fig. 2Full-screen View

(Color online) (a) The dependence of the potential energy V of quark-antiquark pairs on the interquark distance L at different temperatures when μ=0. (b) The dependence of the potential energy V of quark-antiquark pairs on the interquark distance L at different chemical potential when T=0.134 GeV. The shaded area represents the 95% CL, and the red solid line denotes the result of the MAP calculation

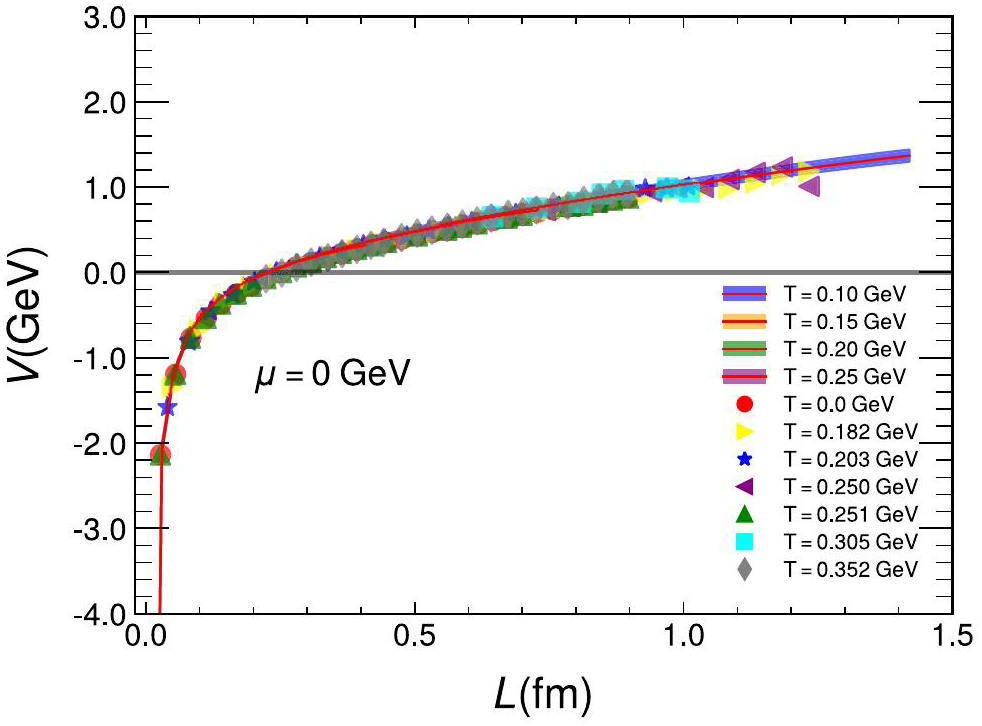

Fig. 3Full-screen View

(Color online) A comparison is made between the potential energy of quark-antiquark pairs from model calculation results and lattice data [118] for the case of N_f=2+1 and μ=0. The lattice data are represented by various shapes of points. The shaded area represents the 95% CL, and the red solid line denotes the result of the MAP calculation

In our model, when computing the potential energy as a function of L at a specific temperature or chemical potential, there exists a dissociation distance L_max. As shown in Fig. 1, the peak value of the computed L corresponds to this dissociation distance. When L exceeds L_max, the bound state of the heavy quarkonium dissociates and ceases to exist. At a temperature of 0.25 GeV, the dissociation distance L_max is approximately 0.3 fm, which confines our calculated potential energy range to approximately fm at this temperature. In Ref. [118], the real part of the lattice QCD potential does not exhibit screening behavior, indicating that it shows no signatures of dissociation. To account for the dissociation dynamics of heavy quarkonium in lattice QCD, it is necessary to incorporate both the real and imaginary parts of the potential. As an exploratory analysis, our comparison was confined to the real part of the lattice QCD results. Therefore, our model provides additional information in the form of the dissociation distance, which is not present in the lattice QCD data.

3.3

Entropy

In this subsection, we systematically investigate the entropy of heavy quark anti-quark pairs, an important physical quantity used to characterize the degree of disorder in the micro-states induced by the interactions between quarks and antiquarks. Entropy not only provides crucial insights into the thermodynamic properties of the heavy quark system but also reveals the underlying mechanisms of its dynamic behavior. The specific expression for the entropy is given by Eq. (31). Furthermore, we examine how the entropy varies with the interquark distance L and analyze its behavior under different temperature and chemical potential conditions. The relevant results are presented in Fig. 4, We calculated the results for the 95% CL (shaded area) and the MAP (red solid line), subfigure (a) displays the calculation results of the effect of different temperatures on the entropy with the chemical potential fixed at zero, while subfigure (b) presents the calculation results of the effect of chemical potential on the entropy with the temperature fixed at T=0.134 GeV. Our research indicates that as the temperature and chemical potential increase, the value of the entropy also rises. This finding leads us to conclude that, in environments with higher temperature and chemical potential, the production rate of heavy quark-antiquark pairs is significantly suppressed.

Fig. 4Full-screen View

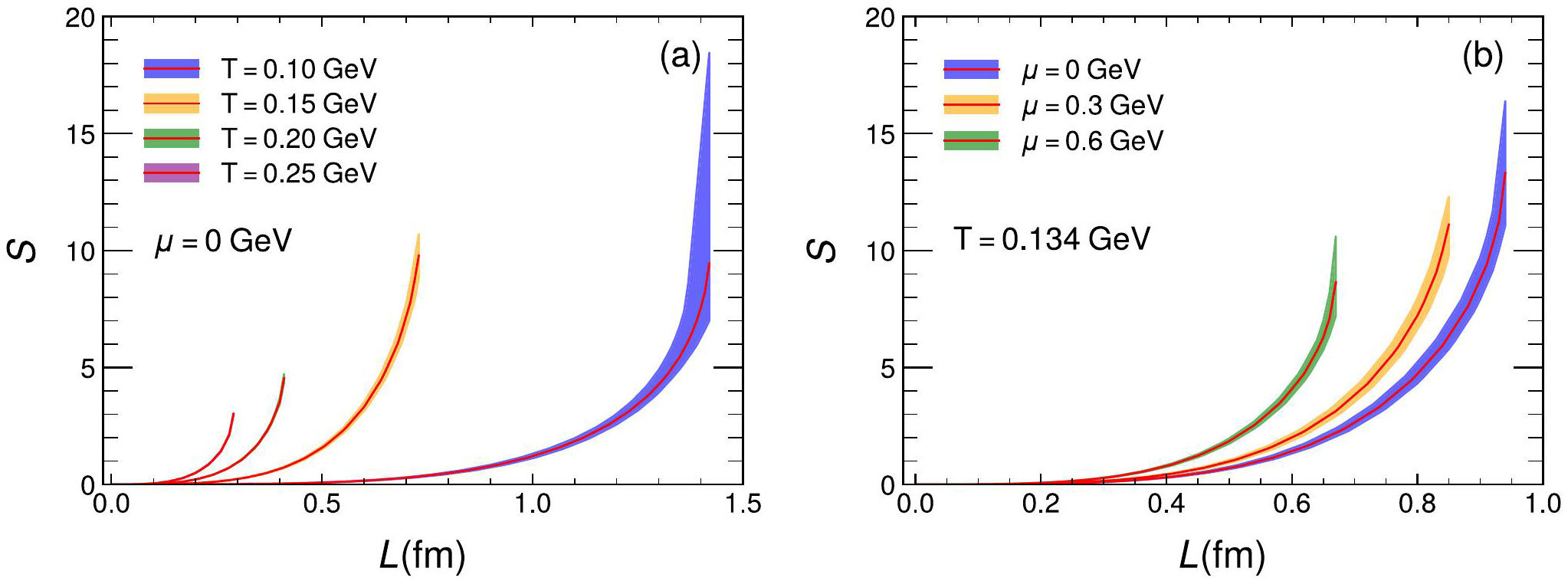

(Color online) (a) The dependence of the entropy S of quark-antiquark pairs on the interquark distance L at different temperatures when μ=0. (b) The dependence of the entropy S of quark-antiquark pairs on the interquark distance L at different chemical potential when T=0.134 GeV. The shaded area represents the 95% CL, and the red solid line denotes the result of the MAP calculation

Under specific temperature or chemical potential conditions, an increase in the distance between quarks leads to a significant rise in entropy. This increase in entropy directly results in a larger entropy force, expressed as [119]. As shown in Fig. 5, in our calculations, as , heavy quarkonium approaches dissociation, accompanied by a sharp increase in entropy. According to the definition of entropy, the entropic force corresponds to the derivative of entropy with respect to distance. Consequently, this force tends to infinity under such conditions. In the calculations of Ref. [120], when heavy quarkonium is in the deconfined state, the entropy exhibits a peak, which corresponds to an infinite entropic force. This finding is consistent with our computational results. This phenomenon indicates that the increase in entropy is not merely a thermodynamic characteristic; it is closely related to the dynamic dissociation process of quark-antiquark pairs. As discussed in detail in Ref. [24, 119, 121], the enormous entropy force is considered a key factor driving the dissociation of heavy quark-antiquark pairs, further emphasizing the importance of entropy in the study of quark physics.

Fig. 5Full-screen View

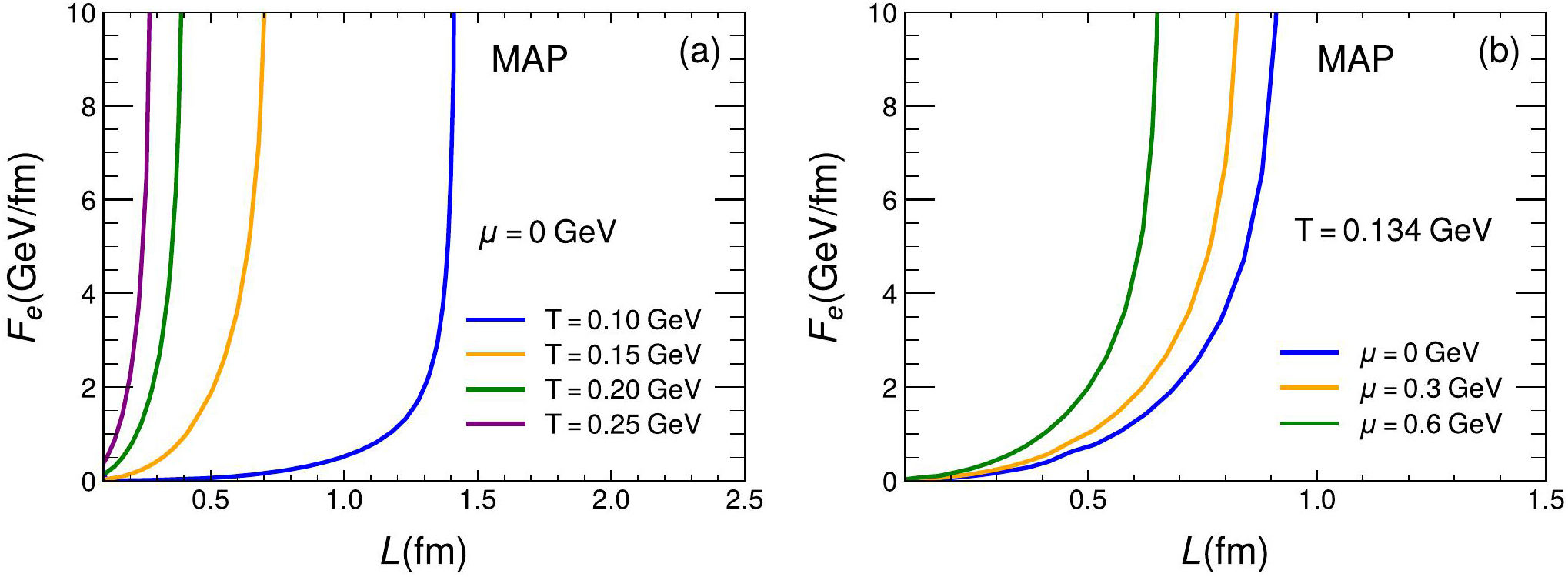

(Color online) When selecting MAP value, (a) The dependence of the entropy force F_e on interquark distance L for the quark-antiquark pair at different temperatures when μ=0. (b) The dependence of the entropy force F_e on interquark distance L for the quark-antiquark pair at different chemical potentials when T=0.134 GeV

3.4

Binding energy

In this section, we use Eq. (32) to calculate the binding energy of heavy quark-antiquark pairs as a function of the distance L between quarks at different temperatures and chemical potentials. As shown in Fig. 6, We calculated the results for the 95% CL (shaded area) and the MAP (red solid line), subfigure (a) displays the calculation results of the effect of different temperatures on the binding energy with the chemical potential fixed at zero, while Subfigure (b) presents the calculation results of the effect of chemical potential on the binding energy with the temperature fixed at T=0.134 GeV. The binding energy increases with rising temperature and chemical potential. When L reaches the critical value L_c (where ), the binding energy becomes zero, indicating that the potential energy of the bound heavy quark-antiquark pair is equal to the free energy of the unbound pair, that is, E(L_c)=0. When L exceeds this critical value L_c, the binding energy becomes positive, indicating that the potential energy of the bound heavy quark-antiquark pair is higher than the free energy of the unbound pair. Notably, a physical distinction exists between the position of zero binding energy L_c and the actual dissociation distance L_max. L_c marks a thermodynamic critical point where the free energies of the bound state and the free quark states become equal. However, the heavy quark-antiquark pair does not dissociate at L > L_c, but continues to exist as a metastable bound state [18, 39], for further discussion on this issue, see e.g. Ref. [122]. True dissociation occurs at L_max, which constitutes a dynamic instability point. When the distance exceeds L_max, the string configuration connecting the quark pair becomes dynamically unstable (i.e., ‘string snapping’), leading to the dissociation of heavy quarkonium. Consequently, the relationship between these two distances satisfies L_c < L_max. As shown in Fig. 6, in our calculations the increase in temperature and chemical potential reduces the maximum value of the binding energy. However, we emphasize the effects of temperature and chemical potential on the binding energy at a fixed distance. At a fixed distance, the binding energy increases with rising temperature and chemical potential, while the corresponding absolute value of the binding energy decreases. Simultaneously, the increase in temperature and chemical potential also reduces L_c, indicating that elevated temperature and chemical potential promote the dissociation of the heavy quarkonium.

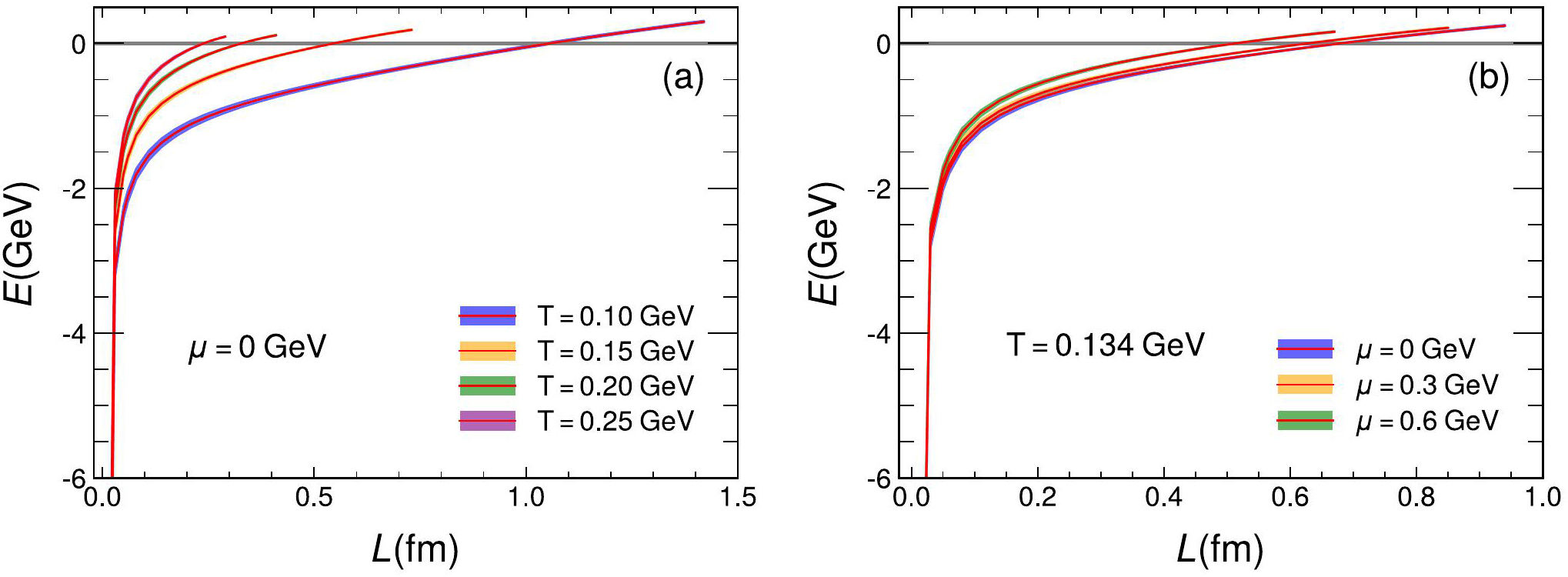

Fig. 6Full-screen View

(Color online) (a) The dependence of the binding energy E of quark-antiquark pairs on the interquark distance L at different temperatures when μ=0. (b) The dependence of the binding energy E of quark-antiquark pairs on the interquark distance L at different chemical potential when T=0.134 GeV. The shaded area represents the 95% CL, and the red solid line denotes the result of the MAP calculation

3.5

Internal energy

In this section, we employ Eq. (34) to calculate the relationship between the internal energy of heavy quark-antiquark pairs and the interquark distance L under varying temperatures and chemical potentials. As depicted in Fig. 7, We calculated the results for the 95% CL (shaded area) and the MAP (red solid line), subfigure (a) displays the calculation results of the effect of different temperatures on the internal energy with the chemical potential fixed at zero, while subfigure (b) presents the calculation results of the effect of chemical potential on the internal energy with the temperature fixed at T=0.134 GeV. The results indicate that at smaller interquark distances L, the internal energy U is negative and remains relatively unaffected by changes in temperature and chemical potential. However, at larger interquark distances L, the internal energy becomes positive and increases with rising temperature and chemical potential. According to the definition of internal energy, this behavior suggests that at short interquark distances, the internal energy is predominantly governed by the potential energy, whereas at larger distances, the entropy contributions play a significant role.

Fig. 7Full-screen View

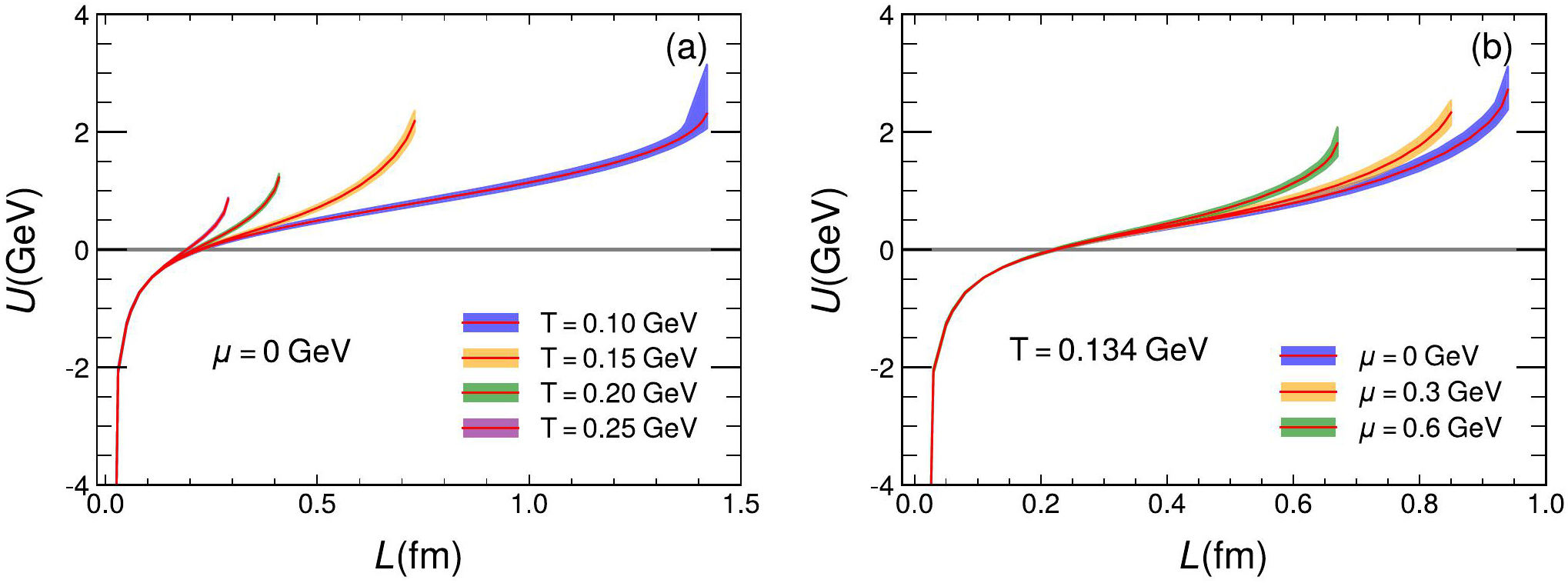

(Color online) (a) The dependence of the internal energy U of quark-antiquark pairs on the interquark distance L at different temperatures when μ=0. (b) The dependence of the internal energy U of quark-antiquark pairs on the interquark distance L at different chemical potential when T=0.134 GeV. The shaded area represents the 95% CL, and the red solid line denotes the result of the MAP calculation

Thermodynamics of single quark

In this section, we investigate the free energy of a single quark, as shown in Eq. (33), as well as the entropy and internal energy, with the following expressions:(37)(38)In this section, we investigate the effect of the chemical potential on the thermodynamic quantities of a single quark. We have calculated the results for the 95% CL (shaded area with color) and the maximum a posteriori estimate (red solid line). The free energy of a single quark is shown in Fig. 8, where it can be seen that an increase in chemical potential leads to an increase in free energy, and approaches a conformal situation in the high-temperature limit. The entropy of a single quark is illustrated in Fig. 9, where the results indicate that SQ also increases with the chemical potential and will tend toward conformal limit in the high-temperature limit. The internal energy of a single quark is shown in Fig. 10, and the results also indicate that the internal energy increases with the chemical potential, with also approaching the conformality limit in the high-temperature limit.

Fig. 8Full-screen View

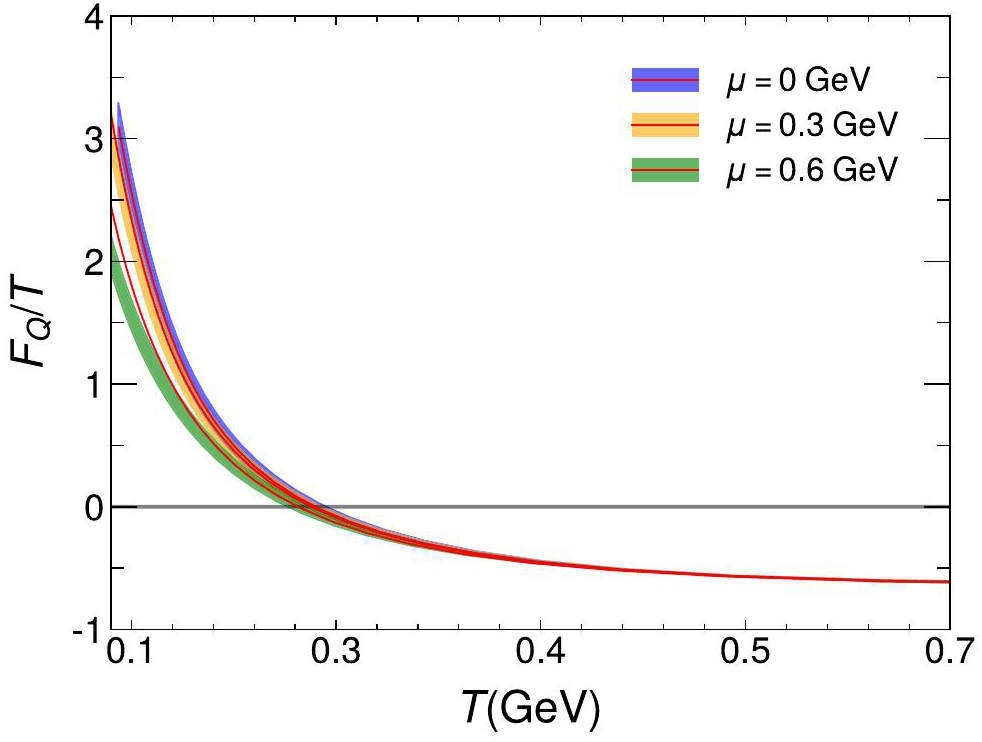

(Color online) The dependence of the single quark free energy on the temperature for different chemical potentials. The shaded area with color represents the 95% CL, and the red solid line denotes the result of the MAP calculation

Fig. 9Full-screen View

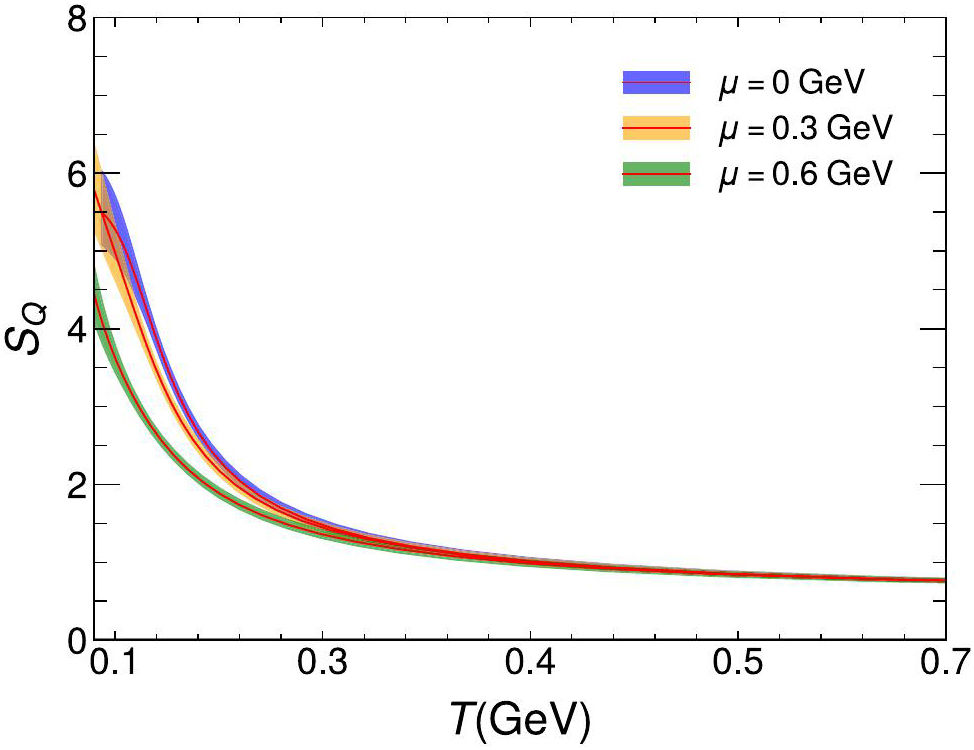

The dependence of the single quark entropy on the temperature for different chemical potentials. The shaded area with color represents the 95% CL, and the red solid line denotes the result of the MAP calculation

Fig. 10Full-screen View

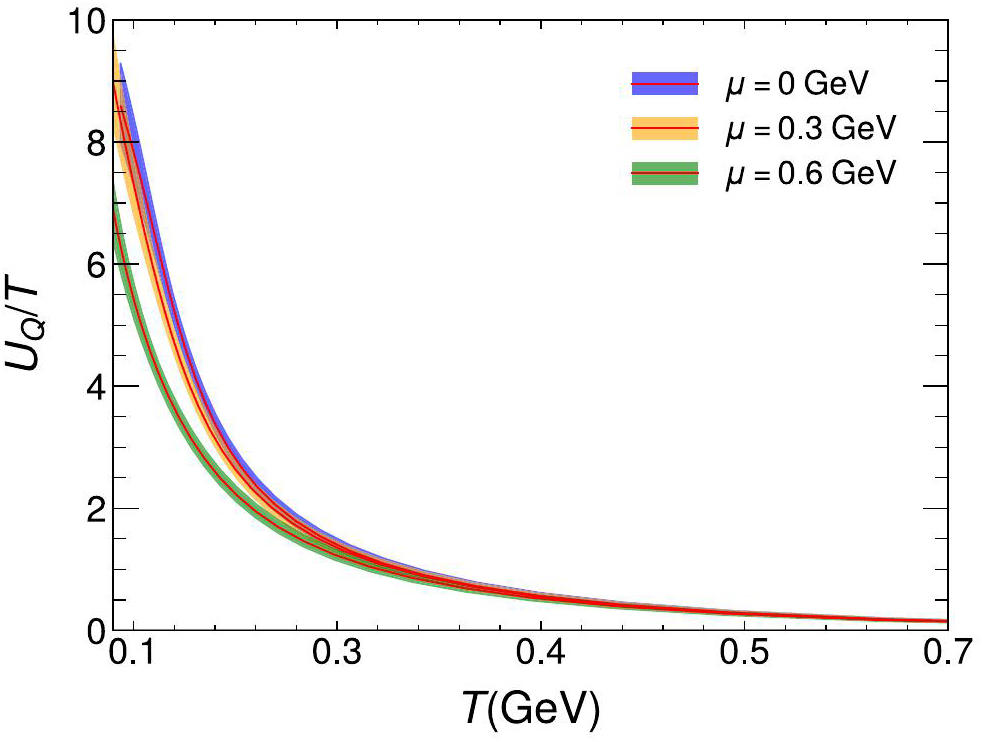

(Color online) The dependence of the single quark internal energy on the temperature for different chemical potentials. The shaded area with color represents the 95% CL, and the red solid line denotes the result of the MAP calculation

Summary

In this study, we investigated the effects of temperature and chemical potential on the dissociation distance, potential energy, entropy, binding energy, and internal energy of heavy quarkonium based on a Bayesian holographic QCD model. Our study finds that an increase in temperature and chemical potential decrease the dissociation distance and suppress the heavy quark potential. When the interquark distance L is small, the effects of temperature and chemical potential on the potential energy are minimal; however, they become more pronounced when the interquark distance L is large. An increase in the temperature and chemical potential results in an increase in the entropy. Within the dissociation distance, the entropy also increases significantly with the interquark distance, leading to a larger entropic force. This larger entropy force facilitates the dissociation of heavy quark-antiquark bound states. Correspondingly, the binding energy reaches zero at smaller interquark distance L as temperature and chemical potential increase, indicating that under high temperature and high chemical potential, the binding force of heavy quark-antiquark pairs becomes weaker. The internal energy increases with rising temperature and chemical potential. At smaller interquark distance L, the internal energy is primarily dominated by potential energy, whereas at larger interquark distance L, it is dominated by TS. The effects of temperature and chemical potential on the internal energy are minimal at small quark interquark distance, but become significant at larger interquark distance.

Our results robustly demonstrate that elevated temperature and chemical potential accelerate heavy quarkonium dissociation by enhancing entropic forces and suppressing binding energy. These findings deepen our understanding of quark-gluon plasma (QGP) signatures in heavy-ion collisions and provide a framework for probing QCD matter under extreme conditions. The consistency of the single-quark free energy and entropy trends further supports the generality of our conclusions.

It should be noted that within the holographic model framework, the model parameters obtained from lattice QCD thermodynamic data at zero chemical potential can be utilized to compute the thermodynamic quantities at a finite chemical potential. In Ref. [123], using the holographic model combined with lattice QCD data for the equation of state and second-order baryon number susceptibility at zero chemical potential, the model parameters were derived (Table 1). Calculations based on these derived parameters agree with the lattice QCD data at zero chemical potential (as shown in Fig. 1). Furthermore, thermodynamic quantities calculated at finite chemical potential using these derived parameters also show good agreement with the corresponding lattice QCD data (as demonstrated in Fig. 2). This approach has been widely adopted in holographic model calculations. Our calculations were also based on this methodology.

Although our model captures the essential features of quarkonium dissociation, several limitations warrant discussion. The Bayesian framework relies on specific assumptions about the holographic dual, which may not fully capture the non-perturbative QCD effects; The chemical potential range studied here is applicable to heavy-ion collision scenarios; however, extensions to neutron star matter or other high-density systems require further exploration.
