1. Introduction

Experiments of heavy-ion collisions using high-energy beams from the Heavy Ion Research Facility at Lanzhou – Cooling Storage Ring (HIRFL-CSR) ^[1] provide a significant opportunity to study the nuclear equation of state at high baryon densities ^[2,3] and the Quantum Chromo Dynamics (QCD) phase diagram, especially the possible existence of critical point^[4] and quarkoyanic matter^[5,6]. The HIRFL-CEE spectrometer ^[7-16] is conceptually designed to measure the various products of 100 MeV/u to 800 MeV/u heavy-ion beams hitting on a heavy-ion target. In the CEE spectrometer, at the center of the homogeneous magnetic field provided by a large acceptance superconducting dipole, a time projection chamber (TPC) ^[17] is designed to be installed. The task of the TPC is to provide track reconstruction, particle identification and momentum measurement of the light charged particles. The sensitive volume of the TPC is about 90 cm (length) × 100 cm (width) × 80 cm (height).

Before the construction of the full-scale CEE-TPC, a small prototype TPC should be constructed and tested to determine whether the TPC’s performance meets the experiment’s requirements. The 3D track resolution and energy loss resolution of charged particles are essential in the TPC performance. Furthermore, a laser beams calibration system is required for the large volume type of TPC ^[18]. This article provides the description of the prototype CEE-TPC and test results of laser beams.

2. Detector design

The prototype CEE-TPC is also a cubic shape TPC, whose sensitive volume is 20 cm (length) × 20 cm (width) × 22 cm (height). A photo of prototype TPC’s field cage is shown in left image of Figure 1, and the photo of the laser test’s setup is shown in the right image of Figure 1. The top panels are one layer thick Gas Electron Multiplier (GEM) foil and the readout plane, while the bottom panel is the cathode. The electron drifting field cage lies between the top panels and the bottom panel. The walls of the field cage are made of two kinds of layers, gold-plated metal and insulative plastic. The metal and plastic is arranged at regular intervals that the width of the gold-plated metal is 6 mm and the width of insulative plastic is 4 mm. In order to produce step voltage between the metal strips and fill the cage with an electric field with perfectly uniform intensity, there is a divider resistor of 20 MΩ soldered between adjacent metal strips. The thickness of the GEM foil ^[19-22] is 0.6 mm. The diameter of holes in the GEM foil is 0.6 mm, and the distance between the holes is 1.1 mm.

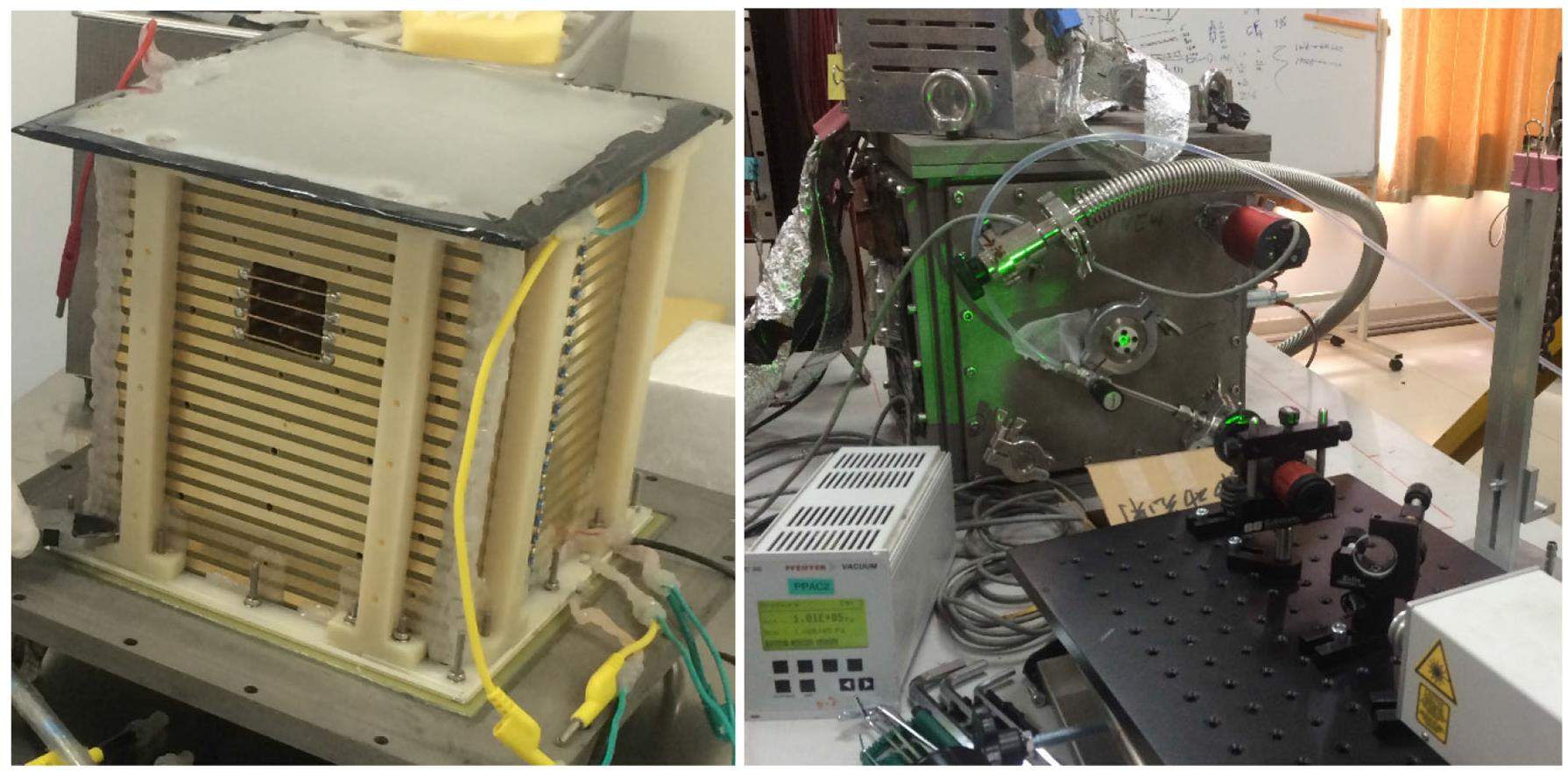

Figure 1Full-screen View

(Color online) The field cage of prototype TPC (left) and setup of laser test (right)

Figure 2 shows the working principle of TPC. The readout panel is divided into several pads and each pad is connected to one channel of preamplifier. The arrow shows the incident direction of the laser beam, and there are three dimensions, X, Y, and Z. The X-Z plane is parallel to the readout plane, and the Y coordinate is perpendicular to X-Z plane. There are two types of pads in this prototype. The size of the rectangle pad is 8 mm (width) × 10 mm (length). The triangle pad can provide precise position resolution in the X direction using the charge-weighting technique.

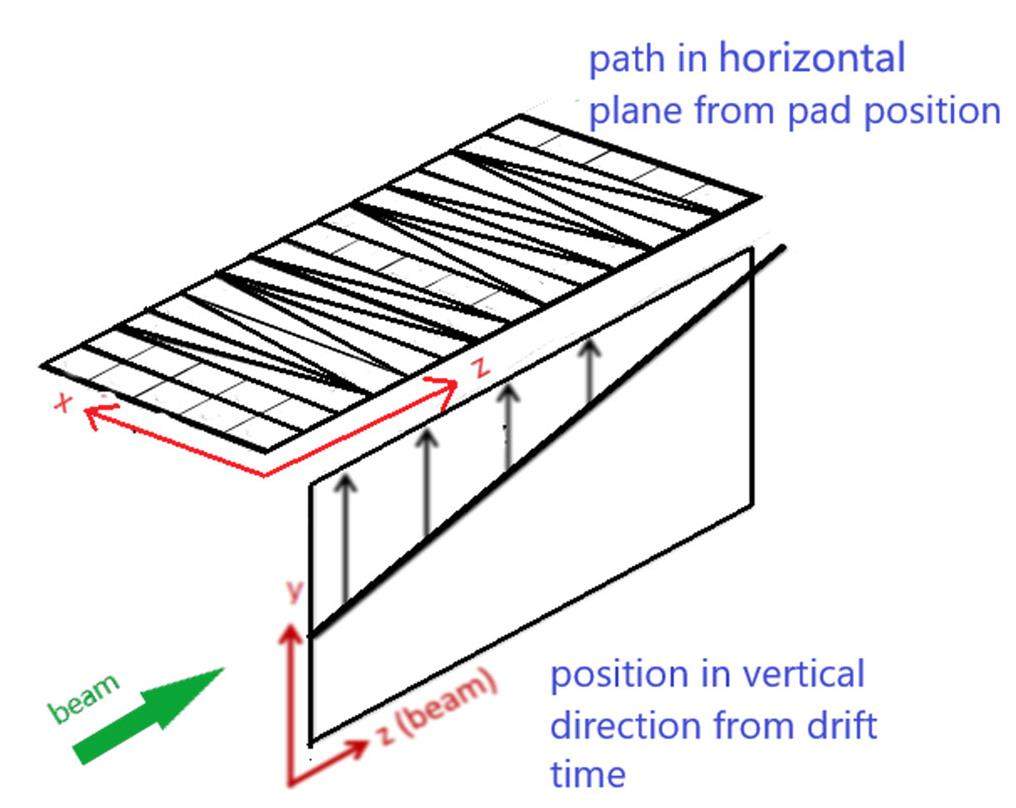

Figure 2Full-screen View

(Color online)The working principle

3. Experimental results

A The energy loss and its resolution

The gas mixture of this TPC is composed of 90% argon, 7% methane, and 3% CF₄. A pulsed laser beam with 266 nm in wavelength, which imitates straight charged particle tracks, is used to test the prototype CEE-TPC at three gas pressure conditions (101 kPa, 75 kPa, and 50 kPa). First, the dependence of the energy loss of the laser beam in the gas on the high voltage applied on the GEM foil is studied. Figure 3 shows that the energy loss of the laser beam increases exponentially with the increase of the high voltage applied on the GEM foil. This figure helps to choose an appropriate voltage during the experiment. It is more difficult to apply high voltage on GEM foil, if the gas pressure is lower, the detector could generate sparks more easily. However, changing the voltage among the drift cage or the voltage between the GEM foil and anode panel has a slight effect on the gain of the GEM foil, because changing the voltage slightly changes the electric field near the holes of the GEM foil.

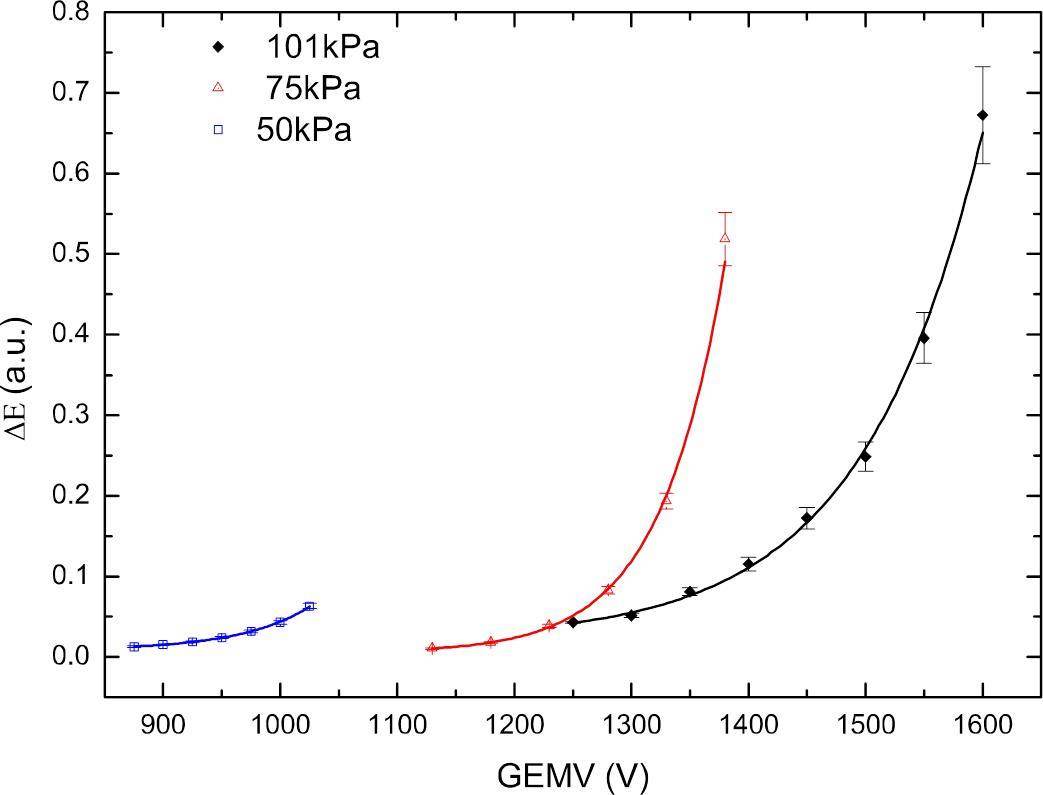

Figure 3Full-screen View

(Color online) The energy loss dependence on the voltage

We used a Laser Pyroelectric Energy Sensor to measure the energy of the laser beam per pulse with a wavelength of 266 nm. Figure 4 shows that there is a linear correlation between the energy of the laser beam and energy loss measured on one readout pad. Also the smaller of the gas pressure is, the less the energy loss of laser beam is. Since the instability of the energy of laser beam is about 1.5%, we can calculate that in most cases, the average energy resolution of prototype CEE-TPC is about 5.4%.

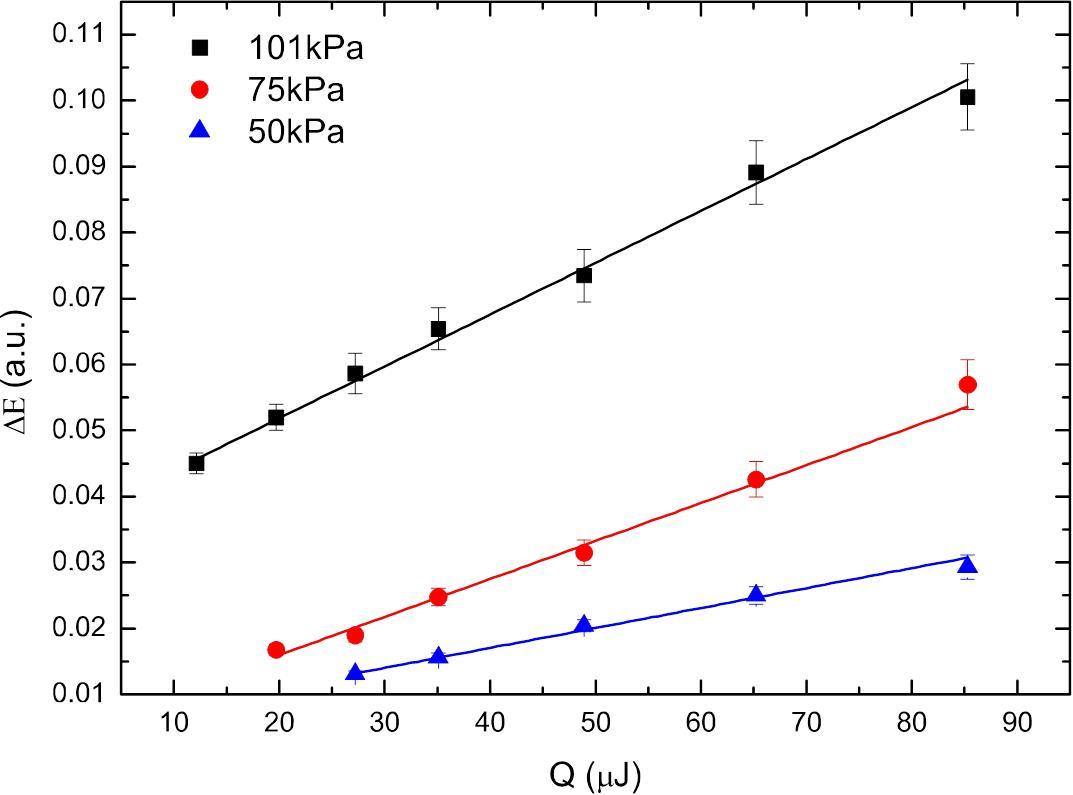

Figure 4Full-screen View

(Color online) The correlation between energy loss and heat quantity of laser beam per pulse

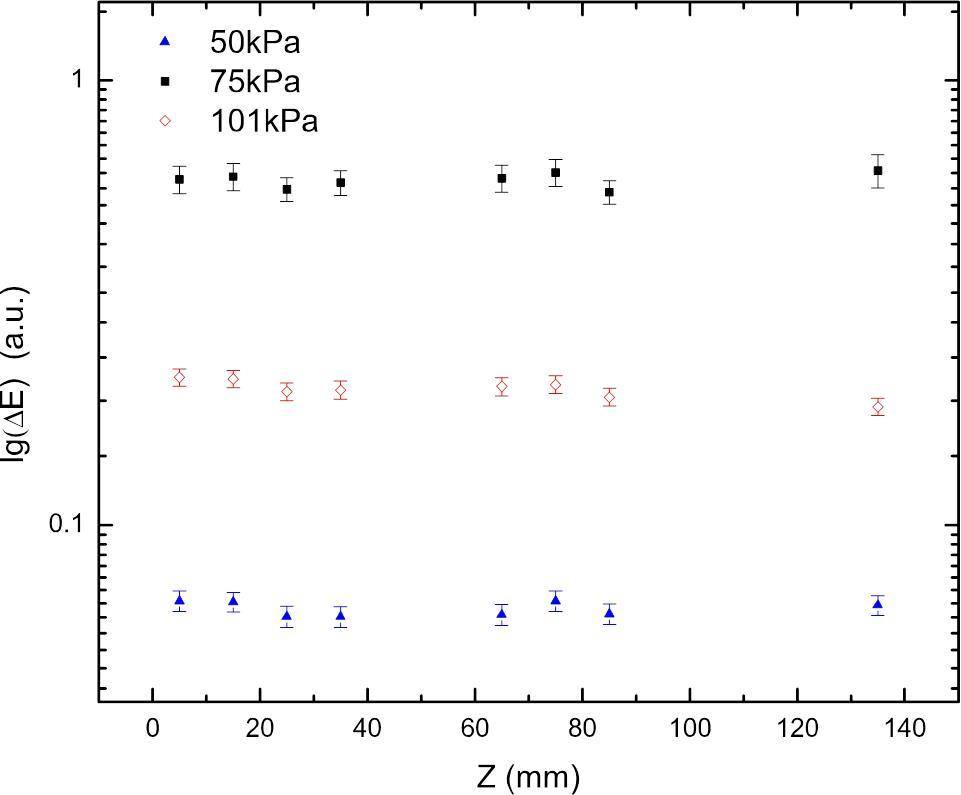

Figure 5 shows the energy loss measured along the laser beam tracks. The differences of energy loss indicate that the gain of the whole piece of GEM foil is not uniform. There is a maximum variation of 5%, which affects the position resolution when using the charge-weighting technique. Further work should be done to calibrate the gain of the GEM.

Figure 5Full-screen View

The energy loss along the beam direction

B. The drifting velocity of electrons

It is important to know the drifting velocity of electrons at different gas pressures. We changed the electric-filed strength at three kinds of gas pressures and used E/P (electric-field strength per atmosphere pressure) as abscissa. A linear correlation between drifting velocity and E/P can be observed from Fig. 6.

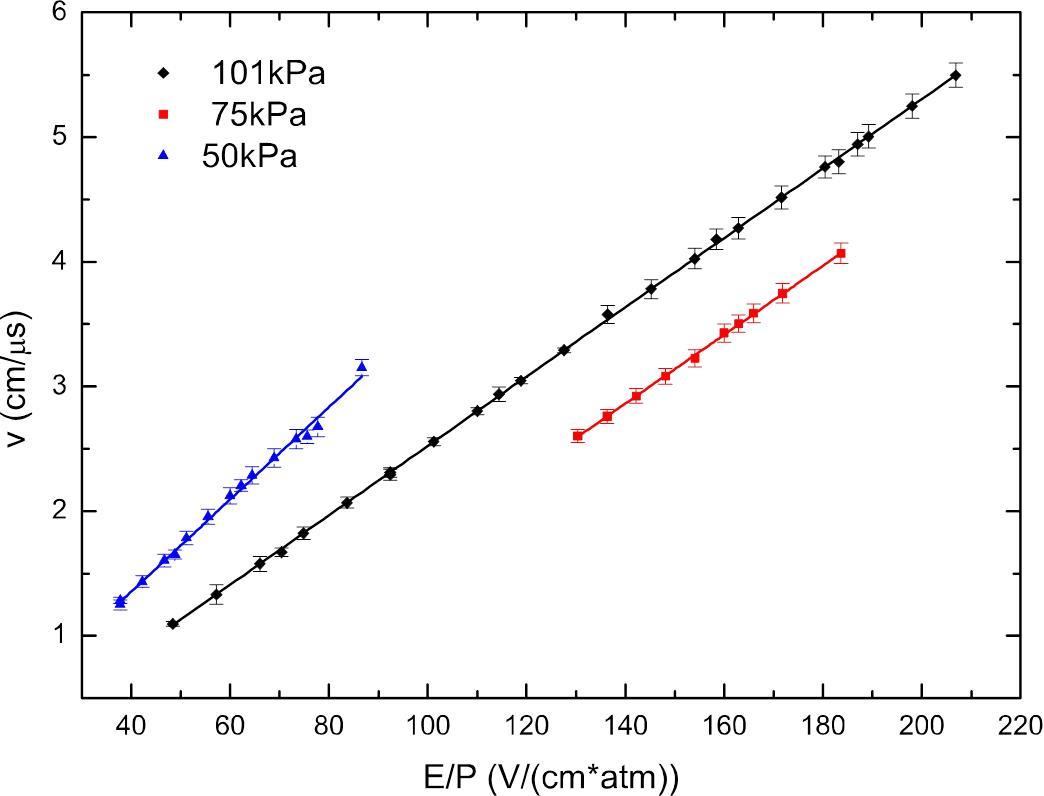

Figure 6Full-screen View

(Color online) The correlation between drifting velocity and reduced electric field (E/P)

C. The track resolution

Figure 7 and Figure 8 show the different laser beam tracks measured by the prototype CEE-TPC at one atmosphere. The position resolution in the X direction for each pad is about 0.5 mm, and the errors come from energy error. After a full scan of the gain of the GEM foil, the resolution is determined to be about 0.2 mm. The position resolution in the Y direction for each pad is about 0.5 mm, and the errors come from the errors of drifting time of the electrons.

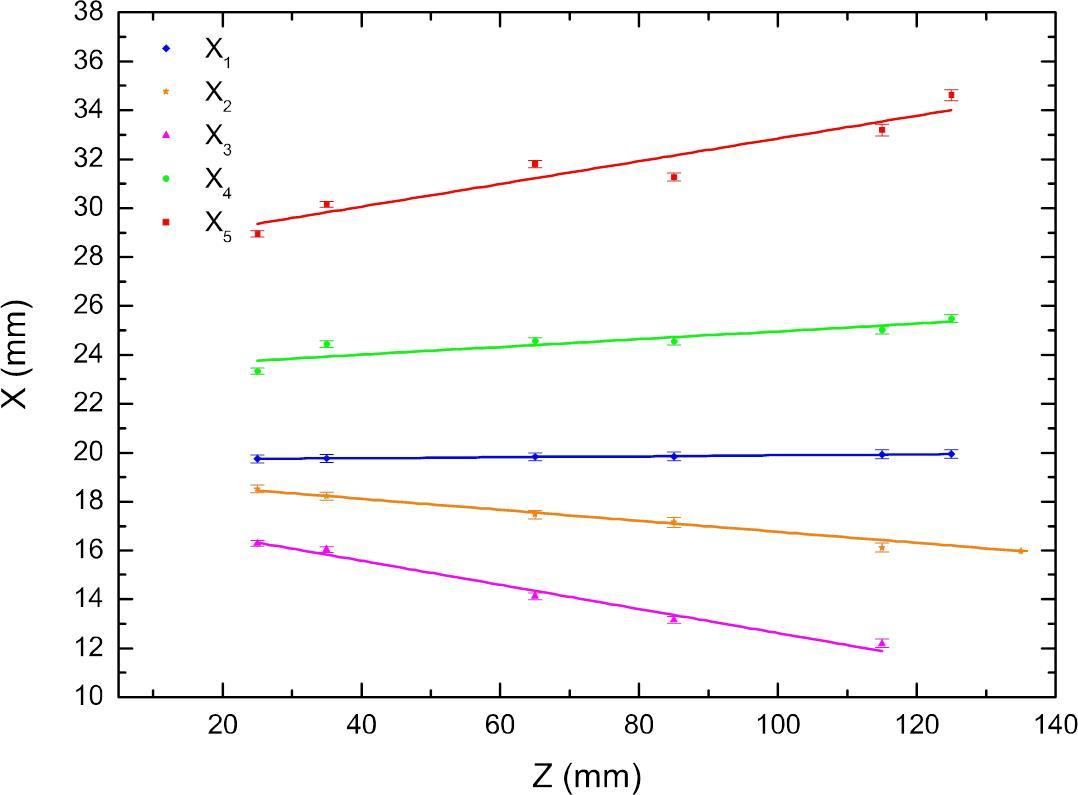

Figure 7Full-screen View

(Color online) The tracks of five laser beams in X-Z plane

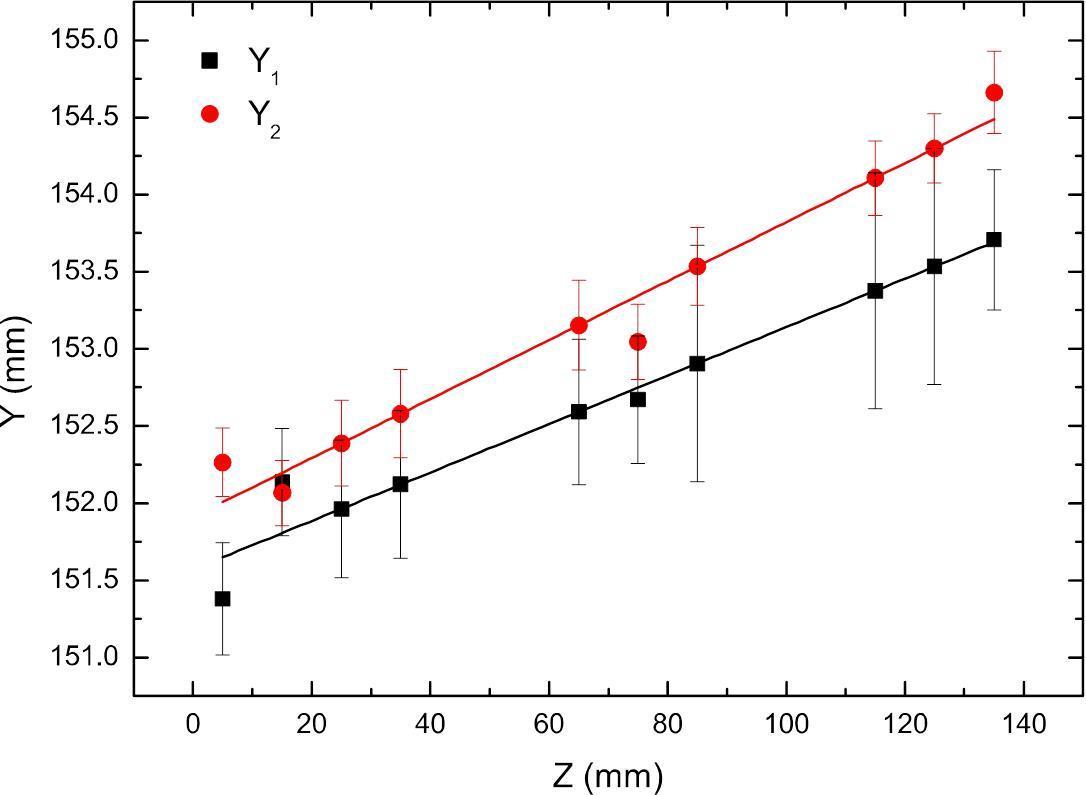

Figure 8Full-screen View

(Color online) The tracks of two laser beams in Y-Z plane

4. Conclusion

We have constructed a prototype CEE-TPC with Thick-GEM-based readout that has the ability to reconstruct three-dimensional position. The performance of the TPC detector is studied in details by the test of pulsed ultraviolet laser beams. The correlation between energy loss and GEM’s voltage is exponential relation. The correlation between drifting velocity and electric-field strength is linear relation. The energy loss has a linear relation with total heat quantity. The position resolution in X and Y directions is about 0.2 mm and 0.5 mm, respectively. The average energy resolution of prototype CEE-TPC is about 5.4%. The track resolution and the energy loss resolution of the TPC achieves the requirement of the CEE experiment.
