Introduction

The main goal of producing relativistic nucleus-nucleus collisions at the RHIC and LHC is to create a deconfined quark and gluon plasma (QGP), a new state of matter that forms at a high density and temperature, as predicted by quantum chromodynamics (QCD), and to understand its properties [1-4]. The azimuthal anisotropies of the particles produced in the collisions have proven to be a powerful probe for investigating QGP characteristics and hadron structure [5-16]. Therefore, they have been extensively measured experimentally and studied both experimentally and theoretically. These anisotropies can be quantified in terms of the coefficients vn in the Fourier-series expansion of the particle distributions with respect to the reaction plane (RP), defined by the beam axis and the impact parameter, which is determined on an event-by-event basis [17-21]: $E\frac{{\text{d}}^{3}N}{\text{d}{p}^3}=\frac{{\text{d}}^{2}N}{2\pi p_{\text{T}}\text{d}{p}_{\text{T}}\text{d}y}\left(1+{\displaystyle \sum _{n=1}^{\infty }}2v_n\cos [n(\phi -{\Psi }_{\text{RP}})]\right)\mathrm{,}$ (1) where φ and Ψ_RP are the azimuthal angles of the particle of interest and of the reaction plane, respectively. The Fourier coefficient is given by $v_n=\langle \cos [n(\phi -{\Psi }_{\text{RP}})]\rangle \mathrm{.}$ (2) In practice, several methods have been proposed for analyzing the azimuthal anisotropies of the final particles. These include the event-plane method, the η-subevent method, the cumulant method, and the Lee-Yang-Zero (LYZ) method [5, 22-25]. Their purpose is to mitigate the non-flow contributions and the flow fluctuations. In the past two decades, the direct flow (v₁) and elliptic flow (v₂) have been measured experimentally at both the RHIC and LHC. One remarkable finding of the flow investigations conducted at the RHIC (and confirmed at the LHC) is the scaling of v₂ with the number of constituent quarks in a hadron, in cases where many particle species produced in high-energy nucleus-nucleus collisions in the low-transverse-momentum region [5-9, 20, 26]. Furthermore, at both the RHIC and LHC, this scaling is seen to improve when expressed as a function of the scaled hadron transverse energy [5-8, 26]. This may be a consequence of energy conservation, as discussed in Ref. [10] based on the Boltzmann equation. This observation is consistent with the standard model, which considers quarks as the basic building blocks of all matter, and with quark coalescence as the hadronization mechanism [9-14, 17, 21, 27-36]. This provides indirect evidence that a QGP is formed in high-energy nucleus-nucleus collisions.

Usually in experimental investigations of number-of-constituent-quark (NCQ) scaling phenomena, both the experimental v₂ data and the transverse momentum or energy of an identified particle species are scaled with its number of constituent quarks. Then, the scaled v₂ is plotted as a function of the scaled transverse momentum or energy. NCQ scaling is then identified by eye because the experimental data measured are discrete. Several attempts have been made to quantitatively elucidate the NCQ scaling [5, 7, 37, 23, 24]. Such studies adopt a polynomial function to fit the scaled v₂ as a function of the scaled transverse momentum or energy for a chosen particle species. (The chosen order of the polynomial, up to the seventh, depends on the particle of interest, the collision energy, and the fitting range of the scaled transverse momentum or energy.) This polynomial defines a baseline from which to calculate the deviation of the scaled v₂ for the other particle species. However, such a polynomial function is suboptimal because it may oscillate, and its behavior beyond the data range is determined by the sign of the coefficient of the largest-order term. Other forms of empirical functions have also been proposed to investigate the NCQ scaling by fitting the v₂ data for mesons and baryons simultaneously [17, 38, 26]. These are discussed in the next section. Considering the fact that the p_T bins differ for mesons and baryons in experimental measurements, we here propose, as a plausible quantitative approach, to search for an empirical function capable of fitting all the experimental v₂ data and to conduct the investigation based on this analytical function.

The remainder of this paper is organized as follows. Section 2 briefly introduces two variables (d₁, d₂) to quantify the NCQ scaling of the identified particles simultaneously. The empirical functions quoted in the literature and our proposed empirical function for fitting the experimental v₂ data are also introduced. Section 3 shows the fit results of v₂ for different particle species from the beam energy scan (BES) program at the RHIC to LHC. The NCQ scaling is shown quantitatively to be a function of both the scaled transverse momentum and the scaled transverse energy. Section 4 closes with concluding remarks.

Method and empirical functions

Assuming that we know the information at any point of the scaled v₂ and the corresponding scaled transverse momentum or energy for each particle species, we can define two variables that simultaneously and quantitatively characterize the quality of the NCQ scaling.

The first variable is the deviation between the scaled v₂ for one particle species and the average of all the scaled v₂ values for the particle species of interest in the NCQ scaling at each scaled transverse momentum or energy. It can thus be defined as $d_1({\tilde{p}}_{\text{T}})=\left|{\tilde{v}}_2^i({\tilde{p}}_{\text{T}})-\overline{{\tilde{v}}_2({\tilde{p}}_{\text{T}})}\right|\mathrm{,}$ (3) where ${\tilde{p}}_{\text{T}}=\frac{p_{\text{T}}^i}{n_i}$ is the scaled transverse momentum, and ni=2 for the mesons and 3 for baryons. We denote as ${\tilde{v}}_2^i({\tilde{p}}_{\text{T}})$ the scaled v₂ for particle species i, and as $\overline{{\tilde{v}}_2({\tilde{p}}_{\text{T}})}$ the average of all the scaled v₂ of the particle species of interest. Equation (3) assumes that $\overline{{\tilde{v}}_2({\tilde{p}}_{\text{T}})}$ is the real NCQ scaling curve. If the NCQ scaling is perfect, then $d_1({\tilde{p}}_{\text{T}})=0$ for each ${\tilde{p}}_{\text{T}}$. Therefore, the deviation of $d_1({\tilde{p}}_{\text{T}})$ from 0 can characterize the extent by which the NCQ scaling is violated.

The second variable is the difference between the maximum of ${\tilde{v}}_2^i({\tilde{p}}_{\text{T}})$ and the minimum of ${\tilde{v}}_2^j({\tilde{p}}_{\text{T}})$ among the particle species of interest at a given ${\tilde{p}}_{\text{T}}$: $d_2({\tilde{p}}_{\text{T}})=\text{m}\text{a}\text{x}\{{\tilde{v}}_2^i({\tilde{p}}_{\text{T}})\}-\text{m}\text{i}\text{n}\{{\tilde{v}}_2^j({\tilde{p}}_{\text{T}})\}\mathrm{.}$ (4) Notably, the particle species i, j can differ when ${\tilde{p}}_{\text{T}}$ changes and $d_2({\tilde{p}}_{\text{T}})$ is positively defined. Similar to $d_1({\tilde{p}}_{\text{T}})$, for ideal NCQ scaling, $d_2({\tilde{p}}_{\text{T}})$ should equal zero for each ${\tilde{p}}_{\text{T}}$. Again, a non-zero $d_2({\tilde{p}}_{\text{T}})$ can be used to characterize the extent of the NCQ scaling violation.

When we apply the scaled transverse energy ${\tilde{E}}_{\text{T}}=\frac{E_{\text{T}}^i}{n_i}$, where $E_{\text{T}}^i=\sqrt{m_0^i{}^2+p_{\text{T}}^i{}^2}-m_0^i$ and $m_0^i$ is the rest mass of particle i, the definitions of the two variables in Eqs. (3, 4) can also be used by replacing ${\tilde{p}}_{\text{T}}$ with ${\tilde{E}}_{\text{T}}$.

The discreteness of the experimental data precludes their simultaneously satisfying the above assumption for both the scaled transverse momentum and energy. This is because the particle masses differ and the conversion between p_T and E_T is nonlinear. Therefore, to bridge the gap between the data and our requirements, we utilize an empirical function that provides a good fit to the experimental data.

Several empirical functions have been proposed in the literature to fit v₂ data. The most popular one adopted in the experimental papers is a simple polynomial function. As argued above, it has defects that also become apparent when choosing polynomial orders between 3 and 7 [5, 7, 37, 23, 24]. The second best-known empirical function was proposed by Dong et al. [17] when NCQ scaling was discovered at the RHIC: $f_{v_2}(p_{\text{T}}\mathrm{,}n)=\frac{an}{1+\exp \left[-\left(p_{\text{T}}/n-b\right)/c\right]}-dn\mathrm{.}$ (5) Equation (5) has four fitting parameters a,b,c, and d, with n being the NCQ in a particle species. Clearly, $f_{v_2}(p_{\text{T}}\mathrm{,}n)$ becomes a constant at high p_T, contradicting recent experimental data measured at high p_T [7, 8, 18-20, 22, 24, 26, 29, 39]. However, it was good to use at the early times because only low p_T region data were measured back to that time. Equation (5) appears not to include the origin, as required by the definition of v₂.

To overcome these limitations, another empirical function was proposed in Ref. [38]: $v_2(p_{\text{T}}\mathrm{,}n)=\frac{p_{0}n}{1+\exp (\frac{p_1-p_{\text{T}}/n}{p_2})}-\frac{p_{0}n}{1+\exp (\frac{p_1}{p_2})}-p_{3}n{p}_{\text{T}}\mathrm{,}$ (6) where p₀, p₁, p₂, and p₃ are free parameters. This equation is satisfied at the origin and is not constant at high p_T. As shown in the next section, it can fit most of the available experimental v₂ data but not for large p_T. We therefore do not adopt Eq. (6) in our study.

As an alternative, we propose a new empirical function: $v_2(p_{\text{T}})=\frac{a{p}_{\text{T}}^b}{1+\exp \left[d{p}_{\text{T}}^c+\tanh \left(e{p}_{\text{T}}^f\right)\right]}\mathrm{,}$ (7) with free parameters a, b, c, d, e, and f. We emphasize that the experimental v₂ data are well fitted by Eq. (7), as discussed in the next section.

Results

We test the empirical function in Eq. (7) by fitting the v₂ data for the available identified or charged particles, ignoring data that either display large fluctuations or are scant for A+A collisions from the RHIC and LHC (i.e., from $\sqrt{s_{\text{NN}}}=$ 7.7 GeV to 5.44 TeV). This is because the v₂ data with large fluctuations do not have sufficient statistics, and those with only few data points can not constrain the free parameters in Eq. (7). Neither case can serve the purpose of this study. The long-running and successful high-energy heavy-ion collision program still provides a wealth of v₂ data suitable for our investigation. Notably, Eq. (7) is positively defined. On the rare occasions where, for some particle, v₂ is negative when p_T is close to zero [29, 40, 41], we ignore that data point in the fitting. Figures 1 and 2 show our fit results for Eq. (7) to v₂ data for the selected particles in different collision systems and at different collision energies.

Fig. 1Full-screen View

Dependence of v₂ on p_T for (a) protons in Au+Au collisions at $\sqrt{s_{\text{NN}}}=200$ GeV with a centrality of 30–80%, and (b) for pions in Pb+Pb collisions at $\sqrt{s_{\text{NN}}}=2.76$ TeV with a centrality of 30–40%. The data are obtained from Refs. [7, 8]. The methods used to extract v₂ are labeled. The curves are the fit results for the v₂ data using Eq. (7). The data/fit are shown in the bottom panels, respectively.

Fig. 2Full-screen View

(Color online) Dependence of v₂ on p_T for protons or charged particles produced in Au+Au collisions at the RHIC, and for pions or charged particles produced in Pb+Pb or Xe+Xe collisions at the LHC. The data are obtained from Refs. [7, 26, 19, 25, 20, 42]. The labels indicate the methods used to extract v₂. The curves are the fit results to the v₂ data using Eqs.(5, 6, and 7) and the 6th-order polynomial, as indicated in the legend.

Figure 1 shows examples of fit results for (a) the v₂ data of $p+\overline{p}$ derived from Au+Au collisions at $\sqrt{s_{\text{NN}}}=200$ GeV with centrality 30–80%, and (b) the v₂ data of π⁺+π^- derived from Pb+Pb collisions at $\sqrt{s_{\text{NN}}}=2.76$ TeV with centrality 30–40%. The ratio of the data to the fit values provides a visual assessment of the fit quality, reflecting the discrepancy between the central values of the data and the fit results shown in the bottom panel for each subfigure. For both cases, the central values of the v₂ data deviate from Eq. (7) within 5%, except for one data point from Au+Au collisions at p_T close to 0. The very low value at that point makes the data/fit ratio very sensitive to the fit.

Figure 2 shows the fit results with Eq. (7) to the v₂ data for different centralities and collision energies. Subplots (a)-(g) show v₂ for the elliptic flow of protons in Au+Au collisions at $\sqrt{s_{\text{NN}}}=$ 7.7 GeV to 62.4 GeV with centrality 0-80%. Subplots (h) and (i) plot the elliptic flow of charged particles in Au+Au collisions at $\sqrt{s_{\text{NN}}}=$ 130 GeV with centrality 16-24% and of protons in Au+Au collisions at $\sqrt{s_{\text{NN}}}=$ 200 GeV with centrality 30-80%. Subplots (j) to (l) give the elliptic flow of charged particles (pions) in Pb+Pb collisions at $\sqrt{s_{\text{NN}}}=\mathrm{2.76,5.02}$ TeV and in Xe+Xe collisions at $\sqrt{s_{\text{NN}}}=5.44$ TeV with centrality 30-40% [7, 26, 19, 25, 20]. Good fits are also obtained for the other tested cases. Exhaustive testing suggested that Eq. (7) can fit the v₂ data extracted from different approaches, for its central values well over a wide range of p_T, which definitely covers the p_T range where the NCQ scaling holds.

The fit results from the functions frequently adopted in the experimental papers, i.e., the polynomial function, Eqs. (5) and (6), are also shown. For the polynomail function, we choose a 6th-order polynomial as an example. The fitted curve at high p_T clearly either increases or decreases depending on whether the sign of the coefficient of the highest order term is, respectively, positive or negative. Extrapolating the results based on this polynomial function is surely unreliable. Oscillations also appear when the fitting range is large. The empirical function in Eq. (5) can only fit the v₂ data for low and intermediate p_T values, where v₂ reaches its maximum because Eq. (5) is constant at large p_T by definition. Equation (5) is not guaranteed to equal zero at p_T=0 GeV/c. Equation (6) is an improvement of Eq. (5) and can fit almost all of the v₂ data presented. We therefore adopted the empirical function in Eq. (7). There is a noticeable limitation for the extrapolation from the fit, which depends on how well the fitting function is constrained beyond the data points. This issue, common to all fitting functions, has consequences for our analysis, as discussed below. Therefore, the two variables d₁ and d₂, defined in Sect. 2, are utilized to mitigate the problem caused by extrapolation beyond the data points. Fortunately, there is no need to extrapolate in the NCQ scaling region, and our conclusion is not affected.

We can now quantitatively investigate the NCQ scaling of elliptic flow as a function of the scaled transverse momentum (or energy) of the identified particles produced in A+A collisions at the RHIC and LHC. Figures 3 and 4 show, respectively, the NCQ scaling of the elliptic flow v₂ of six identified particles, i.e., π⁺ + π^-, K⁺+K^-, $p+\overline{p}$, ϕ, ${\Xi }^{-}+{\overline{\Xi }}^{+}$ and ${\Omega }^{-}+{\overline{\Omega }}^{+}$ from Au+Au collisions at 200 GeV with centrality 0-30% at the RHIC; and the elliptic flow v₂ of five identified particles, i.e., π⁺ + π^-, K⁺ + K^-, $p+\overline{p}$, $\Lambda +\overline{\Lambda }$ and ${\Xi }^{-}+{\overline{\Xi }}^{+}$ from Pb+Pb collisions at 2.76 TeV with centrality 30-40% at the LHC. The values of v₂ for an identified particle are known to depend on the extraction method [5, 22-24]. This could affect the NCQ scaling when the v₂ data for different particle species of interest were extracted using different approaches in experiments. Therefore, we select the v₂ of the different identified particles extracted by the same method for one chosen collision system. The fit to the experimental data, obtained using Eq. (7) and the two variables (d₁, d₂) defined above, versus the scaled transverse momentum (or energy), are also shown.

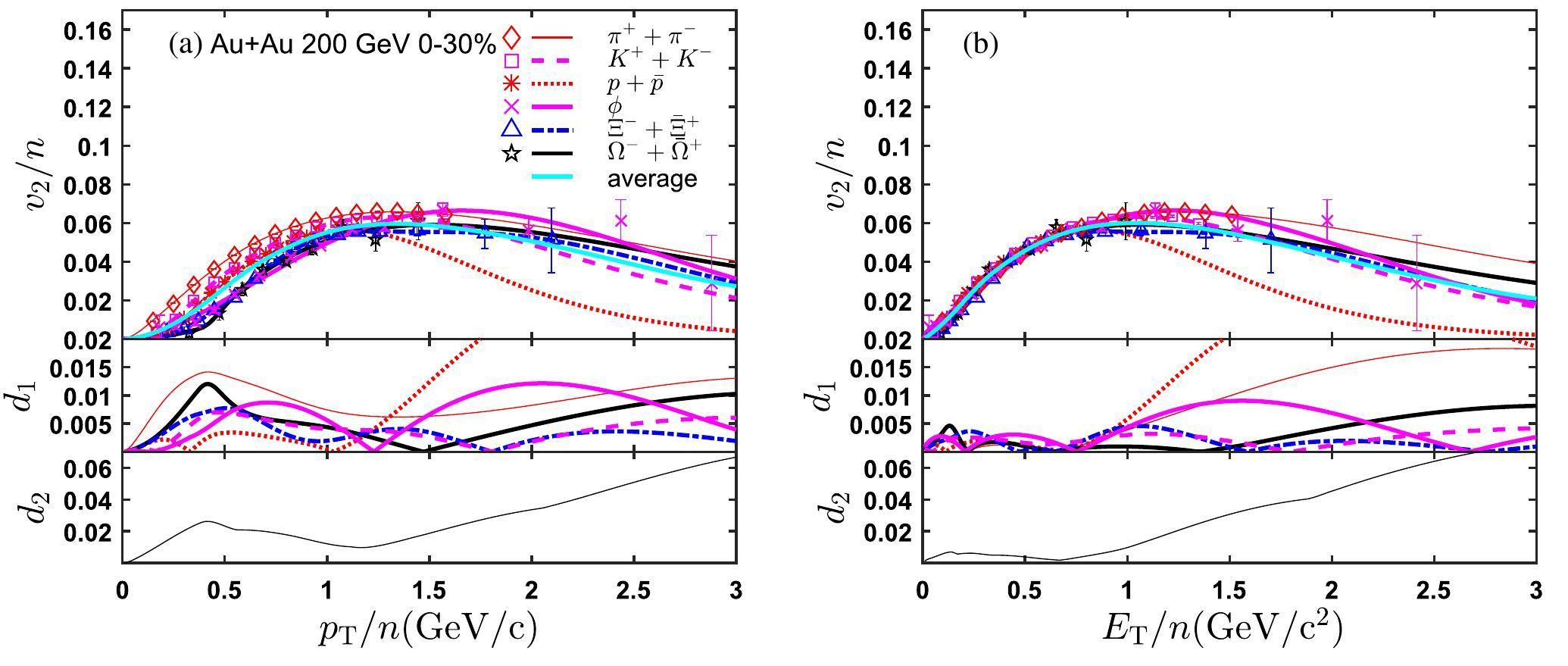

Fig. 3Full-screen View

(Color online) Scaled elliptic flow versus scaled transverse momentum (left panel) and energy (right panel) for the six identified particles (indicated in the legend) produced in Au+Au collisions at $\sqrt{s_{\text{NN}}}=200$ GeV with centrality 0-30%. The curves for the fit results obtained using Eq. (7) and their averages are plotted. The two variables (d₁, d₂) are also plotted as functions of the scaled transverse momentum and energy, with appropriate scales for showing the details where NCQ scaling holds. The data are obtained from Ref. [7].

Fig. 4Full-screen View

(Color online) Similar results to Fig. 3 but for Pb+Pb collisions at $\sqrt{s_{\text{NN}}}=$ 2.76 TeV with 30-40% centrality. The data are obtained from Ref. [8].

Figure 3 (a) presents the NCQ scaling of the elliptic flow for the six identified particles at a centrality of 0-30% from Au+Au collisions at $\sqrt{s_{\text{NN}}}=$ 200 GeV versus the scaled transverse momentum. Figure 3 (b) shows the scaling versus the scaled transverse energy. The experimental data clearly scale better versus the scaled transverse energy, as discussed in Ref. [10]. In Fig. 3(a), the scaled elliptic flow data points are clearly ordered according to mass, except ϕ, which refers to protons at very low ${\tilde{p}}_{\text{T}}$. In other words, lighter particles have a larger scaled ${\tilde{v}}_2$ at the same scaled transverse momentum in the low p_T region, which refers to the mass ordering of the scaled elliptic flow. This anomaly of mass ordering between ϕ and protons was observed and explained in Ref. [7]. It is seen that π stays relatively far from the other particles, which was interpreted in Refs. [11, 17] as being due to the resonance decays. When the scaled ${\tilde{v}}_2$ are plotted against the scaled transverse energy in Fig. 3(b), all the data points map onto a single curve and the mass ordering vanishes at low ${\tilde{E}}_{\text{T}}$. These results are clearly illustrated by the two variables (d₁, d₂) in the bottom panels of Fig. 3. We note that the extrapolation from the fitting curve for $p+\overline{p}$ is poor because no data points are available in the high p_T region and show different behavior from other particles. According to Eq. (4), d₂ is affected most strongly in the extrapolation region. This effect is mitigated in the case of d₁ by an averaging over all the particle species. We also emphasize that the region where NCQ scaling holds is not affected. Comparing the values from Figs. 3(a) and (b), we see that both d₁ and d₂ deviate slightly from 0 at p_T/n<1.2 GeV/c, which is the crossing point of the scaled ${\tilde{v}}_2$ for several particle species. On the other hand, d₁ and d₂ are very close to 0 at E_T/n<1.0 GeV/c². For the other scaled transverse momentum (or energy) region where the NCQ scaling is completely violated, d₁ and d₂ increase and deviate from 0. The consistent behavior of d₁ and d₂ is not surprising because they are both defined to reflect the quality of the NCQ scaling from different perspectives. Our results suggest not only that they provide consistency between the NCQ scaling and that done intuitively by looking; they also show fine details.

Figures 4 (a) and (b) show, respectively, the NCQ scaling of elliptic flow for the five identified particles at centrality 30-40% from Pb+Pb collisions at $\sqrt{s_{\text{NN}}}=$ 2.76 TeV, versus scaled transverse momentum and scaled transverse energy. Similar results to those in Fig. 3 are observed generally. The NCQ scaling violation is clearly evidenced because the data are available at high p_T for all particle species of interest at the LHC. The d₁ and d₂ variables are much less affected by the extrapolation issue for the same reason. The mass ordering of scaled v₂ versus p_T/n is unquestionable. These results reflect the fact that the same matter is created in the relativistic nucleus-nucleus collisions, and that it undergoes similar dynamical processes. We emphasize that the conclusion does not change from Au+Au at RHIC in Fig. 3.

Conclusion

To summarize, we have proposed an empirical function for fitting the elliptic flow v₂ data of the identified particles produced in A+A collisions at the RHIC and LHC. We also quantitatively investigate the NCQ scaling of the elliptic flow of the identified particles. This is done by utilizing the analytical empirical function to overcome the challenge posed by the discreteness of the experimental data. Thus, the NCQ scaling cannot be quantitatively investigated simultaneously for the scaled transverse momentum and energy. Given the issues associated with the extrapolation from the fitting function beyond the measured data region, particularly for Au+Au at the RHIC, two variables (d₁, d₂) are defined to quantify the NCQ scaling simultaneously. As expected, they not only give consistent results with those obtained by intuitively looking at the data (namely, that the NCQ scaling is better for the scaled transverse energy than the scaled transverse momentum); they also provide fine details of the region where the NCQ holds. This approach can be applied to study other experimental scaling phenomena quantitatively.
