Anti-Coincidence Detector

The primary function of the ACD is to minimize the backsplash effect caused by high-energy photons and to reject the background of the charged particles. As the first barrier for rejecting charged particles, it is closely wrapped around the STED. The ACD is composed of 448 plastic scintillator detector tiles (20 cm×20 cm×1 cm). Plastic scintillators have a high detection efficiency for charged particles and a low detection efficiency for photons. Therefore, they are often used as the ACD for gamma ray detection. To prevent particles from passing through the gap between the ACD without being identified, the gaps between the tiles are covered by flexible scintillating fiber ribbons.

The backsplash effect was first discovered by the EGRET team. When a high-energy photon enters the calorimeter, it generates numerous secondary low-energy photons (ranging from 0.1 MeV to a few MeV), some of which may travel in the opposing direction through the STED and reach the ACD. This scattering causes the electrons to recoil,thus generating an electrical signal in the ACD. The intensity of this effect depends on many factors, such as the incident particle energy, calorimeter thickness, and material composition. The intensity of the backsplash effect increases with the energy of the incident particles and the radiation length of the calorimeter. To mitigate this effect, the Fermi-LAT detector divides the ACD into smaller units by utilizing the discrepancy between the piece in the incident direction and that in the recoil to discriminate the recoil event. This modular design effectively suppresses the misinterpretation of photons attributed to the backsplash effect of high-energy photons. Following this scheme, the ACD in the VLAST design enables the dismissal of fired tiles that are not aligned with the direction of photon incidence, thereby significantly mitigating the influence of the backsplash effect. The backsplash effect in VLAST is shown in Fig. 4.

The photon flux is lower than that of protons by a factor of 10⁵ and lower than that of electrons by approximately 10³ in the observational energy band of VLAST. To detect photons in the complex cosmic-ray background of charged particles, VLAST must have an outstanding ability to distinguish between photons and charged particles. When photons transform into electron-positron pairs in the STED, they can be discriminated from protons based on the shower pattern produced by the electrons-positrons and protons in the HEIC. As described in Sect. 4.5, HEIC has good electron-to-proton (e-p) discrimination capability, which significantly reduces the proton background. However, the discrimination between photons and electrons depends only on the ACD, which requires a minimum rejection fraction of 0.999 for charged particles. Therefore, ACD plays a critical role in identifying photons and distinguishing them from charged particles in the VLAST detector.

Silicon Tracker and low Energy gamma-ray Detector

The STED of VLAST is designed to fulfill three primary functions. First, it reconstructs particle trajectories with an accuracy exceeding 120 μm for most incident particles. Second, it determines the charge of cosmic rays. Lastly, it converts the incoming photons into electron-positron pairs and detects both the photons and electrons resulting from Compton scattering. It consists of eight layers of silicon trackers and low-energy gamma ray detector modules. Each module consists of a CsI layer on the top and a silicon strip module at the bottom. The silicon strip module contains two layers of silicon strip detectors. The single-sided silicon strips are arranged in the x- and y-directions with a pitch size of 120 μm, defined as the distance between the centers of the adjacent strips. The top six layers of the 8-layer CsI have a thickness of 2 mm each, and the bottom two layers have a thickness of 4 mm each, resulting in a total radiation length of approximately 1 X₀. Each layer of CsI is assembled by joining numerous CsI (Na) scintillating crystal square panels, with each panel side measuring approximately 200 mm. The upper and lower surfaces of each layer of CsI are tightly coupled to two layers of square wavelength-shifting (WLS) fibers arranged along the x- and y-axes, each with a cross-sectional side length of 2 mm. The WLS fibers absorb the blue scintillation light emitted from the CsI and transmit a fraction of the re-emitted red light to the SiPMs connected at their ends. The readout signals from the SiPMs can be used to infer the energy deposition and x-y coordinates of particle interactions in the CsI panels.

There are two main types of interactions between gamma-rays in the STED: Compton scattering and pair production. The dominant interaction depends on the energy of the gamma-rays. Compton scattering is predominant at energies below a few tens of MeV, whereas electron-positron pair production dominates at higher energies. Different types of detectors have been designed to capture gamma-rays in various energy bands. For example, COMPTEL [8], Fermi-LAT [5], and AGILE [50] focused on either the low-or the high-energy range. In contrast, VLAST aims to simultaneously detect gamma rays in the energy band simultaneously from 0.1 MeV to 1 TeV, encompassing both interactions. Consequently, the gamma rays undergoing these two distinct interactions require different detection methods. The detection principle of VLAST is illustrated in the lower-right panel of Fig. 1.

For pair production events, the conceptual design of VLAST is similar to that of Fermi-LAT and AGILE, but is optimized for the lower energy band. CsI serves a dual role as both a positron-electron pair converter and detector for measuring the position and low-energy deposition of interactions.

This design ensures a high conversion efficiency of gamma rays into electron-positron pairs. The CsI low-energy calorimeter does not reduce the multiple scattering effects of pair events. However, it can provide the deposited energy and position of the fired tiles better than tungsten plates, allowing for a more accurate assessment of energy and multiple scattering. Consequently, this design improves the energy and angular resolution at low energies compared to Fermi-LAT and AGILE.

Detection of a Compton scattering event is challenging because the scattered photons carry away a significant portion of the momentum of the primary particle, especially when compared to pair production processes. Therefore, VLAST must be capable of simultaneously measuring two photons. Upon the entry of an incident photon into the detector, Compton scattering occurs within one layer of the tracker, giving rise to secondary photons and electrons. The photon is scattered with an electron in the detector and transfers a fraction of its energy (E₁) to an electron. The scattered photon retains its remaining energy (E₂) and may interact with the CsI of the lower-energy detector behind it or enter the HEIC. The angle θ between the photon and the electron after Compton scattering is calculated as follows: $\cos (\theta )=1-m_e{c}^2\left(\frac{1}{E_2}-\frac{1}{E_1+E_2}\right)\mathrm{,}$ (1) where $m_e{c}^2$ is the mass-equivalent energy of electron.

If only the angle of Compton scattering can be reconstructed, the incident direction of the photon can only be located on a circle in the sky, which is referred to as an “event circle". These events are known as “untracked" events. The width of the circle is related to the accuracy of the detector in measuring the direction of the scattered photon and energy of the scattered electron. If the direction of the scattered electrons can be measured, the “event circle" becomes an “event arc". These events are referred to as “tracked" events, and the length of the arc reflects the accuracy of the directional measurement of the scattered electron. However, measuring such events is difficult for VLAST because the scattered electrons are easily absorbed by the CsI low-energy detector.

The STED has a total thickness equivalent to one radiation length, which allows for a 65% conversion rate of high-energy photons at normal incidence into electron-positron pairs. Figure 2 illustrates the conversion positions. Figure 3 provides an orthogonal cut view of a 50 MeV gamma-ray event detected in the tracker, demonstrating the generation of an electron-positron pair in the CsI crystal and the gradual deviation of the electron and positron from their original paths owing to multiple scattering. Recoil particles cause signal scattering. This inverted “V” signature is helpful in rejecting the much larger background of charged cosmic rays.

Fig. 2Full-screen View

(Color online) The position distribution of 50 GeV photons converting into positron-electron pairs. From left to right, the peaks correspond to the ACD, STED, and HEIC, respectively. The cumulative distribution function (CDF) of conversion probabilities is displayed by the y-axis on the right side of the figure

Fig. 3Full-screen View

Illustration of the hits in the STED for a 50 MeV gamma-ray photon (x-z plane). The photon converts into an electron-positron pair in one of the CsI plates

The main design challenge of STED is to balance the electron–positron pair conversion efficiency with the angular resolution in the low-energy range. The angular resolution of the low-energy photons is significantly affected by multiple scattering, which depends on 1/E. Therefore, it is necessary to design thinner CsI conversion materials to reduce multiple scattering effects. However, this approach reduces the conversion efficiency of low-energy photons. To resolve this tradeoff, CsI is divided into two types: thin layers are placed in the front section of the STED to ensure angular resolution for low-energy photons, and thick layers are placed in the back to maintain a high conversion efficiency for high-energy photons. For low-energy photons with energies of approximately 100 MeV, the direction is mainly determined by the two leading measurement points. The first two measurement points after the photon transition point are crucial in accurately reconstructing the direction of incident photons. To reduce the multiple scattering effects caused by the CsI plate and support material, the efficiency of each measurement layer should be close to 100%. Therefore, the spaced placement of CsI planes with silicon strip planes allows the precise measurement of positive and negative electron traces. The thick CsI plane placed at the bottom increases the efficiency of photon conversion at lower energies. This increases the statistics of low-energy photons. Studying the time-domain variation of photons is essential, despite the reduced angular resolution of photons.

Another challenge is balancing the field of view (FoV) and angular resolution of the detector. For very-high-energy photons, the impact of multiple scattering on the angular resolution becomes less critical. The ratio between the width of the silicon strip and the thickness of the silicon tracker detector place the primarily limitation on the angular resolution. Ideally, finer silicon strips would yield improved angular resolution. However, this results in an increased complexity of the fabrication process and higher electronic power consumption. By contrast, increasing the thickness of the STED leads to a reduction in the FoV and shifts the center point of the detector upward. STED was designed with these factors in mind.

High Energy Imaging Calorimeter

The HEIC has two main purposes. First, it measures the deposited energy of particles resulting from the interaction of incident photons. Second, to image the shower development profile which is used to reject the cosmic ray background and provide an estimate of the energy leakage fluctuations in the shower. To achieve high energy resolution, we adopted the design of the BGO calorimeter onboard the DAMPE [25]. The HEIC comprises four identical modular towers arranged in a 2×2 array; each tower has 416 BGO crystals divided into four layers, with each adjacent layer placed orthogonally. Each BGO crystal is 2.5 cm × 2.5 cm × 1.4 m in size. The total vertical depth of HEIC is 18 radiation lengths or 1 nuclear action length, with oblique incidence events experiencing higher radiation lengths. The total effective detection area of HEIC is at last 2.8 m × 2.8 m. Photomultipliers at both ends read out the signals from the BGO bars. The different dynodes of the photomultiplier tubes are responsible for different energy bands, enabling VLAST to encompass a wide energy range from MeV to TeV. The left/right light asymmetry provides a measure of the position of the energy deposit along the bar. Thus, each fired BGO crystal provides the x, y, and z coordinates of the shower, and the shower shape can be inscribed in three dimensions. The number of inscribed pixels is directly related to the crystal dimensions. The shower axis also provides a rough track that can be used as a seed for the STED track reconstruction. Energy leakage is inevitable for grazing incidence and very high-energy photons, because the calorimeter has a limited radiation length. Leakage energy can be estimated using a shower profile from beam tests or simulations. Taking the energy leakage correction into account significantly enhances the energy resolution of these events.

Simulation

To validate and optimize the VLAST design concepts, we developed a simulation framework that includes incident particle definition, detector geometry definition, a physical interaction list, digitization, and an event reconstruction analysis system. The framework is based on GEANT4, a publicly available toolkit developed in C++ used to simulate the interactions between particles and matter. It includes numerous physical models of particle-matter interactions and is widely used in various fields, such as high-energy physics, accelerator physics, space science, and medicine [49, 51-54]. The gamma-ray source is set up as a sphere with an energy range of 0.1 MeV to 1 TeV.

The GEANT4 FTFP_BERT physics list was used to simulate incident particles with energies above 10 MeV. For 0.1 MeV–10 MeV gamma rays, we substituted electromagnetic physics with G4EmStandardPhysics_option4. This option introduces a more accurate model of Compton scattering and low-energy electromagnetic interactions, albeit at the cost of significantly increasing the computation time. We used the geometry module of GEANT4 to build the entire detector system, including the ACD, STED, and HEIC. The constructed VLAST geometry with a normal-incident 50 GeV gamma ray is shown in Fig. 4. The simulated output data of different subdetectors were digitized with the typical electronic noise of their corresponding readout systems[55].

Fig. 4Full-screen View

(Color online) Simulated shower particle tracks for a normal-incident 50 GeV photon. The backsplash particles would produce self-veto in the ACD

Trigger design

The preliminary trigger logic for scientific data collection consists of five trigger engines: MeV-Gamma, GeV-Gamma, low-energy (LE), high-energy (HE), and Calibration, as shown in Table 1. Each subdetector provides one or more trigger requests as detailed in the following list:

• ACD: energy >0.8 MeV, corresponding to 0.4 MIP (minimum ionization particle);

• STED: three consecutive layers are on fire;

• CsI-hit: two layers are on fire;

• HEIC-hit: >5 MeV for the first or second layer;

• HEIC-HE: >5 MeV, >500 MeV, >500 MeV, >500 MeV for the first 4 layers;

• HEIC-LE: >5 MeV, >5 MeV, >50 MeV, >50 MeV for the first 4 layers;

• HEIC-MIP: >5 MeV for the 1st, 2nd, 7th, and 8th layers.

The MeV-Gamma, GeV-Gamma, and HE trigger logics were combined to reserve gamma-ray events from sub-MeV to multi-TeV. The comprehensive trigger efficiencies were 45%, 90%, and >95% at 1 MeV, 1 GeV and above 10 GeV, respectively. LE trigger logic (with a large prescale factor) was designed to reserve GeV cosmic rays for performance validation in orbit. Calibration trigger logic was used for unit calibration of HEIC.

Event reconstruction

We utilized different algorithms to reconstruct the trajectories and energies of the pair production and Compton scattering events. The Kalman filter was used to reconstruct the trajectory of the pair production event after charge sharing. The Compton scattering formula was adopted to reconstruct the direction of photon incidence. The longitudinal development of an electromagnetic shower was used to reconstruct the energy.

Before trajectory reconstruction, the process of charge sharing between the silicon strips should be considered. This is mainly due to diffusion during charge collection and capacitive coupling. The drifting of electron-hole pairs along the magnetic field lines causes the size of the charge cloud to increase, whereas capacitive coupling occurs on the coupling strip between the two readout strips. The charge-sharing parameters originating from DAMPE were obtained using a beam test [25, 56-60]. The charge-sharing algorithm is as follows: $E_k=E_i+0.023\cdot \left(E_{i-2}+E_{i+2}\right)+0.0021\cdot \left(E_{i-4}+E_{i+4}\right)\mathrm{,}$ (2) if the strip is a readout strip and $\begin{array}{c}{E}_k=E_i+0.305\cdot \left(E_{i-1}+E_{i+1}\right)+0.062\cdot \left(E_{i-3}+E_{i+3}\right)\\ +0.012\cdot \left(E_{i-5}+E_{i+5}\right)+0.0024\cdot \left(E_{i-7}+E_{i+7}\right)\mathrm{.}\end{array}$ (3) if the strip is a float strip. After the process of charge sharing, we combined the signals from neighboring silicon strips with a signal/noise ratio larger than four (19 keV) into a cluster, and then took the energy-weighted center as the position of the cluster. These clusters were used in the subsequent trajectory reconstruction analysis.

In this study, the Kalman filtering algorithm was employed to reconstruct the trajectory of the pair production event, a technique widely used in particle physics experiments [61-63]. When a gamma ray is converted into a pair in the CsI plane, the direction of the resulting electron/positron will experience a shift owing to multiple scattering effects during propagation. Hence, understanding the impact of multiple scatterings on the trajectory-reconstruction process is crucial. The Kalman filtering algorithm assesses and compensates for multiple scattering and measurement errors. This algorithm consists of three primary processes: prediction, filtering, and smoothing. The track direction in the kth layer was used to predict the hit position on the (k+1)th layer. Subsequently, the predicted hit position of the (k+1)th layer was adjusted using the measured hit. The evolution of the state vector is given by: $X_k=F_{k-1}{X}_{k-1}+W_{k-1}\mathrm{,}$ (4) where Xk is the state vector that incorporates the position and momentum information in the kth layer, F_k-1 is the propagation of the trail from the (k-1)th layer to the kth layer of the trail detector, and W_k-1 is the random noise of the system. In dense media, tracking particles are subjected to random noise from multiple scattering, energy loss, and other physical processes that alter their trajectories. The trajectory offset caused by multiple scattering can be expressed as: $\sigma =\frac{13.6}{\beta cp}\sqrt{L/L_{\text{r}}}[1+0.038\ln \left(L/L_{\text{r}}\right)]\mathrm{,}$ (5) where L is the thickness of CsI tile, Lr is the radiation length of CsI material, βc and p are the velocity and momentum (MeV) of the electron-positron pair, respectively. The measurement state vector is given by: $m_k=H_k{X}_k+V_k\mathrm{,}$ (6) where mk is the quantity measured by the kth layer, Hk is the measurement matrix, and Vk is the measurement error. Once a track had undergone a filtering process, it was smoothed. The trajectory parameters were further refined from bottom to top, in contrast to the filtering process. For further details, please refer to. [62, 64, 65].

The primary process for reconstructing the trajectory of MeV gamma-rays involves identifying Compton scattering events and determining the sequence of scattering points. The CsI hit found from top to bottom with an energy deposition greater than 100 keV and no readout signals (less than 19 keV) from the silicon strips in the adjacent upper layer was considered the Compton scattering point.

Using the same method, additional isolated scattering points can be identified, and their scattering sequence and the probability of photoelectric effects can be analyzed based on the magnitude of energy deposition. We traced the photon trajectory after Compton scattering by connecting the first and second interaction points with the highest probability. According to the Compton scattering formula (1), reconstructions of the angle of Compton scattering does not determine the specific direction of the primary photon, but only fixes a ring in the sky. Multiple rings from the same source can be overlaid to locate the source.

For the electromagnetic shower induced by a high-energy photon, the overall deposited energy in CsI and BGO occupies most of the primary energy, despite a small fraction of energy loss. However, with an increase in incident energy, the longitudinal energy leakage becomes negligible, making the energy correction necessary to estimate the primary energy. The longitudinal segmentation of CsI and BGO allows a fit of the longitudinal shower profile, which provides a good way to correct the longitudinal energy leakage [66]. The longitudinal shower profile can be described using a gamma distribution formula, expressed as: $\frac{\text{d}E(t)}{\text{d}t}=E_0\cdot \frac{{\left(\beta t\right)}^{\alpha -1}\cdot \beta \cdot e^{-\beta t}}{\Gamma (\alpha )}\mathrm{,}$ (7) where t=x/X₀ represents the radiation length, Γ(α) is the gamma function, α and β are shape and scale factors, respectively. The depth of the shower maximum depends on α and β as t_max = (α-1)/β. The value of t_max is closely correlated to the energy leakage ratio, offering an effective approach for energy correction [66].

Effective area

The effective area reflects the detection efficiency of the instrument. It is equivalent to the area of an ideal absorber that detects the same number of events as the real detector, considering event selection and reconstruction, within the same time. The effective area is calculated as [67] $A_{\text{eff}}\left(E\mathrm{,}\theta \mathrm{,}\varphi \right)=A_{\text{geo}}\left(\theta \mathrm{,}\varphi \right){\epsilon }_{\text{det}}\left(E\mathrm{,}\theta \mathrm{,}\varphi \right){\epsilon }_{\text{sel}}\left(E\mathrm{,}\theta \mathrm{,}\varphi \right)\mathrm{,}$ (8) where A_geo(θ, ϕ) represents the geometric cross-sectional area of the instrument in a specific direction characterized by angles θ and ϕ, ε_det(E, θ, ϕ) is the detection efficiency, and ε_sel(E, θ, ϕ) is the selection efficiency. The detailed selection conditions for pair events include the following: 1) the trigger condition for particular event types is satisfied (MeV-Gamma, GeV-Gamma, or HEIC-HE); 2) the trajectory in the STED can be reconstructed correctly; and 3) the deposited energy in the ACD block in the direction of the reconstructed trajectory is below 0.5 MeV. The selection conditions for Compton events include the following: 1) no ACD readout exceeding 100 keV; 2) there are at least two CsI hits where the energy deposition at both points is greater than 100 keV and there is no readout signal (less than 19 keV) in the adjacent upper and lower layers of the silicon tracker detector; and 3) the energy deposition in the bottom CsI layer is less than 50 keV (to ensure that the majority of photon energy is deposited in the STED).

The effective area of VLAST is shown in Fig. 5. For Compton scattering events, the effective area is several thousand cm², surpassing the effective area of the COMPTEL detectors (10-50 cm²) by one or two orders of magnitude. It also has a larger effective area than planned MeV detectors such as the e-ASTROGAM, AMEGO, GECCO, and XGIS-THESEUS detectors. Furthermore, the effective area for pair production events exceeds 4 m² above 1 GeV under normal incidence, which is four times larger than that of the Fermi-LAT detector. However, the effective area slightly decreases for 30° and 45° incidence angles for both Compton scattering and pair production events. Fig. 6 shows the effective area as a function of the particle incidence angle at different energies (50 GeV and 100 GeV). The effective area diminishes gradually with an increase in the angle of incidence, and the maximum off-axis incidence angle can reach 70°. The FoV of VLAST is 2.5 sr.

Fig. 5Full-screen View

(Color online) Left: effective areas of VLAST for photon events with normal incidence, 30 °, and 45 ° incident angles, compared with those of AMEGO [12, 68] and Fermi-LAT [69]. Right: acceptance of the VLAST for gamma-rays of different energies, compared with results of GAMMA-400 [7] and Fermi-LAT [69]

Fig. 6Full-screen View

Effective area for gamma rays with different incident angles

The acceptance of a gamma-ray detector refers to the portion of incoming gamma rays that the detector is capable of capturing or detecting. A larger acceptance indicates that the detector can detect gamma rays from a wider portion of the sky, thereby increasing its sensitivity for gamma-ray detection. The primary design concept of VLAST is to substantially enhance the acceptance of the detector to capture more photons and achieve more precise measurements with increased statistical significance. Therefore, the acceptance of VLAST must be sufficiently high. Acceptance is defined as the integral of the effective area over the solid angle $G(E)={\displaystyle {\int }_{\Omega }}{A}_{\text{eff}}\left(E\mathrm{,}\theta \mathrm{,}\varphi \right)\text{d}\Omega$. The acceptance of VLAST is shown in Fig. 5. For Compton scattering events, the maximum value of acceptance is several m² sr. As the energy increases from MeV to GeV, the acceptance gradually rises from 1.6 m² sr to 12 m² sr. In the design of VLAST, CsI crystal plates replace the tungsten foils used in many other gamma-ray detectors to enhance pair conversion. This substitution significantly improves the acceptance in the MeV energy range compared to Fermi-LAT. Given its substantial size, the acceptance of VLAST reaches 12 m² sr in the energy range above GeV.

Self-veto

The detailed settings of the ACD need to be optimized, including the detection threshold and the size of the ACD. The detection threshold of the ACD must strike a balance between the detection efficiency of charged particles and suppression of backsplash effects. To improve the efficiency of detecting charged particles that exhibit a Landau distribution in the energy deposition within the ACD, the detection threshold should be lowered. However, to reduce the weak signals from recoil particles, the detection threshold should be set higher. The conflict between these two requirements is illustrated in Fig. 7. We used the false veto ratio of gamma rays to determine the threshold. Gamma ray photons may be misidentified as charged particles and subsequently rejected because of the backsplash effect. Even if photons do not leave a signal when passing through the ACD, low-energy recoil photons can trigger the ACD. Consequently, the tile in the direction of the particle could exhibit a signal, leading to the event being incorrectly identified as a charged particle. The false veto ratio is defined as $f=N_{\text{wrong}}/N_{\text{total}}$, where N_wrong are the photons misidentified as charged particles and N_total is the total number of incident photons. The false veto ratio as a function of the energy is shown in the left panel of Fig. 8. The higher the photon energy, the greater the probability that it will be misclassified as a charged particle. The middle panel of Fig. 8 presents the gamma-ray false veto ratios at different detection thresholds. For an ACD of size 20 cm× 20 cm, we determined that the optimized threshold value was 0.5 MeV where the gamma false veto rate was less than 15%. The size of the ACD should also be set reasonably. Under ideal conditions, a smaller ACD block results in a better suppression of the backsplash effect. However, this also requires more readouts and higher power consumption. Thus, to achieve the desired performance under limited conditions, tests were conducted to evaluate the suppression of the backsplash effect for different ACD sizes. The results of these tests are shown in the right panels of Figs. 8. An ACD tile size of 20 cm×20 cm is reasonable when the false gamma veto rate is below 15%. Optimization of the ACD thickness is also necessary. The ACD must be sufficiently thick to generate adequate fluorescence, ensuring the effective detection of charged particles. However, it should not be excessively thick because this could lead to a significant number of photons interacting within the ACD being misidentified as charged particles. In this context, we set the thickness of the ACD to 1 cm, which is the same as that used for the Fermi-LAT. At this thickness, no more than 3% of the photons interact within the ACD. The interactions between photons within the ACD are illustrated in Fig. 2. Moreover, it is advisable to maintain wrapping materials around the ACD, such as micrometeoroid shields and thin thermal blankets. This precaution is important because charged cosmic rays can generate secondary photons that contribute to the local photon background upon interaction with such materials. This background can interfere with the accurate detection of gamma rays, thereby reducing the detection efficiency.

Fig. 7Full-screen View

Energy deposition distribution of MIPs and backsplash effect in the ACD. The optimized threshold that balances the high detection efficiency of charged primary particles and low contamination of backsplash is marked out in the plot

Fig. 8Full-screen View

(Color online) False veto ratios as functions of incident energy (left), the ACD threshold (middle), and the ACD size (right)

Angular resolution

Angular resolution is another critical parameter of VLAST. A better angular resolution not only provides more accurate source positioning, but also results in a sharper profile of the point source. This, in turn, leads to a smaller contribution from the background, thereby increasing the sensitivity for detecting fainter sources. The angular resolution is defined differently for different interaction processes, namely, Compton scattering and pair production processes. For Compton events, the angular resolution is defined as the sigma value obtained from the Gaussian fit to the distribution of the minimum angular distance between the nominal source position and the reconstructed event circle. For pair production events it is defined as the radius of the circle that includes 68% of the point-spread function (PSF). The PSF is determined using the angular distance between the source and the reconstructed direction.

The angular resolution of VLAST is shown in Fig. 9. To obtain these results, the same selection conditions as those described in Sect. 4.1 for calculating the effective area are used. For Compton events, the angular resolution is within the range of 4 ° to 8 °, which is comparable to AMEGO. Here, we present only the angular resolution of the untracked events. For pair production events, the angular resolution improves with increasing photon energy owing to the reduced impact of multiple scattering effects at higher energies. Notably, at 10 GeV, the angular resolution reaches 0.2  degrees. However, in the energy range of 10 to 10³ MeV, the angular resolution is slightly worse than that of Fermi-LAT. In contrast, in the energy range above GeV, the angular resolution surpasses that of Fermi-LAT. This improvement can be attributed to our use of analog readout, whereas the Fermi-LAT employs a digital readout with silicon strips of approximately the same width.

Fig. 9Full-screen View

(Color online) Angular resolution (68% containment) of VLAST for photon events with normal incidence, 30 ° and 45 ° off-axis angles, compared with results of AMEGO [12, 68] and Fermi-LAT [69]

As mentioned in Sect. 3.3, we implemented a spaced readout scheme for the silicon strip readout to reduce power consumption. However, VLAST requires a large number of electronic readouts, which results in substantial power consumption. To address this issue, we explored the use of digital readout, which records only the hit strips that exceed a signal threshold of 3 σ above the baseline noise as “1", while unhit strips are recorded as “0". This implementation simplifies the electronics significantly and reduces the power consumption. We defined a cluster as the region of the hit silicon strips. For the digital readout, during cluster position reconstruction, the cluster position was set to the geometric center, whereas for analog readout, the energy-weighted average position was used for cluster reconstruction. Subsequently, track reconstruction was performed using Kalman filtering. A comparison of analog and digital readouts is shown in the left panel of Fig. 10. In the lower-energy range, the dominant error arises from multiple scattering, resulting in comparable angular resolutions for both analog and digital readouts. However, in the higher-energy range, measurement errors take precedence, and the geometric center of the cluster exhibits a significantly larger error than the energy-weighted center. This difference increases with energy, indicating that analog readouts provide better angular resolution than digital readouts.

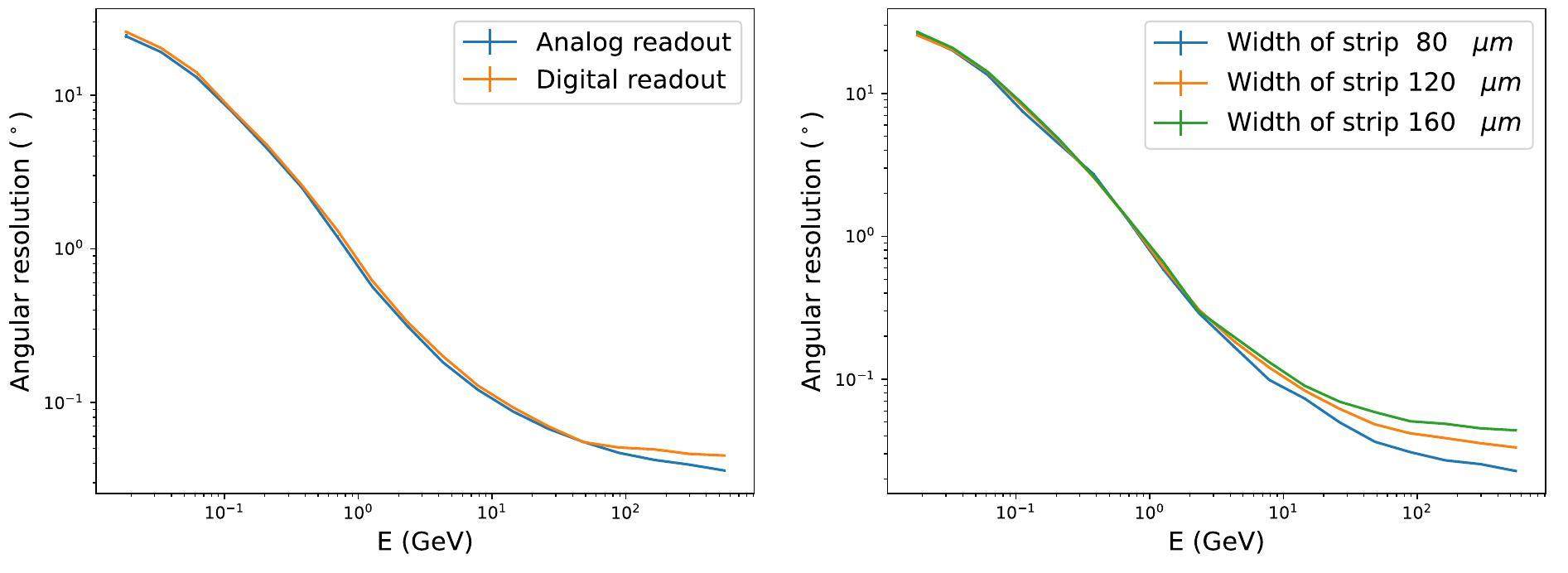

Fig. 10Full-screen View

(Color online) Angular resolution of VLAST for normal incident photons. The left panel shows the comparison between digital and analog readouts for a 120 μm strip width, and the right panel compares different widths of silicon strips for analog readout

We investigated the effect of different silicon strip widths on the PSF of VLAST for pair production events. Thinner strips offer a higher position measurement accuracy and better angular resolution. However, they require more electronic readouts, resulting in higher power consumption. Therefore, a balance between the angular resolution and power consumption is required. The tests were conducted using three widths: 80 μm, 120 μm, and 160 μm. The results are shown in the right-hand panel of Fig. 10. Notably, there was no significant difference in the angular resolution in the lower-energy band among the different widths. This is because the uncertainty in the angular resolution is primarily attributed to multiple scattering effects within this energy range. However, as multiple scattering effects decrease at higher energy levels, the measurement uncertainty becomes more prominent, and finer silicon strips lead to better resolution. As a benchmark, we chose a silicon strip with a width of 120 μm, which provided an angular resolution of 0.05 ° at 50 GeV.

In this study, we investigated the effect of different CsI layers on the angular resolution. To simplify the mechanical structure and ease the manufacturing and assembly processes, the STED favors thicker CsI plates with fewer layers. However, thicker CsI plates degrade the angular resolution owing to the larger deflection angle resulting in multiple scattering effects. Therefore, the thickness of the CsI plate must be set appropriately. We tested three different configurations with 4, 8, or 16 layers of CsI plates interleaved in the STED while maintaining the same total radiation length to ensure the same efficiency of pair production. The effects of different layer settings on Compton-scattering events are shown in the left panel of Fig. 11. Different layer settings had opposite effects on the angular resolution and effective area. The angular resolution decreased with increasing number of CsI layers. Because the four layers had the thickest CsI, the measured energy was the most accurate, and the corresponding reconstruction direction was the most accurate according to the Compton scattering equation. However, the effective area increased with an increase in the number of CsI layers. The 4-layer CsI configuration exhibited the smallest effective area. For pair production events, the effects of different CsI layer configurations on the angular resolution are shown in Fig. 12. The angular resolution was not significantly different in the low-energy band. The 16-layer configuration offers the best angular resolution at several GeV because of reduced multiple scattering in the thinner CsI. However, at several hundred GeV, the difference becomes negligible as multiple scattering effects diminish, whereas the measurement errors become more significant when the same pitch of the silicon strip is used. Different layer configurations had the same effective area because the total radiation length was the same. Based on comprehensive considerations, we determined that setting the number of CsI layers to 8 yielded the most suitable balance.

Fig. 11Full-screen View

(Color online) Angular resolution (left) and effective area (right) of VLAST for different configurations of CsI layers for Compton events. Normal incidence and analog readout are adopted in the simulation

Fig. 12Full-screen View

(Color online) Angular resolution of VLAST for different configurations of CsI layers for pair events. Normal incidence and analog readout are adopted in the simulation

Energy resolution

Energy resolution is another critical aspect of the VLAST. One of the most interesting scientific objectives of the VLAST is the line structure in the spectra produced from astrophysical phenomena, such as de-excitation nuclear gamma-ray line emission from low-energy cosmic rays and gamma-ray lines from the annihilation of dark matter particles [70-72]. The ability to detect the line structure in the gamma ray spectrum relies significantly on the energy resolution. Here, we analyzed the energy resolution of the STED and HEIC using the above-mentioned configuration. Firstly, for pair events, the trigger conditions are MeV gamma, GeV gamma, and HEIC-HE. Second, in STED, Kalman filtering can reconstruct the photon trajectory. Third, most electromagnetic showers are contained in the HIEC. The energy deposition was obtained from the simulation, considering the statistical fluctuation error and electronic noise (based on DAMPE [73-76]) was employed for energy resolution analysis. The energy resolution was obtained after energy correction for high-energy events with more energy leakage. For Compton events, the energy was measured exclusively by the CsI calorimeter, and the uncertainty of the measurements was primarily considered in four aspects: quantum fluctuations of CsI scintillation light yield, transmission efficiency of the WLS fibers, photon detection efficiency and electronic noise of SiPMs, and the accuracy of energy calibration. The energy measurement process was simulated by randomly sampling each energy deposition of CsI using specific parameters initially estimated from previous experiments. The energy resolution was obtained using a Gaussian fit of the proportion of the sample results to the simulated real energy. The energy resolution is shown in Fig. 13. For the pair production event, a peak at approximately 100 MeV is present because the deposition body shifts from a low-energy calorimeter to the HEIC. As the number of energy particles entering the calorimeter increases, the improving energy resolution reaches 2% at a few tens of GeV. Subsequently, the resolution becomes weak owing to energy leakage. The energy resolution of the 30 ° and 45 ° incidence events were better than those of the normal-incidence events because the radiation length of the path was longer. Compared with Fermi-LAT, which has an approximate radiation length of 8.6, VLAST exhibits better energy resolution across the entire energy band owing to its deeper calorimeter, except at approximately 100 MeV.

Fig. 13Full-screen View

(Color online) Energy resolution of VLAST for Compton and pair events with normal incidence, 30 ° and 45 ° incident angles, compare with results of AMEGO [12, 68] and Fermi-LAT [69]

Electron and proton discrimination

For effective photon detection, VLAST requires a strong capability to reject the charged-particle background. As previously mentioned, the proton flux is five orders of magnitude higher than that of the photons, making it difficult to detect gamma rays in the presence of such a large background of charged particles. In addition to the ACD, the HEIC plays a crucial role in background rejection by distinguishing protons from photons based on the difference between hadronic and electromagnetic showers. To quantify the e-p discrimination ability of the VLAST, we used the ζ parameter, as in DAMPE [77], which is defined as $\zeta =F_{\text{last}}\times {\left({\text{Σ}}_i{\text{RMS}}_i/\text{mm}\right)}^4/(8\times {10}^6)\mathrm{,}$ (9) where $F_{\text{last}}$ is the ratio of energy deposition in the last layer to the total energy deposition in the HEIC. The energy deposition in the last layer reflects the differences between hadronic and electromagnetic showers most significantly because BGO crystals have a large nuclear interaction length-to-radiation length ratio. RMS_i is the root-mean-square value of the energy deposited hit position in the ith layer, expressed as: ${\text{RMS}}_i=\sqrt{\frac{{{\displaystyle {\sum }_j\left(x_{j\mathrm{,}i}-x_{c\mathrm{,}i}\right)}}^2{E}_{j\mathrm{,}i}}{{\text{Σ}}_j{E}_{j\mathrm{,}i}}}\mathrm{,}$ (10) where xj,i and Ej,i are the positions of the hits and the deposited energy of the j-th bar in the i-th layer, respectively, and xc,i is the center coordinate of the shower in the i-th layer. This reflects the lateral development of the shower, which is primarily caused by the propagation of secondary particles. The secondary particles produced by hadronic showers can propagate farther than those produced by electromagnetic showers [78], which results in larger values of RMS_i.

The left panel of Fig. 14 shows the scattering distribution of $\text{RMS}={\displaystyle {\sum }_i{\text{RMS}}_i}$ and F_last for protons (orange) and electrons (blue), respectively. Both the electron and proton events have energy depositions in the HEIC range of 30–100 GeV. Electrons and protons were clearly divided into two parts. The distributions of ζ parameters for the electron and proton samples are shown in the right panel of Fig. 14. A ζ value of 18 was determined to suppress proton contamination to <0.1% while maintaining 90% electron detection efficiency. By choosing proper cuts in the ζ parameter, we can obtain the rejection fraction of the protons while maintaining 90% of the electrons, as shown in Fig. 15. At relatively low energies (several GeV), the proton rejection fraction was approximately 0.99 owing to the small size of the electromagnetic cascades. With an increase in energy, the rejection fraction increases effectively, reaching 0.999 at ~20 GeV. Optimization of the e-p discrimination algorithm, for example, by means of machine learning, can further improve the background rejection capability [79]. Combined with the background rejection fraction of ~0.999 from the ACD (design requirement) and ~0.9 from the STED, and based on the experience of Fermi-LAT [5], the total background rejection fraction of VLAST can reach (1-10^-6)-(1-10^-7). Thus, VLAST has an excellent ability to detect gamma rays, even if the cosmic-ray background flux is 10⁵ higher than that of the photons.

Fig. 14Full-screen View

(Color online) Left: Distributions of the lateral and longitudinal development of showers for electrons (blue dots) and protons (orange dots) in the HEIC. The green line illustrates the selection condition to separate these two populations. Right: One-dimensional distributions of ζ variables of electrons and protons

Fig. 15Full-screen View

The proton rejection fraction as a function of the energy deposition in HEIC when retaining 90% efficiency of electrons

However, VLAST was not optimized for electron detection. The vertical thickness was approximately 18 radiation lengths, resulting in a relatively large leakage of electron events with energies above 1 TeV. However, given the large area of the detector, events with large incident angles can be selected to effectively increase the slant thickness of the detector. As a reference, for incident angles >55°, the thickness is approximately 32 radiation lengths, which is comparable to that of DAMPE. If we select events with incident angles between 55 ° and 75 °, the acceptance (for the HEIC-HE trigger) is approximately 3.5 m² sr. Because DAMPE can measure the electron spectrum up to approximately 15 TeV, VLAST can extend the detectable upper energy bound by at least a factor of two, even if the spectrum is as soft as E^-4 [77]. However, the dynamic range of electronics must also be expanded to detect such high-energy events.

Detectablity of gamma-ray transients

VLAST has a very good capability for exploring the γ-ray sky with an unprecedented sensitivity over a wide range of energies [21]. Considering the detection of burst-like transients as an example, we briefly discuss the potential of VLAST for such phenomena. Assuming a physical sample of gamma ray bursts (GRBs) with parameterized distributions of redshifts, luminosity, and spectra, the expected detectable quantities of GRBs can be calculated by a given detector using parameters such as the effective area, energy band coverage, PSF, and FoV [81-83]. The intrinsic parameters were obtained by comparing the simulated results with the observed sample using various detectors. The detectability can then be calculated for new detectors such as VLAST. Figure 16 shows the expected yearly rate for different fluences using VLAST and compares the expected rate by Fermi-LAT [81] and the Fermi-LAT detection rate [80] above 100 MeV. The total annual rate is approximately 43.4 for VLAST, which is approximately three times higher than that of Fermi-LAT (14.5 per year).

Fig. 16Full-screen View

(Color online) Expected detectable rate of GRBs with different fluences by VLAST (red line), compared with the detected sample [80] and the expectation [81] by Fermi-LAT
