Prompt fission neutron uranium logging (III): logging instrument

NUCLEAR ELECTRONICS AND INSTRUMENTATION

Prompt fission neutron uranium logging (III): logging instrument

Hai-Tao Wang
Yan Zhang
Chi Liu
Jian-Qiang Xu
Li-Jiao Zhang
Zhi-Feng Liu
Xiong-Jie Zhang
Rui Chen
Qi Liu
Ren-Bo Wang
Shu-Min Zhou
Bin Tang
Nuclear Science and TechniquesVol.37, No.7Article number 131Published in print Jul 2026Available online 29 Apr 2026
18801

The domestically developed prompt fission neutron uranium logging (PFNUL) instrument for uranium exploration represents a significant advancement in China’s deep uranium mining efforts, although it has considerable challenges and complexity. This paper presents the development of a new prompt fission neutron uranium logging instrument (named UNL4) that integrates a domestic D-T neutron generator, two 3He proportional detectors, a lanthanum bromide (LaBr3) gamma-ray detector, and a digital multi-channel pulse amplitude analyzer. The near 3He detector is shielded with 1 mm of cadmium (Cd) and 5 mm of high-density polyethylene (HDPE), enabling efficient epithermal neutron detection, whereas the far 3He detector measures thermal neutrons. A LaBr3 detector is employed for gamma-ray detection, primarily originating from uranium decay. High-speed Analog-to-Digital Converter (ADC) and Field Programmable Gate Array (FPGA) technologies are used to achieve rapid acquisition and transmission of both dual neutron time spectra and gamma spectra. Moreover, this paper proposes a fast signal shaping method, which reduces the dead time effect in 3He detectors on neutron time spectra. Experiments conducted in standard model boreholes with varying uranium contents demonstrated a strong linear relationship between the epithermal-to-thermal neutron ratio (E/T) and uranium content, with a fitting coefficient of R2>0.999, confirming the accuracy of the instrument. The E/T value repeatability, both in short-term (3.16% RSD) and long-term (1.2% RSD) measurements, showed excellent stability. In addition, the instrument demonstrated good performance at neutron-logging speeds of 0.3~3 m/min (E/T values) and gamma logging speeds of 1~10 m/min. Through measurements in two ore sections of the PU model with lithium contents of 87.1 ppm and 45.6 ppm, RD was found to be less than approximately 10% in both logging cases, satisfying the requirements for engineering applications. This marks the first successful development of a neutron-logging instrument for uranium exploration based on a domestic neutron generator and signifies an important contribution to uranium resource exploration.

Uranium explorationNeutron-logging instrumentPulsed neutronNeutron time spectrum detection
1

Introduction

Nuclear power is one of the most promising methods for the efficient and sustainable large-scale production of hydrogen without the emission of carbon dioxide. Uranium ore, the primary fuel source for nuclear energy generation, is crucial to the development of the nuclear power industry. Since the beginning of the 21st century, countries worldwide have initiated mineral exploration efforts and developed intelligent technologies and equipment for mineral exploration and development, providing technological support for energy conservation and emission reduction [1-4].

The uranium logging method based on pulsed neutron technology enables the direct measurement of uranium (235U) content without requiring core sampling, and it is not affected by gamma rays from other radioactive nuclides such as thorium and potassium [5-7]. Since the 1970s, countries such as the United States, Canada, Germany, and the former Soviet Union have conducted research and experiments on neutron-logging techniques for direct uranium measurement. Collecting neutron time spectra is widely recognized as an effective method for quantifying uranium [8-10]. However, neutron sources with ultra-short pulse widths and high yields should be used, such as the pulsed neutron uranium logging system ANHK-60 developed by the All-Russian Institute of Automated Design (VNIIA), which employs a D-T neutron generator with a pulse width of 1 μs and a single pulse yield of approximately 1×810 n/pulse. However, its operational lifespan is limited to only 150 h [11, 12].

In recent years, research on neutron logging has primarily focused on methods, theory, and simulation studies, with few reports on related instruments [13, 14]. This is largely because of the significant challenges involved in the development of uranium logging instruments. A key requirement is the use of compact neutron emitters that produce ultra-short pulses (of the order of microseconds) with high neutron yields. Currently, only a few countries, including Russia, the United States, and France, have developed this technology. Examples include the Russian ING-10-20-120 model D-T neutron emitter, French Genie 16NG, and U.S. RTNS-II and P383 systems [15-17]. Another challenge is detecting and collecting the neutron signals generated by these short-pulse high-yield neutron sources. A widely adopted approach involves the use of high-efficiency 3He proportional counters to detect epithermal or thermal neutrons. Epithermal neutron detectors are used to detect prompt neutrons produced by uranium fission, which are essential for uranium quantification [18]. For example, the Russian ANHK-60 logging instrument includes six Geiger–Müller tubes to detect gamma rays from lead and boron, forming a monitoring system for the neutron source yield, thus mitigating the impact of source flux fluctuations. The U.S. PFN system is equipped with six miniature 3He proportional counters to achieve similar functionality [19]. Over the past decade, the author team has conducted extensive research in the field of neutron logging for uranium. Through both theoretical and experimental research, they proposed a method based on the ratio of epithermal neutrons (E) to thermal neutrons (T), referred to as “E/T” [20-23]. This method is not affected by fluctuations in the neutron source yield, enabling an extended operational lifespan of the neutron source. Therefore, the uranium logging instrument discussed in this paper utilizes two 3He proportional counters. The first, located closer to the source, is wrapped in cadmium and high-density polyethylene (HDPE) for epithermal neutron detection, whereas the second, located farther from the source, detects thermal neutrons [24-26]. However, factors such as the gas pressure and material and size of the wrapping layers significantly affect the neutron detection efficiency, which is a key topic of this study. Because the smallest exploration boreholes are only 9 cm in diameter, existing commercial multi-channel analyzers for time and energy spectra do not satisfy the size requirements for logging instruments, and the large data volumes generated require redesign and customization. This paper proposes the use of high-speed analog-to-digital converter (ADC) and field-programmable gate array FPGA technologies to enable the rapid acquisition and transmission of dual neutron time spectra, combined with pulse-shaping techniques and time-spectrum processing algorithms, to satisfy the specific requirements of logging instrumentation [27].

Finally, a series of experiments was conducted using the independently developed prompt fission neutron uranium logging instrument (UNL4) in five standard model boreholes at the Nuclear Industry Airborne Survey and Remote Sensing Center. The calibration results from these model boreholes with varying uranium concentration demonstrated a strong linear relationship in the uranium content calibration equation, comparable to that obtained using a probe equipped with a Russian neutron tube. The instrument also performed well in both short- and long-term repeatability tests conducted in the same model boreholes, ensuring accurate calibration of the uranium content. A comparison of logging curves at different speeds indicated that the measurement performance is satisfactory at neutron-logging speeds ranging from 0.3 to 3 m/min and gamma logging speeds from 1 to 10 m/min. This instrument fills a critical gap in the independent development of neutron-logging instruments for uranium exploration in China and is significant to uranium resource exploration and the country’s energy security.

2

Instruments and experiments

2.1
Logging instrument

The uranium logging instrument developed by our team, as shown in Fig. 1, comprises three main components: (1) a neutron source, including a D-T neutron tube and neutron emitter; (2) a detection unit featuring two 3He neutron detectors and a gamma detector; (3) an electronics unit consisting of a digital multi-channel pulse amplitude analyzer.

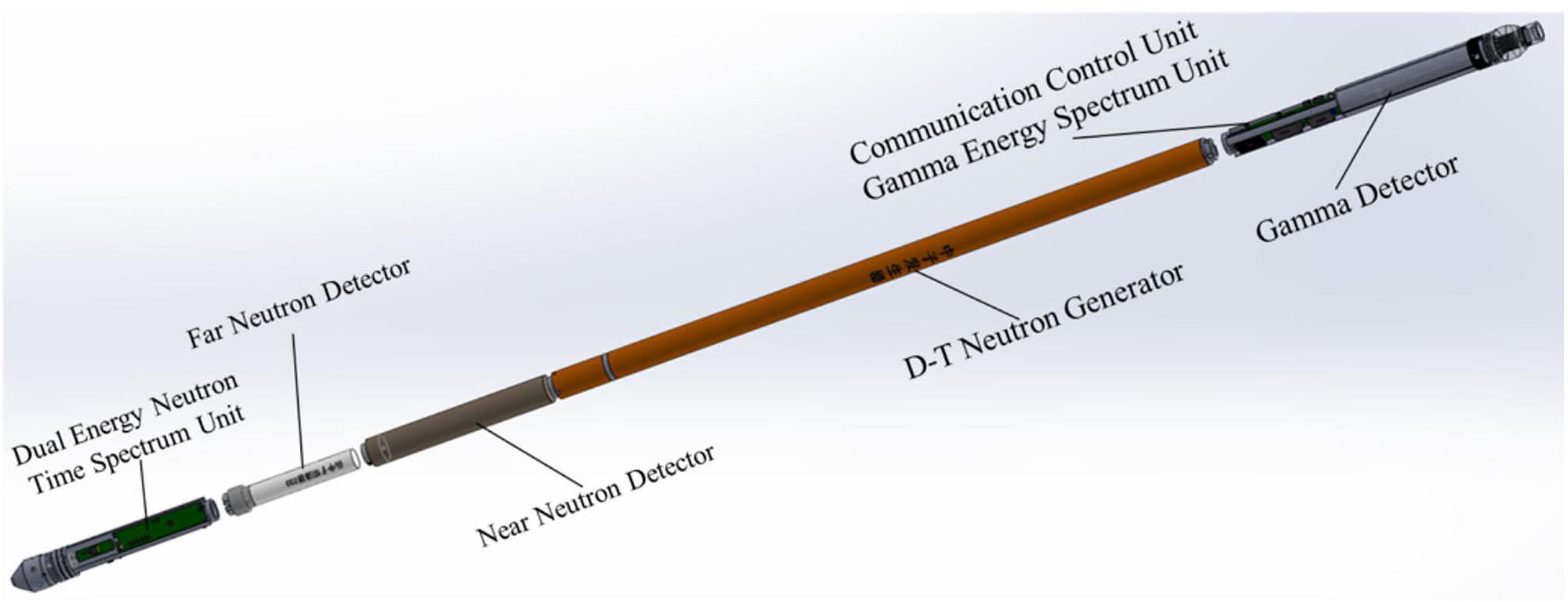

Fig. 1
(Color online) Independently developed Prompt Fission Neutron Uranium Logging Instrument (UNL4)
pic

The D-T neutron sources used in the experiments primarily include the Russian ING-10-20-120 and FH-G5DT models from Fan-Hua Testing Technology Co., Ltd., with the detailed parameters listed in Table 1. These sources are primarily used to emit pulsed neutrons. The 3He neutron detectors, also provided by Fan-Hua Testing Technology Co., Ltd., are referred to as the near 3He detector and far 3He detector, based on their proximity to the neutron source. The near 3He detector is wrapped in Cd metal, and a HDPE was designed to detect epithermal neutrons, whereas the far 3He detector is used to detect thermal neutrons in the borehole. The gamma detector employed is a lanthanum bromide (LaBr3) detector positioned at a greater distance from the neutron source to minimize the effects of gamma rays produced by neutron activation. The primary function of the LaBr3 detector is to detect the natural gamma radiation emitted by the uranium ore, thereby providing an initial estimate of the ore layer’s location [28]. The electronics unit consists of time and energy spectrum acquisition components. It utilizes a fully digital design that incorporates high-speed ADC, FPGA, and digital signal processing (DSP) technologies. This setup enables high-speed sampling of neutron and gamma ray signals and intelligent processing of dual-energy neutron time and gamma energy spectra. The system can operate both independently and in coordinated synchronization, thereby offering enhanced performance. Further details are provided in the following sections.

Table 1
D-T neutron generator parameters
Parameter Neutron tube
ING-10-20-120 FH-G5DT
Neutron yield (n/s) 1.5×108 1×108
Pulse frequency (Hz) 1~20 0~1000
Life (h) 150 ≥500
Supply voltage (V) +150 (DC) 220 (AC/50 Hz)
/48~260 (DC)
Maximum power (W) 30 50
Maximum working +120 +150
Temperature (℃)
Sizes (mm) Φ34×1300 Φ50×1300
Show more
2.2
Epithermal and thermal neutron detection

3He gas detectors are commonly used for thermal neutron detection owing to their high efficiency in capturing thermal neutrons. However, fast neutrons with energies ranging from 0 to 3 MeV are generated during uranium fission reactions. These fast neutrons are then slowed down within the formation and become epithermal neutrons. Uranium content can be estimated by detecting the number of epithermal neutrons. In oil well logging, 3He gas detectors are often encased in Cd metal and a moderating material such as HDPE to detect epithermal neutrons, as shown in Fig. 2. The Cd metal absorbs thermal neutrons from the borehole, preventing their contribution to the measurement, whereas the moderating material further slows down epithermal neutrons into thermal neutrons, thus enhancing the detection efficiency.

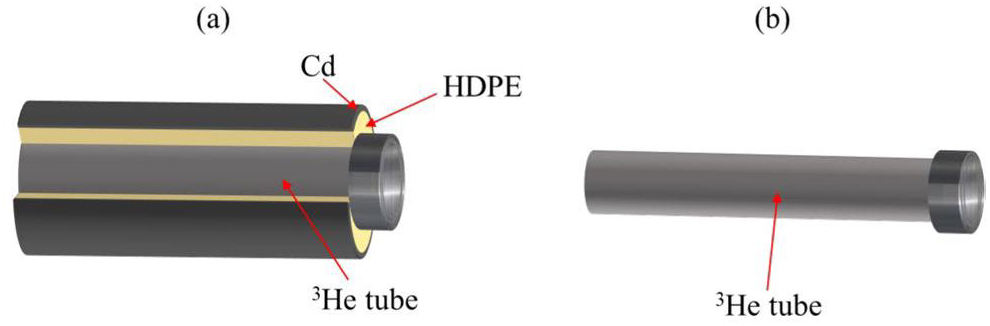

Fig. 2
(Color online) (a) Schematic of the epithermal neutron detector. (b) Schematic of the thermal neutron detector
pic

Using the Monte Carlo simulation method, we simulated the thicknesses of the Cd metal and moderating material (HDPE) for the aforementioned epithermal neutron detector. The results are presented in Fig. 3.

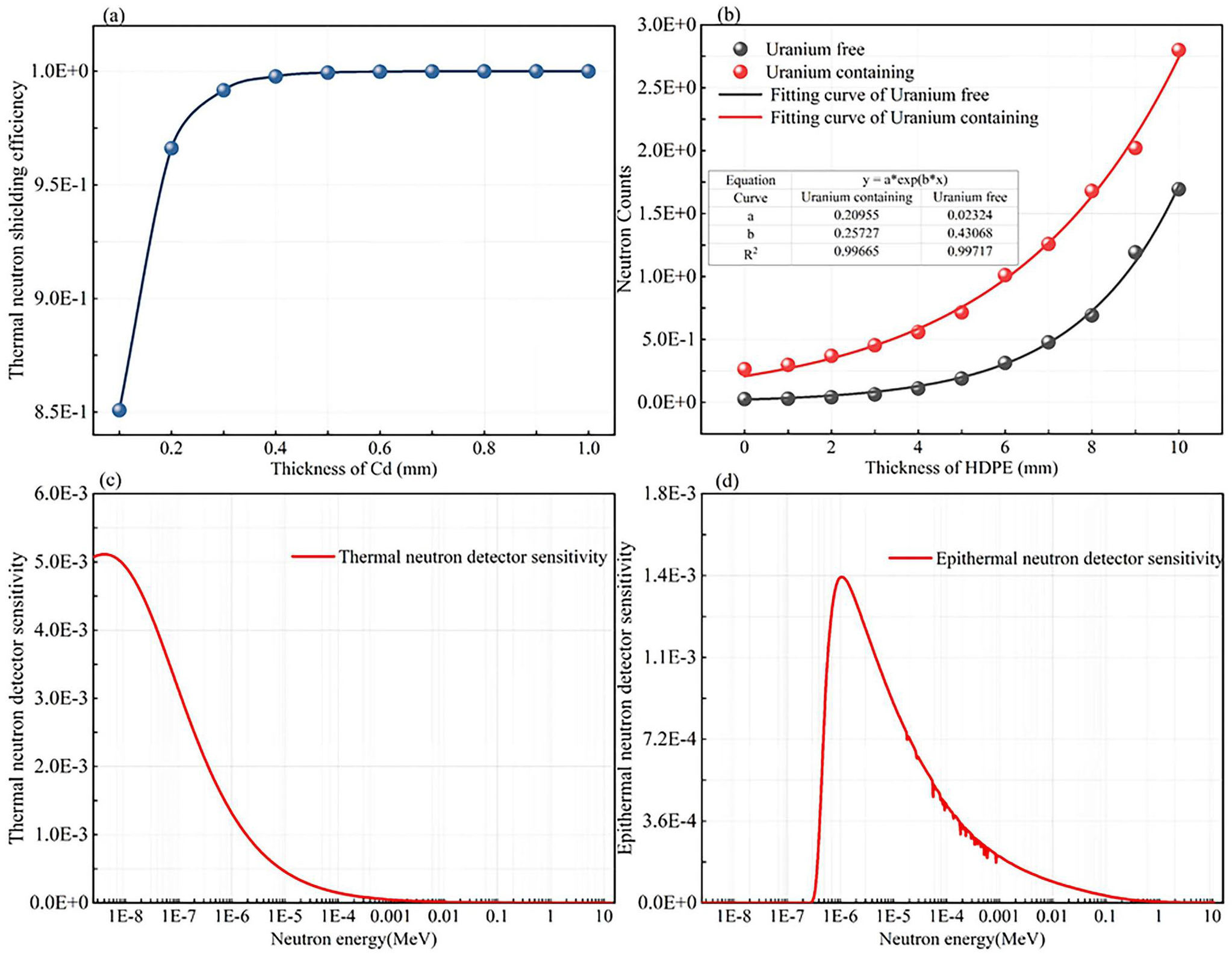

Fig. 3
(Color online) (a) Cd metal thermal-neutron shielding efficiency. (b) HDPE thickness effect on epithermal neutron counting. (c) Sensitivities of the 3He detector. (d) Sensitivities of the epithermal neutron detector
pic

Figure 3(a) shows that as the thickness of the Cd increased, the shielding efficiency of the epithermal neutron detector for thermal neutrons increased rapidly. When the Cd thickness reached 1 mm, the shielding efficiency reached 100%, effectively blocking the thermal neutrons. Consequently, the thickness of Cd metal in the epithermal neutron detector was set to 1 mm. Figure 3(b) shows that as the thickness of the polyethylene increased, the counts of epithermal neutrons detected by the detector in both the uranium-free (background) and uranium-containing formations also increased. This indicated that the added layer of HDPE not only slows down the source neutrons but also the neutrons produced by uranium fission. Therefore, the counts included both epithermal neutrons generated by uranium fission and those produced by the D-T neutron generator. Considering the spatial constraints of the detector probe and other factors, the thickness of the HDPE layer was determined to be 5 mm. The final specifications and parameters of the epithermal and thermal neutron detectors are listed in Table 2.

Table 2
Specifications of each component of the epithermal and thermal neutron detector (1 atm = 101.325 kPa)
Detector Component Gas pressure (atm) Density (g/cm3) Optimal dimension
Near detector 3He detector 6 - Φ38 mm×150 mm
Cd layer - 8.65 1 mm thick
HDPE layer - 0.94 5 mm thick
Far detector 3He detector 4 - Φ38 mm×150 mm
Show more

Subsequently, the detection sensitivities of the thermal and epithermal neutron detectors of different energies (ranging from 0.001 eV to 10 MeV) were calculated using Monte Carlo simulations. The sensitivity results are shown in Fig. 3. As illustrated in Fig. 3(c), the thermal neutron detector exhibited a high sensitivity within the low-energy neutron range, with a rapid decrease in sensitivity as the neutron energy increased. Figure 3(d) shows that the designed epithermal neutron detector was more sensitive to epithermal neutrons, whereas its sensitivity to low-energy and fast neutrons was relatively low. The simulation results confirmed that the parameters determined for the epithermal and thermal neutron detectors effectively measured the formation of thermal and epithermal neutrons produced by uranium fission.

2.3
FPGA-based digital circuitry

The dual-energy neutron time-spectrum measurement unit designed for the project primarily consists of the following components: dual neutron detectors and their high-voltage driving module, a pre-amplifier circuit, shaping amplifier circuit, polarity conversion circuit, baseline restoration circuit, signal discrimination circuit, pulse counting unit, and data analysis and communication modules. The detailed circuit structure is shown in the block diagram shown in Fig. 4.

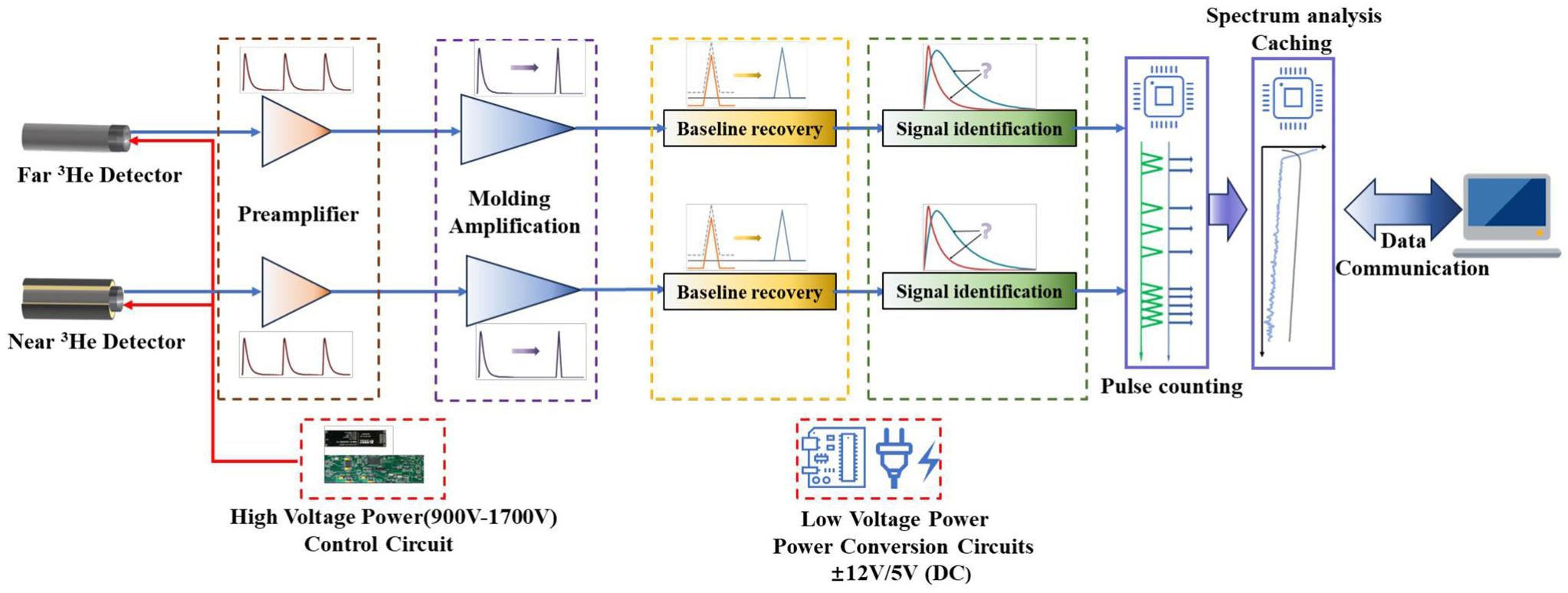

Fig. 4
(Color online) Block diagram of dual-energy neutron time-spectrum measurement circuit structure
pic

A digital FPGA chip (radiation-resistant M2S010 from ACTEL) was selected as the core component to enable pulse counting for both epithermal and thermal neutrons while also generating the corresponding time-spectrum curves. Upon receiving a synchronized measurement signal from the pulsed neutron generator, the FPGA starts counting the pulse signals from the epithermal and thermal neutron detectors. The counts for both detectors are accumulated using a fine time-channel width of 2 μs, thus achieving a precise dual-energy neutron time spectrum acquisition. The system simultaneously collects the neutron energy and time spectra. By analyzing the shape of the neutron energy spectrum curve, a threshold is set for the countable neutron pulses, which ensures that the time spectrum only includes valid neutron pulses, excluding noise and preventing the loss of effective neutron counts. This method ensures high accuracy in both neutron energy and time-spectrum measurements. When traditional logging systems based on analog signals are applied to uranium logging, the presence of numerous analog components, such as resistors, capacitors, and operational amplifiers, makes them highly susceptible to temperature fluctuations in downhole environments. This leads to significant temperature drift, which increases the complexity of the subsequent spectral interpretation. In contrast, the use of a high-speed digital measurement system with key components such as high-speed ADCs, FPGAs, and DSP mitigates these problems. In this system, the radiation pulse signal output of the detector is amplified and directly sampled in full pulse form using a high-speed ADC (with a sampling rate of 60 MHz and precision of 12 bits/1 V). This approach captures the entire pulse waveform rather than only the peak value, as is the case in traditional systems. Algorithms such as digital filtering and pulse shaping (using a dynamic trapezoidal shaping algorithm with adjustable parameters) are implemented using the FPGA’s internal programmable digital circuits. This enables peak extraction, identification, and separation of pile-up pulses and the generation of the energy spectrum curve. More complex tasks, such as the dynamic temperature correction of pulse amplitudes and communication processing, are handled by the DSP. The designed digital measurement system includes a detector, preamplifier circuit, signal conditioning circuit, high-speed ADC, FPGA, and DSP. The influence of the power noise ripple and other electronic interferences on the energy spectrum is controlled to ≤5 mV/1 V, meaning that for a 1024-channel energy spectrum, noise contributes to no more than five channels.

2.4
Pulse fast shaping neutron time spectrum

In a dual-neutron time-spectrum detection system, a key challenge results because of the high neutron count rate detected by the neutron detectors immediately after the neutron pulse is emitted by the neutron source. This can cause significant pulse pile-up, particularly when using standard charge-sensitive preamplifier circuits paired with 3He proportional counters, which have prolonged tail times for signal decay. This pile-up effect often leads to the saturation of the counting rate. To address this problem, a charge-sensitive preamplifier circuit based on narrow pulse shaping was designed for the neutron detector, which significantly improved the pulse throughput of the neutron signals. Additionally, the electronics system incorporates full-pulse high-speed sampling technology, in which the raw input pulse signals are directly sampled by a high-speed ADC, providing a complete waveform of the radiation pulse. The programmable digital circuits inside the FPGA implement triangular shaping algorithms, enabling the development of a dual-neutron time-spectrum measurement system for PFNUL under high count rates. This narrow pulse-shaping technique allows the processing of wider detector pulses into narrower pulses, facilitating counting measurements at high pulse throughputs [29-31]. The shaped pulse width is adjustable, and the experimental results, shown in Fig. 5(a), demonstrate a reduction in signal pulse width from 1 μs to 300 ns. This enhancement increases the pulse processing capability of the electronic system from 100 k to over 330 k, ensuring the validity of count measurements under high-count-rate conditions. After being processing using the anti-saturation neutron detection system, the time spectra before and after fast shaping were obtained using the logging model for practical testing, as shown in Fig. 5(b).

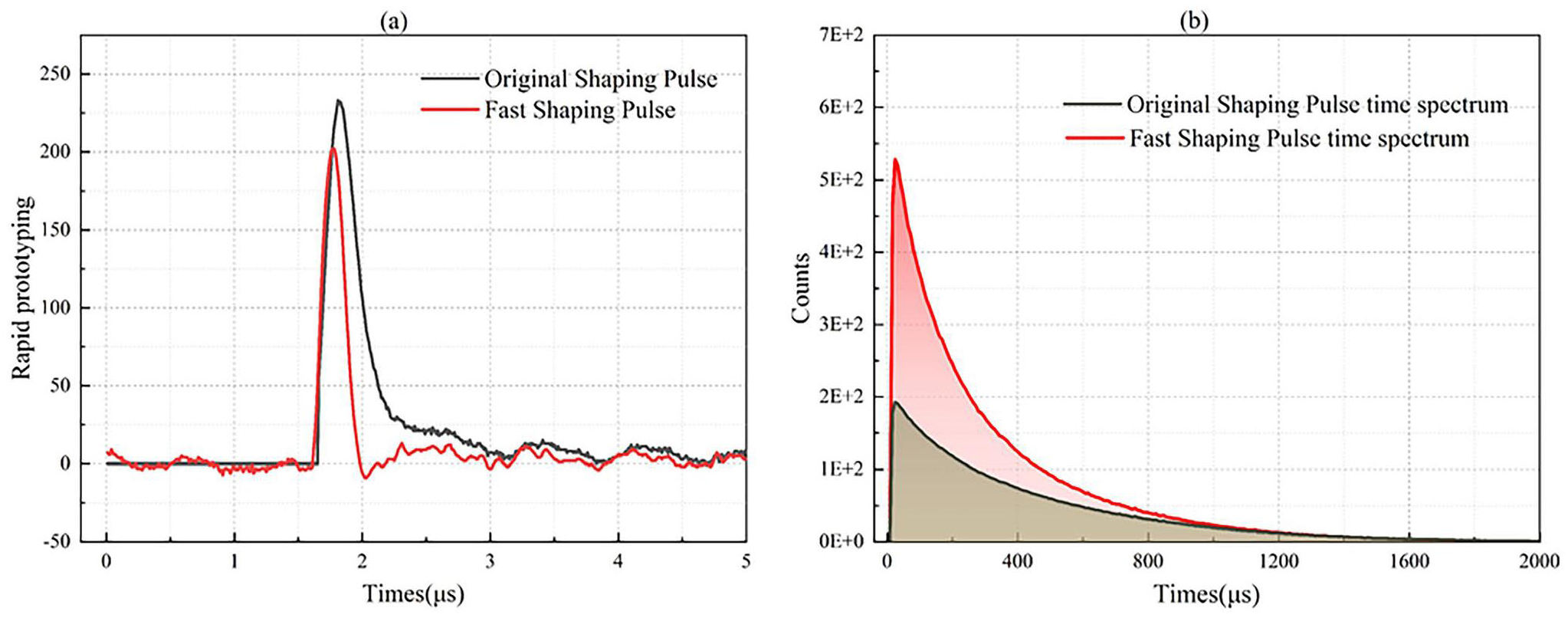

Fig. 5
(Color online) (a) Pulsed fast shaping measurement. (b) Neutron time-spectrum measurements in model wells before and after fast shaping
pic

Additionally, the project conducted research on the time-spectrum variation patterns of epithermal and thermal neutrons under high count rates. In the software processing phase, a dead-time correction algorithm was incorporated to account for the effects of the pulse pile-up. This algorithm converts the observed pile-up count rate into a theoretical pulse count rate, thereby improving the uranium quantification accuracy during uranium logging [32].

3

Logging experiments

With the independently developed PFNUL instrument UNL4, a series of experiments was conducted in five standard model wells at the Nuclear Industry Aerial Survey and Remote Sensing Center. These wells consisted of cylindrical concrete models, identified as Nb4, Nu1, Nu2, and Nu3, with uranium concentrations of 0.000156%, 0.0280%, 0.0684%, and 0.0982%, respectively. The Nb4 model, with a uranium grade far below the detection limit, was defined as a pure sandstone model without uranium. Each cylindrical model was 1.4 m in diameter and 1.8 m in height. The borehole diameter of the models was 90 mm, and each model was topped with a 0.9 m-thick concrete cover and a 0.3 m-thick concrete base. Beneath the base, an extended borehole with a depth of 2.6 m ensured that the size requirements for the saturated uranium models were satisfied. Another logging model, identified as PU, was a single cylindrical concrete structure with dimensions of 1.5 m in diameter and 5.3 m in height, along with an extended layer of 3 m at the bottom. It contains two 90 cm sections with uranium contents of 87.1 ppm and 45.6 ppm, respectively. This setup allowed continuous measurement of the uranium section when logging within the PU model. Several experiments were conducted in these five model wells, as outlined below, including comparisons among different neutron tubes:

(1) Experiment #1: Neutron source comparison

This experiment compared the performance of a probe with the domestically developed FH-G5DT neutron tube and a probe with the Russian ING-10-20-120 neutron tube in four uranium models through point measurements.

(2) Experiment #2: Scale factor

Based on the time-spectrum data, the E/T values of both neutron tubes were calculated at different uranium concentrations. A scale factor for E/T values and uranium concentrations was derived by fitting.

(3) Experiment #3: Stability test

In this experiment, short-term measurements were repeated 10 times for 5 s each and long-term measurements were repeated nine times for 1 h each in the same uranium concentration model to assess stability.

(4) Experiment #4: Logging speed test

In the Nu3 model, neutron (E/T values) logging was conducted at speeds of 0.3, 0.5, 1, 1.5, 2, and 3 m/min to compare the results at different logging speeds, and gamma logging was conducted at speeds of 1, 2, 4, 6, 8, and 10 m/min.

4

Results and discussion

4.1
Comparison of different neutron sources

The time-spectrum results obtained by testing different neutron tubes using the four uranium ore models are shown in Fig. 6. Figure 6(a) shows the results of the assembly of the Russian ING-10-20-120 model neutron tube, whereas Fig. 6(b) shows the results for the FH-G5DT model neutron tube. Owing to variations in the neutron tube manufacturing processes, the pulse widths for the neutron tubes were appropriately set to 10 and 250 μs during the uranium ore measurements. The time-spectrum results indicated a significant proliferation of epithermal neutrons with increasing uranium ore content.

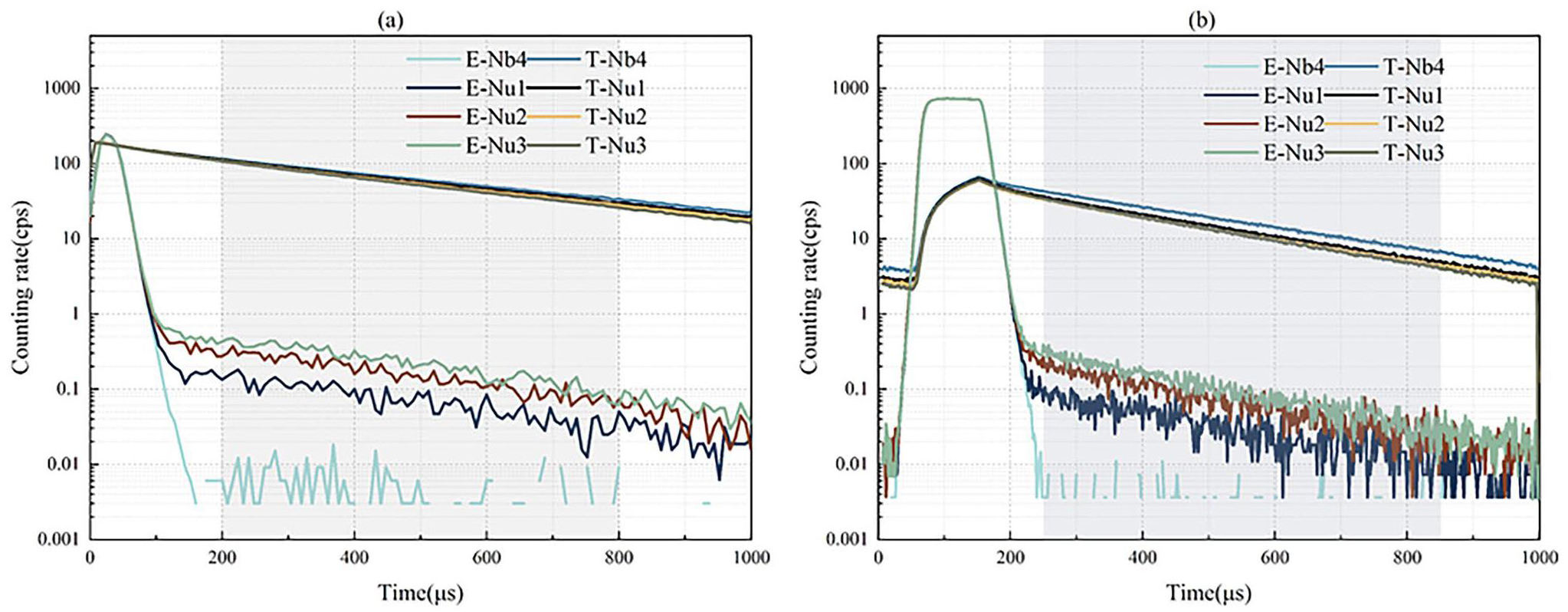

Fig. 6
(Color online) (a) ING-10-20-120 neutron tube time spectra test results in Nu series model. (b) FH-G5DT neutron tube time spectra test results in Nu series model
pic

Figure 6 shows that the FH-G5DT neutron tube experiences a significant decline in the production of epithermal neutrons at approximately 250 μs, leading to a very low counting rate of epithermal neutrons for times greater than 850 μs. At this point, statistical fluctuations significantly affect the data, prompting the selection of 250 to 850 μs as the effective neutron time window. Similarly, the ING-10-20-120 neutron tube shows a significant decrease in epithermal neutron production at approximately 200 μs, with low counting rates exceeding 800 μs, where statistical fluctuations also play a significant role. Consequently, the effective neutron time window for this tube is defined as 200 to 800 μs. Within these time windows, the epithermal and thermal neutron counts were calculated for various uranium content levels. The comparative results are shown in Fig. 7, revealing significant differences in the counting rates of epithermal and thermal neutrons between the two neutron tubes in the same model. These discrepancies are primarily attributed to the different ion sources employed by the two neutron tubes. The Russian ING-10-20-120 neutron tube utilizes a vacuum arc ion source that produces short pulses (1 μs) with a maximum of 20 emissions per second. In contrast, the FH-G5DT neutron tube, manufactured by Pan Hua Detection Co., employs a Penning ion source that generates longer pulses (150 μs) and can emit up to 1000 times per second.

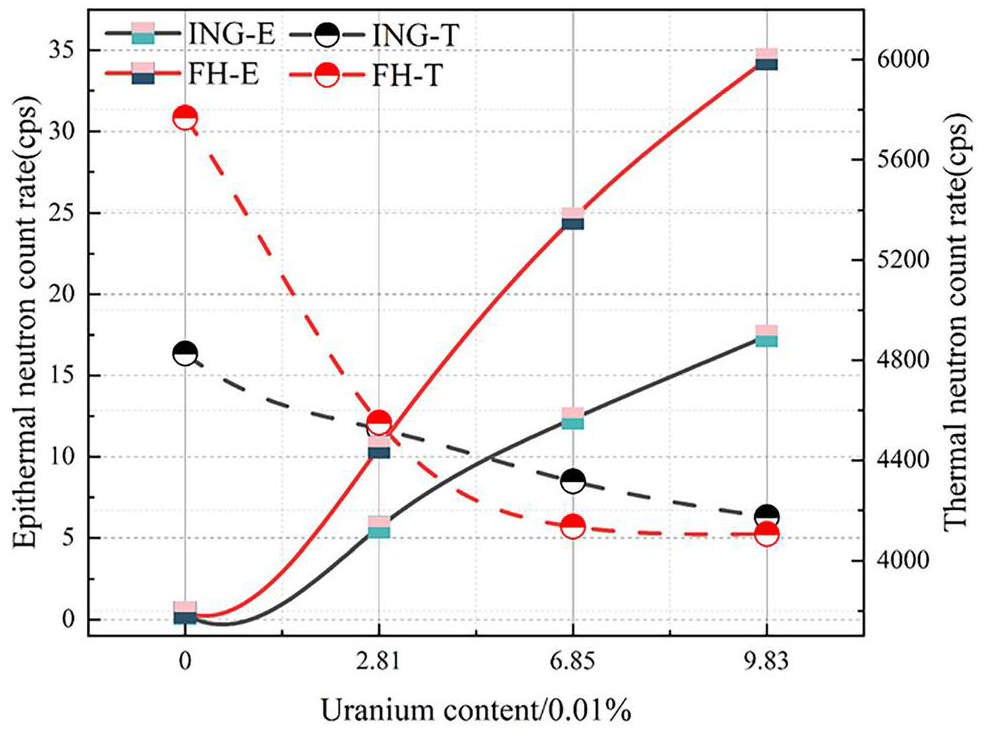

Fig. 7
(Color online) Epithermal and thermal neutron counting results for the ING-10-20-120 and FH-G5DT neutron tubes
pic
4.2
Scale factor

Based on the aforementioned conditions, the uranium quantification time windows for the two neutron tubes are 200~800 μs and 250~850 μs, respectively. The E/T values were calculated based on relevant data. Subsequently, a linear fitting of the relationship between the E/T values and uranium content was performed, as shown in Fig. 8. Calibration curves for the FH-G5DT and ING-10-20-120 neutron tubes were obtained, with calibration coefficients of 8.57 and 4.24, respectively, and goodness-of-fit values (R2) of 0.9998 and 0.9996, respectively. Both neutron-logging instruments demonstrated strong linear calibration for the standard uranium ore model, with R2 values exceeding 0.999. The results indicate that the neutron source, which is a key component of a neutron-logging instrument, significantly influences the calibration coefficient. Therefore, the instrument should be recalibrated when the neutron source is changed using a standard model borehole.

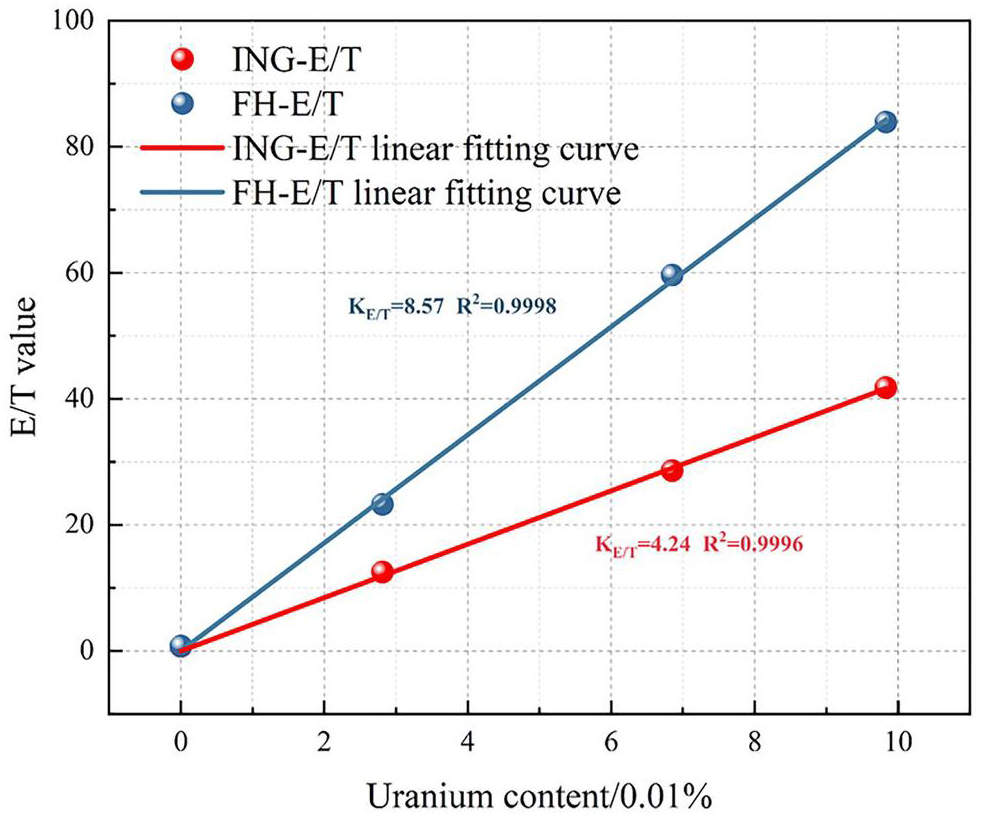

Fig. 8
(Color online) E/T scale curves (KE/T) for ING-10-20-120 and FH-G5DT neutron tube
pic
4.3
Instrument stability
4.3.1
Short-term stability measurement

The UNL4 instrument was used for ten repeated measurements on the Nu3 model, using RSD as a metric to assess the instrument’s stability, with the calculation formula shown in Eq. (1) [33, 34]. The results and RSD calculations are shown in Fig. 9(a-c). Across the ten repeated measurements, the counts of thermal neutrons, epithermal neutrons, and E/T values exhibited good repeatability, with RSD values of 1.11%, 3.23%, and 3.16%, respectively.pic(1)where counti represents the count for each dataset, is the average count from multiple tests, n denotes the number of repeated measurements, and RSD is the relative standard deviation calculation used to assess instrument stability.

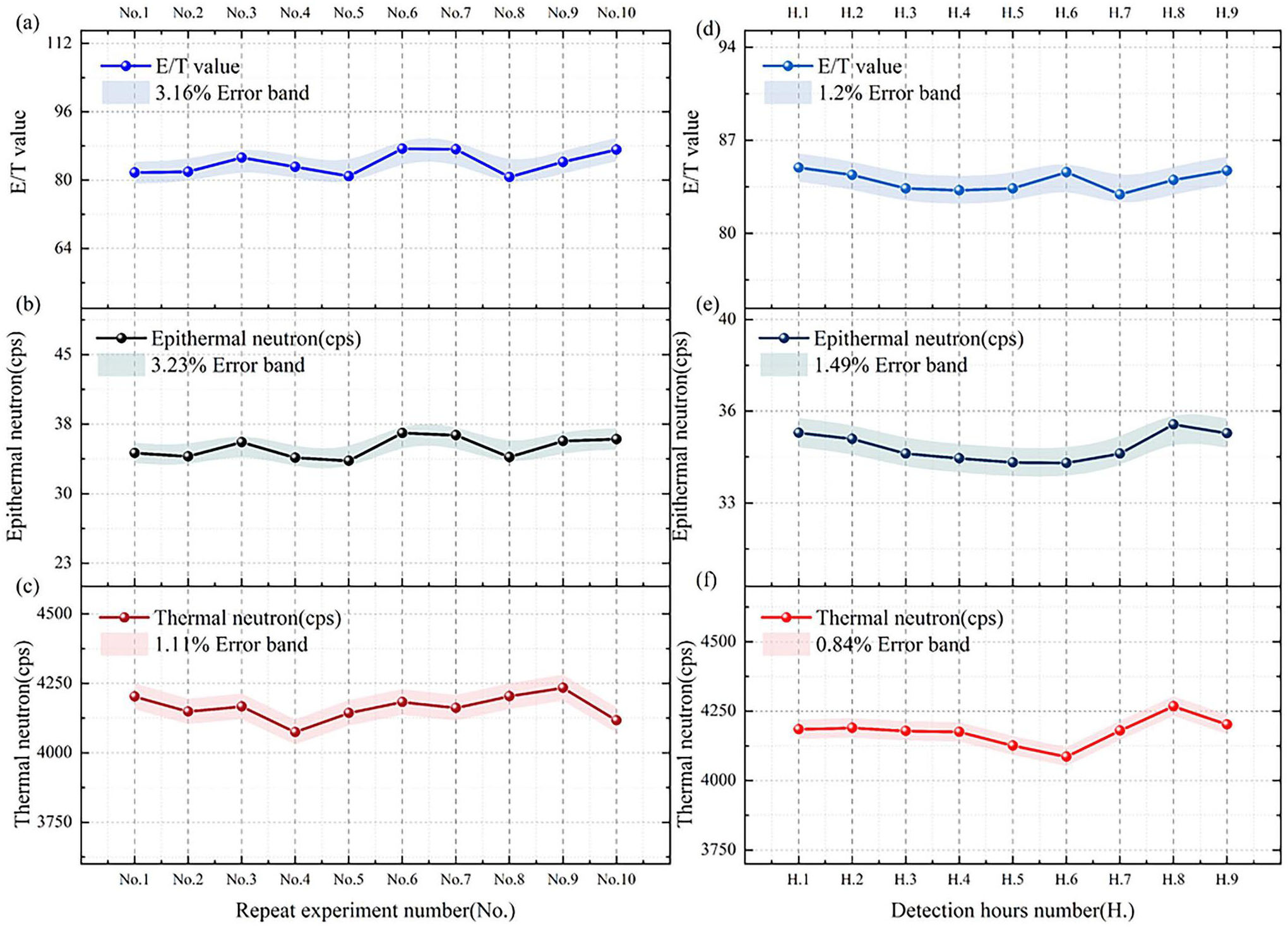

Fig. 9
(Color online) (a–c) Short-time measurements of E/T values, epithermal neutron counts rate, and thermal neutron counts stability for neutron detection systems. (e, f) Long-time measurements of E/T values, epithermal neutron counts rate, and thermal neutron counts rate stability for neutron detection systems
pic
4.3.2
Long-term stability measurement

The UNL4 neutron-logging instrument was used to conduct nine 1-h long-term measurements on the Nu3 model. The data from each hour were normalized and the parameters were selected based on the aforementioned time window. The effective thermal neutrons, epithermal neutrons, and E/T values within the time window were then calculated. The stability was analyzed using the RSD formula, with the specific data and calculation results shown in Fig. 9(e–f). As illustrated in the figures, the long-term stability of the neutron detection system showed that the long-term stability of the thermal neutrons within the effective time window was 0.84%, that of epithermal neutrons was 1.49%, and that of the E/T values was 1.2%. These results demonstrated that the logging instrument exhibits excellent stability.

4.4
Experiments at different logging speeds

The UNL4 neutron-logging instrument was used to conduct measurements in the PU model well at the Remote Sensing Center, with neutron-logging speeds set to 0.3, 0.5, 1.0, 1.5, 2, and 3 m/min and gamma logging speeds set to 1, 2, 4, 6, 8, and 10 m/min. The neutron-logging curves obtained at these five speeds are shown in Fig. 10. At logging speeds ranging from 0.3 to 3 m/min, the uranium-bearing sections of the formation (red) could be accurately identified. The quantitative uranium curve (green) demonstrated consistency with the theoretical curve (red). Table 3 lists the relative errors (RD) of the quantitative values for the two uranium-bearing sections at different neutron-logging speeds. The formula for calculating RD is given by Eq. (2), where UMeas represents the quantitative mean value of the ore section, and UTheor is the theoretical value of uranium content. At logging speeds ranging from 0.3 to 3 m/min, RD was below approximately 10%. These findings indicated that the instrument can achieve stable quantification of uranium content at logging speeds of 0.3 to 3 m/min. A direct uranium content scale based on gamma counting was conducted for the gamma logging experiment at different logging speeds, and the results are shown in Fig. 11. The results of RD between the quantitative mean value and the theoretical values of the two ore sections are shown in Table 4, where RD was below about 10%, with good stability and accuracy.pic(2)

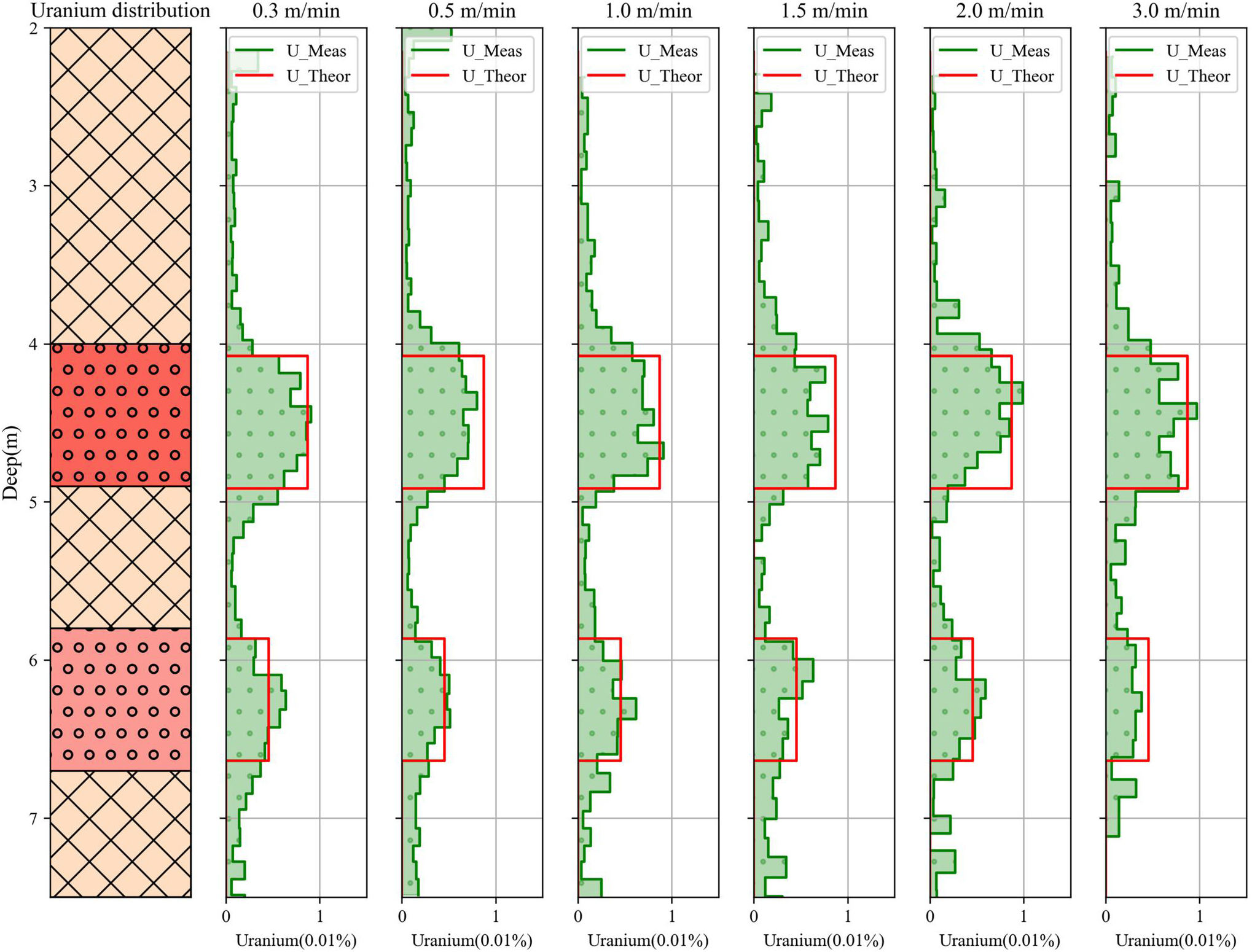

Fig. 10
(Color online) E/T values logging quantification curves of uranium content in PU model at logging speeds of 0.3, 0.5, 1.0, 1.5, 2, and 3 m/min
pic
Table 3
Relative errors of uranium content E/T values scale at different logging speeds
Uranium Neutron-logging speeds (m/min)
content (ppm) 0.3 0.5 1.0 1.5 2.0 3.0
87.1 RD -2.04% 0.81% 2.51% -0.74% 0.70% -10.45%
45.6 4.13% -2.16% 12.55% -4.91% -0.66% -20.37%
Show more

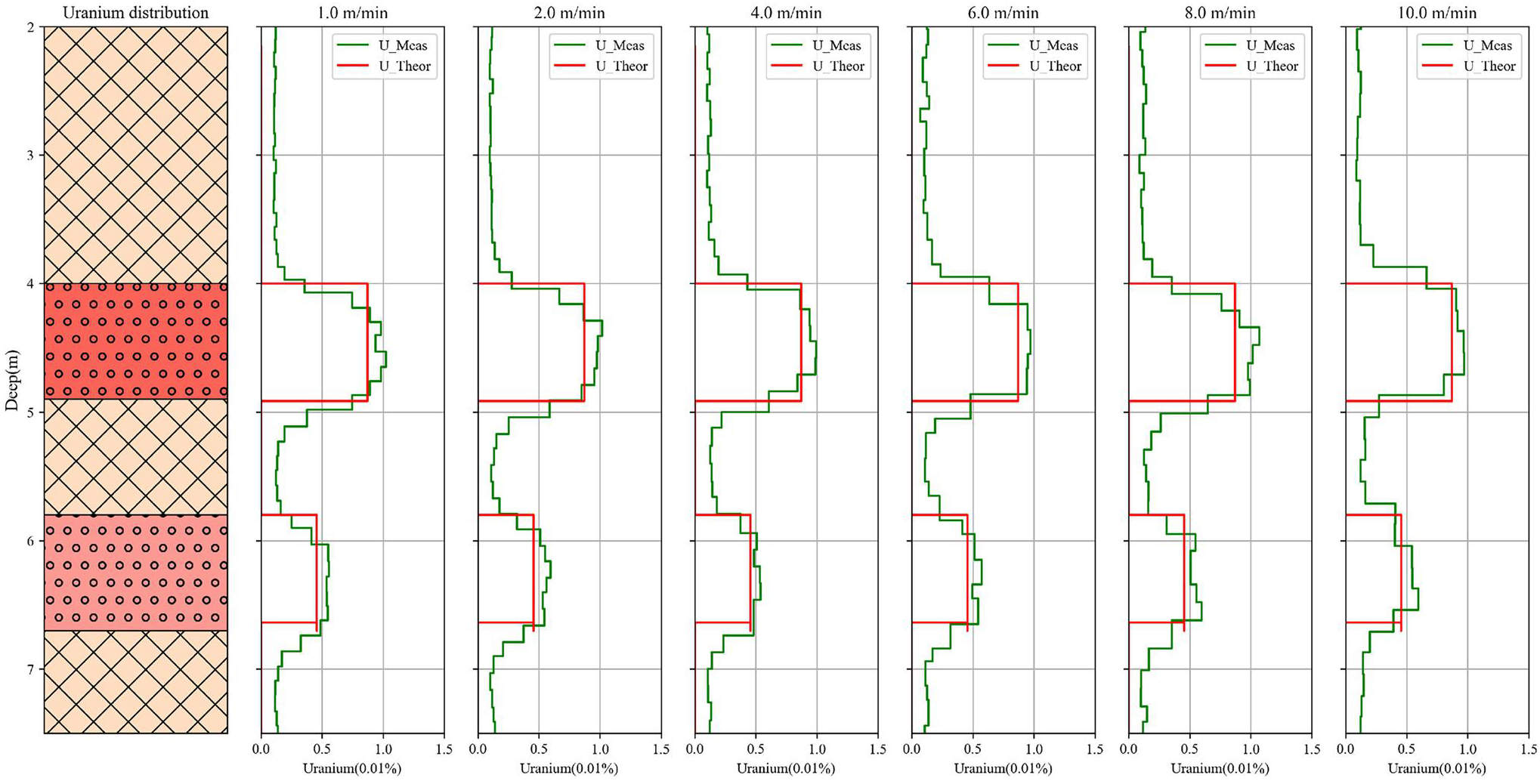

Fig. 11
(Color online) Gamma logging quantification curves of uranium content in PU model at logging speeds of 1, 2, 4, 6, 8, and 10 m/min logging speeds
pic
Table 4
Relative errors of uranium content gamma counts scale at different logging speeds
Uranium Gamma logging speeds (m/min)
content (ppm) 1.0 2.0 4.0 6.0 8.0 10.0
87.1 RD 3.35% -0.99% 1.29% -1.37% 4.55% -7.42%
45.6 2.63% 9.38% 2.15% 4.40% 5.95% 5.80%
Show more
4.5
Instrument performance parameters

In summary, after a series of optimizations and related experiments, the instrument was proven to achieve international standards for key technical indicators. A detailed comparison of performance parameters is presented in Table 5 [35-37]. Owing to the use of the new pulse signal shaping hardware design in this instrument, the neutron signal pulse width was effectively reduced, thereby increasing the neutron detection efficiency. Coupled with a software dead-time correction algorithm [38], the time-spectrum acquisition accuracy was significantly improved, reducing the impact of dead time on uranium quantification. Additionally, the detector structure inside the probe was optimized, and a uranium quantification algorithm based on the ratio of thermal neutrons to epithermal neutrons was proposed [39]. This algorithm effectively reduces the impact of neutron source fluctuations, enabling accurate uranium content quantification. The neutron (E/T values) logging speed, gamma logging speed, and detection limit of the instrument have reached 3 m/min, 10 m/min, 45.6 ppm, respectively. The operational lifespan of the instrument exceeded 250 h, and the neutron pulse width was adjusted as required. Compared with the other three instruments, this instrument demonstrated a significant performance improvement.

Table 5
Comparison of key technical indicators
Parameter USA (PFN) [35] Australia (APFN+) [36] Russian (ANHK-60) [37] Logging Instrument UNL4 (this paper)
Thin-layer and formation resolution (cm) 15 (0.5 feet) 15 (0.5 feet) - 10
Uranium detection limit (ppm) 500 50 50 45.6
Logging speed (orebody) (n/min) 0.5 1 (neutron)6 (gamma) 0.6 3 (neutron)10 (gamma)
Neutron tube lifespan (h) - - 150 ≥250
Initial neutron tube output (n/s-1) 1×108 1×108 1.5×108 1.45×108
Pulsed neutron frequency (Hz) 100 1000 20 1000 (adjustable)
Detector type 3He neutron detector(epithermal neutron)NaI gamma detector 3He neutron detector(epithermal/thermal)LaBr3 gamma detector 3He neutron detector(epithermal)NaI gamma detector 3He neutron detector(epithermal/thermal)LaBr3 gamma detector
Show more
5

Conclusion

In this study, we developed a new uranium fission prompt neutron-logging instrument (UNL4), marking the first use of a domestically produced FH-G5DT neutron emitter, two 3He proportional detectors, a lanthanum bromide (LaBr3) gamma-ray detector, and a digital spectrometer. The system employs high-speed ADC and FPGA technologies to enable the rapid acquisition and transmission of dual neutron time spectra and gamma energy spectra. Additionally, a fast signal-shaping method was developed, which reduces the dead-time effect in 3He detectors, thereby significantly improving the neutron signal detection efficiency. Monte Carlo simulations were used to optimize the thicknesses of Cd and HDPE for epithermal neutron detection. The optimal configuration was determined to be a Cd thickness of 1 mm and an HDPE thickness of 5 mm for the near 3He detector, enabling the efficient detection of epithermal neutrons. The far 3He detector was employed to detect thermal neutrons, whereas the LaBr3 detector was used to detect gamma rays emitted by the uranium ore itself. Experimental results from standard borehole models with varying uranium content showed that the ratio of epithermal to thermal neutrons detected by instruments equipped with either the domestic FH-G5DT neutron tube or Russian ING neutron tube exhibited a strong linear relationship with uranium content, with R2 values of 0.9998 and 0.9996, respectively. This validated the effectiveness of the newly developed uranium fission prompt neutron-logging instrument equipped with a domestic FH-G5DT neutron tube. Short-term testing indicated stability values of 1.11% for the thermal neutron count rate, 3.23% for the epithermal neutron count rate, and 3.16% for the E/T values, whereas long-term testing indicated stability values of 0.84% for the thermal neutron count rate, 1.49% for the epithermal neutron count rate, and 1.2% for the E/T values, confirming the high stability of the instrument. In addition, the instrument demonstrates good performance at neutron-logging speeds of 0.3~3 m/min (E/T values) and gamma logging speeds of 1~10 m/min. By conducting measurements in two ore sections of the PU model with lithium contents of 87.1 ppm and 45.6 ppm, RD was found to be less than approximately 10% for different neutron and gamma logging speeds, and the detection limit reached 45.6 ppm. This instrument fills a critical gap in China’s uranium exploration neutron-logging equipment and is of significant importance for the advancement of uranium exploration technology.
