Introduction
The gamma camera used for radioactive imaging has been widely applied in the fields of nuclear non-proliferation [1], nuclear emergency [2], medical imaging [3-5], environmental monitoring [6, 7], and space exploration [8-10]. Coded aperture imaging and Compton imaging are the two main gamma-ray imaging methods. Encoded aperture imaging is based on an aperture array projects radiation from sources at various angles onto the detector, forming distinct patterns that are decoded to reconstruct the image [11]. Coded aperture imaging exhibits superior angular resolution for incident gamma-rays with lower energy. For instance, the panoramic coded aperture gamma camera by Shifeng Sun achieves an angular resolution of 3.5° for a 137Cs source [12]. However, the presence of the coded aperture blocks a portion of the gamma rays, reducing the detection efficiency. Moreover, high-energy gamma rays are difficult to absorb effectively by the mask, leading to blurred projections and decreased contrast. Consequently, for medium- to high-energy gamma rays, Compton imaging is more suitable, as it eliminates the need for collimators, enabling a wider field of view and higher detection efficiency [13]. Nowadays, various structures of Compton cameras have been proposed, such as monolithic detectors and multilayer detectors [14-16].
The monolithic detector is sensitive to all directions of incident gamma-ray to obtain a wide field of view, but it must have the 3-D position-sensitive capability to distinguish the depth of two energy depositions. Charles University used a CdTe detector with a Timepix3 chip to image 131I, 137Cs, and 22Na sources from different directions. Due to the detector’s thinness, filtering and deconvolution algorithms were applied to enhance image quality [17]. Tsinghua University built a Compton camera with a 3-D position-sensitive CZT detector to identify isotopes and locate 137Cs sources, though with slightly inadequate angular resolution [18]. The approach using pixelated scintillators with SiPM or MPPC has also been proposed, in addition to semiconductor detectors [19]. Waseda University proposed a Compton camera with pixelated GAGG scintillators and MPPC arrays, achieving 7.8% energy resolution (FWHM) at 662 keV and 8° angular resolution for137Cs source [20]. H. Lee et al. developed a Compton camera using the same scintillators, reducing radioactive background noise and making it suitable for compact platforms like drones [21]. J. Zhang simplified pixelated scintillator manufacturing using laser engraving, with MPPC readout on both sides to enhance spatial resolution [22]. Yifan Hu developed a gamma camera with a 4π field-of-view by interleaving GAGG(Ce) scintillator strips, eliminating collimators to improve portability and sensitivity [23]. Sophisticated electronics have been developed to read out the monolithic detector. However, due to the detector’s limited size, the two interaction points of a Compton scattering event are in close proximity (respect to the detector’s 3D spatial resolution), which ultimately leads to a deterioration in the angular resolution.
Multilayer detectors locate the scattering and absorption positions in different 2-D position-sensitive detectors to increase the number of effective imaging events. Shin Watanabe designed a Compton camera using a combination of 6 layers of double-sided silicon strip detectors (DSSD) and 3 layers of CdTe pixel detectors, achieving energy resolutions of 9.1 keV for 356 keV and 14 keV for 511 keV, as well as an angular resolution of 3.9° for 511 keV gamma-rays [24]. Although the multilayer structure improves imaging efficiency, it is more costly than the dual-layer structure. To reduce costs, the two-layer Compton imaging structure has become the mainstream. Ji-Peng Zhang built a camera using a dual-layer pixelated GAGG scintillator, achieving an energy resolution (FWHM) of 7.2% for 662 keV gamma rays and an angular resolution of about 8° [25]. To increase the camera’s sensitive detection volume, Ming Hao Dong built a dual-layer Compton camera with enlarged LaBr3 detectors (10 mm×10 mm×10 mm and 10 mm×10 mm×5 mm), achieving 7° angular resolution for137Cs source [26]. To cover low-energy imaging, the High Efficiency Multimode Imager (HEMI) system from Berkeley, utilizes a dual-layer array with 1 cm3 CZT detectors to achieve coded aperture imaging and Compton imaging [27].
As demand for gamma camera applications grows, various techniques have been proposed to enhance their practicality, such as increases the detector’s sensitive volume [28], reduce the number of electronic channels [29], expand the field of view, or adapt to the single direction of far-field radiation imaging [30]. In addition to improvements in detector structure, a series of methods to enhance image performance have been proposed [31]. With the development of technology, researchers are increasingly focusing on improving the imaging efficiency of gamma cameras, reducing noise [32], and enhancing spatial resolution [33] and localization accuracy [34].
We propose a Compton camera design using a bar-shaped scintillator array. By analyzing the signals read out from the SiPMs coupled to both ends of each scintillator, the photon interaction position along the longitudinal axis can be reconstructed. This approach replaces the traditional array of small-volume scintillators, effectively increasing the sensitive volume of the Compton camera while reducing the number of electronics channels. The idea of using bar-shaped scintillators to determine the position of deposition was proposed as early as the 1970s and has been applied in high-energy astrophysics, such as the ZEBRA telescope and AGILE satellite [35-38], as well as in PET [39]. However, both the surface roughness of the scintillator and the reflective materials significantly affect its energy and position resolution. To achieve better energy and position resolution while increasing the detector’s sensitive volume, we conducted simulations and experiments on the surface roughness and reflective materials of a 5 mm×5 mm×100 mm CsI(Tl) detector. We investigated the impact of different reflective materials and surface roughness on these properties. The Compton camera utilizing this study significantly reduces the number of electronic channels compared to other Compton cameras with the same sensitive volume.
Compton imaging detector design
Structure of imaging detector
Compton imaging detectors require the ability of three-dimensional (3-D) position sensitivity. As shown in Fig. 1(a), a typically double-layer structure was selected in this study. Generally, the first layer of the detector array serves as the scattering detector, while the second layer is the absorbing detector. Each layer of the detector array is composed of 16 parallel-arranged bar-shaped scintillator detectors, providing a 2-D position for the interaction. The detector system with 3-D position sensitivity is formed by using two layers of 2-D position detectors. The field of view for Compton imaging can be changed by adjusting the spacing between the two-layer detectors.
In a two-dimensional planar array detector, the position resolution is discrete due to the discrete arrangement of the bar-shaped scintillator detectors. The continuous position segmentation along the axis of the bar-shaped scintillator detectors results in non-uniform position resolution. Orthogonal alignment of the detectors contributes to the uniformity of directional response.
The scattering detector with 2-D position sensitivity provides the position and energy deposition,
To increase the sensitive volume of the detector system, a large volume bar-shaped scintillator coupled with two SiPMs on the end faces of the detector is shown in Fig. 1(b) as its minimum detection unit. When radiation interacts with the scintillator detectors, the generated scintillation photons propagate toward the two ends of the detector. Due to the interface reflection and self-absorption in scintillator, scintillation photons will be reduced with an exponential decay. This feature facilitates the position reconstruction of the interaction within the detector by measuring the pulse signal amplitudes from the two SiPMs along the bar’s main axis direction. This method makes the bar-shaped scintillator has one-dimensional position resolution capability. Each SiPM is equipped with its own dedicated electronic readout channel to reduce electronic noise while increasing position and energy resolution. Some methods for improving the spatial resolution and spectroscopy of bar-shaped scintillators have been applied in the ZEBRA telescope and the AGILE, providing valuable insights for this study [37, 38].
In the experiments, to alter the roughness of the bar-shaped scintillator surface, we use sandpaper with similar roughness to uniformly sand the surface, ensuring the consistency of the scintillator surface. The reflective layer was applied by two methods: one involved wrapping the scintillator with Teflon tape, while the other involved placing the scintillator bar in a mold, pouring TiO2 slurry over its surface, and then placing the mold in a vacuum environment to eliminate air bubbles from the slurry. After curing, the TiO2 layer was ground to a thickness of 0.5 mm. These optimizations contribute to improved signal quality and measurement accuracy. Ultimately, this imaging structure allows a single-layer array detector with 2D position sensitivity to have a larger sensitive volume while using fewer electronic channels. To increase the sensitive volume of Compton detectors, consider using two or more layers of array detectors. This modular design allows for more flexibility in adjusting the sensitive volume while also reducing the complexity of the electronics. When choosing a detector, it is critical to consider the energy resolution of the scintillator detector and the available manufacturing technology.
Monte Carlo modeling
This work describes a Compton camera design that employs position-sensitive bar-shaped scintillators as the minimum detection unit. However, the surface parameters of the scintillator have a significant impact on its optical properties. For example, two important parameters of Compton camera, namely position reconstruction accuracy and energy resolution, are sensitive to surface roughness and reflective layer material [42]. Deservedly, we can optimize its position resolution capabilities by adjusting the surface parameters of the scintillator and choosing appropriate reflective materials. To validate the feasibility of this design, we created detailed models of the scintillator and the minimum detection unit using the Monte Carlo simulation software Geant4. We modeled and simulated several representative surface parameters and reflective layer material to evaluate their effects on the position and energy resolutions, which can provide some insights into optimizing the detector’s performance based on the chosen surface characteristics.

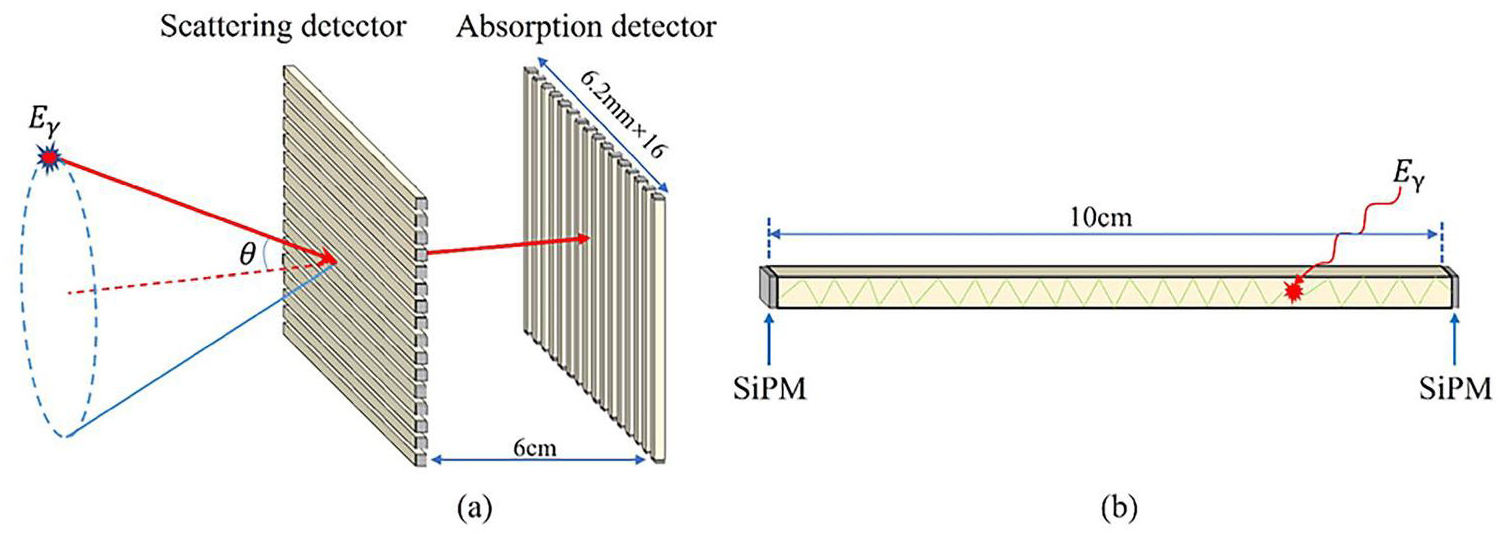

First, based on the structure shown in Fig. 1(b), we constructed a simulation model of a basic unit using Geant4. Next, we employed the optical photon physics model in the Geant4 software package to simulate the fluorescence photons produced in the scintillator and the internal optical characteristics of the scintillator [43]. To closely approximate real-world conditions, we adopted the Unified Model for the optical simulation. This model is particularly suitable for complex optical surfaces and allows flexible adjustments for parameters such as specular spike, specular lobe, diffuse lobe, reflection, and backscattering. These parameters offer high flexibility, with the sum of the Specular Spike, Specular Lobe, and Diffuse Lobe always equal to 1. By adjusting the ratios of these three parameters, we can effectively change the surface roughness and simulate different optical behaviors. We selected the Dielectric-Dielectric and Dielectric-Metal boundary types to represent Teflon-wrapped and TiO2-coated surfaces, respectively. By precisely configuring these parameters, we can accurately simulate the optical behavior of various material surfaces, facilitating more in-depth research.
It is important to consider a scintillator of high light yield. To meet these requirements, a commonly used CsI(Tl) scintillator was chosen for simulation studies due to its high scintillation efficiency and low intrinsic background radiation. The fluorescence efficiency of the CsI (Tl) scintillator is about 56000/MeV, the decay time is about 1020 ns, the average emission wavelength is 550 nm. The photon detection efficiency (PDE) of the SiPM for light at this wavelength is approximately 20%. To reduce simulation time, the SiPM’s photon detection efficiency (PDE) was set to 100%. This adjustment simplifies simulation without compromising the accuracy of the results.
To increase the detector’s sensitive volume and enhance imaging sensitivity, we need to maximize the cross-sectional area of the bar-shaped scintillator. SiPMs with larger light-sensitive areas are selected to achieve this goal. Currently, commercially available SiPMs with large light collection areas, typically around 6 mm×6 mm, include the EQR20 11-6060D-S from Novel Device Laboratory, S13360-6025PE from Hamamatsu, ARRAYC-60035 from onsemi, and AFBR-S4N66P014M from Broadcom. To collect photons emitted from both ends of the bar-shaped scintillator, we selected scintillators with a cross-sectional area of 5 mm×5 mm and a reflective material layer thickness of 0.5 mm. To ensure accurate measurement of the interaction depth within the scintillator, we chose bar-shaped scintillators with a size of 5 mm×5 mm×100 mm. We propose to construct a double-layer Compton camera using 32 bar-shaped scintillator detectors of this dimension, with a sensitive detection volume of 80 cm3. A larger sensitive volume can enhance imaging efficiency, meaning that more events suitable for imaging can be obtained within the same period, thereby reducing the imaging time.

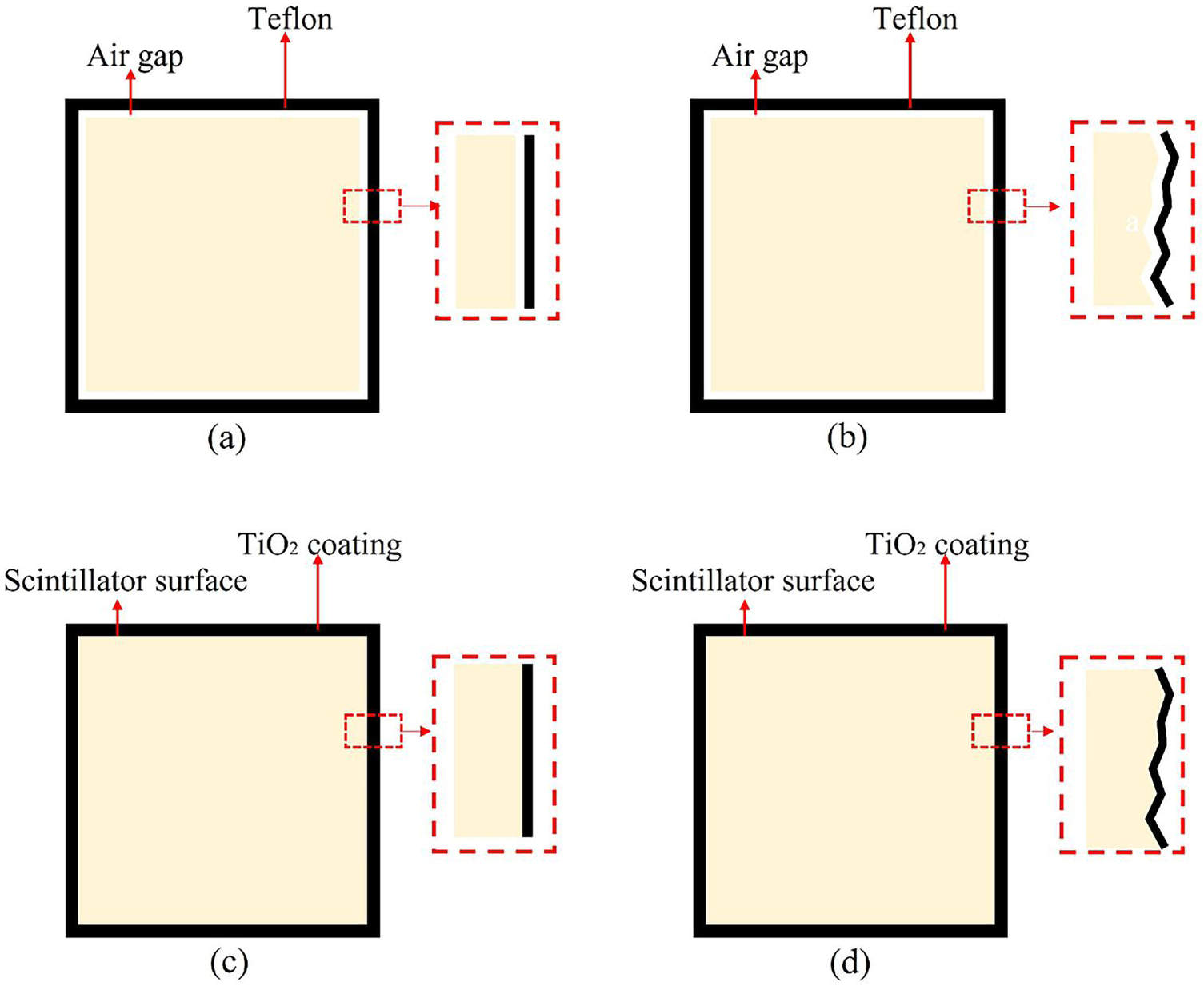

To study the effects of different surface roughness under the same reflective layer, and the impact of various reflective layers with the same roughness on the final energy resolution and position resolution of the bar-shaped scintillator, we used Teflon and (TiO2) as reflective materials. Consider whether the scintillator surface is rough or not, we modeled and analyzed four typical characteristics, as shown in Fig. 2. It should be noted that when Teflon is used as a reflective material to wrap the scintillator, the reflective material and the crystal surface typically do not fit tightly, usually creating small air gaps. As shown in Fig. 2(a) and 2(b), these air gaps can affect experimental results. In contrast, when a reflective coating is applied to cover the crystal surface, the reflective material makes tight contact with the scintillator surface. As illustrated in Fig. 2(c) and 2(d), there are no air gaps between the two surfaces. This difference is crucial in experimental design, as the air gaps can alter the optical properties of the scintillator, thereby affecting the performance of the detector. Through simulation analysis of these characteristics, we can gain a better understanding of how surface roughness and reflective layer materials affect the performance of the bar-shaped scintillator.
In the simulation process, a gamma ray source with an energy of 662 keV is used. The source is positioned 40 cm away from the central axis of the scintillator, with its emission direction aligned toward the scintillator. By moving the radiation source, a uniform irradiation scenario is simulated. The G4StepAction function is employed to monitor the type of particles produced in each step and the energy deposited by the radiation. In Geant4, each individual particle trajectory is assigned a unique track ID. For photons, once generated, Geant4 assigns a track ID to the photon. This ID enables the tracking of the photon’s path throughout the simulation, including its propagation, interactions with matter, and eventual disappearance. When combined with the G4StepAction function, it allows for the simulation and tracking of the total number of photons generated within the scintillator and the number of photons detected by the dual-ended SiPMs. This data provides insights into photons propagating through the scintillator and helps in evaluating the energy and position resolution of the detector based on varying surface and reflective layer parameters.
The Compton imaging system consists of two-layer of array detectors. Each layer consists of 16 detection units, each unit with a center-to-center spacing of 6.2 mm. The resulting single-layer array detector approximates a square configuration, as shown in Fig. 1(a). Additionally, the spacing between the two detector layers can be adjusted as required to modify the imaging field of view (FOV). The default spacing between the two array detectors is 60 mm, which allows for a larger field of view. With this configuration, the system has a total of 32 detection units, yielding 64 electronic channels. The effective sensitive volume of the detector is 80 cm3.
Signal processing and event reconstruction
Event reconstruction method
To determine the deposition location and energy of rays in a bar-shaped scintillator, an appropriate depth of interaction (DOI) reconstruction method is required. Currently, the DOI reconstruction methods used with dual-end readout scintillator detectors primarily fall into two categories: the time-of-flight method [44] and the amplitude-ratio method [45]. The time-of-flight method uses the time difference between the pulses received at the two ends of the scintillator to determine the location of the radiation interaction in the scintillator. This method has been applied in the balloon-borne Compton telescope [46]. However, this method requires high accuracy and high sampling rates from electronics, and is more suitable for longer scintillators. Adopting this method would increase the complexity and cost of the electronics. The amplitude-ratio method for DOI reconstruction by using the ratio of the number of photons emitted from the two ends of the scintillator to determine the interaction depth within the scintillator. This method eliminates the need for high time resolution and high sampling rates in the electronics, effectively reducing the complexity and cost of the electronics. Given these considerations, the proposed design uses the amplitude-ratio method for DOI reconstruction.
The reconstruction method of amplitude-ratio analysis is as follows. When the bar-shaped scintillator has the same cross-sectional area shape, such as rectangular or cylindrical, and there is no light guide between the scintillator and the photodetector. When the surface of the scintillator exhibits uniform roughness, under ideal conditions, the scintillation photons produced within the scintillator are transmitted to dual-end in an approximate exponential attenuation. The attenuation distance l0 is related to scintillator size, surface roughness, and reflector. The exponential decay behavior is critical for determining the DOI within the scintillator by comparing the relative pulse amplitudes from both ends of the detector.
Assuming that when the interaction position and the energy deposition position are in the middle of the bar-shaped scintillator, the DOI value, ZDOI is 0, and the length of the scintillator is L. If an incident particle deposits energy at a position ZDOI within the scintillator and generates N photons, the number of photons collected at the left and right ends can be calculated as follows:

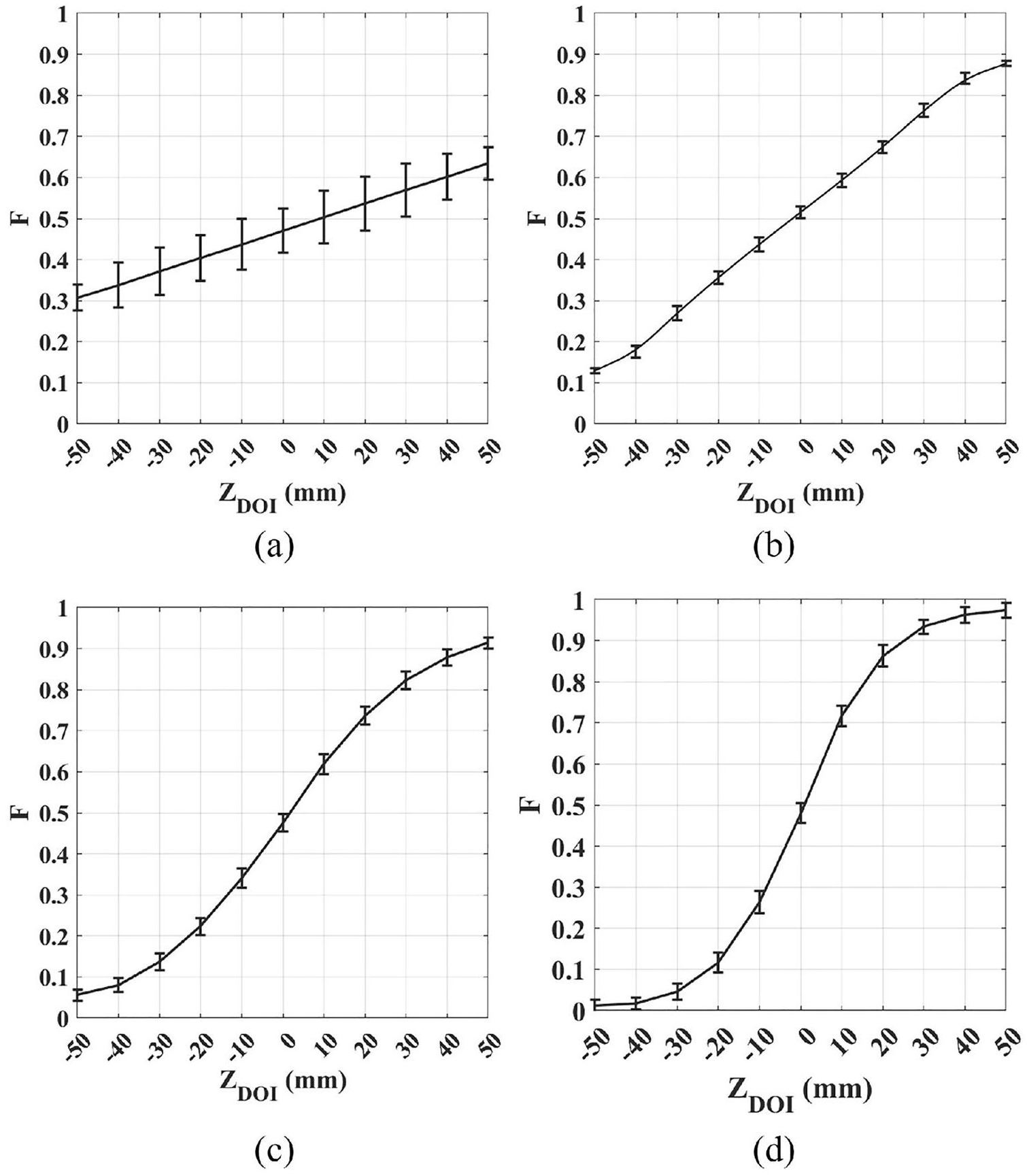

To evaluate positioning accuracy, we define the parameter F as the ratio of the number of photons emitted from one end to the total number of photons emitted from both ends:
Simulation results and experimental parameter selection
After building the simulation model for the minimum detection unit in Geant4, perform a simulation and comparison analysis on the four typical scenarios shown in Fig. 2. This will help in the identification of the characteristics suitable for position and energy reconstruction in bar-shaped scintillators, which will be validated experimentally.
The simulation recorded the incident position of the gamma rays and number of photons emitted from dual-ends of the scintillator. The number of photons emitted from both ends of the scintillator in the four simulations are plotted as a scatter plots, as shown in Fig. 3. And the plot in Fig. 4 shows the parameter F versus the reconstructed interaction position along the bar’s main axis.

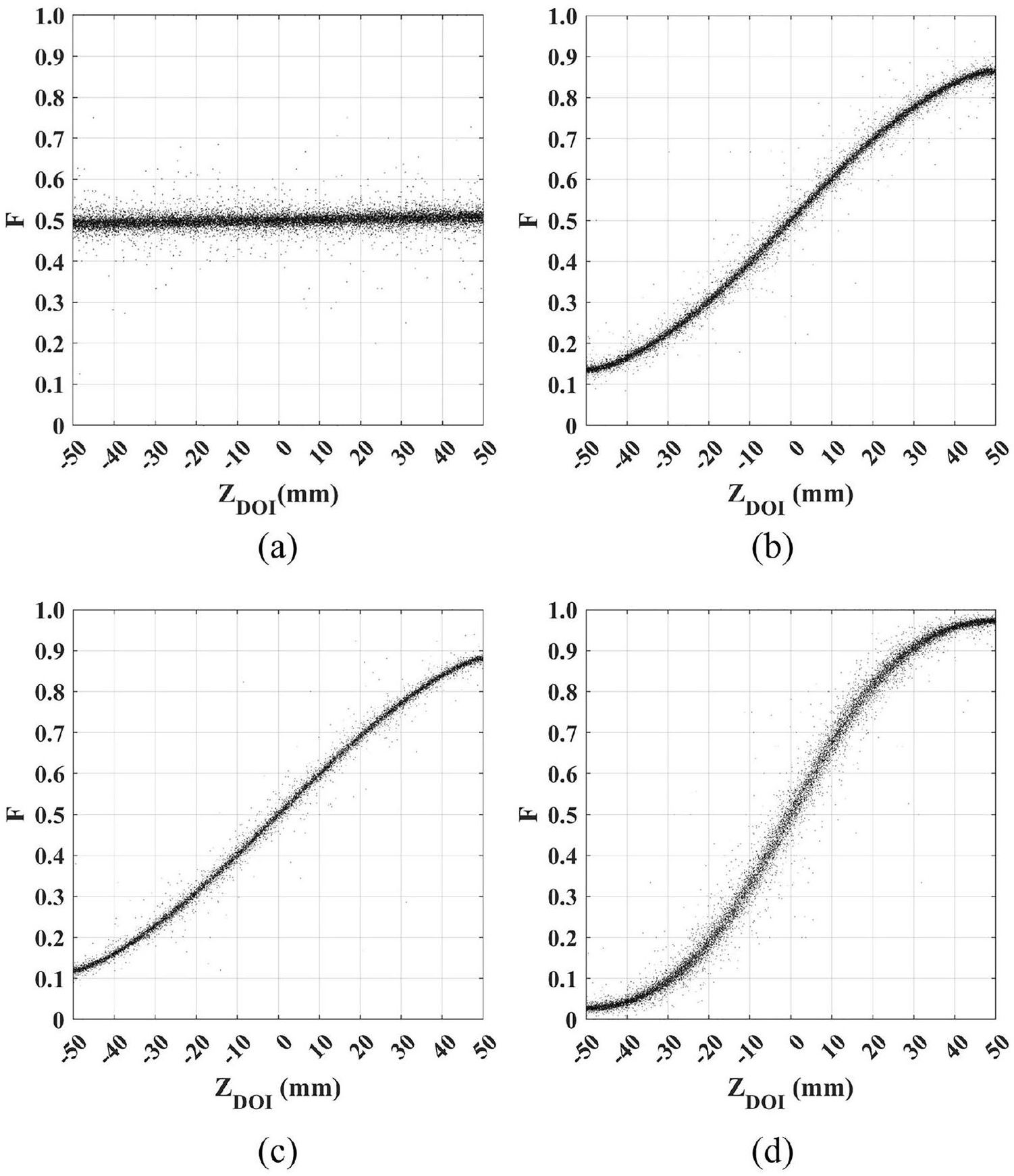

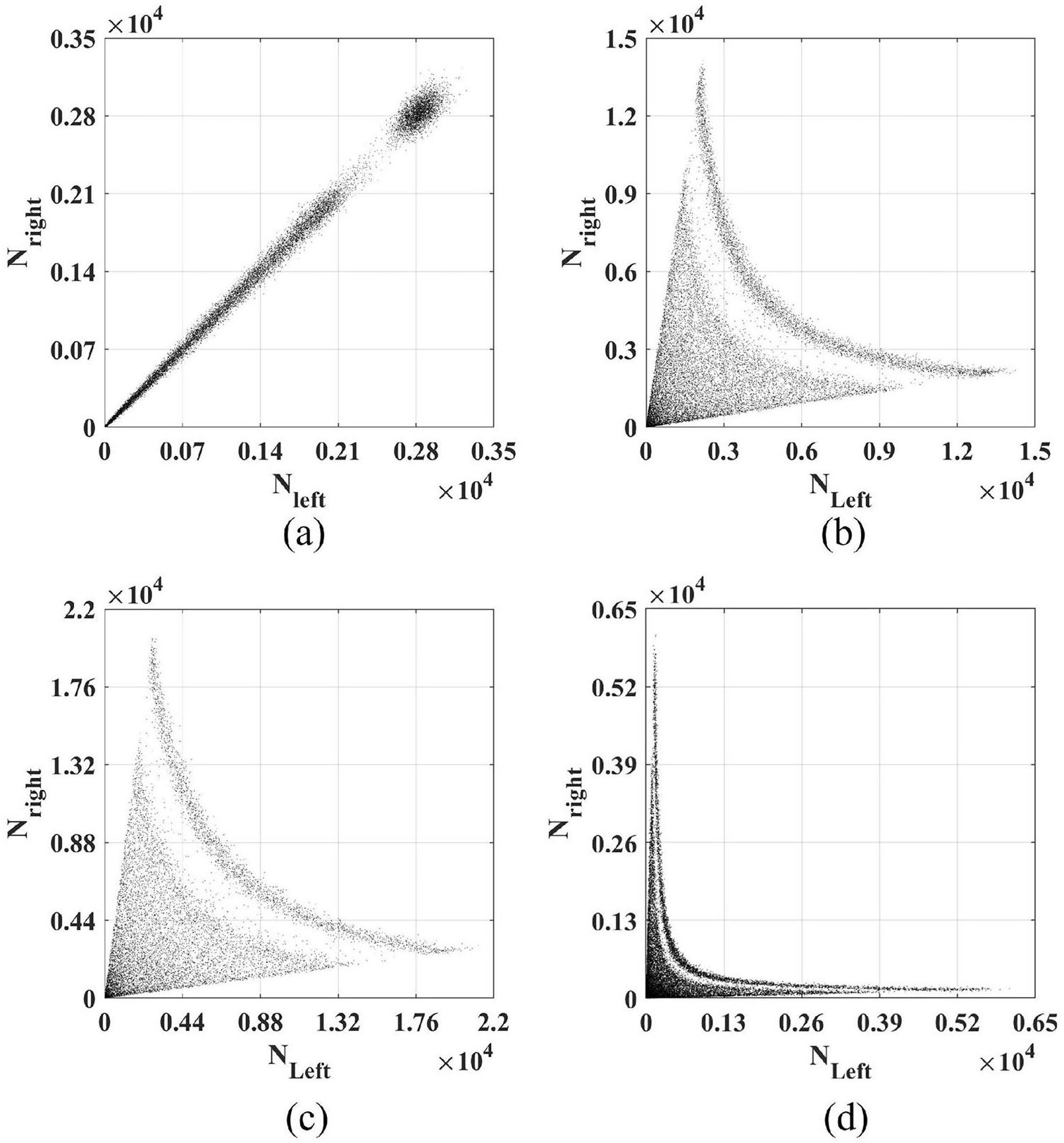

The simulation results indicate that, under the conditions shown in Fig. 3(a), photon attenuation within the scintillator is minimal, resulting in no significant difference in the number of photons emitted from both ends. This leads to poor position resolution for the strip-shaped scintillator. In contrast, the results in Fig. 3(d) show a high degree of photon attenuation within the scintillator, making it difficult for photons generated in the middle to exit from both ends, which deteriorates the energy resolution of the strip-shaped scintillator. Meanwhile, the results shown in Fig. 3(b) and (c) reveal a good balance between energy and position resolution.
To investigate the impact of scintillator surface parameters on energy resolution in these four typical scenarios, the method described in Sect. 3.1 was used to calculate the energy resolution based on the number of photons emitted from each end. The results are shown in Table 1.
| Condition | (a) | (b) | (c) | (d) |
|---|---|---|---|---|
| FWHM | 7.77% | 10.49% | 7.90% | 44.14% |
Based on the above-given simulation results, we can draw the following conclusions:
1. According to the results shown in Fig. 4(a), when the scintillator surface is polished and wrapped with Teflon reflective material, the parameter F remains relatively constant as the DOI varies. This might be due to the high probability of total internal reflection at the medium’s surface, resulting in no discernible difference in the number of photons emitted from both ends. This situation is unfavorable for position reconstruction. However, as illustrated in Fig. 4(b), when the scintillator surface is rough, the F varies monotonically and noticeably with the DOI. This characteristic is beneficial for position resolution capability. At the same time, by comparing Fig. 3(a) and (b), when the surface roughness increases, energy resolution deteriorates to some extent.
2. According to the results shown in Fig. 4(c), when the scintillator surface is polished and coated with TiO2, the coating is tightly adhered to the scintillator surface. The parameter F exhibits a clear and monotonic variation with the DOI, indicating good position and energy resolution capabilities. This may be because the TiO2 coating has a certain granularity, which increases the probability of diffuse reflection of light on the surface of the medium. However, as shown in Fig. 4(d), when the scintillator surface becomes rougher, diffuse reflection increases, resulting in a broader range of parameter F values that no longer follow a monotonic trend. As shown in Fig. 3(d), this can affect both position reconstruction and energy resolution. Increased surface roughness may reduce energy resolution due to additional scattering and reflections, complicating position and energy determinations.
3. According to the results shown in Fig. 3(b) and (c), it can be seen that the scintillator has position and energy resolution when the scintillator surface is polished and coated with TiO2 or scintillator surface is rough and wrapped with Teflon.
However, under the conditions shown in Fig. 3(c), the number of photons emitted from both ends is significantly higher than under the conditions in Fig. 3(b), which is more favorable for reconstructing energy and position information.
In order to achieve the conditions described in Fig. 3(b), the bar-shaped scintillator require surface roughening and wrapping with a reflective material. In this process, it is challenging to ensure the uniform contact between the scintillator surfaces and Teflon.
The above-described simulations only validated the trend-based changes caused by varying surface parameters and reflective layer materials. In addition, changes in factors like scintillator surface roughness, refractive index, and reflection efficiency can influence the number of photons emitted from both ends of the scintillator, and further affects the pulse amplitude of the SiPM output. Therefore, the simulation model must be adjusted following experimental results.
Experimental results and discussion
Hardware system verification
To experimentally validate the simulation results, a corresponding electronic hardware system was established. The hardware system must meet multi-channel and high-precision data acquisition requirements. The system includes a preamplifier readout circuit which scheme is shown in Fig. 5(a). The fixed framework and the circuit module in the blue box on the left, which scheme is shown in Fig. 5(b). A four-channel high-speed waveform data acquisition card (DAQ), as shown in Fig. 5(c). These components together form a comprehensive system for capturing and analyzing the signal data. The fixed frame is designed to hold three CsI(Tl) scintillators simultaneously. In the actual experiments, to minimize the impact of electronic measurement errors, a consistent set of electronic devices was utilized. Furthermore, repeated measurements were performed with different scintillator bars. This approach effectively mitigates experimental deviations caused by electronic errors, thereby improving the reliability and accuracy of the collected data.
To ensure that photons emitted from dual-end of the scintillator are collected as effectively as possible by the SiPMs, we selected unique Epitaxial Quenching Resistor (EQR) SiPMs from Novel Device Laboratory (NDL). These SiPMs have several advantages, including a compact structure, high-density microcells, a wide dynamic range, high detection efficiency, a fast response time, excellent time resolution, insensitivity to ambient temperature, and radiation resistance [47]. The circuit shown in Fig. 5(a) is used to ensure the stability of the SiPM output signals and reduce distortion. The anode of the SiPM is directly coupled to the input of the charge-sensitive preamplifier, ensuring that all the charge output from the SiPM is collected. However, this design can be affected by the SiPM’s dark current, which may impact the precision of the output signal. In the actual measurement process, it is necessary to adjust the RC parameters for different scintillators to achieve better energy resolution. This approach helps to maintain signal integrity while optimizing the performance of the SiPM-based detection system. Table 2 shows the value ranges of some SiPM features.
| Type | EQR20 11-6060D-S |
|---|---|
| Effective pitch (μm) | 20 |
| Element number | 1×1 |
| Active area (mm × mm) | 6.24 × 6.24 |
| Micro-cell number | 97344 |
| Terminal capacitance (pF) | 397 |
| Breakdown voltage, |
27.27±1 |
| Maximum operation voltage, |
34.7±1.6 |
| Recommended operation voltage (V) | |
| Temperature coefficient for |
24.8 |
| Peak PDE @ 420 nm | 47.8% |
| Gain | 8.0×105 |
| Dark count rate (DCR) (kHz/mm2) | 150 (typical) |
| 450 (maximum) |

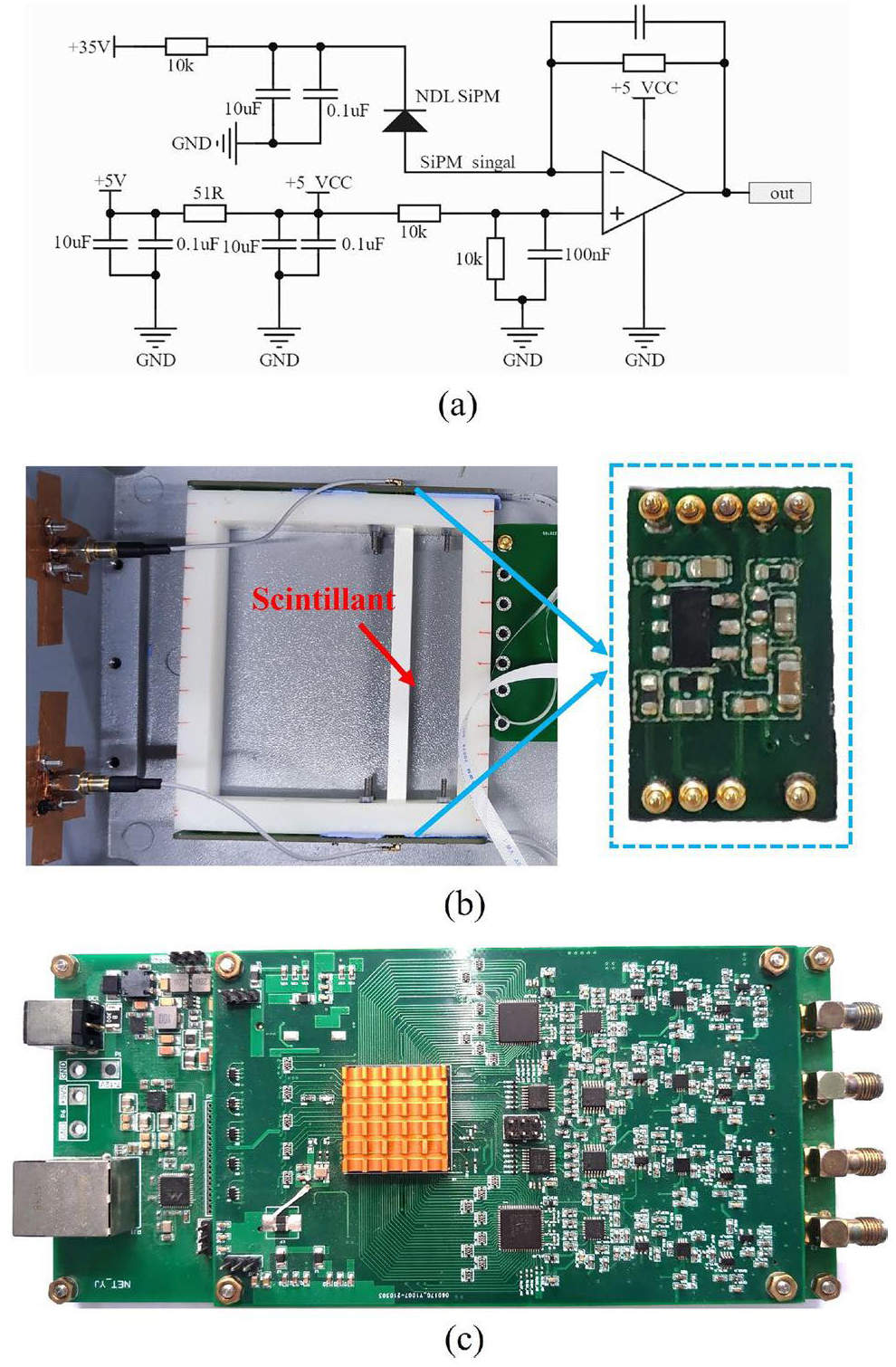

The circuit shown in Fig. 5(a) was made into a minimum basic detection circuit module depicted in the blue box on the left of Fig. 5(b). The preamplifier and SiPM are mounted on the same PCB to reduce signal transmission distance and maintain signal quality. These components are coupled to the two end faces of the bar-shaped scintillator shown in Fig. 5(b), with the signal output taken through coaxial cables. The pulse signals from the SiPMs at two ends of the scintillator are captured using the 4-channel high-speed waveform acquisition card shown in Fig. 5(c). This acquisition card has excellent signal processing capabilities. The ADC on the card has a 16-bit resolution and an 80 MHz sampling rate, ensuring signal fidelity during sampling. After the high-speed ADC samples the signal, the data including channel number, timestamp, and raw waveform are processed and packaged within an FPGA, and then sent to computer for processing and display through Ethernet interface. The hardware gain, DC offset, and trigger threshold of the acquisition card can be adjusted through the upper computer, allowing for the flexible selection of optimal parameters to achieve the best signal-to-noise ratio.
The original pulse data is transmitted to the upper computer by a network transmission interface. Because of the captured pulse signals have a typical exponential decay pattern, digital filtering with the trapezoidal shaping algorithm is used to improve the accuracy of pulse amplitude measurements. This method not only filters out high-frequency noise but also allows for precise amplitude extraction, which is useful for the subsequent analysis. The device shown in Fig. 5(b) was placed in a fully light-tight metal shield box. In the experiment, the energy resolution of the bar-shaped scintillator was first tested using an uncollimated 137Cs source. Subsequently, the source was collimated using a collimator to measure the position resolution at different points. This controlled environment helps to ensure accurate measurements while also reducing interference from external factors.
According to the simulation results in Sect. 3.2, we selected four CsI(Tl) scintillators with dimensions of 5 mm×5 mm×100 mm for experimental verification, and applied the following four experimental conditions: (a) polished scintillator wrapped with Teflon; (b) polished scintillator coated with TiO2; (c) scintillator surface with roughness of 800 mesh, wrapped with Teflon; (d) scintillator surface with roughness of 800 mesh, coated TiO2.
We conducted preliminary tests on the four selected scintillators. The scintillators were fixed using the frame shown in Fig. 5(b), and uniformly irradiated with a137Cs radiation source at a distance of 40 cm. The signal amplitudes read by the SiPMs at both ends were recorded and plotted as a scatter plot, as shown in Fig. 6. Based on the preliminary test results, the signal amplitude scatter plots from the SiPMs at both ends of the four selected scintillators closely match the simulation results.
Performance measurement

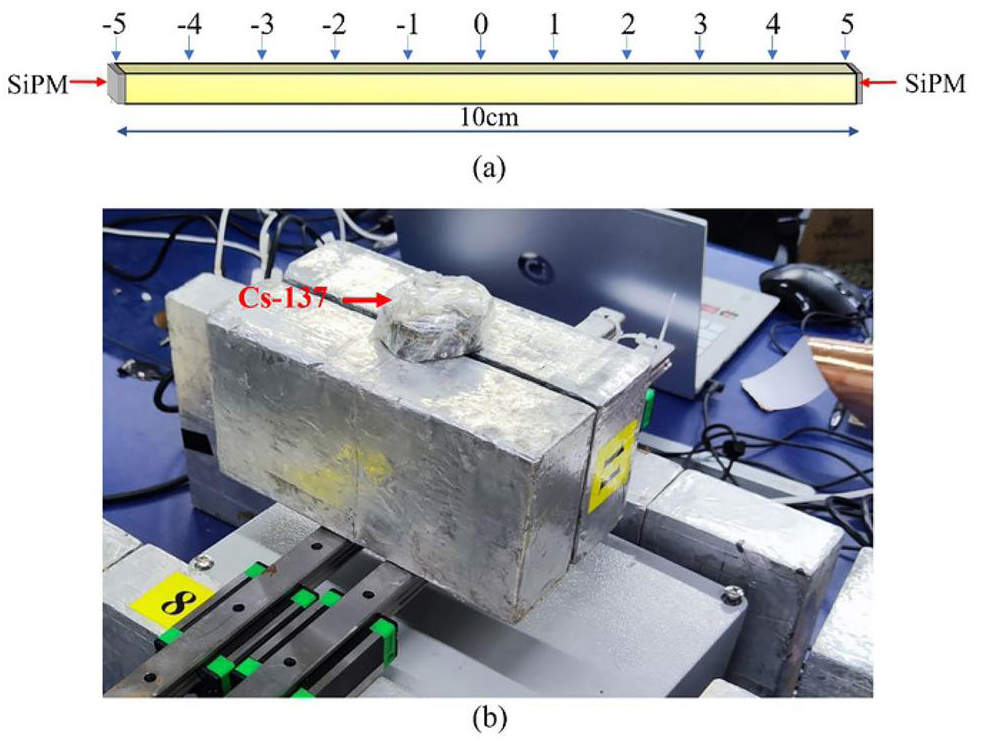

To evaluate the position resolution of the scintillators, a collimated radioactive source was used to measure multiple points on the scintillator, as shown in Fig. 7(a). To ensure the accuracy of the collimation measurement, the midpoint of the bar-shaped scintillator was taken as the reference point (ZDOI = 0). Five measurement points were evenly spaced on both sides, resulting in a total of 11 measurement points for collimated measurements. The experimental setup, shown in Fig. 7(b), includes two lead bricks spaced 3 mm apart to collimate the 137Cs source, and a guide rail was employed to slide the source, ensuring measurement accuracy.

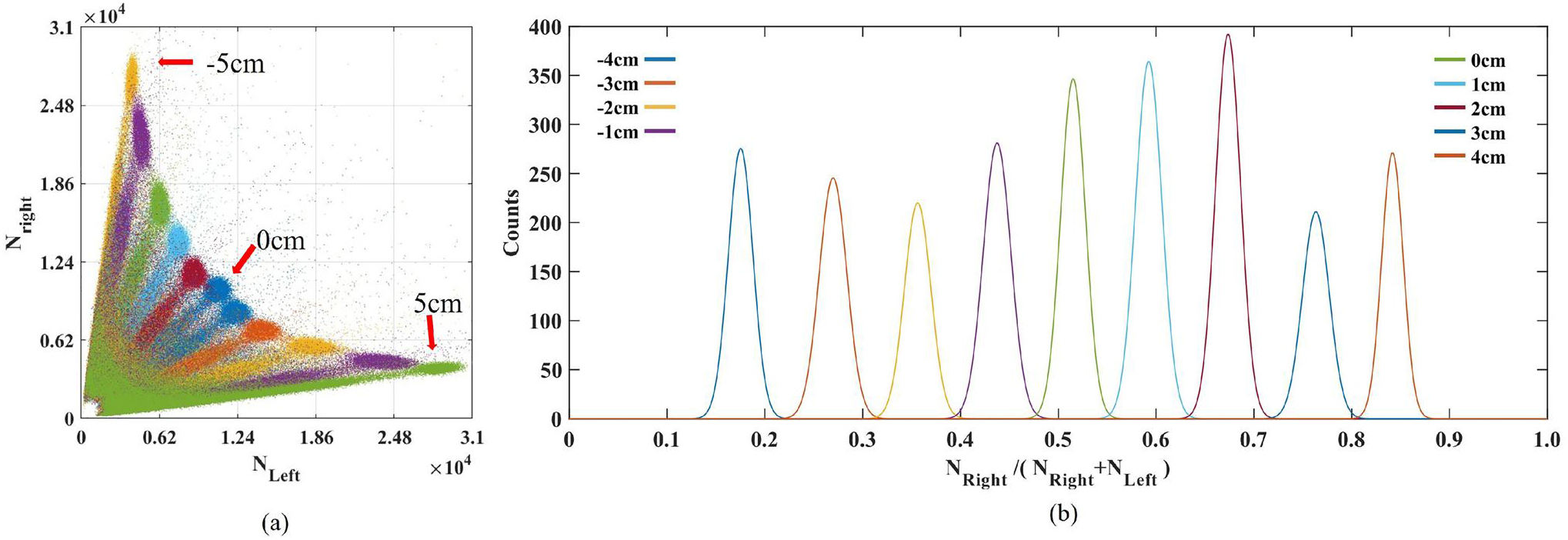

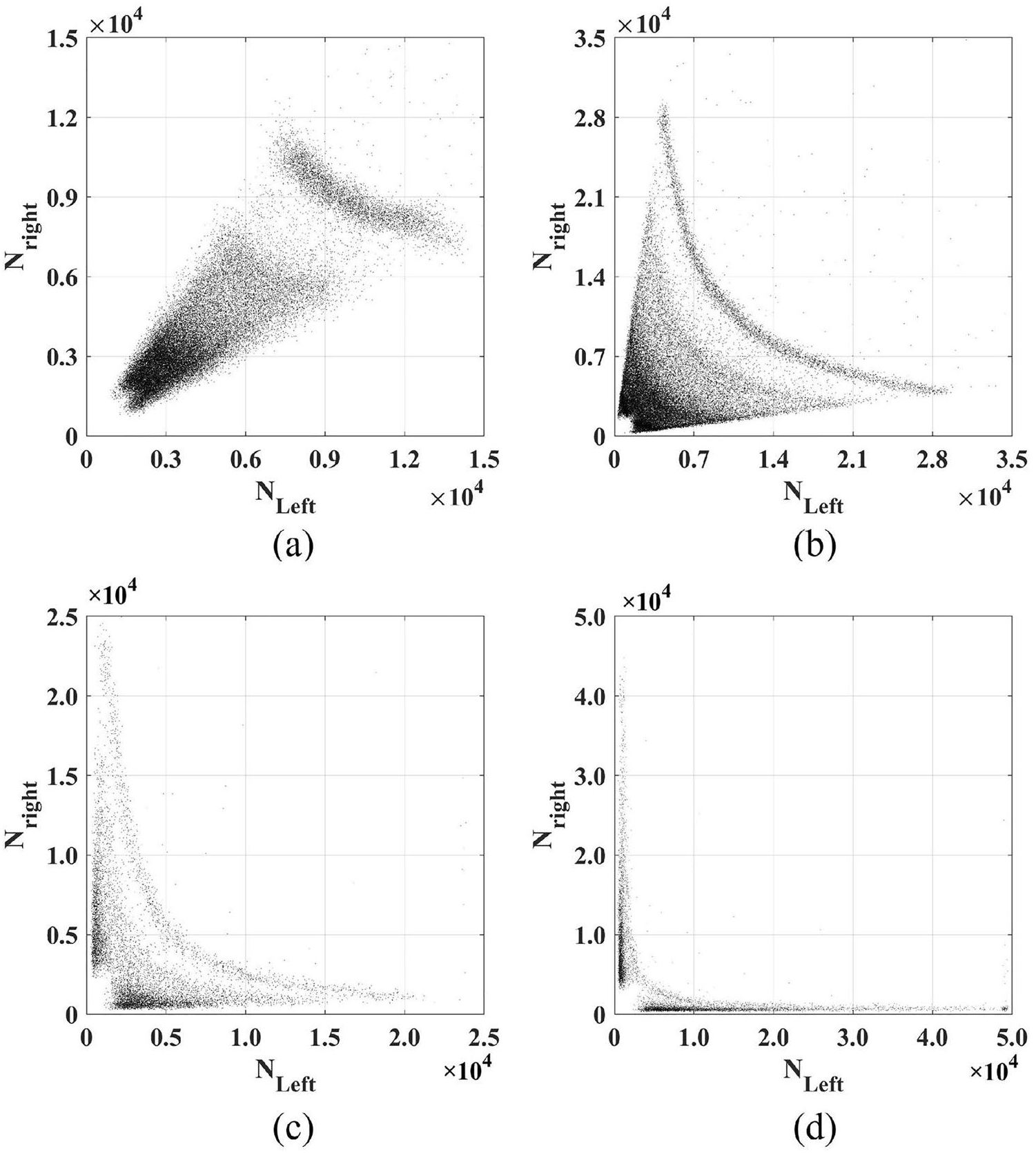

The scatter plot of the collimation measurements is summarized, and the data corresponding to the full-energy peak are selected to calculate the position resolution. Taking the bar-shaped scintillator is under experimental condition (b) as an example, the scatter plot of the eleven measurement points is shown in Fig. 8(a). The fitted diagram of parameter F-value of the remaining points is shown in Fig. 8(b).
Following the same approach, the measurement data of the other three bar-shaped scintillators were processed, and the parameters F and ZDOI of the four measurements were fitted using Eq. (6), as shown in Fig. 9.

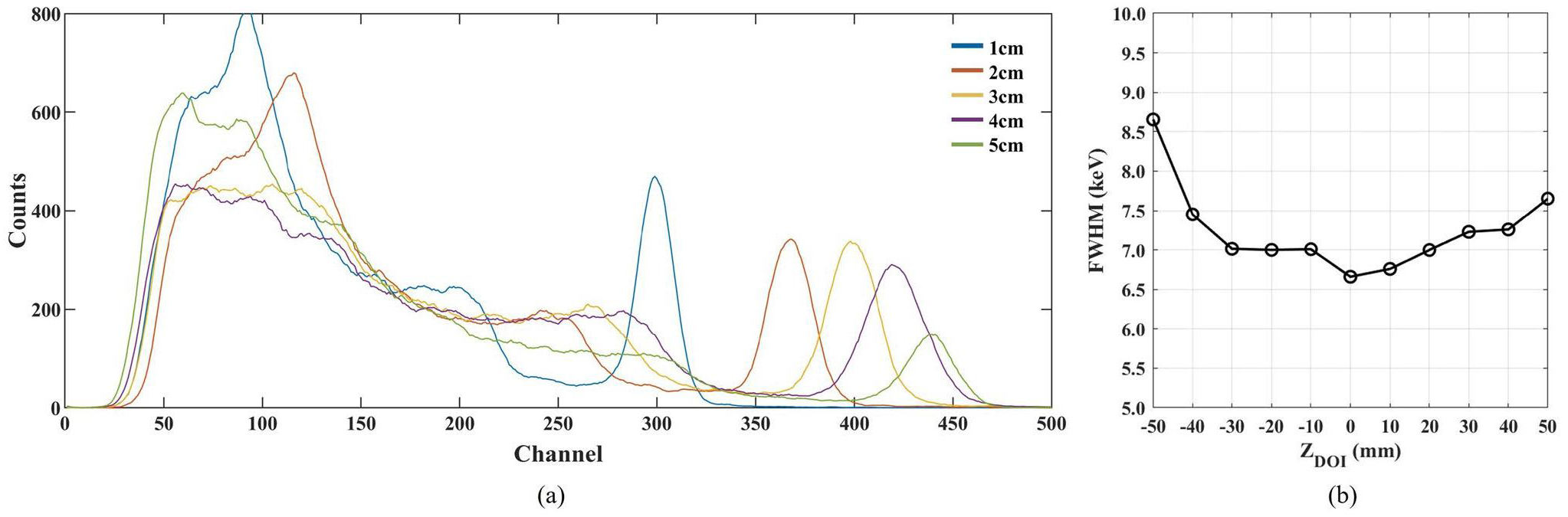

The results shown in Fig. 9 indicate that under experimental condition (a), the position resolution of the bar-shaped scintillators is relatively poor. Under experimental condition (b), the distribution of parameters F and ZDOI exhibits an approximately linear relationship, and the position resolution demonstrates good consistency. Under experimental condition (c), the position resolution near the two ends of the scintillator slightly decreases, but the overall performance remains within an acceptable range. In contrast, under experimental condition (d), the distribution of parameters F and ZDOI shows a nonlinear relationship, and the position resolution error is larger near the two ends of the scintillator, leading to uneven overall position resolution.
According to the measurement results in Fig. 9, when the bar-shaped scintillator is under condition (b) with a polished surface and coated with a TiO2 reflective coating, the scintillator achieves a position resolution of better than 5 mm. Therefore, the energy resolution at different test points of this scintillator was further analyzed. Figure 10(a) shows the energy spectra for half of the eleven measurement points. It can be observed that when the measurement points are near the edge of the scintillator, the energy spectra widen significantly. Figure 10(b) shows the energy resolution at each point, and it can be seen that the energy resolution at both ends of the scintillator bar decreases, but the average energy resolution remains 7.2%.
Analysis and discussion
The estimated energy resolution and position resolution for the four bar-shaped scintillators, as well as the fitting functions between parameters F and the interaction position, are presented in Table 3.
| Surface type | Reflector | FWHM | Position resolution | ||
|---|---|---|---|---|---|
| (a) | Polished | Teflon | 10.18% | 34 mm | |
| (b) | Polished | TiO2 | 7.21% | 5 mm | |
| (c) | Roughness 800 mesh | Teflon | 20.67% | 8 mm | |
| (d) | Roughness 800 mesh | TiO2 | No clear photopeak | 16 mm | |
Based on the experimental results, we can draw the following conclusions:
1. According to Fig. 6(a), when the scintillator has a smooth surface and is wrapped in Teflon reflective material, its position resolution is reduced, which is consistent with the simulation results. By comparing Fig. 6(a) and (c), the reflective materials coated in both are Teflon, the scintillator exhibits some position resolution when its surface is rough. It shows that the position and energy resolution of bar-shaped scintillator can be improved by selecting suitable surface roughness when the scintillator is wrapped by Teflon.
2. According to Fig. 6(b), when the scintillator has a smooth surface and is coated with TiO2, it exhibits good energy resolution and some position resolution. However, as the surface roughness increases, the energy resolution decreases, which is consistent with the simulation results. By comparing Fig. 6(b) and (c), we can see that, while both scenarios exhibit some energy and position resolution, the pulse amplitude at both ends of the scintillator is significantly smaller in the condition shown in Fig. 6(c).
In summary, to achieve good energy resolution and position resolution for bar-shaped scintillators, two typical surface characteristics can be selected: a polished surface covered with a TiO2 reflective coating and a rough surface wrapped with Teflon reflective material. When the scintillator surface is wrapped with reflective material, changes in surface roughness can have a significant impact on the position resolution and energy resolution. Considering the difficulty of ensuring consistency among multiple detectors when the reflective material is wrapped around the scintillator surface, it is recommended to fully polish the surface and use TiO2 coating as the reflective material.
Table 4 compares the key advantages of the detection system proposed in this paper with data reported in the literature, highlighting the unique characteristics of different Compton camera designs.
| Research from | This study | University of Michigan [48] | Chinese Academy of Sciences [22] | Institute of High Energy Physics [25] | Berkeley University [27] |
|---|---|---|---|---|---|
| Detector structure | Bar-shaped CsI(Tl) scintillator array | Single 3D position-sensitive CZT detector | 3D position YSO detector | Two-layer pixelated GAGG:Ce | CZT detector array |
| Sensitive volume | 80 cm3 | 6 cm3 | 19.6 cm3 | 38.4 cm3 | 96 cm3 |
| Energy resolution | 7.2%@662 keV | <1%@662 keV | 9.3%@662 keV | 8.5%@662 keV | <2%@662 keV |
| Position resolution | <5 mm | 1.72 mm | 3 mm | 2.2 mm | >10 mm |
| Characteristic | Large sensitive volume and lower cost | High energy resolution | 4 |
High position resolution | High detection efficiency |
Conclusions
This study describes a structure for constructing a Compton camera using a position-sensitive bar-shaped scintillator array, which utilizes the pulse amplitude read out from dual-end of the scintillator to reconstruct the energy and position of gamma rays deposited within the scintillator. This method has several advantages over traditional Compton cameras built with small-volume scintillator arrays, such as a larger sensitive volume and fewer electronic channels. The Geant4 simulation software was used for modeling and simulation to optimize the surface parameters of the bar scintillator for better energy and position resolution of the minimum detection unit. The results showed that the best position and energy resolution was achieved when the surface of the strip CsI(Tl) scintillator was smooth and coated with a TiO2 reflective layer. According to the simulation results, the CsI(Tl) scintillator has an average energy resolution of 7.2% at 662 keV energy and a position resolution of better than 5 mm. Most importantly, this study indicates that constructing a Compton camera using position-sensitive strip scintillators is feasible.
