2.1 Front-end board

The front-end board amplifies and acquires the analogue signal from the SSD. It consists of a packaged silicon strip sensor, two integrated charge measurement chips, and a signal processing circuit.

The SSD considered in this study was manufactured by Micron Semiconductor Ltd. (UK) [10]. The detector module has 128 alternating current coupling input channels, where the module dimensions are 97.30 × 97.30 mm² with a 758-μm strip pitch and 96968-μm strip length. The junction coupling capacitor is approximately 1000 pf for each channel at 10 kHz. When reverse voltage required for full depletion is provided,the thickness of the depletion layer is almost nearly the same as the sensor thickness, which is 300 μm. The operating voltage is approximately 60 volts with 10 nA as a typical leakage current. This packaged SSD is installed on the front-end board and is protected by an aluminium shielding box.

Considering the requirements of large readout channels and low noise, we adopted two VA140 application-specific integrated circuits (ASICs) to collect the charge. These are 64-channel charge measurement chips produced by IDEAS [11]. As Fig. 2 shows, each channel has a charge sensitive preamplifier, a shaping circuit, as well as sample and hold circuits. During normal operation, charge signals from all input channels are amplified and held simultaneously. Then, the corresponding values are read out from the chip’s multiplexer, which is controlled by a shift register. For noise cancellation, a differential current output pair (labeled as OUTp and OUTm in Fig. 2) is used. In addition, the VA140 chip also supports calibration measurements by injecting external charges.

Fig. 2.Full-screen View

(Color online) VA140 architecture.

2.2 DAQ board

The DAQ board has the functions of receiving commands from the host computer, digitizing the analogue signal from the front-end board, providing bias voltage, and powering the whole system. This board mainly consists of an analogue-to-digital converter (ADC) circuit, calibration circuit, high-voltage module, field programmable gate array (FPGA), and communication interface, as shown in Fig. 3.

Fig 3.Full-screen View

SSD system block.

This board uses an Intel Cyclone III FPGA clocked with a 20-MHz crystal oscillator. When the system is running and generating charge signals in the strip detector, the signals are amplified, shaped, and held by the VA140 chip. Differential analogue signals are first converted to single-ended signals and then digitalized by a 3 MSPS ADC in the DAQ board. A digital-to-analogue converter with an analogue switch generates step pulses and then injects calibration charges into the front-end board through a 2-pF capacitance. The sensor’s bias voltage is generated by a high-voltage module. Two types of communication interfaces are used in this board: a serial port with a 115200-bps data rate for housekeeping data and a 1.5-Mbps universal serial bus together with a universal asynchronous receiver/transmitter) interface for event data.

Figure 4 is a timing diagram for a single event. Once the system is triggered, FPGA sends a hold signal to the VA140 chip. The delay between the trigger and hold signal is approximately 6.5 μs based on the ASIC shaping time. Two ASICs are daisy-chain connected and the signals from all channels are shifted out sequentially with a 1.5-MHz clock. During 128 clock pulses, a 12-bit ADC is responsible for converting the analogue signal into digital bits. All event data are simultaneously stored in the FPGA temporary memory and sent to the host computer. Typical dead time of this system is 1.9 ms.

Fig. 4.Full-screen View

Single-event readout sequence.

4.1 Linearity and electronic noise performance

We studied the linearity of the detector system using charge calibration and TCT laser irradiation. First, we evaluated all chip channels by injecting different voltage step pulses into the VA140 calibration pin through a 2-pF capacitor, as seen in Fig. 6a. The dynamic range was approximately 200 fC, but the linearity performance worsened when the input charge was greater than 180 fC. The chip became saturated when the input charge exceeded this value. All channels of the two ASICs displayed good linearity, and the average integral nonlinearity (INL) was less than 1.5%.

Fig. 6.Full-screen View

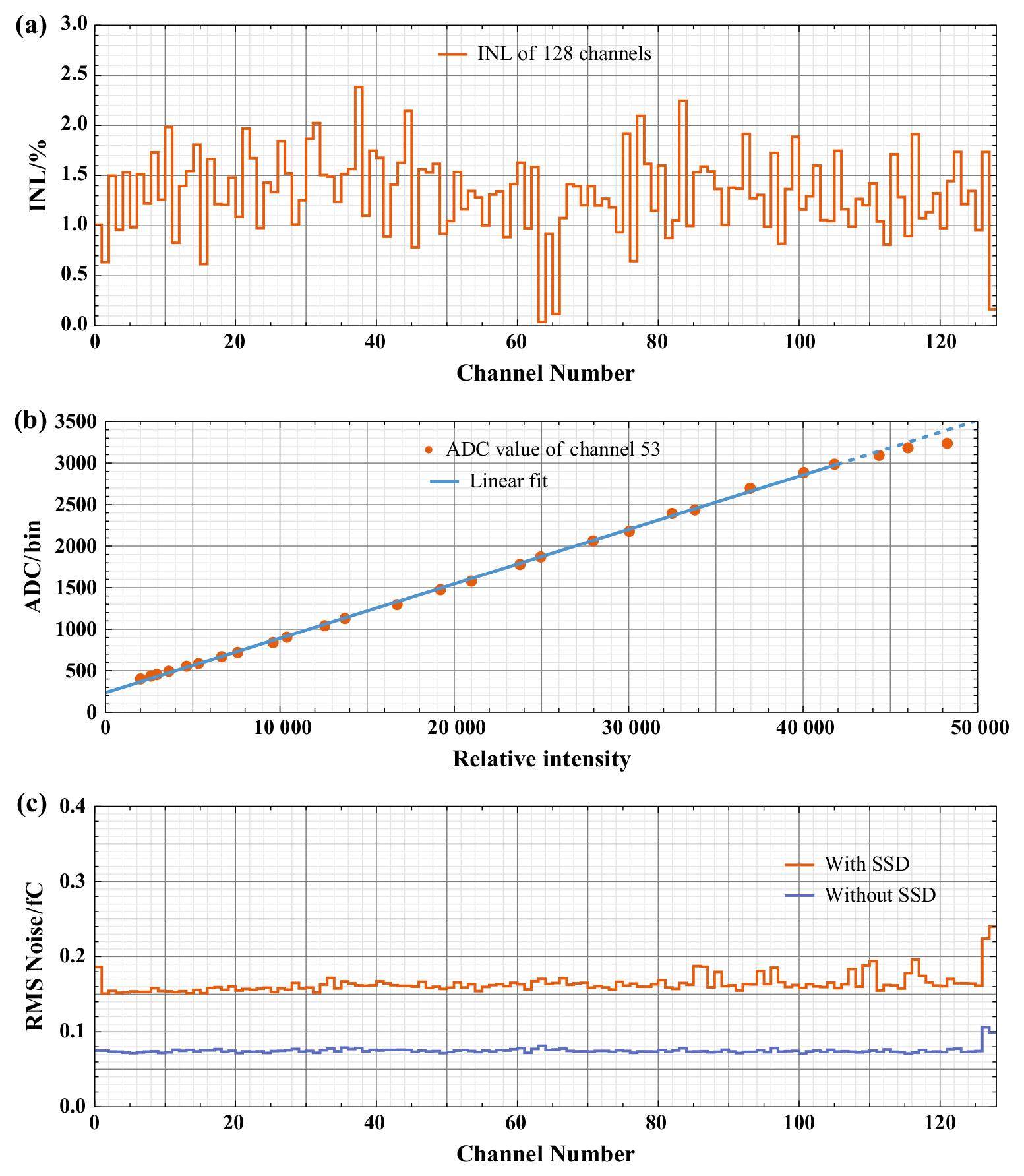

a INL results from chip calibration with input charges from 0 to 200 fC. b Linearity response of the 53th channel when measured with a TCT laser. c RMS noise of all input channels before and after the single SSD was mounted on the DAQ board.

When the system linearity response was measured using a TCT laser beam, we selected one detector strip connected to channel 53 and allowed various laser intensities to be incident on the central area of this channel. The relative intensity of the laser was recorded by a laser module; results are shown in Fig. 6b. When the laser’s relative intensity was less than 42,000, the system showed a good linearity response with the INL of this measurement of better than 1.3%. However, this monitor module was neither aligned nor calibrated, and further testing will be conducted in the near future.

Root mean square (RMS) noise was tested both with and without the single SSD. Figure 6c shows that the average RMS noise was approximately 0.07 fC before the detector was assembled. When the detector was mounted, the equivalent input capacitance increased, and the average RMS noise in turn increased to 0.16 fC.

4.2 Strip scan and charge-sharing test

Traces of particles impacting the SSD can be determined by fired strips. In addition, charge-sharing between neighboring strips may improve spatial resolution. In this study, we used perpendicular laser scanning SSD to study charge distribution. Inside the light-shield box, a focused laser hit the detector strip while the X-Y stage moved in the direction of the sensor strip. This achieved charge signals of 10 μm each along the moving stage path. We scanned all strips, where Fig. 7b shows the results for two neighboring strips.

Fig. 7.Full-screen View

a Left top reign structure of the SSD. Bonding pads are present in the strip center and a bias rail exists on the edge. b Scanning results of two strips, where a zigzag shape can be clearly seen. c η results measured by TCT equipment; the complementary error fitting function is also attached. d η value of hit events between two strips.

Notably, we observed some zigzag results from Fig. 7b when the laser spot moved over the detector. Based on the SSD microstructure (Fig. 7a), each detector strip had eight narrow aluminium strips rather than one whole aluminium strip. When light hit the aluminium strips, a portion of the light was reflected and less energy was deposited in the detector. Therefore, eight local minimum ADC values can be seen in the scanned results.

When the laser spot moved into the gap between two adjacent detector strips, the induced charge signals collected in both strips. With the aid of TCT equipment, the division of charge between the strips could be measured easily. Charge-sharing behavior can be represented by an η function [14]:

where x₀ is the laser spot coordinate measured relative to the left strip’s central location, and Q_L and Q_R are the charges collected by the left and right strips, respectively. In addition, the x₀ coordinate can be normalized as:

Here, s = 758 μm is the strip pitch. When u = 0, this means the laser position is in the center of the left strip, and u = 1 indicates the center of the right strip. Therefore, the η function can be written as:

In this test, photons were absorbed inside the sensor, and charges were deposited locally by the photoelectric effect. For perpendicular laser tracks, the charge was spread mainly by diffusion. The spatial extent of the charge cloud had an order of microns, which was far smaller than the strip pitch.

The η function result as shown in Fig. 7c revealed that when the laser beam was focused on the central area between the two strips (u = 0.5), they shared the charge signals equally. When the laser spot moved to the center of one of the strips (u = 0 at the left strip or u = 1 at the right strip), that strip collected nearly the entire charge. Because of the coupling capacitance between the two adjacent strips, the induced charge could not be collected in one strip even if the laser beam was located at the strip’s center line.

Figure 7d shows that most of the events were located at u = 0 or u = 1, meaning that in the area between the two strips, most charge signals were collected by the strip closest to them rather than shared between the two strips.

The laser position in the pitch central area can be reconstructed by an inverse complementary error function. The relationship between the calculated and original positions is shown in Fig. 8a. In our test, the position resolution of the X-Y moving stage was approximately 1/8 μm, whereas the laser moving step was 10 μm. Therefore, the original laser position can be considered as the true position as compared with the reconstructed position.

Fig. 8.Full-screen View

a Reconstructed laser position vs. the original laser position. b Deviation distribution of the reconstructed laser position.

Figure 8b shows the deviation distribution of the reconstructed position. The laser beam located at the position 930 μm, which is the central point (u = 0.5) between the two strips, generated the best reconstruction results. The further the distance from the point u = 0.5, the larger was the reconstructed deviation. In this reconstruction area, the laser position deviations were less than 0.27 μm, which means the detector response was pretty stable.

Please note that this position resolution was only in a small area (80-μm width) with respect to the strip pitch (758-μm width). When the laser beam location was close to the silicon strip, most charges are collected by a single strip, as shown in Fig. 7d.

4.3 Cosmic ray (MIP) spectrum

Cosmic ray muons interact with the detector mainly as minimum-ionizing particles (MIPs), and the SSD system performance in our study was evaluated by a cosmic ray test. For this, we used a plastic scintillator as a trigger to detect the cosmic ray muons. The size of the scintillator detector was 15 × 12 cm², which is bigger than the SSD module. The setup schematic is shown in Fig. 9.

Fig. 9.Full-screen View

Experimental setup of the cosmic ray spectrum test.

The experiment lasted approximately 9 h, and the system pedestal was recorded every 2 h. High bias voltage and temperature were automatically monitored to ensure system safety. We obtained 258491 trigger events, and the spectrum results are shown in Fig. 10.

Fig. 10.Full-screen View

Cosmic ray (MIP) spectrum fitted with convoluted Landau and Gaussian.

Only one or two strips can be fired by a muon in single event, and in our study, the scintillator detector, which provided trigger signals, was larger than the SSD module. Therefore, most signals were baseline. After pedestal and common-mode noise were subtracted, these data formed a Gaussian distribution with an expectation value of 0 ADC.

One MIP will produce a most probable value of 22,000 e^-h⁺ pairs in a 300-μm-thick silicon detector. This SSD system shows a gain of 14.5 bin/fC as calculated from a linearity test. Therefore, the MIP value collected by this system should ideally be approximately 50 bins (ADC). The MIP peak in this spectrum plot was fitted by convoluted Landau and Gaussian functions, and the most probable parameter of Landau density was located at approximately 44 ADC. According to charge collecting efficiency, this value was reasonable.
