2.1 Problem Description

Neutron scattering influences the neutron radiation field, which can usually be estimated using the shadow cone method. The shadow cone method involves placing a shielding material between the radiation source and the detector. The radiation recorded by the detector comes from the scattering. The shielding material should be thick enough to ensure that the detector will not be affected by the source. However, when the detector and neutron source are relatively close, the energy response of the detector for the scattering neutron spectrum is unknown. In this case, the shadow cone method cannot be used to measure neutron scattering^[6].

To understand the impact of scattering on the neutron radiation field, neutron spectra for different operating space sizes were simulated using MCNP software. The operating space sizes were 4×4×4, 6×6×6, and 8×8×8 m³, respectively. The ideal neutron operating space was infinite. The neutron source was located in the center of the space, with an energy level of 14.1 MeV. The emission direction was isotropic. The number of simulated neutrons was 10⁷. F5 and E5 statistical cards were used in the simulation. The F5 card was a point flux card, which was used to simulate neutron flux at the measurement point. The unit of measure is particles/cm². The E card established energy bin ranges, and the neutron spectrum at the measurement point was obtained from the combination of the F5 and E5 cards. The neutron fluxes in different energy regions were counted as 1 m away from the neutron source. The results are shown in Fig. 1.

Fig.1.Full-screen View

Neutron fluxes for different energy regions under different conditions

Under ideal conditions, the neutron energy in the radiation field was nearly the same as that of the neutron source with no scattering, whereas the neutron scattering became apparent in small operating spaces. Taking an operating space of 6×6×6 m³ as an example, the flux of intermediate and thermal neutrons accounted for 11.3% of the total neutron flux. To improve the monoenergetic property of neutrons, the scattering neutrons in the radiation field should be reduced.

2.2 Design Idea

Neutrons have no charge, and no effective way to change their trajectories exists. Thus, a small-angle monoenergetic neutron source can be obtained only by absorbing surrounding neutrons with the use of a shielding collimator device^[7]. The device has two functions. The first one is collimation^[8], which involves moderating and absorbing neutrons outside the radiation field. Collimation constrains the neutron source within a small angle. The other function is shielding^[9], which reduces the number of scattered neutrons and improves the monoenergetic property of neutrons.

Commonly used neutron shielding materials include boron-containing concrete, lead boron polyethylene, boron-containing stainless steel, and Al–B₄ C alloy materials. However, these materials do not meet the requirements of neutron shielding. Lead boron polyethylene has good radiation shielding properties^[10], but they have poor mechanical performance. Boron-containing stainless steel possesses high strength and good corrosion resistance^[11]. However, boron has low solubility in stainless steel, thereby causing difficulty in the preparation of stainless steel with high boron content. Al–B₄ C alloy possesses good thermal neutron absorption performance^[12] and it can act as a structural material, but it involves a complex preparation process and a high production cost. Thus, shielding requirements cannot be met using only a single material. To absorb neutrons effectively, a multi-layer shielding structure was used in this research^[13].

The interactions of neutrons with matter involve short-range nuclear forces between neutron and atomic nuclei, and specific reaction types include elastic scattering, inelastic scattering, and radiation capture^[14]. Fast neutrons interact with matter first by inelastic scattering, and heavy metal materials are usually selected as shielding materials because they have large [n, n], [n, n’], and [n, 2 n] reaction cross sections, so that they can rapidly moderate fast neutrons to become intermediate neutrons below 1 MeV. The intermediate neutrons interact with matter by elastic scattering, and light materials that contain a high percentage of hydrogen offer a good choice. After being moderated by hydrogen materials, the energies of most intermediate neutrons are reduced to the thermal neutron energy region. The materials should have large thermal neutron reaction cross sections for absorption. During reactions between neutrons and matter, secondary γ rays will be generated, thereby allowing heavy metal materials to be added to the outermost layer to shield γ rays. The overall structure design idea is shown in Fig. 2.

Fig.2.Full-screen View

Design idea for a shielding and collimating structure

3.1 Collimator Structure Simulation

3.1.1 Collimator Aperture

The most common structures for an aperture are the cylindrical extraction structure, multi-tube extraction structure, and cone extraction structure^[15]. These structures increase scattered neutrons outside the radiation field due to edge scattering. A multi-layer, ladder-shaped aperture structure was adopted in this research, and a diagram of the structure is shown in Fig. 3.

Fig.3.Full-screen View

Sketch of the neutron emission aperture

Neutrons can be scattered at the edge of the aperture, which could increase the proportion of scattered neutrons outside the radiation field. The multi-layer shaped aperture forms a step shape according to the material of the collimator. Neutrons scatter at the edge of each ladder thereby greatly reducing the probability of neutrons directly hitting the outermost edge of the aperture and reducing the proportion of scattered neutrons outside the radiation field. The size of the collimator aperture is determined by the thickness of the shielding material and the angle of the neutron radiation field. The diameters of the radiation field under different cone angles are shown in Fig. 4.

Fig.4.Full-screen View

Radiation field diameters at different distances

As shown in Fig. 4, when the neutron emission angle is 3°, the radiation field diameter is 5–20 cm for neutrons 1–4 m away from the neutron source, and the neutron intensity within the radiation field is 50–800 n·cm^-2·s⁻¹ (a 10⁸ s⁻¹ neutron tube is adopted in this paper).

3.1.2 Collimator Thickness

(1) Heavy metal material

Heavy metal materials are used to moderate fast neutrons. The shielding properties of aluminum, iron, stainless steel, and boron carbide-containing aluminum were simulated. The source was a 14.1 MeV isotropic neutron. The fast neutron (E>1 MeV) flux 1 m from the source was counted with the change in the thicknesses of materials. The results are shown in Fig. 5.

Fig.5.Full-screen View

Fast neutron flux with material thickness

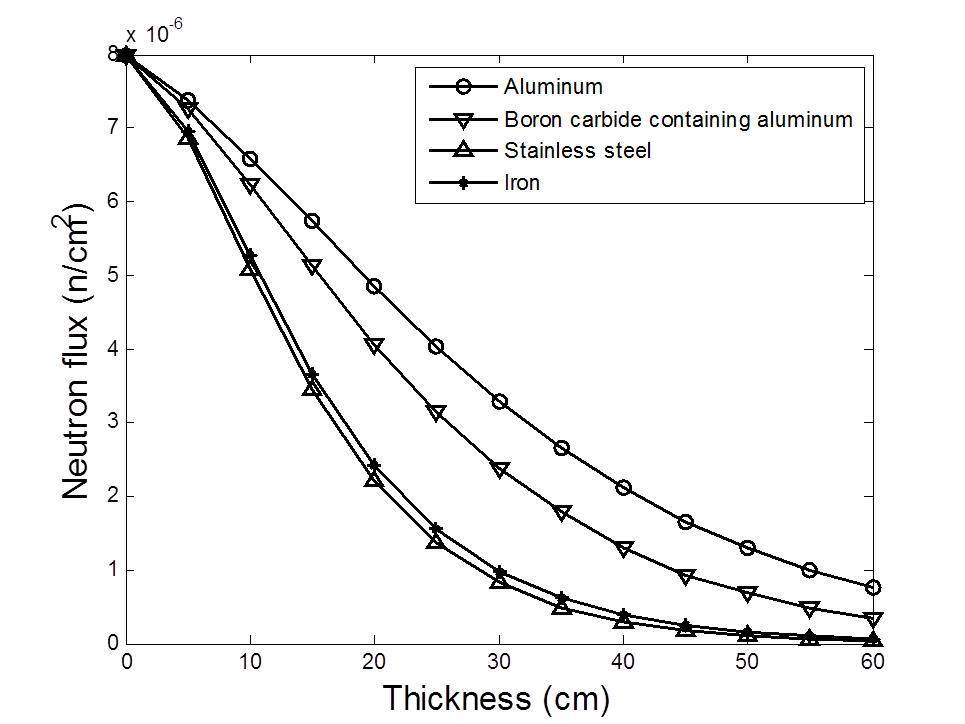

As shown in Fig. 5, iron and stainless steel produced better shielding properties for fast neutrons than aluminum and boron carbide-containing aluminum. Iron is a relatively common shielding material with a high density^[17]. Iron releases more secondary γ rays under 10 MeV upon capturing thermal neutrons. Compared with iron, stainless steel has superior shielding properties for neutrons and γ performance, has a large inelastic scattering cross section, and can more effectively shield fast neutrons than iron. In addition, stainless steel has high structural integrity and a low price. Therefore, stainless steel is used for moderating fast neutrons.

Neutron fluxes in different energy regions for various thicknesses of stainless steel are shown in Fig. 6. The fast neutron flux decreased rapidly with an increase in the thickness of stainless steel; when the thickness of the stainless steel reached 50 cm, the fast neuron flux did not decrease significantly. Therefore, the thickness of the stainless steel was set to 50 cm.

Fig.6.Full-screen View

Neutron fluxes for different energies and stainless steel layer thicknesses

(2) Hydrogen-containing material

After moderation and adsorption by stainless steel, fast neutrons transformed into intermediate and thermal neutrons. Hydrogen-containing materials have large elastic scattering cross sections for intermediate neutrons^[18]. B–10 can be used to absorb thermal neutrons. To simplify the structure and improve the moderating properties on neutrons, hydrogen-containing materials mixed with boron are usually adopted. These materials include borated polyethylene, boric paraffin, and boric acid. Boric acid aqueous solution, which is a simple and cheap protective material, must be placed in large containers made of a protective medium^[19]. The mechanical processing property of boric paraffin is poor. Obtaining uniform boric paraffin is difficult^[20]. Therefore, borated polyethylene is selected for moderating intermediate neutron.

To test the moderating performance of polyethylene, the intermediate neutron that fluxes through different thicknesses of polyethylene was simulated. The neutron source was located in the stainless steel-layer aperture port. The stainless steel layer was a hollow cylinder with an outer diameter of 100 cm, an inner diameter of 1.3 cm, and a thickness of 50 cm. The polyethylene behind the stainless steel layer had the same outer diameter as the stainless steel layer, but its inner diameter was determined by the thickness of the polyethylene. The intermediate neutron fluxes inside and outside the radiation field, which were 1 m away from the source with the change of the thicknesses of polyethylene, were counted. The results are shown in Fig. 7.

Fig.7.Full-screen View

Neutron flux with thickness of polyethylene

As shown in Fig. 7, with an increase in the thickness of polyethylene, the intermediate neutron fluxes inside and outside the radiation field decreased. When the polyethylene thickness reached 20 cm, the intermediate neutron flux remained unchanged. Therefore, the thickness of the polyethylene was set to 20 cm.

To absorb the thermal neutrons, B–10 was added to the polyethylene material. The thermal neutron fluxes with different boron contents are shown in Fig. 8. When the boron content was 6%, the thermal neutrons were basically absorbed. The boron content of polyethylene was set to 6%.

Fig.8.Full-screen View

Thermal neutron flux with boron content

(3) Lead layer

When neutrons interacted with the matter, secondary gamma rays were generated. Lead was used to shield γ rays. The γ ray fluxes inside and outside the radiation field with different ranges of thicknesses were simulated. The neutron source and stainless steel layer had the same settings as those given above (3.1.2[2]). The thickness of borated polyethylene was 20 cm, and its inner diameter was 1.8 cm. The lead layer had the same outer diameter as the stainless steel and polyethylene. The inner diameter was determined by the thickness of lead. The γ ray fluxes 1 m away from the source was counted. The results are shown in Fig. 9.

Fig.9.Full-screen View

γ ray flux with thickness of lead

As shown in Fig. 9, the fluxes inside and outside the radiation field of γ rays decreased with the increase in the thickness of lead. When the lead thickness was 2 cm, the γ ray flux in the radiation field reached a minimum level. When the thickness of lead reached 8 cm, the γ ray flux outside the radiation field did not decrease significantly. The γ rays were lower by two orders of magnitude than the rays with no lead shielding. Therefore, the thickness of the lead was set to 8 cm.

3.1.3 Collimator Radius

Within the limited operating space, neutrons that pass through the collimator scatter on the wall, thus causing the neutrons to scatter in the radiation field. To reduce the interference of scattering, the radius of the neutron collimator was simulated. The neutron source was 14.1 MeV, being 1.5 m from the ground, and placed at the center of the collimation aperture. The front of the shielding was a three-layered collimation structure that was made of 50 cm of stainless steel, 20 cm of borated polyethylene, and 8 cm of lead. The inner diameter of each component measured 1.3, 1.8, and 2.0 cm, respectively. The rear part of the shield material was made of stainless steel, whose thickness was equal to the radius of the collimator. The entire device was placed in an operations room with dimensions of 6×6×6 m³, and the room’s walls were 60 cm-thick concrete structures. The neutron fluxes inside and outside the radiation field were counted. The results are shown in Fig. 10.

Fig.10.Full-screen View

Neutron flux with the collimator radius

As shown in Fig. 10, as the collimator radius increased, the neutron flux decreased. When the radius of the collimator exceeded 30 cm, the neutron flux inside the radiation field changed slightly. When the radius of the collimator reached 35 cm, the neutron flux outside the radiation field was almost unchanged. Therefore, the radius of the collimator was set to 35 cm.

3.2 Capture Cave Structure Simulation

The capture cave was cylindrical, made of stainless steel, and contained a cylindrical air layer. Fig. 11 shows the basic structure of the capture cave.

Fig.11.Full-screen View

Sketch of the capture cave and collimator

The fast neutrons outside the capture cave were simulated. The collimator structure was set according to the simulation results in Section 3.1. The source was located in the cavity of the interface between the capture cave and the collimator, and its energy was 14.1 MeV. The fast neutron flux on the outside surface of the capture cave with the change in the thickness and diameter of the capture cave is shown in Fig. 12.

Fig.12.Full-screen View

Neutron flux with capture cave thickness

As shown in Fig. 12, fast neutron flux decreased with an increase in the thickness of the capture cave. When the thickness of the capture cave reached 25 cm, fast neutron flux outside the capture cave began to change slowly. Therefore, the thickness of the capture cave was set to 25 cm. However, the fluxes of thermal and intermediate neutrons outside the capture cave increased. To absorb the intermediate and thermal neutrons better, borated polyethylene was added to the outer surfaces of the capture cave and collimator. The proportions of intermediate and thermal neutrons in the radiation field with the change of thicknesses of borated polyethylene were simulated. The results are shown in Fig. 13.

Fig.13.Full-screen View

Proportion of intermediate and thermal neutrons with the thickness of borated polyethylene

When the thickness of borated polyethylene increased to 12 cm, the proportion of intermediate and thermal neutrons in the total flux decreased to less than 1%. The thickness of the borated polyethylene outside the capture cave and collimator was set to 12 cm. The schematic and photograph of the shielding collimator device are shown in Fig. 14. A round hole with the same diameter as the neutron tube was opened at the joint between the collimator and the capture cave, and the neutron tube was placed along the hole so that the neutron exit position was at the center where the collimator and capture cave contacted.

Fig.14.Full-screen View

Schematic and photograph of the shielding and collimating device

4.1 Neutron Energy Spectrum Simulation

The shielding collimator device was placed in a 6×6×6 m³ space. D–D and D–T tubes were placed in the device. The neutron spectra 1 m from the radiation field were simulated. The results are shown in Fig. 15.

Fig.15.Full-screen View

Neutron spectra inside the radiation field

As shown in Fig. 15, after shielding and collimating, the energies of the neutrons were monoenergetic, and the dose rates of secondary γ rays 1 m from the radioactive source were 0.75 and 1.01 μGy/h for D–D and D–T tube, respectively.

4.2 Radiation Field Size Simulation

The neutron fluxes 1 m from the neutron source at different sites on a plane vertical to the exit direction were simulated, and the results are shown in Fig. 16.

Fig.16.Full-screen View

(Color online) Examples of neutron fluxes represented in three dimensions

As shown in Fig. 16, the neutron source beam was limited within the range of 3°, and the neutron flux outside the radiation field was lower by two orders of magnitude than that within the radiation field 1 m away from the source.

The simulation results showed that the shielding collimator device achieved the design goal.

4.3 Dose Rate Measurement

To test the shielding and collimating characteristics of the device, the neutron dose rates inside and outside the radiation field 2 m away from the source were measured in an experiment. The neutron source was the D–T tube, and the intensity of the source was 10⁸. The detector used was a high-sensitivity regional neutron monitor produced by the Institute of High Energy Physics.

The background dose rate of the laboratory was 0.022 ± 0.018 μSv/h. The neutron dose rate inside the radiation field 2 m from the source was 1.75 ± 0.02 mSv/h, and the neutron dose rate outside the radiation field 2 m from the source was 18.56 ± 0.27 μSv/h. The simulation results of dose rates inside and outside the radiation field were 1.92 and 14.82 μSv/h, which were 9.7% and 20.1% of the errors with the experimental results, respectively. The simulation results were in the same order of magnitude as the experimental results, and the errors may be the effect of the scattering of the supporting frame of the device. The dose rate value inside the radiation field was higher by two orders of magnitude than that outside the radiation field. The results illustrated the rationality of the structure of the device.
